In today's pursuit of personalization and visual impact, bronzing remains a core technique for enhancing product appeal, transferring metallic foils onto surfaces to create a luxurious metallic effect. However, traditional bronzing has faced limitations such as complex plate-making, inflexibility, and high costs, making it difficult to meet the needs of small to medium batch creative designs.
With the advent of digital inkjet technology, AIN has brought bronzing into the digital era with its innovative UV DTF inkjet bronzing solution. This solution combines UV curing technology with foil transfer techniques, offering a streamlined process of "high-precision UV printing → precise foil attachment → integrated curing." This innovation not only overcomes the pain points of traditional bronzing but also significantly improves efficiency and precision through its unified "printing, bronzing, and curing" workflow, thus redefining the industry standards for metal decoration.
Traditional bronzing transfers metallized foil to a substrate using heat and pressure with a pre-made metal die. While effective, it's complex and suitable only for large-scale, fixed pattern production.
AIN inkjet bronzing, on the other hand, is a new digital process that requires no dies or heat. The workflow includes:
Design and Pre-press: Finalize the design on a computer and use RIP software for color separation, white underbase, and bronzing effects.
Digital Printing: Print the design on special transfer film (Magic Film) with UV gold ink, CMYK colors, white ink, and varnish. UV LED lights instantly cure the inks.
Automatic Laminating: Apply adhesive film (A-Film) over the printed design, creating the "crystal label" effect.
Cutting and Weeding: Cut out patterns and separate the backing layer (Magic Film-B) from the adhesive top layer (Magic Film-A).
Application and Transfer: Align the top layer (A-Film) on the target surface, applying pressure to ensure adhesion and remove air bubbles.
Peeling and Completion: Peel off the top film (A-Film) to reveal the bronzed pattern permanently transferred to the product.
This digital workflow simplifies a traditionally complex process into a straightforward "cold transfer" like applying a high-quality sticker.
Aspect | Traditional Bronzing | AIN Inkjet Bronzing |
Plate & Cost | Requires physical plates, long lead times, high cost, difficult modifications | No plates needed, direct digital output, zero plate cost, drastically reduces cost for small batches |
MOQ & Flexibility | Suitable for large batches, uneconomical for small orders | Print from a single piece, ideal for small batches, sampling, and variable data printing |
Material & Shape Limits | Poor adaptability to curves, irregular shapes, and fragile materials | Breaks shape constraints, transfers perfectly onto various materials (plastic, glass, metal, ceramic, leather, etc.) and complex surfaces |
Process Integration | Mostly a separate, standalone process relying on skilled operators | Highly integrated functionality, one machine simultaneously prints color, white, varnish, and bronzing effects |
Effect Diversity | Primarily gold, silver, and similar metallic colors | Can combine full-color patterns, 3D relief varnish, matte finishes, enabling multi-color bronzing and 3D textured bronzing |
 |  |  |
Packaging & Labels: Utilizing UV bronzing technology, which offers high precision, excellent adaptability, and remarkable flexibility, we elevate the luxury and recognizability of high-end gift boxes, wine labels, cosmetics, and food packaging, driving product value.
Electronics Decoration: The UV bronzing process is also ideal for electronic products such as phone cases, TWS earphone charging cases, and power banks. It provides a durable, metallic finish that balances both aesthetics and functionality.
Advertising & Display: Whether for posters, POP displays, or automotive decals, our technology enhances visual appeal and messaging impact. The UV resistance combined with bronzing delivers exceptional durability and a powerful effect that enhances the overall communication.
Fashion & Cultural Products: From leather notebooks and wallets to branded souvenirs, the use of fine bronzing elevates the design and creates a high-end, sophisticated touch that reflects cultural and fashion trends.
Home Goods & Building Materials: The technology is applied to ceramic tableware, glassware, wooden photo frames, metal signs, and tiles, adding an elegant atmosphere to home decor and enhancing the overall aesthetic appeal of living spaces.
AIN's bronzing printing solutions combine innovative UV DTF and UV printing technologies to provide efficient, precise, and versatile bronzing printing services across various industries. By integrating bronzing with high-precision UV printing, our solutions break through the limitations of traditional bronzing, offering visually striking and textured print effects to meet diverse creative needs.

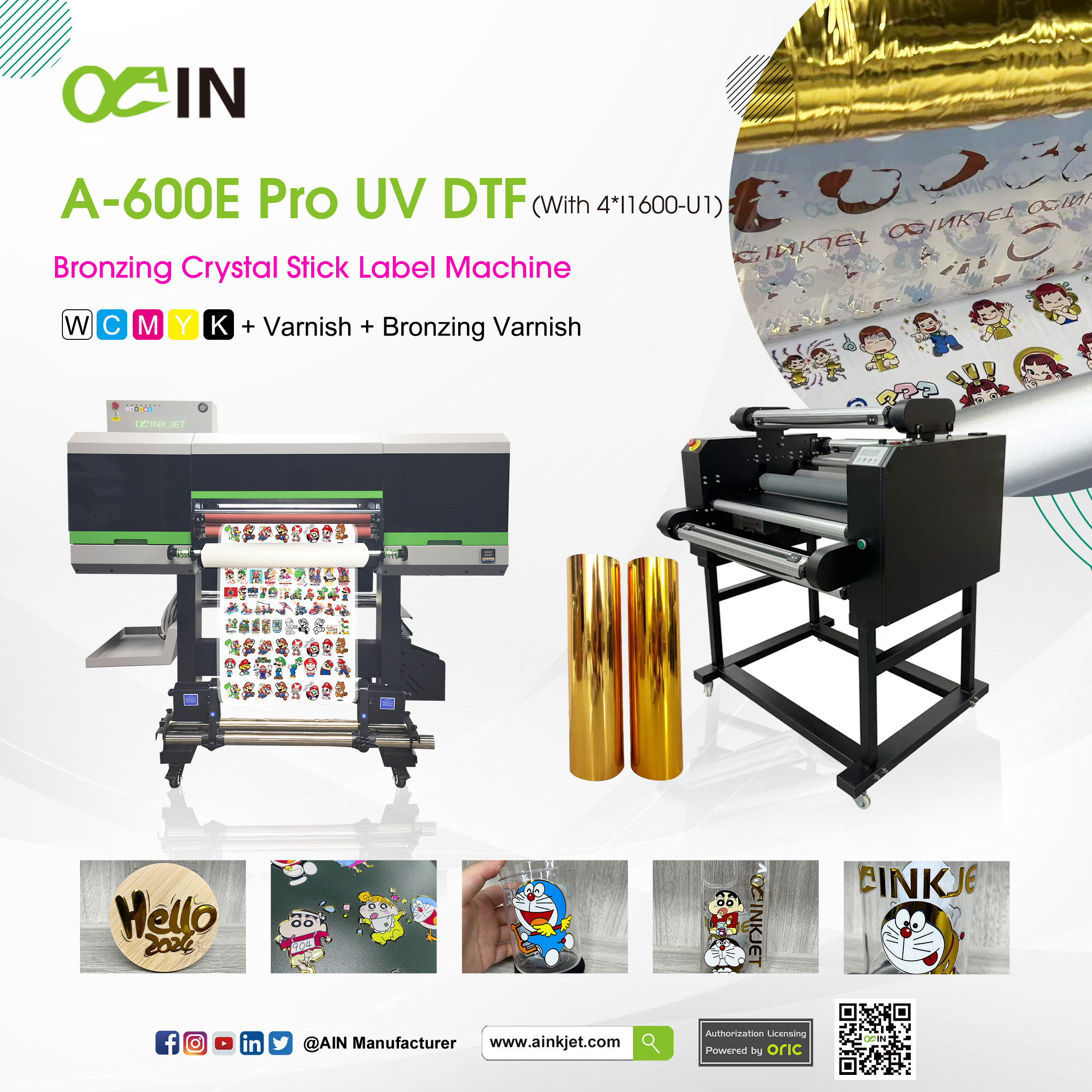

The A-600E Pro UV DTF Bronzing Crystal Stick Label Machine features strong process integration, combining UV direct transfer printing, bronzing, and crystal-like coatings. This allows for rich color printing, metallic bronzing effects, and a 3D crystal gloss on labels. Whether for high-precision printing or metallic bronzing, it adds depth and premium quality to your labels. This product is particularly suitable for irregular shapes and various materials, enhancing production efficiency and durability.

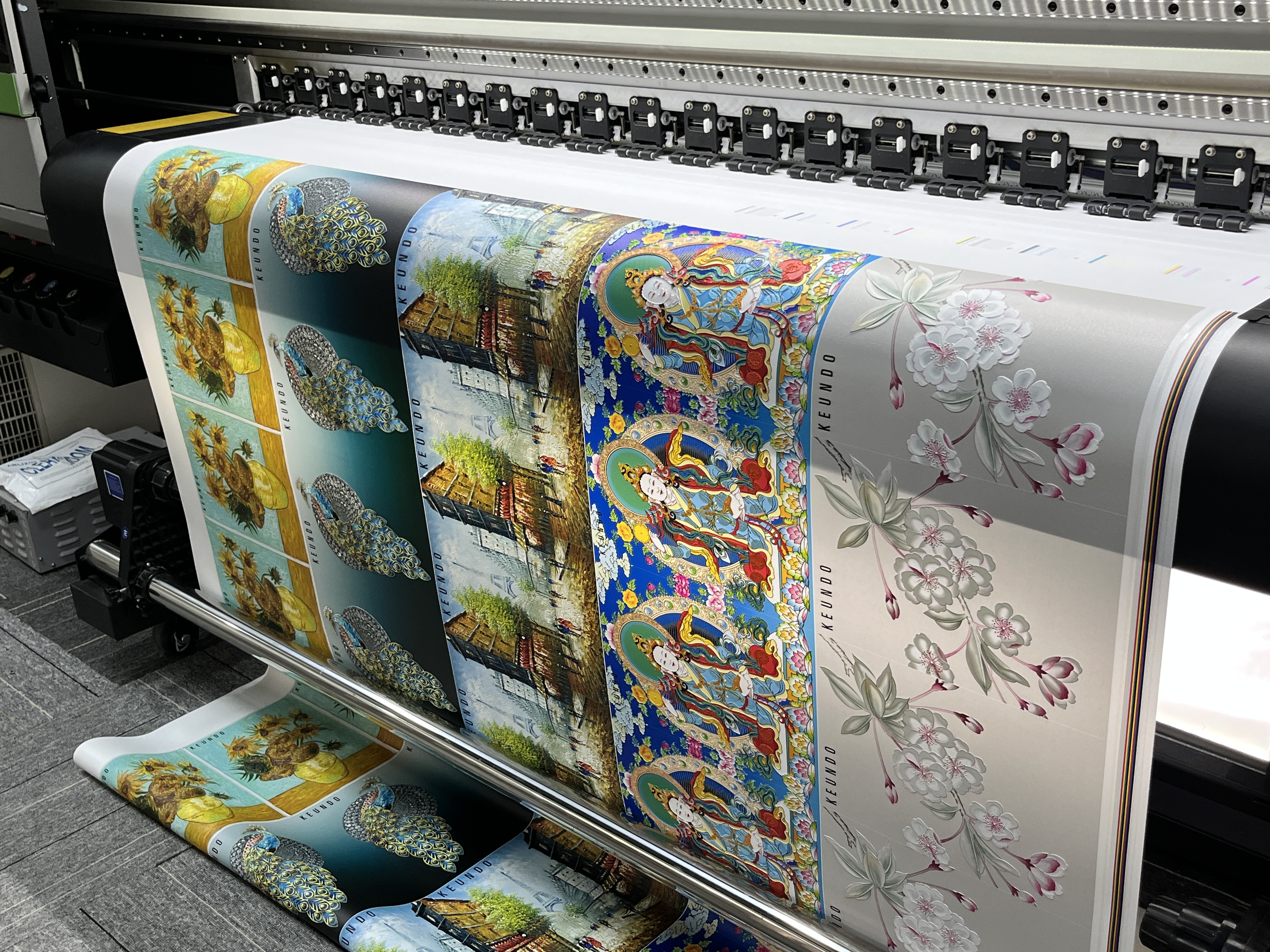

This advanced UV roll-to-roll printer offers a 1.9-meter printing width and supports multi-layer effects like color, white ink, matte, hollow, and bronzing finishes. With four Epson I3200-U1 print heads and a minimum ink droplet size of 3.5pl, it ensures high precision. Versatile ink combinations, including CMYK + W + CMYK, CMYK + W + CMYK + BV (Bronzing), and CMYK + W + CMYK + BV + MV (Matte Varnish), are ideal for intricate textures and visual effects. UV LED technology allows for fast curing and reduced energy consumption, while additional features like waste ink tank alarms and intelligent printing enhance efficiency. Suitable for various roll materials, this printer provides a powerful solution for businesses seeking high-quality printing.
The AJ-1604UV integrates white ink, matte, hollowed, and bronzing functions, making it ideal for continuous printing on materials like leather and lightbox fabric. It can achieve various creative needs, giving products more texture and visual depth. This device is widely used in advertising, decoration, and high-end packaging, enhancing the tactile and visual appeal of printed products.
The AJ-9060X4 AI Visual Positioning Digital Inkjet UV Flatbed Printer, with a 90cm printing width and high-speed printing, meets large-scale production needs. Equipped with AI visual positioning technology, it eliminates manual alignment, saving time and increasing efficiency. It supports printing on a wide range of materials and objects, whether flat or with certain heights, and can create 3D effects with bronzing, making each print full of artistic and dimensional qualities. The machine is widely applied in signage, packaging, and decoration fields.
AIN's bronzing printing solutions provide highly competitive printing options with high precision, versatility, and efficiency. Whether for label production, advertising displays, or high-end packaging, AIN's solutions offer outstanding printing effects that elevate your brand's value.
AIN's inkjet bronzing technology represents a groundbreaking shift in production methodology. By eliminating traditional plate-making, it offers a flexible, high-precision solution that overcomes the limitations of conventional bronzing. Its core features—“no plate-making, full-material compatibility, and high precision”—not only address the pain points of traditional processes but also extend the application scope from high-end packaging and creative advertising to cultural gifts and industrial components, opening up new value spaces across various industries.
With the continuous advancement of UV printing technology and the innovation of bronzing foil materials, AIN’s inkjet bronzing technology will further enhance color richness, process integration, and smart capabilities. It makes once-expensive and high-threshold bronzing accessible, affordable, and agile. By choosing AIN, you are investing in a versatile, efficient digital production solution that empowers manufacturers, designers, and entrepreneurs to unlock new levels of value and differentiation.
