Printer Informations
| UV Integrated Printer White / Matte / Hollowed / Bronzing Special Variety of print modes Supports 3 - 5 layer printing with rich combinations. Achieves color layering, brightening, special textures, enhancing visual and tactile effects, raising product quality. Stable and Efficient Performance Equipped with functions and configurations such as water-cooled drying, automatic moisturizing and cleaning, and silent guide rails, providing a guarantee for the printing process and ensuring efficient and stable printing. Distinctive Functional Features offers special printing functions like white, matte, hollowing and bronzing. With multi -layer printing, it creates hierarchical, 3D like and textured printed products to meet diverse creative needs.
Broad ApplicationsApplies to glass stickers, PVC boxes, posters, etc. Suitable for both common and high end printing, e.g., decorative stickers and luxury packaging. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |
Multilaye layers printing the output is more delicate ds 2/3pcs I3200 Print heads 2/3pcs I3200 Print heads
| |

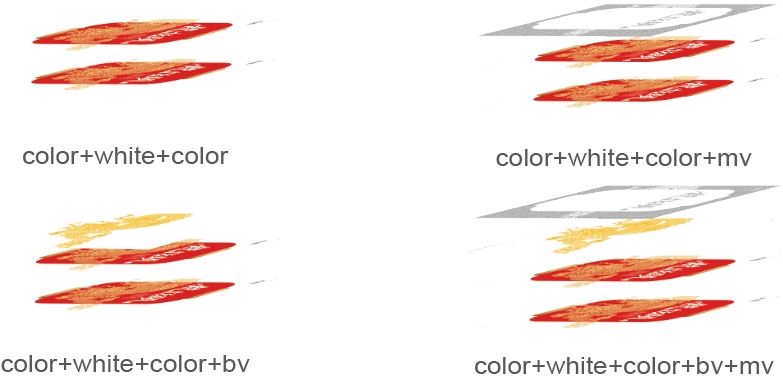

AJ-1604UV diferent color pattern collocation application scheme, to meet theneeds of different customers, color white color three layer super transparent glass paste usingenvironmental protection materials, green environmental protection; The collocation ofmulti-layer colors presents different display effects before and after lighting, Color+ White+ Color + Matte Varnish + Hot Stamping Varnish, Perfect print output put.Applied to various types of glass decorative stickers and personalized packagingmaterial printing, one-time printing, convenient and efficient. |
|

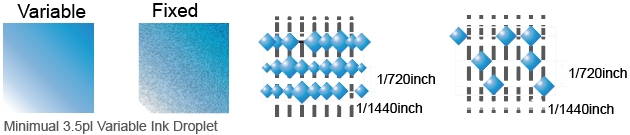

4 ESOPN I3200-U1 HEADS With Epson Authorized 4*13200-U1 heads , minimual3.5pl variable ink droplet UV printer.
|  3-5 layers Printing technology heads 200 Print heads 2/3pcs I3200 Print heads |
Printer Heads
Technical Specifications

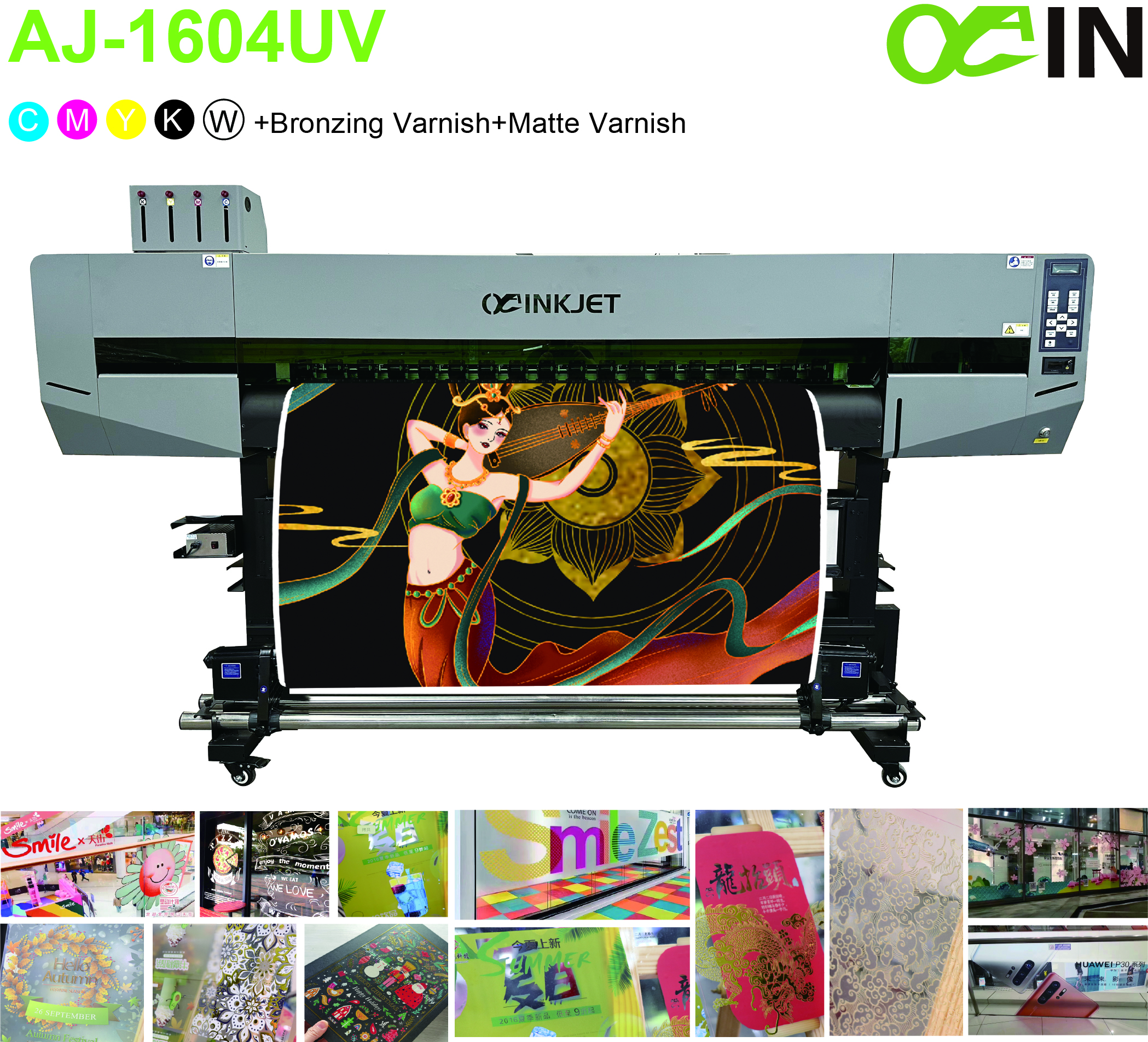

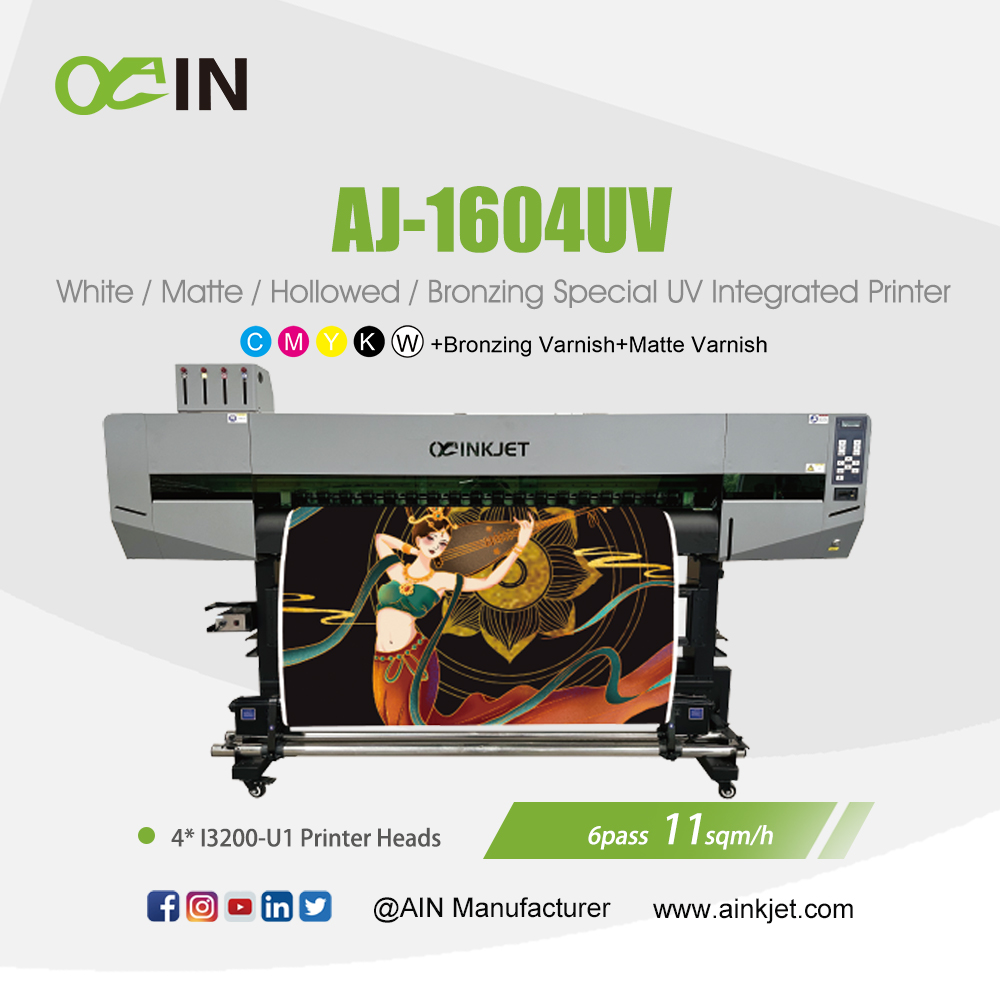

| AJ-1604UV White / Matte / Hollowed / Bronzing Special UV Integrated Printer | ||
| Model | AJ-1604UV | |
| Print Head | 4*I3200-U1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 64 in.(1620 mm) |
| Thickness | 59 mil(1.5 mm) | |
| Weight | 132 lb.(60 kg) | |
| Printing Width | 63 in.(1600 mm) | |
| Ink Cartridges | Type | UV Ink |
| Capacity | Continual Ink Supply System ( 1.5L ink tank ) | |
| Color | CMYK + W + CMYK CMYK + W + CMYK + BV CMYK + W + CMYK + BV + MV | |
| Printing Resolution | Maximum 2400 dpi | |
| Interface | USB 2.0 | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| RIP | Onyx / Photoprint | |
| Dimensions(with stand) | 102(W)x27(D)x62(H)in. | |
| (2600(W)x680(D)x1580(H)mm) | ||
| Weight(with stand) | 705 lb.(320 kg) | |
| Package Dimensions | 110(W)x30(D)x35(H)in. (2800(W)x750(D)x880(H)mm) | |
Package Weigh | 750 lb.(340 kg) | |
| Environment | Power on | 59°F to 90 °F [15℃ to 32℃](68 °F[20 ℃]/ Humidity: 35 to 80% (no condensation) |
| Power off | 41°F to 104°F [5℃ to 40℃]/Humidity: 20 to 80% (no condensation) | |
| Accessories | USB cable, media clamp, manual, drain bottle, ink cartridges, RlP software, etc. | |
Features
 | Installs a LED light panel.it helps our customer to checkthe front-lit or back-lit printquality before the order finish. | | Water Cooling drying technology. |
 | The automatic moisturizing and cleaning system notonly protects the print head.but also ensures the smoothness of the ink-flow. | | 1.5L bulky ink bottle with lackof ink alarm system represents the advanced concept of industrial application. |
| High quality servo motor with good stability and long life. | | Dual THK high-precision mute rail. |
| External power supply,intelligent rolling system. |  | The pinch roller uses 3 in one type and each pinch roller keeps in a tight and closer distance, it helps the media feeding more smoothly and reduces wrinkle issues. |
Application
Applications of White / Matte / Hollowed / Bronzing
Special UV Integrated Printer
Wide applications in Glass stickers, PVC qift box packaging, light box posters, customized car stickers,background wall cloth, gold paper and silver paper printing,leather printing, high-end gift boxprinting, foodpanel& switch printing etc.
