Printer Informations
|
Roll to Roll Printer 1.9m Economical Featured printing technology dual layer printing technology converts colors, white ink base material is used for color printing, and two-layer CMYK enhances the color expression of special materials. Wide adaptability Supports continuous printing of leather, lightbox fabric and other rolls, covering industries such as advertising, decoration, packaging, etc., and is compatible with various printing methods such as gold and silver paper and labels..

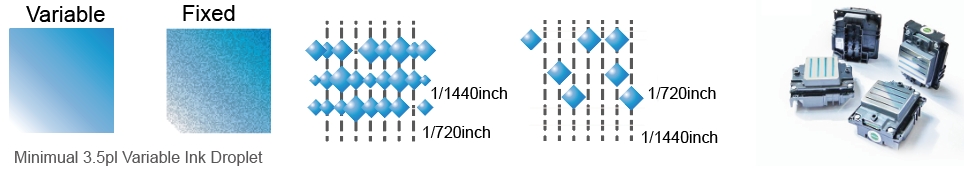

Flexible printing configuration Adopting dual Epson i3200-U1 and i1600-U1 nozzle arrays, with variable and fixed ink droplets, with a minimum of 3.5pl, and different nozzle spacing specifications
Upgrade stability Brand new 1.9-meter frame, wide printing format, stable output, additional flash spray slots, balancing speed and accuracy. Newly added waste ink alarm and new air standard, suitable for intelligent printing of various types of rolls
|
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |

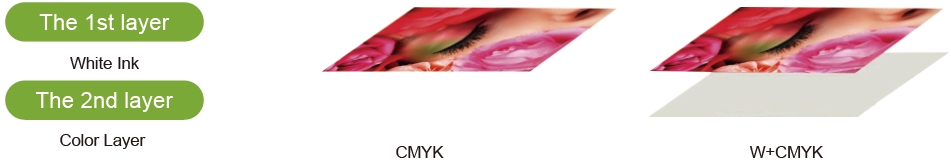

Two-layer printing technology for color conversion d
-Optional computer bracket and host bracket to make rational use of space resources. -New magnetic protection cover can prevent encoder strip and extend the service life of the encoder strip. -Upgraded LCD control panel, more intelligent equipment operation. -Brand new 1.9 upgraded frame, wider printing format, more exquisite craftsmanship, more stable print out. | |
Two Epson I1600-U1 head array (I3200 heads Optional)
|
Printer Heads
Technical Specifications

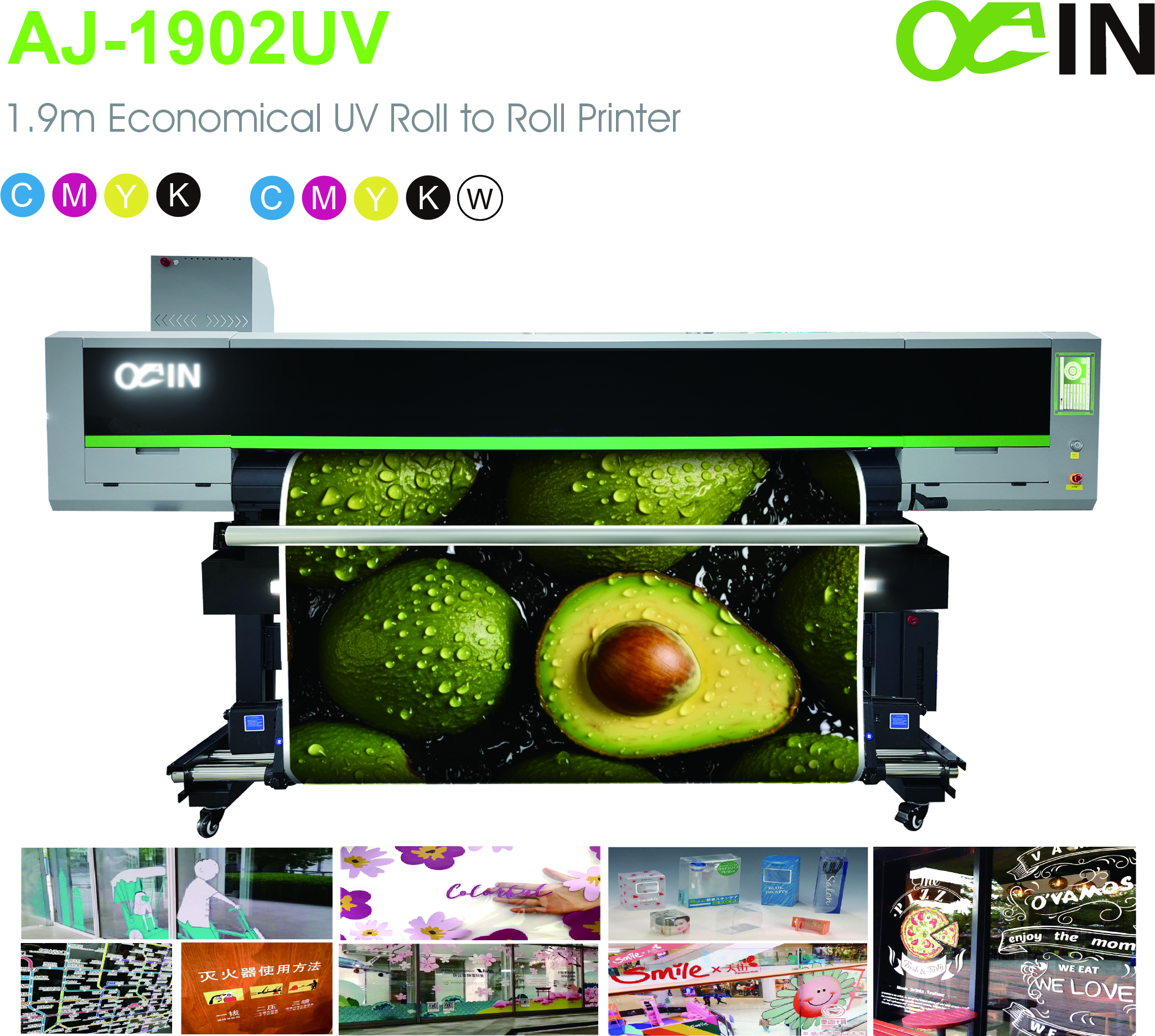

| AJ-1902UV 1.9m Economical UV Roll to Roll Printer | ||
| Model | AJ-1902UV | |
| Print Head | Double 11600-U1 Print Heads (i3200-U1 Optional) | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 75.5 in.(1920 mm) |
| Thickness | Maximum 59 mil(1.5 mm) | |
| Weight | 176 lb.(80 kg) | |
| Printing Width | 74.8 in.(1900 mm) | |
| Ink Cartridges | Type | UV Ink |
| Capacity | Bulk ink supply system with 500ml ink tank | |
| Color | CMYK / W+CMYK | |
| Printing Resolution | Maximum 2400 dpi | |
Speed | CMYK | 6pass(720*900dpi)21 m²/h |
| W+CMYK | 6pass(720*900dpi)11 m²/h | |
| Curing Unit | Water-cooling UV lamp | |
| Interface | Ethernet | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 3130*1680*930(mm) | |
| Weight(with stand) | 750 Ib.(340 kg) | |
| Packing Size | 3950*850*1100(mm) | |
| Packing Weight | 969lb.(439.5 kg) | |
| Environment | Power on | Temperature: 59°F to 90°F [15℃ to 32 C]/ Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41°F to 104 °F [5℃ to 40℃]/Humidity: 20 to 80% (no condensation) | |
Features

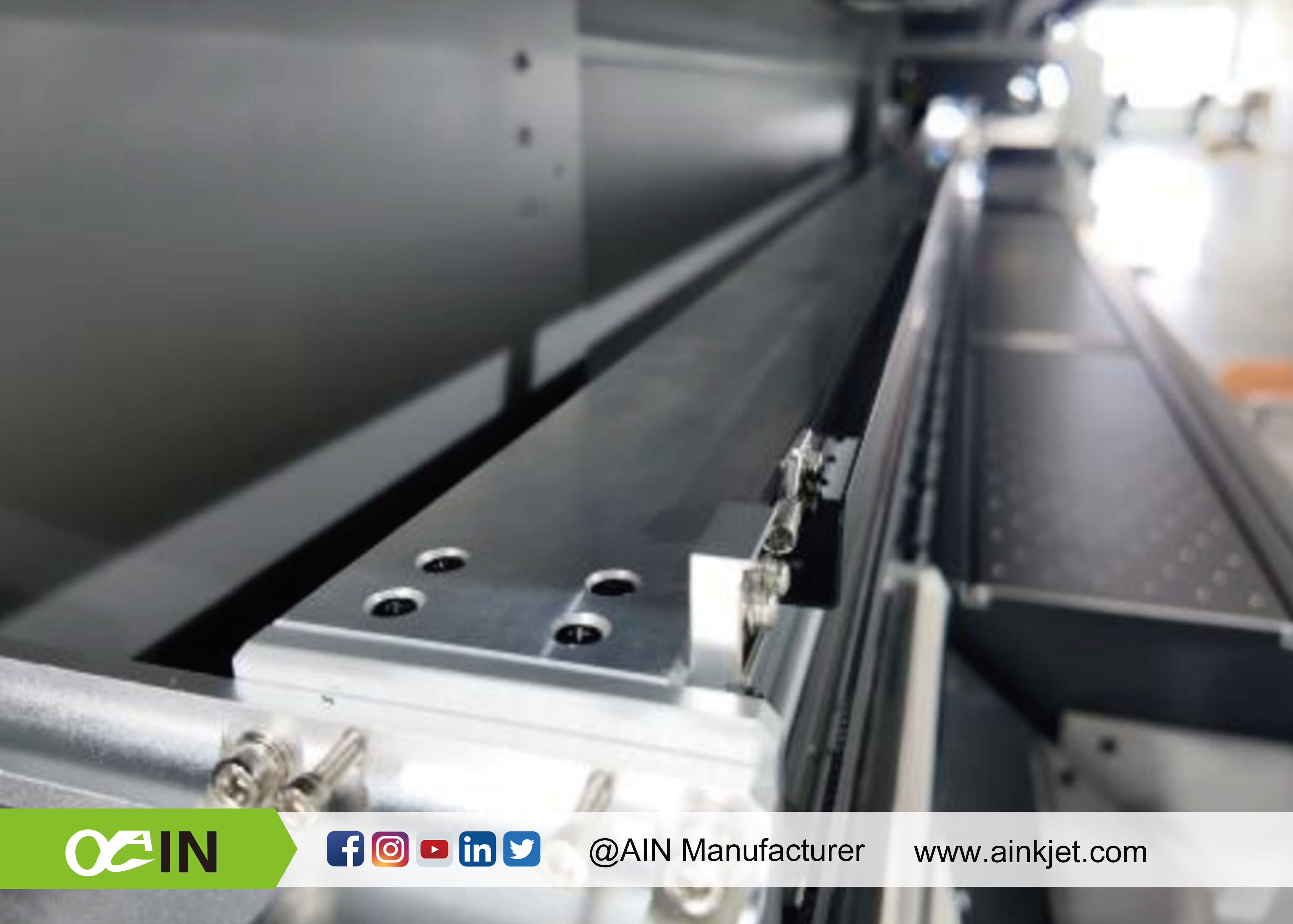

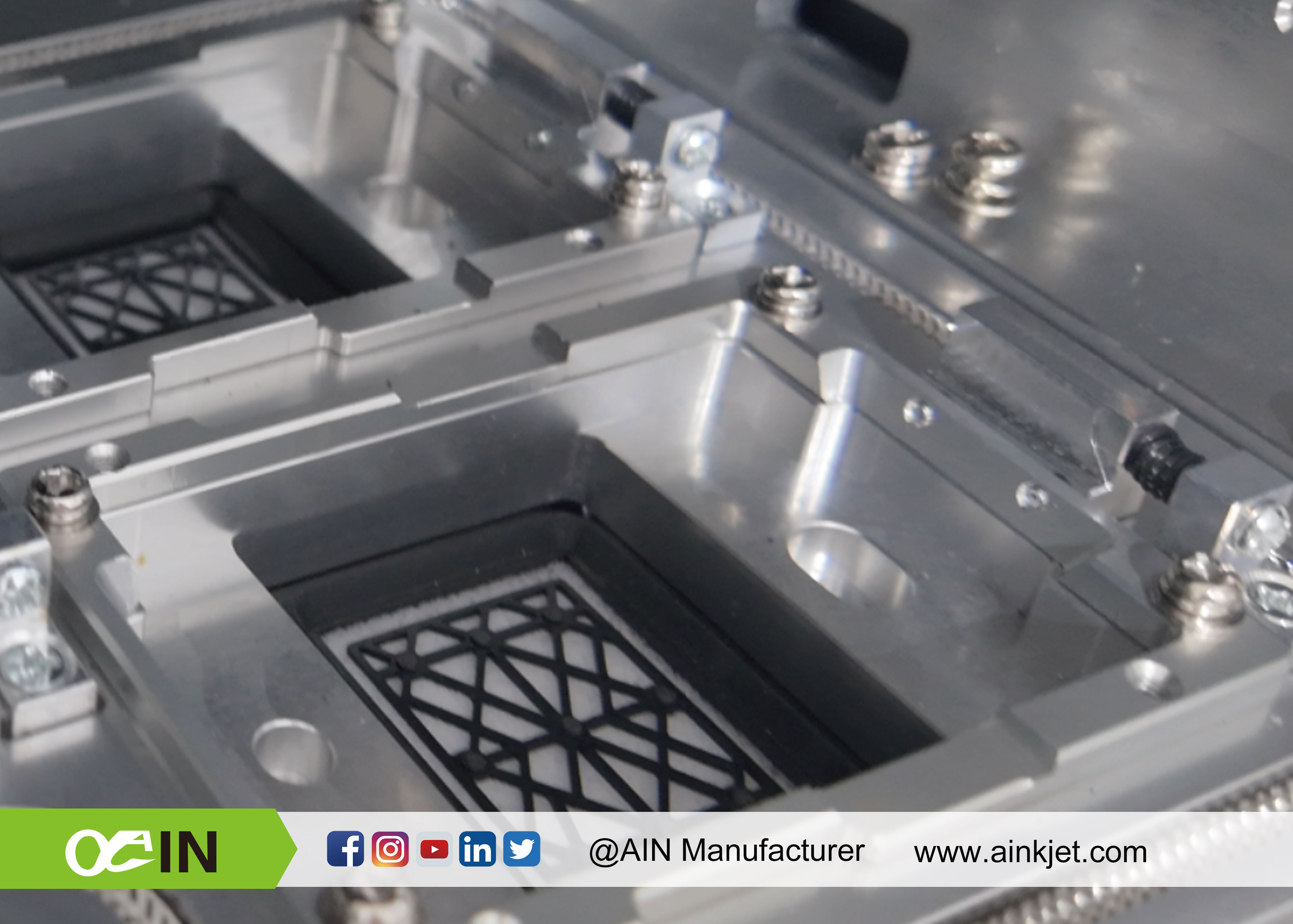

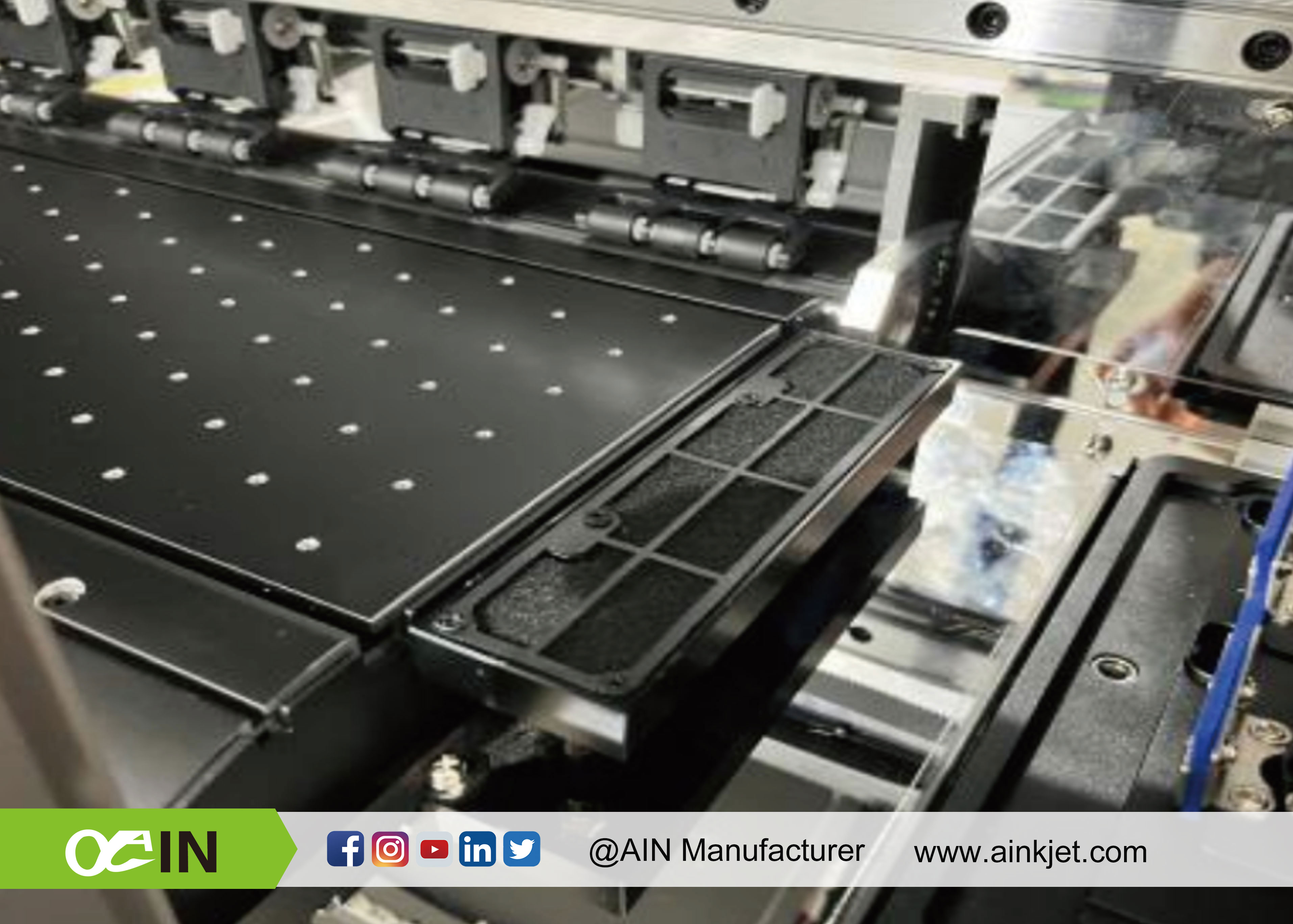

 | The aluminum profile main beam is used to replace the original steel structure, providing better mechanical strength and mechanical precision. |  | Added flash spray slot structure to better improve printing speed and accuracy. |

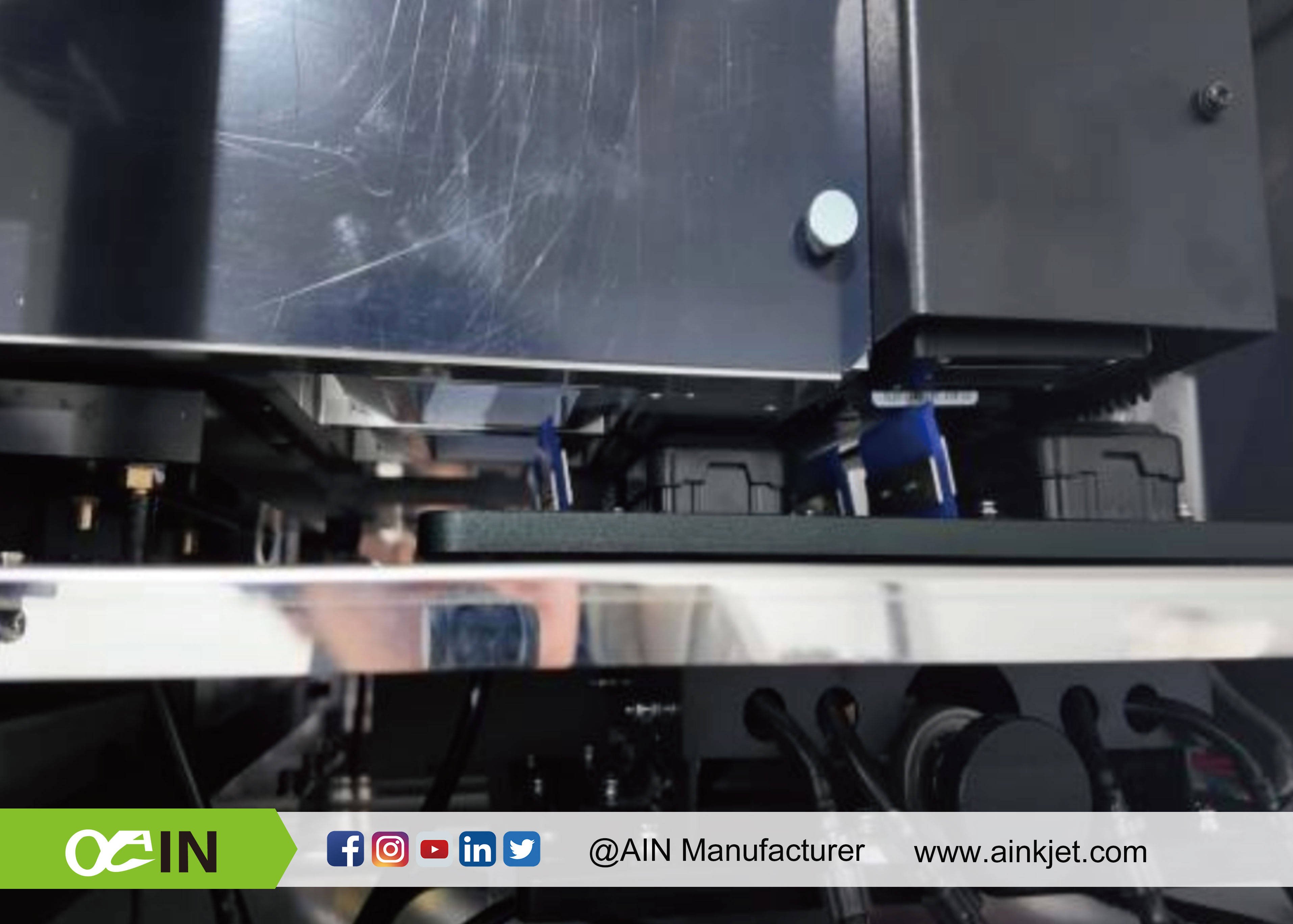

 | X, Y axis motion transmission structure upgraded to provide more stable movement to ensure printing quality. | | The printheads base is embedded in the structure, so the heads does not protrude from the bottom plate of the trolley, which better protects the print heads . |

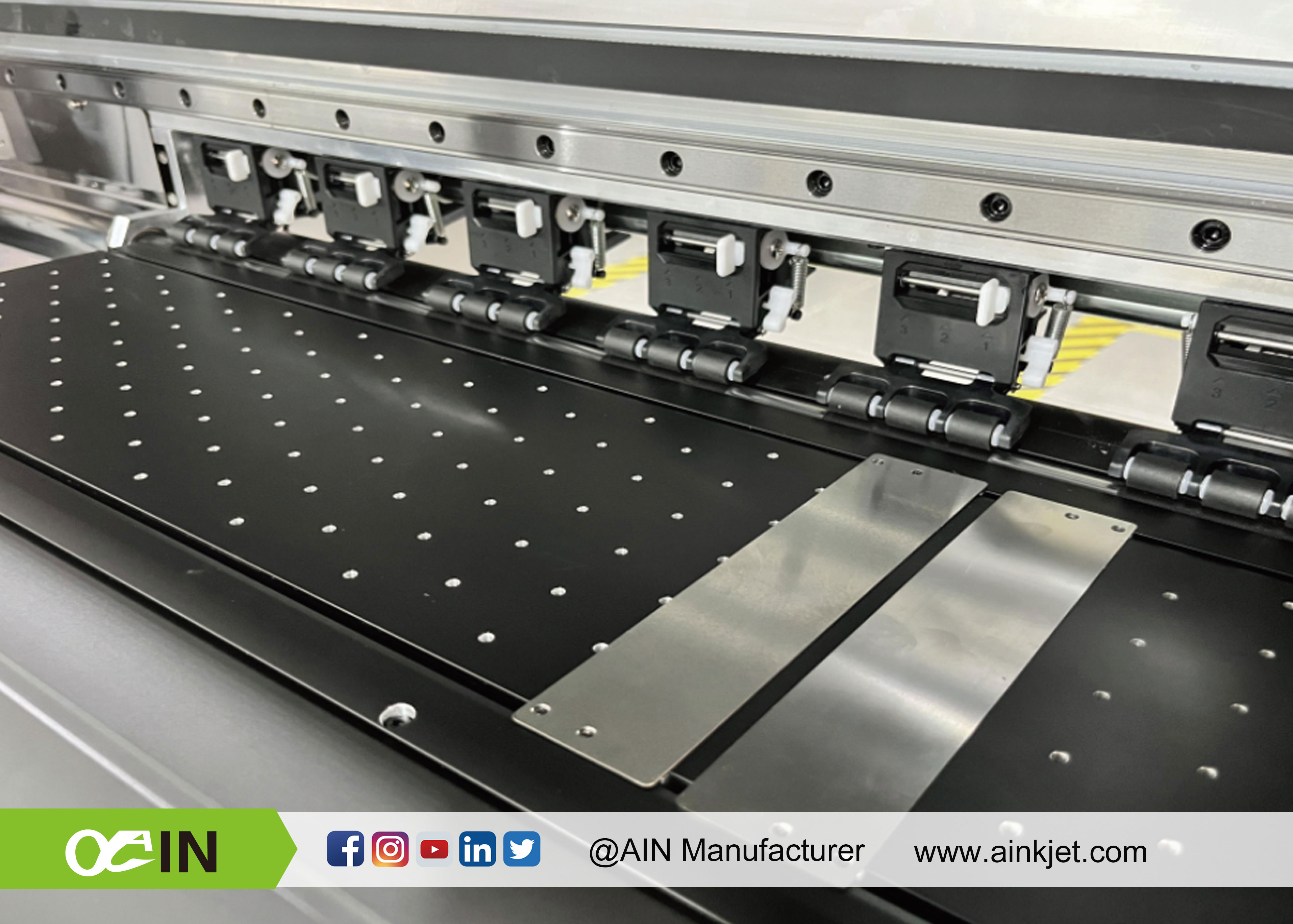

 | The printing platform is widened to ensure that the printing area is between the paper pressing slots to provide a stable printing effect. | | Added a waste ink barrel alarm system for a more user-friendly experience. |

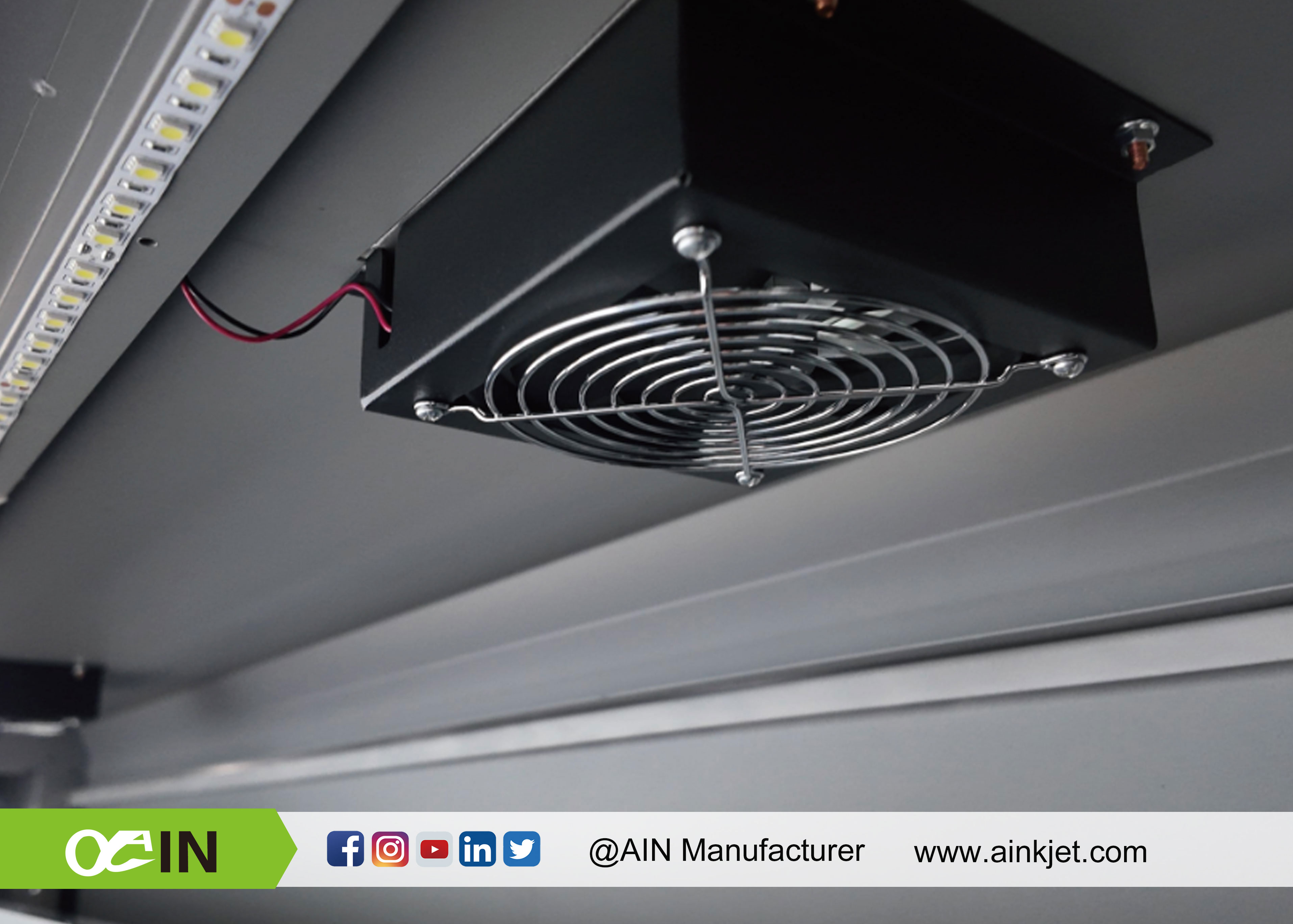

 | Standard fresh air system to reduce dust in the printing chamber and ink mist caused by inkjet. |  | The trolley lifting structure is upgraded, and the height of the trolley bottom plate does not need to be re-verified to adjust the height consistency of the left and right front and back. |
Application
Applications of Economical UV roll to roll printer
Wide applications in light box posters, car stickers, advertising hoardings, golden and silver paper, leather printing, high-end gift boxes, food packaging, labels, operation panel and switch printing, etc.
