Printer Informations

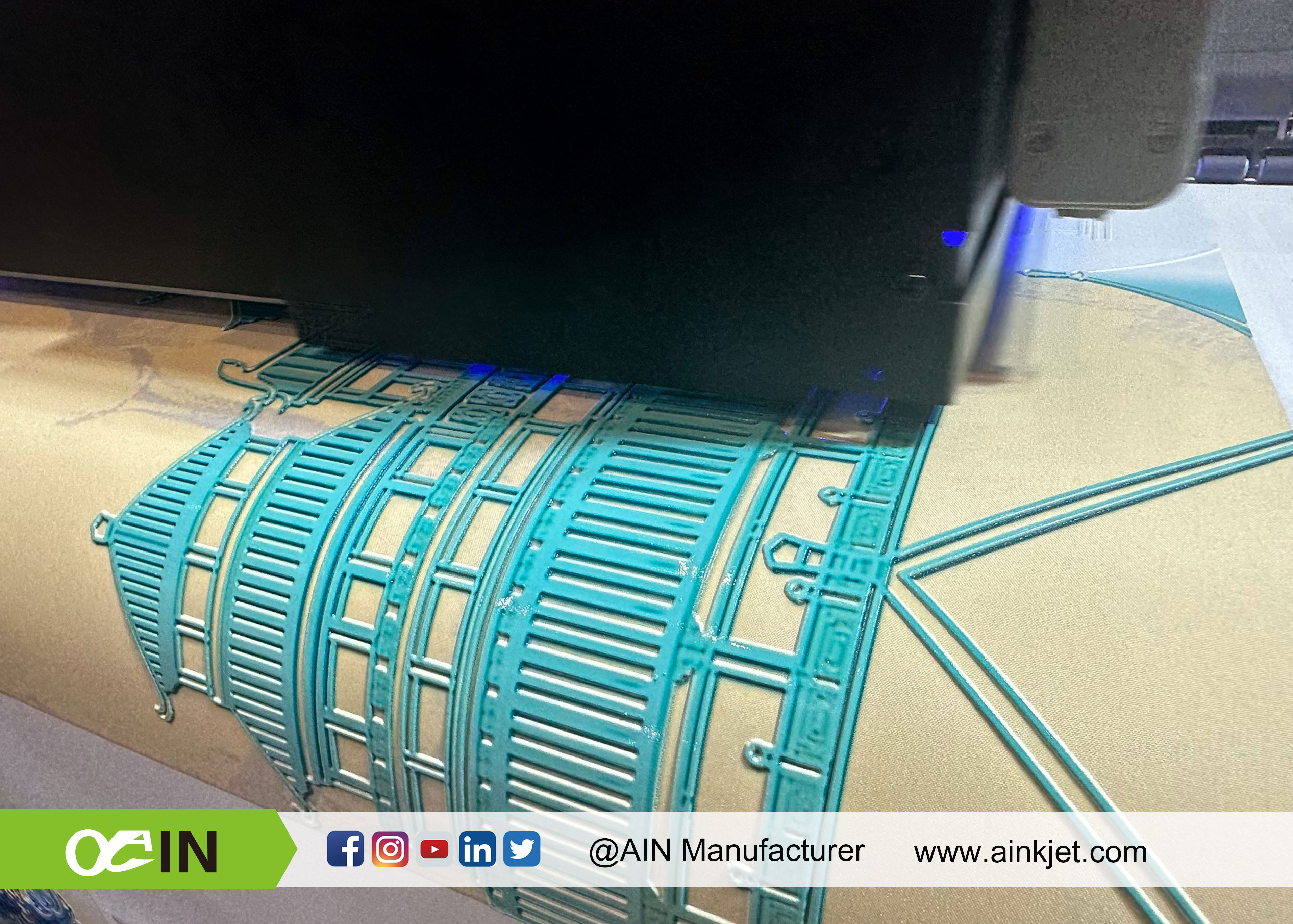

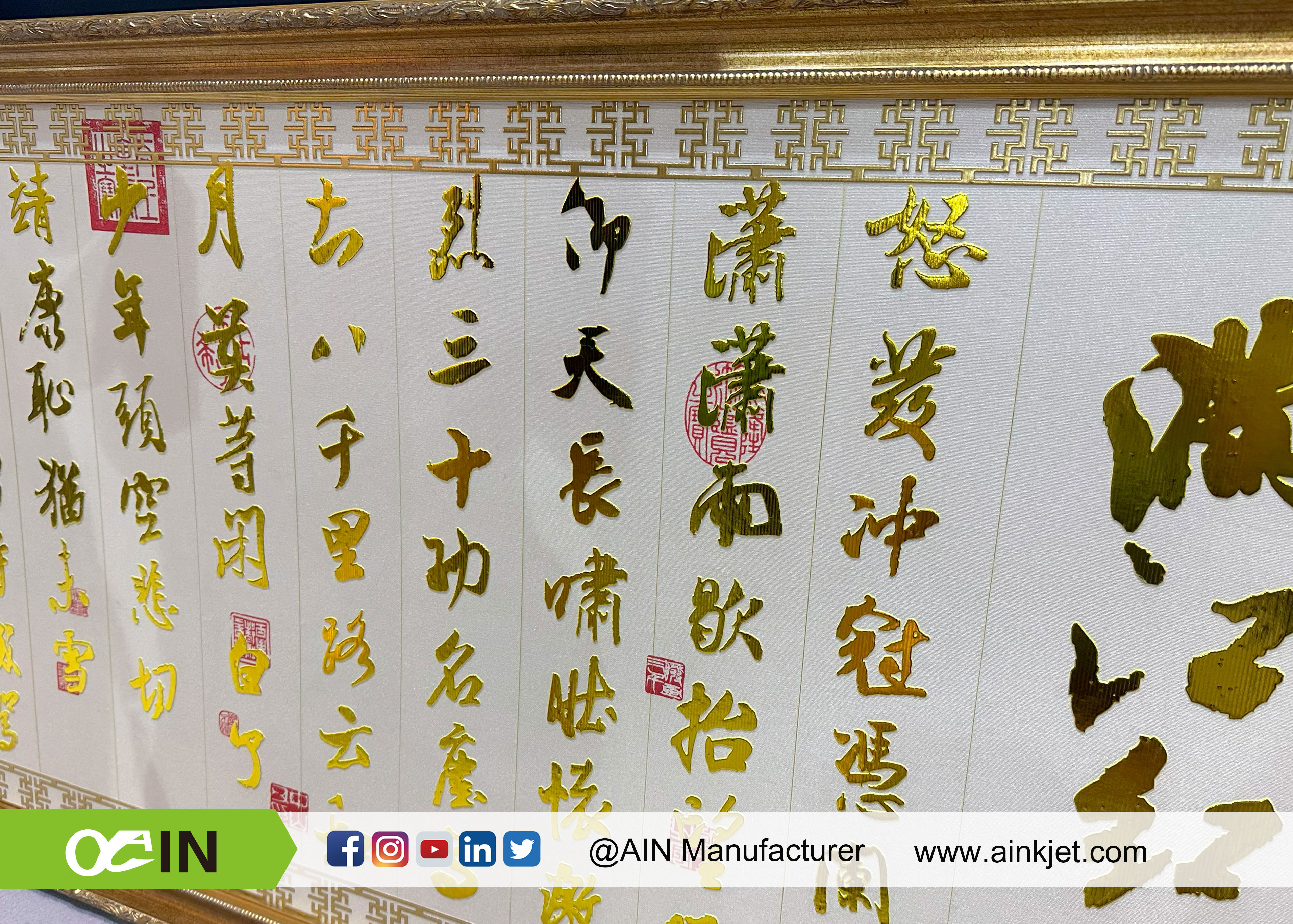

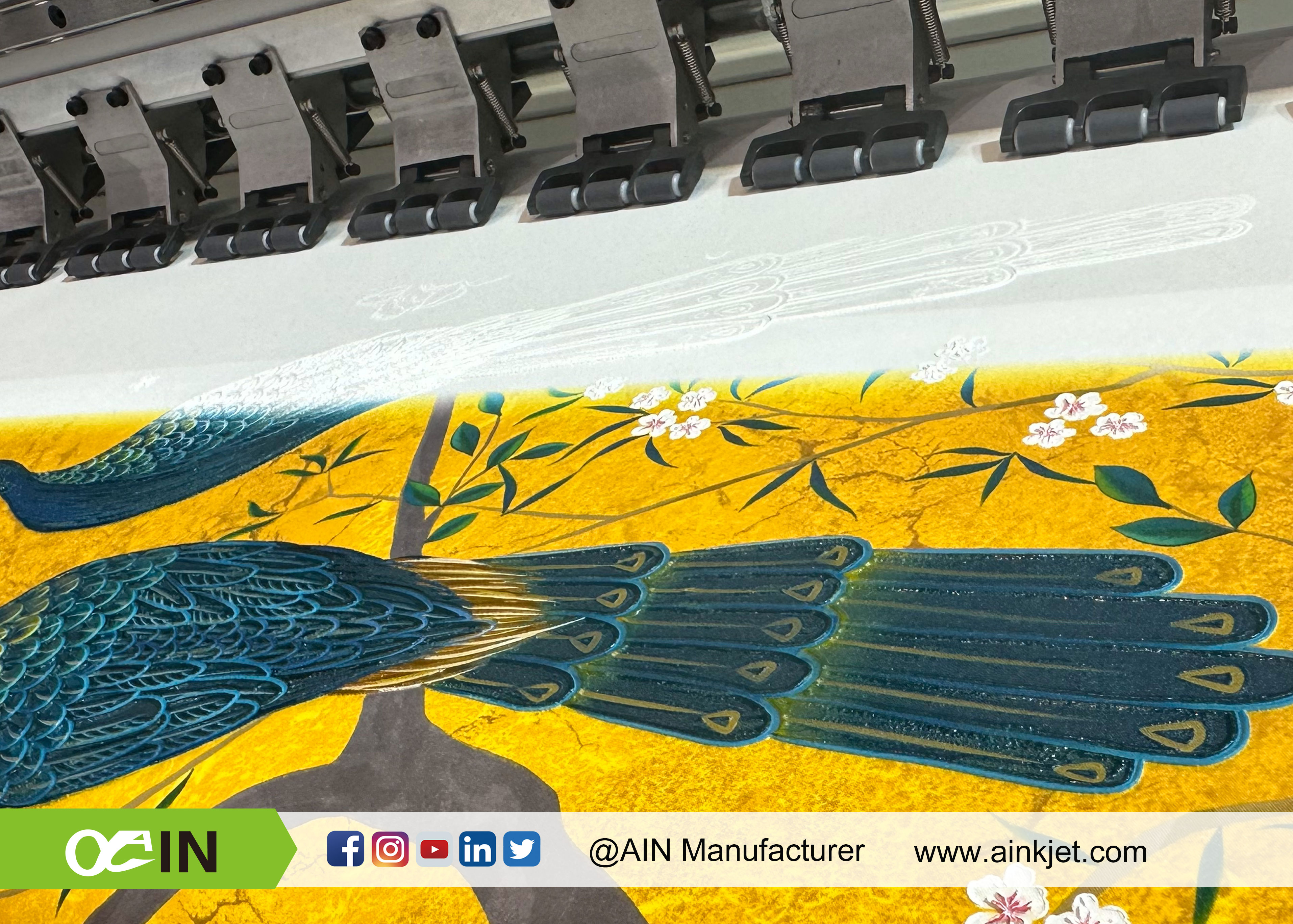

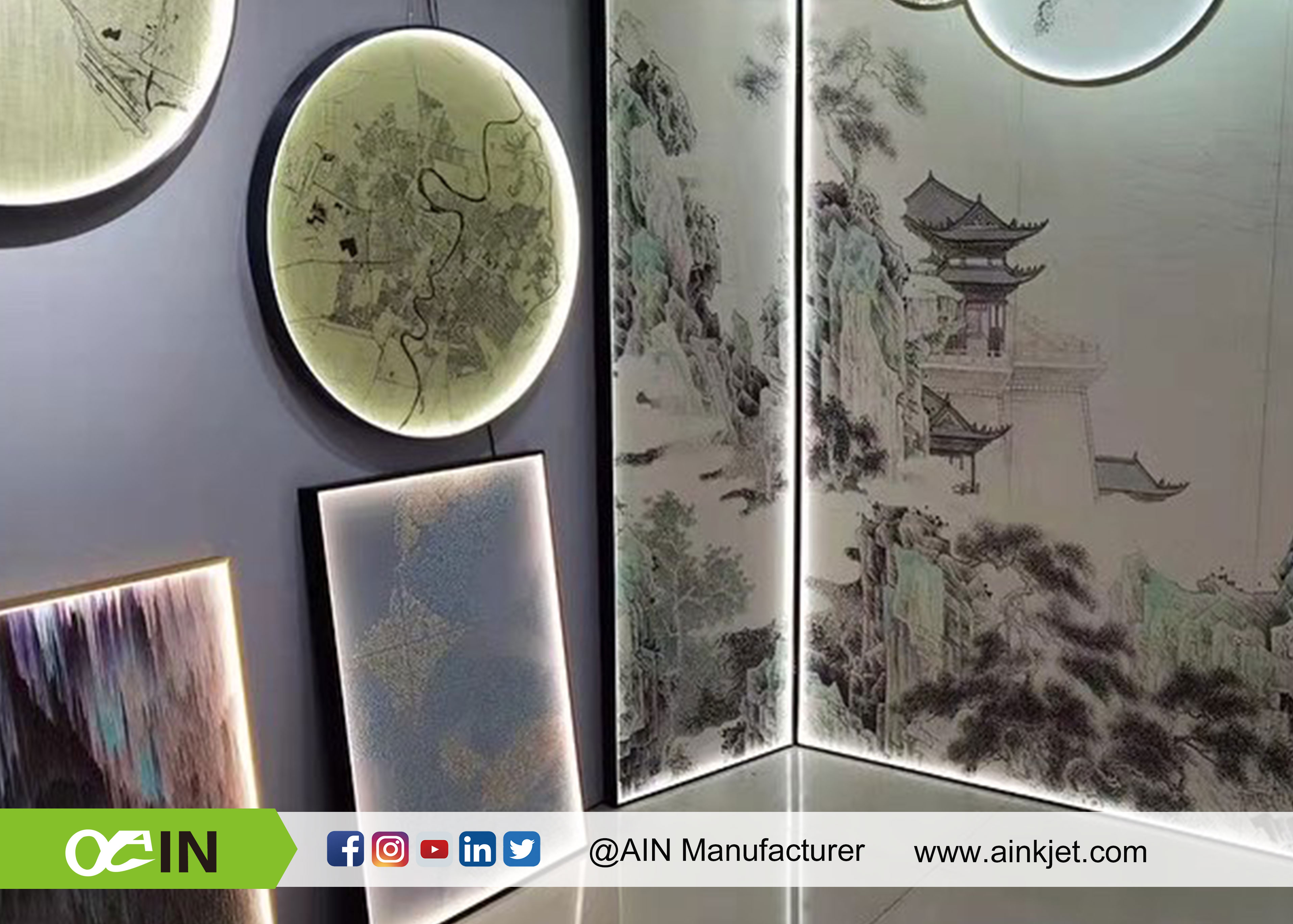

| High speed multilayer texture painting Industrial Printer 3D texture painting printing is molded in one go Adopting the "glossy oil+white+color" printing mode, it can present multiple layers of three-dimensional textures, and the 3D texture relief visual effect is outstanding. High speed operation When processing 2mm texture effects, the speed can reach 5.6 /h, with high production efficiency. Wide range of multifunctional applications Supporting multiple specifications of materials, suitable for large wall fabric printing and hot stamping, integrating multiple effects such as texture, hot stamping, and matte, suitable for 3D texture printing of oil paintings, etc Stable medium supply system Upgraded media supply system, adjustable pneumatic three pressure whee stable feeding, new multi material feeding system including pneumatic humidification, clamping rod and soft film feeding. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |

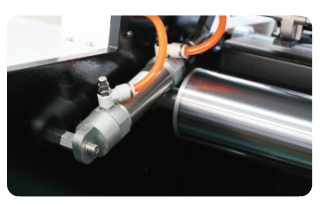

| More stable upgraded medium supply system:adjustable pneumatic three press wheet system, combined with optimized paper rollin shaft steel teeth and stepper motor control, the newly designer system ensures the stabilty of the moving material.

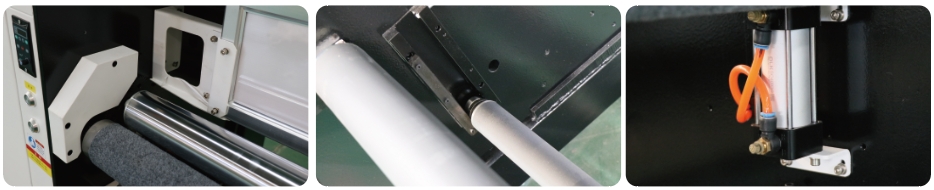

| New multi-material feeding system: pneumatic humidification system,pinch rod and soft film feeding system.
|
Printer Heads
| Epson i1600-U1 Print Head PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 dpi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.
| Model | I1600-U1 | |
| Compatible ink | UV Ink | ||
| Dimensions(WidthxDepthx Height) | 69.1mm x 59.4mm x 35.6mm | ||
| Weight(g) | 60 | ||
| Nozzle Numbers | 1600 | ||
| Length Between Nozzles(inch) | 1/300 | ||
| Nozzle Row | 4 rows | ||
| Max color/head | 4 colors | ||
| Resolution | 300dpi/row, 600dpi/2row | ||
| Effective Printing Width(mm) | 33.8 | ||
| Droplet ejection performance(kHz) | Binary | 5 pl（43.2kHz） | |
| 3 levels grey scale | 6,12.5 pl（21.6kHz） | ||
| 4 levels grey scale | 3.8,6.2,9.3 pl（21.6kHz） | ||
| Viscosity range(mPa.s) | 5-7 mPa･s | ||
Technical Specifications

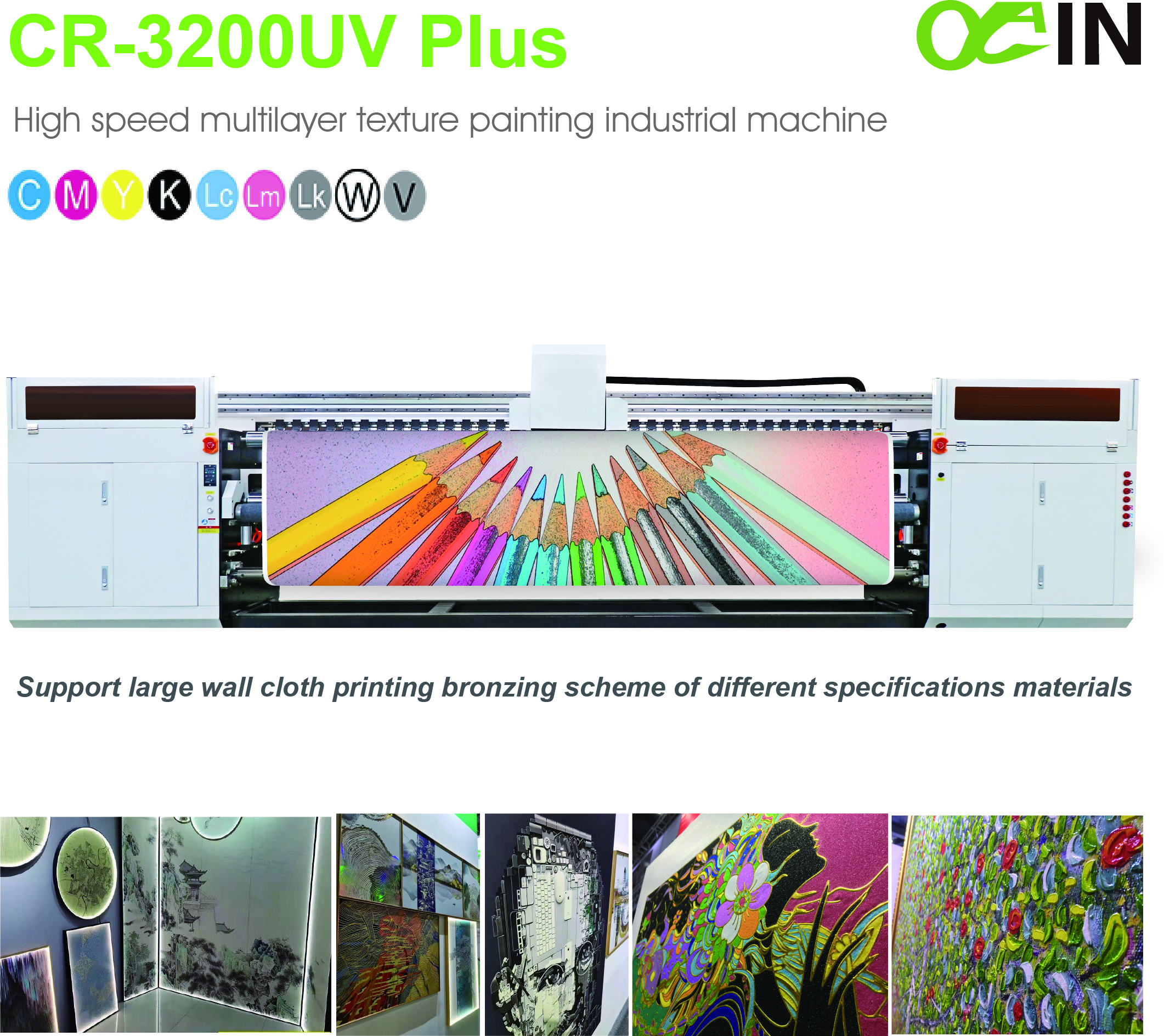

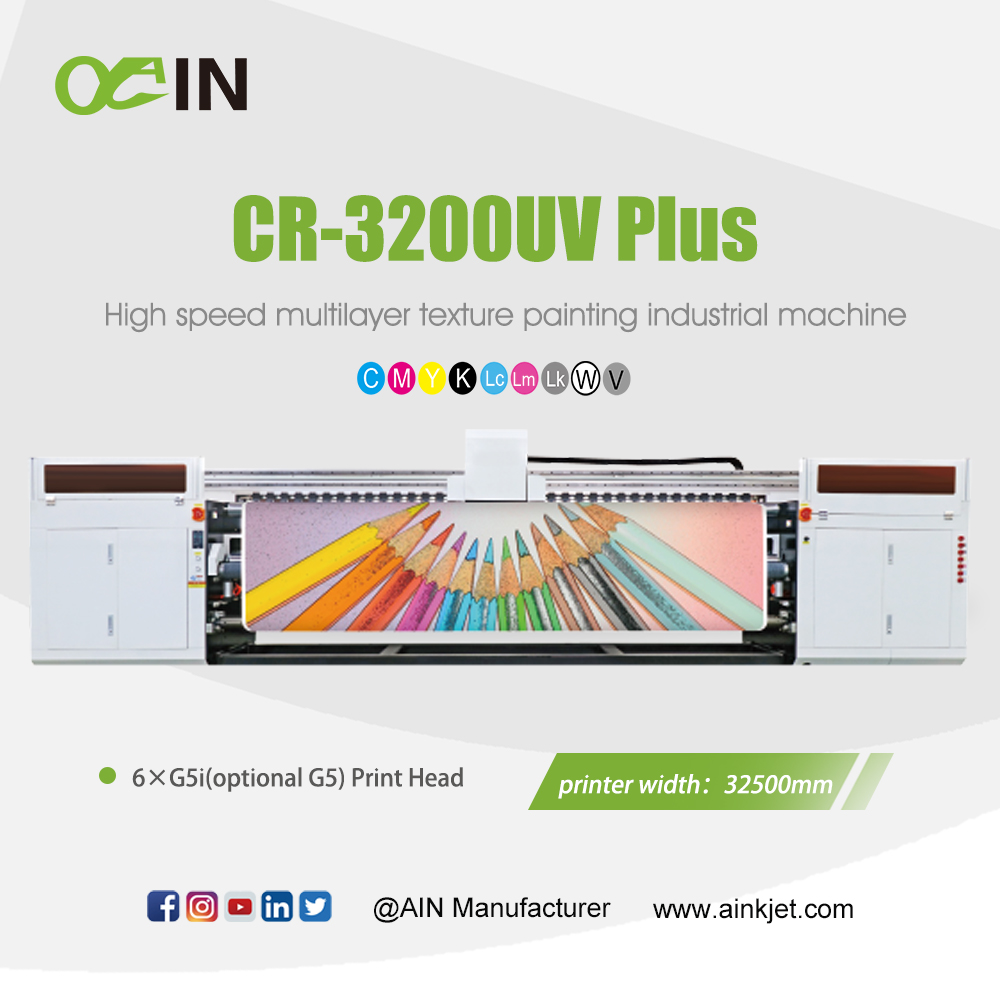

| CR-3200UV Plus High speed multilayer texture painting industrial machine | ||
| MODEL | CR-3200UV Plus | |
| PRINTHEAD TYPE | 6xG5i(optional G5) | |
| PRINTING TECHNOLOGY | Grayscale piezoelectric inkjet printing | |
| INK SPOT SIZE | 3pl Variable ink drops | |
| PRINTING WIDTH | 3250mm | |
| MEDIA SIZE | WIDTH | 3200mm |
| THICKNESS | ≦35mm | |
| WEIGHT | 80KG | |
| DIAMETER | 76.2mm(3in)or 50.8(2in) | |
| INK DRYING METHOD | Light cured water cooled UVLED lamp (double) | |
| INK | TYPES | UV ink |
| CAPACITY | Continuous ink supply(1.5 liter ink bucket) | |
| COLOR | 9 colors:CMYK/Lc/Lm/Lk+W+V | |
| PRINT RESOLUTION | 600/900/1200/1800/2400 dpi | |
| INTERFACE | USB 3.0 Cable port | |
| VOLTAG | AC 220V±5%,50Hz±1,16A | |
| POWER CONSUMPTI0NE | Working status:5000W Sleeping status:600W | |
| SOFTWARE | PhotoPrint(optional Caldera) | |
| WEIGHT | 1200KG | |
| ENVIR0NMENT | BOOT MODE | Tempreture:18℃--29℃/Humidity:50--80%(no condensation) |
| OFF MODE | Tempreture:5℃--40℃/Humidity:20--80%(no condensation) | |
| ACCESSORIES | Data cable,press paper,useless ink box,ueser manual,etc | |
Application
Applications of High speed multilayer texture painting industrial machine

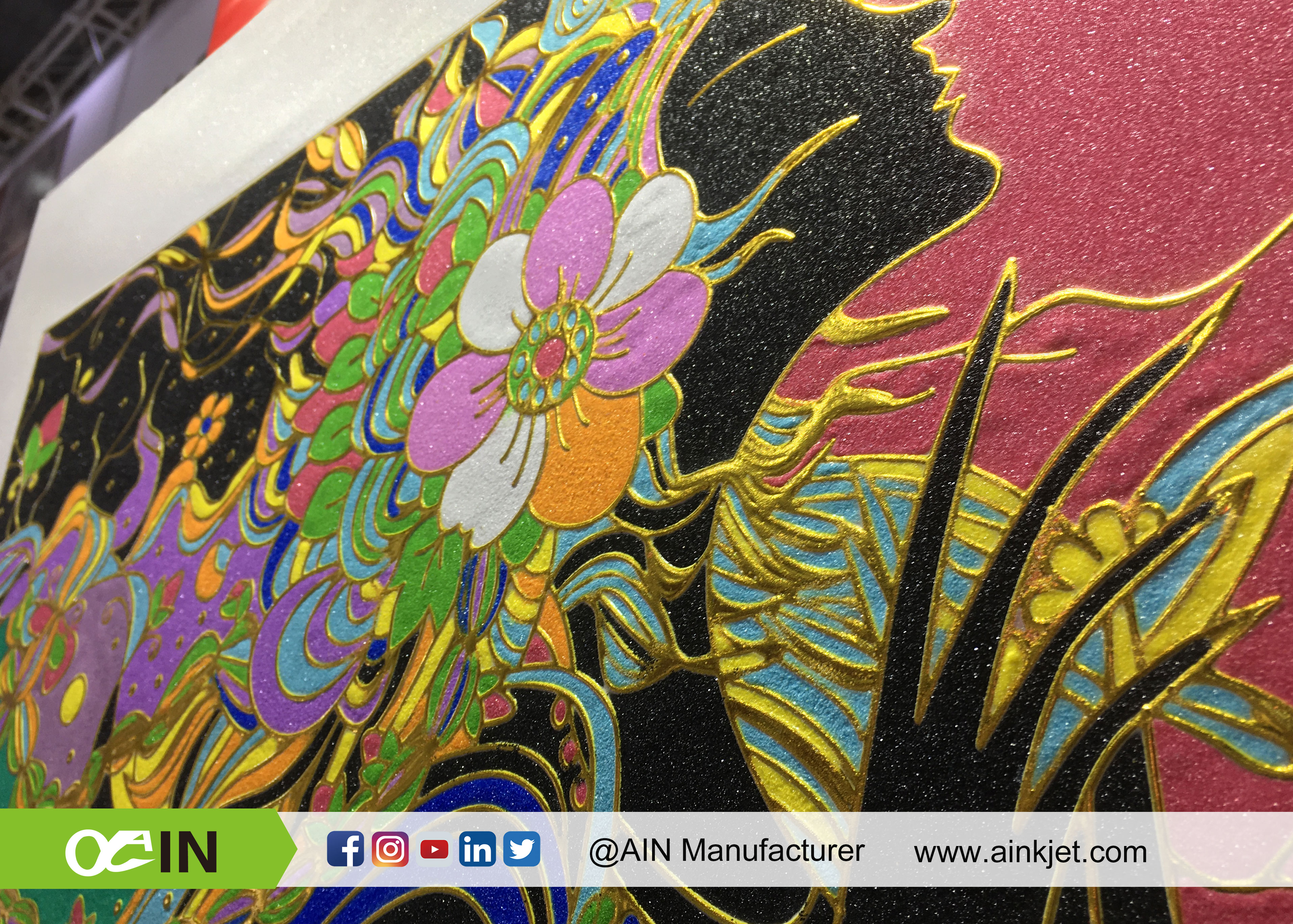

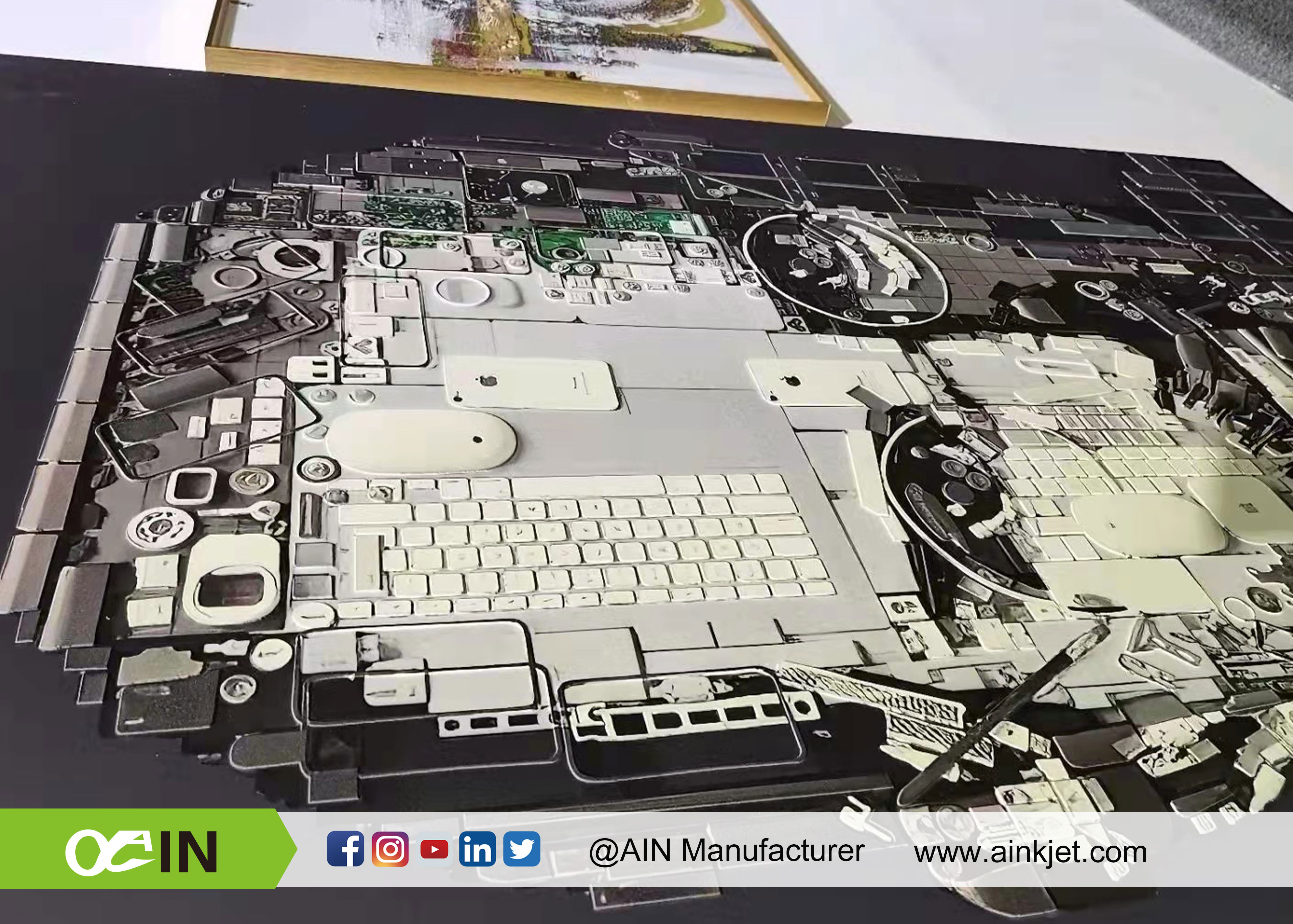

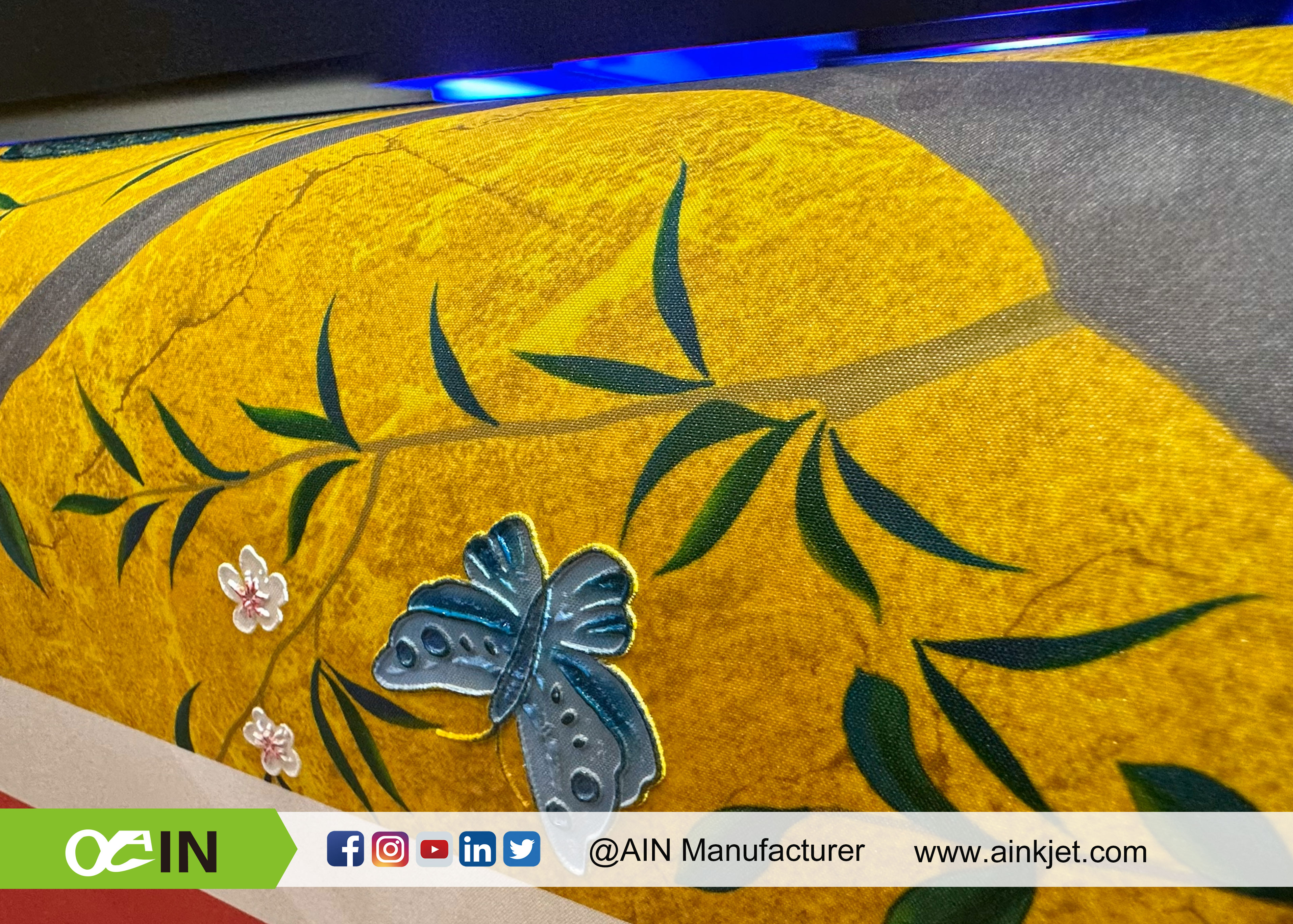

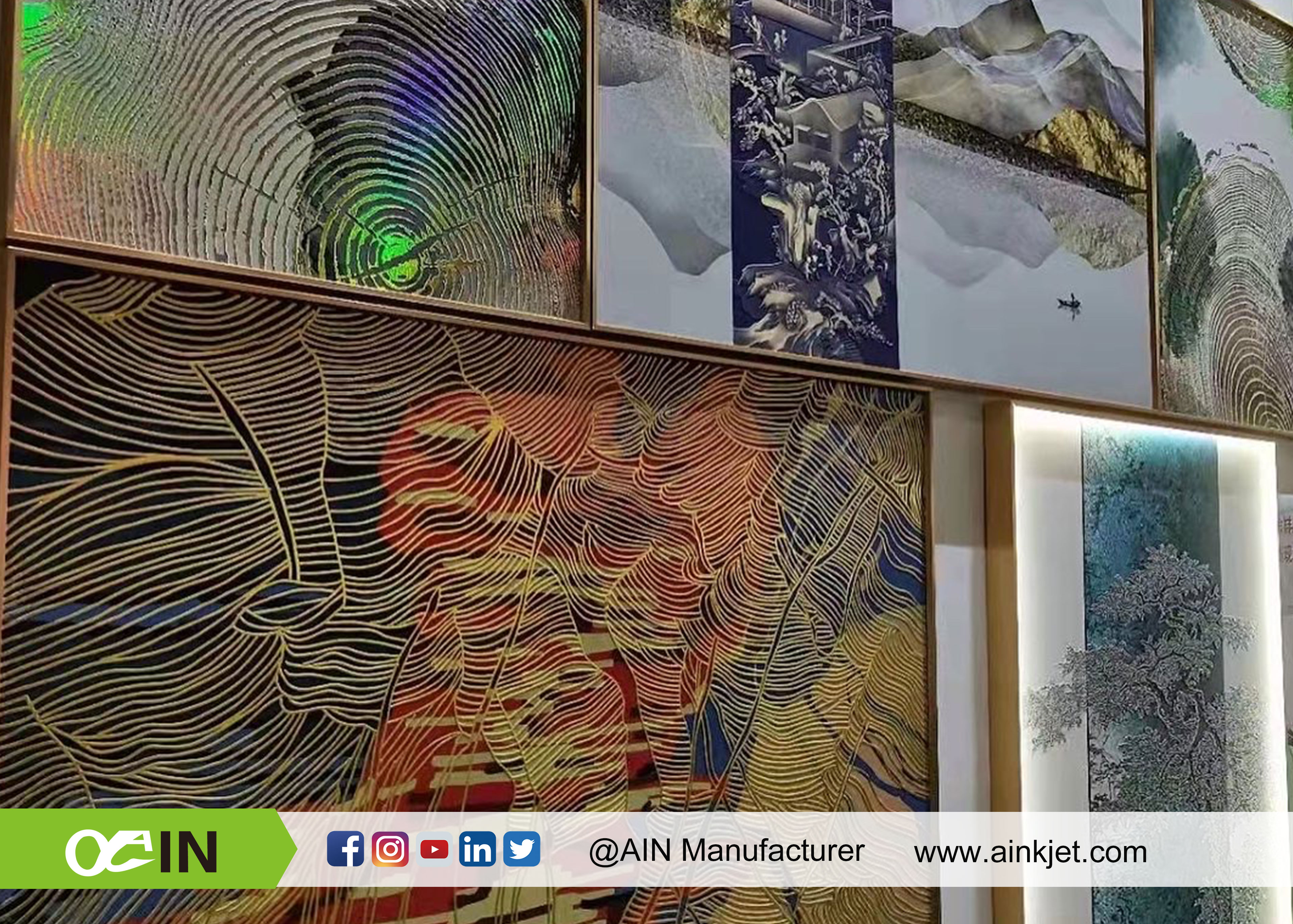

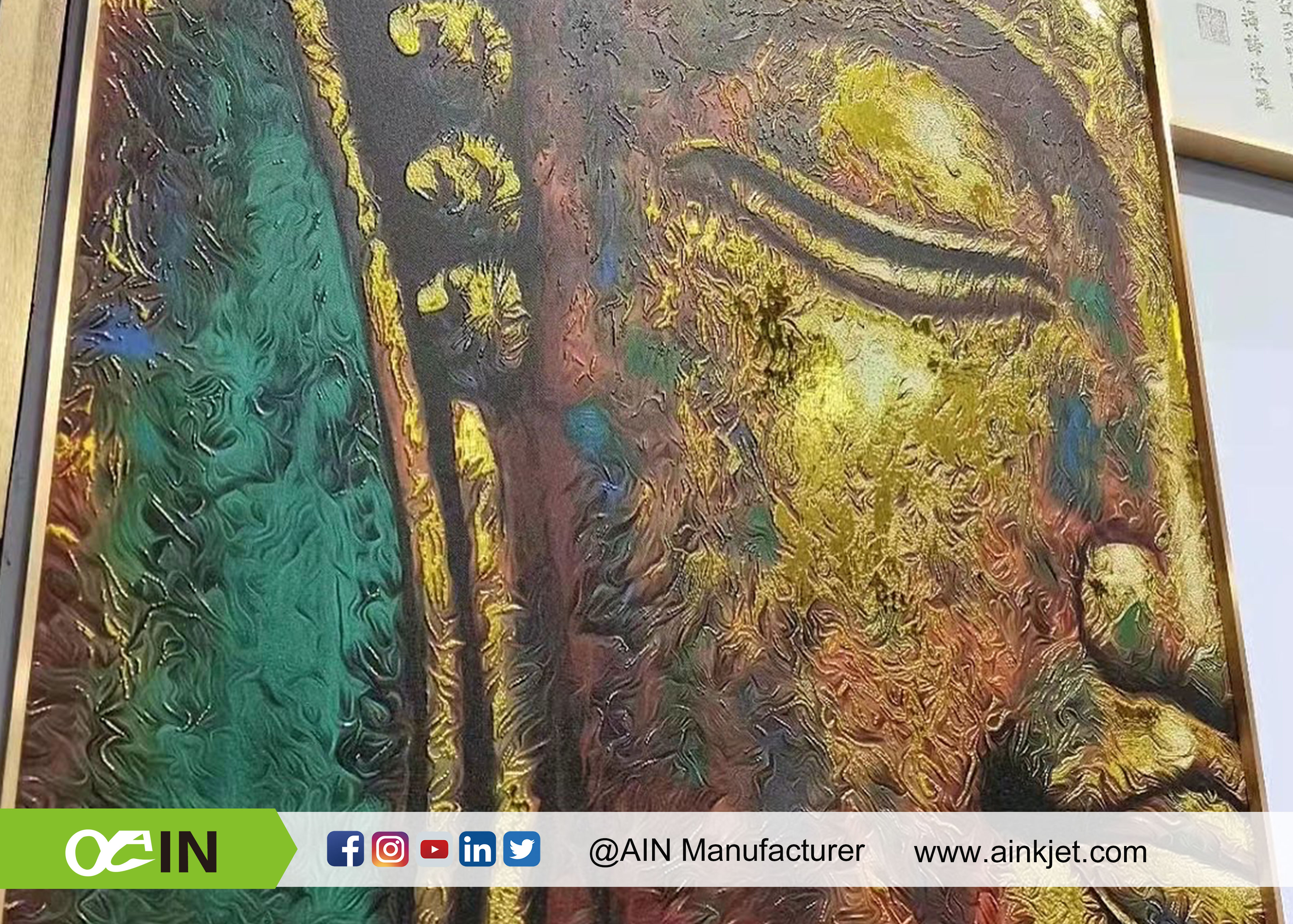

The unique "white + color" printing mode realizes the multi-layer three-dimensional texture painting printing effect, and the visual effect is more prominent,which is suitable for the surface texture three-dimensional printing of various oil paintings.
 |  |  |
|  |  |
  |   |   |  |
