Printer Informations

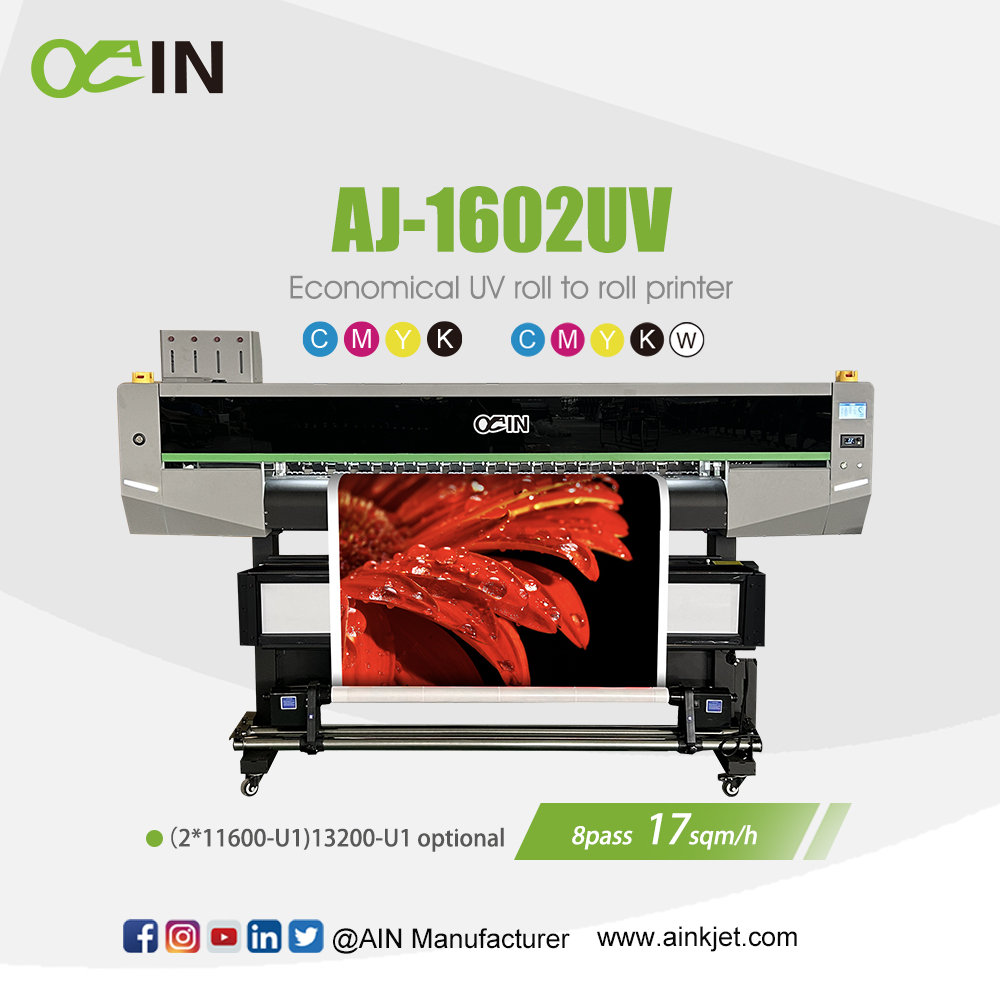

| Economical UV roll to roll printer Featured dual-color layer printing AINKJET AJ-1602UV White ink base printing followed by color printing, effectively enhancing color expression on special materials. Flexible performance configuration AINKJET AJ-1602UV Economical UV Optional print heads (2*11600-U1 or I3200-U1), 8Pass printing speed up to 17㎡/h; supports CMYK dual 4-color + white ink combination, enabling rich color presentation and white-base printing effects. Cost & Positioning AINKJET AJ-1602UV Positioned as an economical device, it balances cost and performance, suitable for small and medium business scenarios; Efficient printing AINKJET AJ-1602UV Adopts roll-to-roll continuous printing + UV curing technology, realizing instant drying and significantly boosting production efficiency. Application Scenarios Widely applicable to advertising, decoration, packaging and signage industries, capable of producing car stickers, light box sheets, soft film backdrops, decorative stickers, store signage and other materials. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |
Two-layer printing technology for color conversion d
| |
Two Epson I1600-U1 head array (I3200 heads Optional)
-Equipped with two I1600 print heads, 3.5pl ultra-small ink droplets -1.6m/1.8m UV roll to roll printer dedicated for white + color printing -Scientific head array, high-precision bottom plate, craftsmanship of quality -Light weight and compact design, saves workshop space |
Printer Heads
Technical Specifications
| AJ-1602UV Economical UV roll to roll printer | ||
| Model | AJ-1602UV | |
| Print Head | 2*I1600-U1 Print Heads (i3200-U1 Optional) | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 63.7 in.(1620 mm) |
| Thickness | Maximum 59 mil(1.5 mm) | |
| Weight | 176 lb.(80 kg) | |
| Printing Width | 63 in.(1600 mm) | |
| Ink Cartridges | Type | UV Ink |
| Capacity | Bulk ink supply system with 500ml ink tank | |
| Color | CMYK / W+CMYK | |
| Printing Resolution | Maximum 2400 dpi | |
Speed | CMYK | 6pass(720*900dpi)21 m/h |
| W+CMYK | 6pass(720*900dpi)11 m/h | |
| Curing Unit | Water-cooling UV lamp | |
| Interface | Ethernet | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 102(W)x30(D)x62(H)in. | |
| (2600(W)x680(D)x1580(H)mm ) | ||
| Weight(with stand) | 617 lb.(280 kg) | |
| Packing Size | 110(W)x30(D)x30(H) in. (2800(W)x760(D)x760(H)mm | |
| Packing Weight | 661 lb.(300 kg) | |
| Environment | Power on | 59°F to 90 °F [15℃ to 32℃](68 °F[20 ℃]/ Humidity: 35 to 80% (no condensation) |
| Power off | 41°F to 104°F [5℃ to 40℃]/Humidity: 20 to 80% (no condensation) | |
Features
 | Installs a LED light panel.it helps our customer to checkthe front-lit or back-lit printquality before the order finish. | | Water Cooling drying technology. |
| The automatic moisturizing and cleaning system notonly protects the print head.but also ensures the smoothness of the ink-flow. | | 1.5L bulky ink bottle with lackof ink alarm system represents the advanced concept of industrial application. |
| High quality servo motor with good stability and long life. | | Dual THK high-precision mute rail. |
Application
Applications of Economical UV roll to roll printer
Wide applications in light box posters, car stickers, advertising hoardings, golden and silver paper, leather printing, high-end gift boxes, food packaging, labels, operation panel and switch printing, etc.
