A-3204UV Large Format UV Roll to Roll Printer

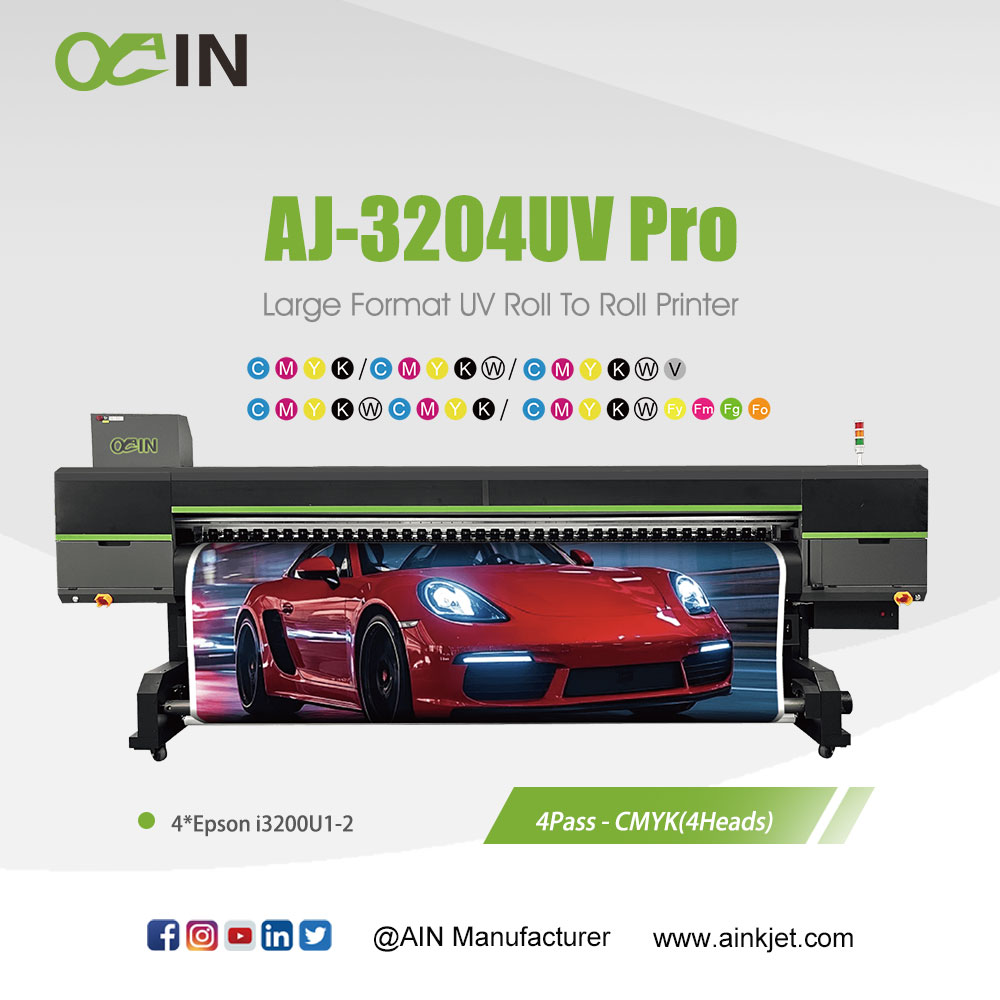

AINJKET AJ-3204UV Pro Large Format UV Roll To Roll Printer with Dual Receiving System

AINJKET AJ-3204UV Pro Large Format UV Roll To Roll Printer with Dual Receiving System

AJ-3204UV Pro

Large Format UV Roll to Roll Printer

Parameter
Print Head: 4*Epson I3200U1-2 Print Heads

Print Width: 3200mm Print

Ink: UV Ink Printing

Color: CMYK / W+CMYK (2heads) / CMYK+W+CMYK (3heads), optional White, Varnish & Fluorescent Colors

Featurers

This AJ-3204UV Pro large format UV roll-to-roll printer features 4 new Epson i3200U1-2 printheads with a 3.2m print width, hitting 123㎡/h at 4Pass for high-efficiency bulk production.

It supports CMYK, white, varnish and optional 4 fluorescent inks for multiple color combinations to create unique special effects, and comes with dual receiving system for stable continuous roll printing with instant UV curing.

Compatible with diverse flexible roll materials, it serves advertising, decoration and special-effect printing for ad factories, signage and soft decoration enterprises.


Availability:



Inquiry PDF Export

Printer Informations

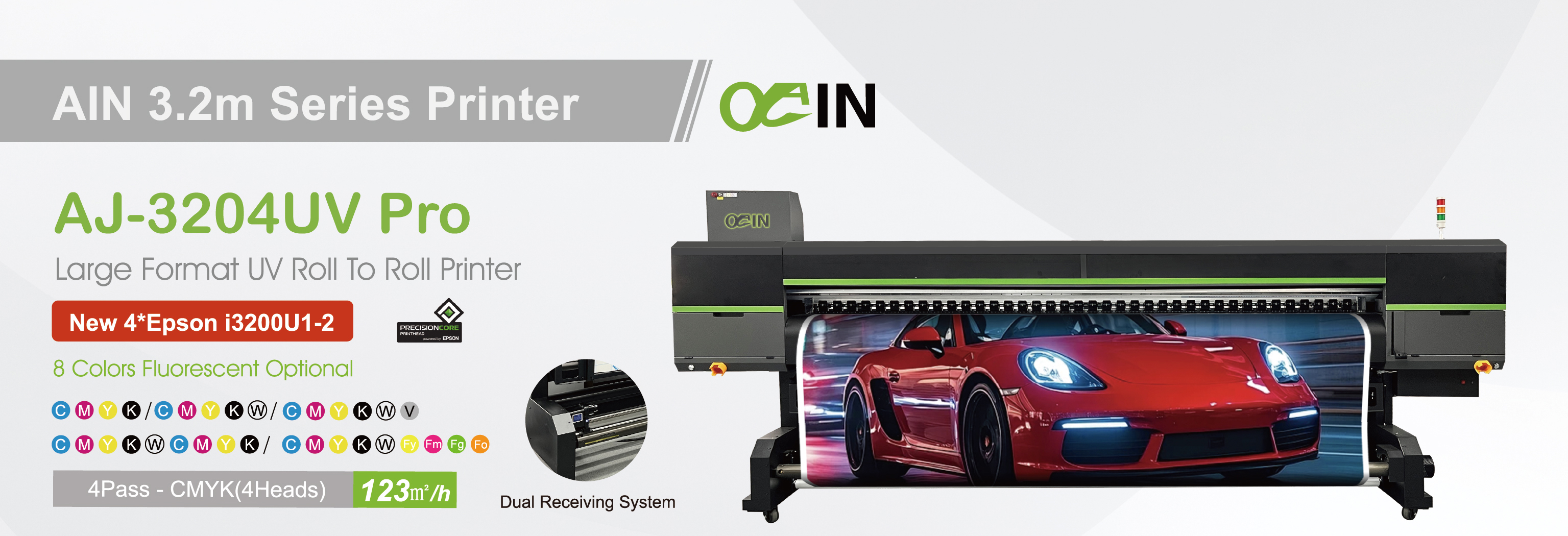

AJ-3204UV-Pro详情

Large Format UV Roll to Roll Printer

Printhead Configuration

Equipped with 4 brand-new Epson i3200U1-2 printheads. It is a Large Format UV Roll-to-Roll Printer with a 3.2m wide format. It can reach 123㎡/h under 4Pass mode, balancing productivity and image precision, suitable for bulk advertising orders.

Ink Color Configuration

CMYK as the standard configuration, supporting multiple color combination schemes. Optional 8-color scheme with four fluorescent colors (Fy/Fm/Fg/Fo) available. It also supports White (W) and Varnish (V). Available color combinations: CMYK / CMYKW / CMYKWV / CMYKW + fluorescent colors, which can produce eye-catching fluorescent effect images and create differentiated advertising effects.

Upgraded Configuration

Adopts Dual Receiving System. It supports continuous automatic winding of rolls, suitable for mass long-run production, reduces manual material replacement and ensures stable roll conveying. With UV curing technology, this UV roll-to-roll printer realizes instant curing upon printing.

Application Compatibility

Supports various flexible roll materials. Widely used for advertising prints, decorative products and special effect graphics such as fluorescent posters and window stickers. White ink/varnish enables emboss, frosted and partial highlight effects. Suitable for ad factories, signage & soft decor enterprises for outdoor ads, exhibition graphics and car wraps.

Printer Heads

Epson i1600-U1 Print Head

PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

dtgpentou2

Model		I1600-U1 / I3200 optional
Compatible ink		UV Ink
Dimensions(WidthxDepthx Height)		69.1mm x 59.4mm x 35.6mm
Weight(g)		60
Nozzle Numbers		1600
Length Between Nozzles(inch)		1/300
Nozzle Row		4 rows
Max color/head		4 colors
Resolution		300dpi/row, 600dpi/2row
Effective Printing Width(mm)		33.8
Droplet ejection performance(kHz)	Binary	5 pl（43.2kHz）
	3 levels grey scale	6,12.5 pl（21.6kHz）
	4 levels grey scale	3.8,6.2,9.3 pl（21.6kHz）
Viscosity range(mPa.s)		5-7 mPa･s

Technical Specifications

AJ-3204UV Large Format UV Roll to Roll Printer
Model	AJ-3204UV
Print Head	4*I3200-U1 Print Heads
Printing Technology	Piezoelectric Inkjet
Acceptable Media	Width	3220 mm
	Thickness	Maximum 39 mil(1 mm)
	Weight	80 kg
Printing Width	3200mm
Ink Cartridges	Type	UV Ink
	Capacity	Bulk ink supply system with 500ml ink tank
	Color	CMYK/W+CMYK(2heads)/CMYK+W+ CMYK (3heads)
Printing Resolution	Maximum 2400 dpi
Speed	4pass(720600dpi)22 m/h-2 heads CMYK 6pass(720900dpi)15 m/h-2 heads CMYK
Curing Unit	Water Cooling UV lamp
Interface	Interface
Power Supply	AC 220V±10%,50/60 HZ
Dimensions(with stand)	180(W)x38(D)x62(H) in.
	4580(W)x970(D)x1580(H)mm
Weight(with stand)	800kg
Package Size	5050(W)x1050(D)x670(H)mm(Split packaging)
Environment	Power on	Temperature:59 F to 90F [15℃ to 32℃]/Humidity: 35 to 80% (no condensation)
	Power off	Temperature:41 F to 104F [5℃ to 40℃]/Humidity: 20 to 80% (no condensation)

Features

	500ml large capacity ink supply system,stable ink supply.		High quality imported THK high precision guide rail.
	Moisturizing cleaning assembly .		High-precision and high-stability tensioning pulley system.
	External power supply, intelligent rolling system.		LED backlight.
	New pinch roller structure of three in group brings more stable feeding precision.		Automatic moisturizing cleaning assembly ensures the stability output.

Application

Applications of AJ-3204UV Pro Large Format UV Roll to Roll Printer

Compatible with various flexible roll materials for a wide range of applications: Advertising printing: light box soft film, knife-coated canvas, vinyl sticker, car wrap, canvas, non-woven fabric, transparent film, PVC soft film Decoration industry: indoor decorative paintings, soft decoration wallpaper, 3D background roll materials Special effects: fluorescent posters, window stickers, high-end signs, display graphics. Emboss, frosted and partial highlight effects can be achieved with white ink / varnish. Ideal for advertising factories, signage companies and soft decoration enterprises for outdoor advertisements, supermarket posters, exhibition graphics, car wrap advertisements and other businesses.
