Printer Informations

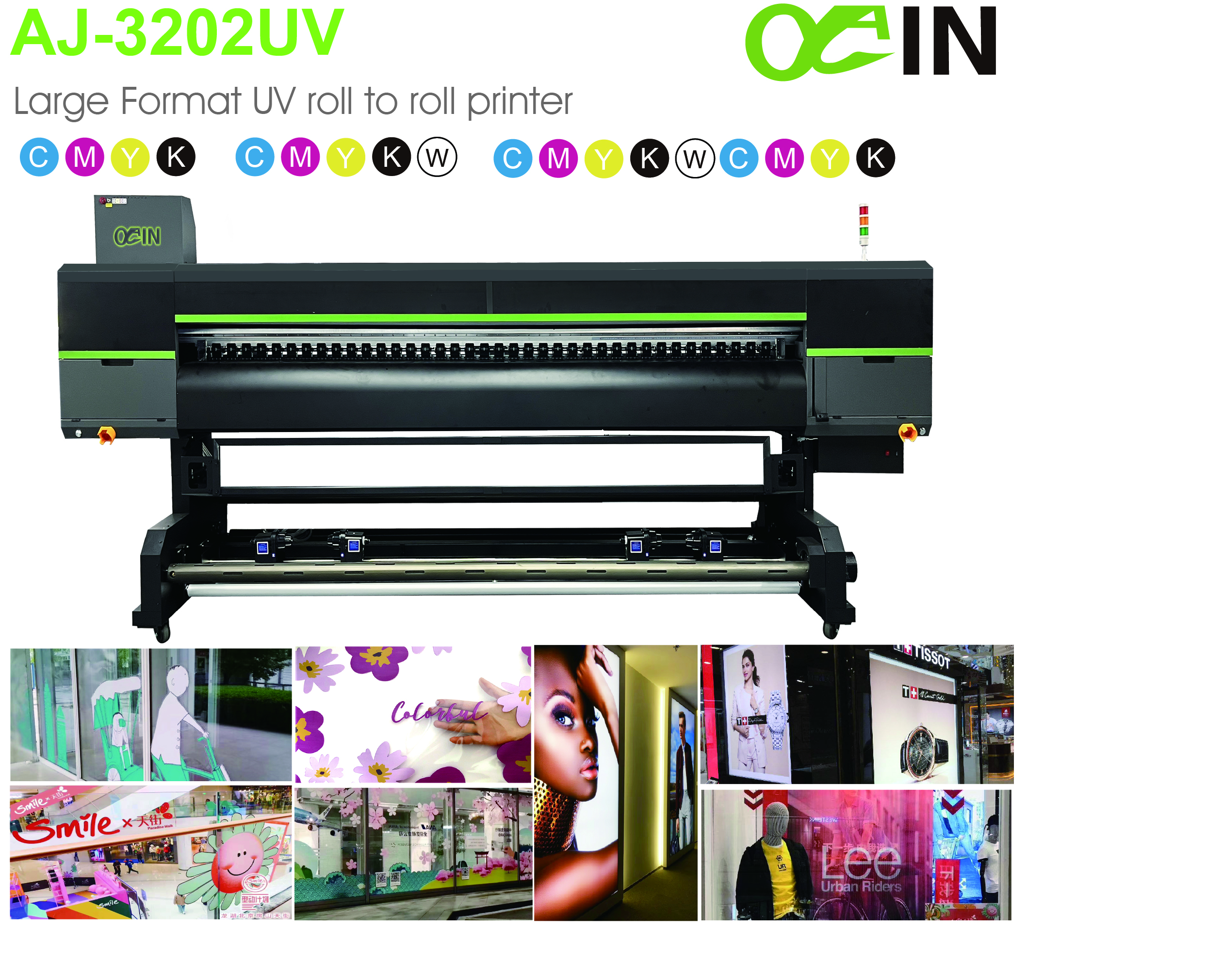

| Large Format UV Roll to Roll Printer Outdoor Advertising Pri nter Variety of print modes 1-3 layers are optional. Three layers (color + white + color) combined with internal illumination, outstanding color, can enrich the layers, enhance the sense of three-dimensional, suitable for different materials and picture quality needs . Excellent equipment performance With 3.2 meters wide high-speed printing capacity, through the LED lamp water cooling system to ensure stable operation, can replace some high-end models
AIN Large Format UV Roll to Roll Printer Suitable for light box posters, car stickers, advertising hoardings, all kinds of fabrics, wallpaper, canvas, transparent stickers and other advertising and decorative media printing Environmental protection and energy saving Adopting UV-LED technology, the ink is fast-setting and energy-saving, in line with international standards, odorless and pollution-free. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |
1-3 Layers printing mode optional
With the interior light on, this three layers printing technology‘Color + White + Color’,can achive the
|  2/3pcs I3200 Print headst With I3200 heads , minimual 3.5pl variable ink droplet UV printer. -High efficient uv-led technology -Odorless, LESS environmental impact -Unique Color + white + Color printing mode
- International environmental standard UV inks -3.2m wide,large format, high production speed -LED light water cooling, more stable |
One machine for multiple printing solutions under different color modes,can meet requirements from different customers .It can also replace some high-end eco solvent printers which can be efficient and environmental friendly. ds 2/3pcs I3200 Print heads 2/3pcs I3200 Print heads
| |

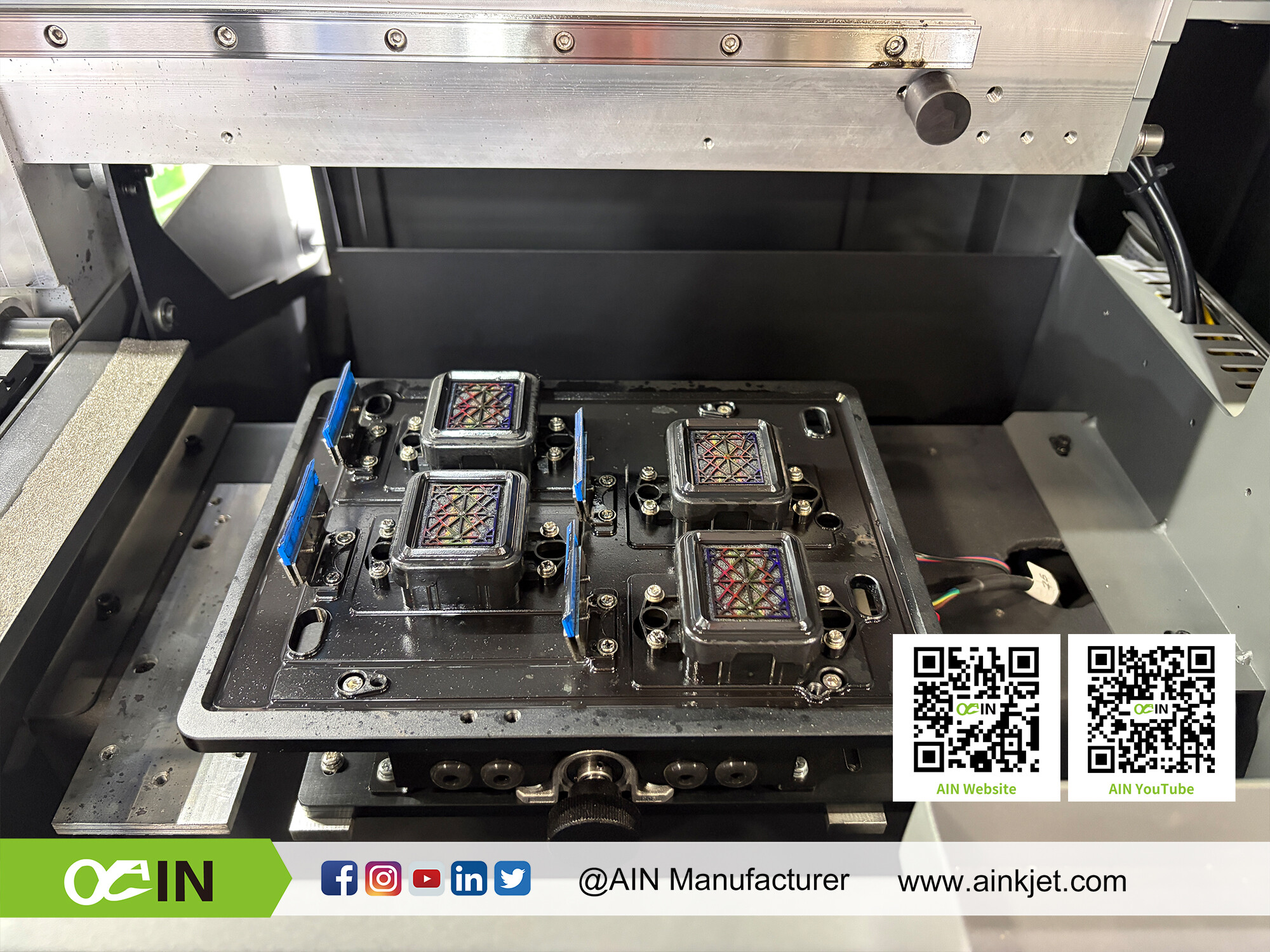

Printer Heads
Technical Specifications

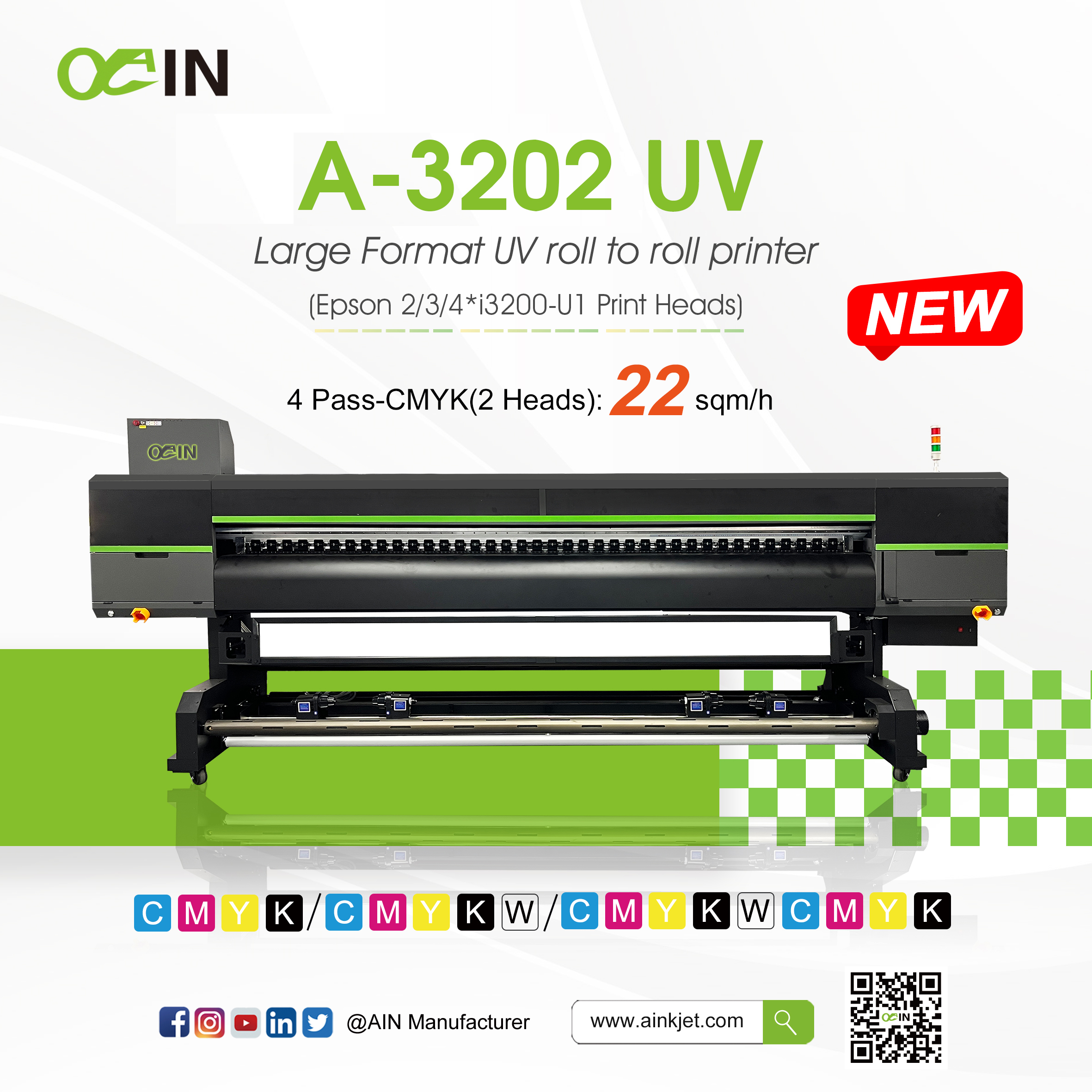

| AJ-3202UV Large Format UV Roll to Roll Printer | ||
| Model | AJ-3202UV | |
| Print Head | 2*I3200-U1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 3220 mm |
| Thickness | Maximum 39 mil(1 mm) | |
| Weight | 80 kg | |
| Printing Width | 3200mm | |
| Ink Cartridges | Type | UV Ink |
| Capacity | Bulk ink supply system with 500ml ink tank | |
| Color | CMYK/W+CMYK(2heads)/CMYK+W+ CMYK (3heads) | |
| Printing Resolution | Maximum 2400 dpi | |
| Speed | 4pass(720*600dpi)22 m/h-2 heads CMYK 6pass(720*900dpi)15 m/h-2 heads CMYK | |
Curing Unit | Water Cooling UV lamp | |
| Interface | Interface | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 180(W)x38(D)x62(H) in. | |
| 4580(W)x970(D)x1580(H)mm | ||
| Weight(with stand) | 800kg | |
| Package Size | 5050(W)x1050(D)x670(H)mm(Split packaging) | |
| Environment | Power on | Temperature:59 F to 90F [15℃ to 32℃]/Humidity: 35 to 80% (no condensation) |
| Power off | Temperature:41 F to 104F [5℃ to 40℃]/Humidity: 20 to 80% (no condensation) | |
Features
 | 500ml large capacity ink supply system,stable ink supply. |  | High quality imported THK high precision guide rail. |
 | Moisturizing cleaning assembly . |  | High-precision and high-stability tensioning pulley system. |
 | External power supply, intelligent rolling system. |  | LED backlight. |
 | New pinch roller structure of three in group brings more stable feeding precision. |  | Automatic moisturizing cleaning assembly ensures the stability output. |
Application

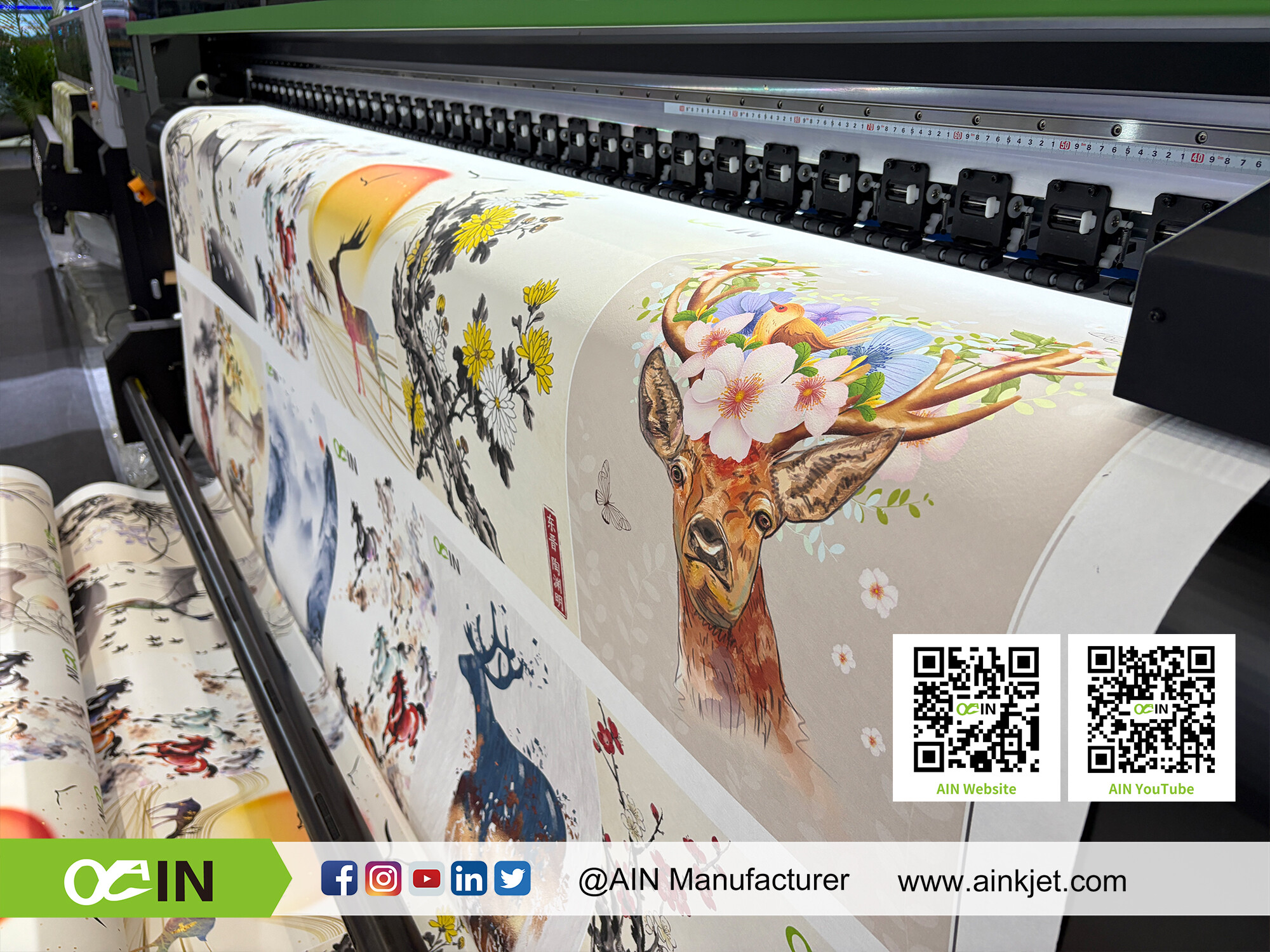

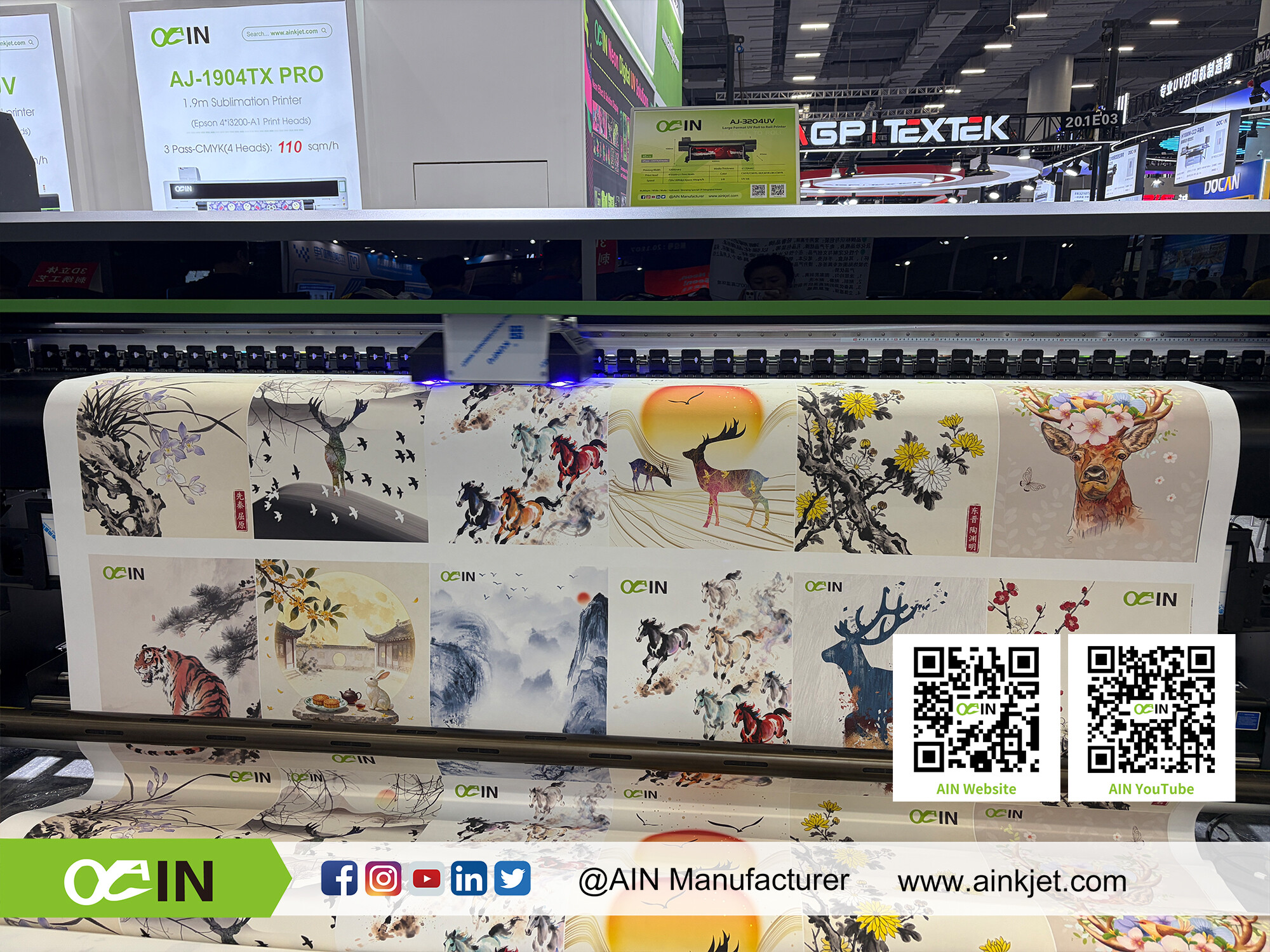

Applications of Large Format UV Roll to Roll Printer
Wide applications in light box posters, car stickers, advertising hoardings, scraping fabric,vinyl, light film, inkjet cloth, 3p cloth,wallpaper, wall fabric, canvas,transparent stickers and other advertising medias.
