Printer Informations

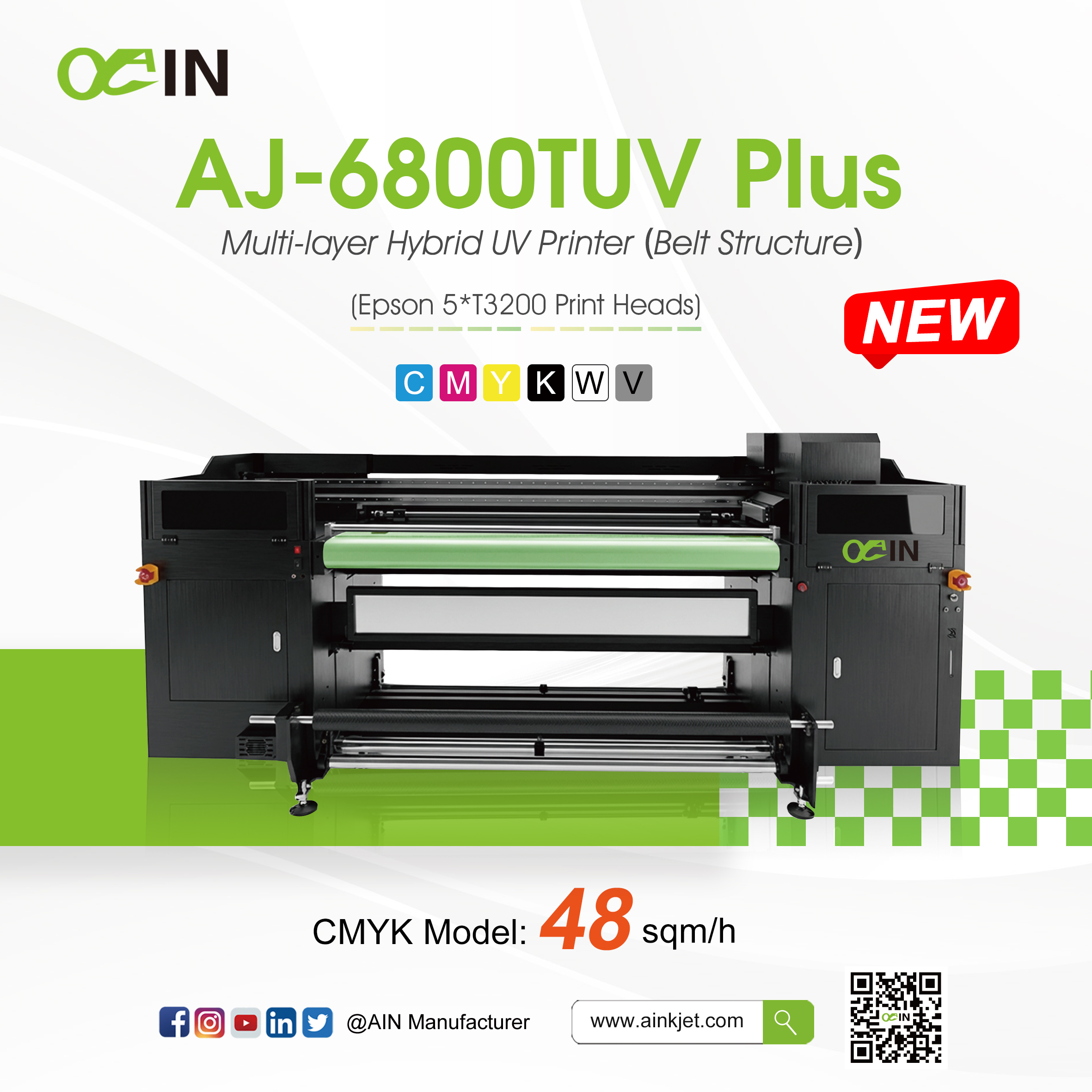

| 1.8m Leather Conveyor Multi‑layer Hybrid UV Printer High-Efficiency Industrial Configuration for Mass Production Equipped with 5 Epson T3200 industrial print heads in staggered layout, this printer features 1.8m print width and a top speed of 48 sqm/h in CMYK mode, delivering high-volume output with superb print quality up to 2400dpi. Flexible Color System & Multi-Layer Printing Standard with CMYK+White+Varnish (CMYK+W+V), it supports Color+White+Color, White+Color+Varnish and full-color leather printing to fulfill various professional printing requirements. Belt Platform & Wide Material Compatibility High-strength conveyor belt and zoned vacuum suction ensure stable media feeding. It supports media width 210–1850mm, thickness up to 10mm, and heavy rolls up to 200kg. Eco-Friendly & Stable Operation Water-cooled LED UV curing system is eco-friendly and low-power consumption, ideal to replace traditional eco-solvent printers. Automatic media thickness detection and independent white ink negative pressure system prevent ink dripping and head scratch, ensuring stable and reliable performance. Wide Application Range Suitable for backlit film, self-adhesive vinyl, leather, wallpaper, wall coverings, transparent film and other advertising materials. Perfect for car stickers, light boxes, leather printing, wall decor and commercial advertising production. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |

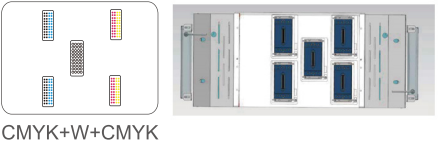

5 Industrial T3200 Print Heads Staggered printhead layout for high‑speed output‑excellent image quality even in high‑speed or draft modes
This all‑in‑one printer supports various color configuration schemes to meet diverse customer needs. As an efficient and eco‑friendly solution, it can replace many high‑end eco‑solvent printers on the market.
Transparent Sticker Decoration Effect Backlit vs. Unlit Comparison |

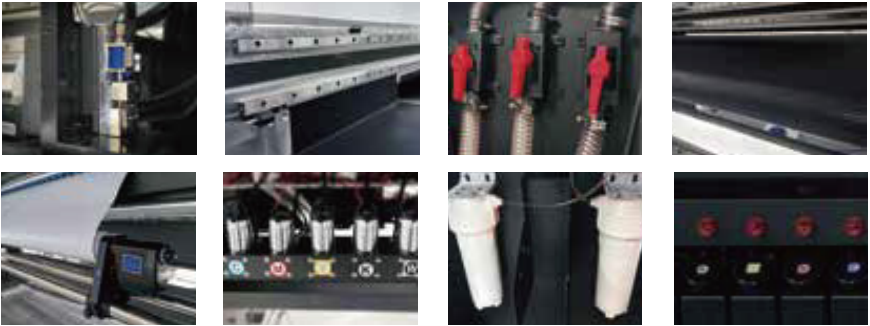

Key Features
-Automatic Media Height Detection Automatically detects media thickness and adjusts the printhead height. -THK High-Precision Linear Guide Ensures stable carriage movement, low noise and high printing accuracy. -Zoned Vacuum Suction Platform Adjustable vacuum zones keep different media sizes flat and stable. -High-Strength Conveyor Belt System Durable low-stretch conveyor belt ensures stable media feeding and long service life. Independent White Ink Negative Pressure System Prevents white ink dripping and ensures stable white ink printing.  |
Printer Heads
| Epson i1600-U1 Print Head PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 dpi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.
| Model | I1600-U1 | |
| Compatible ink | UV Ink | ||
| Dimensions(WidthxDepthx Height) | 69.1mm x 59.4mm x 35.6mm | ||
| Weight(g) | 60 | ||
| Nozzle Numbers | 1600 | ||
| Length Between Nozzles(inch) | 1/300 | ||
| Nozzle Row | 4 rows | ||
| Max color/head | 4 colors | ||
| Resolution | 300dpi/row, 600dpi/2row | ||
| Effective Printing Width(mm) | 33.8 | ||
| Droplet ejection performance(kHz) | Binary | 5 pl（43.2kHz） | |
| 3 levels grey scale | 6,12.5 pl（21.6kHz） | ||
| 4 levels grey scale | 3.8,6.2,9.3 pl（21.6kHz） | ||
| Viscosity range(mPa.s) | 5-7 mPa･s | ||
Technical Specifications
| AJ-6800TUV Plus 1.8m Multi-layer Hybrid UV Printer with Belt Structure | ||
|---|---|---|
| Type | AJ‑6800TUV Plus | |
| Print Head | 5*Epson T3200 | |
| Printing Technology | Micro‑piezoelectric Inkjet Printing | |
| Printing Width | 1800 mm | |
| Printing Speed | Color‑White‑Color Mode: 24 sqm/h CMYK Model: 48 sqm/h | |
| Media Size | Width | 210‑1850 mm |
| Thickness | ≤ 10 mm | |
| Roll Outer Diameter | Max. 210 mm (8.3 in) | |
| Roll Weight | 200KG with take‑up reel | |
| Core Diameter | 76.2 mm (3 in) or 50.8 mm (2 in)Standard equipped with front & rear take‑up devices | |
| Ink | Type | LED UV |
| Colors | CMYK + W + V | |
| Ink Supply | Negative pressure ink system; White ink periodic stirring | |
| Print Resolution | 600dpi, 900dpi, 1200dpi, 2400dpi | |
| Curing Unit | Water‑cooled LED UV Control System | |
| Interface | USB 3.0 | |
| Power Requirements | AC 220V ±5%, 10A, 50Hz‑60Hz | |
| Power Consumption | Max. 4500W | |
| Net Weight | 495.5 kg | |
| Gross Weight (with accessories & ink) | 500.5 kg | |
| Wooden Case Packed Weight | 600.5 kg | |
| Machine Dimensions | Net Dimensions | 3540(W) × 815(D) × 1390(H) mm |
| Packed Dimensions | 3950(W) × 900(D) × 1650(H) mm | |
| Environment | Power On | Temperature: 15℃ to 32℃ (59℉ to 90℉), recommended 20℃/68℉ or higher; Humidity: 35% to 80% RH (non‑condensing)*1 |
| Power Off | Temperature: 5℃ to 40℃ (41℉ to 104℃); Humidity: 20% to 80% RH (non‑condensing) | |
| Accessories | Stand, LED light box, large ink supply system, waste ink bottle, power cable, pinch rollers, data cable, RIP software, random USB drive, etc. | |
Application
Applications of AINKJET AJ‑6800TUV Plus 1.8m Leather Conveyor Multi‑layer Hybrid UV Printer
Application Scenarios: Backlit film, self-adhesive vinyl, leather, wallpaper, wall covering, transparent film and advertising & decorative materials.
