AJ-1602 UV Neon Color UV Roll to Roll Printer

AJ-1602 UV
New Technology UV Neon Color UV Roll-to-Roll Printer

Parameter

Print Head: 2*i1600-U1 Print Heads (i3200-U1 Optional)
Max Print Width ：1600(mm)
Media Thickness : Maximum 59 mil(1.5 mm)
Printing Speed : 6pass (720x900dpi) 21 m²/h
Ink Type: UV Ink

Feature

Diverse and creative: AIN series UV neon color UV roll-to-roll printers are widely used in posters, shopping mall decorations, display boards, safety information signs and other scenes. The use of fluorescent colors enhances the visual effect and adds creativity and personalization.

High-quality and stable performance: The full version contains 10 rich colors, equipped with adjustable pressure rollers to adapt to different materials, imported high-precision guide rails, nozzle bottom plate heating, anti-collision device, ink bottle alarm and large-capacity continuous ink supply system to ensure stable output and long life.


Availability:



Inquire PDF Export

Product Description

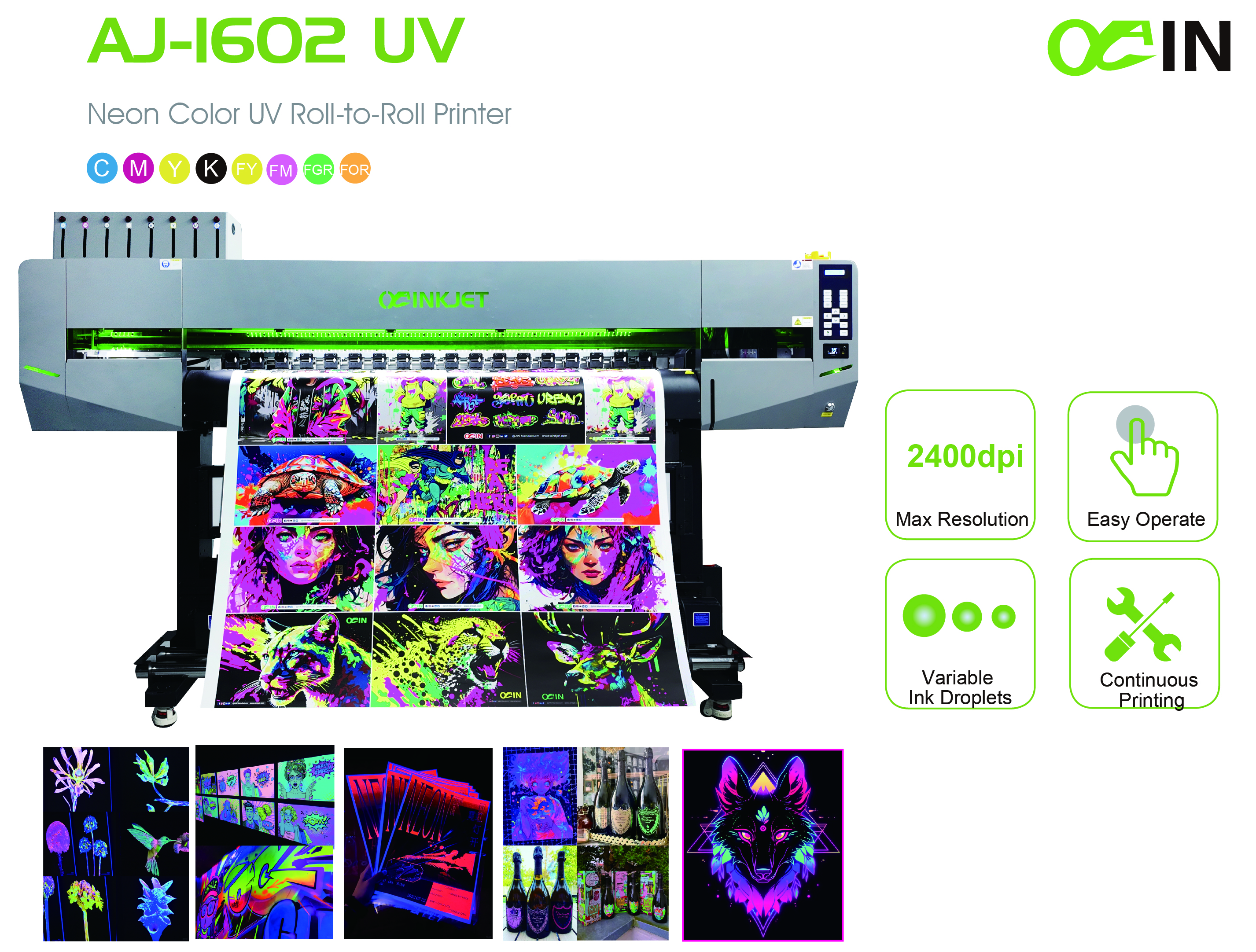

荧光16024x-100

Neon Color UV

UV Roll to Roll Printer

Vivid and Diverse Colors

The AIN series UV neon printing solutions offer a rich color palette with 10 colors in the full version.

Fluorescent colors shine brightly in daylight and glow under UV light. Mixing them with other colors creates various variants, making printed content highly noticeable.

Excellent Printing Adaptability

With an adjustable-pressure roller, it caters to different materials, ensuring high-quality prints regardless of the substrate.

Superb Equipment Performance

High-quality imported THK guide rails for stable output. Heated printhead base plate for smooth ink flow and longer life.

Anti-collision device and ink alarm for safety. Large-capacity continuous ink supply for extended printing.

New Feature of UV Printer

We have an excellent technical team, which can be designed according to customers requirements.

-The biggest highlight of the AIN series UV neon printing solution is its rich color selection.

-The fully equipped version includes fluorescent yellow, fluorescent magenta , fluorescent green and fluorescent orange，plus white, varnish and normal CMYK, a total of 10 colors.

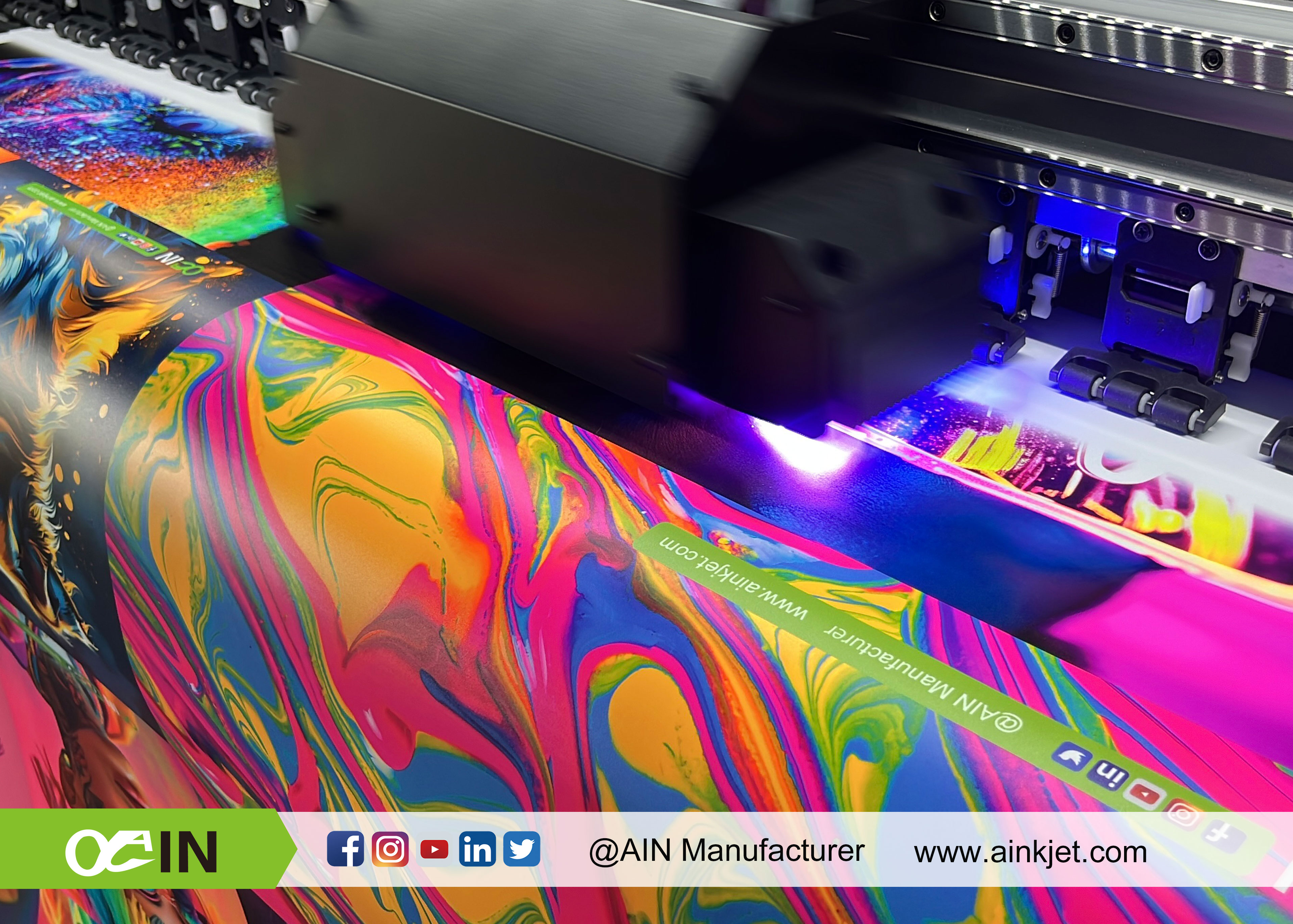

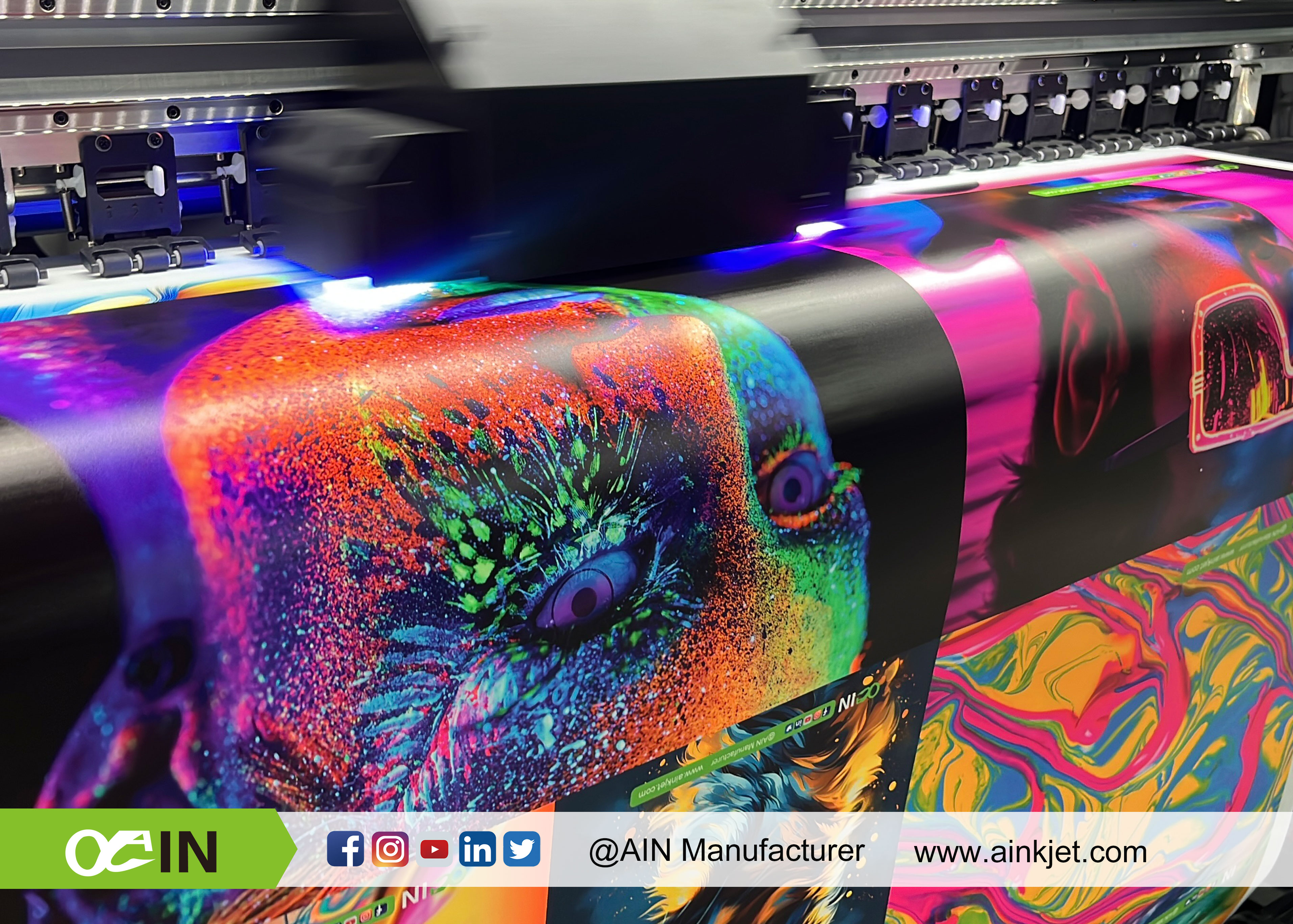

-These fluorescent colors are bright and eye-catching under daylight, and they emit dazzling fluorescence under ultraviolet light, making people feel their strong visual impact at a glance.

荧光素材1

-In addition to a single fluorescent color, the AIN series can also mix fluorescent and

colored colors to create more color variants. This mixture not only enriches the

expressive power of colors, but also makes the printed picture content more eye-catching.

-No matter what kind of screen content, as long as the fluorescent colors of the AIN

series are used, it can stand out among the numerous information and become the focus.

荧光素材24x-8

Printer Heads

Epson i1600-U1 Print Head

PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

dtgpentou2

Model		I1600-U1 / I3200 optional
Compatible ink		UV Ink
Dimensions(WidthxDepthx Height)		69.1mm x 59.4mm x 35.6mm
Weight(g)		60
Nozzle Numbers		1600
Length Between Nozzles(inch)		1/300
Nozzle Row		4 rows
Max color/head		4 colors
Resolution		300dpi/row, 600dpi/2row
Effective Printing Width(mm)		33.8
Droplet ejection performance(kHz)	Binary	5 pl（43.2kHz）
	3 levels grey scale	6,12.5 pl（21.6kHz）
	4 levels grey scale	3.8,6.2,9.3 pl（21.6kHz）
Viscosity range(mPa.s)		5-7 mPa･s

Technical Specifications

AJ-1602 UV Neon Color UV Roll-to-Roll Printer
Model	AJ-1602UV
Print Head	Double i1600-U1 Print Heads (i3200-U1 Optional)
Printing Technology	Piezoelectric Inkjet
Acceptable Media	Width	63.7 in.(1620 mm)
	Thickness	Maximum 59 mil(1.5 mm)
	Weight	176 lb.(80 kg)
Printing Width	63 in.(1600 mm)
Ink Cartridges	Type	UV Ink
	Ink Supply	Bulk ink supply system with 500ml ink tank
	Color	CMYK+FoFyFmFg
Printing Resolution	Maximum 2400 dpi
Speed	CMYK	6pass（720*900dpi） 21 m²/h
	W+CMYK	6pass（720*900dpi） 11 m²/h
Curing Unit	Wter-cooling UV lamp
Interface	Ethernet
Power Supply	AC 220V ± 10%, 50/60 HZ
Dimensions(with stand)	102(W)x30(D)x62(H) in.( 2600(W)x680(D)x1580(H) mm )
Weight(with stand)	617 lb. (280 kg)
Packing Size	110(W)x30(D)x30(H) in. (2800(W)x760(D)x760(H) mm )
Packing Weight	661 lb. (300 kg)
Environment	Power on	Temperature: 59℉ to 90℉ [15℃ to 32℃] / Humidity: 35 to 80% (no condensation)
	Power off	Temperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (no condensation

Features

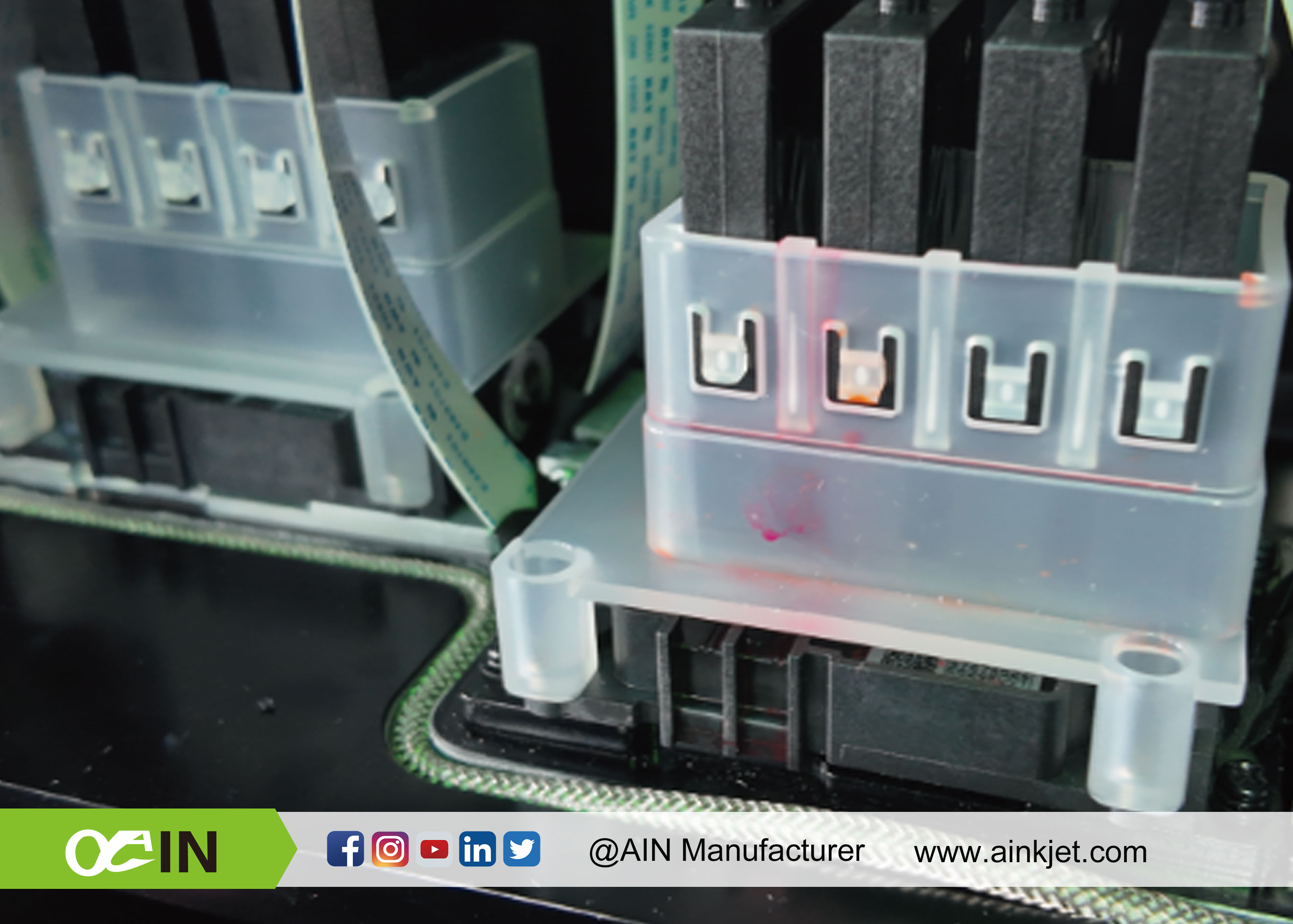

The heads bottom plate is heated toensure smooth ink output and extendthe life of the heads.

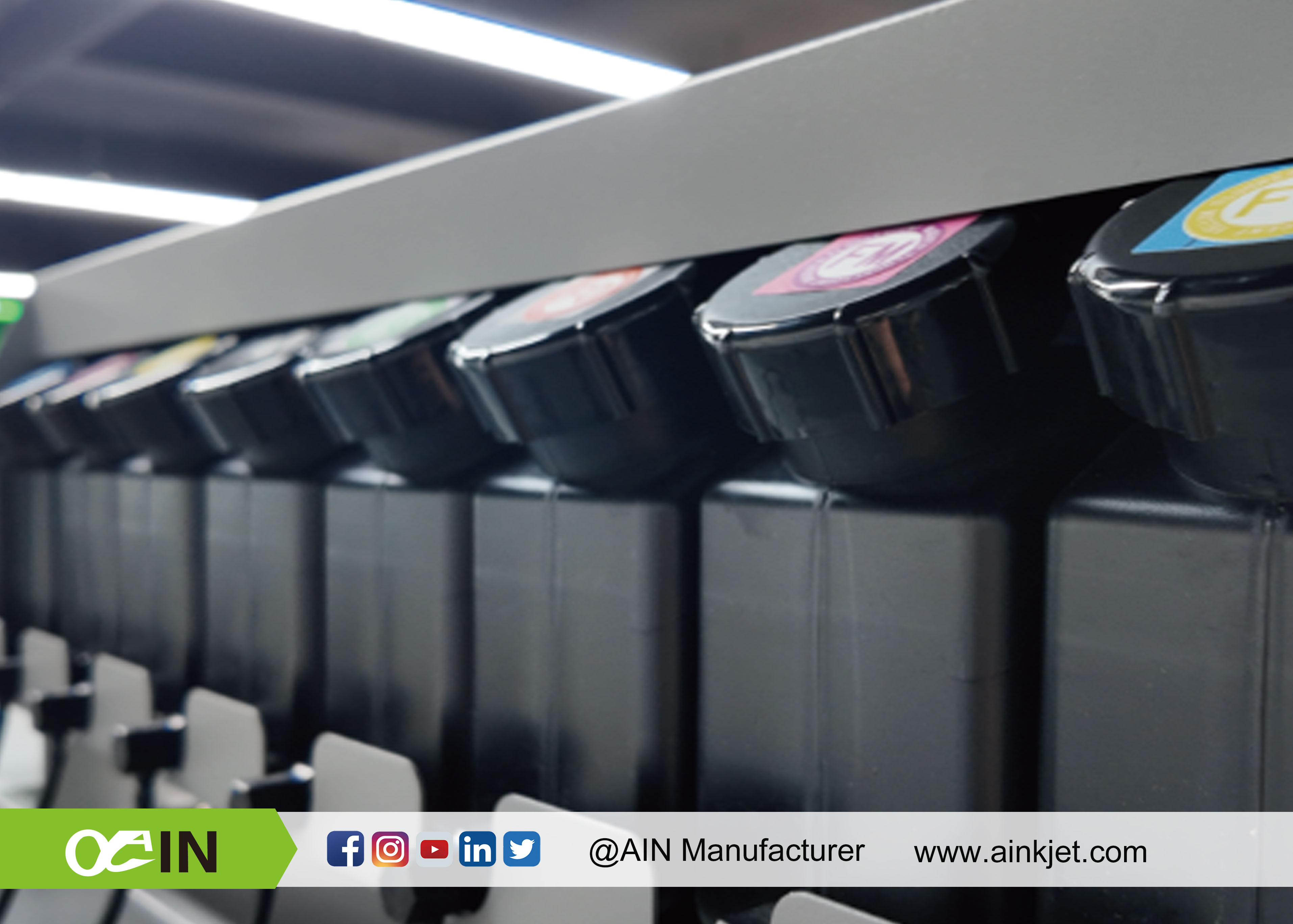

Large-capacity continuous

supplysystem,long-lasting printing

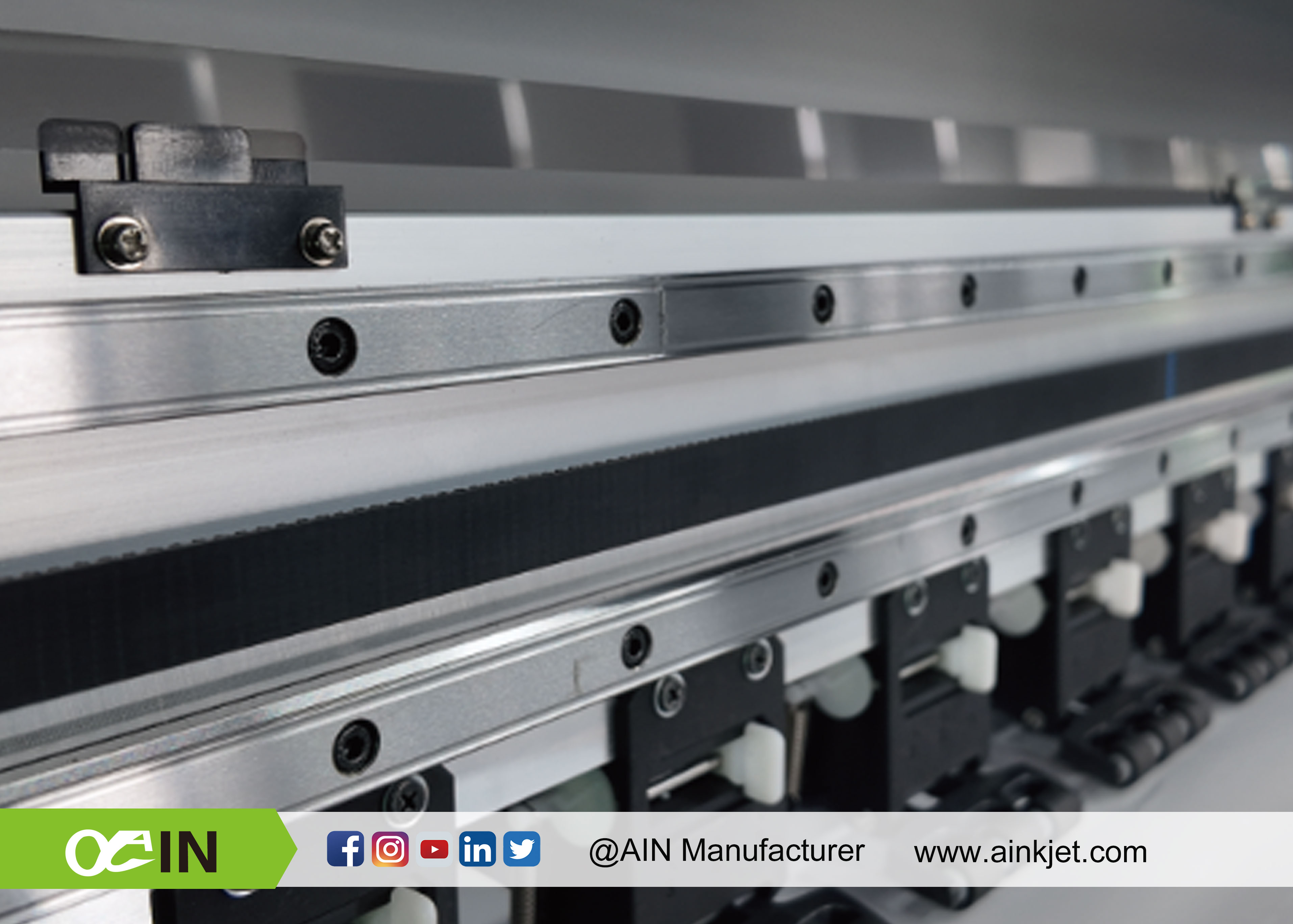

High quality imported THK high precisionguide rail, long-term stable output.

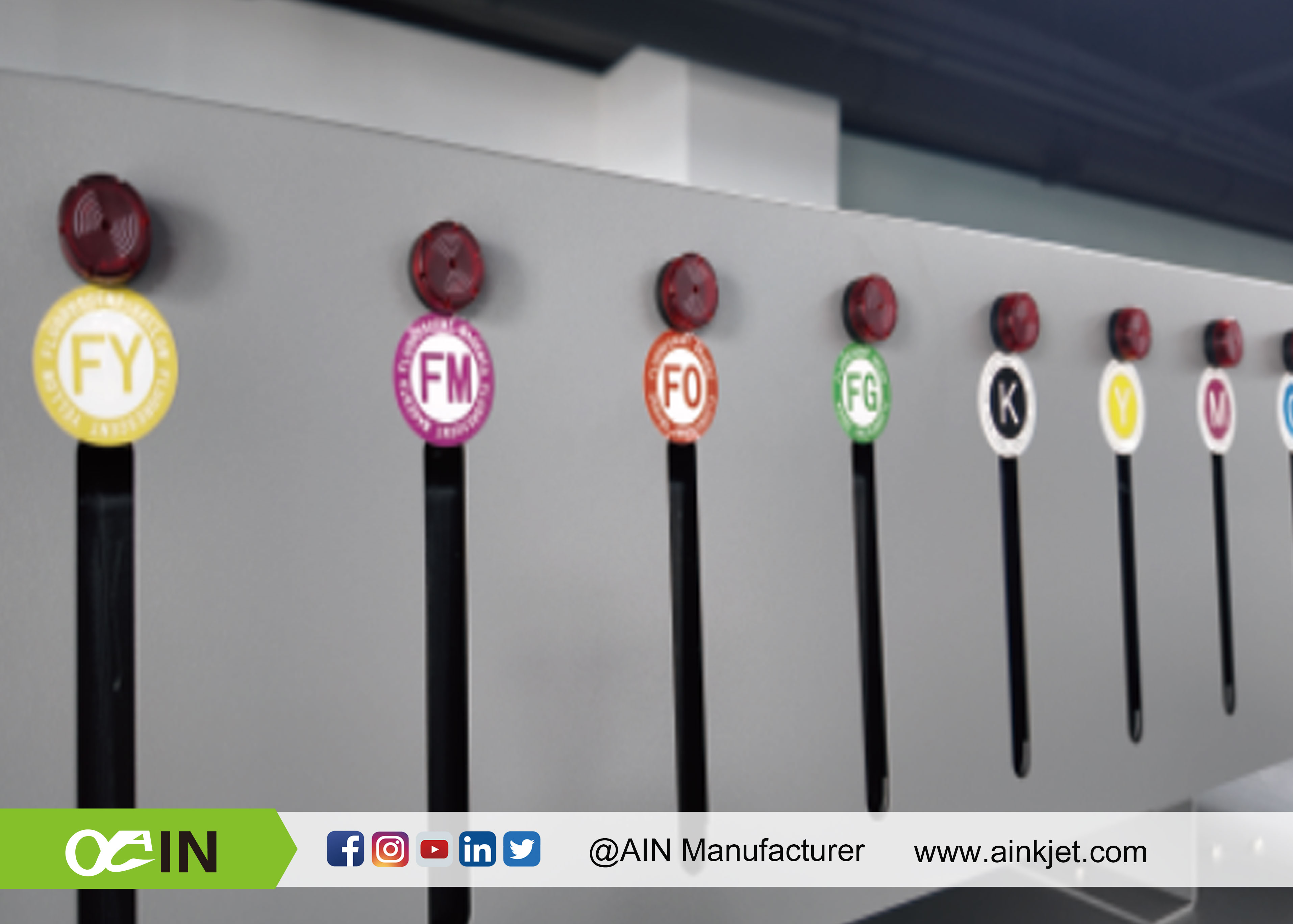

Ink bottle alarm system, monitor andremind the working status of theequipment at any time

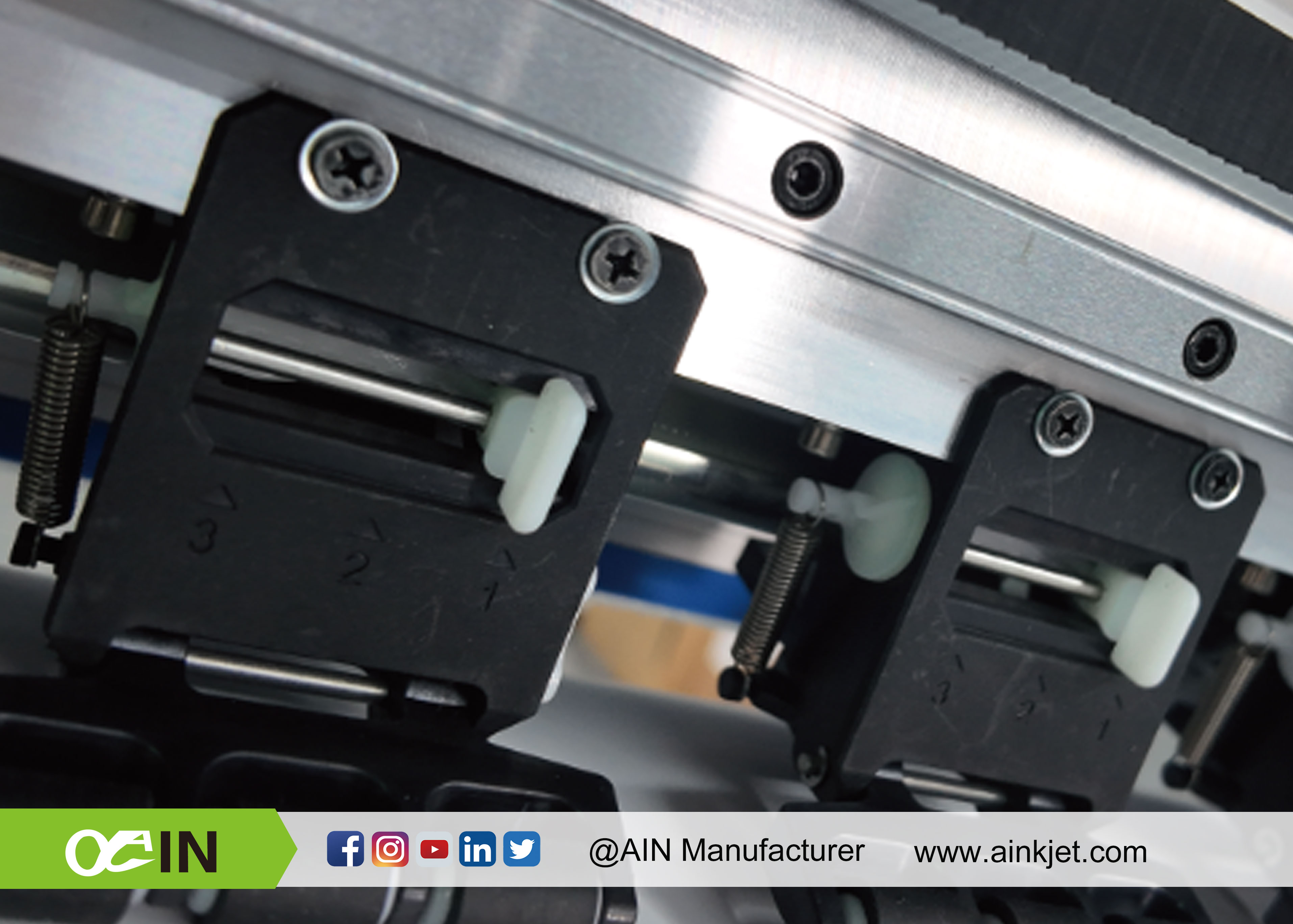

Adjustable pressure roller pressureto meet printing requirements ofdifferent materials

AJ-1602素材6

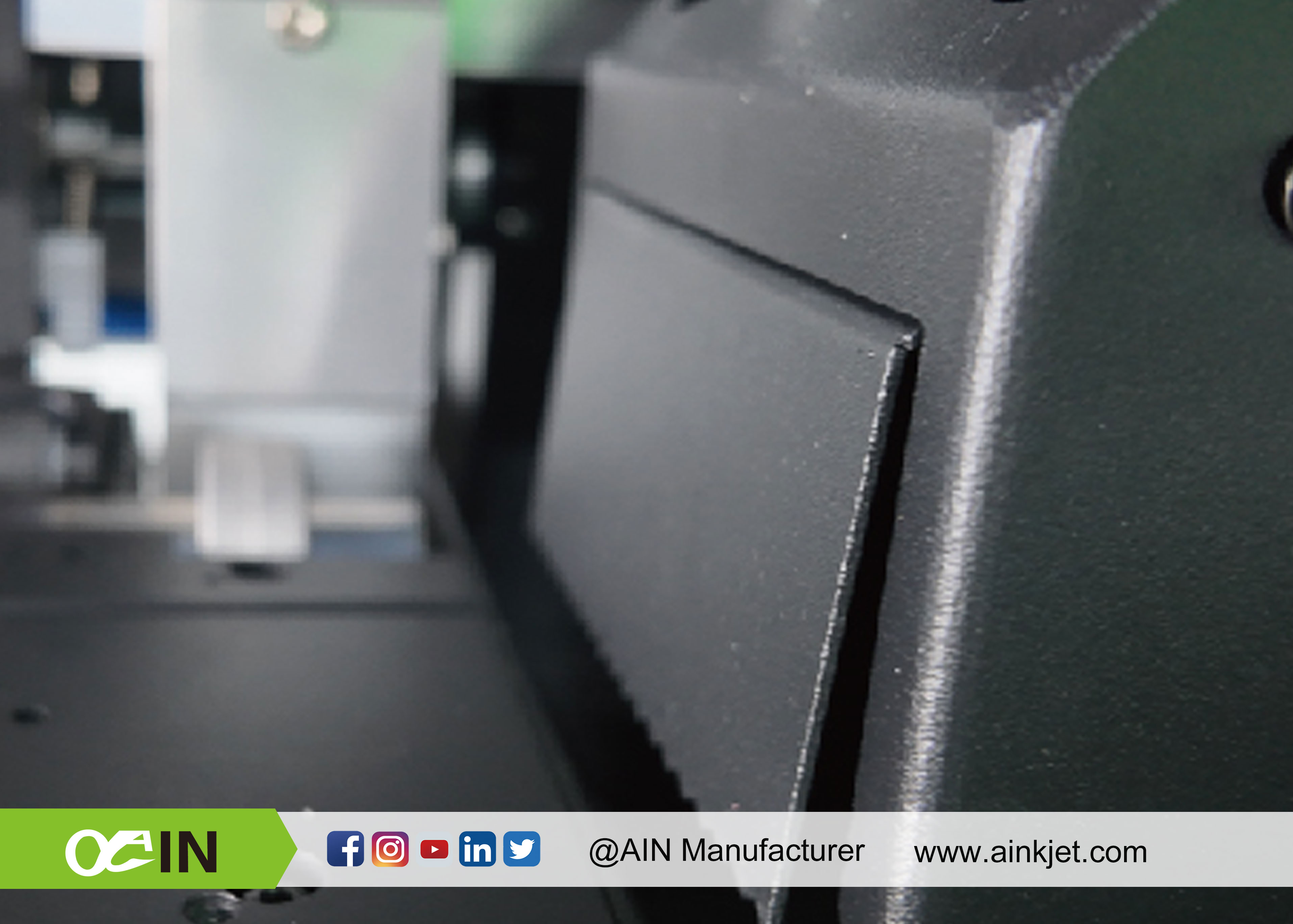

Heads anti-collision device, safetyprotection, prolonging the

service lifeof the heads

Applications

Applications of UV Neon Color UV Roll-to-Roll

Printer

The AlN series excels in indoor applications. lt can be seen in posters, shoppingmalls with black cloth hangings, POP display boards, prohibited or safety information, guidance systems, special decorations in exhibition halls, event souvenirs, etc.The use of fluorescent colors not only enhances the visual effect, but also makes these applications more creative and personalized.
