DTF PET Film

Special for DTF Printing

Parameter
Size: 30cm/33cm/60cm/120cm*100m, A3, A4,A3+
Thickness: 75u / 95u ( Cover Coating )
Core: 3inch/2inch

Feature
AIN DTF PET film is designed for DTF printers. It has excellent ink absorption, clear printing effect, anti-static and anti-adhesion properties, non-slip and oil-free, uniform coating and easy peeling. Hot or cold tear version can enhance the final image effect, such as matte, glitter or gloss effect, and ultra-soft touch.

DTF film can be transferred to a variety of fabrics. Suitable for shirts, sweaters, hoodies, pullovers, canvas, denim and other fabrics! With our film, you will get high-quality, breathable and smooth printing effect.
DTF FILMS​​​
  • cool peel

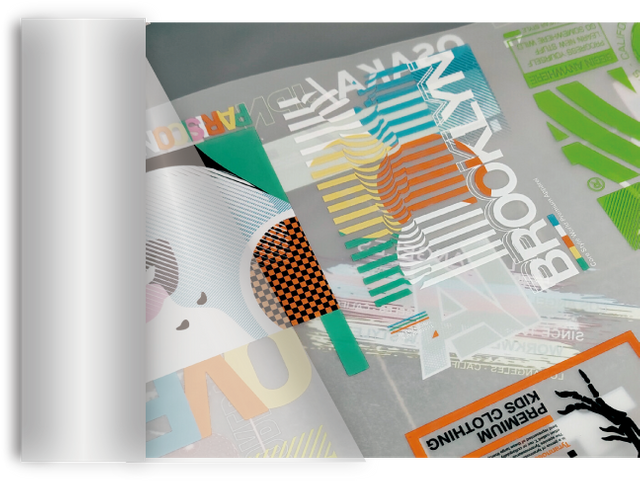

    Cold Peel
    ·Peeling after 10 seconds
    ·Stable release& vivid colors
    ·85μm

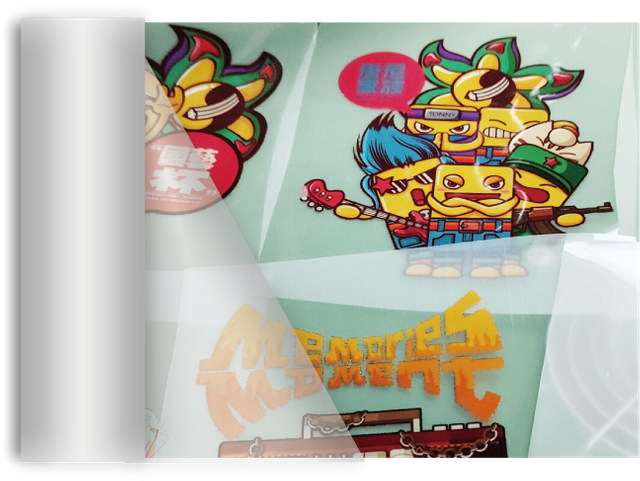

  • hot peel
    Hot Peel
    ·Peeling after 2 seconds
    ·Stronger ink absorption&uniform correct color
    ·85μm
  • any peel
    Any Peel
    ·Peeling at anytime
    ·Extremely restore image color
    ·85μm
  • chameleon

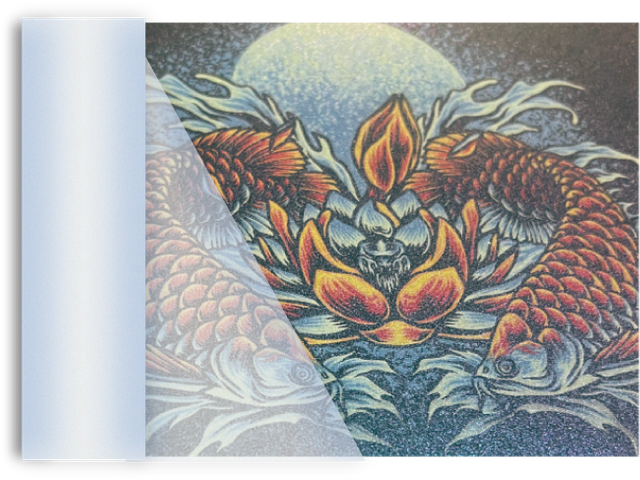

    Chameleon
    ·Gradient Blue Gradient Green, Gradient
    Purple, Slightly purple tone
    ·Applicated on hats, bags, universal
    clothing, canvas, bags, non-woven bags
    ·Cold tearing
  • gold foil

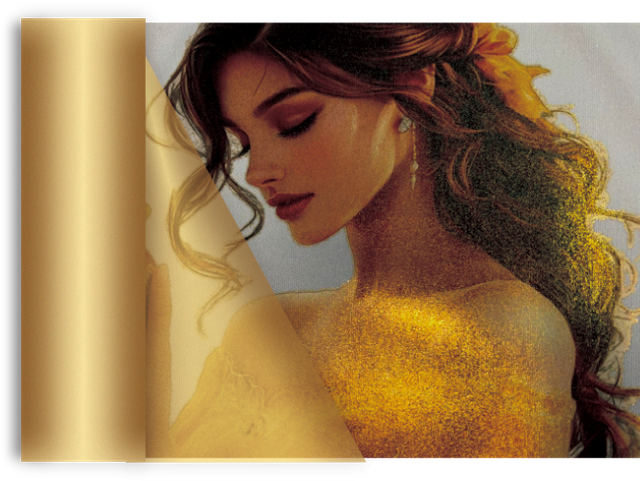

    Gold Foil
    ·Gold foil=glitter gold+ gold
    ·Applicated on hats, bags, universal
    clothing, canvas bags, non-woven bags
    ·Cold tearing
  • fantacy
    Fantacy
    ·Gradient blue, gradient green, gradient
    purple, greenish tone
    Dreamlike gradient effect
    ·Applicated on hats, bags, universal
    clothing, canvas bags, non-woven bags
    ·Cold tearing
  • gold stamp

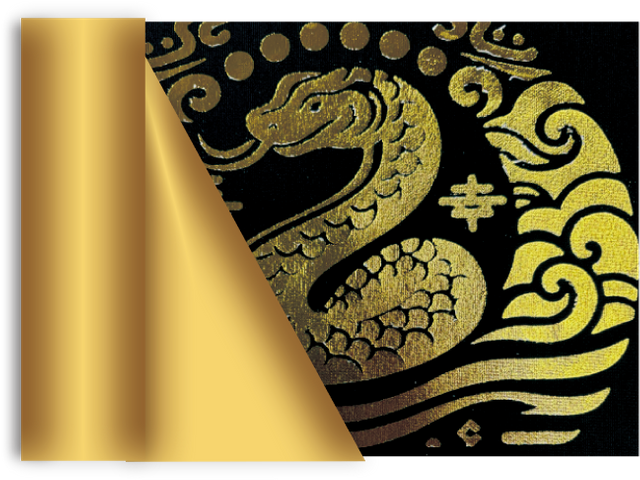

    Gold Stamp
    ·Gold metallic effect
    ·Applicated on hats, bags, flags, leather
    covers, umbrellas, canvas, bags, non-woven bags
    ·Cold tearing
  • silver stamp

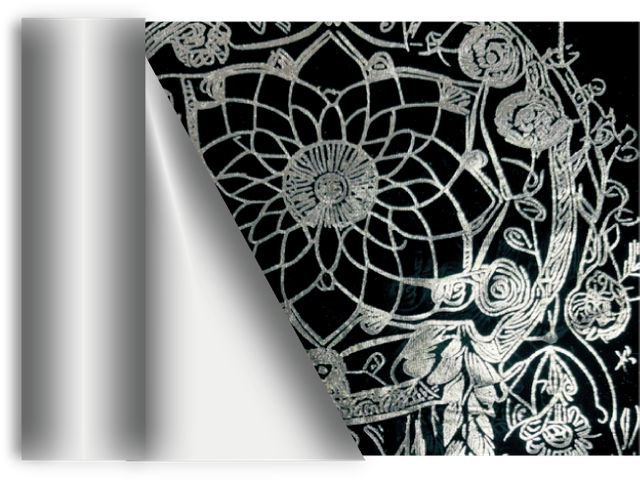

    Silver Stamp
    ·Silver metallic effect
    ·Applicated on hats, bags, flags, leather
    covers, umbrellas, canvas, bags, non-woven bags
    ·Cold tearing
  • glitter

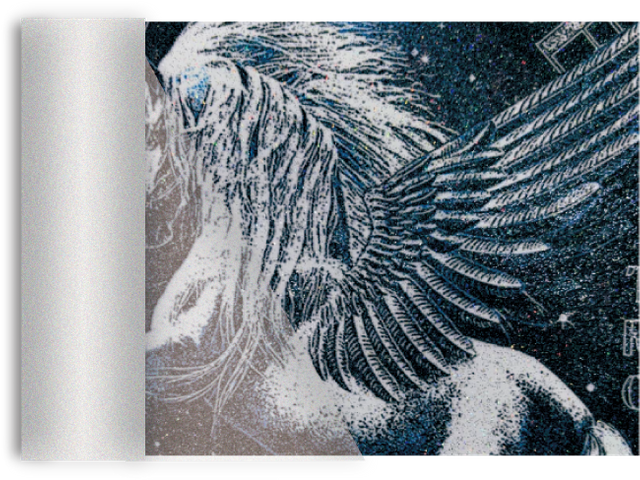

    Glitter
    ·Sparkling Colorful Particles
    ·Hats, bags, trendy clothing, children's
    clothing, universal, canvas bags, non-woven bags
    ·Cold tearing

Technical Specifications
Size: 30cm/60cm/120cm*100m, A3, A4
Both sides mattee coating
Smooth and clean surface
90μm thickness
Applicable ink: pigment ink
Scratch resistant, non-fading, washable
Non-slip, no oil, no sticking, no static, uniform coating, easy to peel

AIN DTF PET Film Advantages：
 Smooth & clean surface

 Low shrinkage, high-temperature resistant

 Excellent physical & mechanical properties

 Realistic, complete pattern color, no halo

 Strong ink absorption, thick ink layer

Small thickness tolerance, good matte, low thermal shrinkage, easy release

DTF PET Film Classification
DTF PET film is used in the direct to film printing process. These films are different from those used for screen printing and have better transmission characteristics.

 single side
 double sides,
 performance as hot film,
 performance aswarm film
performance ascold film.

For hot film, the appearance of the pattern and the cloth pattern are more natural when tear film off immediately after printed.

For cold film, the appearance of the pattern is relatively smooth, but the sense of paint and leather is aggravated when tear film off after temperature down.

Tips: DTF PET film in its original plastic bag at 20–28°C, 40–60% humidity in a cool, dry, dark place to avoid pollution and damage from improper conditions or light.

Packing Infomations

MODEL THICKNESS Size Packing
AIN-60 75u / 95u ( Cover Coating ) 600mm * 100m 2rolls/carton
AIN-30 75u / 95u ( Cover Coating ) 300mm * 100m 4rolls/carton
AIN-33 75u / 95u ( Cover Coating ) 330mm * 100m 4rolls/carton
AIN-63 75u / 95u ( Cover Coating ) 630mm * 100m 2rolls/carton
AIN-75 75u / 95u ( Cover Coating ) 750mm * 100m 2rolls/carton
AIN-120 75u / 95u ( Cover Coating ) 1200mm * 100m 2rolls/carton
AIN-A4 75u / 95u ( Cover Coating ) A4 500pcs/carton
AIN-A3 75u / 95u ( Cover Coating ) A3 1000pcs/carton
AIN-A3+ 75u / 95u ( Cover Coating ) A3+ 500pcs/carton


DTF-PET-FILM1
DTF-PET-FILM2
DTF-PET-FILM4
DTF-PET-FILM6
DTF-PET-FILM7
DTF-PET-FILM3
DTF-PET-FILM5

Method and Steps
1、The pattern to be applied through photoshop or other image processing software to complete the preprocessing, then input into the digital printing software.

2、The printer should make the best match between the consumables such as the
matching hot transfer film, ink, and image color ICC and the software. The printed pattern is guaranteed to be bright and stable.
 Printing humidity condition should remain 50%-60%；
 Indoor temperature should remain 20-30℃；
 The temperature of printer rear heating board should remain 38℃~45℃.

3、After printing the pattern, let the film flow into the automatic powder shaker machine.
 Due to ink and other reasons, please pay attention to climate change, we can be turned on the front and rear heating function to ensure stable quality during low temperature in winter.Baking machine connected heating board is also recommended to 40-50 degrees.

4、Generally, the baking speed after shaking powder is appropriate to match the printing
speed. The temperature is best to be warm first and then hot. It is appropriate to
control the temperature of the film surface between 70 and 90℃.

5、After baking, the finished film with pattern should be printed on the surface of
substrate clothing and other materials by heat transfer printing machine
as early as possible.
 Heat printing temperature: 140-160℃,
it can be adjusted by the physical properties of hot melt powder;
 Heat printing time: 7sec to 10se;
 Heat printing pressure: 5--7KG;
 According to the different fabric matching

  • Ink flow

    Reasons

    1、It becomes easy to flow ink where has powder impurities or crush wounds 2、The heating board is not open after printing

    Solutions

    If the ink flow is due to the poor absorption, we can try 1, reduce the proportion of white ink setting, appropriate to reduce the amount of white ink 2, increase the temperature of the printer heating board can also improve the pass rate 3, board heating can help ink activation and then reduce ink flow phenomenon

  • Blurred pattern

    Reasons

    The nozzle is clogged/the height is improper, resulting in uneven ink, low driver/unstable or fast printing speed, the ink is not dried and fixed in time.


    Solutions

    1. The nozzle is clogged or the height is improperly set, resulting in uneven ink distribution.
    2. The printer driver version is low or unstable.
    3. The printing speed is too fast, and the ink is difficult to dry and fix in time.

  • oily or damp

    Reasons

    Baking dried patterns or pasted and transferred patterns become oily and damp

    Solutions

    It belongs to the phenomenon that the glue is not baked thoroughly, the water and glycerin in the ink cannot be thoroughly baked and then reversed. Generally speaking, single sheet operating version with 120 degrees low temperature for a long time through it best. As powder is limited by the length of the powder machine, so we can try to raise the connected board appropriate high temperature to make the water and glycerin evaporation in advance might also help

  • Flaking powder

    Reasons

    The blank place powder around the pattern sticks the coating after heat transfer printing

    Solutions

    May due to the heat transfer printing pressure is too high, which makes the film ink absorbing layer damage peeling or fabric surface size easy to stick the coating. Generally, as long as the temperature and pressing time can meet the requirements of sticking firmly, it can be easily solved when adjust the pressure as small as possible down

  • Printing ink bleeding

    Reasons

    Printing ink bleed is caused by uneven surface coating, poor ink compatibility or excessive flow, and the ink is not effectively fixed.

    Solutions

    1.Choose DTF PET Film with good and uniform coating quality.
    2.Use matching special ink.
    3.Adjust the ink flow rate to reduce and test the best parameters.


Applications of DTF Printer
Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique .
 T-shirt                               Denim/Jeans
 Canvas                             Hoodies
 Backpacks                       Lanyards
 Shoes                                Gift Bags
 Baseball Caps                 Fabric Gift Boxes
 Sweaters and more......
DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films​​​​​​​
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
DTF Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology. AIN offers different colors of DTF inks such as white, yellow, black, magenta, cyan,orange, green, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder​​​​​​​
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.​​​​​​​
