Printer Informations

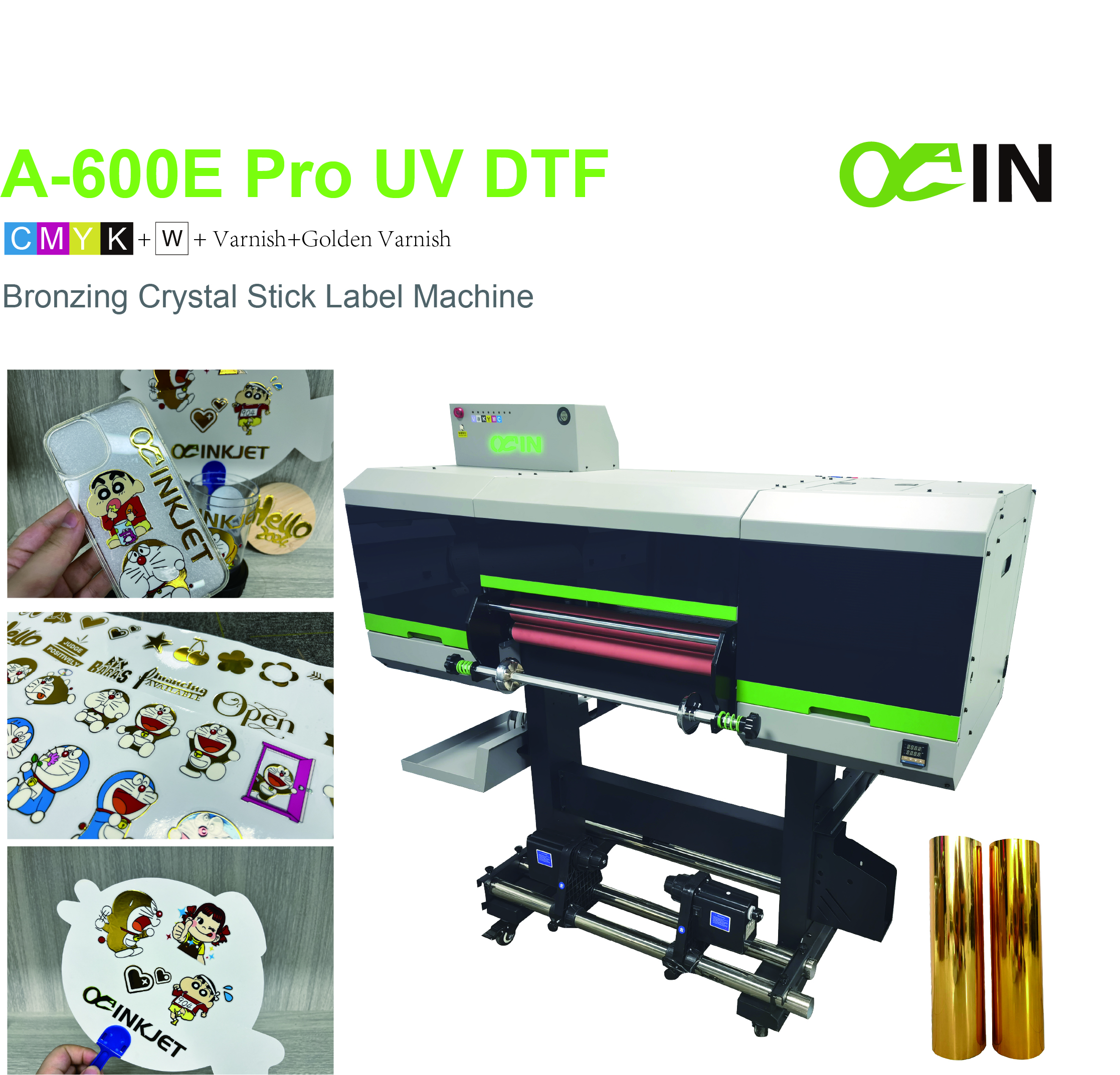

| Bronzing Crystal Stick Label Printer UV DTF Machine AIN UV DTF Printer The AIN multifunctional UV DTF printer is highly versatile. It can print on both flat and non - flat items like glass bottles and water cups, and is suitable for decorating the surfaces of materials such as plastic, glass, wood, and metal.
Outstanding Color Performance With a rich color mode including WCMYK, and combined with varnish and gold ink, it presents a variety of gorgeous effects.
Efficient Function Integration Integrating UV printing and gold stamping functions into one, it greatly improves production efficiency. High Quality UV And Varnish InkAIN UV inks are specially developed to ensure vivid colors and maximum fastness on wide range of all kinds materials. Varnish printing application presents more personalized solution requirements . Reliable UV Printing Solution Every component in AIN UV printer is designed to last -High precision timing components on demand piezzo print head - Durable ink components -Sturdy exterior |
New Feature of UV DTF Printer We have an excellent technical team, which can be designed according to customers requirements. | |

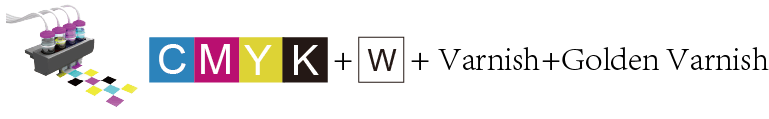

| 4 Colors + White & Varnish Are More Expressive Equipped with 6 ink tanks, 4 colors of ink can be installed. It can finish exquisite shading with high precision. In addition, using white ink and clear varnish, it has rich expressive power and fulfills various needs. Print Varnish And 3D Relief Effects The heads of white color varnish ink jet at the same time, which can produce D relief and multi-layer transparent bump effect, including amazing varnish glossy effect and matte finish.
High-Performance Inks For A Variety Of Applications It is an eco-friendly UV ink with excellent color development and color reproducibility. It is cured by ultraviolet radiation. In addition to bright colors and style, it also has strong adhesion. |
SPECIAL UV DTF PRINTING SOLUTION UV DTF PRINTER With the rapid development of science and technology, people have shown unprecedented progress in the processing and presentation of image patterns.In order to meet the personalized demands of users and meet the needs of designers, UV flatbed printer has emerged as the times require, and its patterns are realistic and layered. The advantages of richness, high artistry, and strong stereoscopic effect make UV flatbed printer the first choice for hot image output. UV DTF PRINTING SOLUTION UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.UV DTF Make you more easy to entry label market - UV Direct Print Effect - No Heating Process Required - No Drying Process Required - Good Adhesion on Curved, or Rugged Surface AIN DTF supports wide range of printing supplies Direct to film comprehensive solution is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing. | AIN UV DTF INKS All our UV DTF inks are specially developed and test to ensure vivid colors and maximum fastness - Scratch resistant - Vivid colors
|

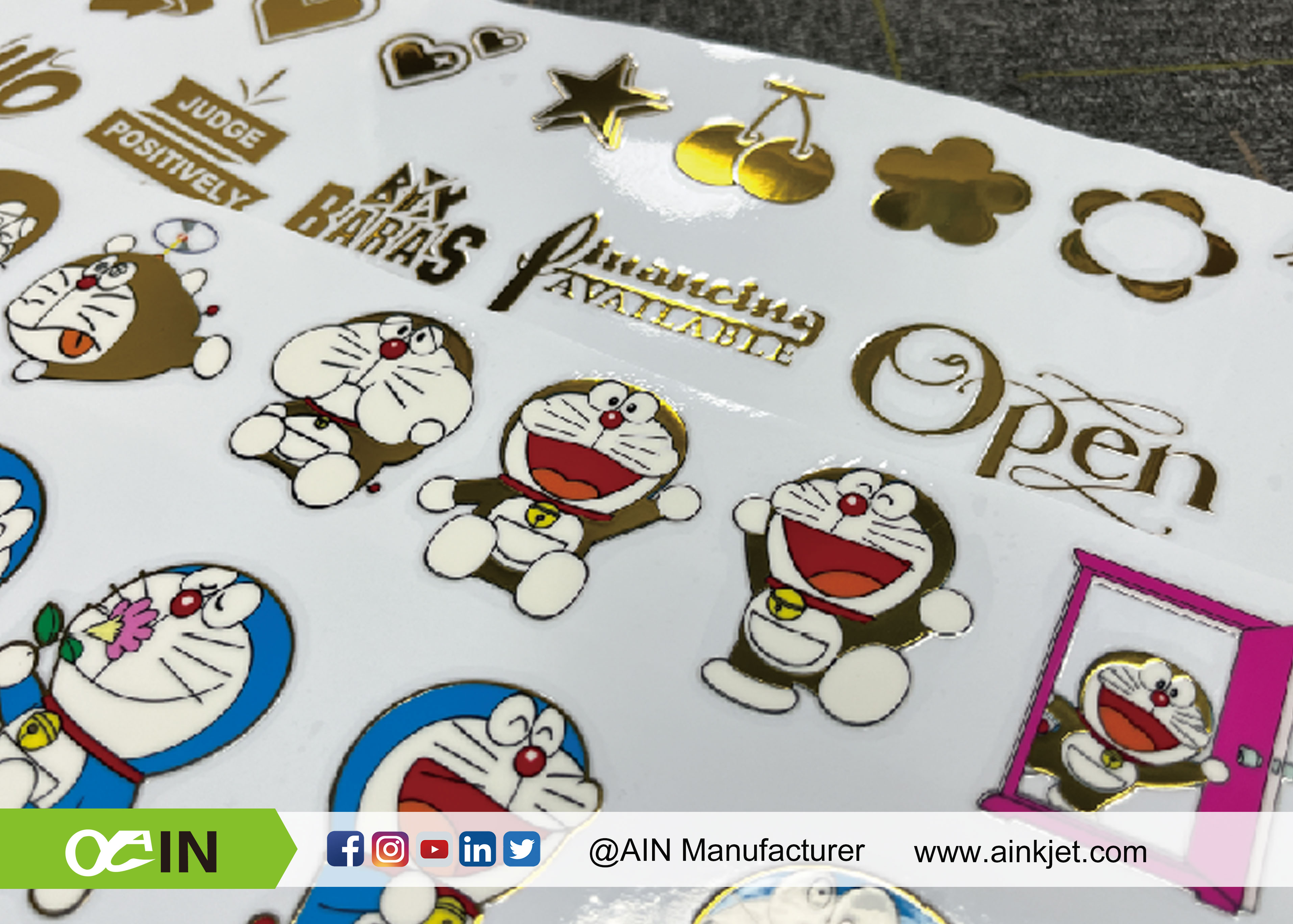

Customized Crystal Signage Solution The digital revolutional technology can produce crystal label by directly pasting to the material surface after printing conveniently without pretreatment. ● Scratch-resistant and durable. ● Strong adhesion to most surfaces. ● Bright color, good quality of finished products, beyond your imagination. ● Waterproof, lightfast and dirt-free. ● Applicable to hard, flat or curved surfaces. ● It can transfer different coatings of backing paper materials. ● Customized Crystal Signage solution to achieve hot stamping, hot silver and colorful effects. | ● Use scissors to cut the printed image ; ● Separate the magic film-A and B apart ; ● Stick the image part onto the desired surface ,and press gently to remove air bubbles ; ● Quickly tear magic film-B off for keeping the images on the desired surface ; ● Colorful, three-dimensional, waterproof, wear-resistant, scratch-resistant .
 Separate the film-A and B apart
Stik the transfer film  Tear off the transfer film  Done |
Printer Heads
Features
| Safety structure design The overall printer cover can improve the operation safety, reduce the adhesion of dust in the printing process and ensure the printing quality. | | Laminating device Comes with a laminating system, realizes the function of laminating while printing, easily reduces manual operations, and can print a whole roll of A film with glue . |
| Smart operation High quality output, simple and efficient operation A-600 Pro contains many advanced functions to complete high-quality printing jobs with simple operations. |  | Ink supply system Using white ink and clear varnish, it has rich expressive power and fulfills various needs. An additional spray print head can be added to realize the application of bronzing varnish and direct glue. |
 |  |  |
|
Strong electrical adaptability
It supports a wide voltage range of 110V/220V, a frequency range of 50-60HZ, and can work in temperatures ranging from 10°C to 120°C.
Efficient and convenient operation
It can complete preheating within 10 minutes, with a film covering width of 800mm and an adjustable speed of 0-35m/min. It also has functions such as automatic film peeling, paper rolling, and a foot switch.
Excellent mechanical performance
The air pressure application is uniform. The roller can be adapted to a variety of rolls. The printing includes CMYK+W+varnish+gold ink,providing rich effects.
Applications
Applications of UV DTF Bronzing Crystal Stick Label Printer

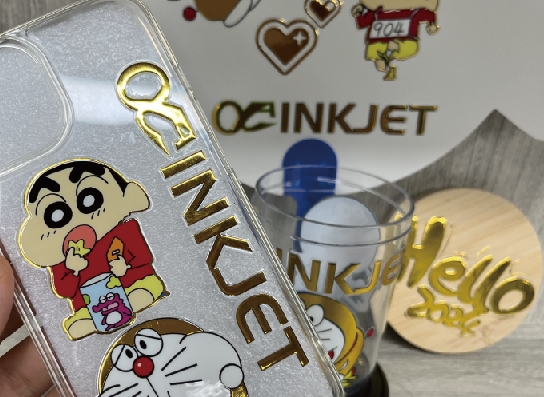

Print magic UV ink on magic film. Get ready to design and make your “image” without the traditional molding process, and no more minimum order quantity for your customer. Magic film can be applied easily on non-flat surface for printing image transfer, and works well on various materials, such as plastic, glass, metal, ceramics, leather, wood, and other soft or hard materials.
| ● Plastic ● Ceramics ● Leather ● Wood ● and other soft or hard materials....... | ● Glass ● Metal ● Glass stickers ● packibg box |
 |  |  |
 |  |  |
 |  |  |
Technical Specifications

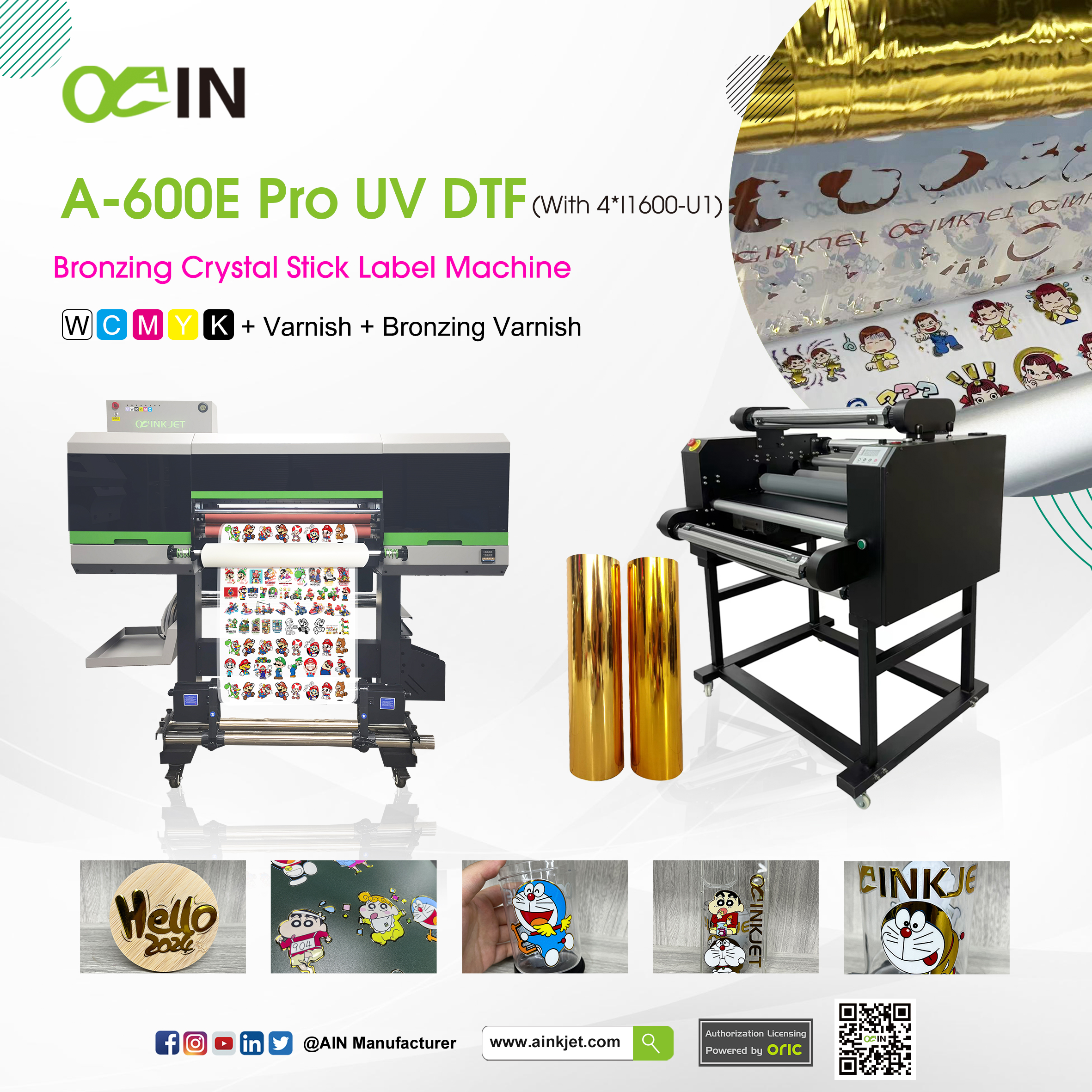

| A-600E Pro UV DTF Bronzing Crystal Stick Label Printer | ||
|---|---|---|
| Print Head | 4*i1600- U1 | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | ≤600(mm) |
| Thickness | ≤1.5(mm) | |
| Ink Cartridges | Capacity | Color Siphon + Regular Mixing of White Ink |
| Color | W+CMYK+Varnish | |
| Printing Resolution | Maximum 2400 dpi | |
| Speed | 8pass (720x1200dpi) 7m²/h | |
| Ink Curing Method | Dual UV LED Lights | |
| Power | 3500W | |
| Interface | Gigabit Ethernet | |
| Power Supply | AC 220V ± 10%, 50/60 HZ | |
| Dimensions(with stand) | 1650(W)x960(D)x1570(H)mm | |
| 2360(W)x880(D)x760(H)mm | ||
| Weight(with stand) | 441 lb. (200 kg) | |
| Environment | Power on | Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation) | |

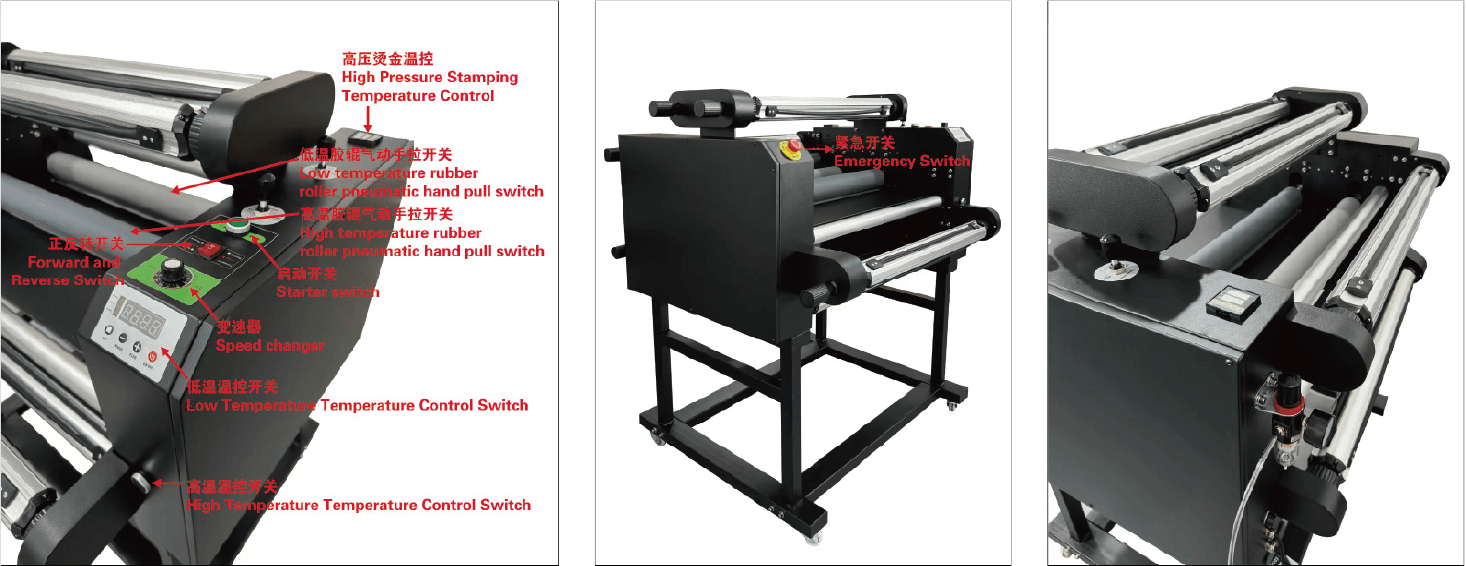

| Printing and Stamping Discharging Machine | |
| Model Number | 60 Max |
| Nominal Voltage | 110V/220V |
Power | 90W |
Heating Power | 1500W |
Frequency Respons | 50HZ-60HZ |
| Operating Temperature | 10°C-120°C |
Scope of Suitable Film Thickness | 10-250um |
| Warm-up Time | 0-10min |
| Laminating Width | 800mm |
| Laminating Speed | 0-35m/min |
| Speed Gear Controling | Variabe |
| Maximum roll film OD | 200mm |
| The Diameter Specification | 3in |
| The Rasie Height of Roller | 30mm |
| Method of Pressure | Pneumatic |
| Automatically Uncovering Filmand Rolling BodyPaper Equipment | Motor |
| Foot-Propelled Switch | Yes |
| Diameter of Roller | 80mm |

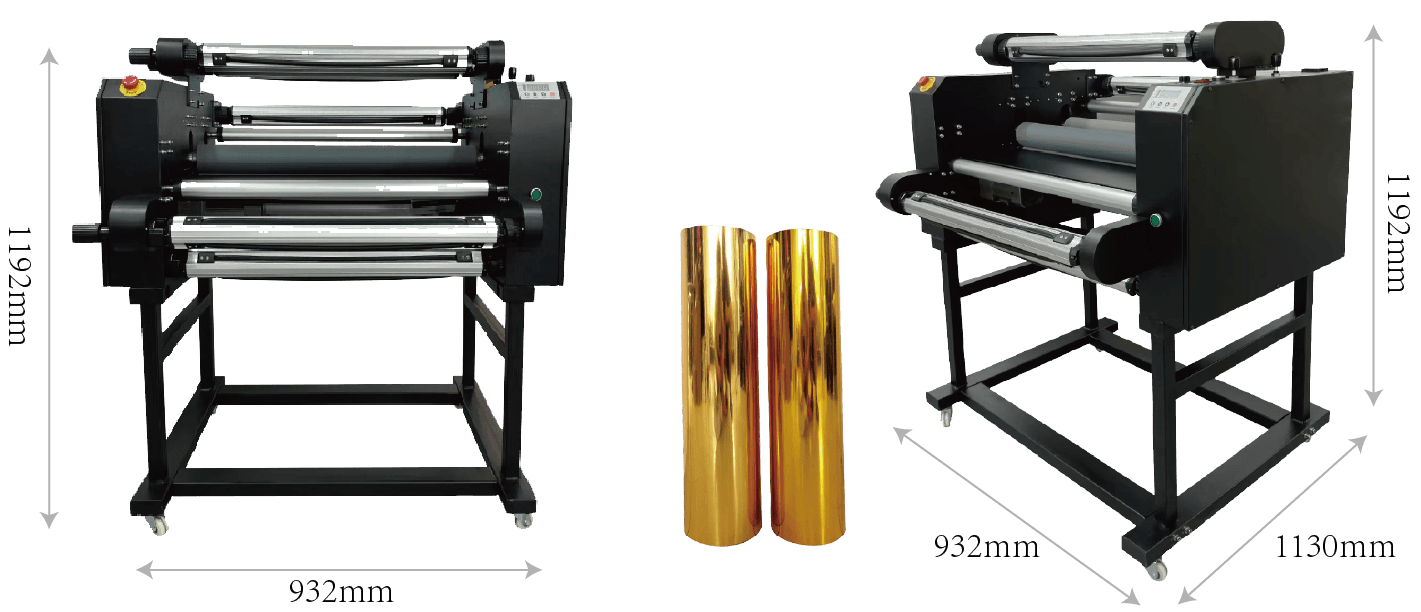

| Product Size | 1130*932*1192(mm) |
| Packing Size | 1170*950*920(mm) |
