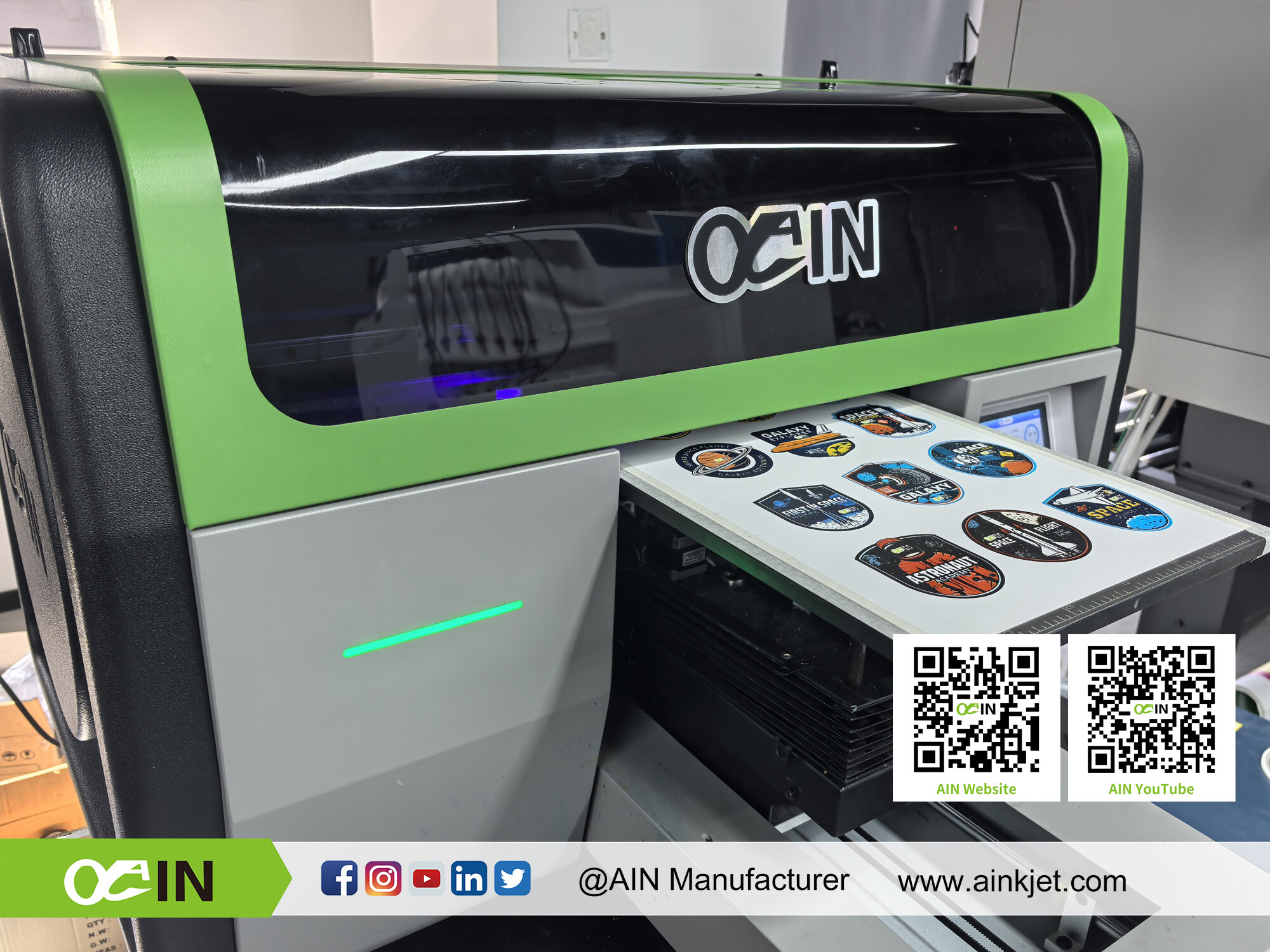

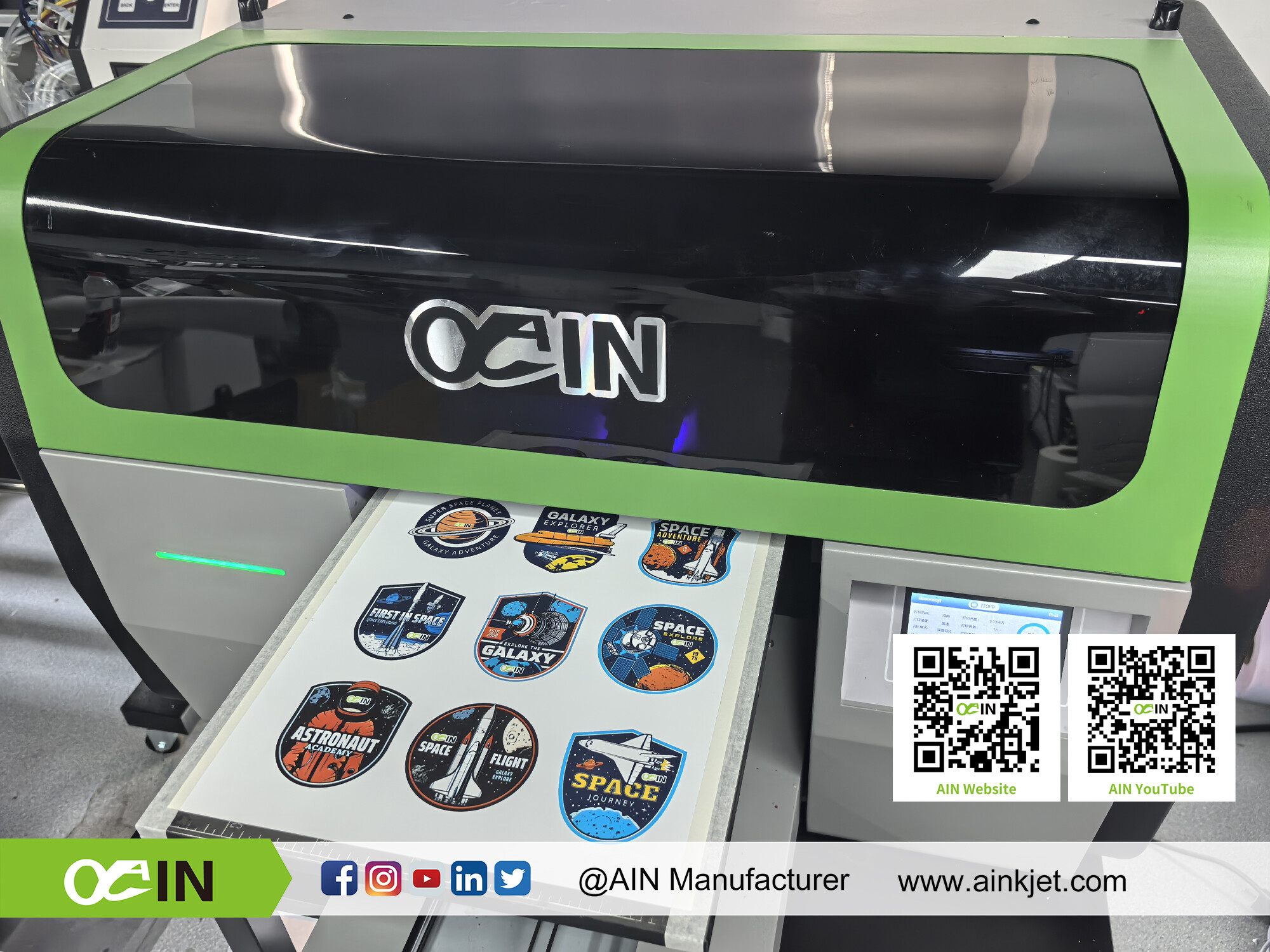

AJ-A301 Multifunctional UV DTF Flatbed Printer

AINKJET AJ-A301 Multifunctional UV DTF Flatbed Printer + Flexible TPU Printing

AJ-A301
Special for UV DTF Flatbed Printing, Leading the new trend of personalization.

Parameter
Print Head: EPSON I3200 HD
Max Print Size: 297*420mm
Print speed : 0.28sqm/h-3sqm/h
Print colors：CMYK+W+V/CMYKLcLm+W/CMYKLcLmLKlk/CMYK
Ink Type: Environmental UV curing ink

Feature
UV DTF Printing - The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing. UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.

The charming AJ-A301 Multifunctional flatbed printer can be used for not only sheet fed but also objects with non-flat surfaces, such as glass bottles, water cups, personalized mobile phone cases, gifts, promotional souvenirs, etc.Suitable for printing on: flat or cylindrical objects such as mobile phone case, metal, acrylic, plastic, PVC, glass, ceramics, wood, leather, etc.


Availability:



Inquiry PDF Export

Printer Informations

AJ-A301详情4x-100

Multifunctional UV DTF Flatbed

A301 Printer + Flexible TPU Printing

High-Performance Core Configuration

Equipped with an EPSON I3200 HD printhead (I1600-U1 optional), it offers a max print siz

e of 297×420mm a speed of 0.28–3㎡/h, and supports multi-color printing (including white ink and varnish).

Versatile Material & Application Support

Supports TPU/PU heat transfer, UV DTF film, and logo/brand visual production, with high-adhesion,

crack-free, and peel-resistant output.

Multi-Scenario Printing Compatibility

Ideal for flatbed, cylinder (φ25–80mm), and roll paper (30–250mm) printing; max print height 80mm,

compatible with both flexible and rigid materials.

Smart & User-Friendly Operation

Features a smart control screen and high-precision transmission for ease of use. It supports adjustablprinting speed, a compact design, and low consumables, making it highly efficient and convenient.

Durable & Versatile Performance

Equipped with eco-friendly UV ink and a robust industrial structure for long-term use, it enables

UV+DTF direct transfer on irregular/hard-to-print materials, with customization options avai to meet diverse needs.

Use Cases

Creates 3D-textured UV DTF labels, prints on cylindrical objects (bottles, cans), customizes small

flat items (phone cases, metal, acrylic, plastic, PVC, gifts), and enables batch printing of

food/cosmetics self-adhesive labels—ideal for personalized customization in shops and studios.

New Feature of UV DTF Flatbed Printer

We have an excellent technical team, which can be designed according to customers requirements.

WechatIMG811

Easy to Operate & Cost-effective

Effortless operation, easy to get started, cost-effectiveness

Unlimited by Height, Shape and Size

This flatbed printer breaks design constraints on height, shape, and size

Dual-purpose printer

Flexible or hard materials, Combines printing in one printer ；

Versatile, Cost-effective

Versatile color and foil options, vibrant prints, adaptable materials, sizes, shapes, cost-effective, precise positioning；

A301-素材

(Rolling fixture)

Support roll paper width：30-250mm

Inner diameter of roll paper tube：Three-inch core

Standard fixture optiona

A301-素材2

(Rolling fixture)

Support roll paper width：Cylinder diameter 25-80mm

Inner diameter of roll paper tube：Cylinder length 20-210mm

Printer Heads

Epson i1600-U1 Print Head

PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

dtgpentou2

Model		I1600-U1 / I3200 optional
Compatible ink		UV Ink
Dimensions(WidthxDepthx Height)		69.1mm x 59.4mm x 35.6mm
Weight(g)		60
Nozzle Numbers		1600
Length Between Nozzles(inch)		1/300
Nozzle Row		4 rows
Max color/head		4 colors
Resolution		300dpi/row, 600dpi/2row
Effective Printing Width(mm)		33.8
Droplet ejection performance(kHz)	Binary	5 pl（43.2kHz）
	3 levels grey scale	6,12.5 pl（21.6kHz）
	4 levels grey scale	3.8,6.2,9.3 pl（21.6kHz）
Viscosity range(mPa.s)		5-7 mPa･s

Features


EPSON I3200HD HEADS 8 ink channels, 1200 dpi printing accuracy, highly accurate droplet drop point.	Operation Screen Intelligent operation screen, easy to operate. printing status at a glance.	Precision Belt Drive System Unleash the power of precision with our cutting-edgebelt drive system, ensuring output stability

Lifting Vacuum Table Easily handle various customized requirements	Intelligent Ink Supply System Small size, large capacity, continuous ink supply systemensures continuous and stable printing efficiency	Cylinder Effect Transform cylindrical objects like thermos cups with precision and flair using our versatile UV flatbed printer!

A301 实物发货图1

Application

Applications of AJ-A301 Multifunctional UV DTF Flatbed Printer + Flexible TPU Printing

Application of Flexible TPU Printing (UV DTF)

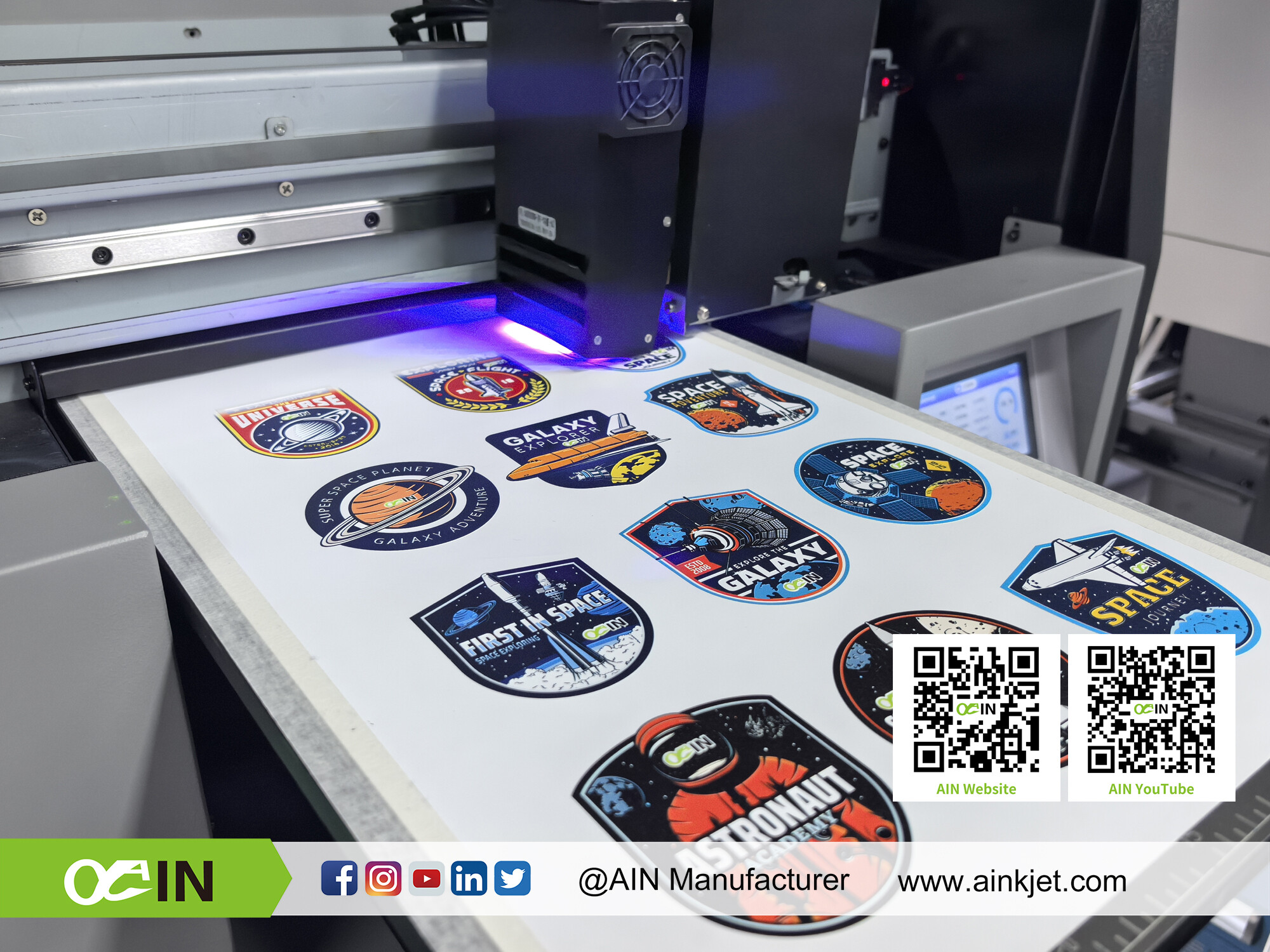

Supports Textile 3D UV DTF crystal label printing on TPU/PU materials, creating 3D textured effects.

It delivers high-adhesion, crack-free output ideal for clothing and jerseys.

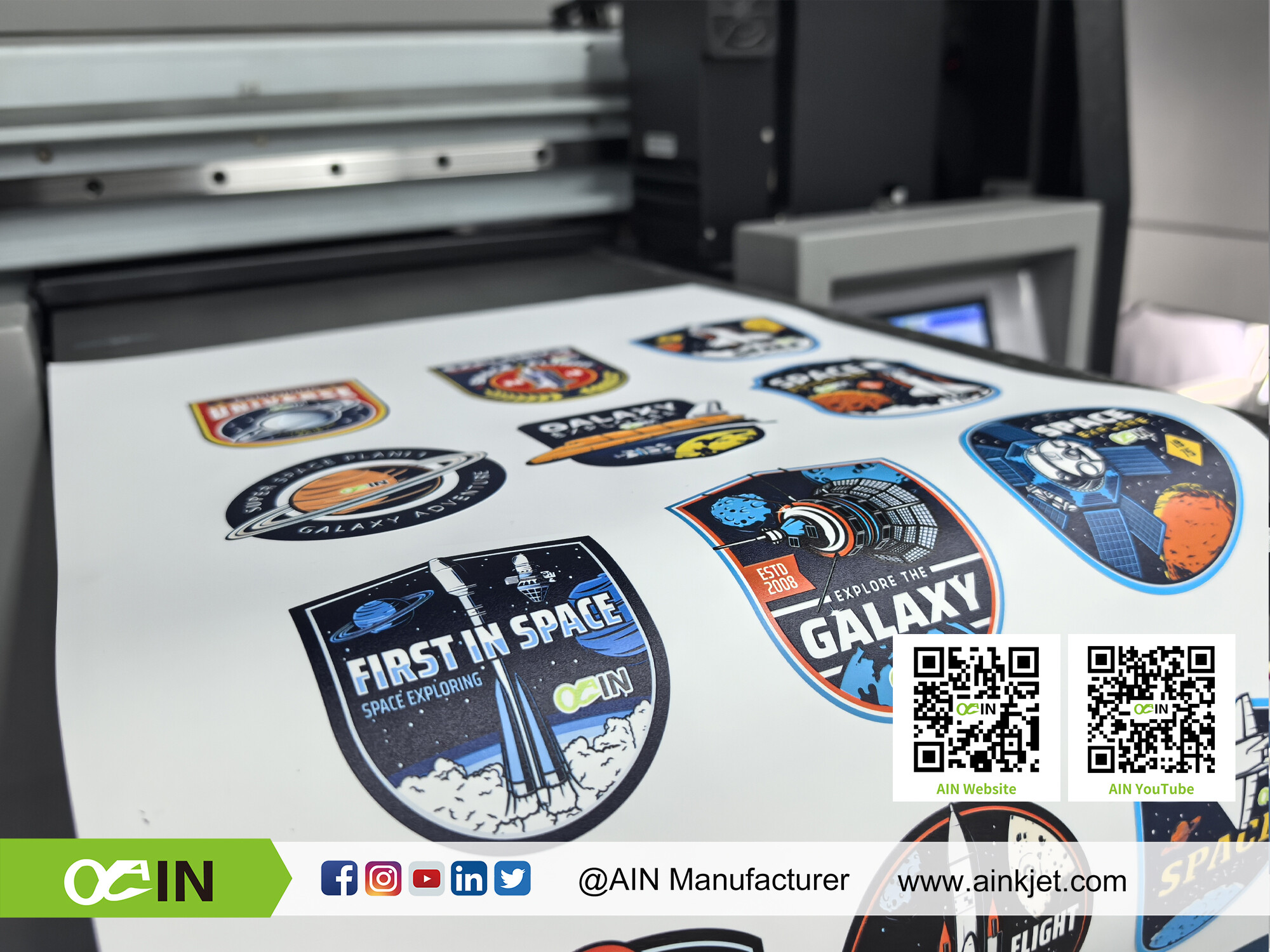

Application of label film(UV DTF)

The combination of UV printing and DTF technology can create a 3D effect on the printed images, adding

a sense of depth and texture.Wide Application Range: UV DTF Crystal Labels can be applied to a variety

of hard, smooth surfaces, such as glass, metal, acrylic, wood, plastic, ceramic, and more. 应用1

Application of cylinder

Cylindrical digital printing is widely used in the packaging industry for printing on cylindrical containers.

such as bottles, cans, and tubes. This allows for the creation of eye-catching and informative packagingthat enhances product appeal. 应用2

Customized applications for flatbed products etc.

Most materials can be printed: plastic, glass, ceramics, paper, paperboard, metal, leather and so on.Such as pen,

notebook, phone case, mouse,vase, bottle, can, mug, packing box, purse,pad, uSB flashdisk, electric appliance,

suitcase, key ring and other different size products.

应用3

Coil Printing -Labels self adhesive paper printing

Used to make various product labels, logos, stickers, etc. in the food, beverage, cosmetics and otherindustries,

self-adhesive paper labels are widely used on product packaging to mark product information.

brand logos, ingredient descriptions, etc.

应用4

Technical Specifications

AINKJET Multifunctional UV Flatbed Printer
Model	AJ-A301
Print head	EPSON I3200 HD
Print head picture	1 pcs
Nozzle spray force range	2-3mm
Number of nozzles	3200 (Individual)
Distance between nozzles	1/300 inch
Number of nozzle rows	8
Maximum number of supported ink colors	8
Effective print width	300npi/1 List, 600npi/2 List, 1200npi/4 List
Rip software	Photoprint
Print speed	0.28sqm/h-3sqm/h
Resolution	960x1200dpi
Printing Size	297*420mm
Print mode	White and color and varnish print at same time
Print colors	CMYK+W+V/CMYKLcLm+W/CMYKLcLmLKlk/CMYK
Print height	0-80mm
Printer dimension	LWH 900mm1010mm600mm
N.W.	78KG
Packing size	Packing size
Volume	0.85cbm
G.W	110KG
Power	C220/110V, 50HZ-60HZ
Working environment Temperature	0°C-28°C Humidity:35%-65%
Connection method	Network cable
Ink type	Environmental UV curing ink
Ink store environment (shading)	Temperature:20°C-28°C Humidity:35%-65%
Graphic format	Tiff,Jpg,Eps,Pdf,Png
