AINKJET A-6042A UV MULTIFUNCTION FLATBED PRINTER

AINKJET 6090A UV MULTIFUNCTION FLATBED PRINTER

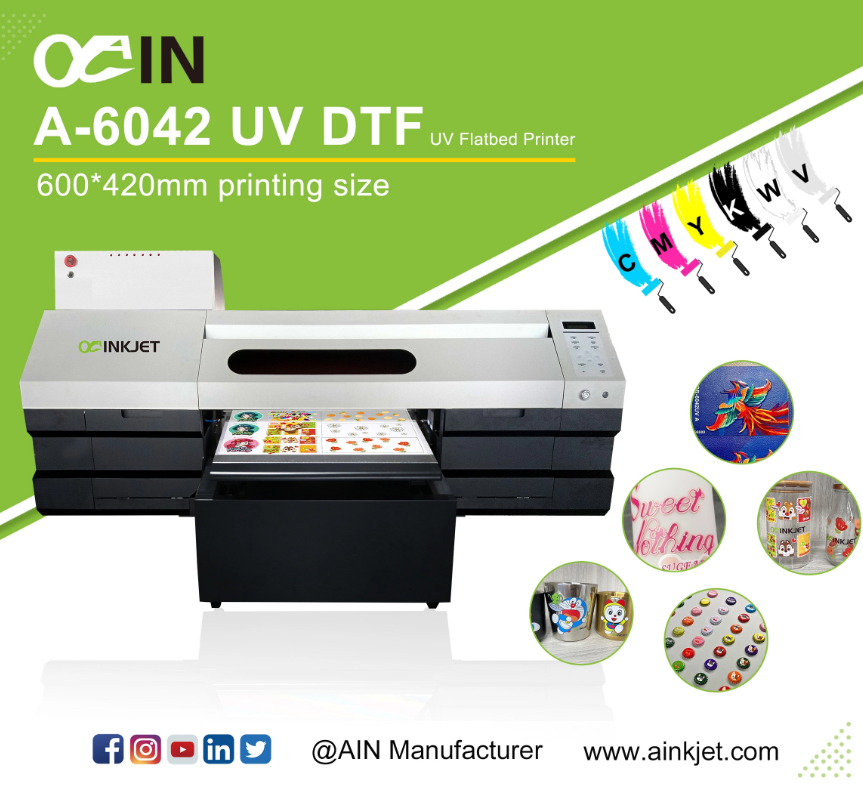

AINKJET A-6042 UV DTF UV Multifunction Flatbed Printer

A-6042 UV DTF
Special for UV DTF Flatbed Printing, Most advanced and latest printing technology

Parameter

Print Head: EPSON i1600-U1
Max Print Size: 600mm*420mm
Media Thickness : ≤1800mm
Finish Printing an A2 sheet : 10mins
Ink Type: UV Curing Ink

Feature

The A-6042 UV DTF printer features a 600×420mm print size, EPSON i1600-U1 printheads with CMYKWV inks, and supports high-efficiency, high-precision production for both small and medium orders.

It prints durable, scratch-resistant UV transfer stickers (crystal labels) in one pass without plate-making, working on almost all materials including curved and irregular surfaces.

With stable industrial design and versatile performance, it meets customization needs across gifts, packaging, crafts, and advertising applications.


Availability:



Inquiry PDF Export

Printer Informations

6042 UV DTF平板

Multifunctional

UV DTF UV Multifunction Flatbed Printer

Efficient Production Capacity

Max print size up to 600×420mm; multi-pass printing balances speed and precision, ideal for small-batch customization and medium-volume orders in stores and small factories.

Core Configuration & Color Performance

Equipped with EPSON i1600-U1 printheads and CMYKWV 6-color inks (CMYK + White + Varnish), it reduces graininess and creates glossy, matte or embossed finishes to boost product value.

UV DTF Transfer Advantages

Prints UV transfer stickers (crystal labels) without plate-making, completing color/white/varnish layers in one go. The stickers are durable, scratch-resistant, and work on nearly all materials, including curved/irregular surfaces.

High Compatibility & Stability

Features an aluminum vacuum platform for irregular items, paired with industrial negative pressure ink supply and stable UV-LED curing for reliable, low-maintenance operation.

Versatile Applications

Suitable for custom gifts, packaging labels, decorative crafts and advertising peripherals, enabling personalized transfers on mugs, bottles, signs, logos and more.

New Feature of UV DTF Flatbed Printer

We have an excellent technical team, which can be designed according to customers requirements.

4 Colors + White & Varnish Are More Expressive

Equipped with 6 ink tanks, 4 colors of ink can be installed. It can finish exquisite shading with high precision. In addition, using white ink and clear varnish, it has rich expressive power and fulfills various needs.

Print Varnish And 3D Relief Effects

The heads of white color varnish ink jet at the same time, which can produce D relief and multi-layer transparent bump effect, including amazing varnish glossy effect and matte finish.

High-Performance Inks For A Variety Of Applications

It is an eco-friendly UV ink with excellent color development and color reproducibility. It is cured by ultraviolet radiation. In addition to bright colors and style, it also has strong adhesion.

SPECIAL UV DTF PRINTING SOLUTION

UV DTF PRINTER With the rapid development of science and technology, people have shown unprecedented progress in the processing and presentation of image patterns.In order to meet the personalized demands of users and meet the needs of designers, UV flatbed printer has emerged as the times require, and its patterns are realistic and layered. The advantages of richness, high artistry, and strong stereoscopic effect make UV flatbed printer the first choice for hot image output.

UV DTF PRINTING SOLUTION

UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.UV DTF Make you more easy to entry label market

- UV Direct Print Effect

- No Heating Process Required

- No Drying Process Required

- Good Adhesion on Curved, or Rugged Surface

AINKJET DTF supports wide range of printing supplies

Direct to film comprehensive solution is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.

AINKJET UV DTF INKS

All our UV DTF inks are specially developed and test to ensure

vivid colors and maximum fastness

- Scratch resistant

- Vivid colors

EB105784-0E32-4874-8B99-CEE532659E9C 5AD6A742-C107-45CB-B963-3AEE1A9A581E

UV DTF Printing Working Process

⊕ Design Pattern

Use photoshop, illustrator or other software to design your pattern.

⊕ Print Your Design On A Film

Adjust the printer parameters in the RIP software and use our UV DTF printer and ink to print your pattern on A film.

⊕ Lamination

Laminate A film with B film

⊕ Cut & Transfer Film On Products

Cut the image and stick on substrates, repeat pressing the pattern and then slowly peel the film and finish.

Printer Heads

Epson i1600-U1 Print Head

PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

dtgpentou2

Model		I1600-U1 / I3200 optional
Compatible ink		UV Ink
Dimensions(WidthxDepthx Height)		69.1mm x 59.4mm x 35.6mm
Weight(g)		60
Nozzle Numbers		1600
Length Between Nozzles(inch)		1/300
Nozzle Row		4 rows
Max color/head		4 colors
Resolution		300dpi/row, 600dpi/2row
Effective Printing Width(mm)		33.8
Droplet ejection performance(kHz)	Binary	5 pl（43.2kHz）
	3 levels grey scale	6,12.5 pl（21.6kHz）
	4 levels grey scale	3.8,6.2,9.3 pl（21.6kHz）
Viscosity range(mPa.s)		5-7 mPa･s

Technical Specifications

A-6042A Multifunctional UV Flatbed Printer
Printing Technology		Double i1600-U1 / i3200-U1 Print Heads
Print Head		Piezoelectric Inkjet
Printing Width		600*420(mm)
Acceptable Media	Width	≤600(mm)
Acceptable Media	Thickness	≤1800(mm)
Ink Cartridges	Capacity	Color Siphon + Regular Mixing of White Ink
Ink Cartridges	Color	W+CMYK+Varnish
Printing Resolution		Maximum 2400 dpi
Speed		720x900dpi （Finish Printing an A2 sheet in 10 mins）
Ink Curing Method		Dual UV LED Lights
Power		1300W
Interface		Gigabit Ethernet
Power Supply		AC 220V ± 5%, 16A 50HZ ±1
Dimensions(with stand)		61.88(W)x37.8(D)x36.4(H) in.
Dimensions(with stand)		( 1572(W)x960(D)x925(H) mm )
Weight(with stand)		441 lb. (200 kg)
Environment	Power on	Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation)
Environment	Power off	Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation)

Features

Safety structure design

The overall printer cover can improve the operation safety, reduce the adhesion of dust in the printing process and ensure the printing quality.

Suction platform

High precision vacuum flatbed made of aluminum alloy with a turbofan installed below can fix the media firmly.

Smart operation

The overall printer cover can improve the operation safety, reduce the adhesion of dust in the printing process and ensure the printing quality.

Automatic height measurement

Up to 180mm media thickness. The beam can rise to 180mm to print customized products.

The electric cylinder fixture supports 360 ° rotation printing. With cylinder fixture installed on the flatbed, OR-6042UVA can print media up to 180mm height.

Application

Applications of UV DTF Printer

Print magic UV ink on magic film. Get ready to design and make your “image” without the traditional molding process, and no more minimum order quantity for your customer. Magic film can be applied easily on non-flat surface for printing image transfer,and works well on various materials,such as plastic,glass,metal,ceramics,leather,wood,and other soft or hard materials.

● Plastic

● Ceramics

● Leather

● Wood

● and other soft or hard materials.......

● Glass

● Metal

● Glass stickers

● packibg box
