AINKJET AJ-A301 Multifunctional UV DTF Flatbed + Roll Crystal Label Printer with CCD Visual Positioning

AJ-A301
Special for UV DTF Flatbed Printing, Leading the new trend of personalization.

Parameter
Print Head: EPSON I3200 HD
Max Print Size: 297*420mm
Print speed : 0.28sqm/h-3sqm/h
Print colors：CMYK+W+V/CMYKLcLm+W/CMYKLcLmLKlk/CMYK
Ink Type: Environmental UV curing ink

Feature

Equipped with Epson I3200 HD printhead (I1600-U1 optional), the printer supports flatbed, cylinder, roll and various UV DTF printing processes, with high-precision CCD positioning for precise pattern alignment.

It adopts intelligent adjustable-speed control, compact appearance, low consumable cost and eco-friendly UV inks. The industrial-grade structure guarantees stable and long-lasting printing performance.

Compatible with UV DTF and TPU/PU heat transfer films, it produces scratch-resistant high-adhesion prints, widely suitable for customized gifts, cylindrical crafts and food & cosmetic label production.


Availability:



Inquiry PDF Export

Printer Informations

A301 Multifunctional UV DTF Flatbed

Roll Crystal Label Printer + CCD Visual Positioning

High-Performance Configuration

Equipped with an Epson I3200 HD printhead (I1600-U1 optional), it offers a print area of 297×420mm

and a speed of 0.28–3㎡/h, supporting multi-color printing with white ink and varnish for clear, stable output.

Multi-Mode Printing & 5-in-1 Versatile Functions

This 5-in-1 printer combines 3 primary printing modes and 2 UV DTF specialized functions, equipped with optional

high-precision CCD visual positioning.

-Flatbed: Rigid materials ≤80mm (phone cases, acrylic, metal)

-Cylinder: Bottles & tumblers, φ25–80mm diameter, ≤210mm length

-Roll: Mass production of 30–250mm wide self-adhesive label paper

-30cm roll-to-roll UV DTF AB film printing

-3D textile UV DTF transfer printing

User-Friendly & Durable Design

Equipped with an intelligent control screen and adjustable printing speed, it features compact size, low operating cost

and eco-friendly UV ink. Its industrial structure ensures long-term stable operation.

Multi-Scenario Compatibility & Applications

Adaptive to UV DTF and TPU/PU heat transfer films, delivering scratch & crack-resistant prints with firm adhesion.

Supports UV+DTF transfer on irregular materials, perfectly applied to customized gifts, cylinder crafts, food & cosmetic

labels, and suitable for retail custom shops and small studios

New Feature of UV DTF Flatbed Printer

We have an excellent technical team, which can be designed according to customers requirements.

Product advantages

1. Standard cylindrical printing mold: easily cope with the printing needs of various shapes to meet diversified creativity.

2. Support 30cm UV DTF film printing: broaden the field of application and make printing more free.

3. Maximum print height up to 8cm: meets the printing needs of large items and has wider application areas

4. High Definition Print Quality: Fine color reproduction, presenting perfect visual effects.

5. Easy to operate: Humanized design makes the printing process more relaxed and enjoyable.

Advantages:

1. Effortless operation, easy to get started, cost‑effectiveness;

2. his flatbed printer breaks design constraints on height, shape, and size

3. Dual‑purpose printer: Flexible or hard materials, Combines printing in one printer ;

4. Versatile color and foil options, vibrant prints, adaptable materials, sizes, shapes, cost‑effective, precise positioning;

WechatIMG811

A301-素材

(Rolling fixture)

Support roll paper width：30-250mm

Inner diameter of roll paper tube：Three-inch core

Standard fixture optiona

A301-素材2

(Electric cylinder fixture)

Support roll paper width：Cylinder diameter 25-80mm

Inner diameter of roll paper tube：Cylinder length 20-210mm

Printer Heads

Epson i1600-U1 Print Head

PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

dtgpentou2

Model		I1600-U1 / I3200 optional
Compatible ink		UV Ink
Dimensions(WidthxDepthx Height)		69.1mm x 59.4mm x 35.6mm
Weight(g)		60
Nozzle Numbers		1600
Length Between Nozzles(inch)		1/300
Nozzle Row		4 rows
Max color/head		4 colors
Resolution		300dpi/row, 600dpi/2row
Effective Printing Width(mm)		33.8
Droplet ejection performance(kHz)	Binary	5 pl（43.2kHz）
	3 levels grey scale	6,12.5 pl（21.6kHz）
	4 levels grey scale	3.8,6.2,9.3 pl（21.6kHz）
Viscosity range(mPa.s)		5-7 mPa･s

Features

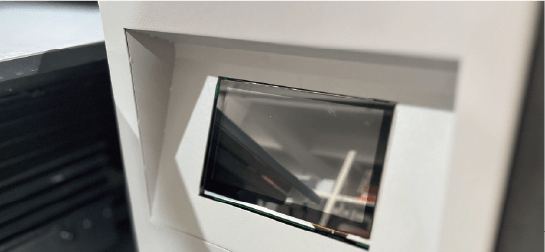

EPSON I3200HD HEADS 8 ink channels, 1200 dpi printing accuracy, highly accurate droplet drop point.	Operation Screen Intelligent operation screen, easy to operate. printing status at a glance.	Precision Belt Drive System Unleash the power of precision with our cutting-edgebelt drive system, ensuring output stability

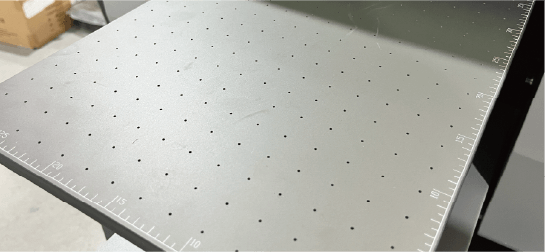

Lifting Vacuum Table Easily handle various customized requirements	Intelligent Ink Supply System Small size, large capacity, continuous ink supply systemensures continuous and stable printing efficiency	Cylinder Effect Transform cylindrical objects like thermos cups with precision and flair using our versatile UV flatbed printer!

Application

Applications of AJ-A301 Multifunctional UV DTF Flatbed + Roll Crystal Label Printer

Application of label film(UV DTF)

The combination of UV printing and DTF technology can create a 3D effect on the printed images, adding a sense of depth and texture.

Wide Application Range: UV DTF Crystal Labels can be applied to a variety of hard, smooth surfaces, such as glass, metal, acrylic, wood, plastic, ceramic, and more.

应用1

Application of cylinder

Cylindrical digital printing is widely used in the packaging industry for printing on cylindrical containers.

such as bottles, cans, and tubes. This allows for the creation of eye-catching and informative packagingthat enhances product appeal. 应用2

Customized applications for flatbed products etc.

Most materials can be printed: plastic, glass, ceramics, paper, paperboard, metal, leather and so on.Such as pen,

notebook, phone case, mouse,vase, bottle, can, mug, packing box, purse,pad, uSB flashdisk, electric appliance,

suitcase, key ring and other different size products.

应用3

Coil Printing -Labels self adhesive paper printing

Used to make various product labels, logos, stickers, etc. in the food, beverage, cosmetics and otherindustries,

self-adhesive paper labels are widely used on product packaging to mark product information.

brand logos, ingredient descriptions, etc.

资源 14x-8

Technical Specifications

Model	AJ‑A301UV
Print head	EPSON I3200 HD
Print head picture	1 pcs
Nozzle spray force range	2‑3mm
Number of nozzles	3200 (Individual)
Distance between nozzles	1/300 inch
Number of nozzle rows	8
Maximum number of supported ink colors	8
Effective print width	300npi/1 List, 600npi/2 List, 1200npi/4 List
Rip software	Photoprint
Print speed	0.28sqm/h‑3sqm/h
Resolution	960x1200dpi
Printing Size	297*420mm
Print mode	White and color and varnish print at same time
Print colors	CMYK+W+V/CMYKLcLm+W/CMYKLcLmLKlk/CMYK
Print height	0‑80mm
Printer dimension	LWH 900mm1010mm600mm
N.W.	78KG
Packing size	Packing size
Volume	0.85cbm
G.W	110KG
Power	C220/110V, 50HZ‑60HZ
Working environment Temperature	0°C‑28°C Humidity:35%‑65%
Connection method	Network cable
Ink type	Environmental UV curing ink
Ink store environment (shading)	Temperature:20°C‑28°C Humidity:35%‑65%
Graphic format	Tiff,Jpg,Eps,Pdf,Png
