Printer Informations
| UV DTF UV Soft Ink for 3D Crystal Epoxy Resin Roll to Roll Printer 3D Jelly Embossed Texture Adopts 3D UV DTF stack printing + instant curing technology, paired with UV soft ink and epoxy resin process, to create a bouncy, crystal-clear jelly-like finish with a three-dimensional embossed effect. Cold Transfer for Gentle Fabric Care & High-Volume Production No heat pressing required. Direct cold transfer to soft fabrics without damaging fibers. Supports roll-to-roll printing with AB film, eliminating complex intermediate steps and greatly improving production efficiency for bulk orders. Prints are washable, stretch-resistant, and durable. 6-Color Configuration for Premium Results Standard CMYK + White + Varnish (transparent resin) setup: *CMYK delivers rich, true-to-life color reproduction *White ink ensures vibrant colors on dark fabrics *Varnish/epoxy resin builds the 3D crystal layer, enhancing wear and water resistance while creating the signature jelly texture Epson Authorized High-Precision Printheads Equipped with Epson PrecisionCore printhead technology, with 4× Epson i1600-U1 printheads as standard (upgradeable to 4× Epson i3200-U1). High nozzle density delivers precise dot control, balancing fast printing and high-quality output. Wide Range of Applications Ideal for apparel customization (clothing, hats, bags, shoes), cultural and creative products & accessories (branded stickers, badges, PVC/leather decals), and industrial customization (apparel trims, home decor). |
New Feature of UV DTF Printer We have an excellent technical team, which can be designed according to customers requirements. |
| 4 Colors + White & Varnish Are More Expressive Equipped with 6 ink tanks, 4 colors of ink can be installed. It can finish exquisite shading with high precision. In addition, using white ink and clear varnish, it has rich expressive power and fulfills various needs. Print Varnish And 3D Relief Effects The heads of white color varnish ink jet at the same time, which can produce D relief and multi-layer transparent bump effect, including amazing varnish glossy effect and matte finish. High-Performance Inks For A Variety Of Applications It is an eco-friendly UV ink with excellent color development and color reproducibility. It is cured by ultraviolet radiation. In addition to bright colors and style, it also has strong adhesion. Epson i1600-U1 / i3200-U1 Print Head PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. AIN UV DTF INKS All our UV DTF inks are specially developed and test to ensure vivid colors and maximum fastness - Scratch resistant -Vivid colors |
Technical Specifications
| AINKJET AJ-600E PRO UV DTF UV Soft Ink for 3D Crystal Epoxy Resin | ||
|---|---|---|
| Print Head | 4* Epson i1600-U1/Epson i3200-U1 | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | ≤600(mm) |
| Thickness | ≤1.5(mm) | |
| Ink Cartridges | Ink | UV Soft Ink |
| Color | CMYK + W + Varnish | |
| Printing Resolution | Maximum 2400 dpi | |
| Speed | 8pass (720x1200dpi) 7m²/h | |
| Ink Curing Method | Dual UV LED Lights | |
| Power | 3500W | |
| Interface | Gigabit Ethernet | |
| Power Supply | AC 220V ± 10%, 50/60 HZ | |
| Dimensions(with stand) | 1650(W)x960(D)x1570(H)mm | |
| 2360(W)x880(D)x760(H)mm | ||
| Weight(with stand) | 441 lb. (200 kg) | |
| Environment | Power on | Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation) | |
Printer Heads
Features

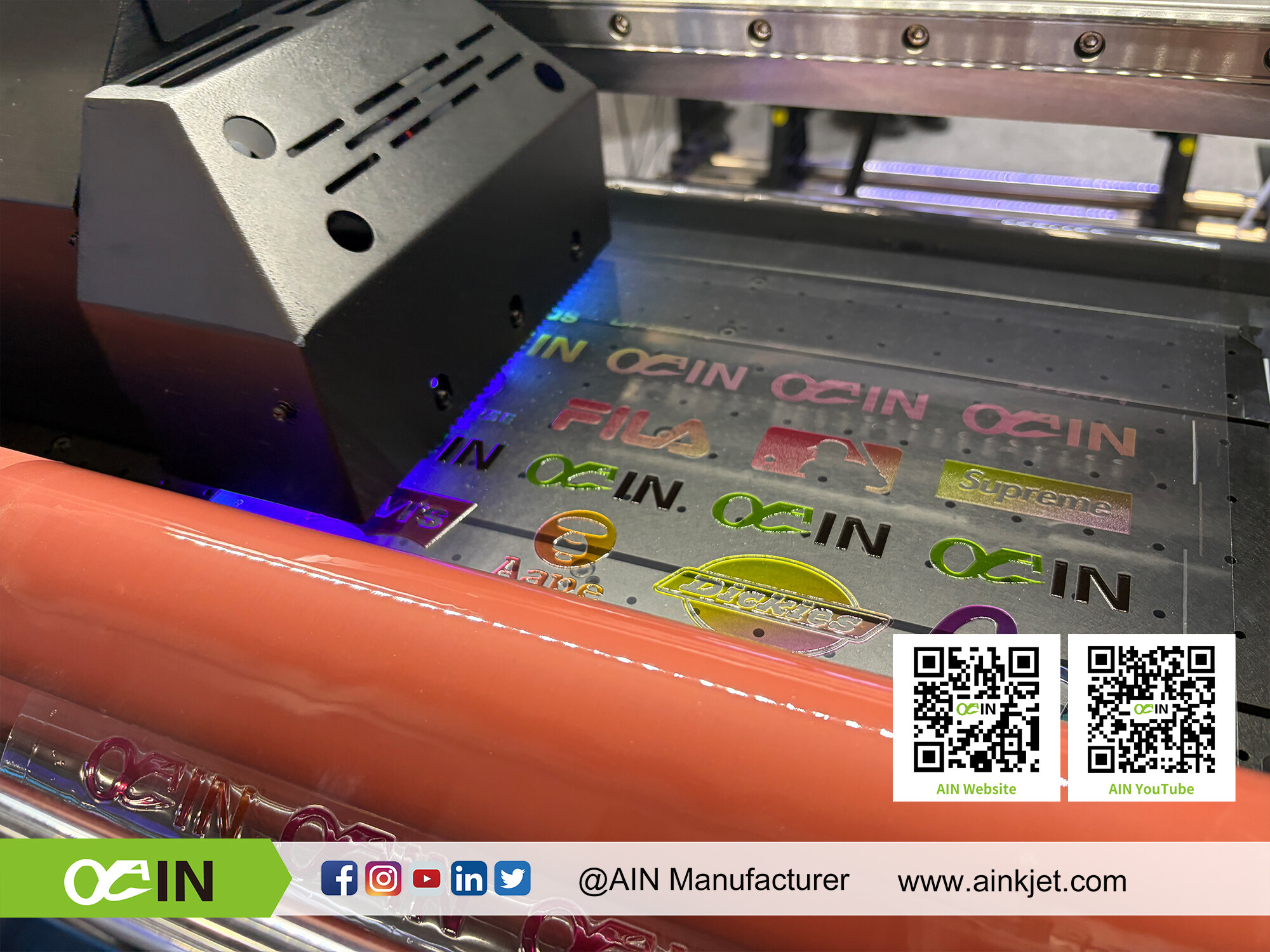

 | Safety structure design The overall printer cover can improve the operation safety, reduce the adhesion of dust in the printing process and ensure the printing quality. |  | Laminating device Comes with a laminating system, realizes the function of laminating while printing, easily reduces manual operations, and can print a whole roll of A film with glue . |
 | Smart operation High quality output, simple and efficient operation A-600 Pro contains many advanced functions to complete high-quality printing jobs with simple operations. |  | Ink supply system Using white ink and clear varnish, it has rich expressive power and fulfills various needs. An additional spray print head can be added to realize the application of bronzing varnish and direct glue. |
 |  |  |
|
Application
Applications of UV DTF UV Soft Ink for 3D Crystal Epoxy Resin

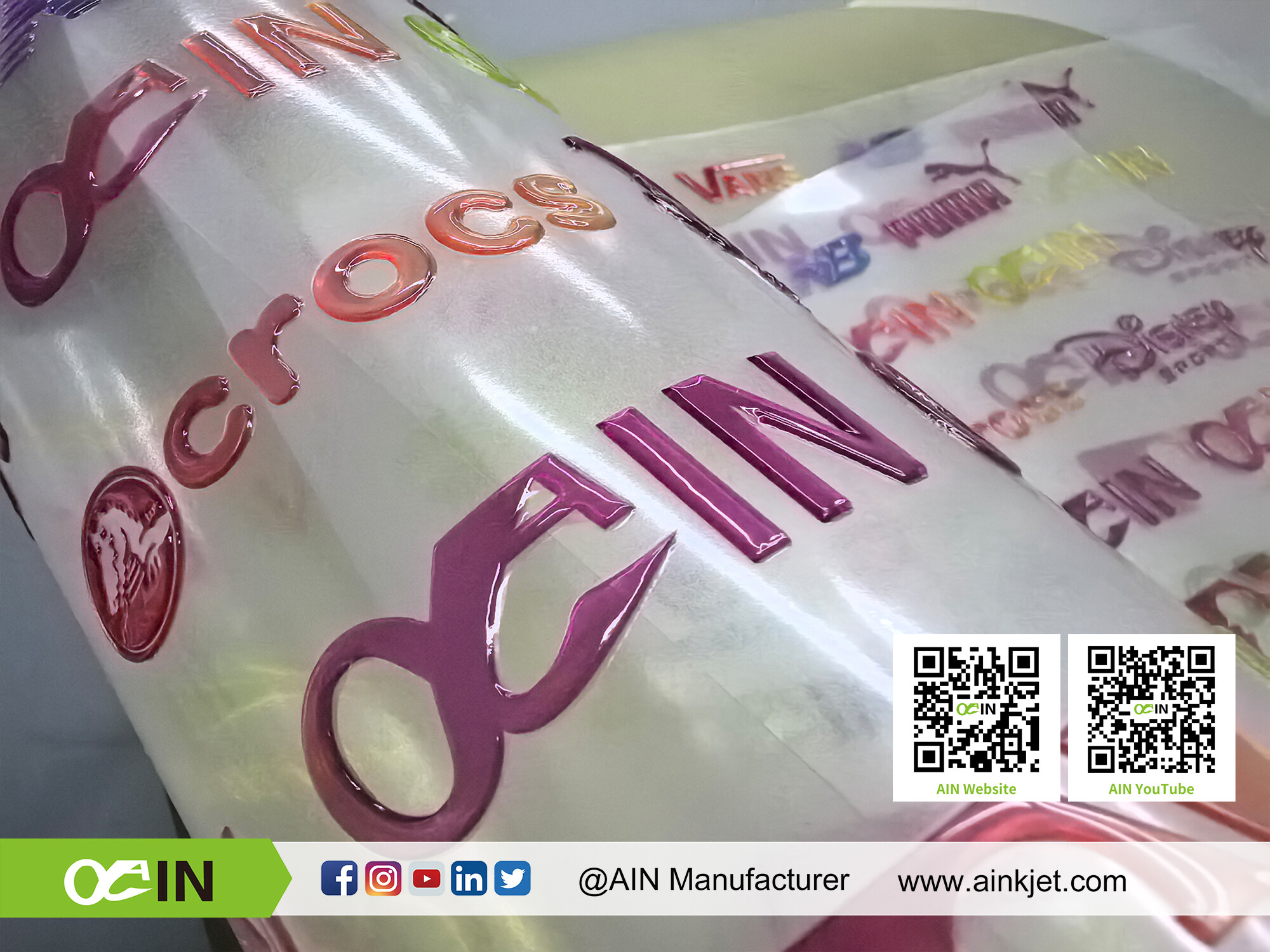

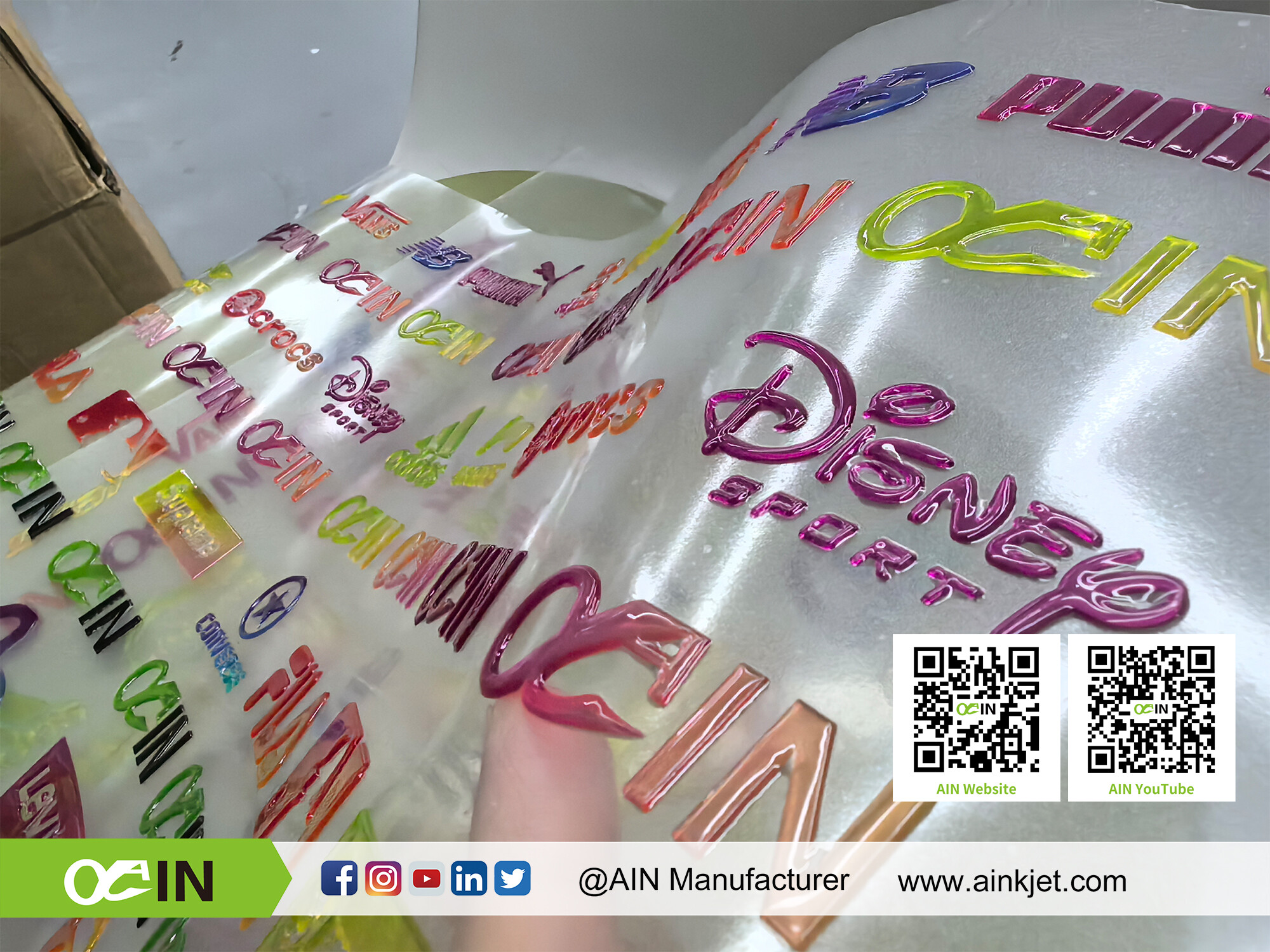

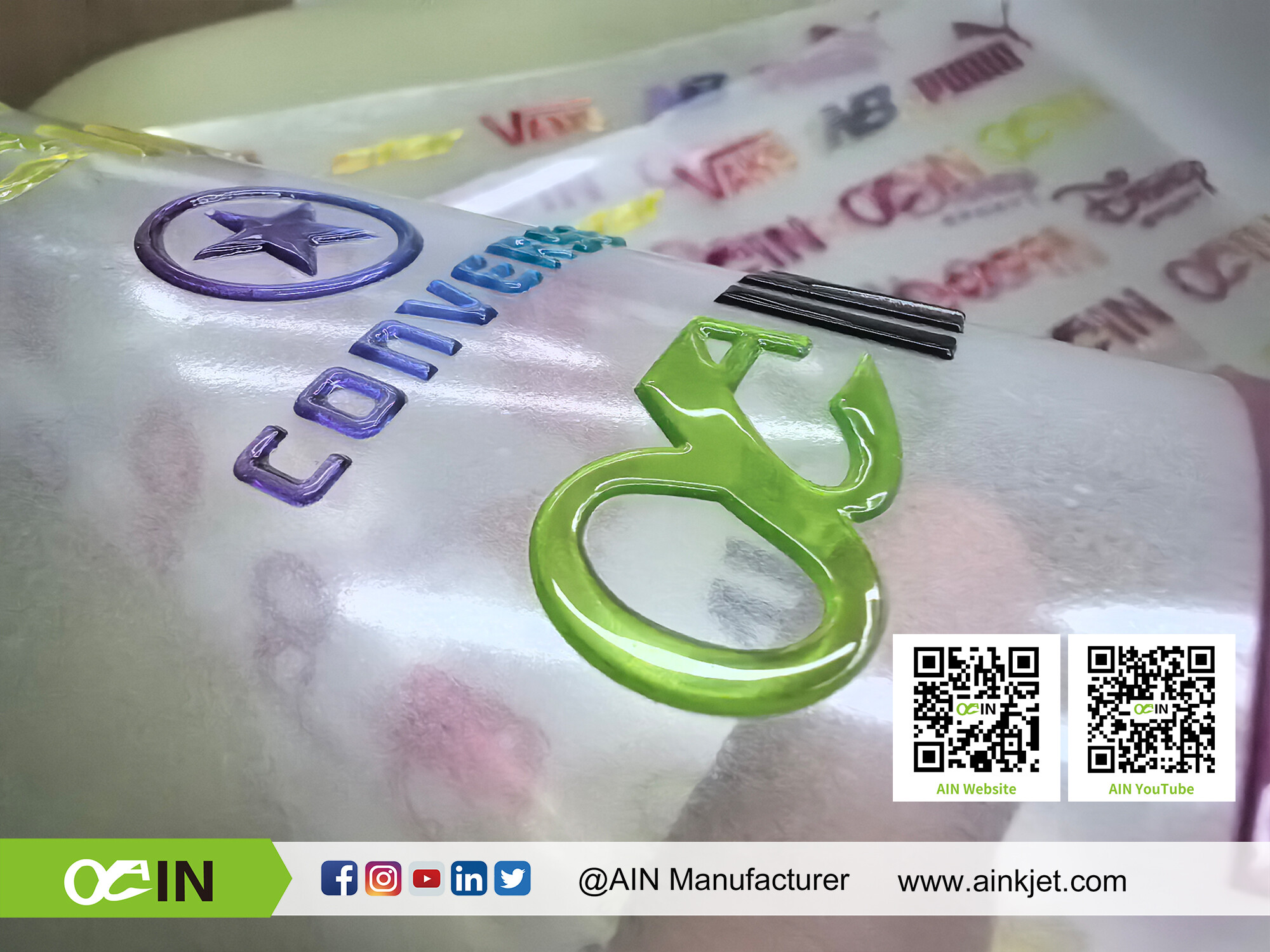

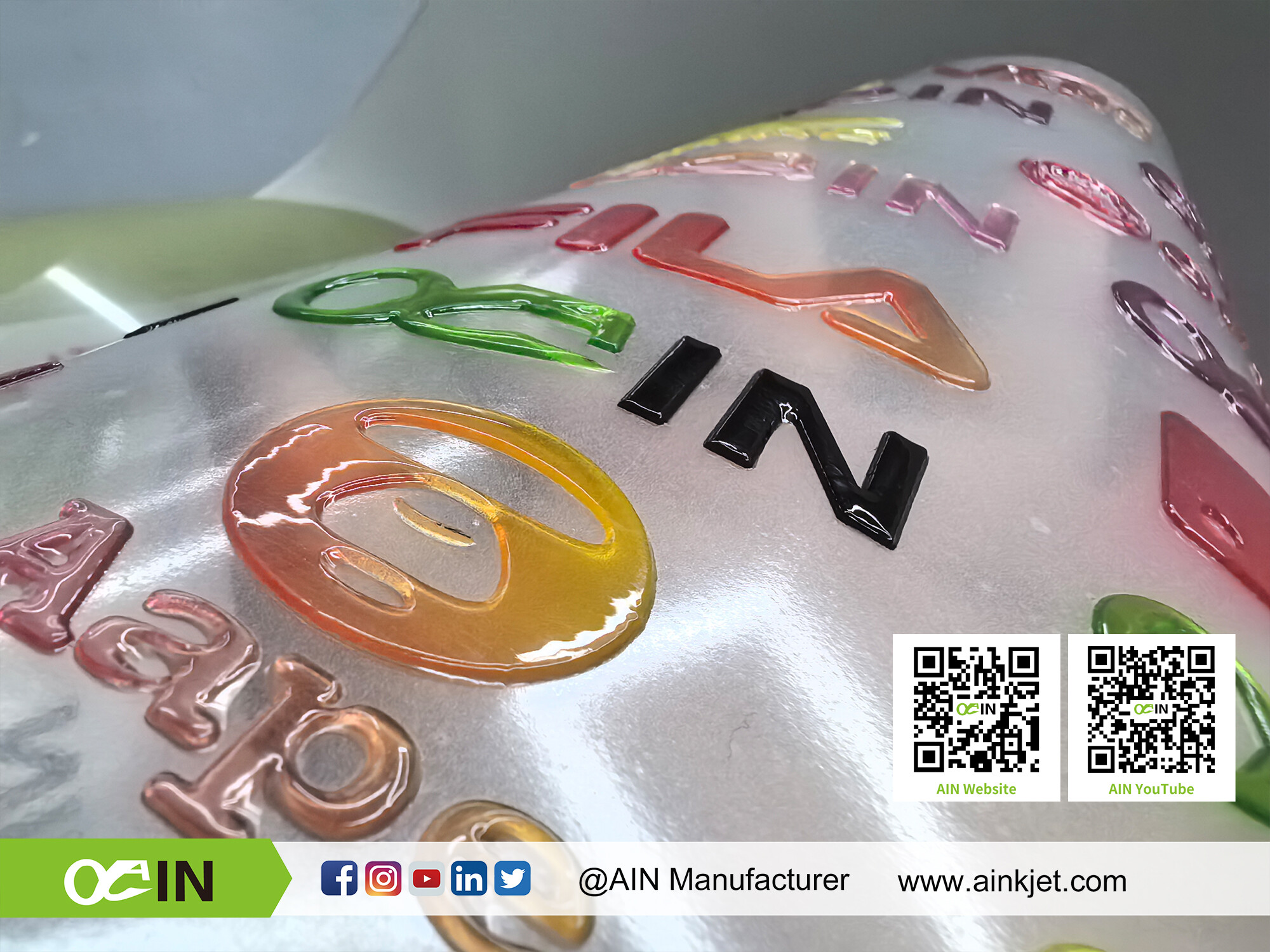

Print magic UV ink on magic film. Get ready to design and make your “image” without the traditional molding process, and no more minimum order quantity for your customer. Magic film can be applied easily on non-flat surface for printing image transfer,and works well on various materials,such as plastic,glass,metal, ceramics,leather,wood,and other soft or hard materials.
Adopts 3D UV DTF stack printing + instant curing technology, paired with UV soft ink and epoxy resin process, to create a bouncy, crystal-clear jelly-like finish with a three-dimensional embossed effect.
|  |  |  |  |
