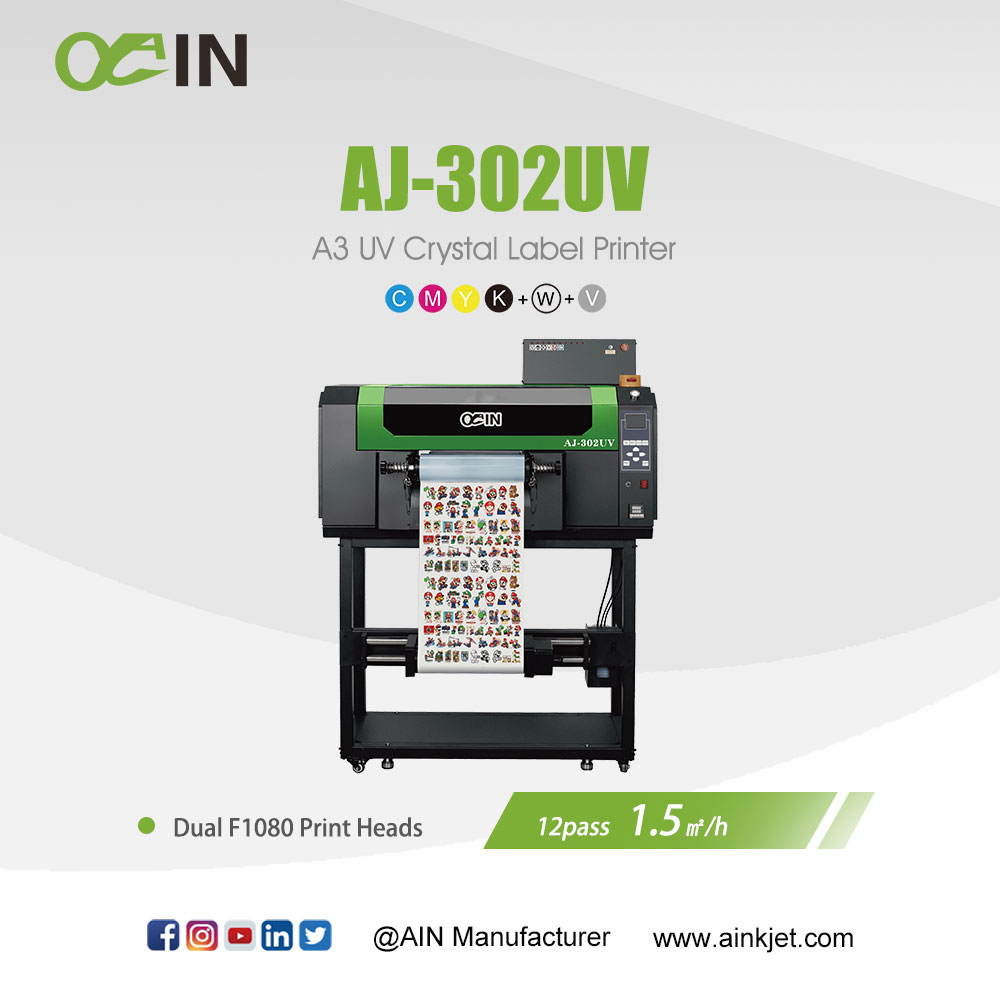

AINKJET AJ‑302UV A3 UV Crystal Label Printer AB Film Roll‑to‑Roll Printing Machine

AJ‑302UV

UV Direct Print Effect No Heating Peocess Required No Drying Process Required Good Adhesion on Curved, or Rugged Surface

Parameter
Print Head: 2* F1080 Print Heads
MPrinting Resolution: Maximum 2400 dpi
Speed : 12pass 1.5m²/h
Print colors：CMYK + W + Varnish

Feature

Adopting dual F1080 piezoelectric printheads with a 1.5 m²/h printing speed at 12‑pass, this printer features A3‑size UV direct‑jet and AB film roll‑to‑roll printing for high‑efficiency mass production.

It boasts strong adhesion to diverse surfaces, with finished labels waterproof, wear‑resistant and scratch‑resistant for long‑lasting decoration.

Equipped with CMYK+White+Varnish color configuration, it creates 3D‑textured logos and fits multiple materials for custom transfer labels and stickers.


Availability:



Inquiry PDF Export

Printer Informations

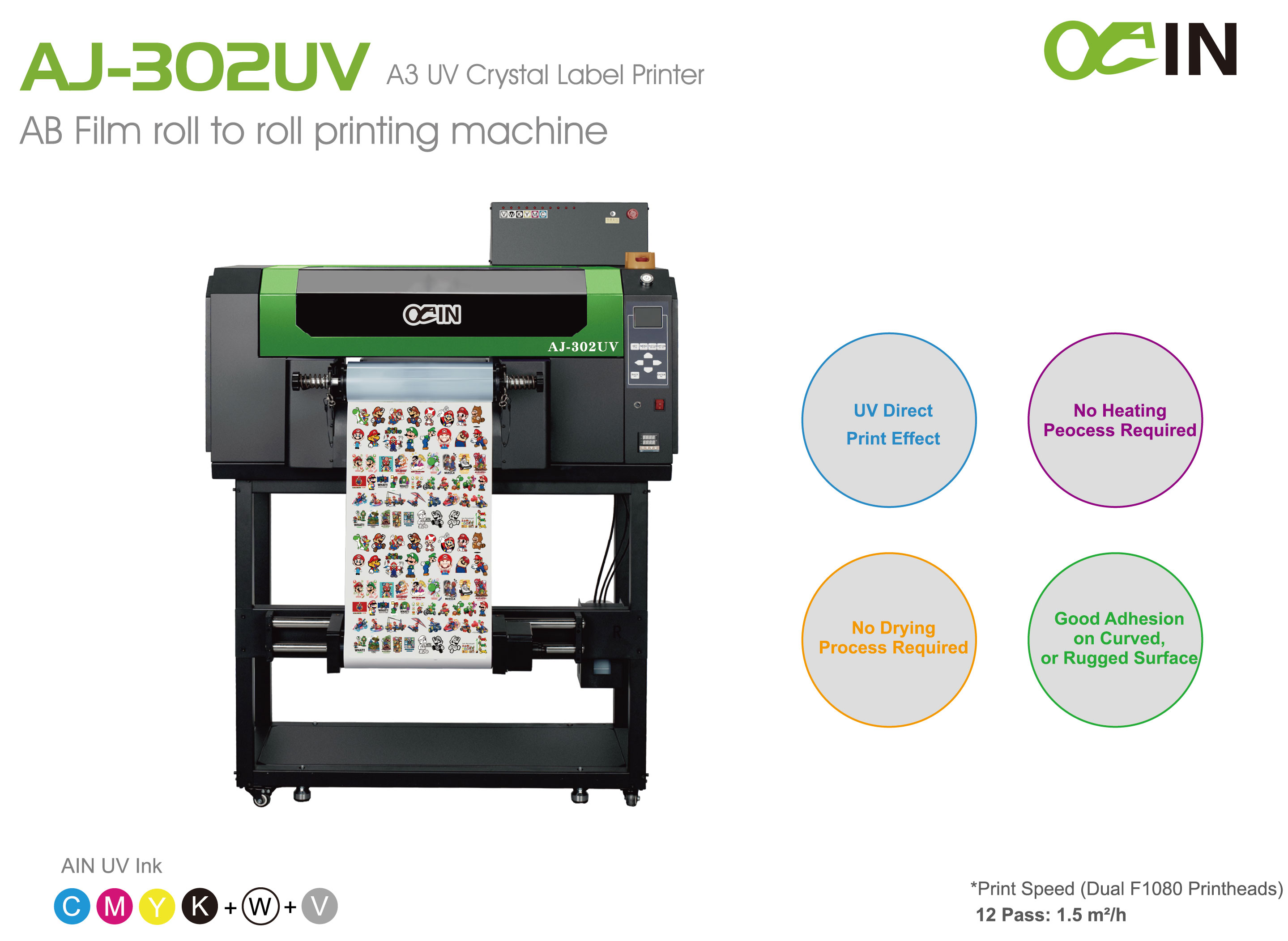

AJ-302UV-水晶详情

A3 UV Crystal Label Printer

AB Film Roll‑to‑Roll Printing Machine

Process Advantages

UV direct‑jet printing delivers vivid, 3D‑transparent colors and premium texture. No heating or drying needed for instant use.

AB film roll‑to‑roll continuous printing enables mass production of crystal & transfer labels.

Adaptability Performance

Features strong adhesion to curved, uneven and rough surfaces. Finished labels are waterproof,

wear‑resistant and scratch‑resistant with stable long‑term decorative effects.

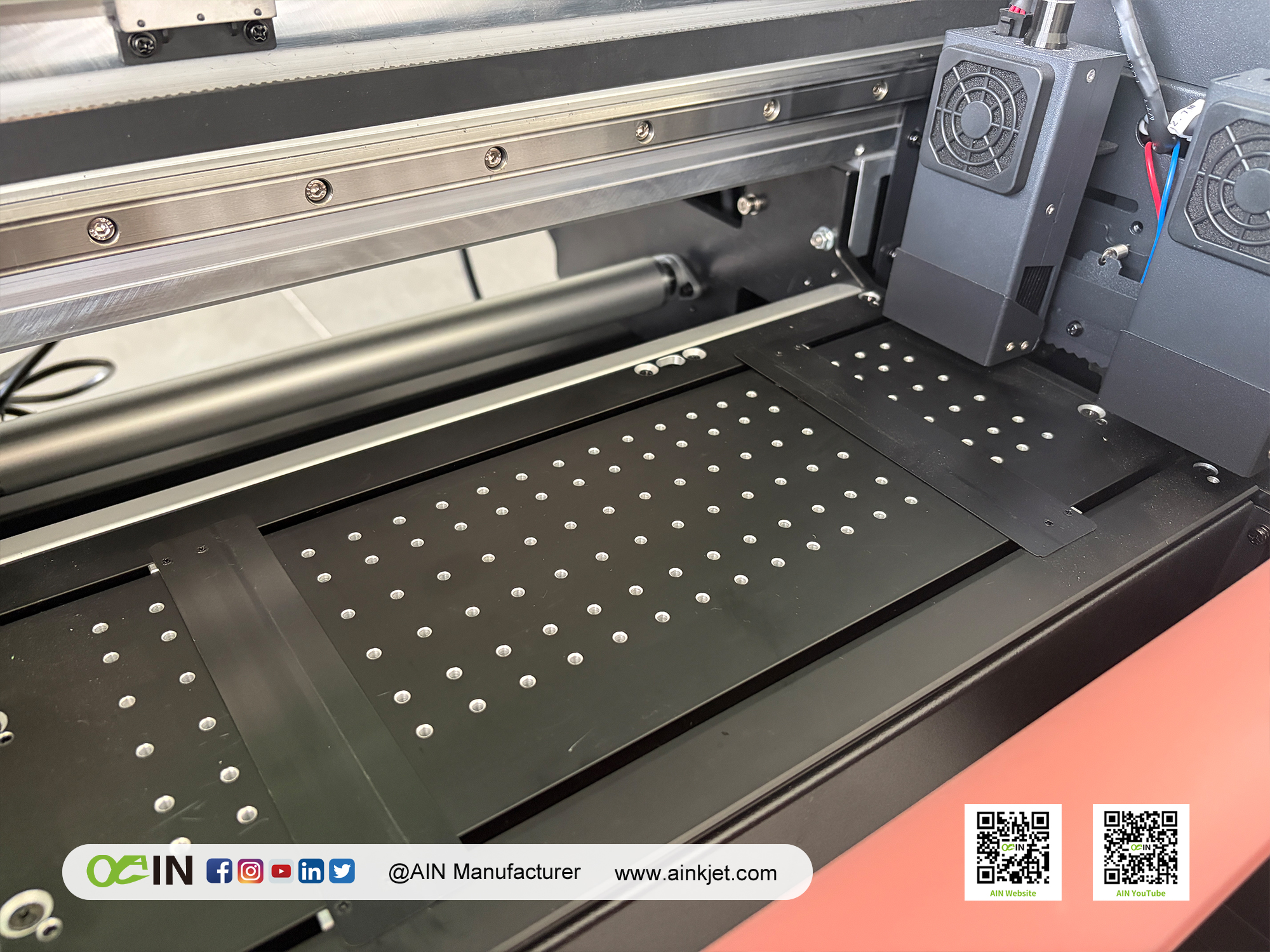

Hardware Configuration

Equipped with dual F1080 piezoelectric inkjet printheads for stable precision, features A3‑size format with a maximum printing

width of 300 mm for continuous roll‑material printing, with a print speed of 1.5 m²/h at 12 Pass

Color Scheme

CMYK + White + Varnish setup, supporting white ink base and varnish embossing for 3D‑textured logos.

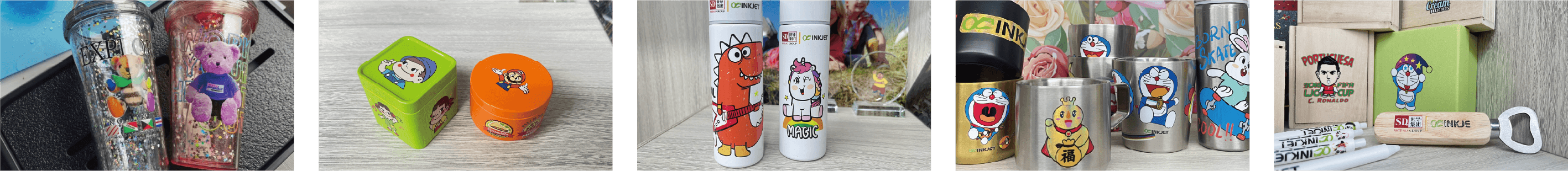

Application Scenarios

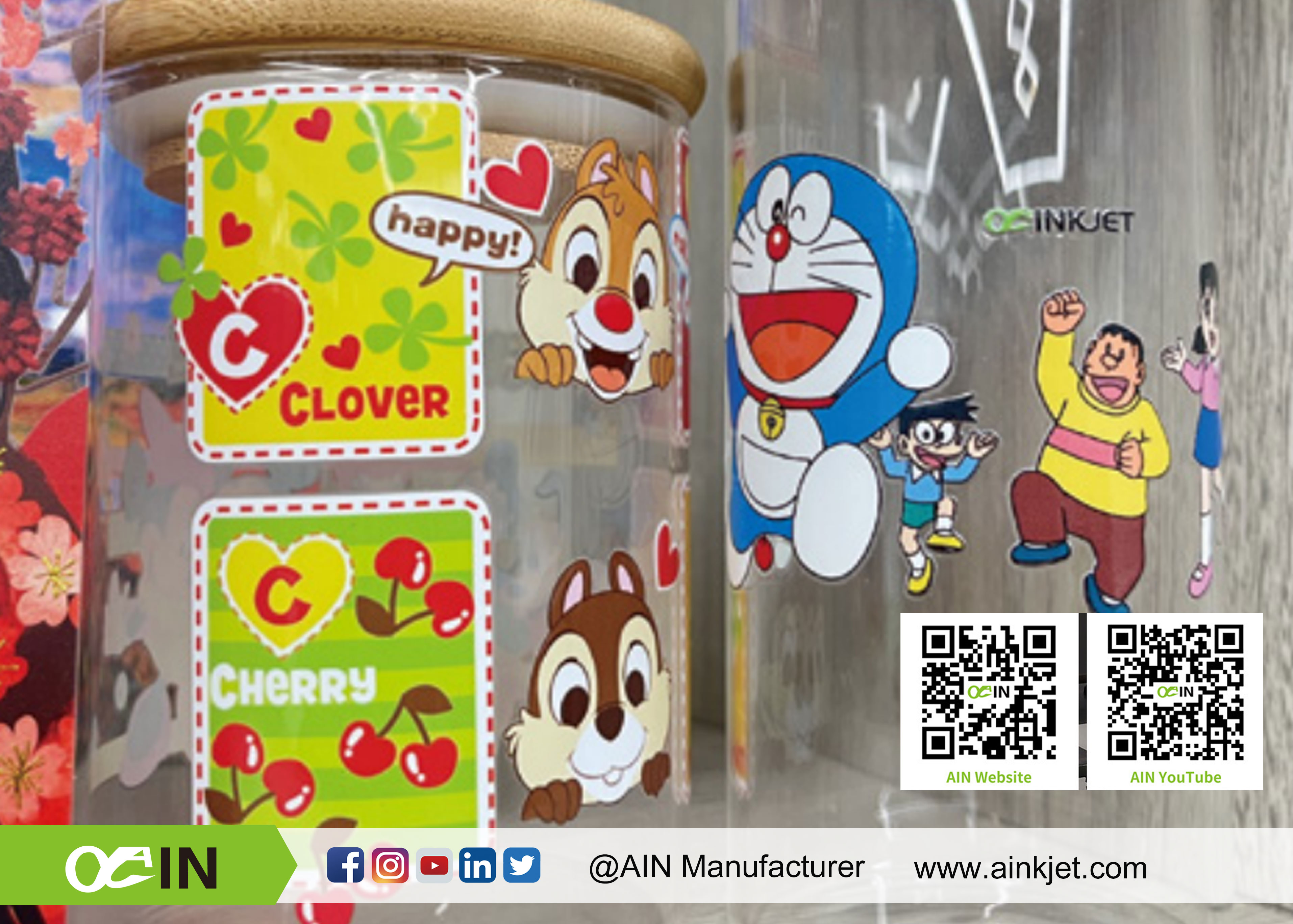

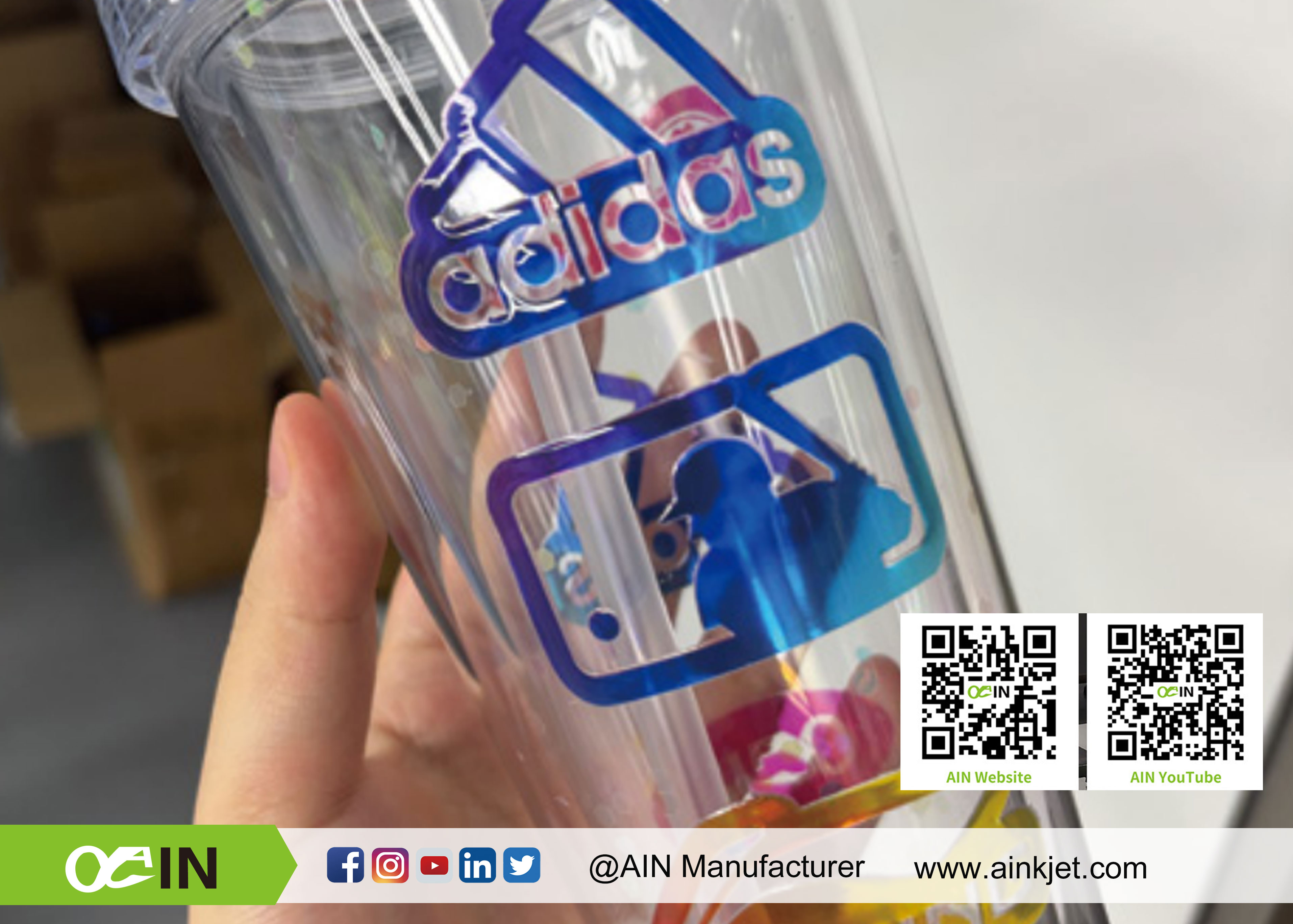

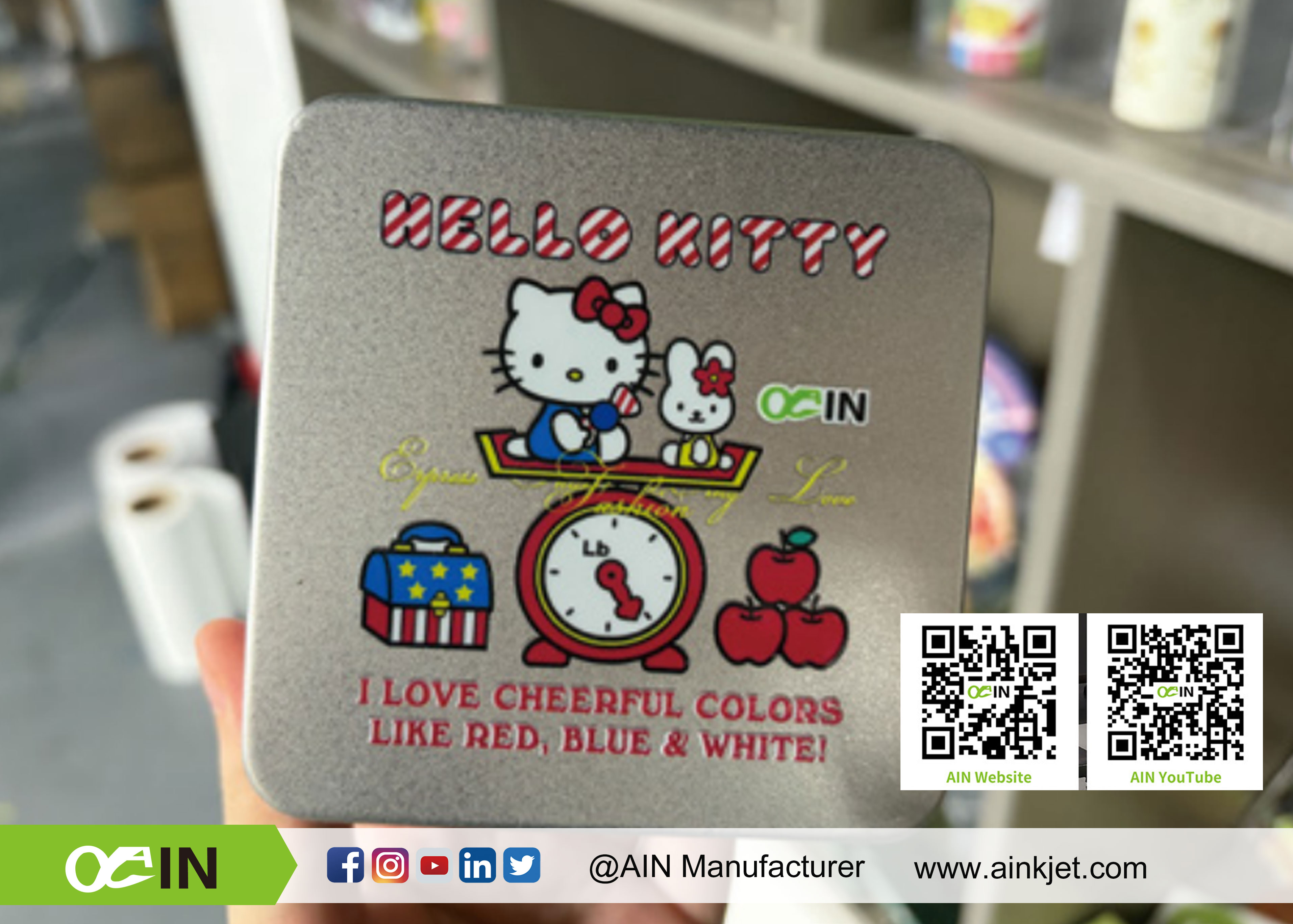

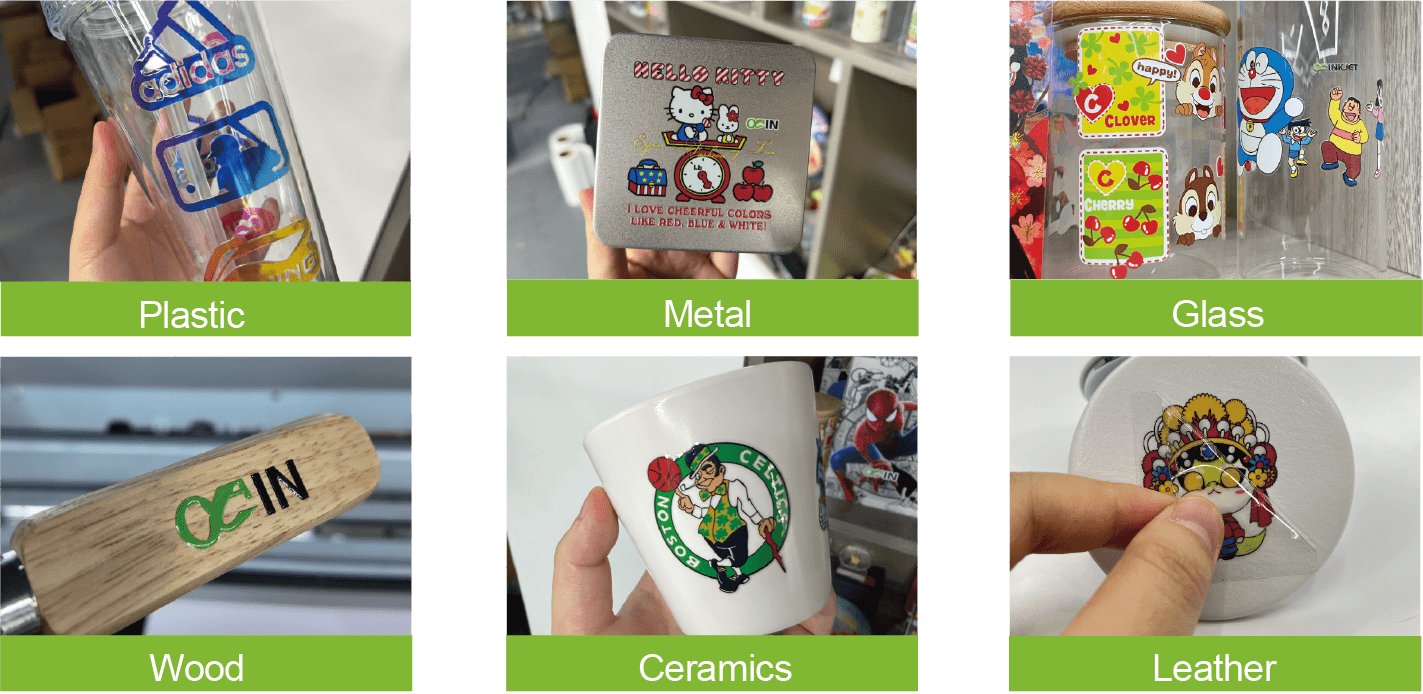

Works with glass, metal, plastic, leather, ceramics, wood, etc. Produces crystal transfer labels, logo/decorative stickers,

home appliance & cultural‑creative identifiers for curved & special‑shaped products.

New Feature of UV DTF Flatbed Printer

We have an excellent technical team, which can be designed according to customers requirements.

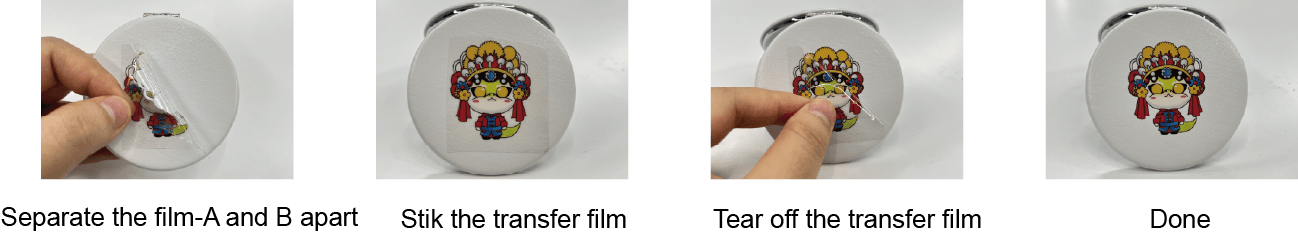

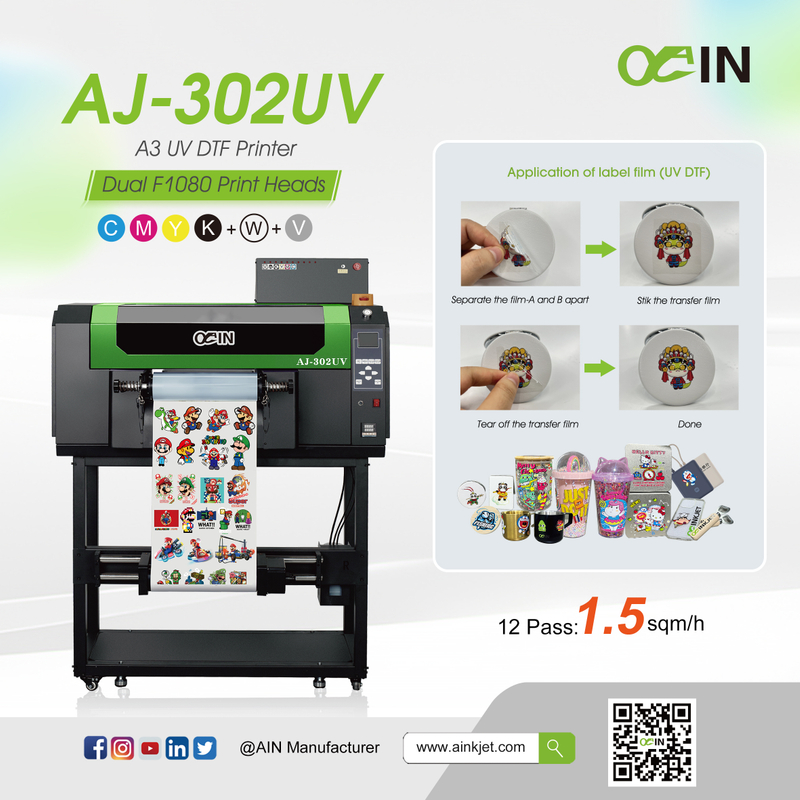

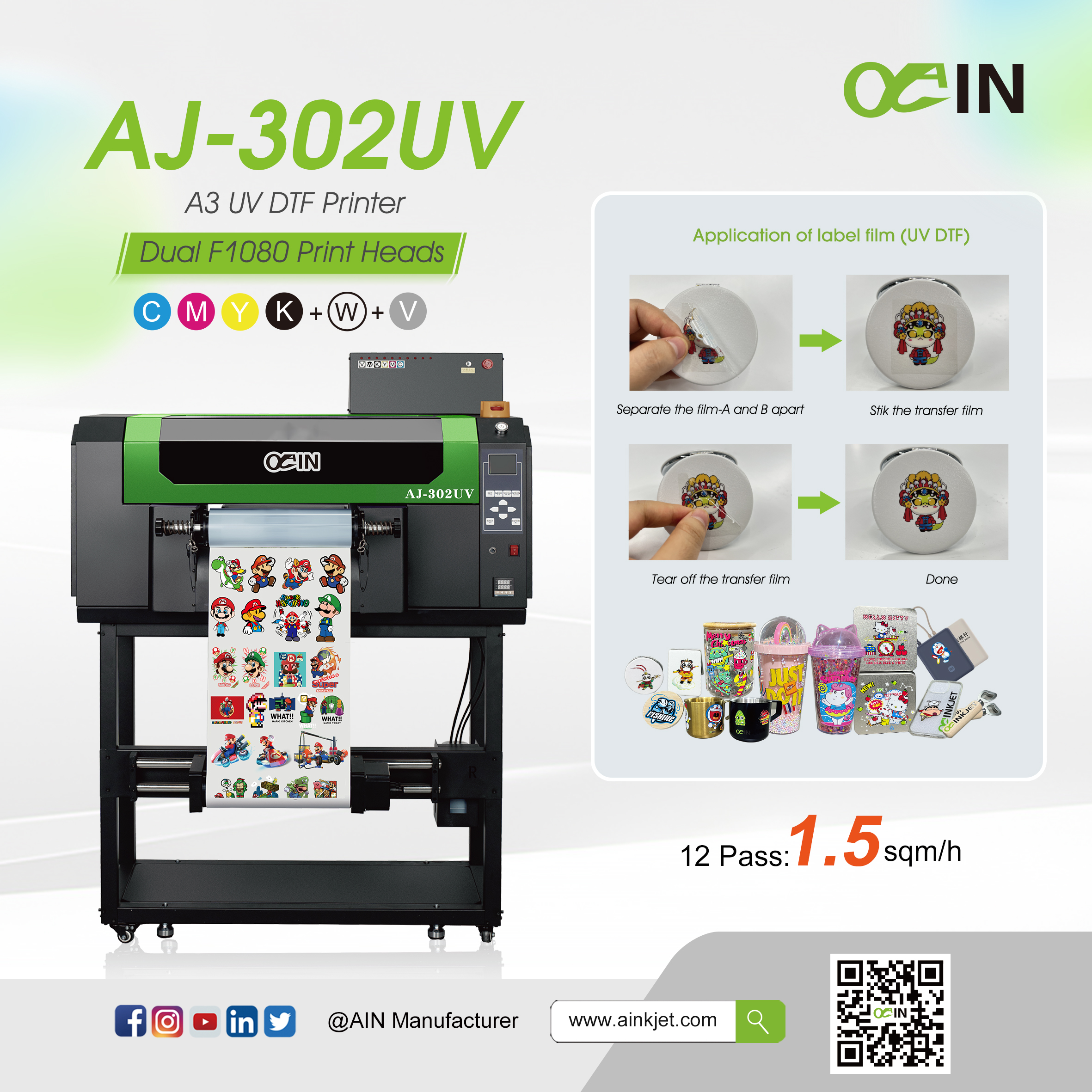

*Use scissors to cut the printed image;

*Separate the magic film‑A and B apart;

*Stick the image part onto the desired surface, and press gently to remove air bubbles;

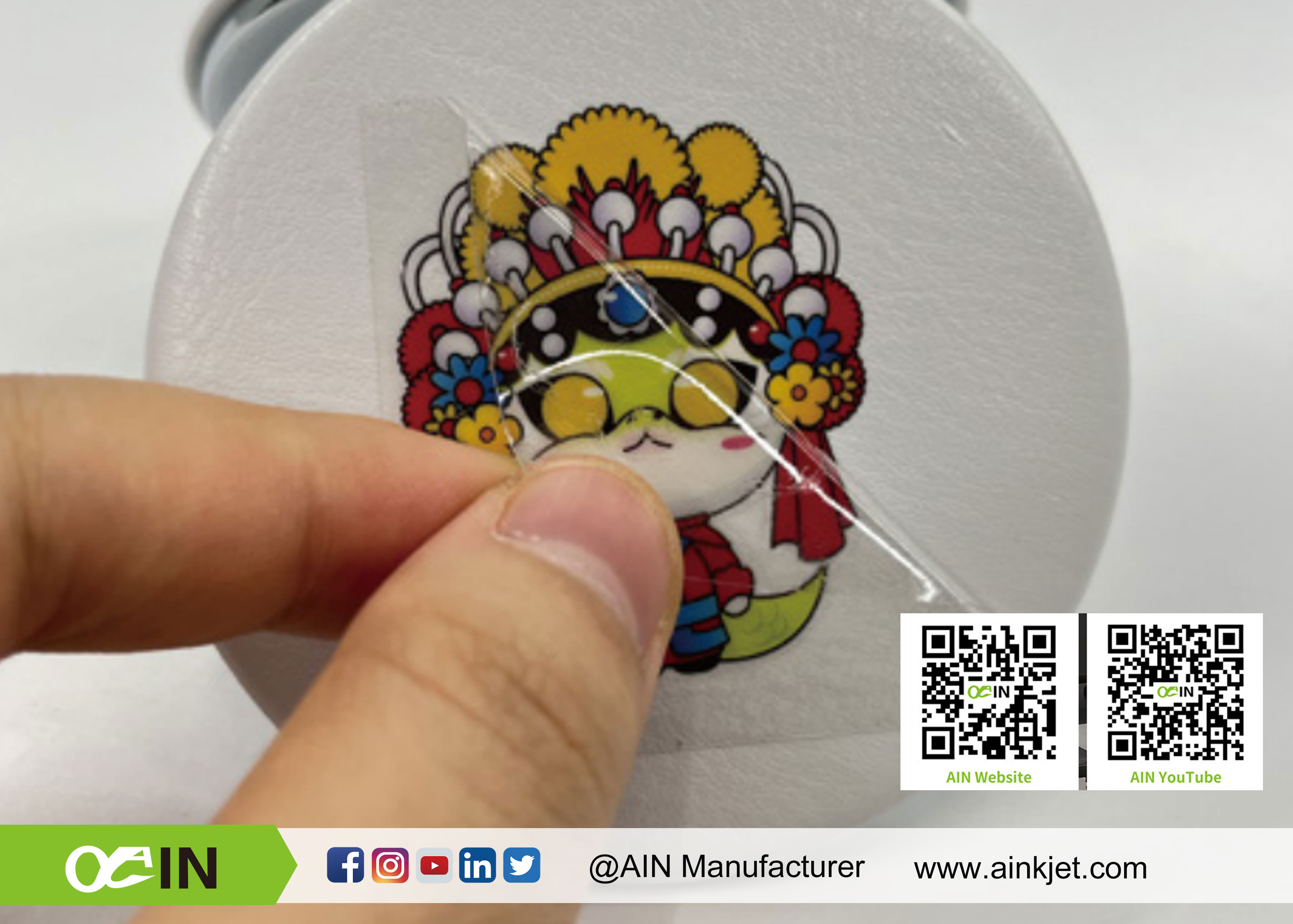

*Quickly tear magic film‑B off for keeping the images on the desired surface;

*Colorful, three‑dimensional, waterproof, wear‑resistant, scratch‑resistant.

Customized Crystal Signage Solution

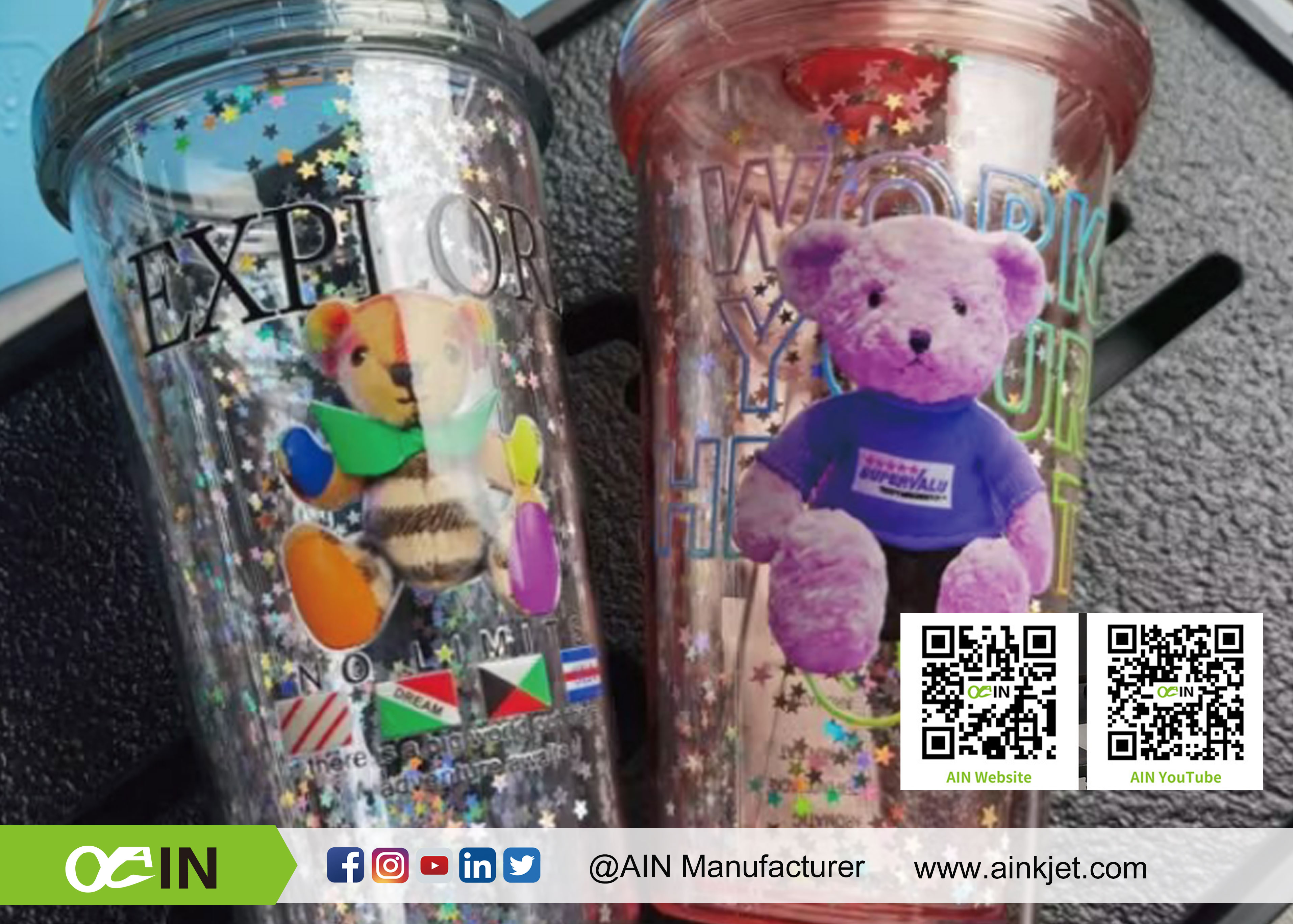

The digital revolutionary technology can produce crystal and metallic signages by directly pasting to the material surface after printing conveniently without pretreatment.

*Scratch‑resistant and durable

*Strong adhesion to most surfaces

*Bright colors, high‑quality finished products, beyond your imagination

*Waterproof, lightfast and dirt‑free

*Applicable to hard, flat or curved surfaces

Technical Specifications

AINKJET AJ‑302UV A3 UV Crystal Label Printer AB Film Roll‑to‑Roll Printing Machine
Model	AJ‑302UV
Printing Technology	2* F1080 Print Heads
Print Head	Piezoelectric Inkjet
Acceptable Media	Width	≤300(mm)
Acceptable Media	Thickness	≤1(mm)
Ink Cartridges	Capacity	Color Siphon + White Ink Auto Stirring
Ink Cartridges	Color	CMYK + W + Varnish
Printing Resolution	Maximum 2400 dpi
Speed	12pass 1.5m²/h
Ink Curing Method	Dual UV LED Lights
Power	3500W
Interface	Gigabit Ethernet
Power Supply	AC 220V ± 10%, 50HZ
Dimensions(with stand)	45.66(W)×36.2(D)×34.6(H) in.(1160(W)×920(D)×880(H) mm)
Weight(with stand)	441 lb. (200 kg)
Environment	Power on	Temperature: 59 ℉ to 90 ℉ [15 ℃ to 32 ℃] / Humidity: 35 to 80% (no condensation)
Environment	Power off	Temperature: 41 ℉ to 104 ℉ [5 ℃ to 40 ℃] / Humidity: 20 to 80% (no condensation)
