AINKJET AJ‑UVBox‑A4 Mini UV Flatbed Printer

AINKJET AJ‑UVBox‑A4 Mini UV Flatbed Printer

AJ‑UVBox‑A4
Mini UV Flatbed Printer • Customizable Mold Printing • Easy Operation • Desktop Design

Parameter
Print Head: 1*Epson F1080
Printing Width：19mm
Max Printing Height：4mm
Print colors：CMYK + White + Varnish

Feature

The AJ‑UVBox‑A4 is a compact desktop mini UV flatbed printer featuring user‑friendly touchscreen operation and automatic laser height detection for diverse materials.

It delivers fast, high‑precision full‑color printing with Epson F1080 printhead, supporting CMYK+white+varnish and boasting stable, low‑cost ink supply.

Ideal for personalized customization and small‑batch production, it suits phone cases, gifts, crafts and other custom‑printing scenarios.


Availability:



Inquiry PDF Export

Printer Informations

AJ‑UVBox‑A4 Mini UV Flatbed Printer

Customizable Mold Printing • Easy Operation • Desktop Design

Design & Operation

Desktop compact design, small size, suitable for desktop placement and easy to operate; full-color touchscreen control, simple and efficient; laser intelligent height detection, automatically detects product height and position, compatible with various materials.

Printing Specifications

High-efficiency printing, only 3 minutes per full-color piece, 3 times faster than standard A4 printers; printing width 19cm, maximum printing height 4cm; continuous ink supply system, stable ink supply and low operating cost.

Core Configuration

Equipped with 1 Epson F1080 piezoelectric high-precision printhead for finer image details and clear output; uses CMYK + white + varnish, supports combined printing of full color, white ink and varnish.

Application Scenarios

Compatible with multiple materials, multi-purpose in one machine, supports personalized customization and small-batch production; suitable for phone cases, badges/pins, promotional gifts, cards, crafts, and widely used in digital printing, gift customization, toy industry and other fields.

New Feature of UV DTF Flatbed Printer

We have an excellent technical team, which can be designed according to customers requirements.

Personalized Customization Solutions

The AJ‑UVBox‑A4 multifunctional A4 UV flatbed printer offers powerful and flexible printing capabilities.

It enables customized printing on various products wit h one machine for multiple applications, making production easier and more efficient.

资源 54x-8 资源 44x-8 资源 34x-8

Key Features：

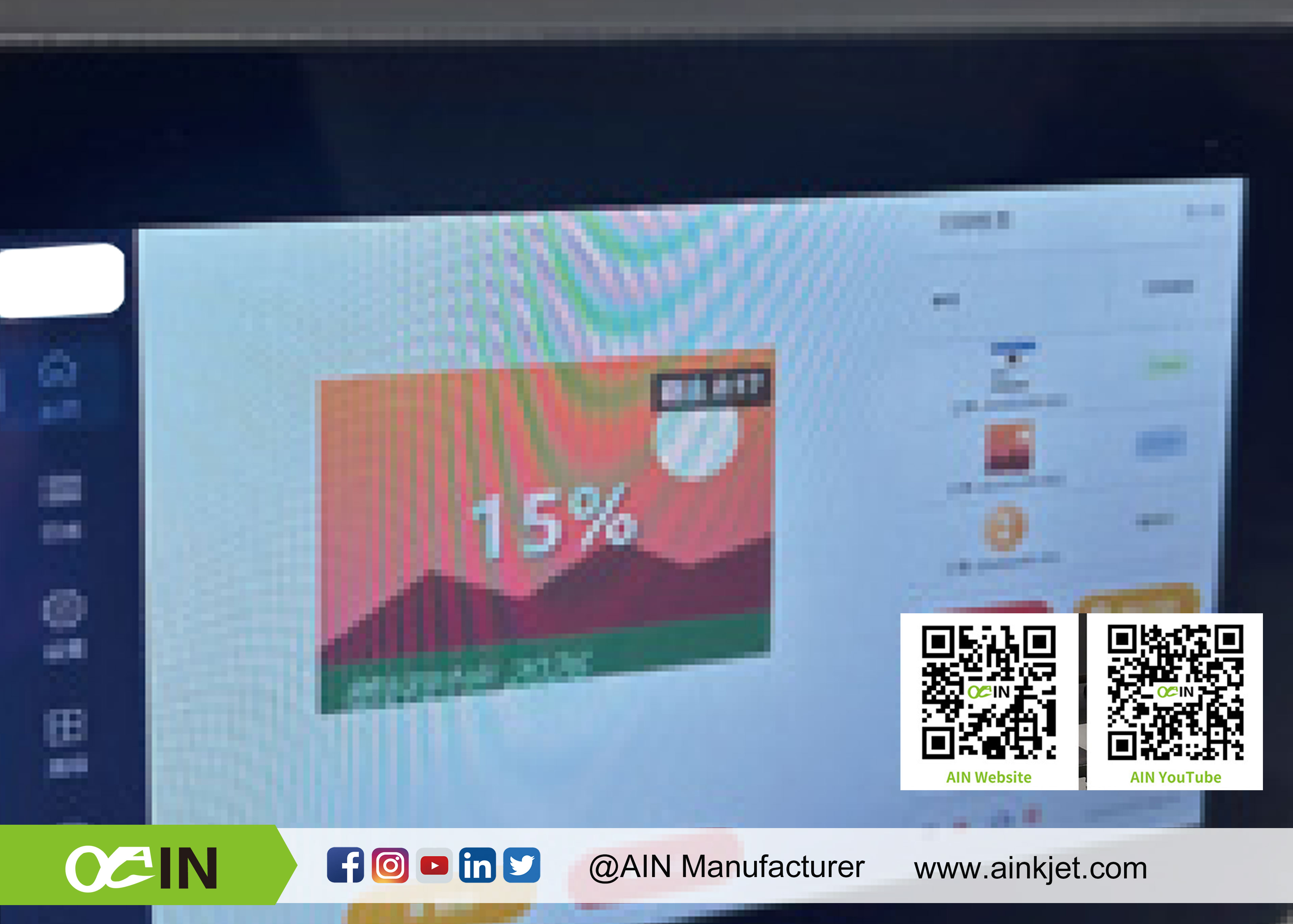

Touchscreen Operation

Equipped with a full‑color touchscreen, allowing simple and efficient operation for high‑quality printing.

High‑Precision Printhead

Adopts F1080 high‑precision printhead for finer image details and clearer output.

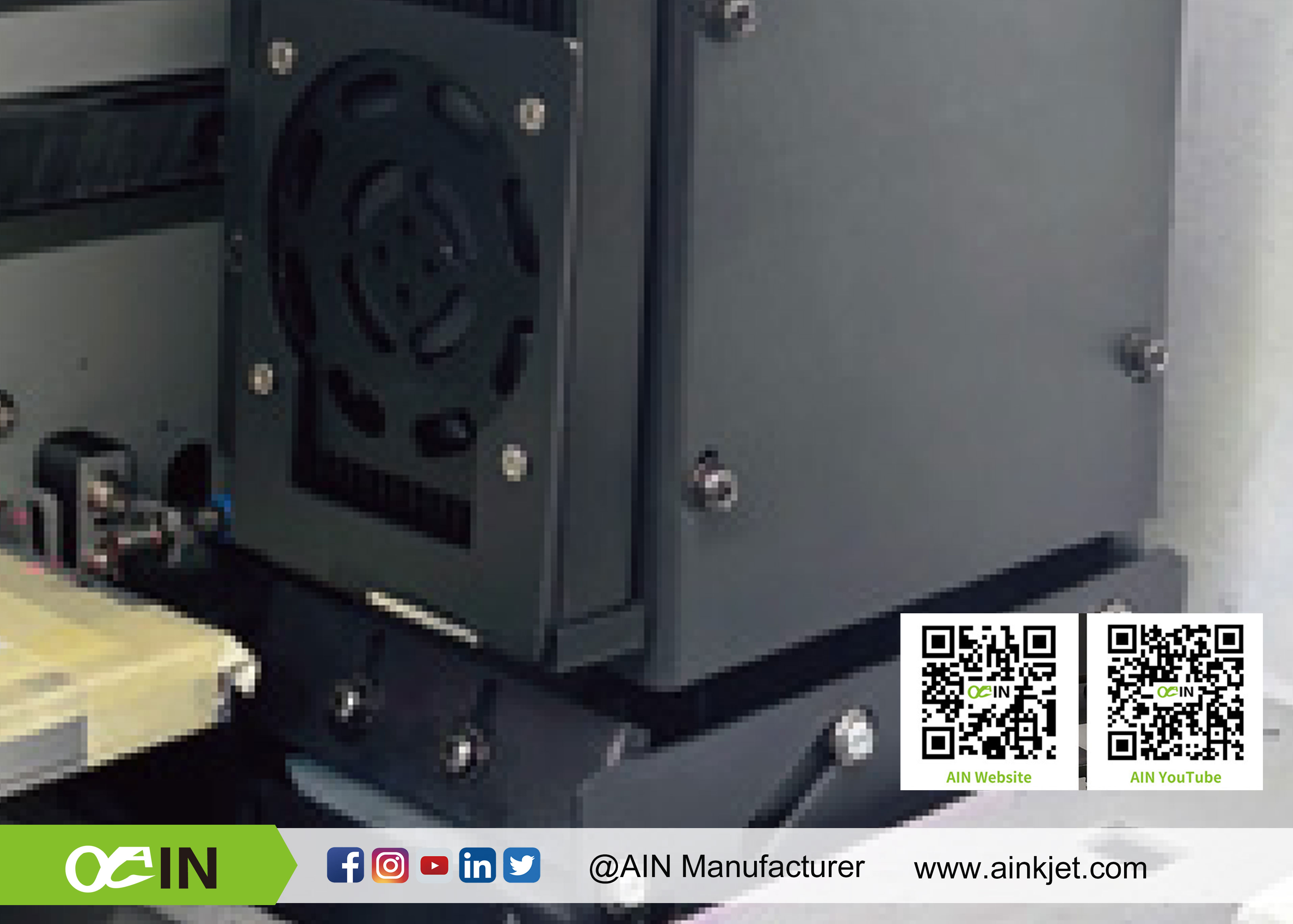

Laser Intelligent Height Detection

Automatically detects product height and position.

Printing efficiency can reach up to 3× faster than standard A4 printers.

Applications：

*Phone Cases

*Badges & Pins

*Promotional Gifts

*Cards

*Crafts

Ideal for personalized products and small‑batch production.

Technical Specifications

AINKJET AJ‑UVBox‑A4 Mini UV Flatbed Printer
Model	AJ‑UVBox‑A4
Print Head	1 ×Epson F1080
Printing Technology	Piezoelectric Inkjet
Printing Width	19 cm
Max Printing Height	4 cm
Ink System	Supply	Continuous Ink Supply System
Ink System	Color	CMYK + White + Varnish
Printing Mode	4 pass / 6 pass / 8 pass
Speed	Full color: 3 mins / piece
Ink Curing	Single UV LED Lamp
Interface	Network Port
Height Adjustment	Platform Lifting / Laser Detection
Power	AC220V ±5%, 16A, 50Hz ±1
Power Consumption	260W
Supported Formats	JPEG / PNG / PDF / TIFF
System Support	Windows
Dimensions(with stand)	620(W) × 370(D) × 400(H) mm
Environment	Temperature 10‑32℃, Humidity 40‑70%

Printer Heads

Epson i1600-U1 Print Head

PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

dtgpentou2

Model		I1600-U1 / I3200 optional
Compatible ink		UV Ink
Dimensions(WidthxDepthx Height)		69.1mm x 59.4mm x 35.6mm
Weight(g)		60
Nozzle Numbers		1600
Length Between Nozzles(inch)		1/300
Nozzle Row		4 rows
Max color/head		4 colors
Resolution		300dpi/row, 600dpi/2row
Effective Printing Width(mm)		33.8
Droplet ejection performance(kHz)	Binary	5 pl（43.2kHz）
	3 levels grey scale	6,12.5 pl（21.6kHz）
	4 levels grey scale	3.8,6.2,9.3 pl（21.6kHz）
Viscosity range(mPa.s)		5-7 mPa･s
