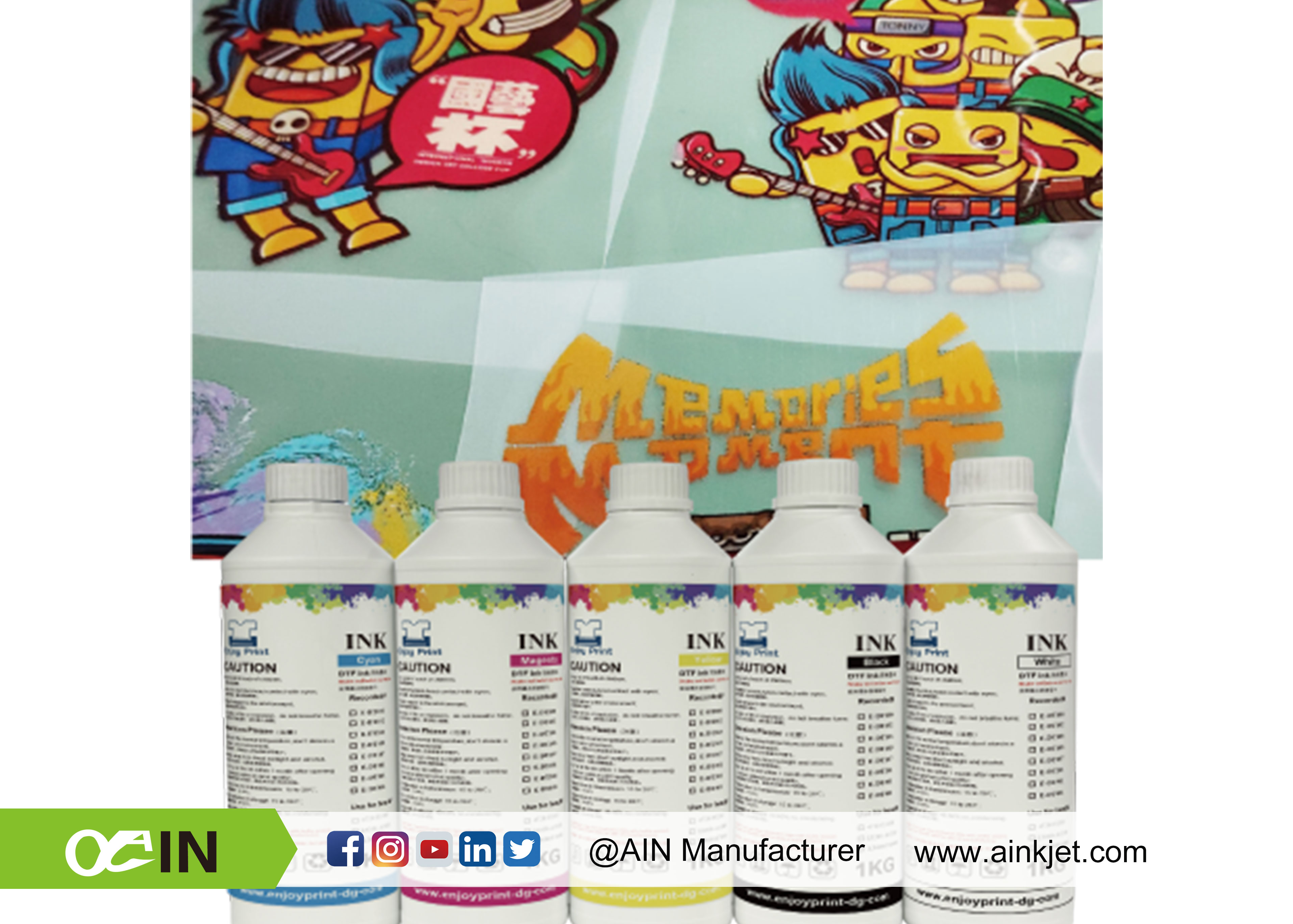

DTF Ink

Special for DTF Printing

Parameter

Packing: 1000 ML/Bottle
Colors: K, C, WH, M, Y, FY, FM, FC, SR

Ironing Temperature: 130-160°C

Feature

AIN DTF textile printing ink is designed for direct lamination and thermal transfer printing. It helps reduce printhead clogging and drying problems, making prints durable and colorfast after countless washes.
This ink is specially formulated to have clear and bright colors and excellent flexibility, and is compatible with printheads from multiple brands such as Epson, Mimaki, Mutoh, and Roland.
AIN's DTF ink has a wide color gamut and bright colors, and can print high-quality, high-precision graphics on a variety of substrates. Whether it is sportswear fabrics or accessories, it can present bright and non-fading printing effects, bringing an excellent experience to your business.

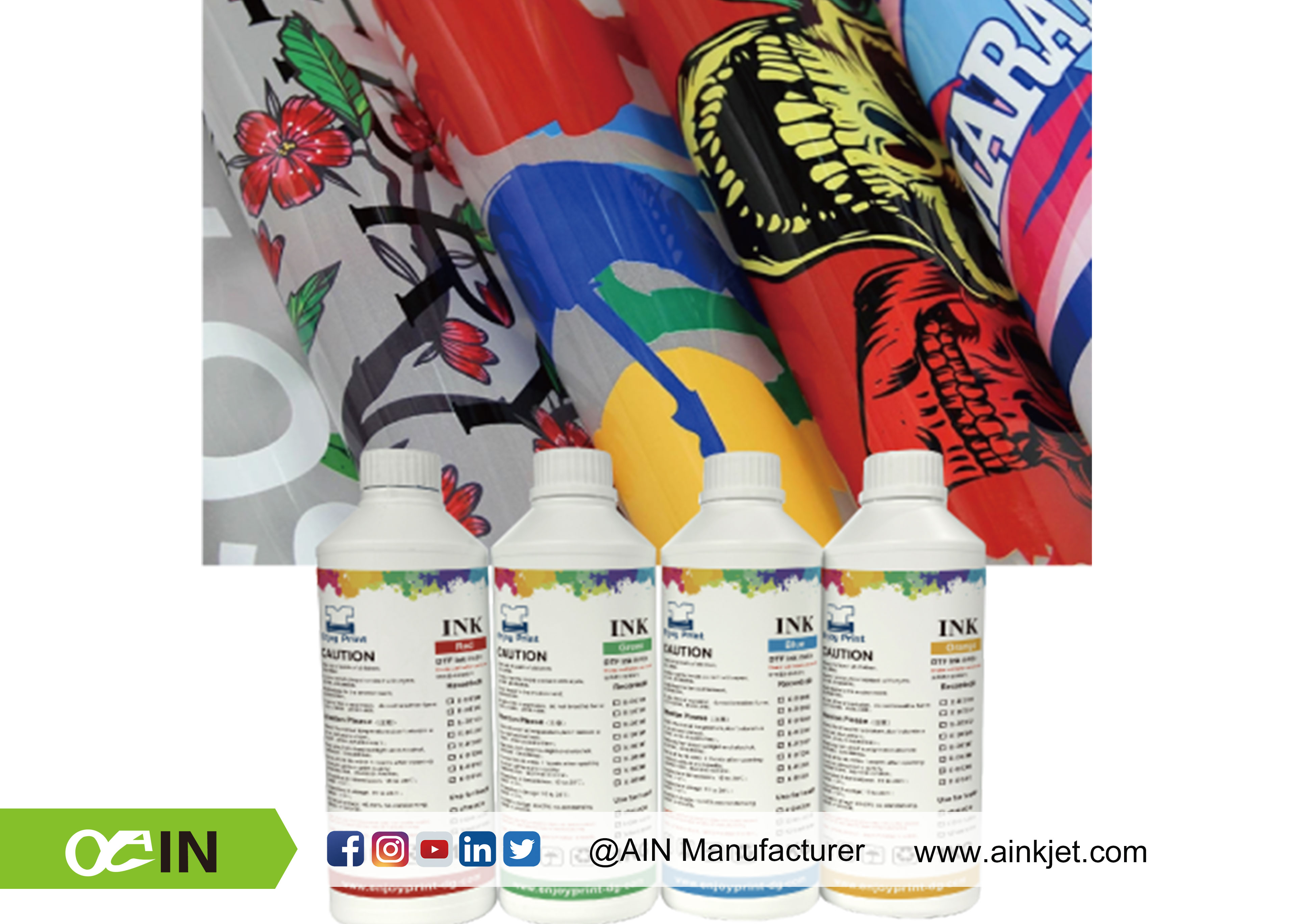

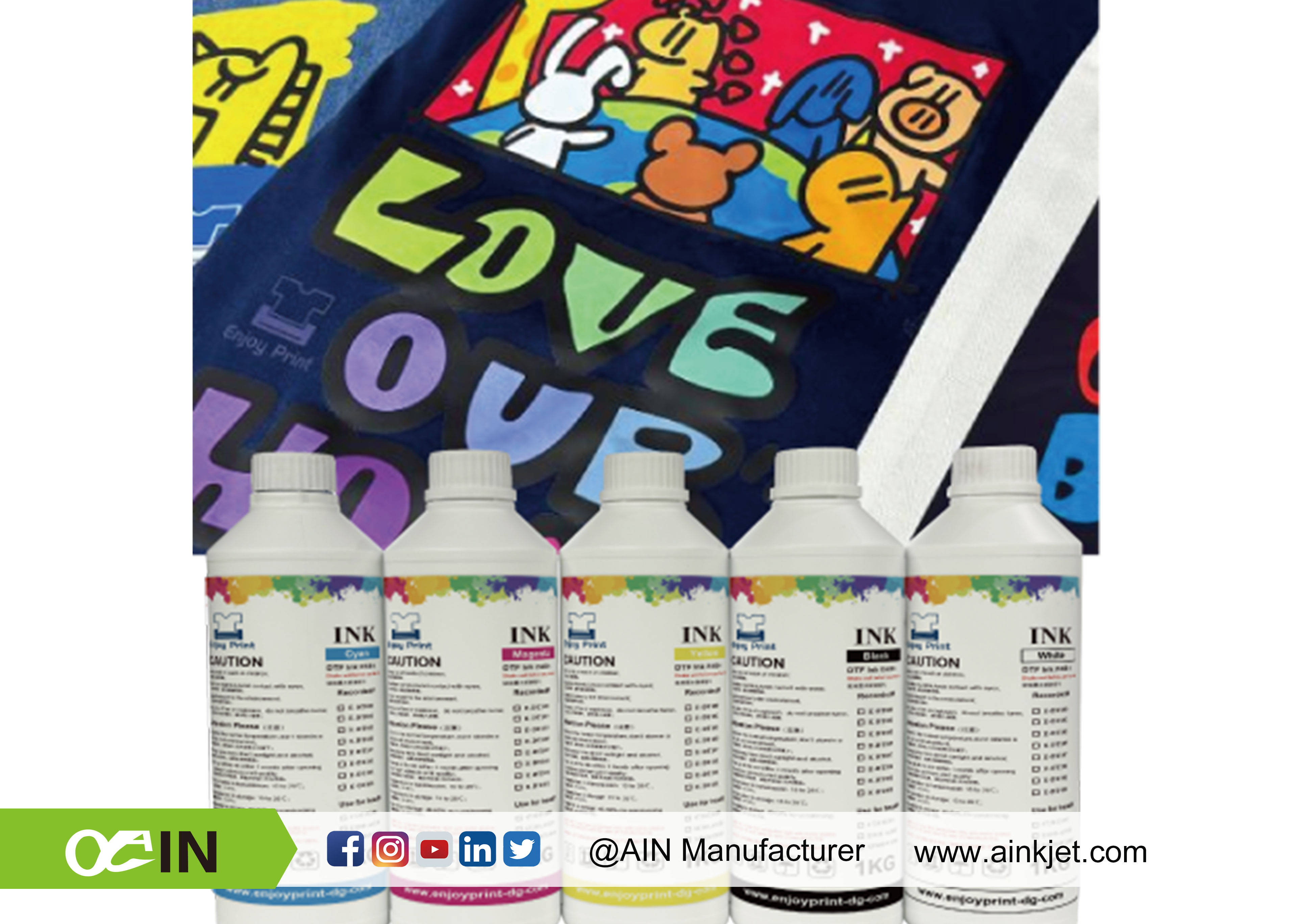

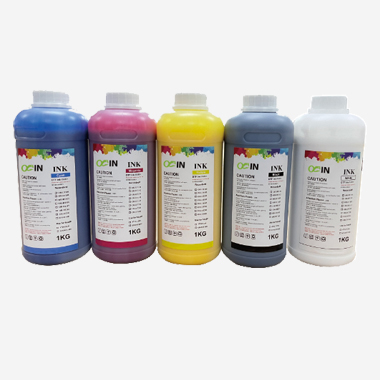

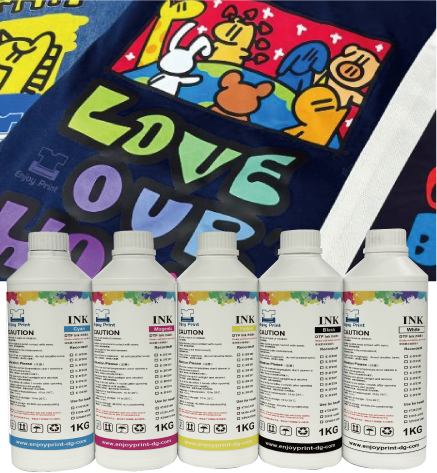

DTF Ink
·CMYK+W
·Best-selling model

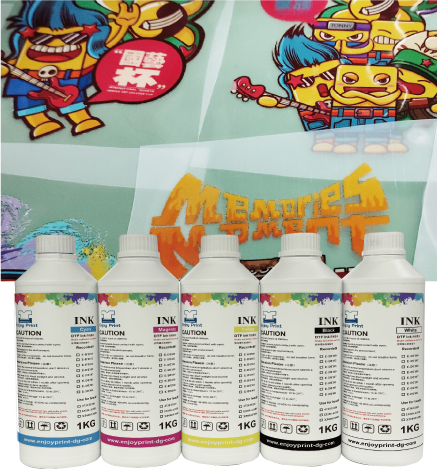

Premium DTF Ink
·CMYK+W
·Better ductility In ink

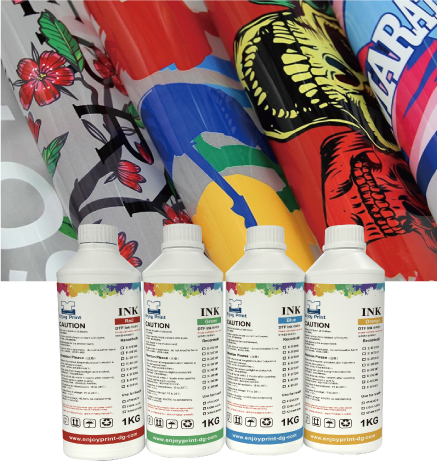

DTF Ink RGBO
·Spot Color RGBO
·Colorful and bright

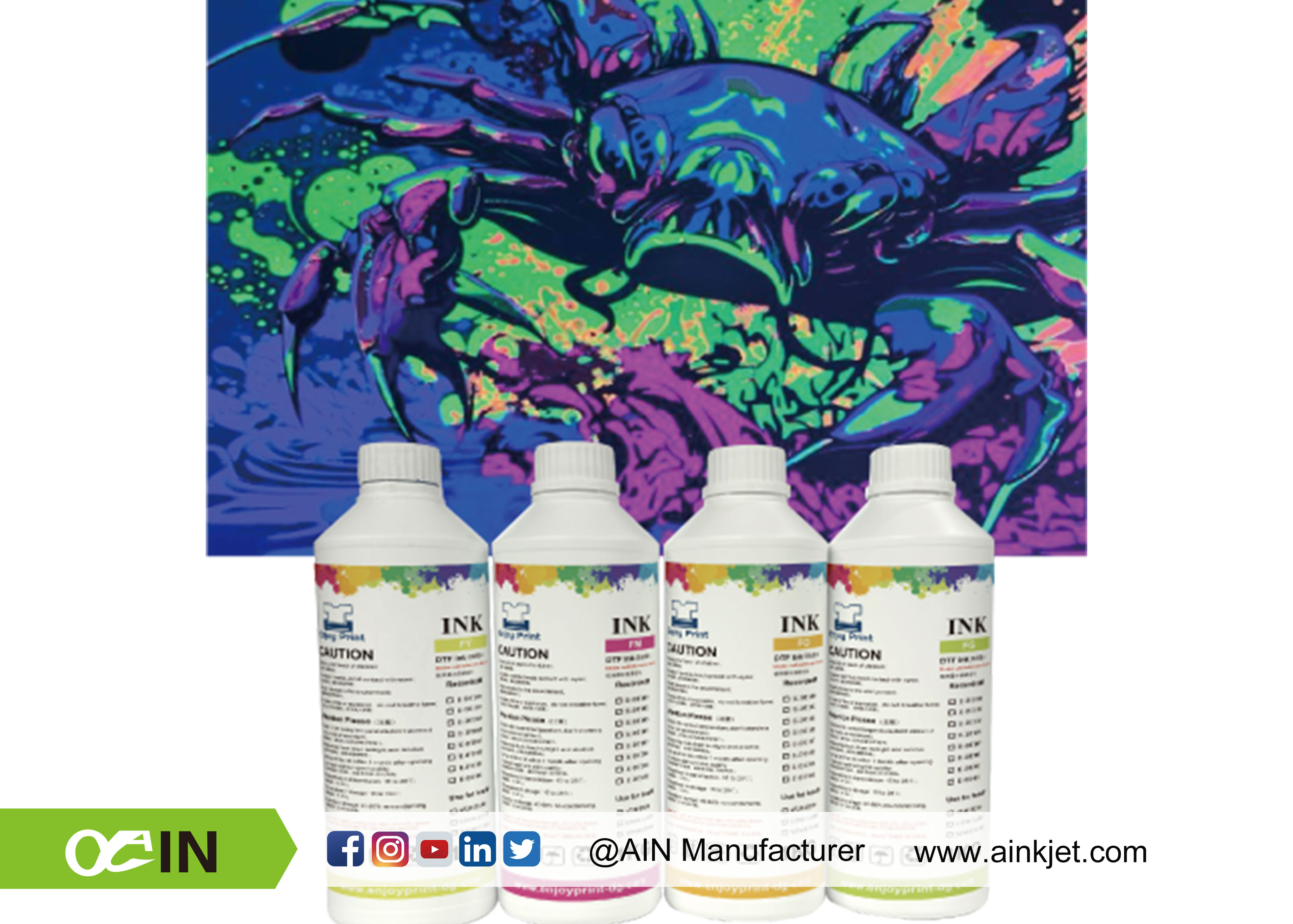

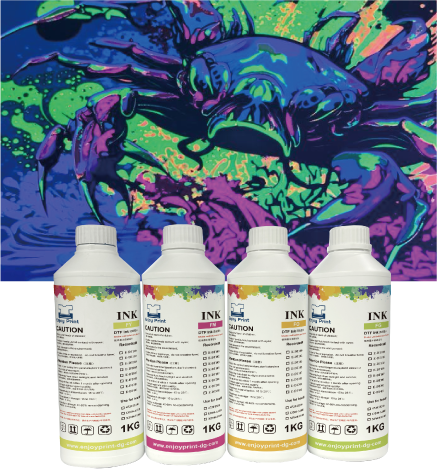

DTF Ink Flourescent
·FyFmFoFg
·Spot channel colors

Technical Specifications

Volume: 1000ml

Colors: K, C, WH, M, Y, FY, FM, FC, SR

Print Head: i3200 Optional

Storage: cool and dry, avoid freezing and sun protection

AIN DTF PET Film Advantages：
Good whiteness and covering with white ink;

High density of color, bright color result;

No clogged heads ensured by super filtration

Perspiration fastnesswet rubbing and Dry rubbing and 4-5 grade;

High resolution after printing, High quality with competitive price

More environmental friendly and user-friendly

Ink with highgrade particles, no clogging to print head

Safe environment protection, Healthy without Harmful Substances

DTF Ink Classification

DTF ink (Direct to Film ink) is a special ink designed for DTF printing. It can be directly applied to the transfer film to present durable and bright printing effects on various fabrics.

Color: CMYK four colors, spot color
Ingredients: water-based, oil-based, UV curing
Fabric adaptation: pure cotton, polyester, blended special
Special functions: fluorescent, luminous, etc.

By color: CMYK four-color inks can be mixed to present full color;Special color inks are used to accurately match specific colors.

By ingredients: Water-based is environmentally friendly and has delicate colors;Oil-based dries quickly and has good wear resistance;UV-cured inks dry quickly after ultraviolet irradiation and have high gloss.

By fabric adaptability: There are special inks for pure cotton, polyester, blended fabrics, etc., which are suitable for different fabric characteristics.
In addition, there are special functional inks such as fluorescent and luminous.

Tips: Do not mix inks, use first to clear the pipes; open immediately before use, use up within 3 months, seal if not used up, avoid contact, swallowing, inhalation, wash hands after use.

Ink Color Fastness Properties
Color	Dry Rubbing Fastness Grade	Wet rubbing fastness grade	Color	Light Fastness Grade	Washing Fastness Grade
BK	4-5	4-5	BK	5-6	4-5
C	4-5	4-5	C	5-6	4-5
M	4-5	4-5	M	5-6	4-5
Y	4-5	4-5	Y	5-6	4-5
LC	4-5	4-5	LC	5-6	4-5
LM	4-5	4-5	LM	5-6	4-5
Note:comparing to Grey scale, 1-5grade, highest grade is 5			Note: Highest grade of light fastness is7, highest grade of washing fastness is 5

Method and Steps

1、The pattern to be applied through photoshop or other image processing software to complete the preprocessing, then input into the digital printing software.

2、The printer should make the best match between the consumables such as the
matching hot transfer film, ink, and image color ICC and the software. The printed pattern is guaranteed to be bright and stable.

Printing humidity condition should remain 50%-60%；
Indoor temperature should remain 20-30℃；
The temperature of printer rear heating board should remain 38℃~45℃.

3、After printing the pattern, let the film flow into the automatic powder shaker machine.
 Due to ink and other reasons, please pay attention to climate change, we can be turned on the front and rear heating function to ensure stable quality during low temperature in winter.Baking machine connected heating board is also recommended to 40-50 degrees.

4、Generally, the baking speed after shaking powder is appropriate to match the printing
speed. The temperature is best to be warm first and then hot. It is appropriate to
control the temperature of the film surface between 70 and 90℃.

5、After baking, the finished film with pattern should be printed on the surface of
substrate clothing and other materials by heat transfer printing machine
as early as possible.

Heat printing temperature: 140-160℃,
it can be adjusted by the physical properties of hot melt powder;
Heat printing time: 7sec to 10se;
Heat printing pressure: 5--7KG;
According to the different fabric matching

Ink flow

Reasons

1.Ink is prone to flow in areas with powder impurities or crush wounds.
2.The heating board fails to operate properly after printing.

Solutions

If ink flow is caused by poor absorption:
1.Reduce the proportion of white ink setting and moderately cut down the quantity of white ink.

2.Increase the temperature of the printer heating board to improve the pass - rate.
3.Utilize board heating to activate the ink, thereby reducing the ink flow phenomenon.
Ink Contam

Reasons

1.The damper in the ink supply system is damaged, leaking air, or has abnormal ink return, causing ink back - flow and mixing due to negative air pressure.

2.Improper cleaning of the print head leads to bubbles from cleaning liquid affecting ink flow.

3.The wiper blade is aged, and the ink - suction function of the capping station declines.

Solutions

1.Check and repair or replace the damaged damper.

2.Standardize the print head cleaning process and avoid long - term soaking.

3.Replace aged components in time, clean dirty blades regularly, and adjust nozzle positions if necessary.
Poor pattern clarity

Reasons

1.Poor quality in screen - plate making for printing, such as issues with pattern effect, screen tension, and plate - exposing process.

2.Uneven ink - scraping pressure during printing.

3.Inappropriate ink viscosity.

4.The printing substrate is too rough.

Solutions

1.Improve screen - plate making standards, ensure proper tension and pattern effect, and optimize the plate - exposing process.

2.Adjust the ink - scraping pressure to make it even.

3.Adjust the ink viscosity according to actual conditions.

4.Select a suitable substrate or pre - treat rough substrates.
Color Migration & Discolor

Reasons

1.Insufficient curing temperature, leading to insufficient ink layer curing.

2.The printing substrate contains disperse dyes, and the dyes sublime during heat treatment.

3.Using inks with poor migration resistance, such as purple, peach red, and fluorescent colors.

4.Excessively high ink curing temperature.

Solutions

1.Ensure sufficient curing temperature and time.

2.Know the dye components of the substrate, avoid using substrates with disperse dyes or pre - treat them.

3.Select ink colors carefully and control the temperature during high - temperature curing.
Weak Adhesion & Fading

Reasons

1.Insufficient curing temperature, resulting in incomplete ink curing.

2.Insufficient power of the equipment, causing inconsistent curing degrees between the surface and bottom of the ink layer.

3.The printing material is not suitable for DTF ink.

Solutions

1.Accurately set and control the curing temperature and time.

2.Check the equipment power and repair or replace it if necessary.

3.Select a printing material compatible with DTF ink.

Applications of DTF Printer

Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique .

T-shirt   Denim/Jeans
Canvas   Hoodies
Backpacks Lanyards
Shoes Gift Bags
Baseball Caps   Fabric Gift Boxes
Sweaters and more......

DTF Accessories

DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.

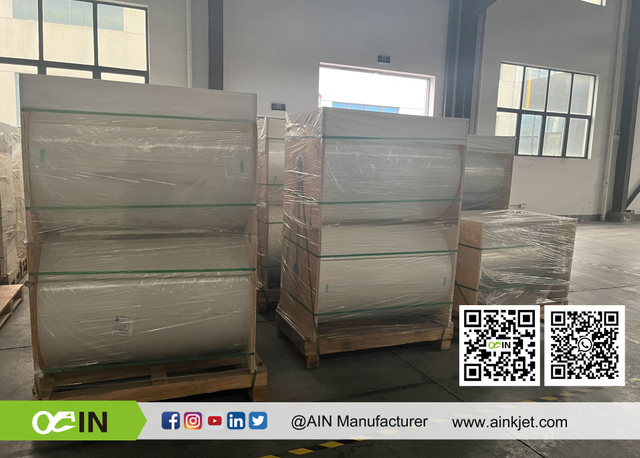

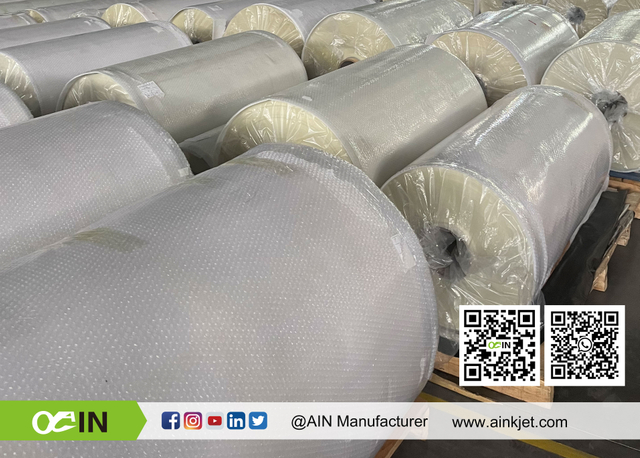

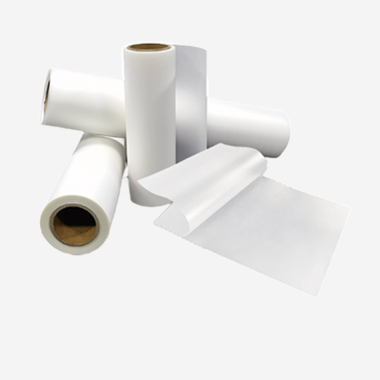

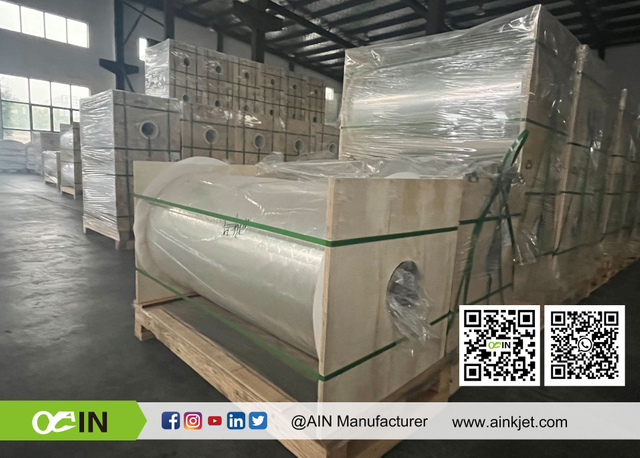

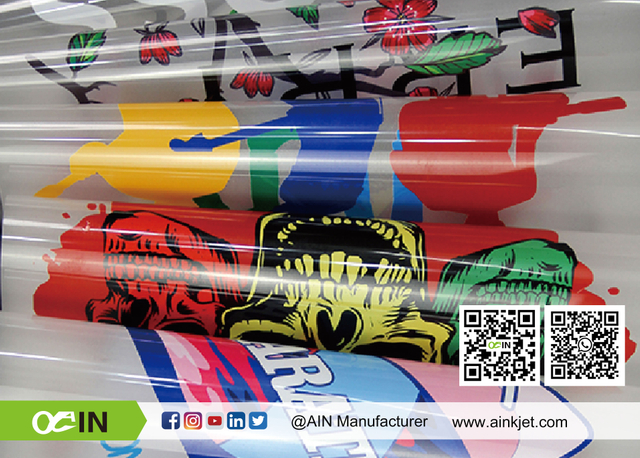

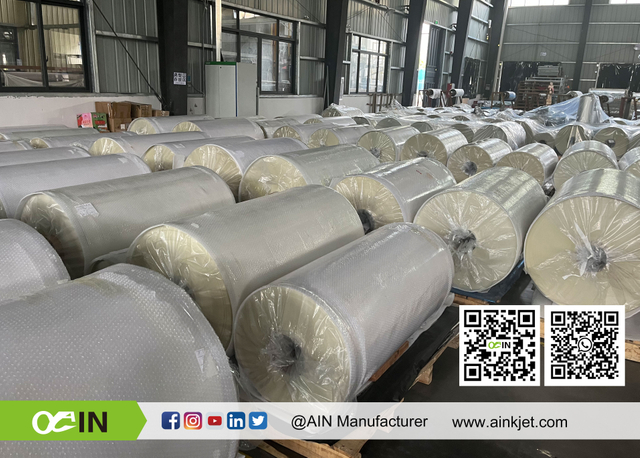

DTF PET Films

DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints

DTF Ink

DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.

AIN offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.

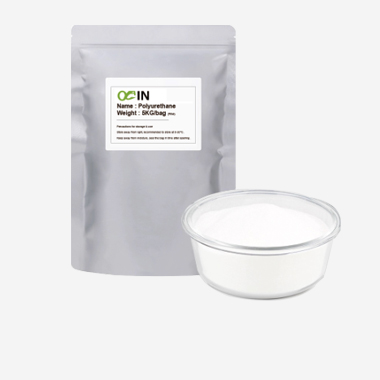

DTF Hot Melt Powder

Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
