Product Description

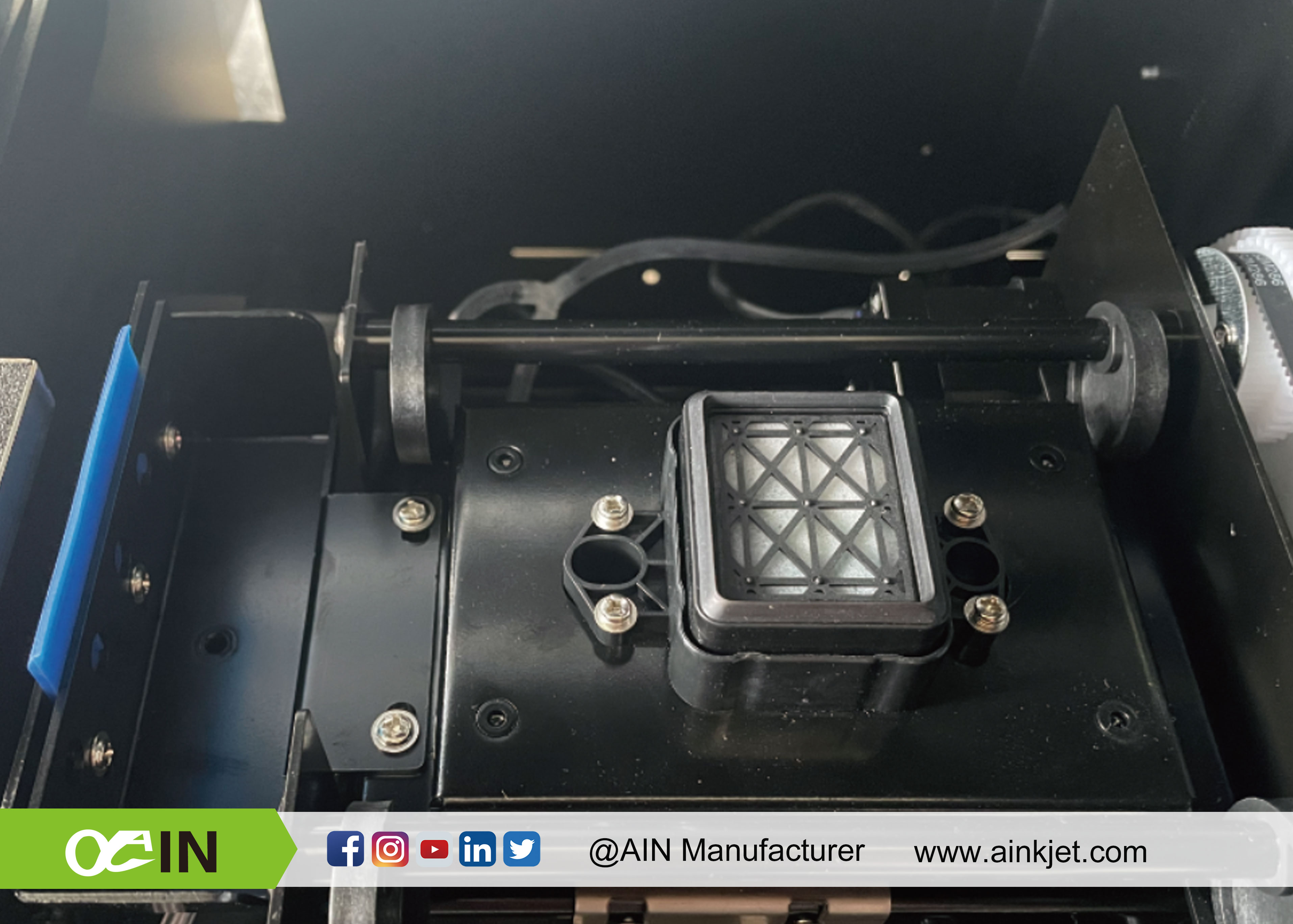

| ECO Solvent Printer 1.3m Enter-level Environmentally friendly solvent ink Equipped with 4 I3200-E1 nozzles and using environmentally friendly solvent ink, it is both environmentally friendly and has excellent outdoor weather resistance. Efficient printing Using micro piezoelectric inkjet printing technology Humanized intelligent design Stable connected supply system guarantees incredible printing speedConvenient and intuitive operation interface Wide applicability Suitable for the production of soft signage, clothing, interior decoration, etc., and applied in the fields of clothing, home textiles, various textiles, and electric vehicle decoration. Equipment quality Industrial grade sturdy design, stable and durable. Efficient ink supply and acceleration, THK silent guide, automatic nozzle cleaning, outstanding performance. |
New Feature of Sublimation Printer We have an excellent technical team, which can be designed according to customers requirements. |
Intelligent inkjet printing technology and variable dot ensure the perfect printing output, greatly improve the printing speed,and meet the user's requirements for printing quality and speed.
| High speed micro piezoelectric inkjet printing technology AJ-1301TX is equipped with single i3200-A1 print heads. It adopts advanced board control technology and industrial level design to ensure the durability of the print head .
|
Technical Specifications

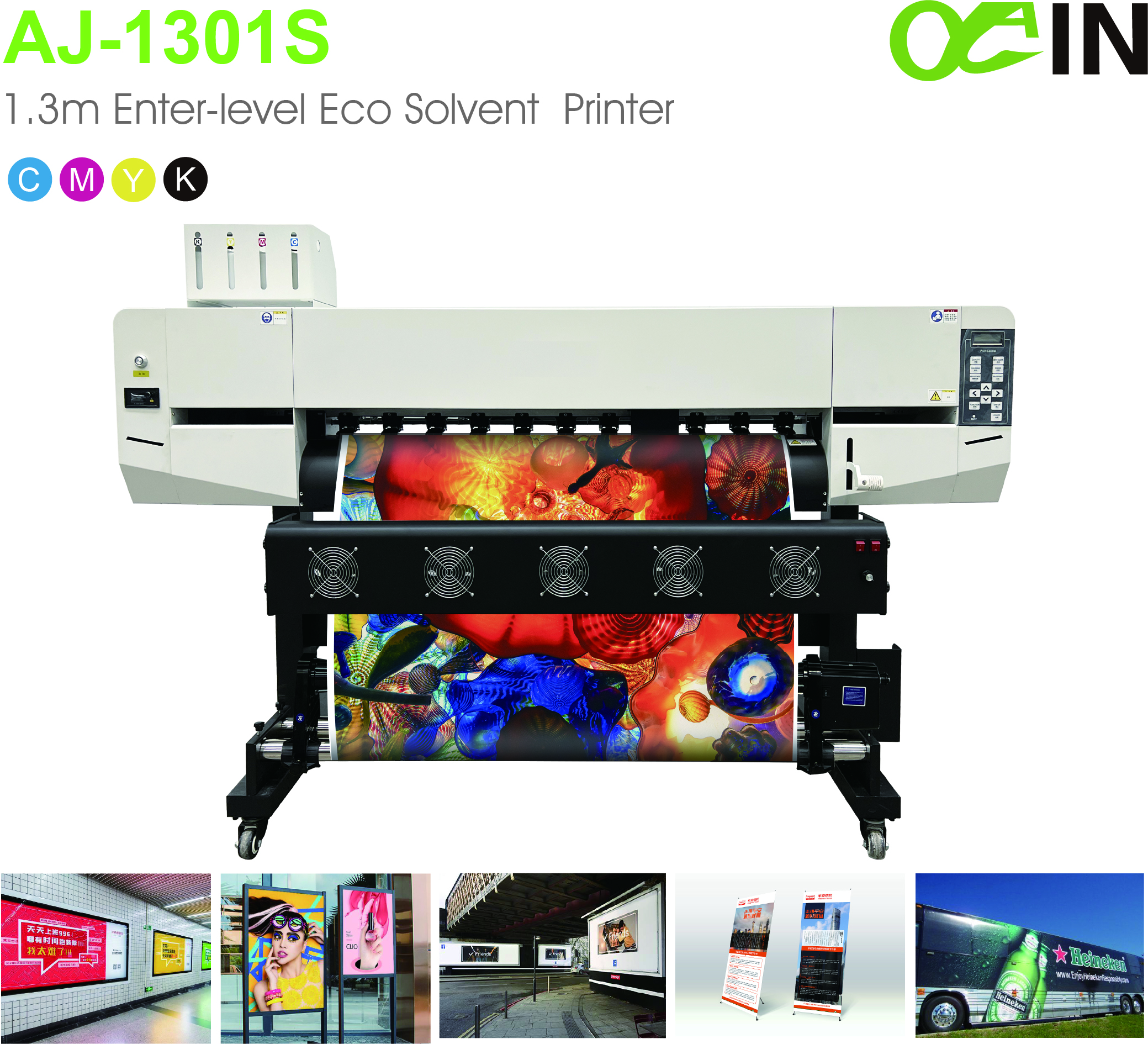

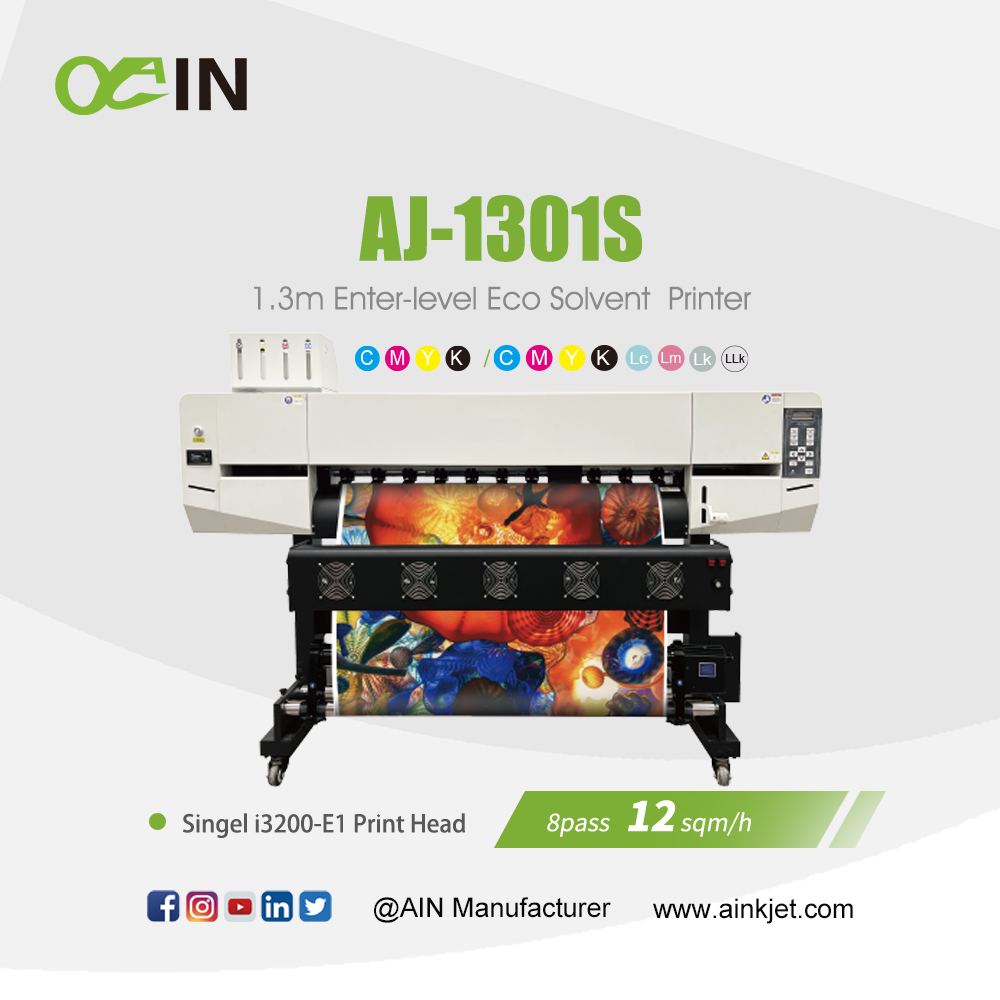

| AJ-1301S 1.3m Enter-level Eco Solvent Printer | ||
| Model | AJ-1301S | |
| Printig Technology | Singel i3200-E1 Print Head | |
| Print Head | Piezoelectric Inkjet | |
| Printig Width | 210-1300mm | |
| Acceptable Media | Width | 210-1300mm |
| Thickness | 1mm | |
| Weight | 50kg | |
| Ink Cartridges | Capactity | Color Siphon(Secondary cartridge+large ink barrel) |
| Color | C MYK/C M YK Lc Lm Lk LLk | |
| Power Consumption | 2500w | |
| Printing Resolution | Maximum 2400 dpi | |
| Speed | 8pass(720x1200dpi):12sqm/h 12pass(720x1800dpi):8sqm/h | |
| Interface | Gigabit Ethernet | |
| Power Supply | ACC220V±5%,16A,50/60 HZ | |
| Dielectric heating system | Three-stage heating system | |
| Packing Weight | 250kg | |
| Dimensions (with stand) | 2255(W)*933(D)*1539(H)mm | |
| Environment | Power on | Temperature:59 ℉ to 90 ℉ [15℃ to 32℃]/Humiditity:35 to 80%(no condenstation) |
| Power off | Temperature:41 ℉ to 104 ℉ [5℃ to 40℃]/Humiditity:20 to 80%(no condenstation) | |
| Accessories | USB cable,media clamp,manual,drain bottle,ink cartridges,RIP software,etc. | |
Printer Heads
| Epson Inkjet Head - i3200-E1 The Epson authorized iI3200-E1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-E1 |
| Ink Type | Eco Solvent Ink | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features

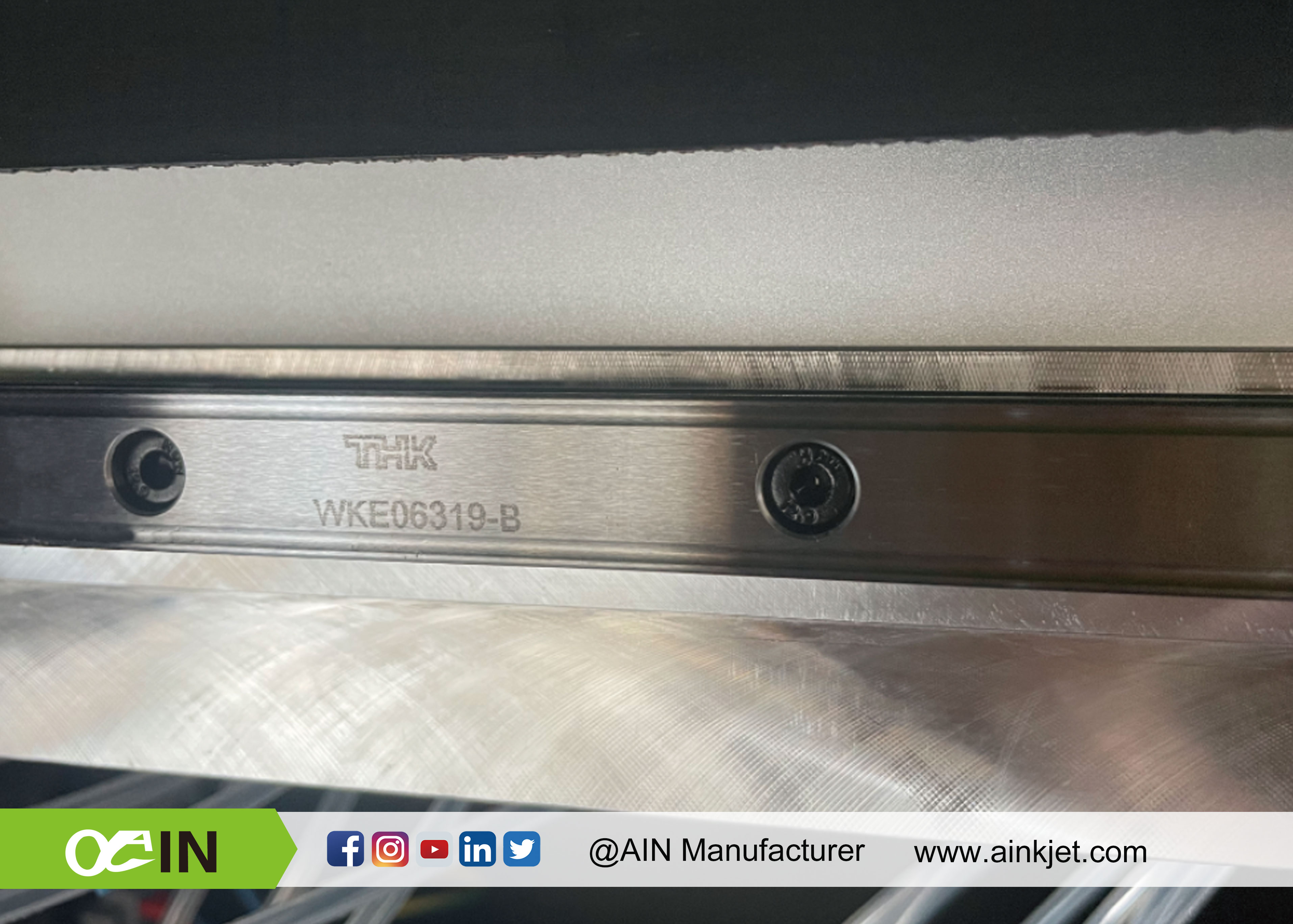

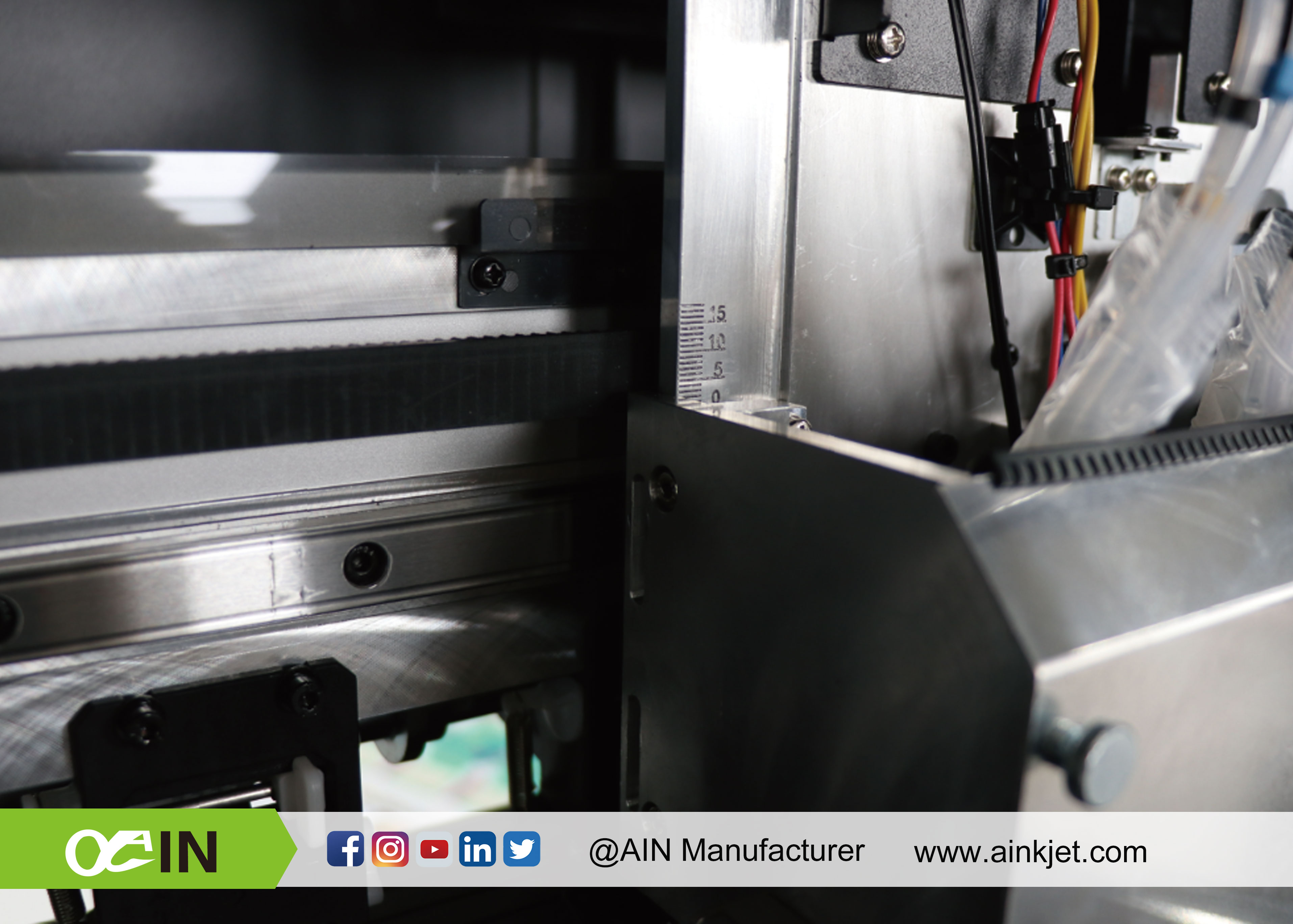

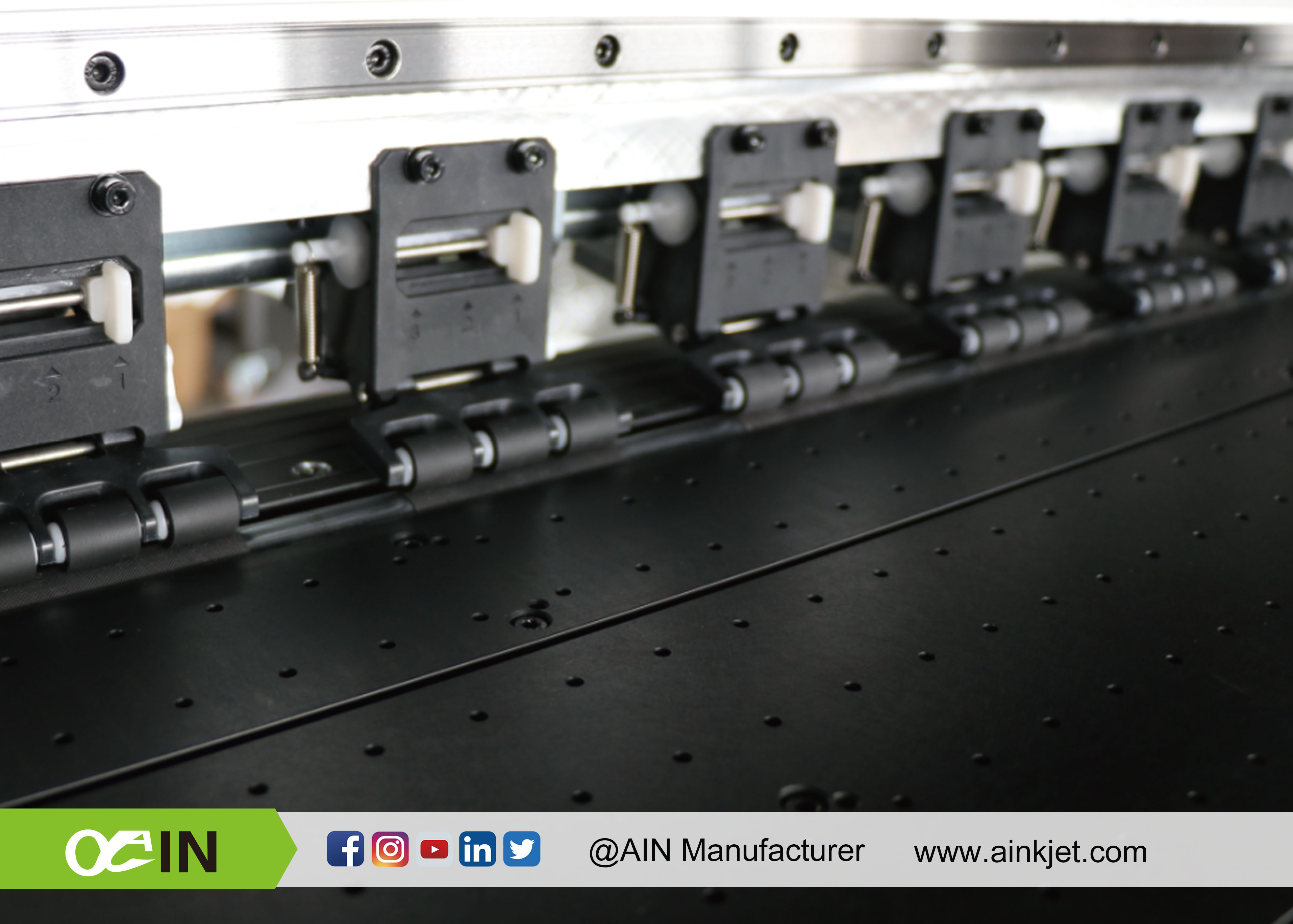

 | THK high-precisionmute rail. |  | New pinch roller structureof three in group bringsmore stable feeding precision. |

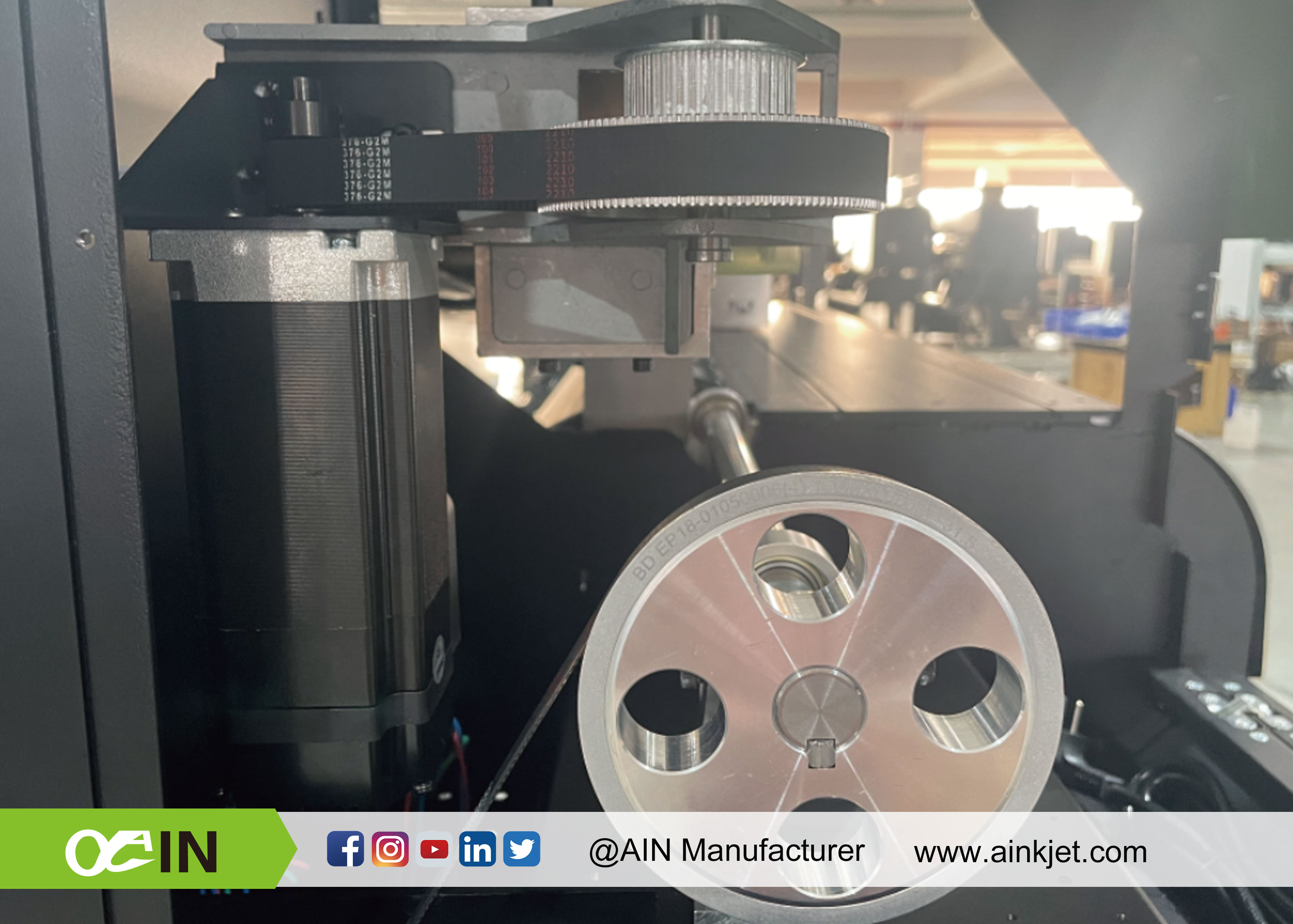

 | High-precision andhigh-stability tensioningpulley system. |  | High quality DC servomotor with good stabilityand long life. |

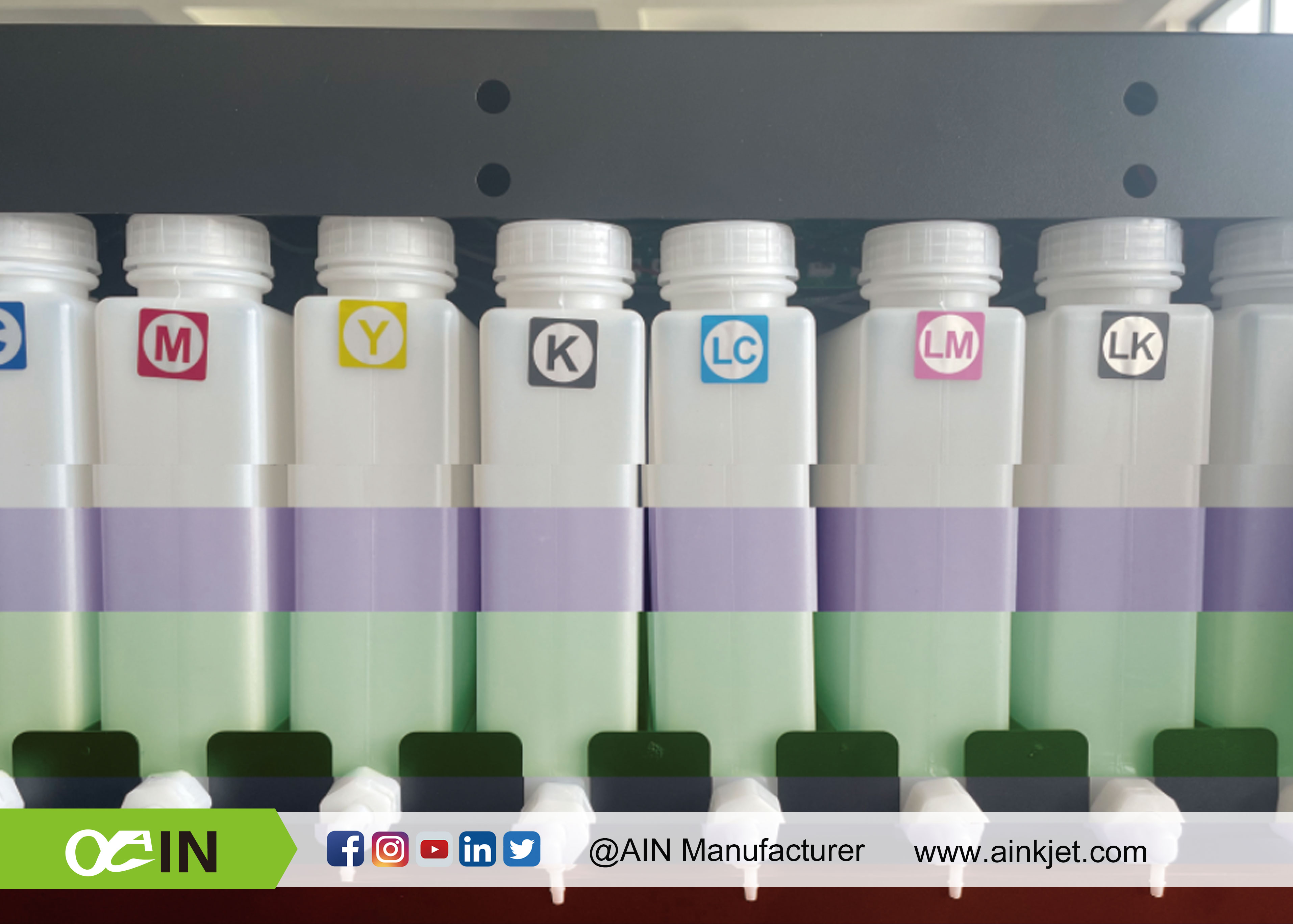

 | Stable Bulk System EnsuresAmazing Printing Speed. |  | Infrered heater andcooling fan. |
Application
Applications of Sublimation Printer
production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
