The printhead configuration is flexible, with 4*I3200-E1 printheads optional. Environmentally friendly solvent ink is used, which is both environmentally friendly and outdoor weather-resistant.
| PDF Export | |
Printer Informations
| ECO Solvent Printer Outdoor Advertising Pri nter AIN ECO Solvent Printer Widely used for lightbox posters, custom car stickers, background wall coverings, label printing, and subway/mall ads. Prints feature bright colors and striking visuals. Flexible nozzle configuration 4*I3200 - E1 nozzles can be configured, using environmentally friendly solvent ink, which is both environmentally friendly and has excellent outdoor weather resistance. With variable ink drop technology, the nozzle is compact and compatible with UV ink, which improves color fastness and saturation Excellent printing performance Accuracy and speed are adjusted on demand to balance quality and efficiency, equipped with high-speed and long-life motors, dual heat dissipation adapts to high speed, and the paper pressing wheel ensures paper feeding accuracy Equipment quality Adopting industrial-grade design, solid structure, strong stability, suitable for long-term continuous mass production. |
New Feature of ECO Solvent Printer We have an excellent technical team, which can be designed according to customers requirements. |

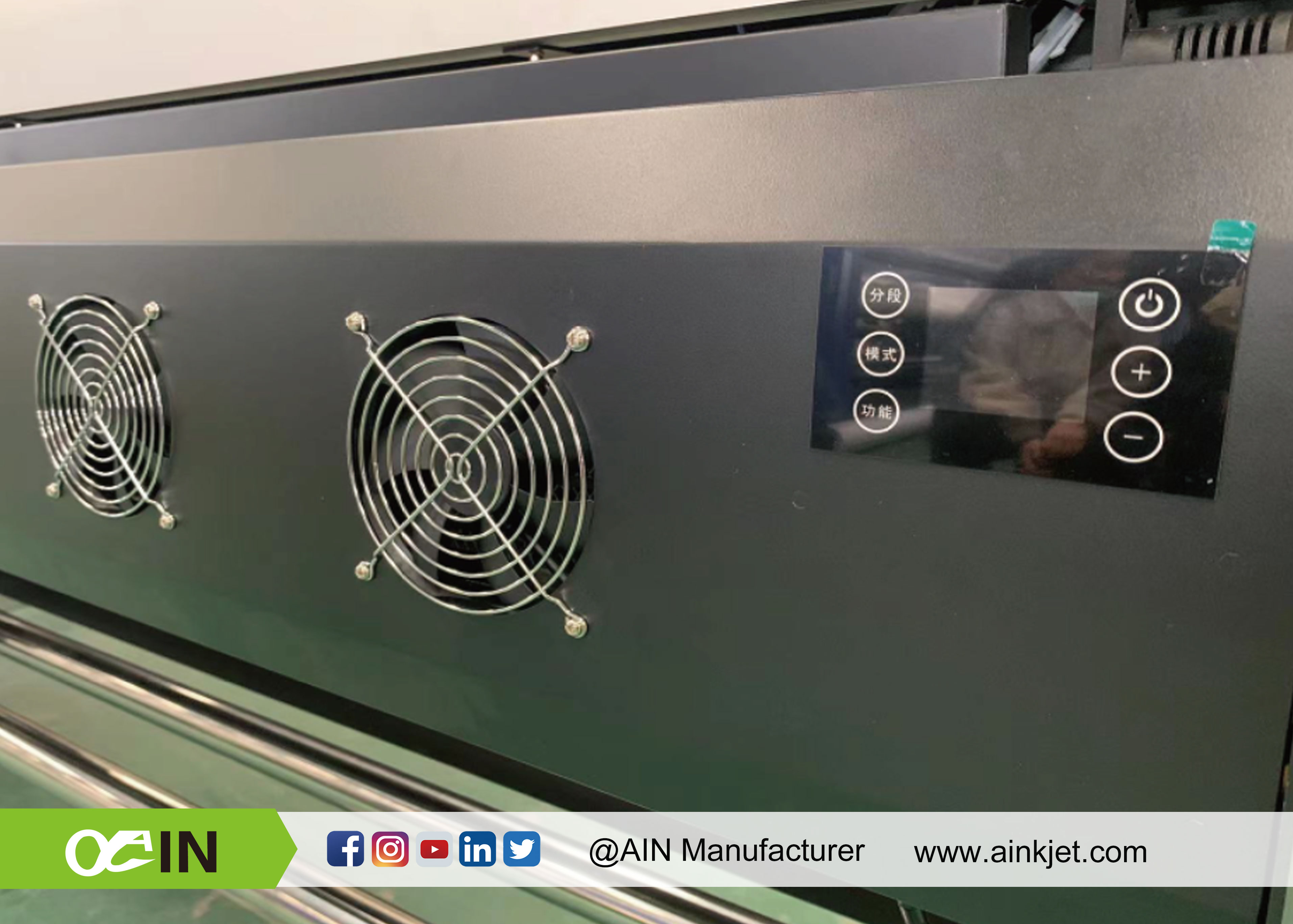

Printing Technology for Color Conversion -THK high - precision rails, high - stability long - life servo motors. -Cleaning unit w/ valve for stable ink, moisturizer for head protection -Infrared heating, cooling fans and LCD panel for precise temp control. -External power, intelligent rewinding. |

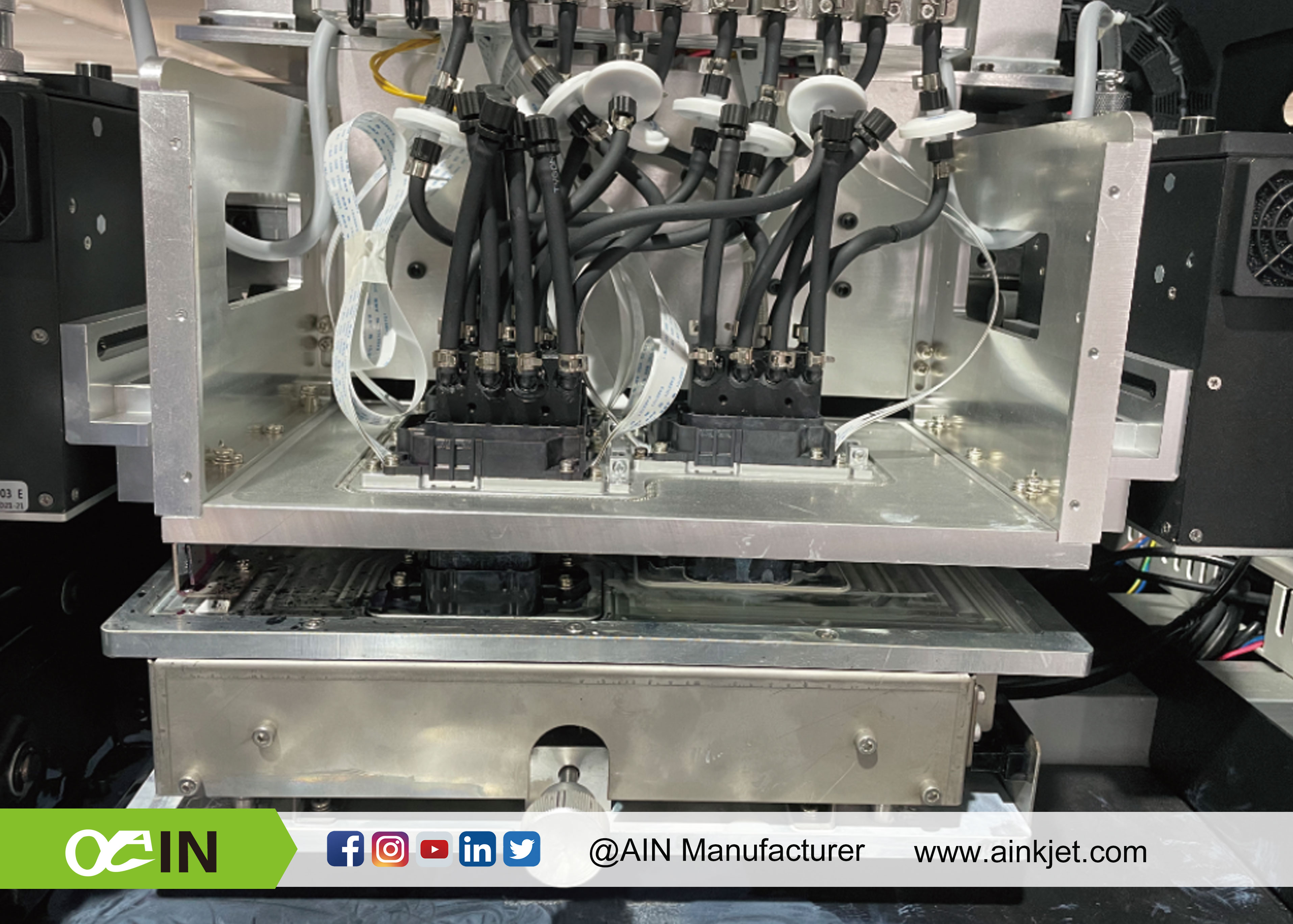

Epson Authorized i3200-E1 Heads - Equipped with single i3200 print head, 3.5pl ultra-small ink droplets -High-precision head bottom plate, craftsmanship of quality -Light weight and compact design, saves workshop space -High-quality UV ink, color fastness and color saturation stronger -Replacing some high-end eco solvent
|
Printer Heads
| Epson Inkjet Head - i3200-E1 The Epson authorized iI3200-E1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-E1 |
| Ink Type | Eco Solvent Ink | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications

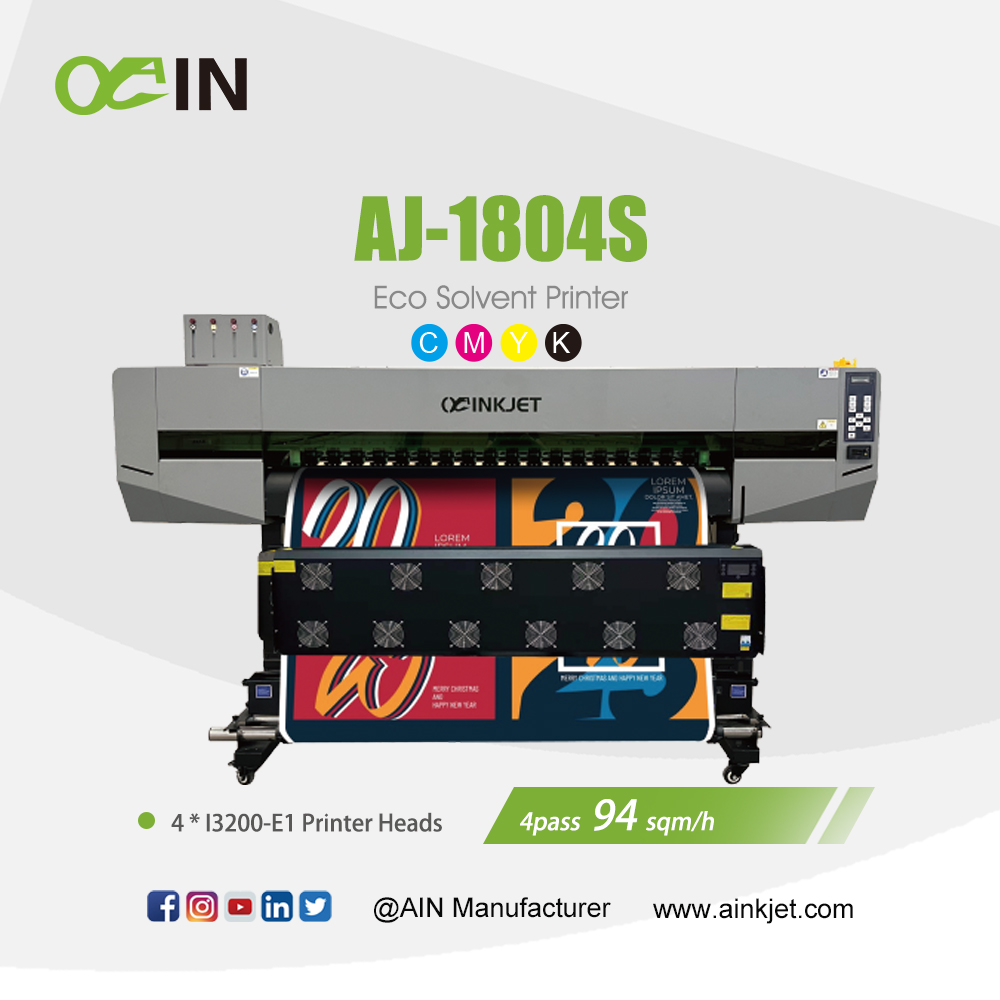

| AJ-1804S ECO SolventPrinter | ||
| Model | AJ-1804S | |
| Print Head | 4*I3200-E1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 71.6 in.(1820mm) |
| Thickness | Maximum 59 mil(1 .5mm) | |
| Weight | 176 Ib. (80 kg) | |
| Printing Width | 70.8 in.(1800mm) | |
| Ink Cartridges | Type | Eco Solvent Ink |
| Capacity | Continual Ink Supply System ( 3L ink tank) | |
| Color | 4 colors (Cyan, Magenta, Yellow, Black) | |
| Printing Resolution | Maximum 2400 dpi | |
| Printing Speed | 4pass(360x2400dpi):94 sqm/h 6pass(720x1800dpi):69 sqm/h 8pass(720x2400dpi):51 sqm/h | |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | |
| Interface | Ethernet Interface | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 102(W)x27(D)x62(H) in. （2600(W)x750(D)x1580(H)mm) | |
| Weight(with stand) | 661 Ib.(300 kg) | |
| Package Dimensions | 114(W)x30(D)x40(H) in.(2900(W)x760(D)x1020(H)mm) | |
| Package Weight | 705 lb.(320 kg) | |
| Environment | Power on | Temperature:59℉ to 90℉ [15℃ to 32℃]/Humidity:35 to 80%(no condensation) |
| Power off | Temperature:41℉ to 104℉ [5℃ to 40℃]/Humidity:20 to 80%(no condensation) | |
| Accessories | Print Heads, USB cable, media clamp, manual, drain bottle, ink cartridges, RlP software, etc. | |
Features

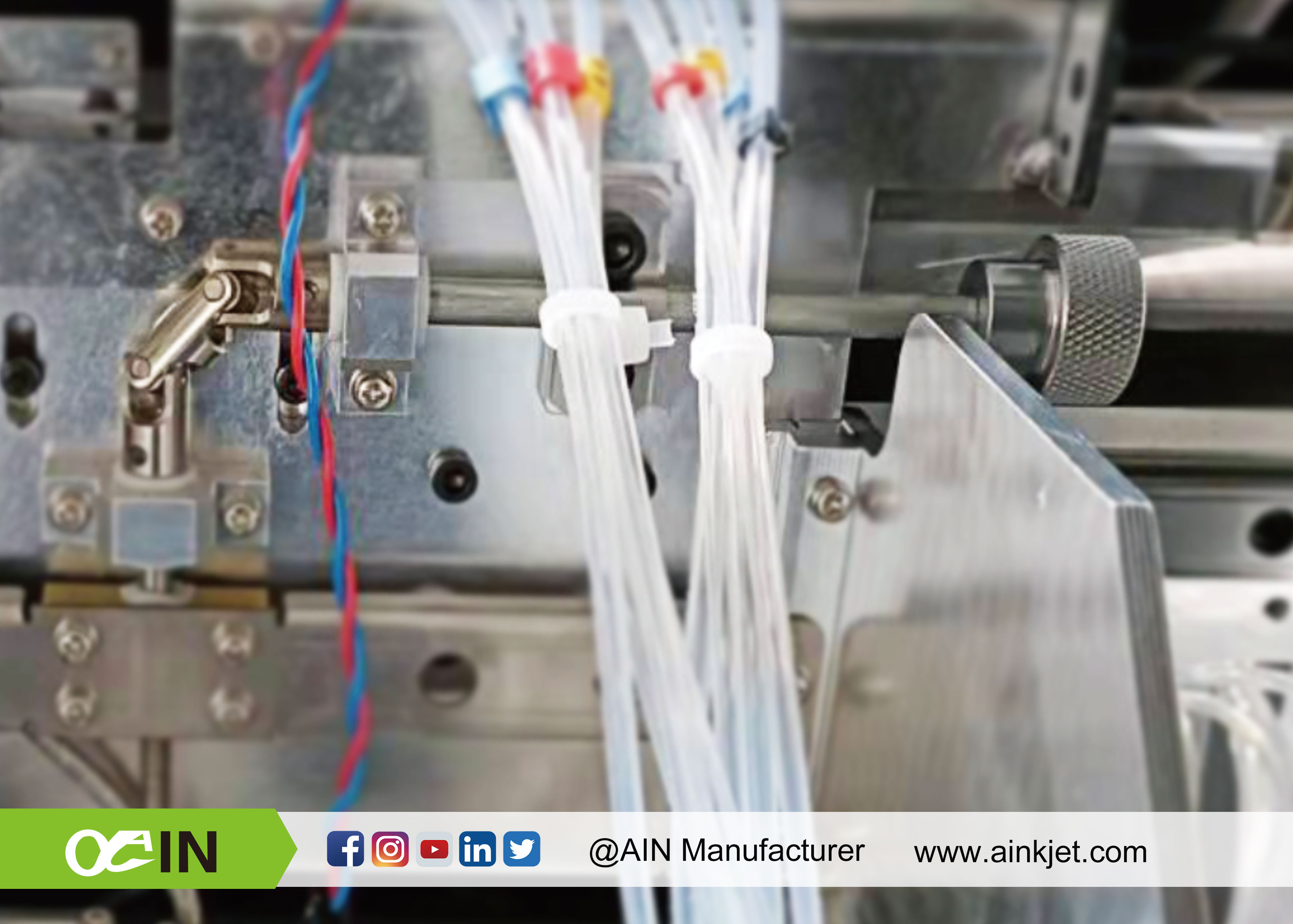

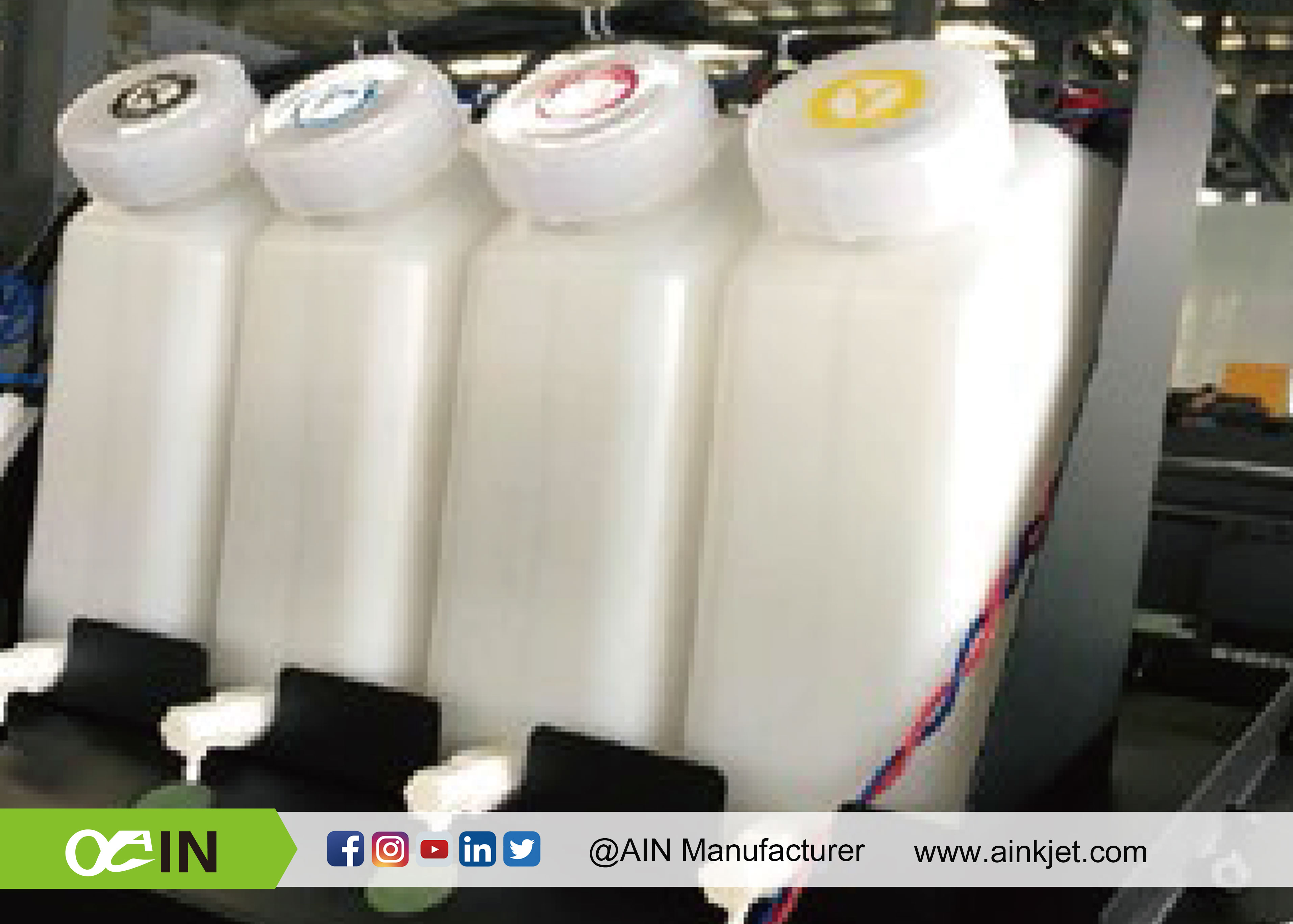

| Printer carriage can be moved up and down to adjust print head height | | Stable 3L bulk system ensures amazing printing speed |

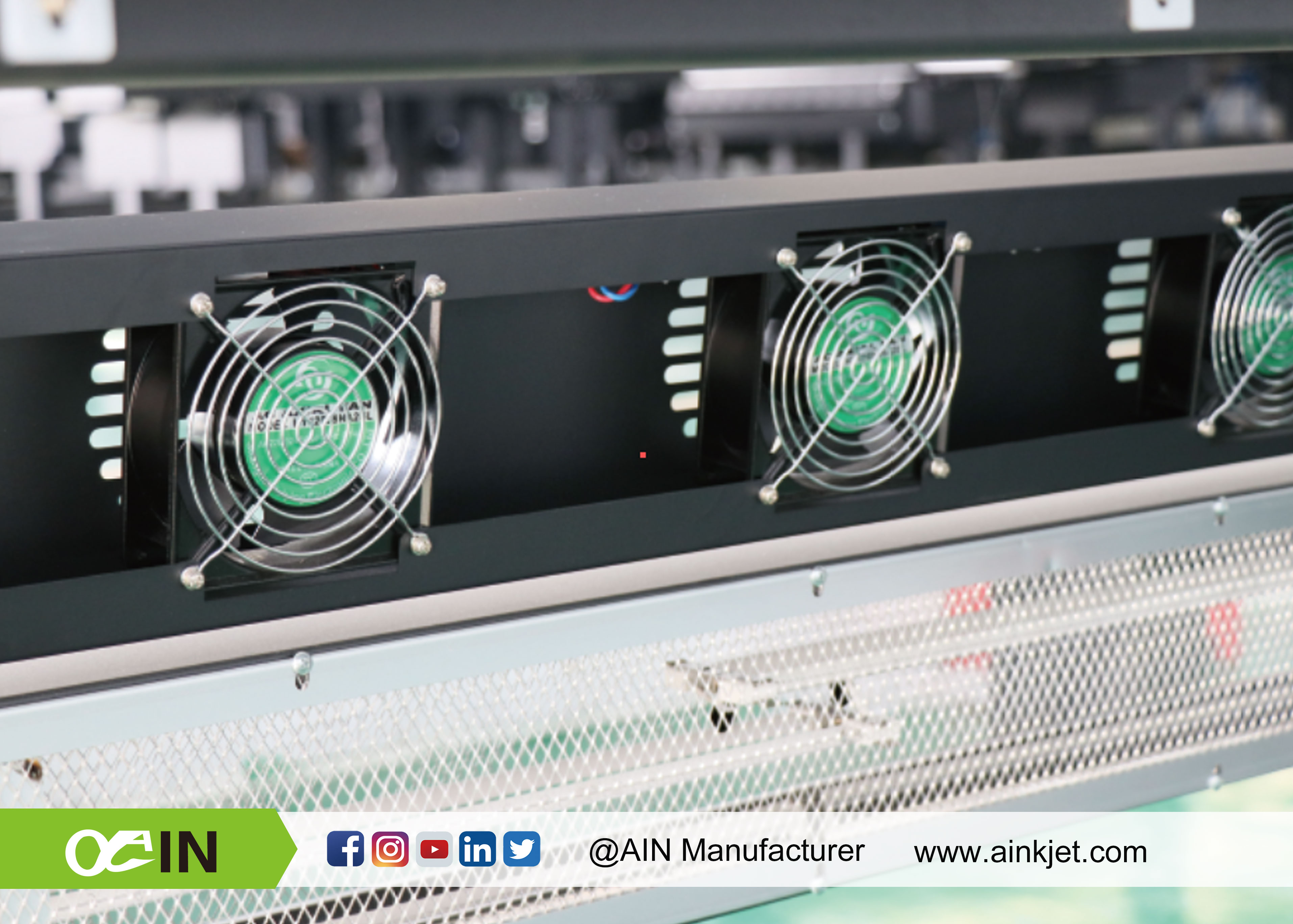

 | Head cleaning and moisturizing makes operation and maintenance more convenient |  | Built-in infrared heater and cooling fan to accelerate the drying of the media |

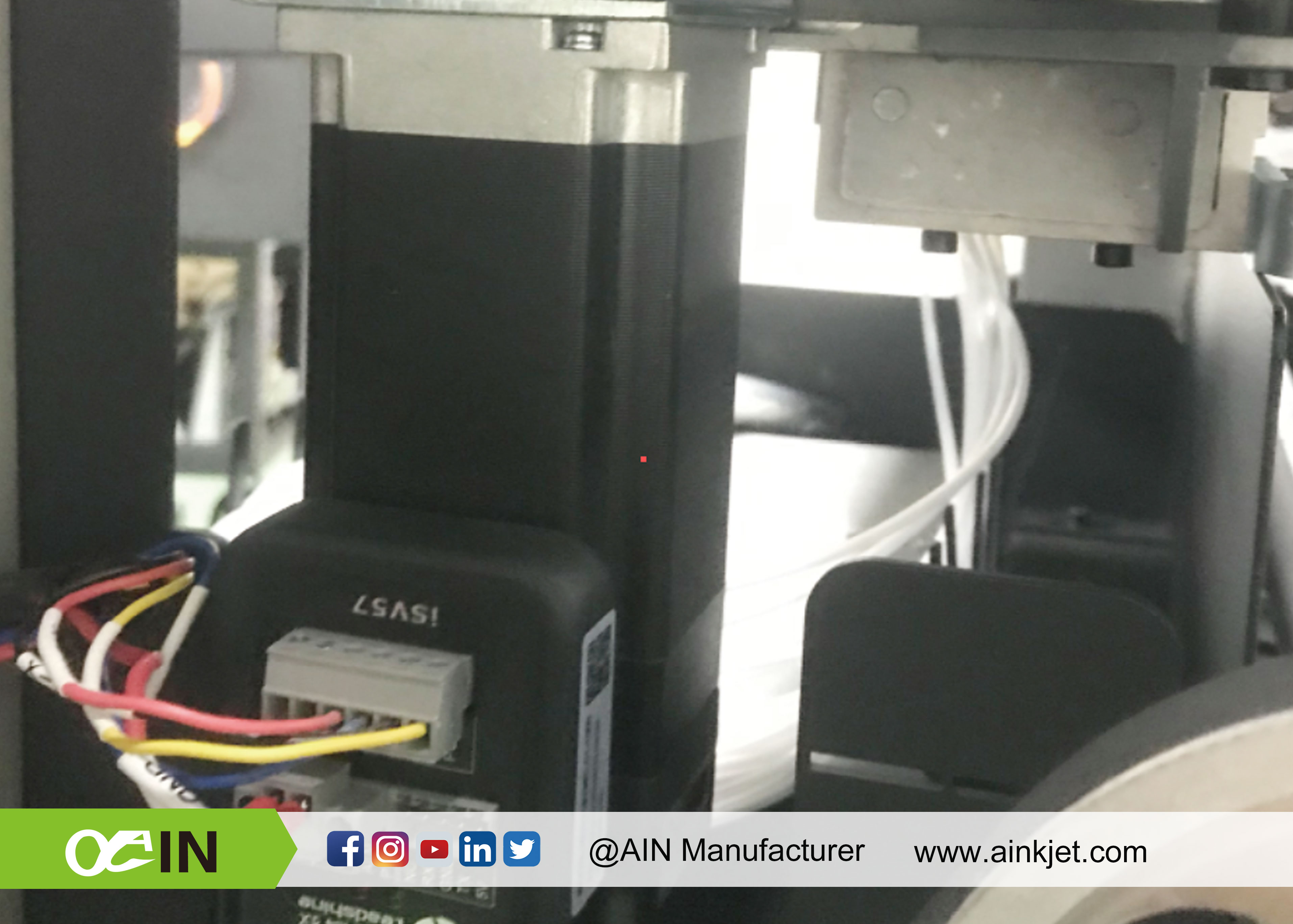

| High quality DC servo motor has good stability and long service life | | with adjustable power.platform vacuum system heater, and rear heater and including pre-heater, print Three stage heating system |

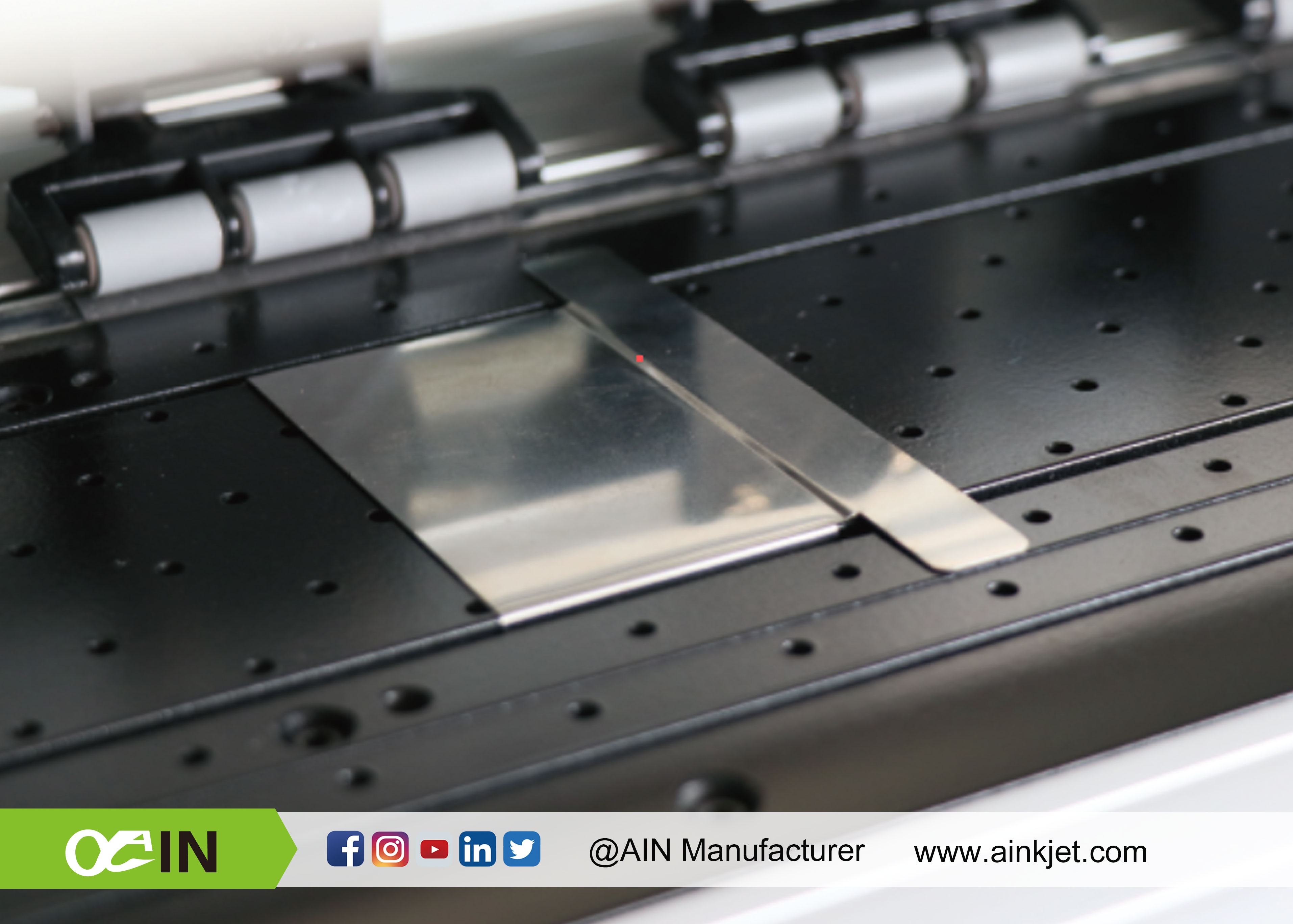

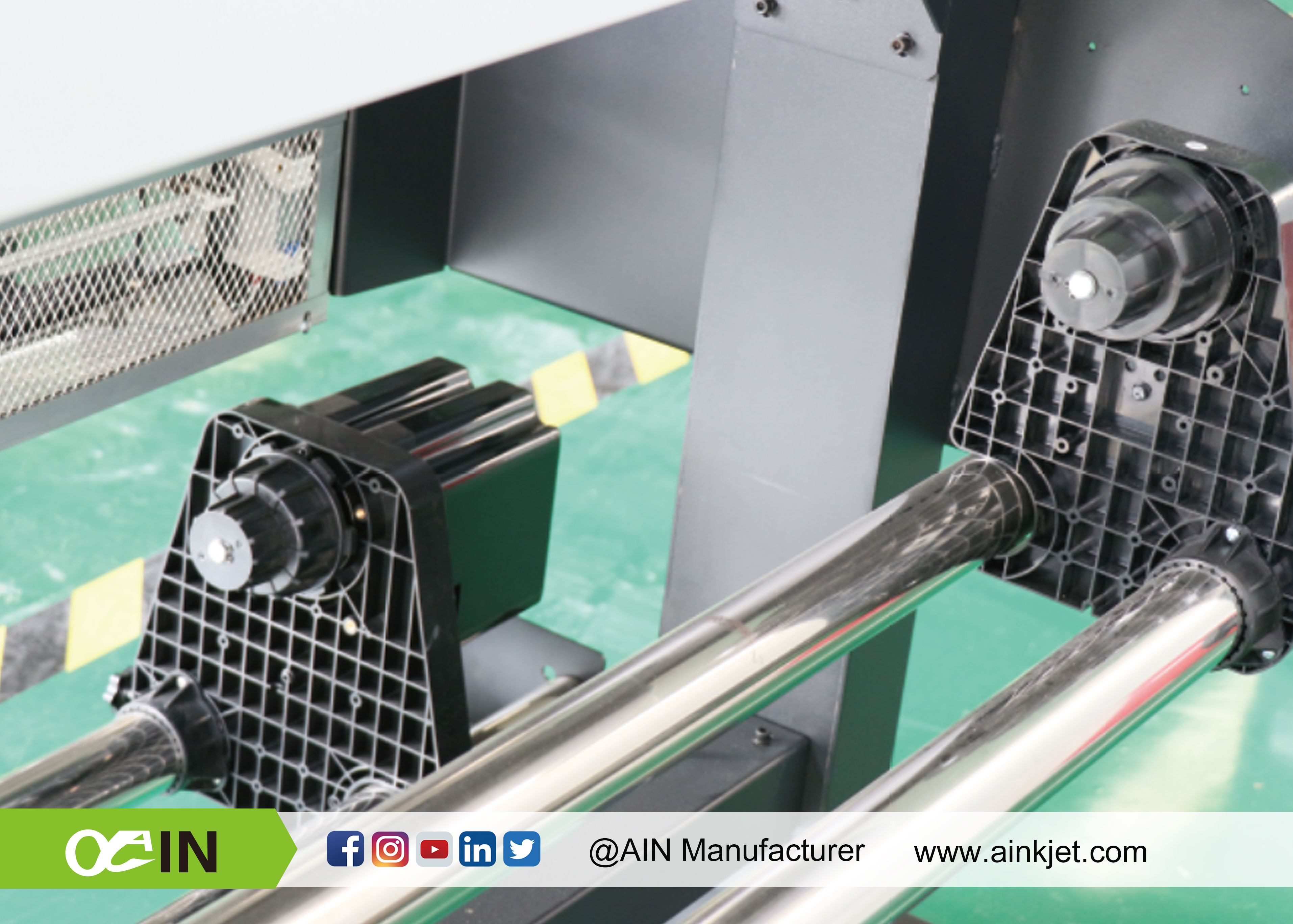

 | Three-foot pinch roller structure brings more stable feeding accuracy | | External power supply, intelligent rolling system. |
Application
Applications of Eco Solvent Printer
Our range of wide format inkjet printers matches our knack for engineering and quality with your desire for impeccable performance and careless production. You can produce roll-to-roll indoor prints and long term outdoor signs. Wide applications in light box posters, customized car stickers, background wall cloth, label printing, advertising sign, subway advertising, shopping mall advertising signs etc.
