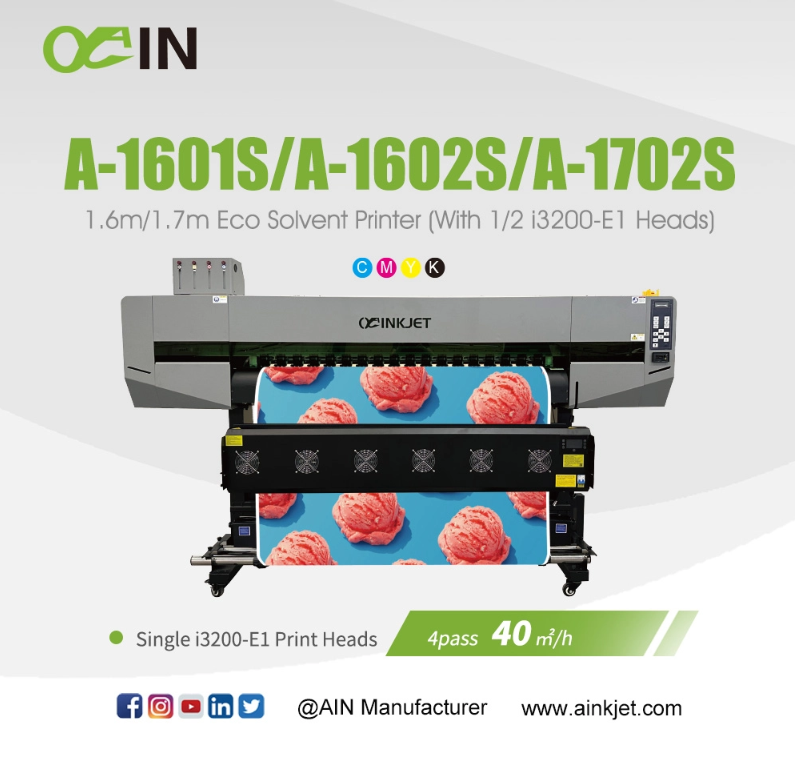

1.6m/1.7m Eco solvent printer featuring single/double Epson i3200-E1 printheads , supports CMYK 4-color output with eco-solvent ink, delivering 1440dpi-class resolution and smooth colors via variable dot tech.
Boasting high efficiency, durability, flexible width (1.6/1.7m) and cost control, it works with car wraps, light box fabrics and more, fitting outdoor billboards, interior decor and signage scenarios.
| PDF Export | |
Printer Informations
| 1.6m/1.7m Eco Solvent Printer Variety of print modes This printer is equipped with single/double Epson i3200-E1 printheads (minimum 3.8pl ink droplets, 106 billion cycles of piezoelectric durability), supporting CMYK 4-color output. It reaches 40㎡/h in 4pass mode (faster with double printheads). Ink & Output Quality It uses eco-solvent ink, balancing environmental friendliness and outdoor durability. High resolution (up to 1440dpi class) + variable dot technology deliver smooth color transitions and low graininess. Core Advantages Its advantages include high efficiency & precision (fast speed + low graininess), strong durability (printheads/device/ink suitable for outdoor use), flexible width (1.6/1.7m), and controllable costs. Applicable Materials & Scenarios It can print on materials like car wraps, light box fabrics, wallpapers, covering scenarios such as outdoor billboards, interior decoration, and signage. |
Printer Heads
| Epson Inkjet Head - i3200-E1 The Epson authorized iI3200-E1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-E1 |
| Ink Type | Eco Solvent Ink | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications
| Model | A-1601S | A-1602S | |
| Print Head | Single i3200-E1 Print Heads | Dual i3200-E1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | ||
| Acceptable Media | Width | 63.8 in. (1620mm) | |
| Thickness | Maximum 59 mil(1 .5mm) | ||
| Weight | 176 Ib. (80 kg) | ||
| Printing Width | 63 in. (1600mm) | ||
| Ink Cartridges | Type | Eco Solvent Ink | |
| Capacity | 4*4 CISS (220ml ink cartridge with 1.5L ink tank) | ||
| Color | 4 colors (Cyan, Magenta, Yellow, Black) | ||
| Printing Resolution | Maximum 2400 dpi | ||
| Printing Speed | 4pass(360x2400dpi):21 sqm/h 6pass(720x1800dpi):14 sqm/h | 4pass(360x2400dpi):40 sqm/h 6pass(720x1800dpi):27 sqm/h | |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | ||
| Interface | LAN | ||
| Power Supply | AC 220V±10%,50/60 HZ | ||
| Dimensions(with stand) | 102(W)x27(D)x62(H)in. | ||
| (2600(W)x750(D)x1550(H)mm) | |||
| Weight(with stand) | 240KG | ||
| Package Dimensions | 110(W)x30(D)x35(H)in. | ||
| (2800(W)x760(D)x760(H)mm) | |||
| Package Weight | 260KG | ||
| Environment | Power on | Temperature:59℉ to 90℉ [15℃ to 32℃]/Humidity:35 to 80%(no condensation) | |
| Power off | Temperature:41℉ to 104℉ [5℃ to 40℃]/Humidity:20 to 80%(no condensation) | ||
| Accessories | Print Heads,USB cable,media clamp,manual,drain bottle,ink cartridge,RIP software etc. | ||
Features
 | THK high-precisionmute rail. |  | New pinch roller structure of three in group brings more stable feeding precision. |
 | High-precision and high-stability tensioning pulley system. |  | High quality DC servo motor with good stability and long life. |
 | Stable Bulk System Ensures Amazing Printing Speed. |  | Infrered heater and cooling fan. |
 | Automatic moisturizing cleaning assembly ensures the stability of head cleaning and improves working stability. |  | External power supply, intelligent rolling system. |
Application
Applications of Integrated 1.6m/1.7m Eco Solvent Printer
Our range of wide format inkjet printers matches our knack for enginering and quaity with your desire for impeccable performance and carees production. You can produce roll to roll indoor prints and long term outdoor signs, Wide aplications in light box posters,customized car stickers, background wall cloth,label printing, advertising sign, subway advertising,shopping mall advertising signs etc.
