Intelligent inkjet printing technology and variable dot ensure the perfect printing output, greatly improve the printing speed, and meet the user's requirements for printing quality and speed.
| PDF Export | |
Printer Heads
| Epson Inkjet Head - i3200-E1 The Epson authorized iI3200-E1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-E1 |
| Ink Type | Eco Solvent Ink | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications

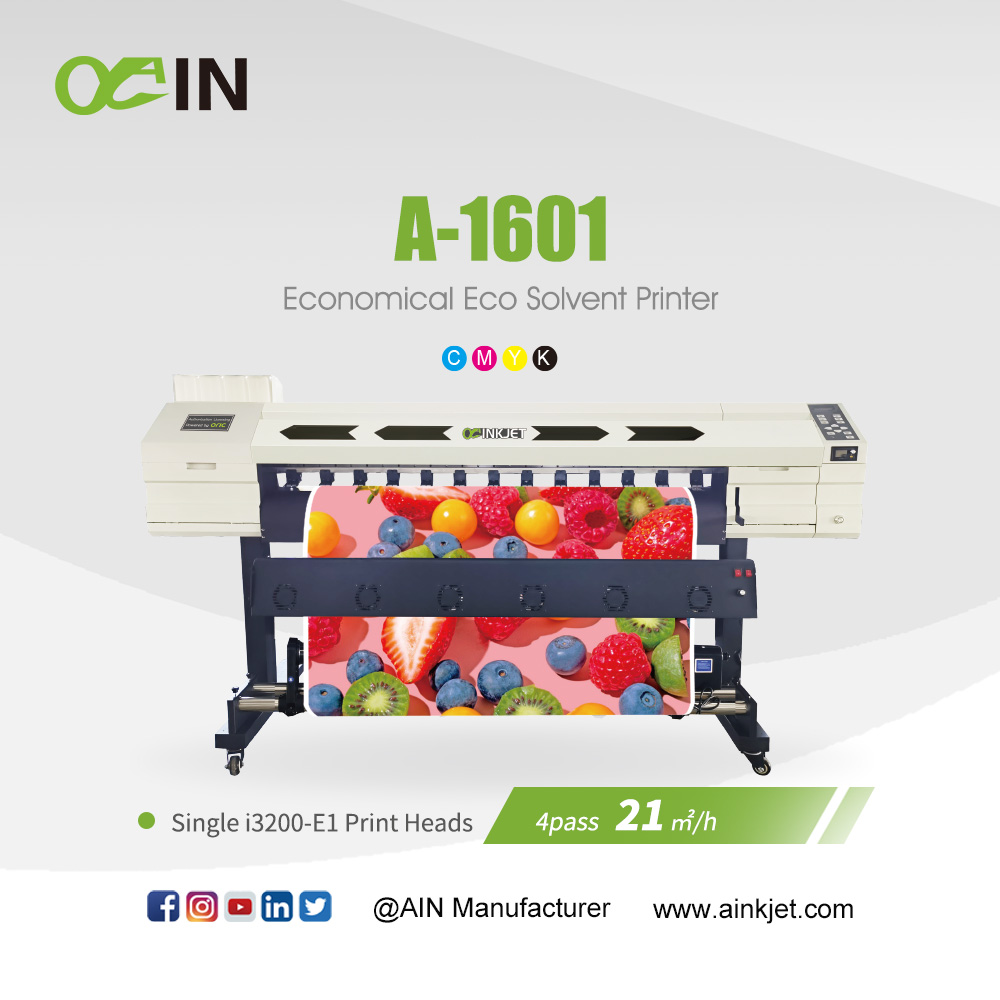

| Model | A-1601 | |
| Print Head | Single i3200-E1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 63.8 in. (1620mm) |
| Thickness | Maximum 39 mil(1mm) | |
| Weight | 132.2 Ib. (60 kg) | |
| Printing Width | 63 in. (1600mm) | |
| Ink Cartridges | Type | Eco Solvent Ink |
| Capacity | 4*4 CISS (220ml ink cartridge with 1.5L ink tank) | |
| Color | 4 colors (Cyan, Magenta, Yellow, Black) | |
| Printing Resolution | Maximum 2400 dpi | |
| Printing Speed | 4pass(360x2400dpi):21 sqm/h 6pass(720x1800dpi):14 sqm/h | |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | |
| Interface | LAN | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 98(W)x23.6(D)x54(H)in. | |
| (2490(W)x600(D)x1370(H)mm) | ||
| Weight(with stand) | 230KG | |
| Package Dimensions | 104(W)x30(D)x35(H)in. | |
| (2650(W)x760(D)x760(H)mm) | ||
| Package Weight | 250KG | |
| Environment | Power on | Temperature:59℉ to 90℉ [15℃ to 32℃]/Humidity:35 to 80%(no condensation) |
| Power off | Temperature:41℉ to 104℉ [5℃ to 40℃]/Humidity:20 to 80%(no condensation) | |
| Accessories | Print Heads,USB cable,media clamp,manual,drain bottle,ink cartridge,RIP software etc. |
Features

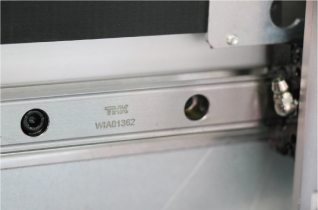

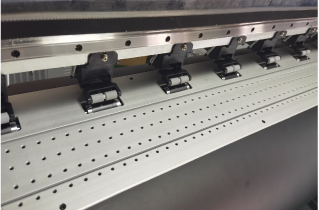

 | THK high-precisionmute rail. |  | New-stage pinch roller structure bring smore stable feeding precision. |

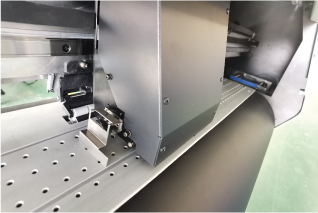

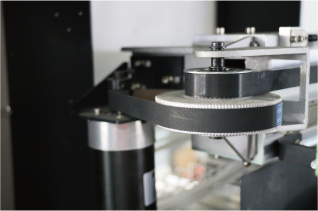

 | High-precision and high-stability tensioning pulley system. |  | Carridge anti-collision device to better protect the print heads. |

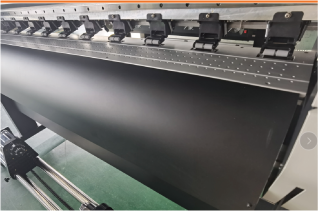

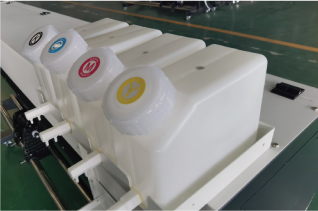

 | Stable Bulk System Ensures Amazing Printing Speed. |  | Front, middle and rear three-stage heating device to accelerate drying and improve output quality. |

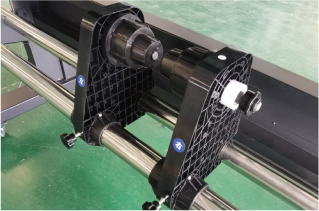

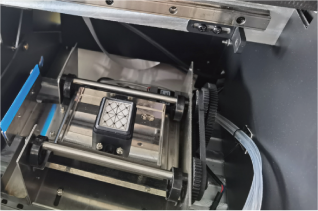

 | Moisturizing cleaning assembly ensures the stability of head cleaning and improves working stability. |  | External power supply, intelligent rolling system. |
Application
Our range of wide format inkjet printers matches our knack for enginering and quaity with your desire for impeccable performance and carees production. You can produce roll to roll indoor prints and long term outdoor signs, Wide aplications in light box posters,customized car stickers, background wall cloth,label printing, advertising sign, subway advertising,shopping mall advertising signs etc.
