Our range of wide format inkjet printers matches our knack for engineering and quality with your desire for impeccable performance and careless production. You can produce roll-to-roll indoor prints and long term outdoor signs.Wide applications in light box posters, customized car stickers,background wall cloth, label printing,advertising sign. subway advertising, shopping mall advertising signs etc.
| PDF Export | |
Printer Heads
| Four I3200-E1 Heads | * 1.6m Four I3200-E1 Print Heads Speed | |
 | 360x2400dpi-4pass | 40 m2 /h |
| 720x1800dpi-6pass | 30 m2 /h | |
| 720x2400dpi-8pass | 21 m2 /h | |
| Epson Inkjet Head - i3200-E1 The Epson authorized iI3200-E1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-E1 |
| Ink Type | Eco Solvent Ink | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications

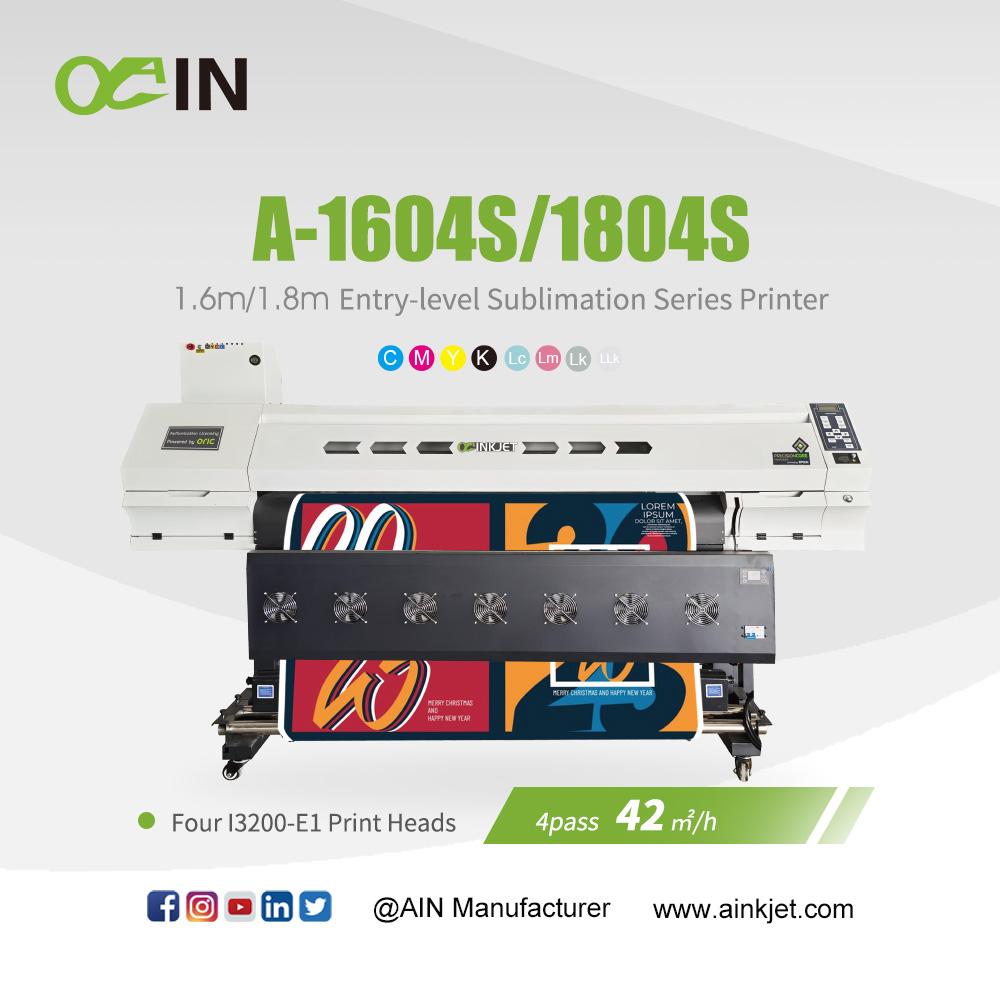

| Model | A-1604S | A-1804S | |
| Print Head | Four I3200-E1 Print Heads | ||
| Printing Technology | Piezoelectric Inkjet | ||
| Acceptable Media | Width | 63.8 in. (1620mm) | 71.6 in. (1820mm) |
| Thickness | Maximum 59 mil(1 .5mm) | ||
| Weight | 176 Ib. (80 kg) | ||
| Printing Width | 63 in. (1600mm) | 70.8 in. (1800mm) | |
| Ink Cartridges | Type | Eco Solvent Ink | |
| Capacity | Continual Ink Supply System(3L ink tank) | ||

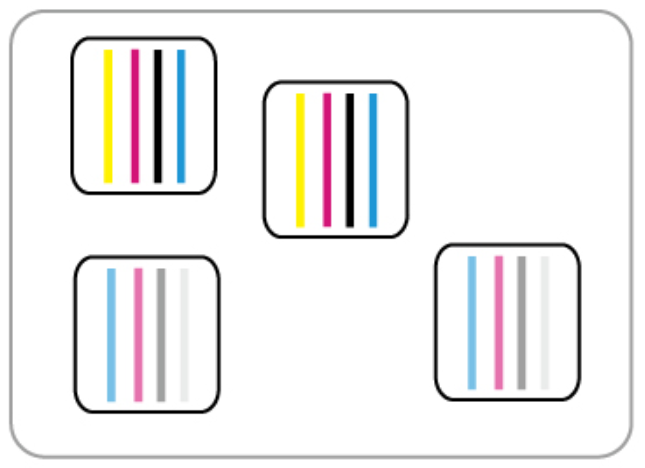

| Color | 8 colors(CMYKLcLm Lk LLk) | ||
| Printing Resolution | Maximum 2400 dpi | ||
| Printing Speed | 4pass(360x2400dpi):42 sqm/h 6pass(720x1800dpi):30 sqm/h 8pass(720x2400dpi):21 sqm/h | 4pass(360x2400dpi):47 sqm/h 6pass(720x1800dpi):34 sqm/h 8pass(720x2400dpi):25 sqm/h | |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | ||
| Interface | Ethernet Interface | ||
| Power | 7500W | ||
| Power Supply | AC 220V±10%,50/60 HZ | ||
| Dimensions(with stand) | 102(W)x27(D)x62(H)in. | 110(W)x30(D)x62(H)in. | |
| (2600(W)x750(D)x1580(H)mm) | (2800(W)x750(D)x1580(H)mm) | ||
| Weight(with stand) | 617 Ib. (280 kg) | 661 Ib. (300 kg) | |
| Package Dimensions | 110(W)x30(D)x35(H)in. | 114(W)x30(D)x40(H)in. | |
| (2800(W)x750(D)x880(H)mm) | (2900(W)x760(D)x1020(H)mm) | ||
| Package Weight | 661 Ib. (300 kg) | 705 Ib. (320 kg) | |
| Environment | Power on | Temperature:59℉ to 90℉ [15℃ to 32℃]/Humidity:35 to 80%(no condensation) | |
| Power off | Temperature:41℉ to 104℉ [5℃ to 40℃]/Humidity:20 to 80%(no condensation) | ||
| Accessories | Print Heads,USB cable,media clamp,manual,drain bottle,ink cartridge,RIP software etc. | ||
Features

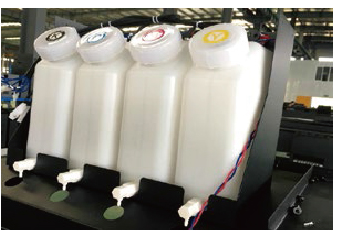

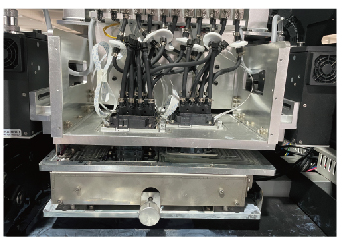

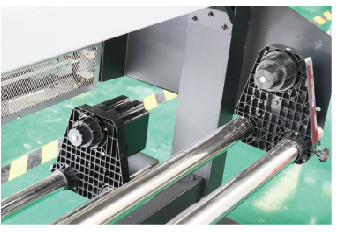

| Printer carriage can be |  | Stable 3L bulk system |

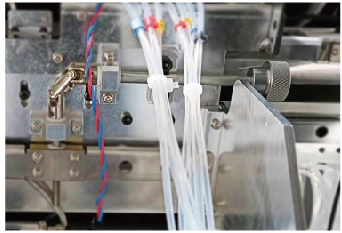

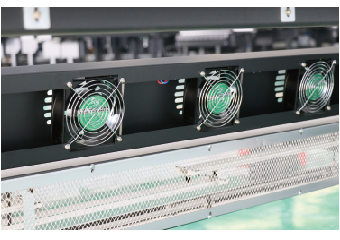

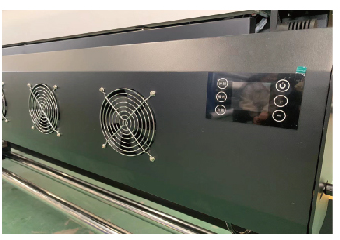

 | Head cleaning and moisturiz. ing makes operation and maintenance more convenient. |  | Built-in infrared heater and cooling fan to accelerate the drying of the media. |

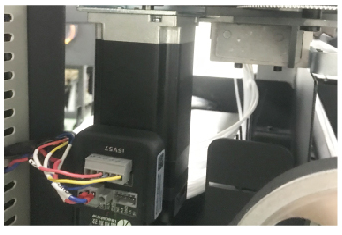

 | High quality DC servo motor has good stability and long service life. |  | Three stage heating system including pre-heater, print heater.and rear heater and platform vacuum system with adiustable power. |

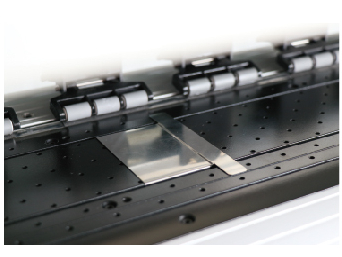

 | Three-foot pinch roller |  | External power supply, |
Application
Our range of wide format inkjet printers matches our knack for engineering and quality with your desire for impeccable performance and careless production.You can produce roll-to-roll indoor prints and long term outdoor signs.Wide applications in light box posters, customized car stickers,background wall cloth, labelprinting,advertising sign. subway advertising，shoppingmall advertising signs etc.
 |  |  |  |  |
