Printer Informations
| Eco Solvent Printer 1.9m Economical AIN Eco Solvent Printer Widely used for lightbox posters, custom car stickers, background wall coverings, label printing, and subway/mall ads. Prints feature bright colors and striking visuals. Environmentally friendly solvent ink Using environmentally friendly solvent ink, it is both environmentally friendly and has excellent outdoor weather resistance. It has good environmental friendliness and improves color fastness and saturation outdoors. Excellent printing performance Printing with a width of 1.9 meters, meeting the output requirements of large-sized images, with adjustable accuracy and speed as needed, improving quality and efficiency. Device Upgrade The aluminum profile main beam is sturdy and stable, with fresh air to reduce dust and fog; Waste ink alarm, X/Y axis transmission ensures stable quality, nozzle embedding prevents damage, flash spray improves accuracy, and wide platform stability effect. |
Printer Heads
| Epson Inkjet Head - i3200-E1
The Epson authorized iI3200-E1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-E1 |
| Ink Type | Eco Solvent Ink | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications

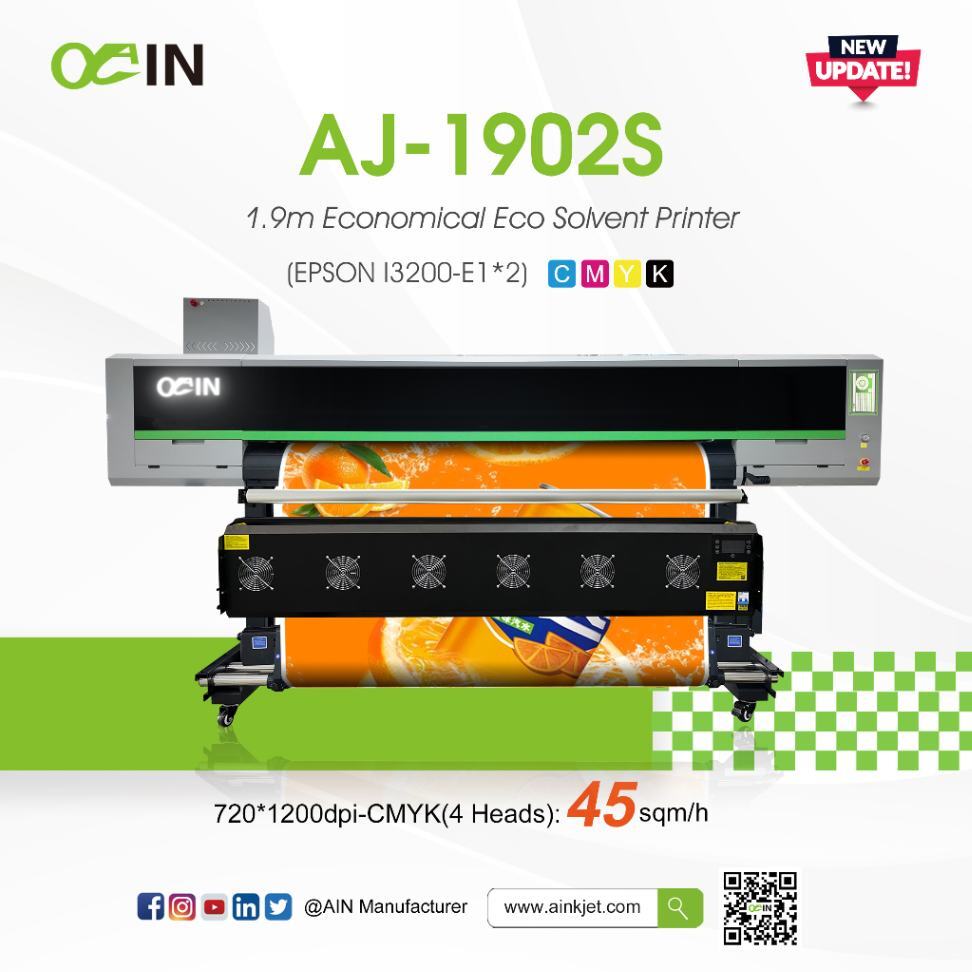

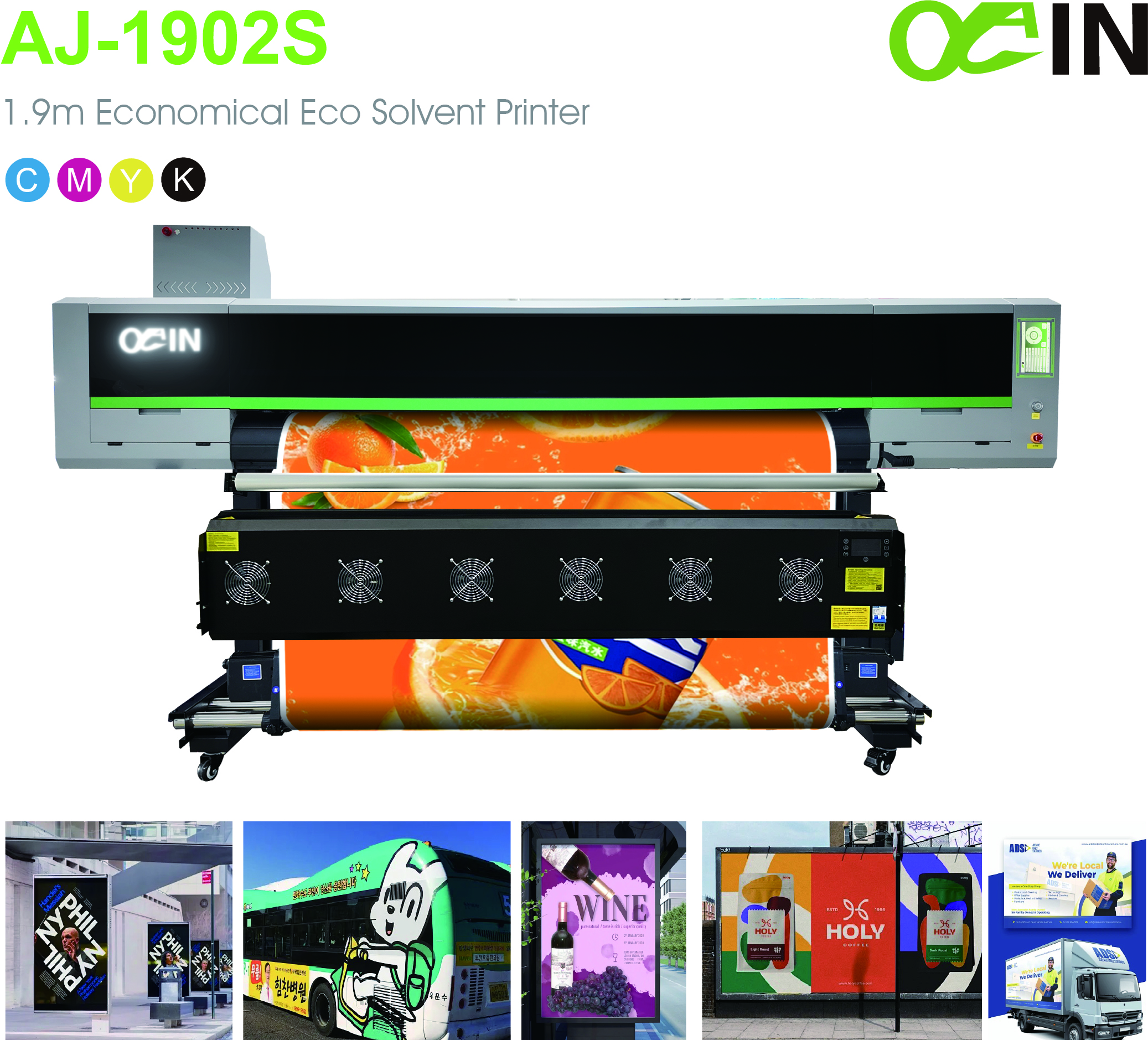

| AJ-1902S 1.9m Economical Eco Solvent Printer | ||
| Model | AJ-1902S | |
| Print Head | Dual I3200-E1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 75.5 in.(1920 mm) |
| Thickness | Maximum 59 mil(1 .5mm) | |
| Weight | 176 Ib. (80 kg) | |
| Printing Width | 74.8 in.(1900 mm) | |
| Ink Cartridges | Type | Eco Solvent Ink |
| Capacity | 4*4 CISS (220ml ink cartridge with 1.5L ink tank) | |
| Color | 4 colors (Cyan, Magenta, Yellow, Black) | |
| Printing Resolution | Maximum 2400 dpi | |
| Printing Speed | 4pass(720x1200dpi):45 sqm/h 6pass(720x1800dpi):27 sqm/h | |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | |
| Interface | Ethernet Interface | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 3130*1680*930(mm) | |
| Weight(with stand) | 750 lb.(340 kg) | |
| Package Dimensions | 3950*850*1100(mm) | |
| Package Weight | 969 lb.(439.5 kg) | |
| Environment | Power on | Temperature:59℉ to 90℉ [15℃ to 32℃]/Humidity:35 to 80%(no condensation) |
| Power off | Temperature:41℉ to 104℉ [5℃ to 40℃]/Humidity:20 to 80%(no condensation) | |
| Accessories | Print Heads, USB cable, media clamp, manual, drain bottle, ink cartridges, RlP software, etc. | |
Features

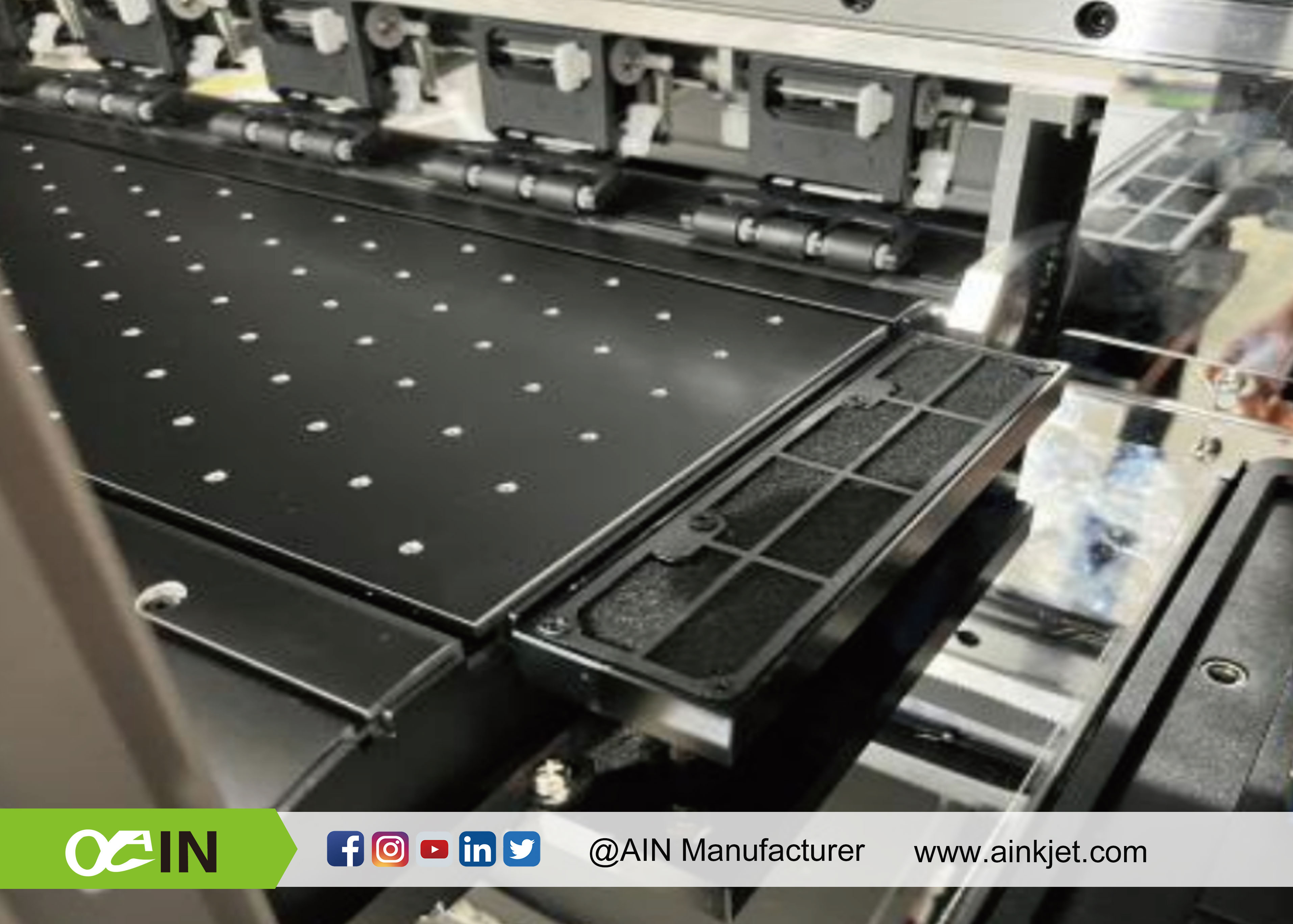

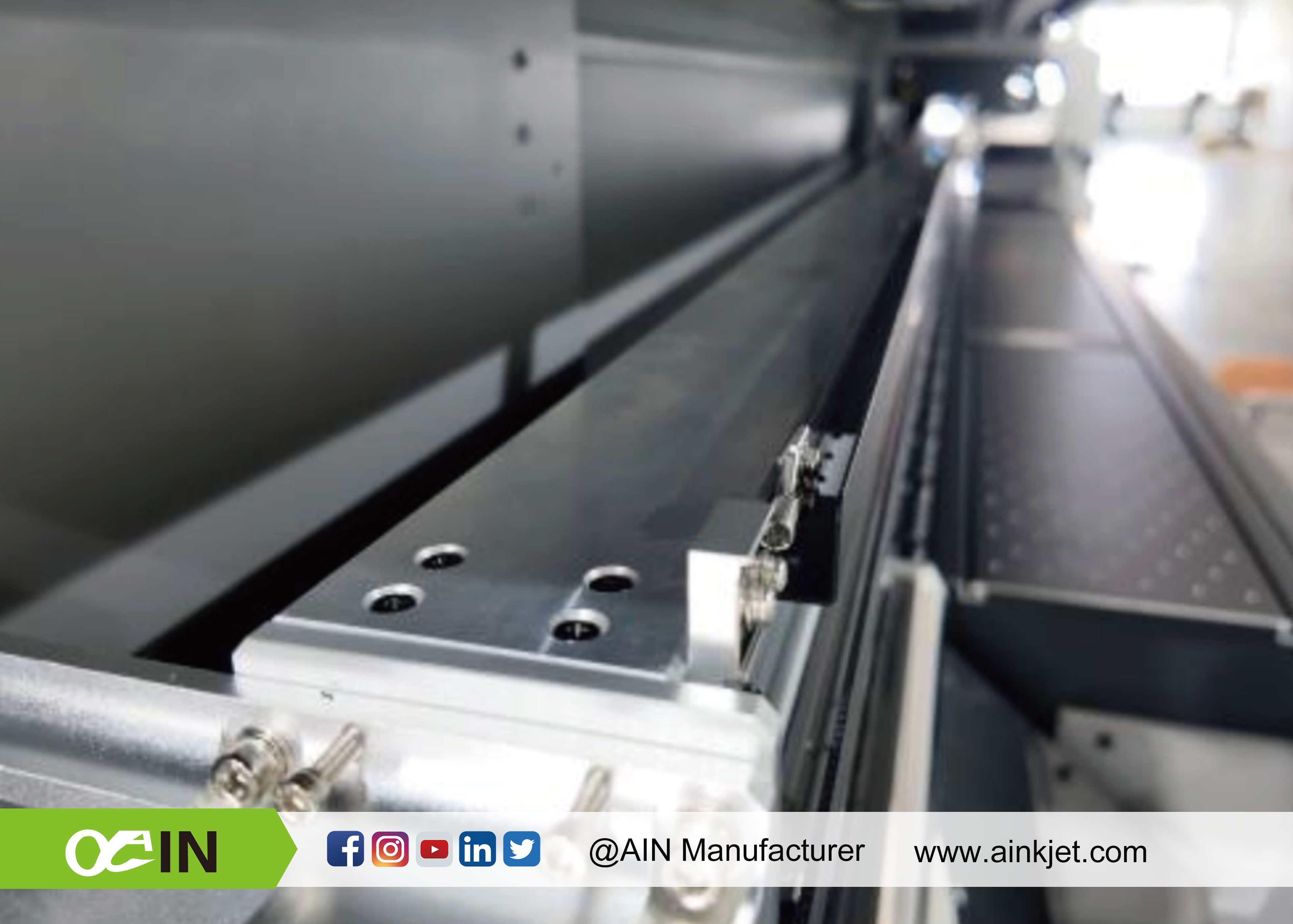

| The aluminum profile main beam is used to replace the original steel structure, providing better mechanical strength and mechanical precision. | | Added flash spray slot structure to better improve printing speed and accuracy. |

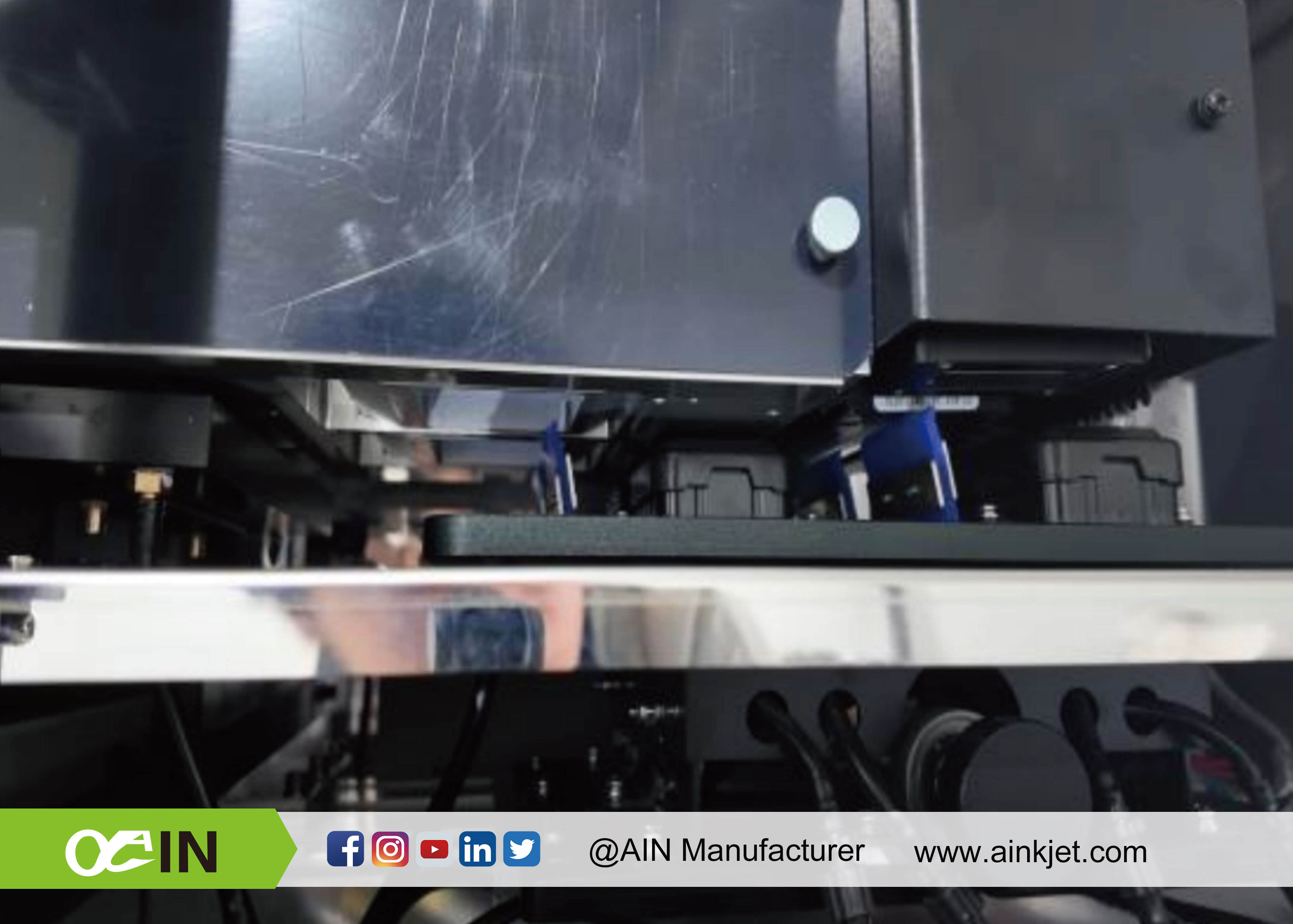

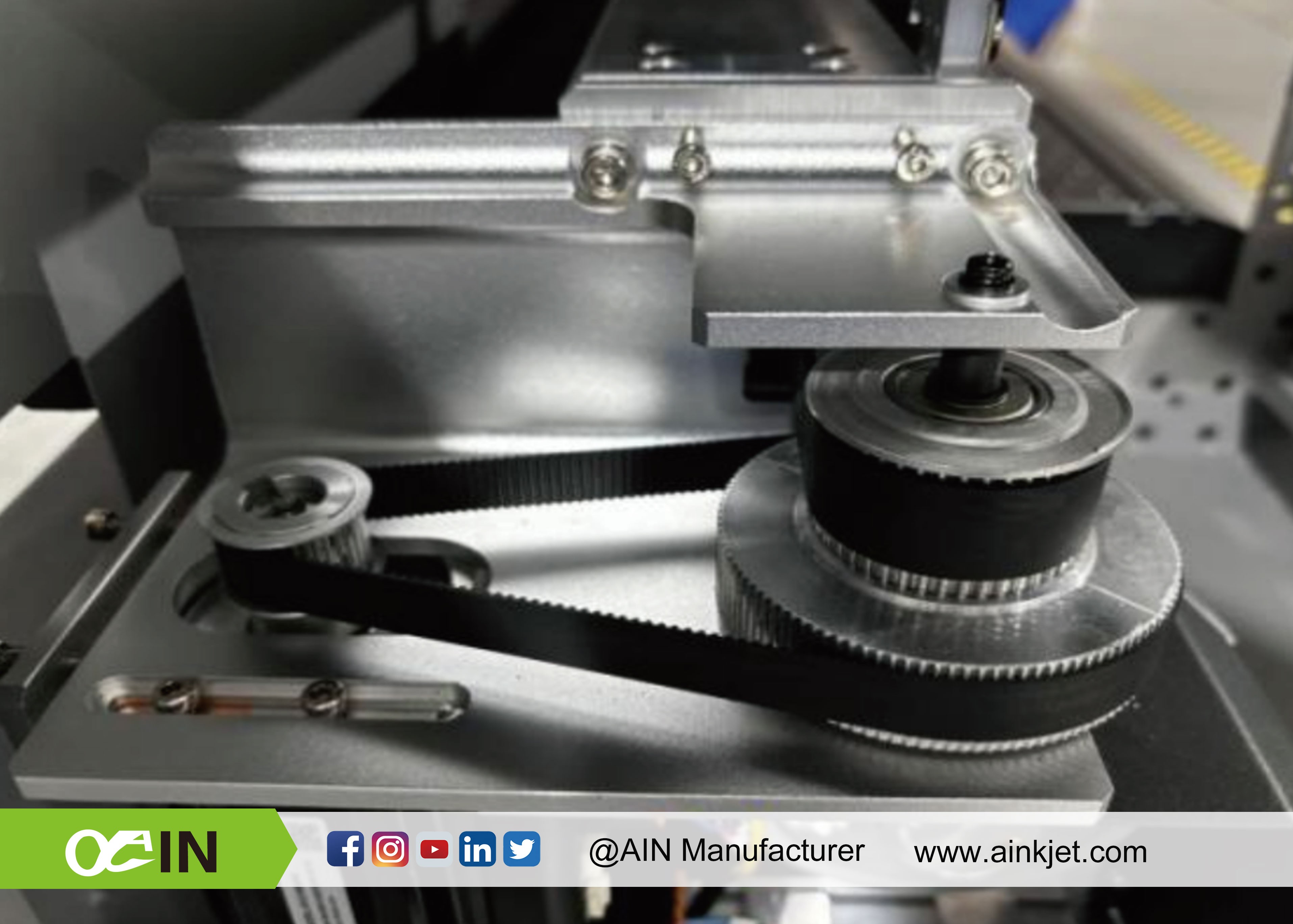

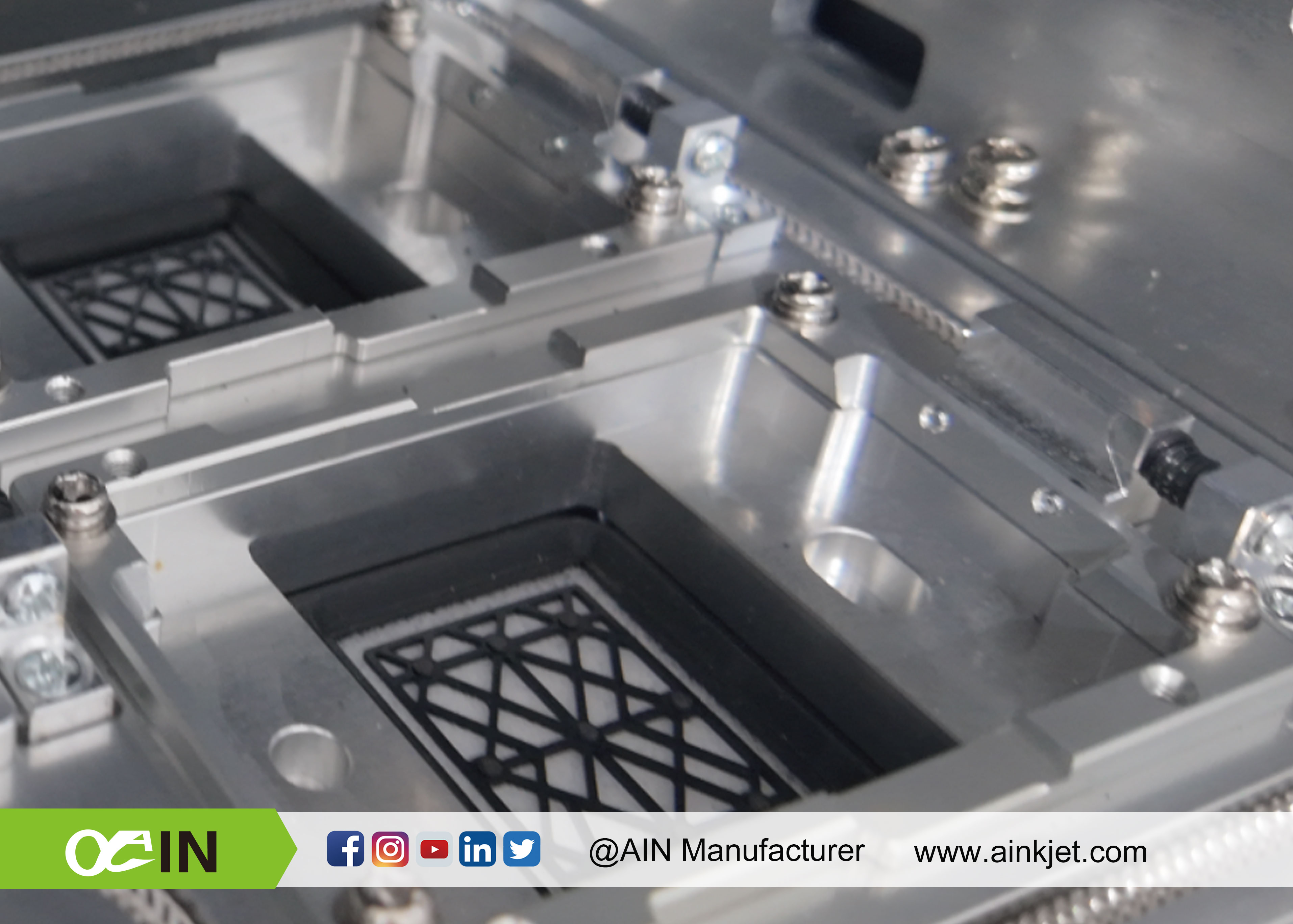

 | X, Y axis motion transmission structure upgraded to provide more stable movement to ensure printing quality. | | The printheads base is embedded in the structure, so the heads does not protrude from the bottom plate of the trolley, which better protects the print heads . |

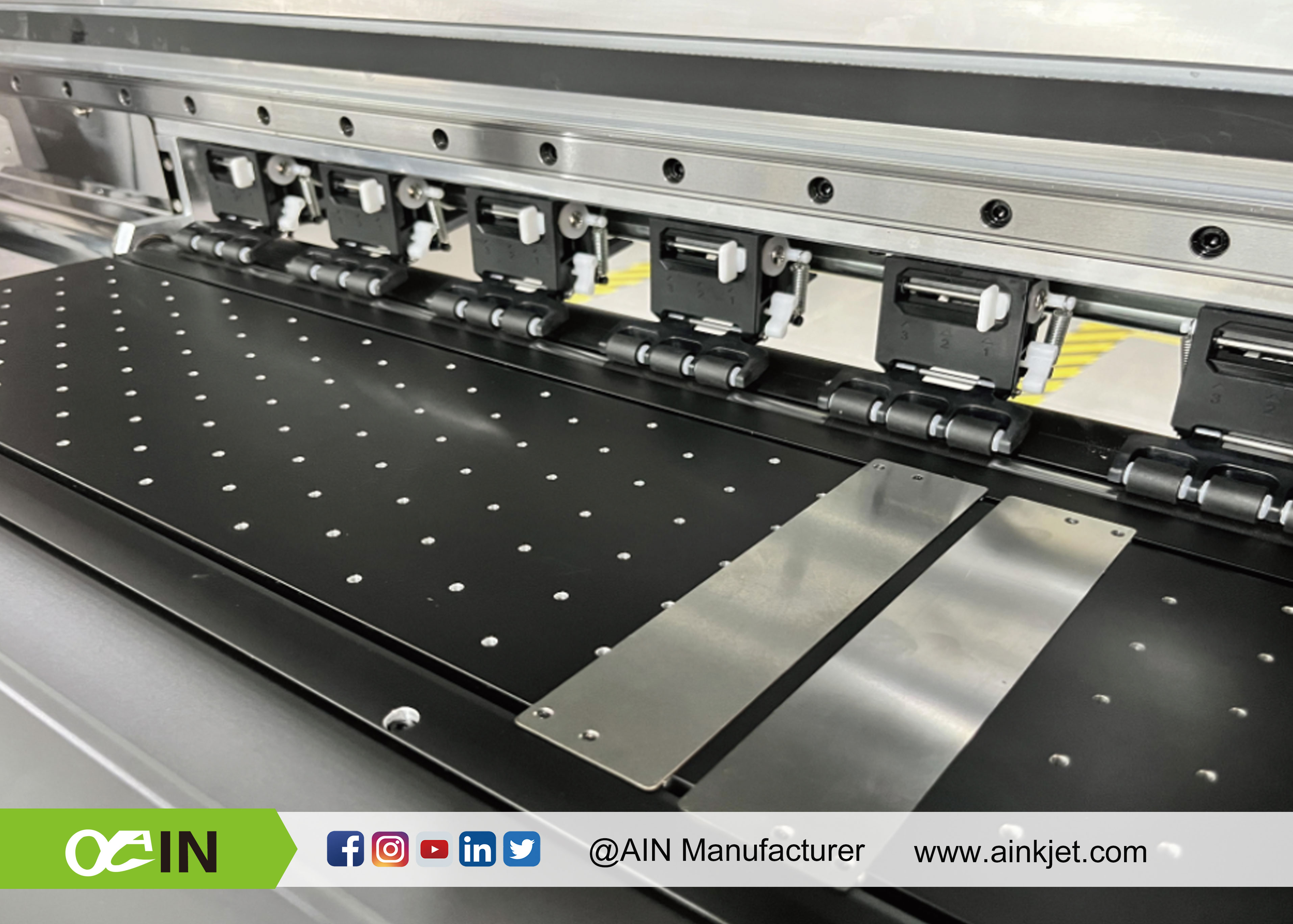

| The printing platform is widened to ensure that the printing area is between the paper pressing slots to provide a stable printing effect. | | Added a waste ink barrel alarm system for a more user-friendly experience. |

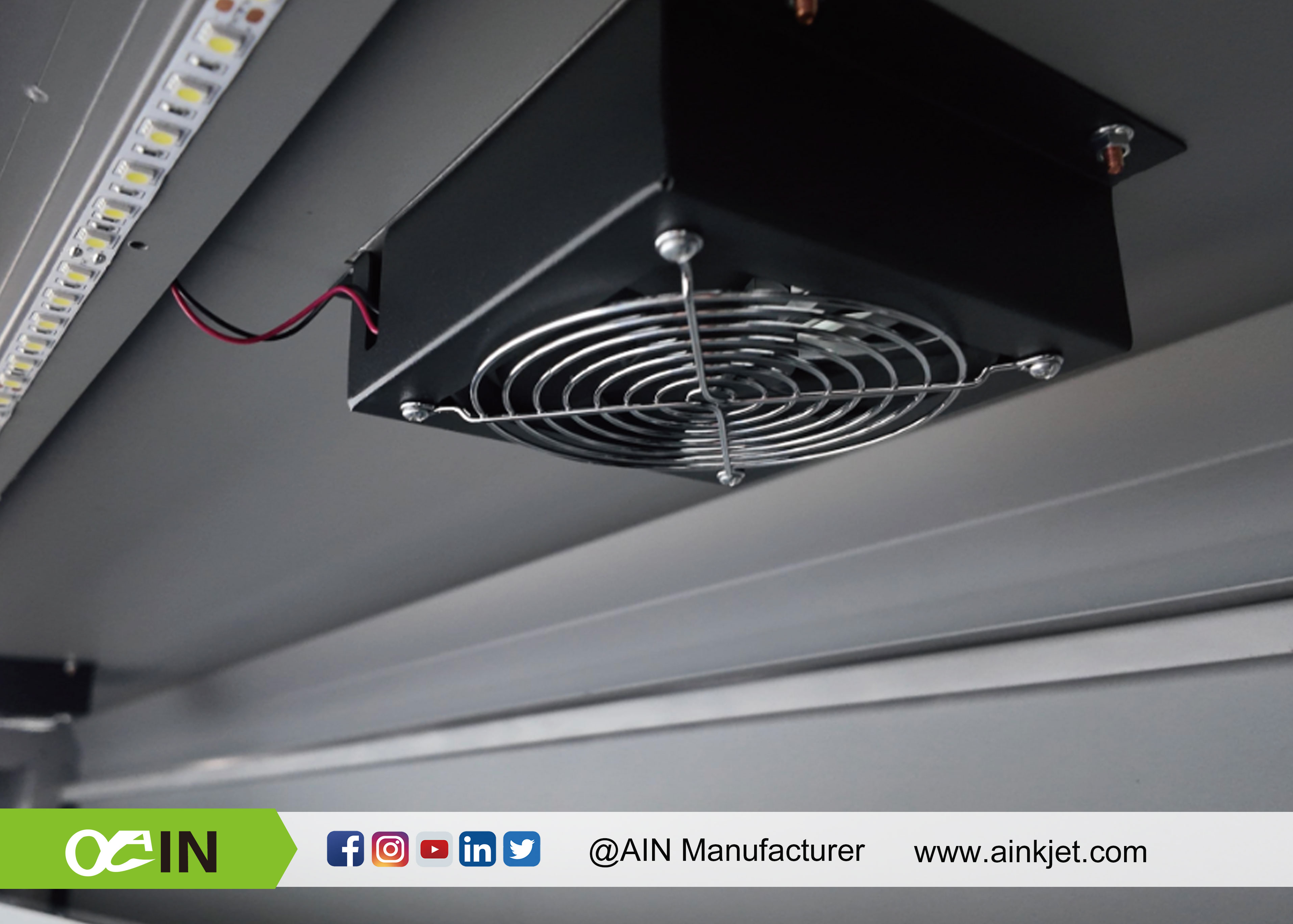

 | Standard fresh air system to reduce dust in the printing chamber and ink mist caused by inkjet. |  | The trolley lifting structure is upgraded, and the height of the trolley bottom plate does not need to be re-verified to adjust the height consistency of the left and right front and back. |
Application
Applications of Economical Eco Solvent Printer
Our range of wide format inkjet printers matches our knack for engineering and quality with your desire for impeccable performance and careless production. You can produce roll-to-roll indoor prints and long term outdoor signs. Wide applications in light box posters, customized car stickers, background wall cloth, label printing, advertising sign, subway advertising, shopping mall advertising signs etc.
