ECO Solvent Printer offers specialized color conversion technology, quiet operation with DC servo motors, THK rails and mute drag chains, and an automatic print head protection station.
The printhead configuration is flexible, with 2/3/4 I3200-E1 printheads optional. Environmentally friendly solvent ink is used, which is both environmentally friendly and outdoor weather-resistant.
| PDF Export | |
Printer Informations
| ECO Solvent Printer Outdoor Advertising Pri nter AIN ECO Solvent Printer Widely applied in advertising posters, light box films, car body advertisements and other scenes, the printed images are brightly colored and the visual effects are outstanding. Flexible nozzle configuration 2/3/4 I3200 - E1 nozzles can be configured, using environmentally friendly solvent ink, which is both environmentally friendly and has excellent outdoor weather resistance. With variable ink drop technology, the nozzle is compact and compatible with UV ink, which improves color fastness and saturation Excellent printing performance Accuracy and speed are adjusted on demand to balance quality and efficiency, equipped with high-speed and long-life motors, dual heat dissipation adapts to high speed, and the paper pressing wheel ensures paper feeding accuracy Equipment quality Adopting industrial-grade design, solid structure, strong stability, suitable for long-term continuous mass production. Reliable ECO Solvent Printer Solution |
New Feature of ECO Solvent Printer We have an excellent technical team, which can be designed according to customers requirements. |
Printing Technology for Color Conversion -High speed DC servo motor -THK high precision mute rail -Mute drag chain, quite working environment guaranteed -Automatic up-and-down capping station, protects the print head more effectively |
Epson Authorized i3200-E1 Heads - Equipped with single i3200 print head, 3.5pl ultra-small ink droplets -High-precision head bottom plate, craftsmanship of quality -Light weight and compact design, saves workshop space -High-quality UV ink, color fastness and color saturation stronger -Replacing some high-end eco solvent
|
Printer Heads
| Epson Inkjet Head - i3200-E1 The Epson authorized iI3200-E1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-E1 |
| Ink Type | Eco Solvent Ink | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications

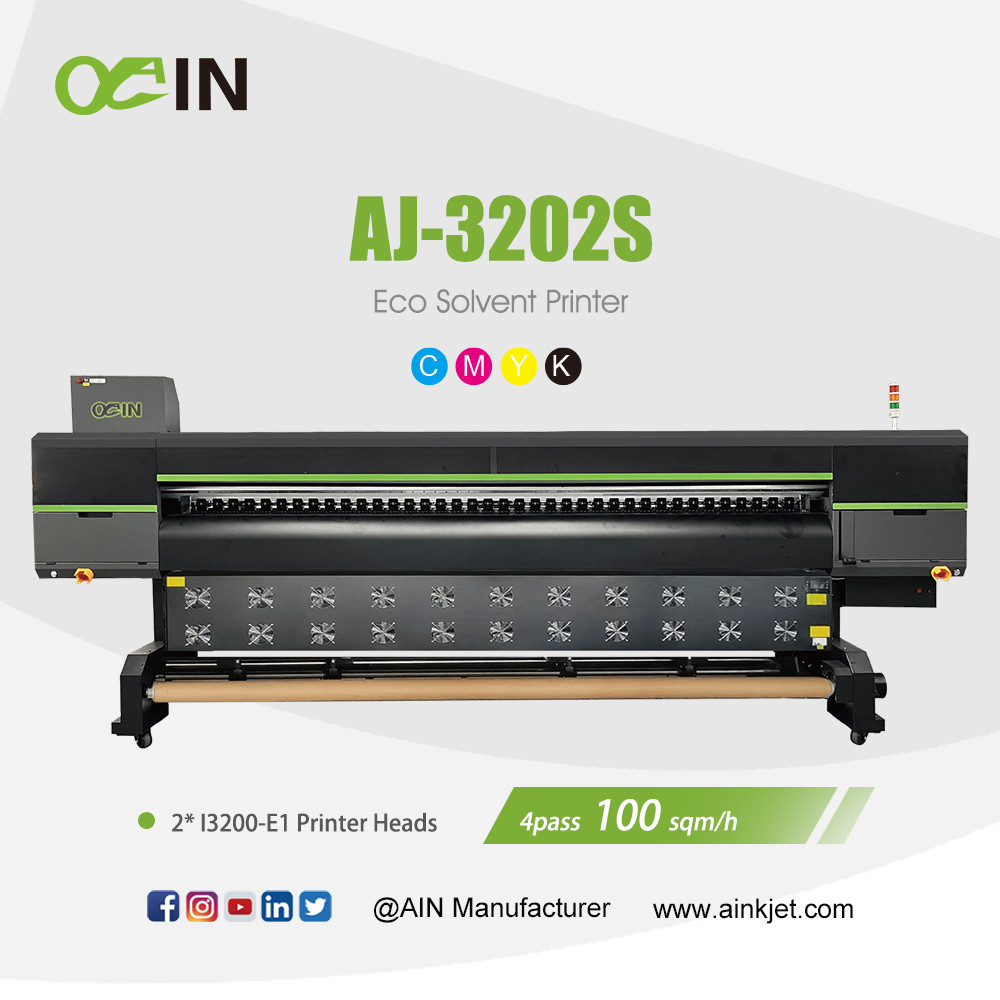

| AJ-3202S ECO Solvent Printer | ||
| Model | AJ-3202S | |
| Print Head | 2*I3200-E1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 128 in. (3250mm) |
| Thickness | Maximum 59 mil(1 .5mm) | |
| Weight | 176 Ib. (80 kg) | |
| Printing Width | 126 in. (3200mm) | |
| Ink Cartridges | Type | Eco Solvent Ink |
| Capacity | 4*4 CISS (220ml ink cartridge with 1.5L ink tank) | |
| Color | CMYK | |
| Printing Resolution | Maximum 2400 dpi | |
| Printing Speed | 4pass(360x2400dpi):100 sqm/h 6pass(720x1800dpi):85 sqm/h 8pass(720x2400dpi):70 sqm/h | |
| Media Heating System | Intergrated post heater &Infrared Dryer &Fan system | |
| Interface | USB 3.0 / LAN | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 180(W)x38(D)x62(H) in. | |
| ( 4580(W)x970(D)x1580(H) mm ) | ||
| Weight(with stand) | 2204 lb. (1000 kg) | |
| Package Dimensions | 194(W)x44(D)x71(H) in. | |
| ( 4940(W)x1130(D)x1810(H) mm ) | ||
| Package Weight | 2535 lb. (1150 kg) | |
| Environment | Power on | Temperature:59℉ to 90℉ [15℃ to 32℃]/Humidity:35 to 80%(no condensation) |
| Power off | Temperature:41℉ to 104℉ [5℃ to 40℃]/Humidity:20 to 80%(no condensation) | |
Features
 | THK high-precision mute rail. |  | New high quality DC servo motor with good stability and long life. |
 | High-precision and high-stability tensioning pulley system. |  | Dual integrated IR & cooling fan system,meet the drying needs of high-speed printing. |
 | Increase the bottom heating of the carriage which can improve printing stability. |  | New independently adjustable three-stage pinch roller brings more stable feeding precision. |

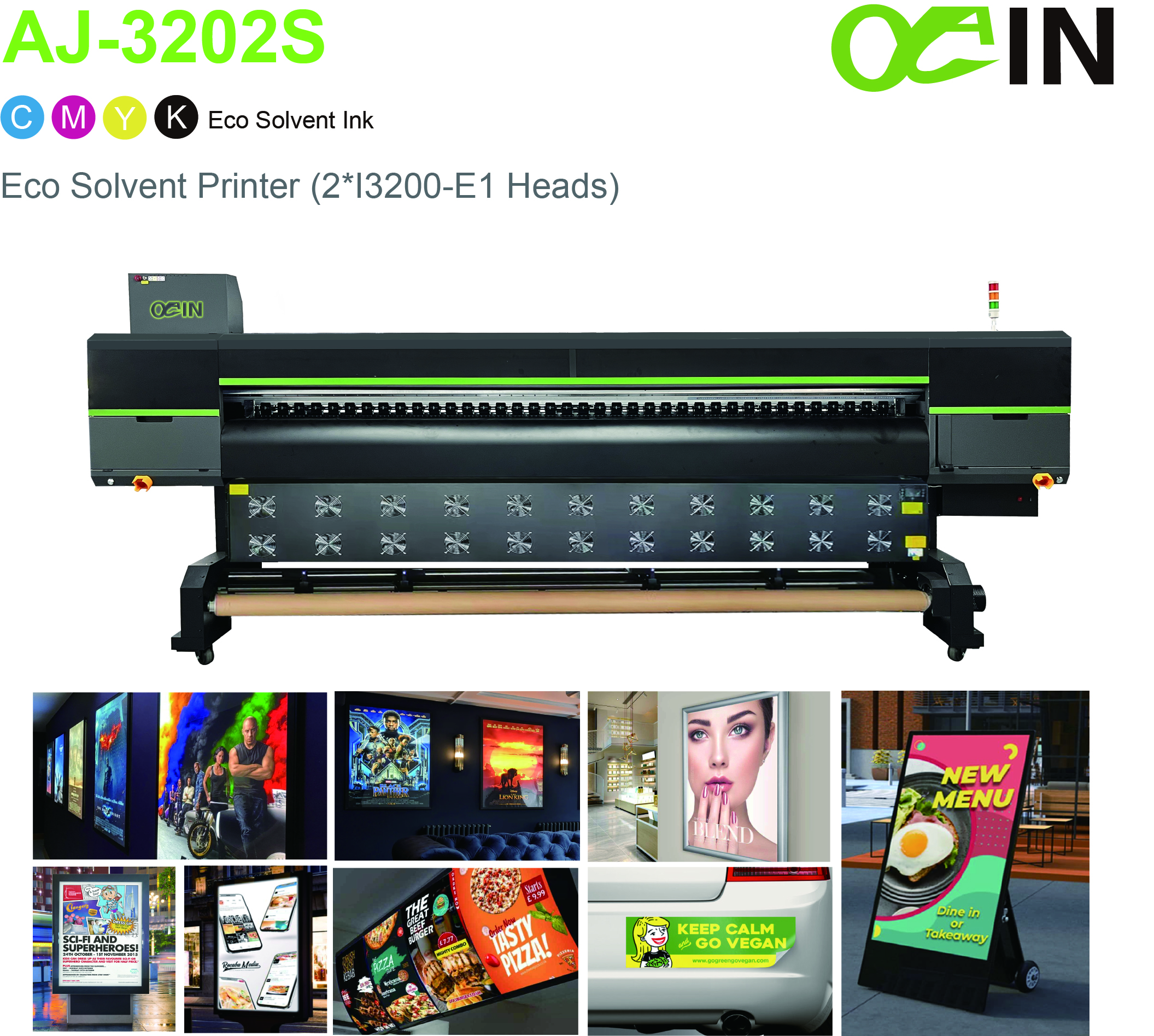

Application
Applications of ECO Solvent Printer
Wide applications in light box posters, customized car stickers, background wall cloth, label printing, advertising sign, subway advertising, shopping mall advertising signs etc,
can replace high-end eco solvent application market.
