AINKJET AJ-1904TX Pro 1.9m Industrial Dye Sublimation Printer with Wall Panel Structure

A sampling request can quickly expand into ten colorways, several sizes and the same tight deadline. Screen preparation, repeated setup and outsourced short runs can consume the margin before production begins. On longer digital jobs, paper wrinkles, roll changes and unplanned stops also turn sellable production hours into waste.

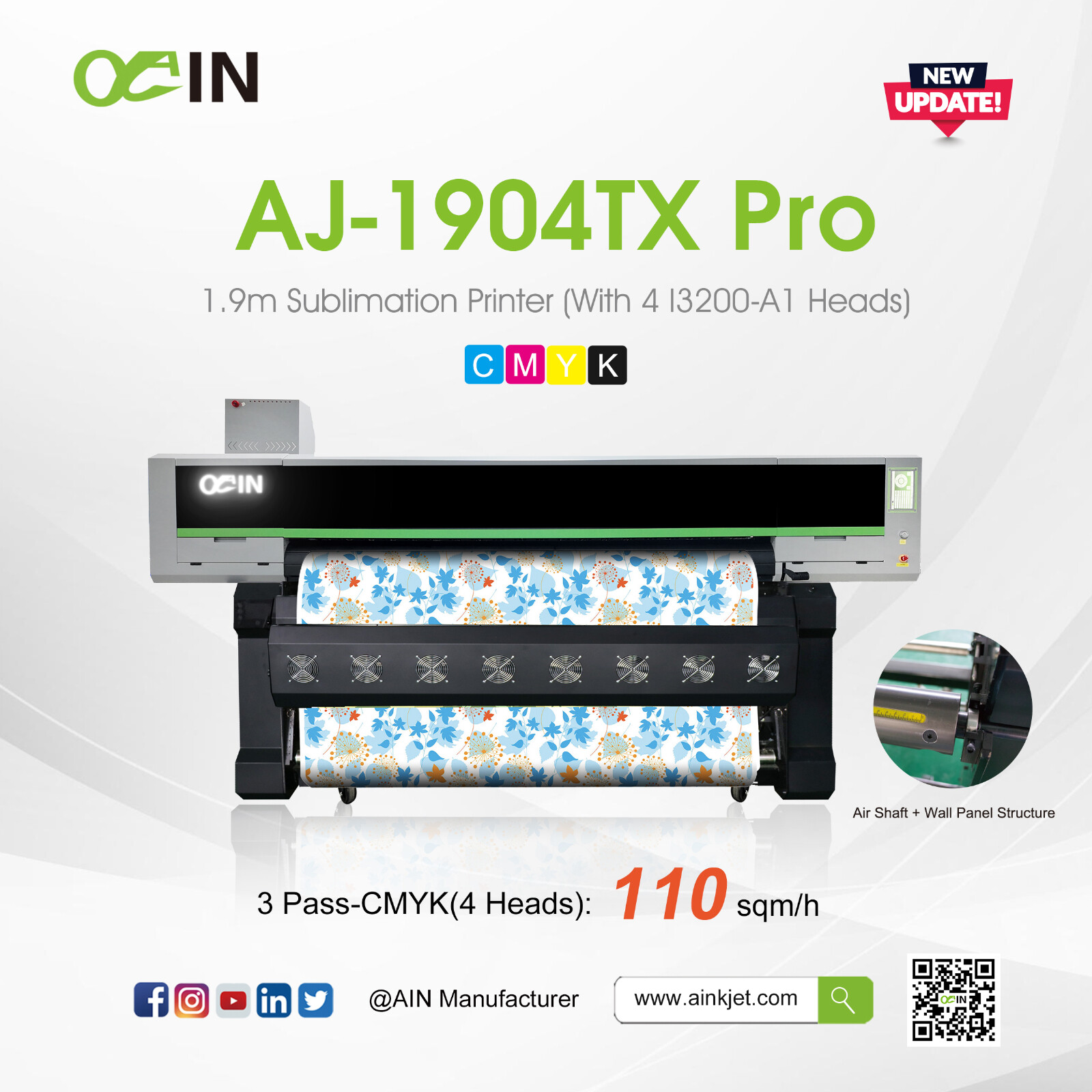

The AINKJET AJ-1904TX Pro is a 1.9m industrial dye sublimation printer for flexible orders and continuous production. Its reinforced wall-panel frame supports stable roll handling, while four i3200-A1 printheads deliver the output and detail needed for samples, customized batches and repeat orders.

Why Flexible Textile Orders Lose Margin

Screen and rotary printing still make sense for stable, high-volume designs. The economics change when buyers request a small trial, revise a pattern or split one order into several versions. Screen, separation and setup costs are then spread across fewer units, forcing the factory to raise the price, outsource the job or accept a thinner margin.

Digital printing removes screen making, but purchase price and headline speed do not guarantee profit. Frame vibration may affect registration; weak roll control can wrinkle thin paper; and frequent ink or media changes turn rated speed into downtime. What matters is how consistently the machine converts working hours into usable printed rolls.

Two Hardware Upgrades Behind Stable Output

1. Reinforced Wall-Panel Structure

Here, wall panel structure describes the reinforced printer frame, not a printable material. The integrated frame, aluminum main beam and upgraded motion system limit vibration as the carriage travels, helping protect registration and image consistency during long runs.

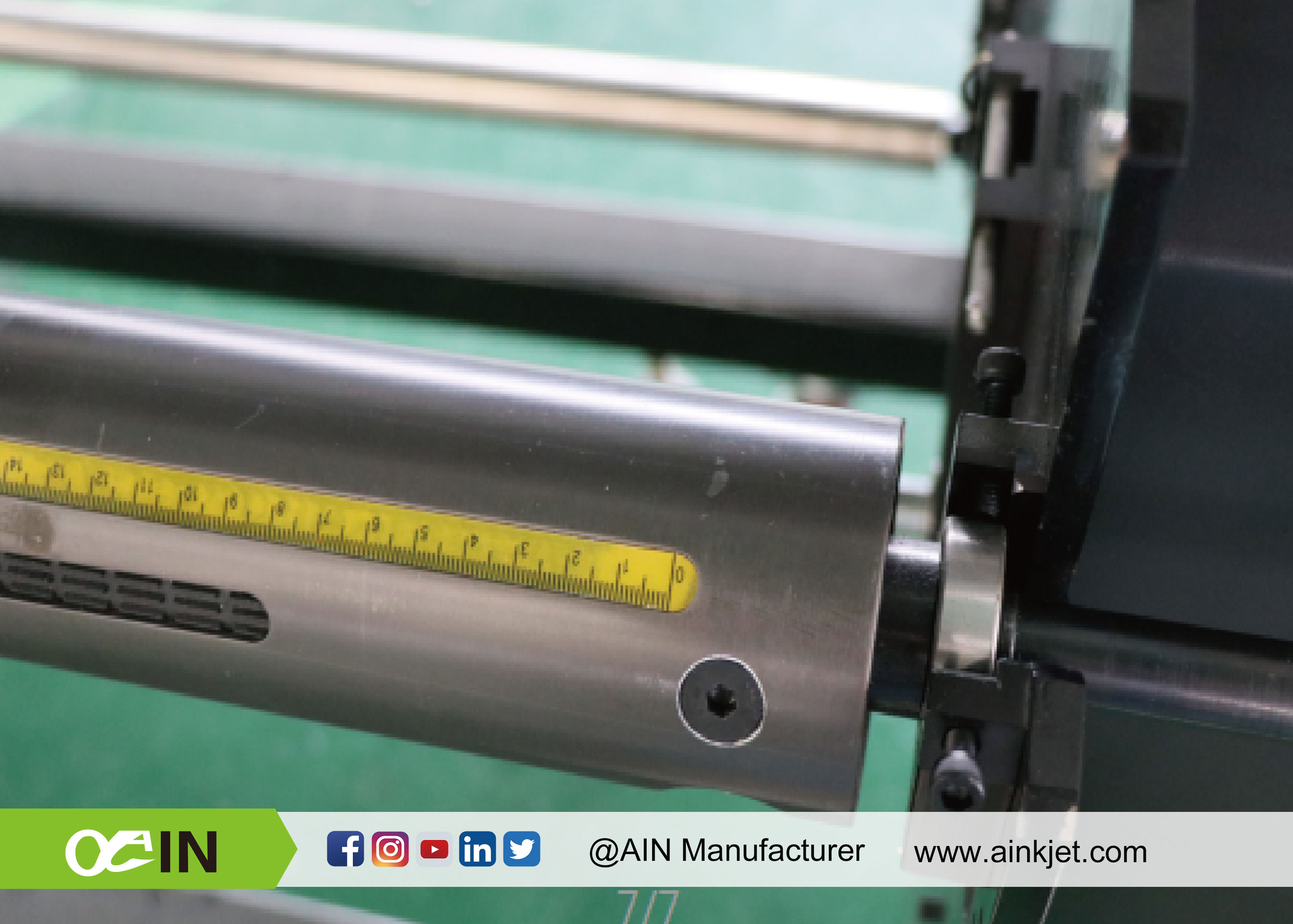

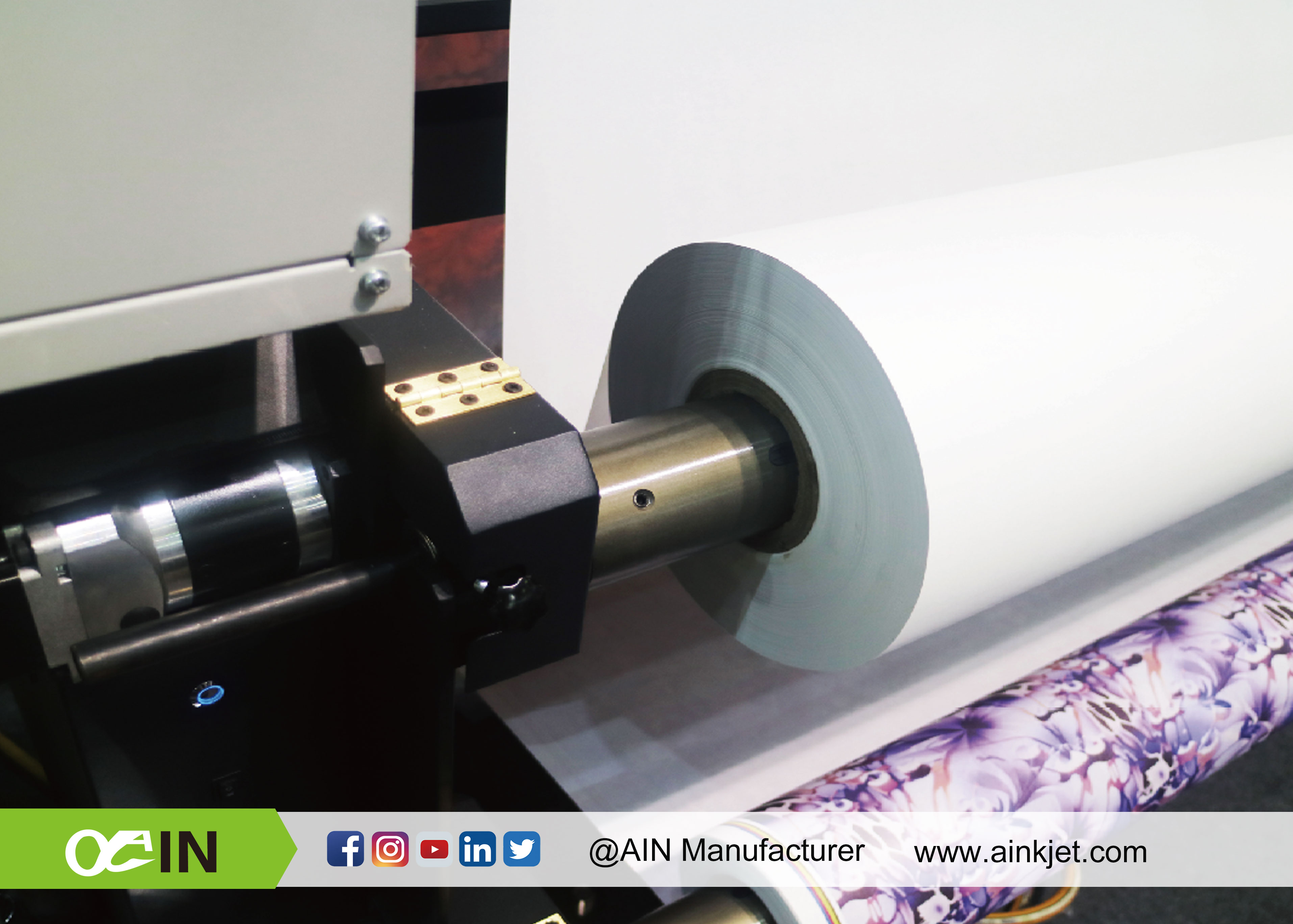

Front and rear air shafts, a media balance bar and tension components control transfer paper through feeding and take-up. Support for rolls up to 80 kg and 1,000 meters means fewer changes, less paper lost to wrinkles or tracking errors and more uninterrupted production time.

2. Four i3200-A1 Printheads

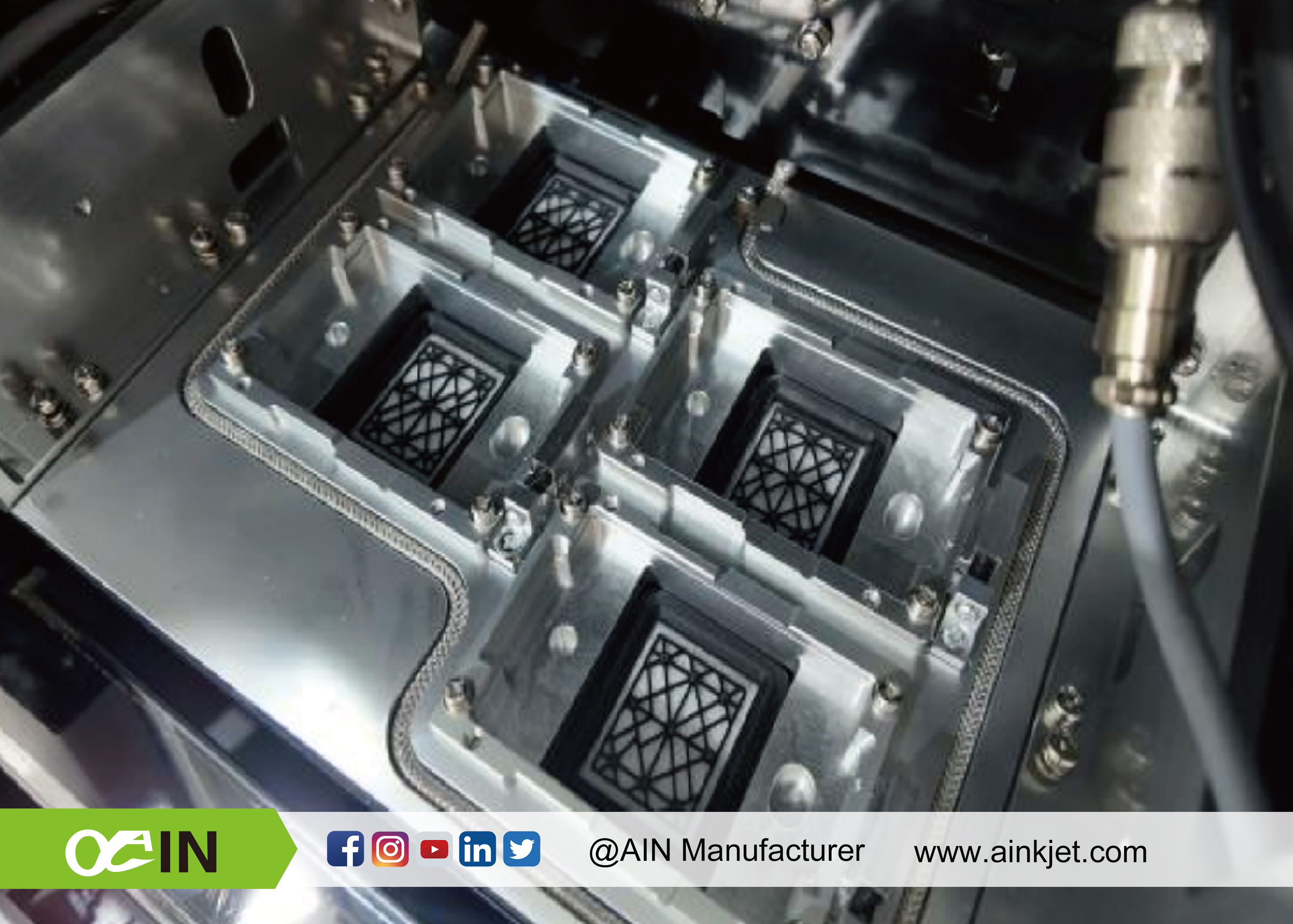

Four i3200-A1 piezoelectric printheads give this wide format sublimation printer a 1,900 mm effective width. MEMS manufacturing and variable-size droplet control support smooth gradients, fine detail and solid color areas.

Production output reaches up to 110 sqm/h, while the 720 x 1800 dpi, 6-pass mode runs up to 60 sqm/h for samples and detail-sensitive work. An embedded printhead base also helps shield the heads from accidental contact in a busy production environment.

How the Hardware Improves Daily Production

· Switch designs without new screens. Prepared files are printed onto sublimation transfer paper, so teams can move from a sample to several versions and then a repeat run in one digital workflow. This helps keep short-run work in-house and protects its margin.

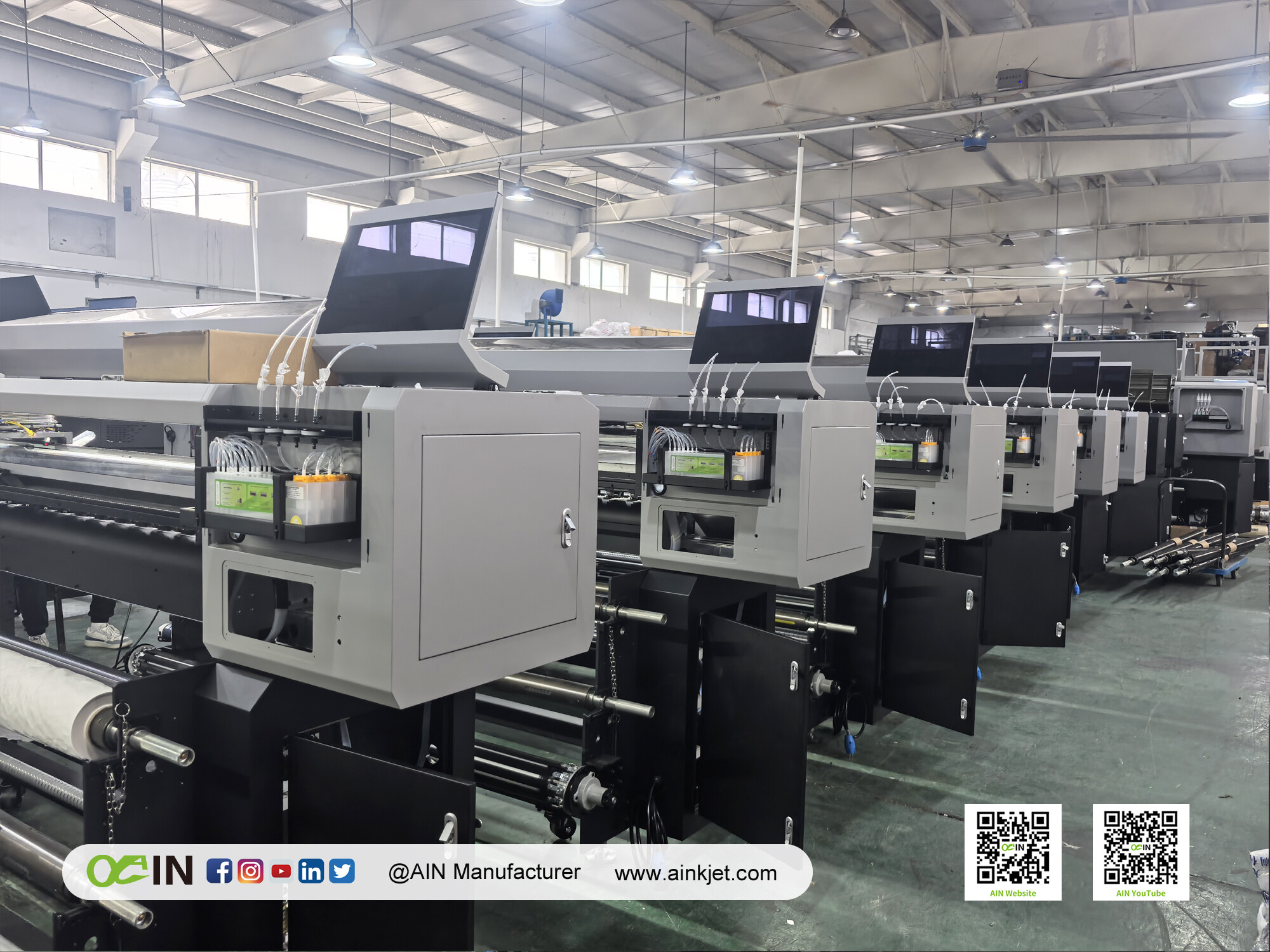

· Reduce avoidable stops. The 3L CISS bulk ink system reduces frequent refilling. A fresh-air system helps limit dust and ink mist around the print area, while the front expander supports smoother paper take-up.

· Rewind drier, cleaner rolls. Integrated infrared drying and fans dry the printed transfer paper before take-up, helping reduce smudging and keeping the next production step moving.

· Use capacity more profitably. Sampling, customized batches and long-roll jobs can share the same digital sublimation printer, making scheduling easier and reducing dependence on outside suppliers.

Where the AJ-1904TX Pro Fits

The machine is a transfer printer: it prints onto sublimation paper, and the image is then heat-transferred to a compatible polyester textile. Typical applications include:

· Apparel and sportswear: samples, team names, numbers, seasonal graphics and multi-size orders.

· Fashion and home textiles: detailed patterns for garments, cushions, curtains and decorative polyester fabrics.

· Soft signage: flags, banners, exhibition graphics and other polyester display fabrics.

· Customized textile products: bags, accessories, limited editions and versioned promotional items.

Results depend on the transfer paper, ink coverage, heat-transfer settings and fabric. Production testing is recommended, especially for blended materials.

Which Textile Businesses Should Consider It?

This digital textile printer is a strong fit for businesses that:

· Handle mixed order sizes: regularly receive samples, short customized runs and repeat production.

· Need both speed and detail: serve volume work as well as fashion or presentation-sensitive jobs.

· Run long transfer-paper rolls: want to reduce wrinkling, tracking errors and changeover downtime.

· Plan to expand digital capacity: need a fabric sublimation printer that complements an existing screen or rotary line.

A More Practical Way to Expand Order Capacity

The AJ-1904TX Pro complements traditional printing by filling the gap between one-off sampling, changing designs and stable long-roll polyester production. It gives textile businesses more jobs they can accept, more work they can keep in-house and fewer hours lost to preventable stops.

Before selecting a 1.9m dye sublimation printer, test your own artwork, transfer paper, fabric and target mode. Contact AINKJET to evaluate the required output, paper handling and configuration for your production mix.
