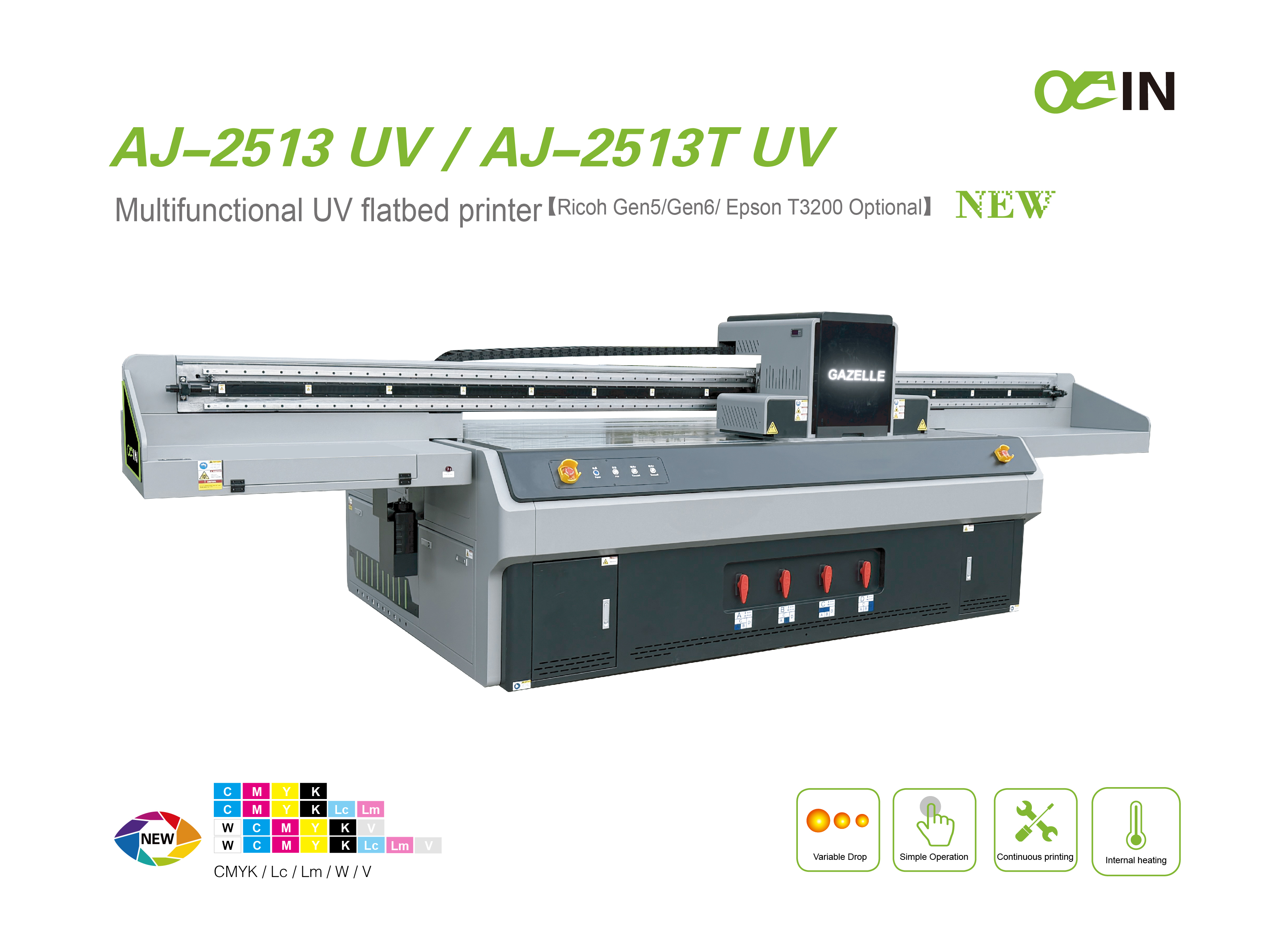

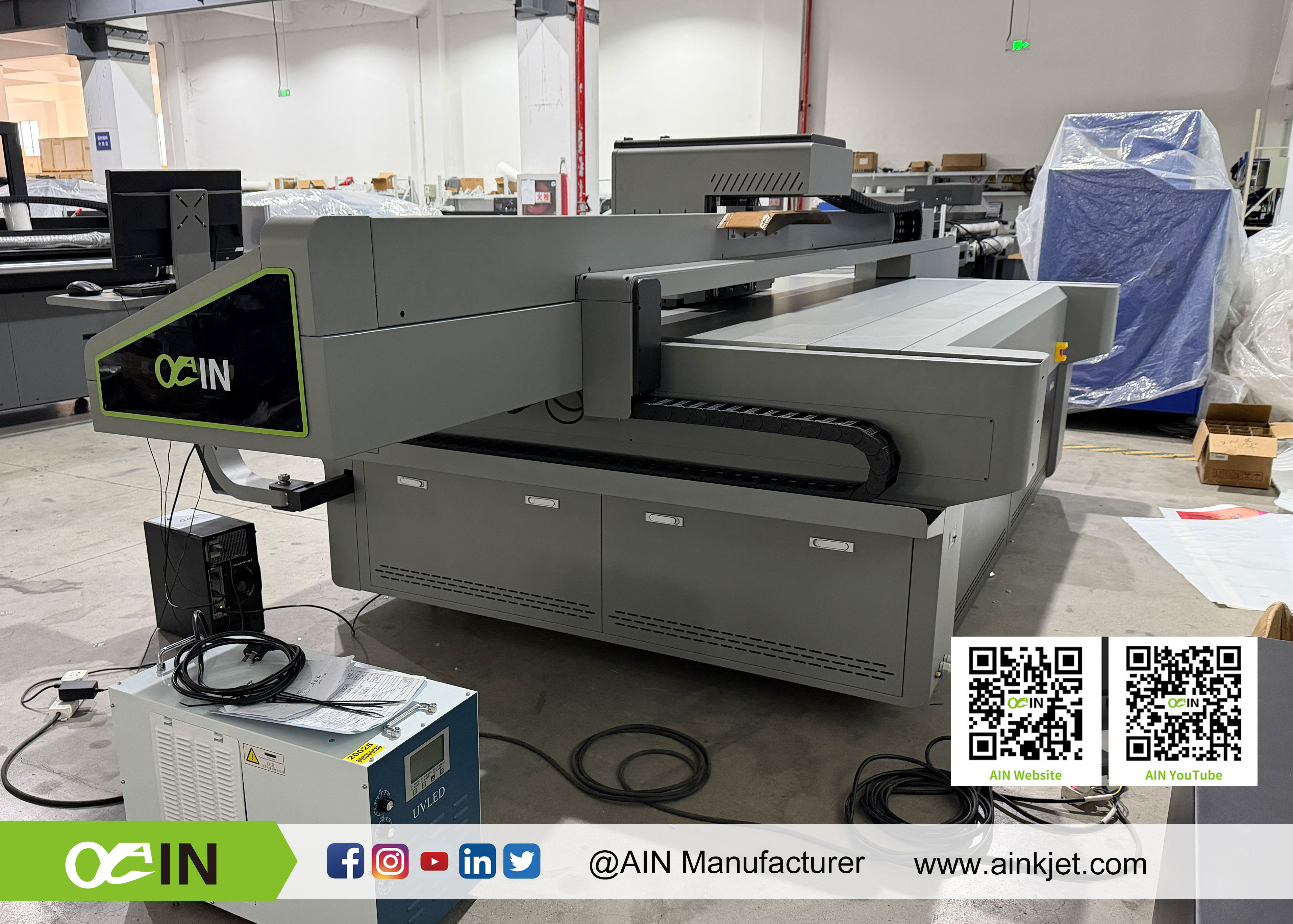

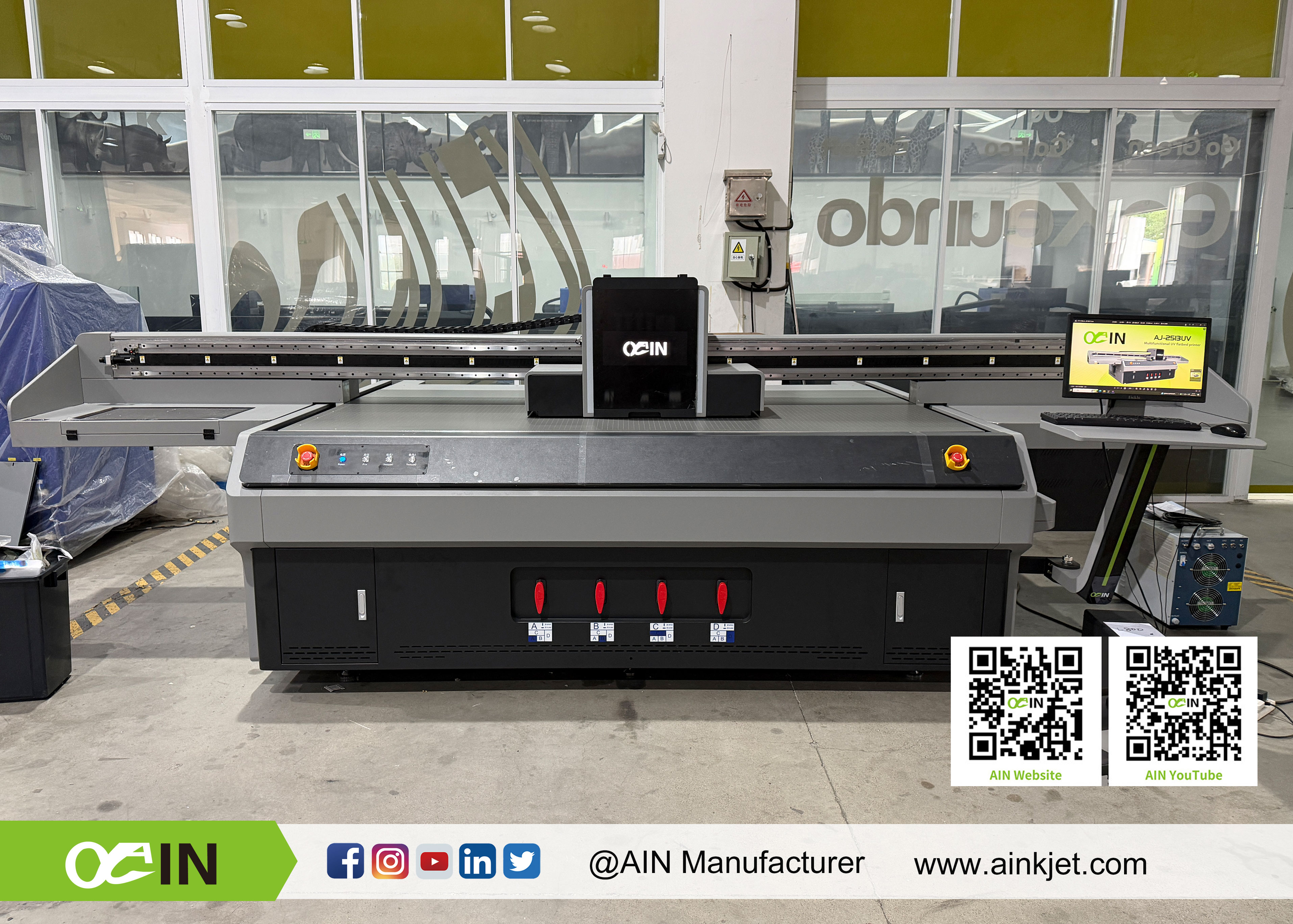

AJ‑2513 UV Multifunctional UV Flatbed Printer （Ricoh Gen5/Gen6/ Epson T3200 Optional） Industrial‑Grade Mechanical Structure Built with heavy‑duty U‑type frame and reinforced worktable supports minimize deformation and secure flatness. Dual‑Y linear motor with Panasonic servo drive enables high‑precision, high‑speed carriage motion for stable processing of 1‑100 mm substrates. Up to 720×1800 dpi resolution balances speed and print quality for long‑term non‑stop industrial production. Dual Printhead Configurations Two printhead options for one machine platform: *AJ‑2513 UV (Ricoh Gen5/Gen6): 3‑16 expandable industrial printheads, for high‑volume continuous factory production. *AJ‑2513T UV (Epson T3200): Optional 2/4 printheads. Variable‑droplet tech ensures smooth color transition; built‑in printhead heater boosts UV‑ink compatibility. Cost‑effective for small‑to‑medium‑batch jobs on diverse materials. One‑Stop Composite Color Process Adopting the CMYK + Lc (Light Cyan) + Lm (Light Magenta) + W (White) + V (Varnish) configuration and equipped with LED‑UV ink, it enables simultaneous printing of color, light‑color, white‑ink and varnish to achieve white‑base, emboss and partial‑varnish effects. All processes can be completed by a single printer with no secondary processing required. Configuration Choices Featuring a professional‑grade RIP processing system for precise, lifelike color output, the machine offers Onyx and Photoprint RIP software as options. The Ricoh‑equipped model is designed for factory high‑speed mass production, whereas the Epson T3200 variant boasts great ink compatibility and high cost‑efficiency, ideal for processing plants and print shops with diversified‑product orders. Standard format: 2500×1300 mm (2513 format). Wide Material & Industry Compatibility Rigid materials: Glass, metal sheet, tile, acrylic, plexiglass, solid wood, aluminum sheet, cardboard, foam board, composite panel, plywood, PVC, WPC, ABS, PP board, etc. Applications: Ad signs, decorative paintings, feature walls, cabinet doors, crafts, ID signs. Flexible materials: Fabric, canvas, leather, PVC flex banner, paper, etc. Applications: Leather printing, fabric decoration, posters & art prints. |
 |
|
 |
 |
New Feature of UV Flatbed Printer We have an excellent technical team, which can be designed according to customers requirements. |
| Technical Characteristics -Heavy‑duty UV printer frame, table flatness supporting points are increased easy for engineer to calibrate the table flatness; -Advanced servo motor system adapts Panasonic servo motor, brings high precision and speed. -Top software enables true color in output.
|
New EPSON T3200 has a higher production capacity and faster speed. With new variable ink drop technology, a built‑in heater for greater UV ink compatibility.
|
|
 |
Technical Specifications

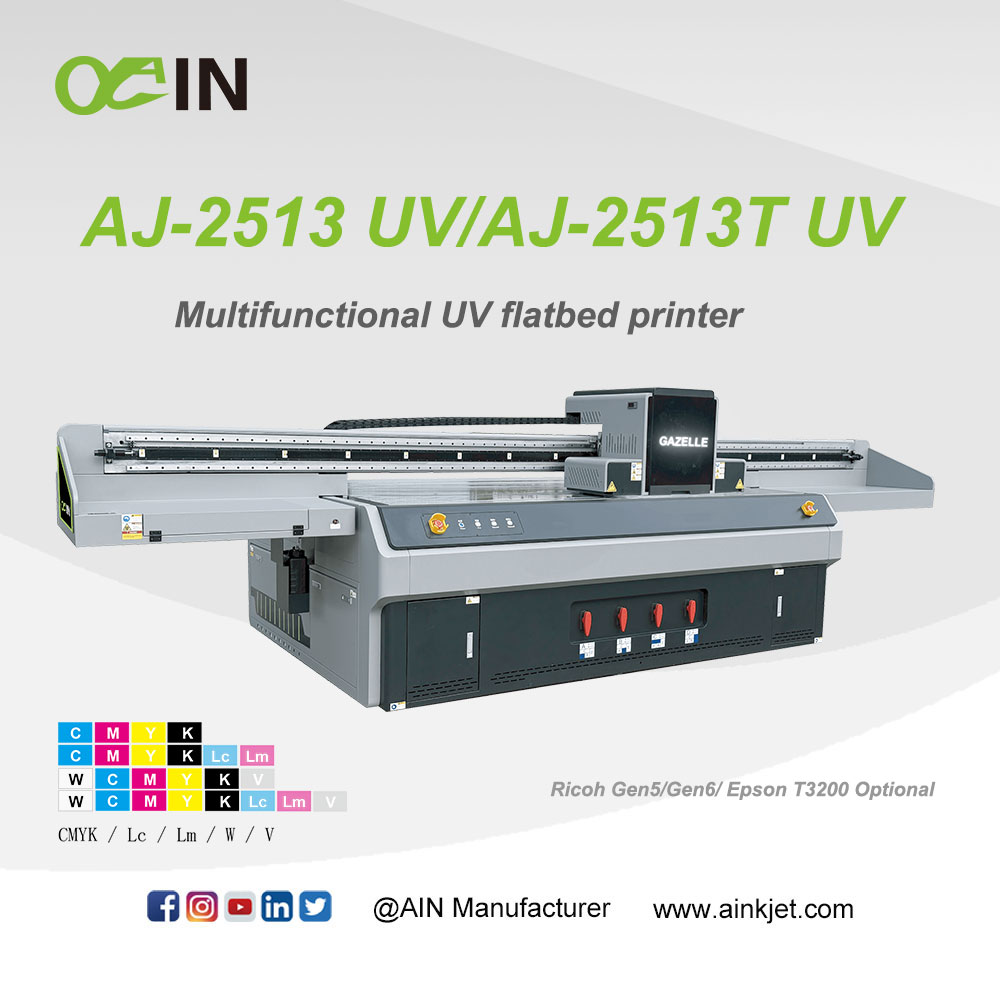

AINKJET AJ‑2513 UV / AJ‑2513T UV Multifunctional Dual‑Y Linear Motor UV Flatbed Printer |
||
|---|---|---|
| MODEL | AJ-2513 UV | AJ-2513T UV |
| PRINTHEAD TYPE | Ricoh Gen5/Gen6 | T3200 |
| HEAD NUMBER | 3-16 pcs optional | 2/4 pcs optional |
| PRINTING SIZE (W*D) | 2500*1300mm |
|
| PRINTING TECHNOLOGY | Gray scale piezoelectric inkjet technology |
|
| PRINTING RESOLUTION | 720x600, 720x900, 720x1200, 720x1800dpi, etc. | 720X900, 720X1200dpi etc. |
| INK TYPE | LED UV INK | |
| INK COLOR | CMYK / Lc / Lm / W / Varnish | |
| MEDIA THICKNESS | 1mm-100mm | |
| COLOR CONTROL | ICC standard, ajudtment of ICC and density | |
| RIP | Onyx / Photoprint | |
| ENVIRONMENT | Temperature: 18℃-26℃, Humidity: 30%-75% (RH) | Temperature: 20℃-35℃, Humidity: 45%-80% (RH) |
| POWER CONSUMPTION | Printing mode: 5000W Sleep mode: 600W | |

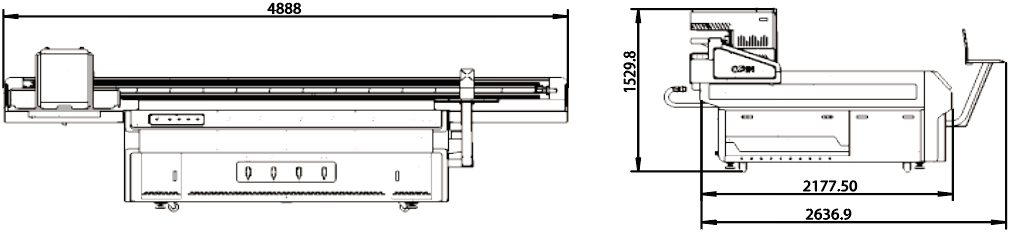

| PRINTER DIMENSION | 4888(L)×2178(W)×1529(H) (Unit: mm) | |
| PACKING DIMENSION | 4,650(L) x 2,240(W) x 1,650(H) (Unit: mm) | |
| PACKING WEIGHT | 2.0T | |
Features
 |
|
 |

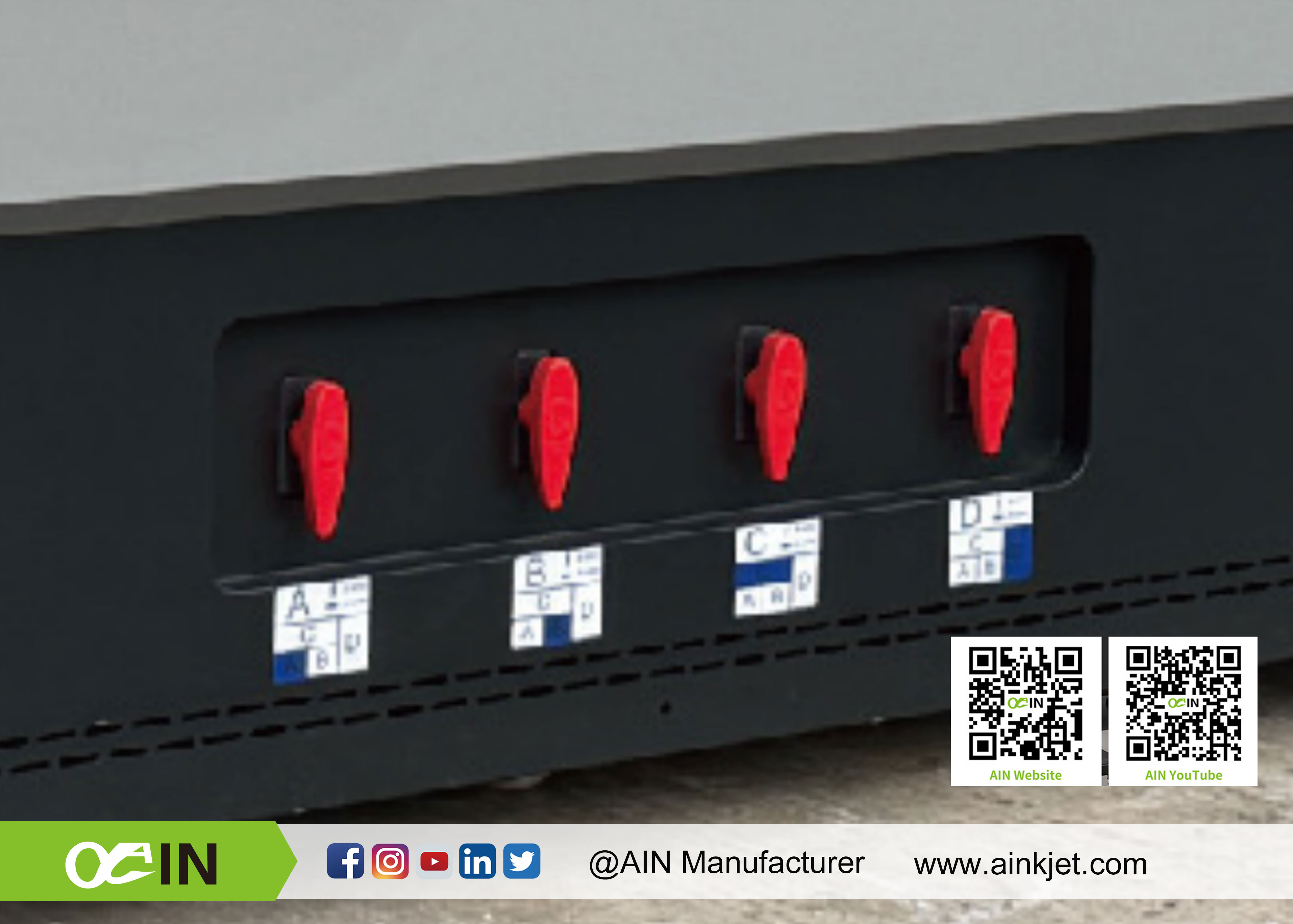

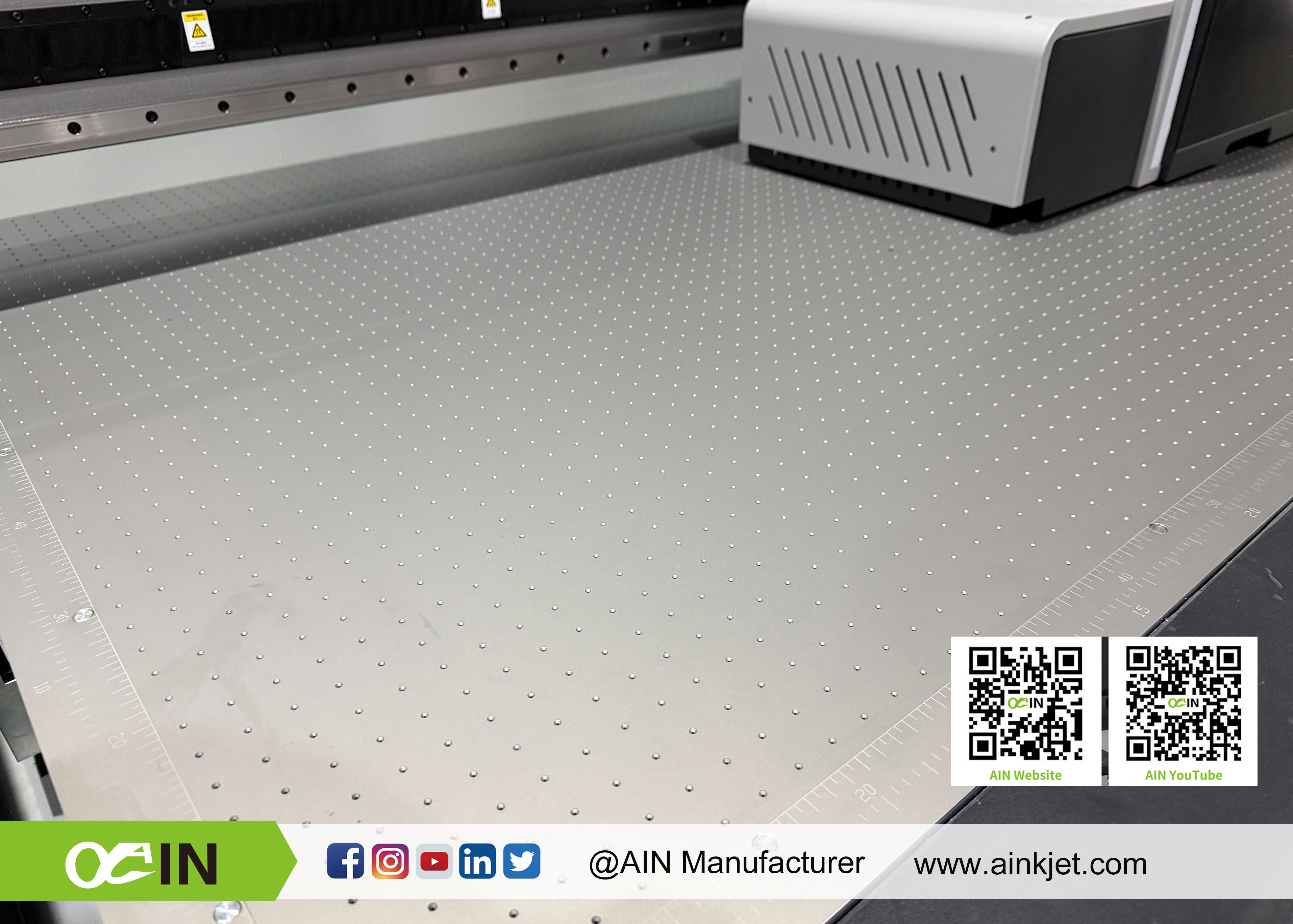

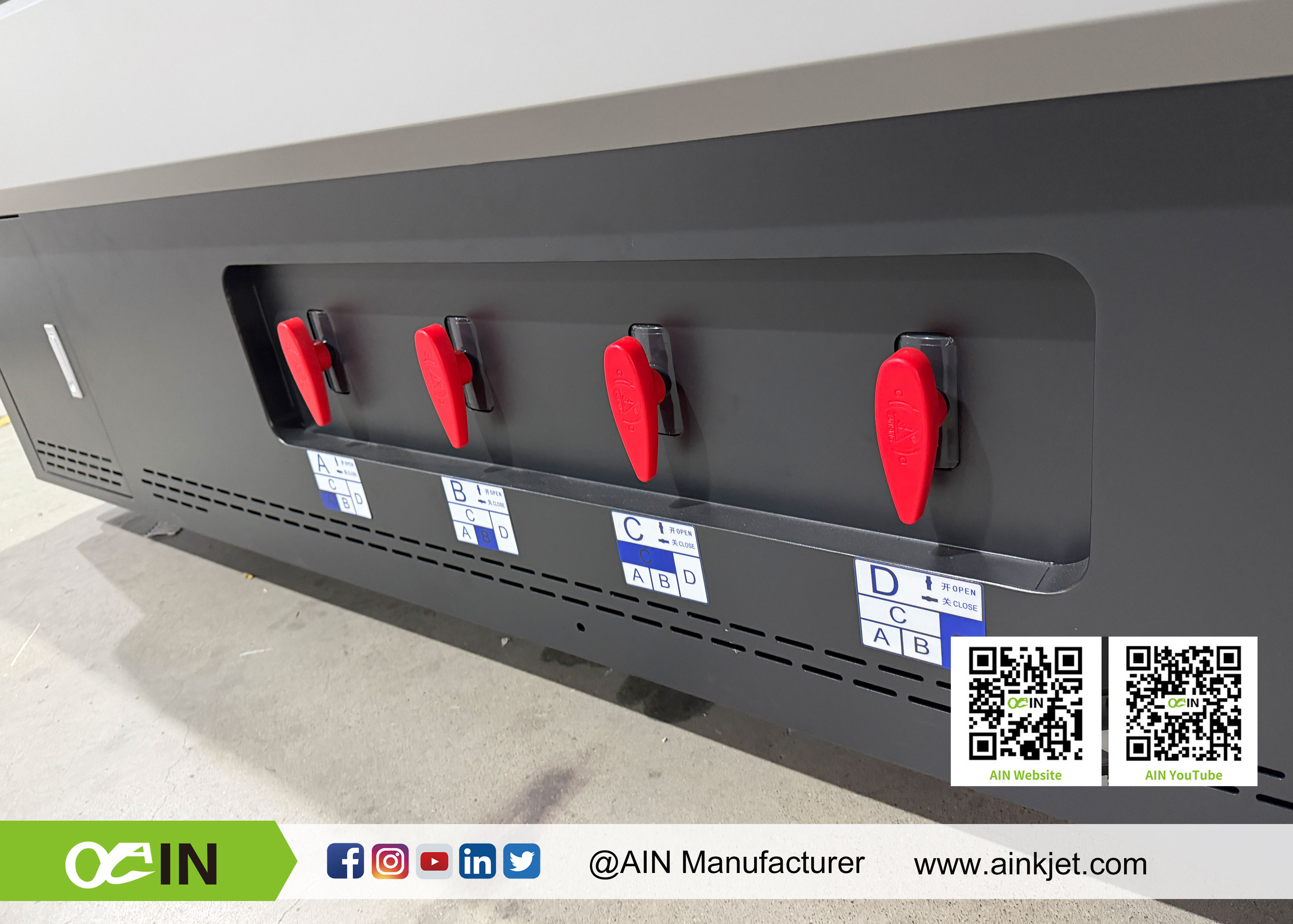

Four suction zones, offering a wider range of material options. |

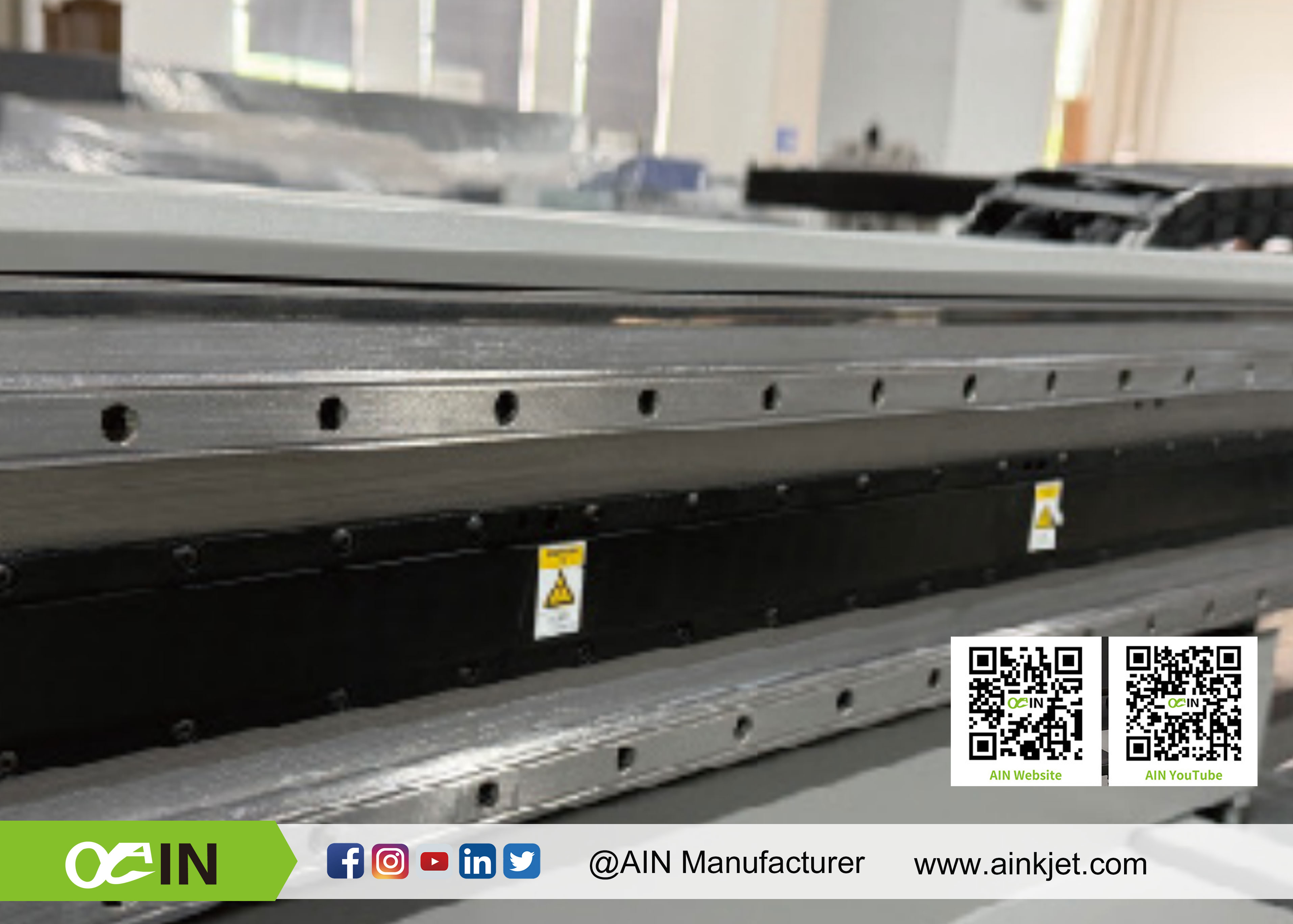

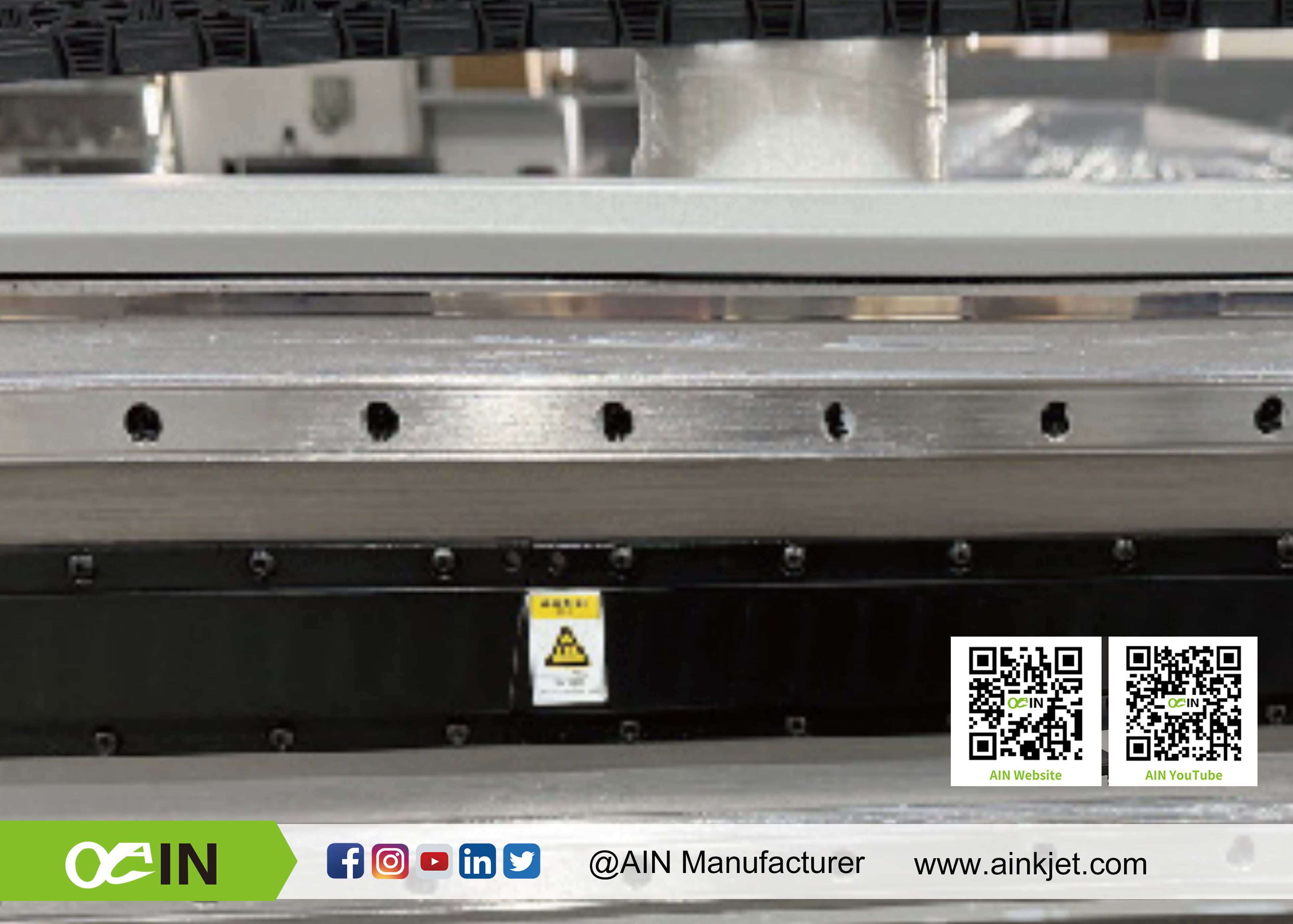

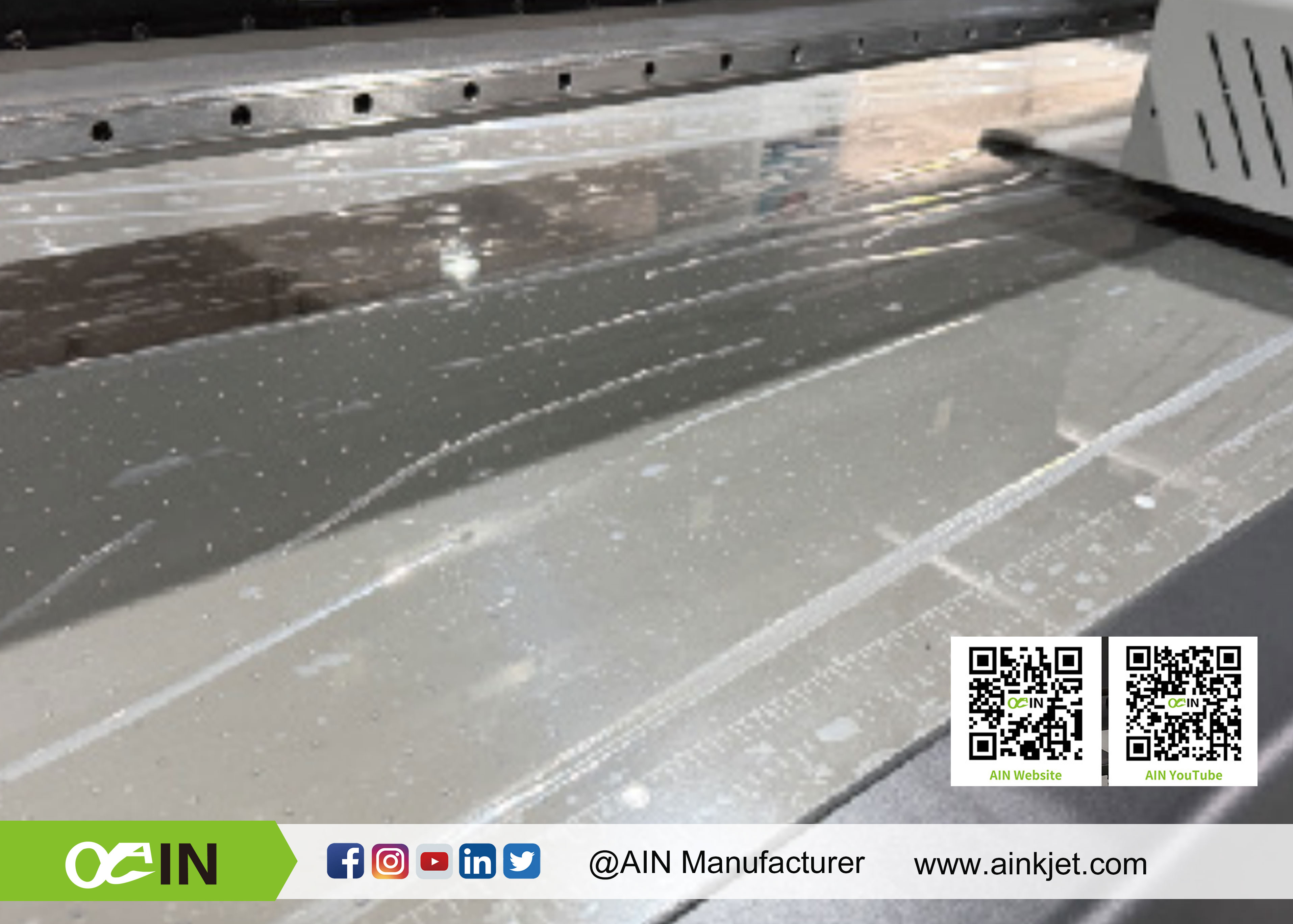

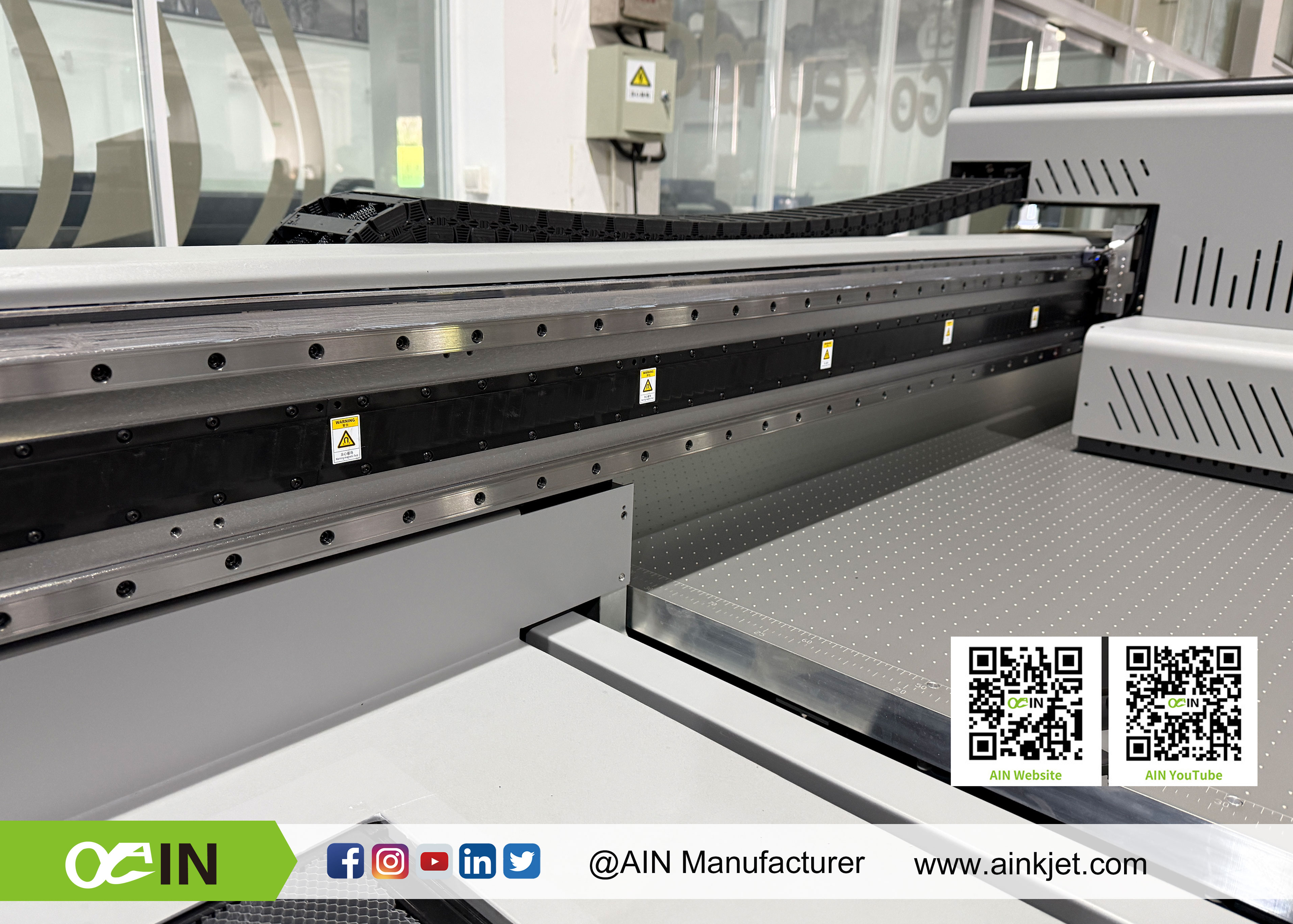

New steel beam structure + dual guide rails + linear motor, resulting in more stable transmission and output. | The new dowel pin is extended to prevent large plates from mistracking |
 |
|
 |

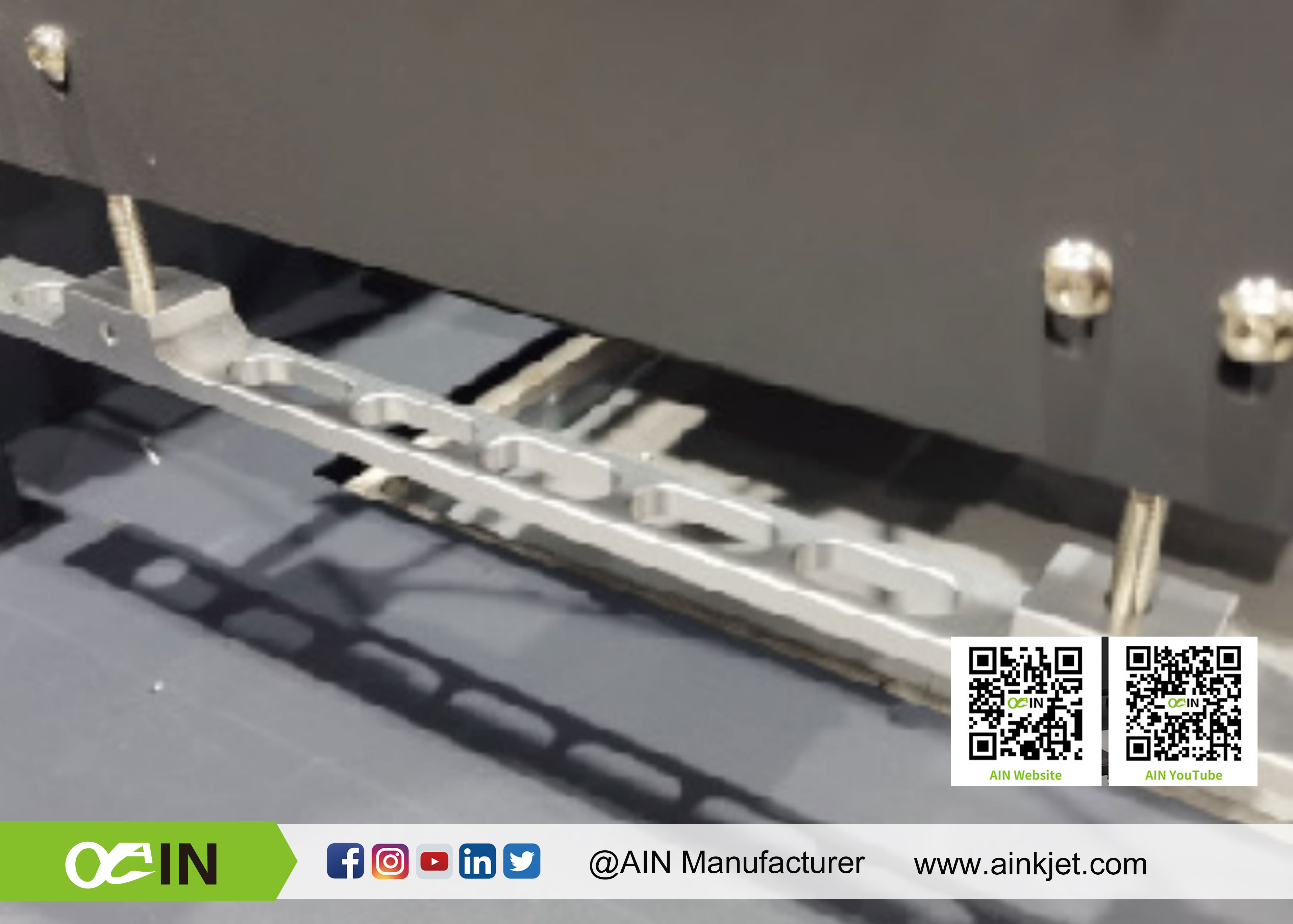

| The new model adopts color separation and pressed ink, and the old model is integrated ink. The new model is more convenient and saves ink. | Y‑axis dual linear motors + metal grating, resulting in higher stability and faster speed. | The new anti‑collision 360 degrees can be triggered, any angle can be sensed, the old block type, scrape the material directly sheet metal deformation |
 |
 |
 |

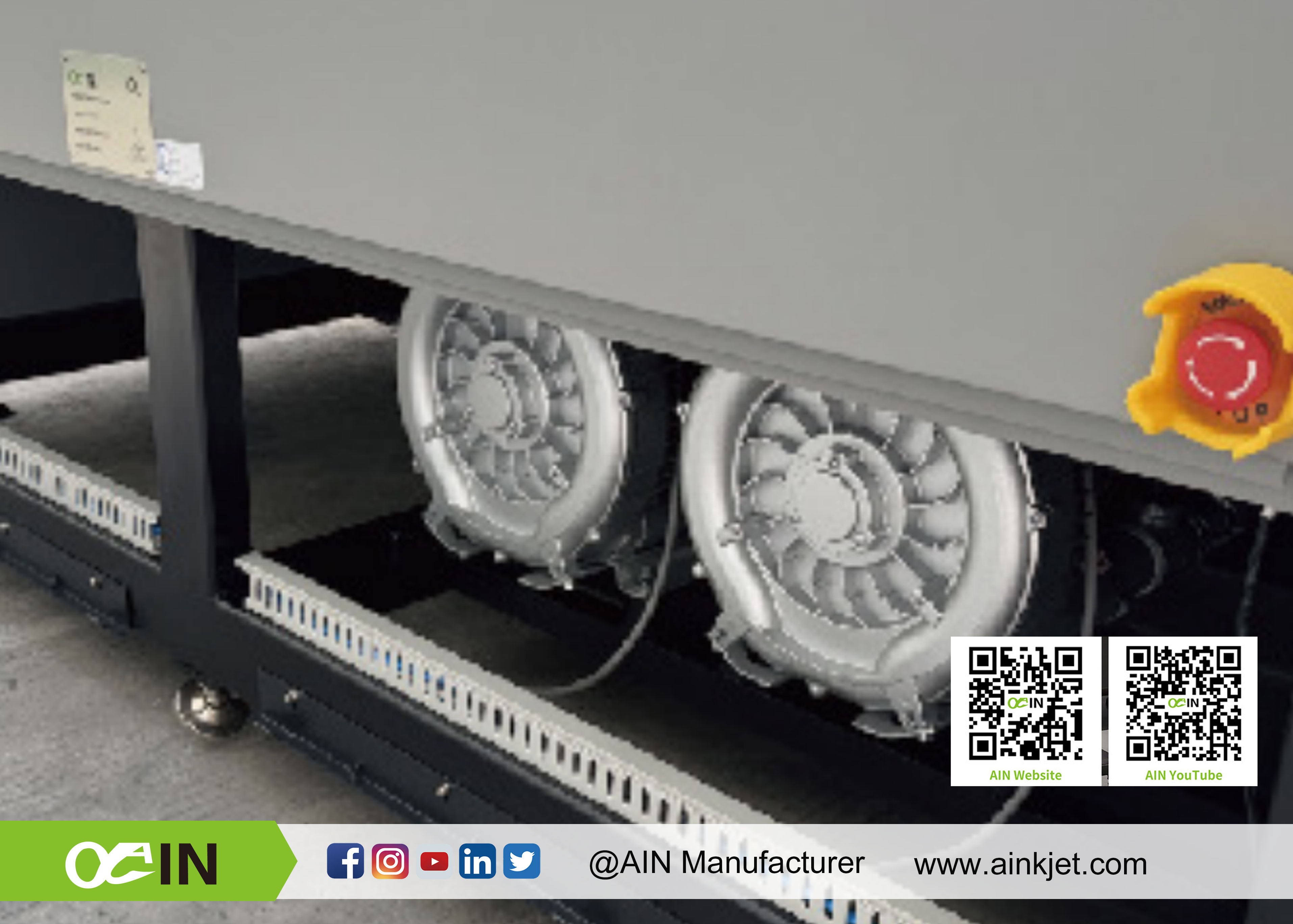

The new two high‑power 1.5kw suction motors, with four suction areas, increase the suction power, and the old one 1.5kw motor is not easy to suck |

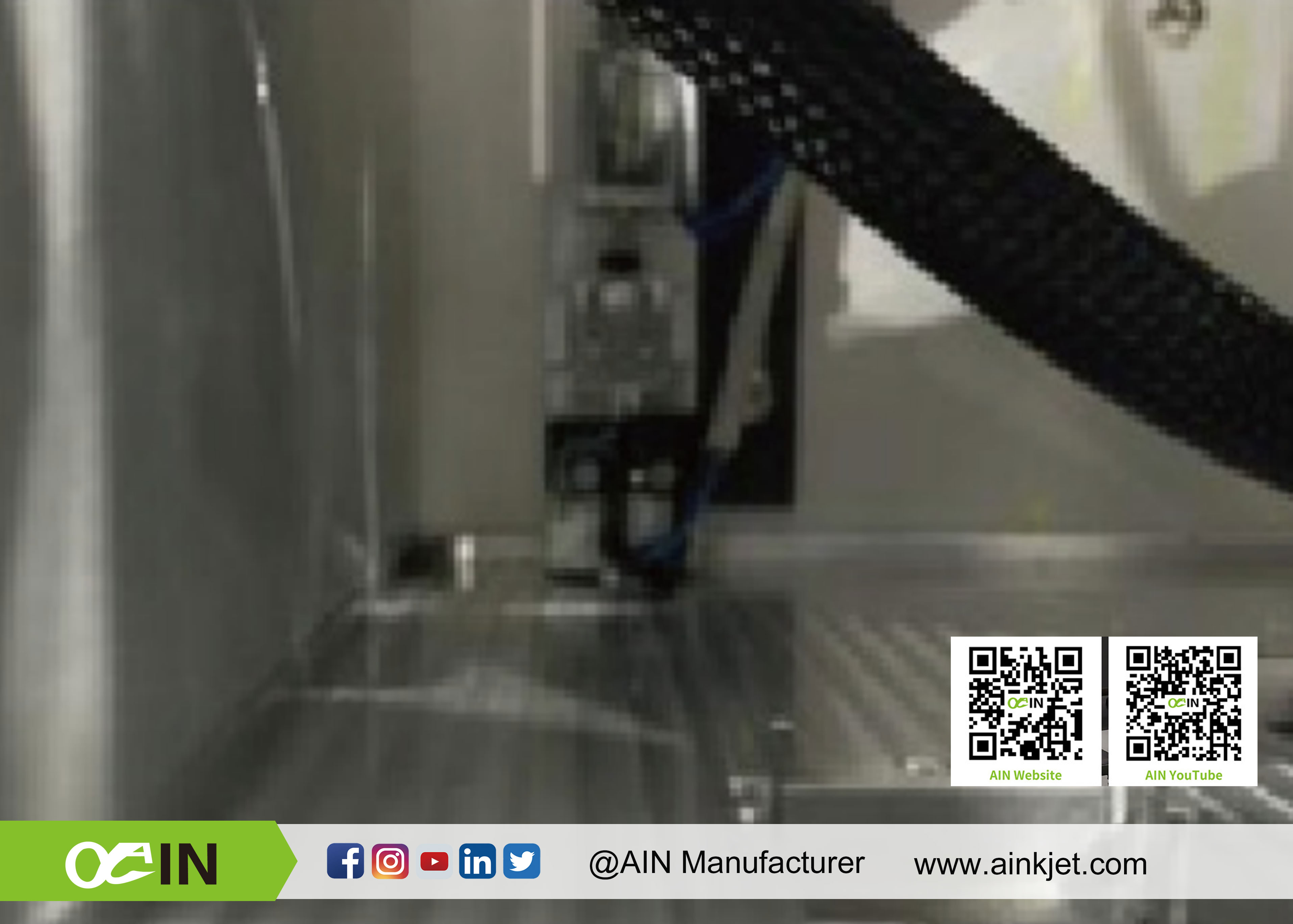

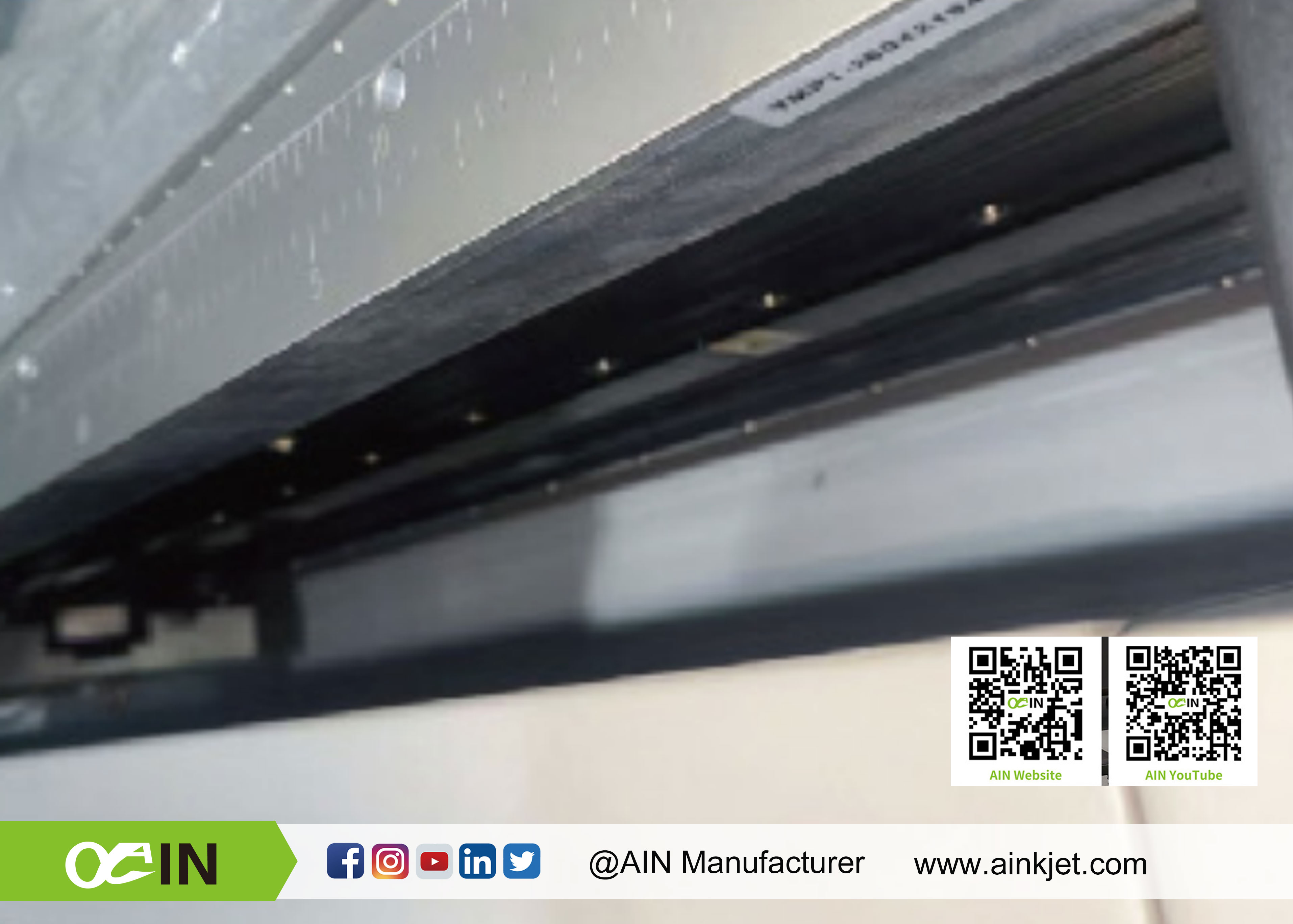

The new mechanical altimetry sensor has a more accurate sensing value and is not easy to change, while the old photoelectric sensor measures the height at the sameposition, and the parameters are easy to change | Metal raster ensures high‑precision inkjet dots drop position at high speed; |
Application
Applications of AJ‑2513 UV / AJ‑2513T UV Multifunctional UV Flatbed Printer
Rigid Materials: Glass, metal sheet, ceramic tile, acrylic, plexiglass, solid wood, aluminum sheet, cardboard, foam board, composite panel, plywood, PVC, WPC, ABS, PP board, etc.
Applications: Advertising signs, decorative artworks, feature walls, cabinet doors, handicrafts, identification signs.
Flexible Materials: Fabric, canvas, leather, PVC flex banner, paper, etc.
Applications: Leather printing, fabric decoration, posters and fine‑art prints.
