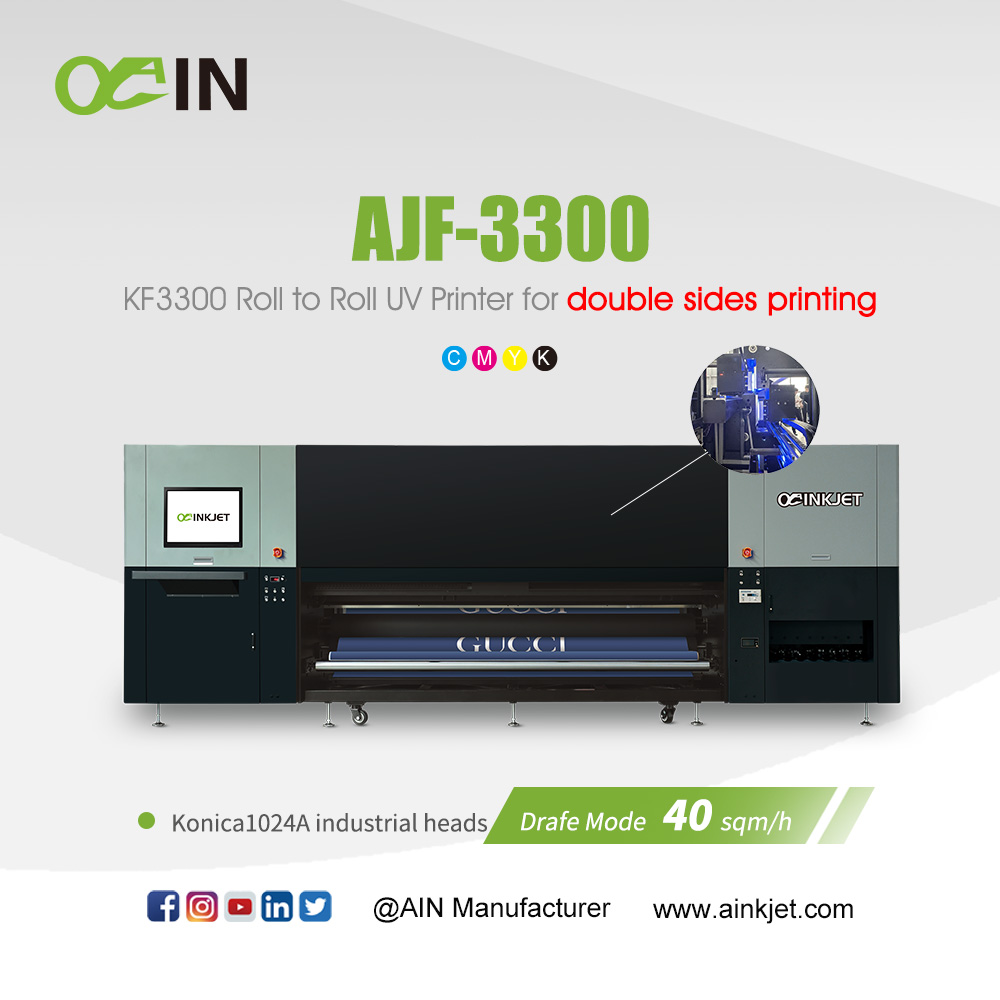

Product Description

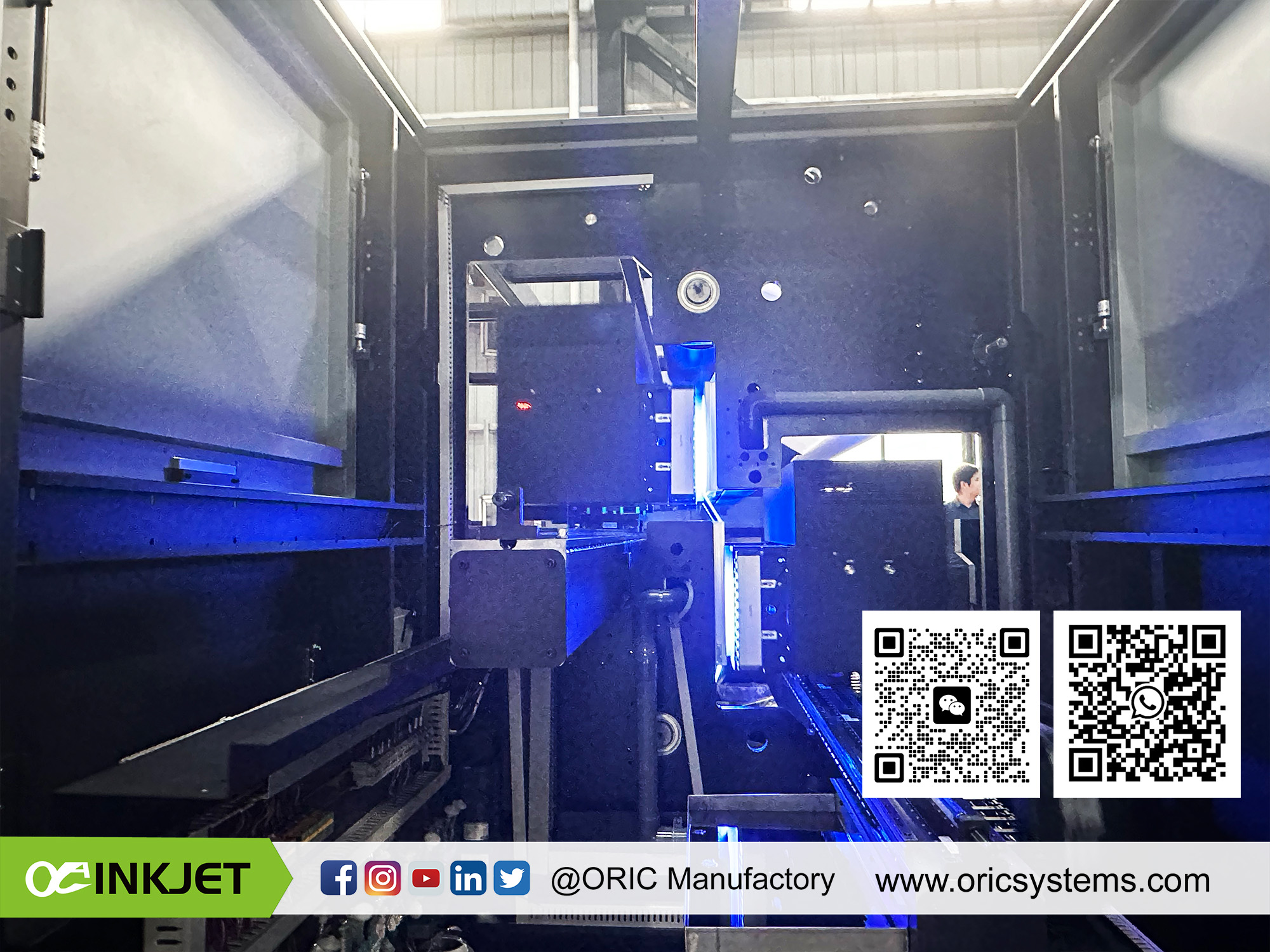

The machine is designed with two carriages for vertical printing. It uses stronger rubber bars for delivering the medias. it has robust and stable body which can print both on soft and rigid media.
Benefiting from the environment-friendly UV LED curing technology, the machine achieves longer life, lower energy consumption.
The machine can print on same good quality pictures and same colores on the two sides of media simultaneously. It also can print different pictures on the two sides of medias with good.

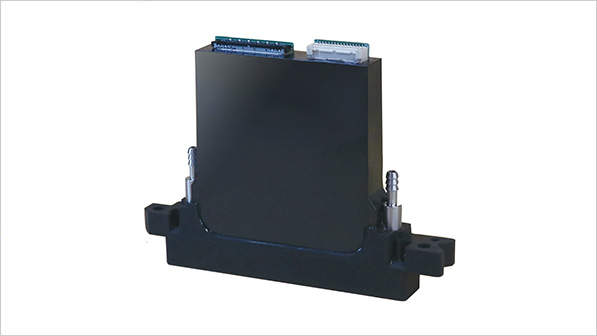

Printer Heads
- High Productivity Analogue WaveformAdopting analogue waveform that can achieve high productivity and print accuracy in multiple drops. High flexibility to optimize the waveform for individual inks. 6pl /40kHz, 20pl/ 22kHz is achievable. - Compact Print HeadLight weight (150g) and compact (17.6mm wide) print head enables compact printer design. Mechanical compatibility with KM1024i series print heads. - Water Based Ink Support ※1024aSAE-Q onlyChemical compatibility with water based ink in KM1024aSAE-Q. - Robust Nozzle PlateNew nozzle plate material with even higher scratch resistance around 100 times* better than the previous version. *Based on internal measurement - High Drop AccuracyIntroduced a new production method to optimize the drop velocity for individual nozzles. Analogue waveform also enables improved drop accuracy. |
|
| Model Name | KM1024aSHE | KM1024aSHE-HR | KM1024aSAE-C |
|---|---|---|---|
| Drive Mode | Independent | ||
| # of nozzle | 1024 | ||
| Print Width (mm) | 72 | ||

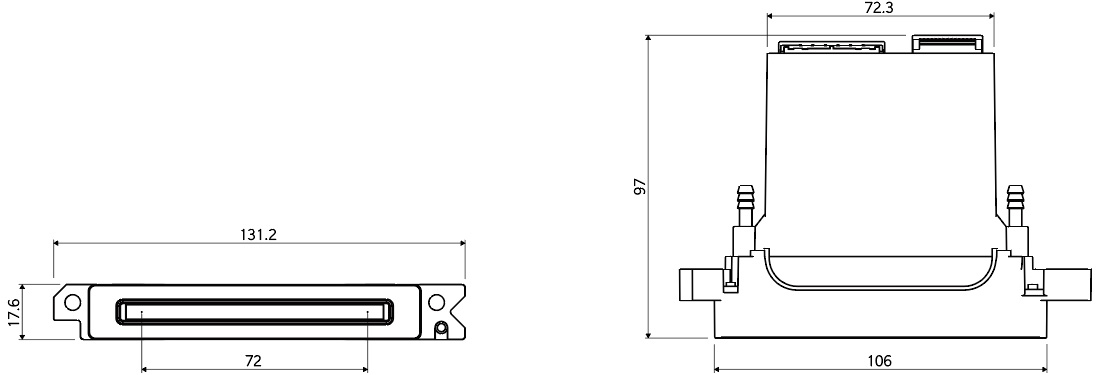

| Head dimensions | W: 131.2mm x D: 17.6mm x H: 97mm | ||
| Regular jetting frequency (kHz) | 40kHz (Binary) 24kHz (4dpd) | 40kHz（Binary）29kHz (4dpd) | |
| Drop volume (pL) | 6pL (Binary) 24pL (4dpd) | 6pL（Binary） 18pL (4dpd) | |
| Jetting temperature | RT-55℃ | RT-83℃ | RT-55℃ |
| Internal heater | Available | ||
| Ink Type | Solvent, UV, Oil | Water-based | |
| Ink Viscosity (mPa・s) | 7-10 | ||
| Waveform | Analogue | ||
| Weight | 150g | 170g | 150g |
| Grey scale level | 8 level | ||
Features
Supports double-sided printing of neon inks, and these bright colors cannot be ignored even in ordinary light. Under ultraviolet light, they become the focus of attention due to their fluorescent properties. The printer is already equipped with neon yellow and neon pink as standard, and combined with other primary colors, more spot color variations can be created, bringing more special effects to UV double-sided printing.
UV high color density ink : The new high color density ink provides excellent color vividness and a wide color gamut to ensure excellent printing results. The excellent coverage of the ink plus the superposition of both sides make the printing effect fuller. Neon yellow and neon pink printing materials provide amazing visual effects in daylight environments.
Anti-fracture performance: Due to the low thickness of the ink layer, there will be no cracks even if folded. Using high color density ink with a 7-picoliter ink droplet printhead, the ink layer is thin, thereby reducing the cost of use and increasing the profit of each print.

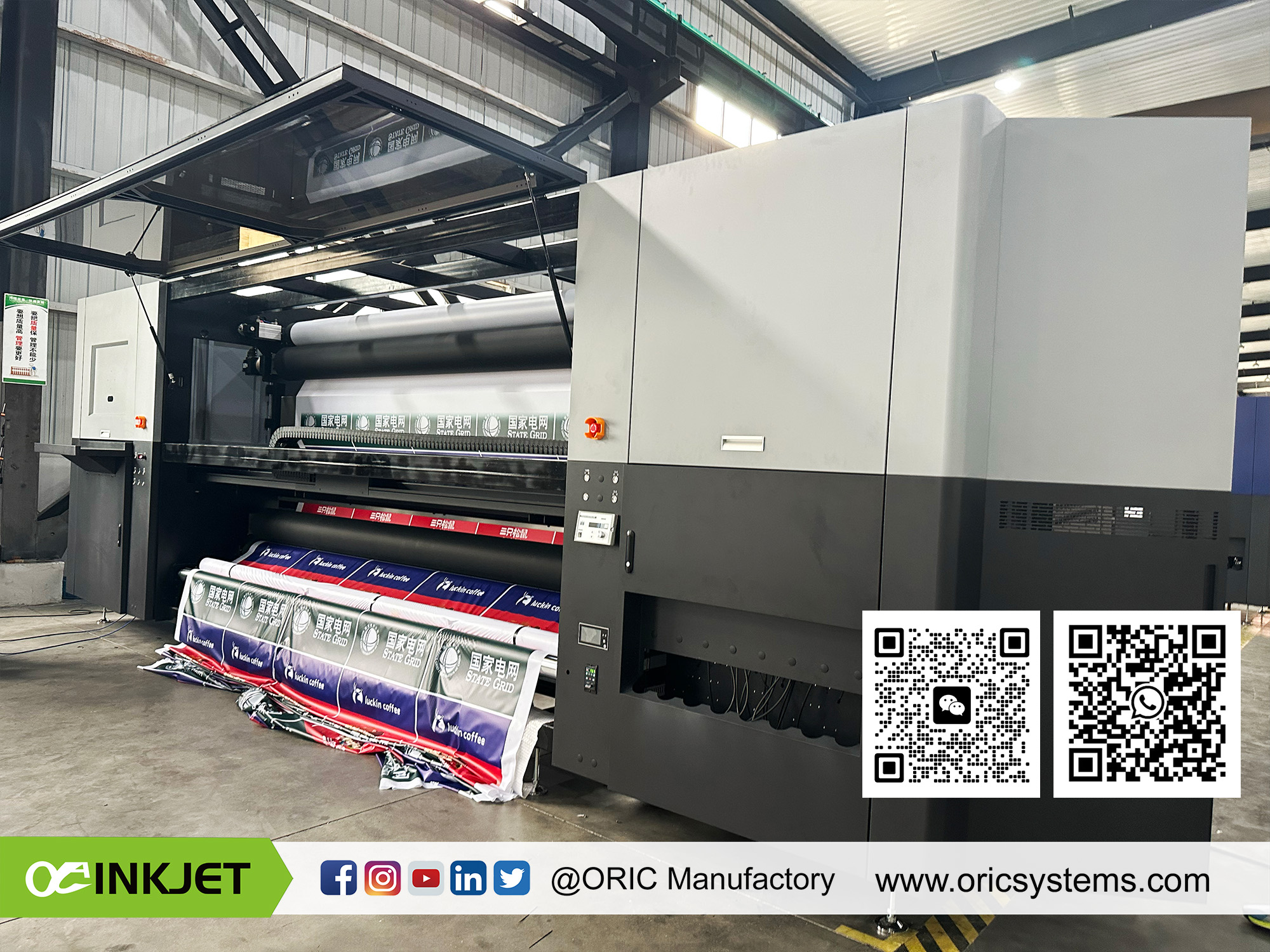

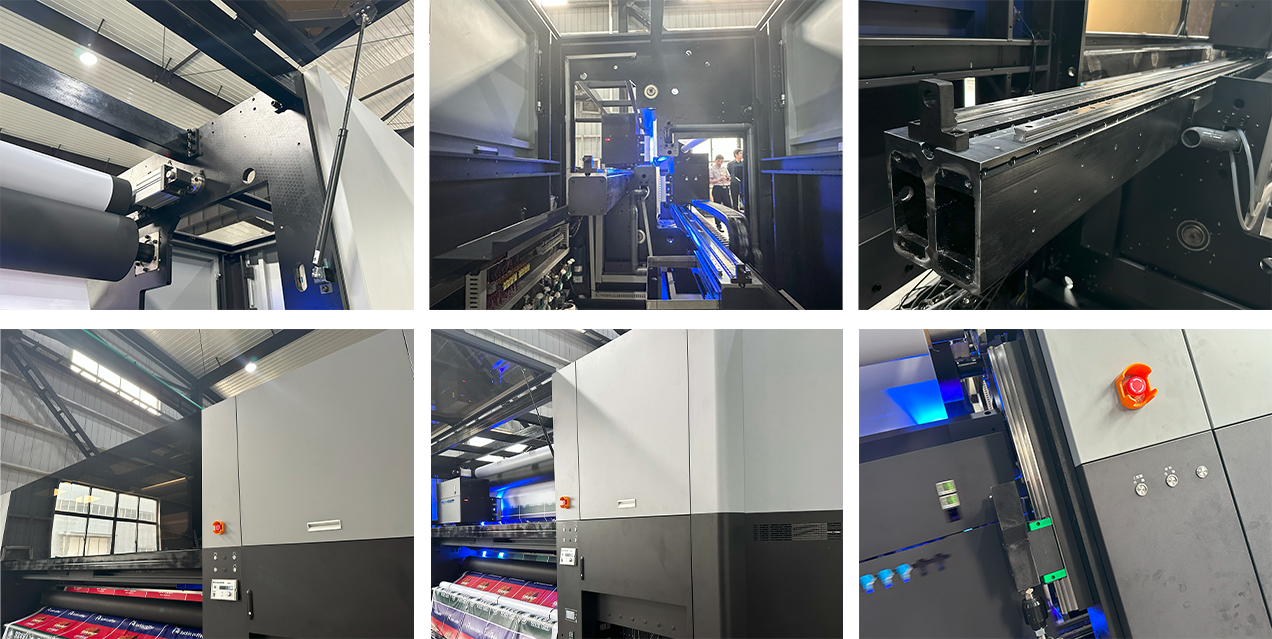

Stable frame: The weight-level frame structure can reach 6 tons, which can withstand high-intensity and high-speed printing tasks and improve printing accuracy.

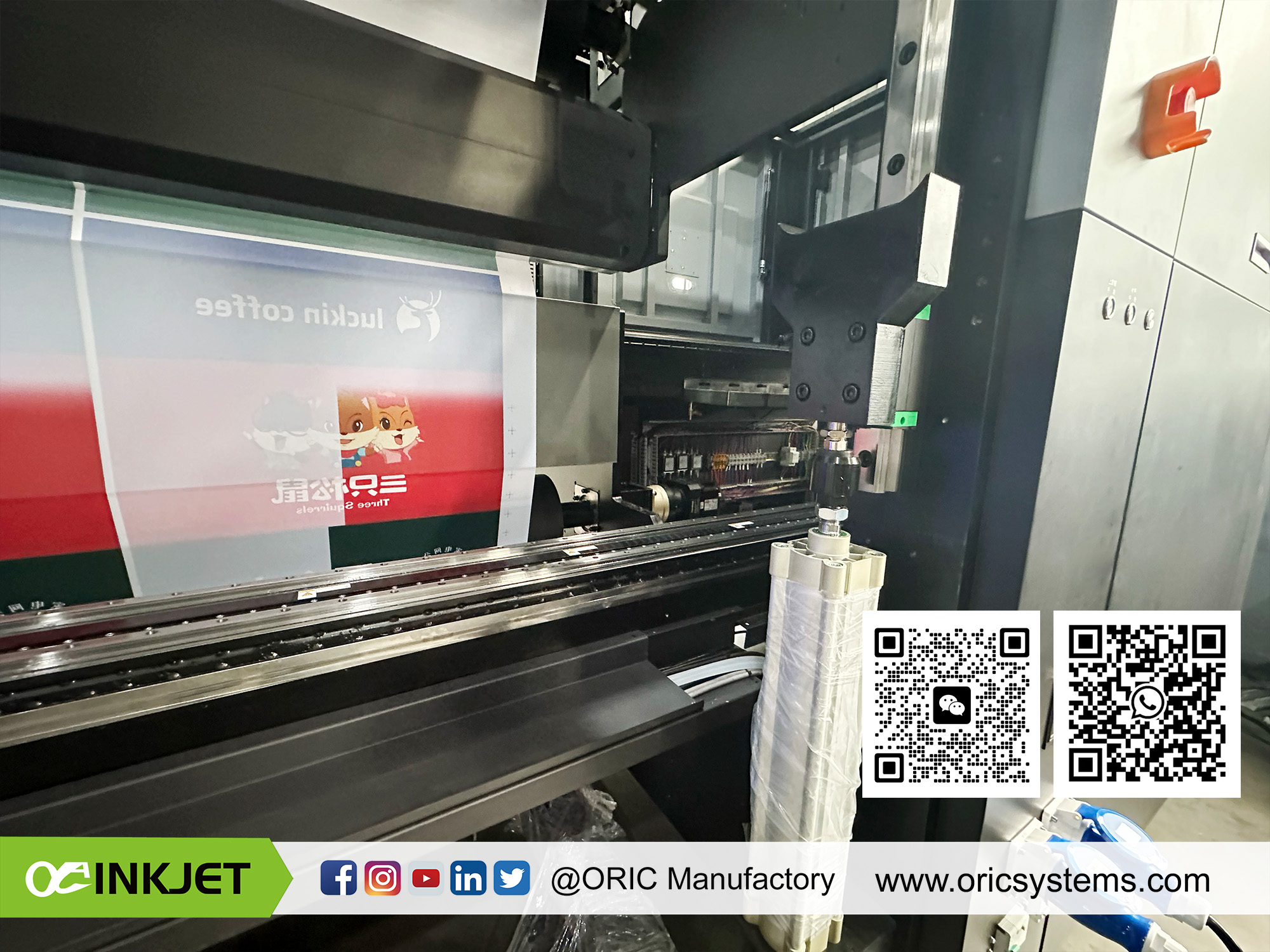

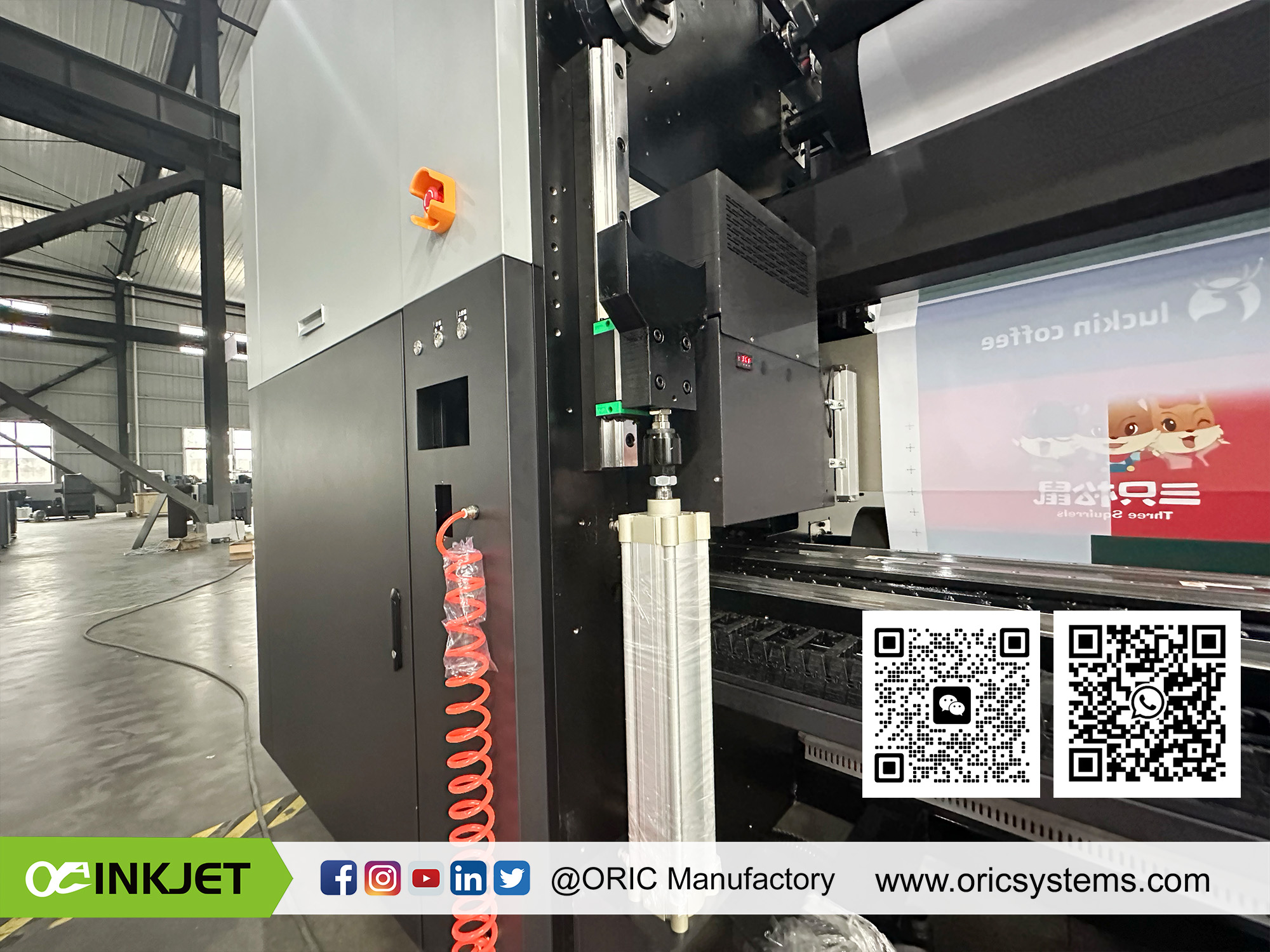

Precise delivery: Using advanced linear motors, vibration-free trolley sliding drive system, and reliable feeding system to ensure that printing materials aredelivered correctly during double-sided printing, achieve accurate material positioning and printing, and keep the image positioning accurate and Machine configuration depending on different model. For more information, please call local dealer consistent from the first line to the last line.
Technical Specifications
| Model | AJF-3300 | AJF-3000PRO | |
| Print Head Type | Konica1024A industrial heads | ||
| Head Number | 16 pcs optional | 24 pcs optional | |
| Ink Color | CMYK/Fluoresent color avilable | ||
| Ink Type | UV INK | ||
| Ink Supply | Pump ink supply | ||
| Speed | Drafe Mode | 40 sqm/h | 60 sqm/h |
| Photo | 36 sqm/h | 54 sqm/h | |
| Media | Dimesion | 3200mm | |
| Type | Perforated banner,soft film,stick vynle,PET,PVC banners | ||
| Transfer | Motor automatic feeding and taking up system | ||
| Cleaning | Automatic pump cleaning system | ||
| Interface | USB | ||
| Environment | Temperatuer:18℃-30℃,Humidity:30%-80% | ||
| Power Supply | Rated frequency:50HZ/60HZ Rated frequency:AC220V(±10%) | ||
| Machine Size | 5800(L)*1450(W)*2100(H)mm | ||
| Machine Weight | 2450kg | ||
Application
