CMYKLcLmLk+W+V1+V2; Achieve printing texture & hot stamping & frosting effects at the same time;The maximum thickness of one printing can reach 2mm.
| PDF Export | |
Printer Informations
| 3D Multi-layer Texture Industrial Printer 3D texture painting printing is molded in one go
- Equipped with 5 industrial sprinkler heads, staggered configuration; - Gray- level piezoelectric nozzle, variable ink drops, photo level accuracy; - 9 colors configuration pertect print CMYKLcLmLk+W+V1+V2; - Achieve printing texture & hot stamping & frosting effects at the same time; -The maximum thickness of one printing can reach 2mm. The advocateD aesthetics--Artspace Wide range of printing materials: smooth silk, semi-transpa of 3rent yarn, canvas, super transparent, etc. Support soft installation, hard installation and a variety of different specifications of material printing scheme . |
Printer Heads
| Epson i1600-U1 Print Head PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 dpi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.
| Model | I1600-U1 | |
| Compatible ink | UV Ink | ||
| Dimensions(WidthxDepthx Height) | 69.1mm x 59.4mm x 35.6mm | ||
| Weight(g) | 60 | ||
| Nozzle Numbers | 1600 | ||
| Length Between Nozzles(inch) | 1/300 | ||
| Nozzle Row | 4 rows | ||
| Max color/head | 4 colors | ||
| Resolution | 300dpi/row, 600dpi/2row | ||
| Effective Printing Width(mm) | 33.8 | ||
| Droplet ejection performance(kHz) | Binary | 5 pl（43.2kHz） | |
| 3 levels grey scale | 6,12.5 pl（21.6kHz） | ||
| 4 levels grey scale | 3.8,6.2,9.3 pl（21.6kHz） | ||
| Viscosity range(mPa.s) | 5-7 mPa･s | ||
Technical Specifications

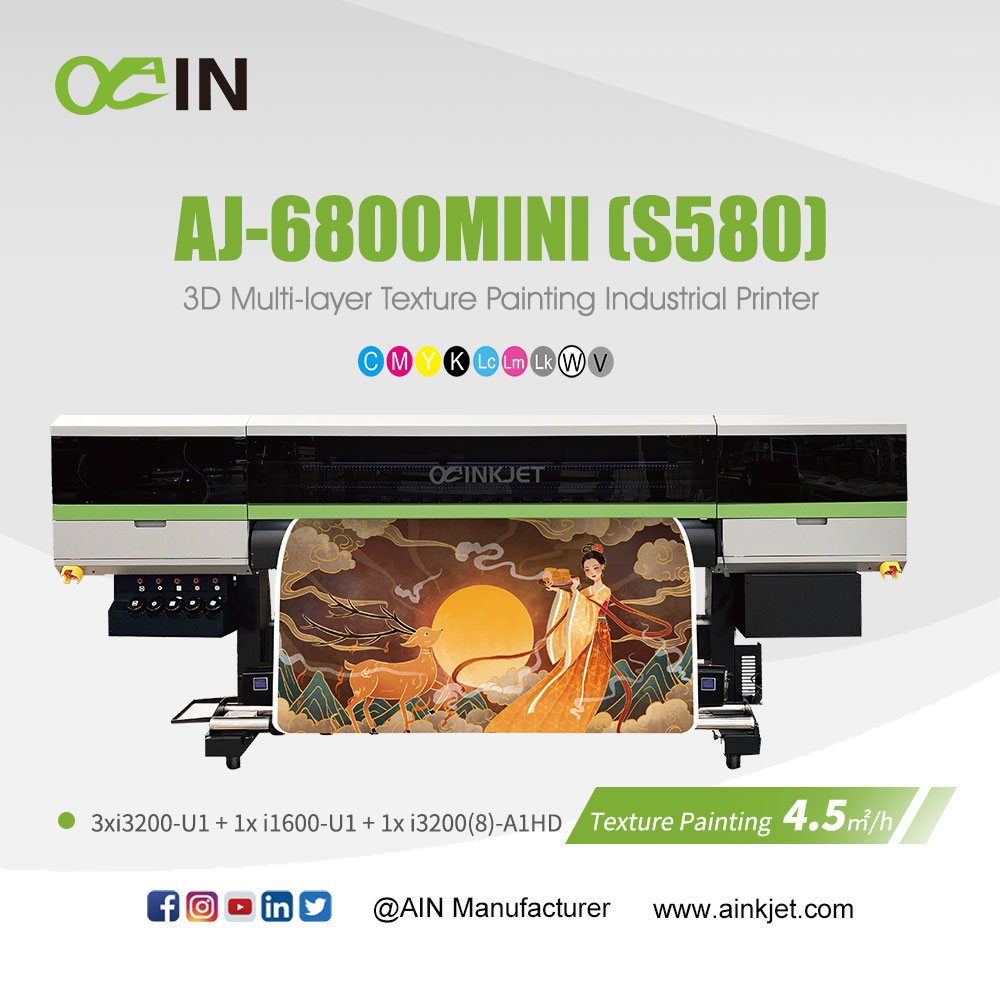

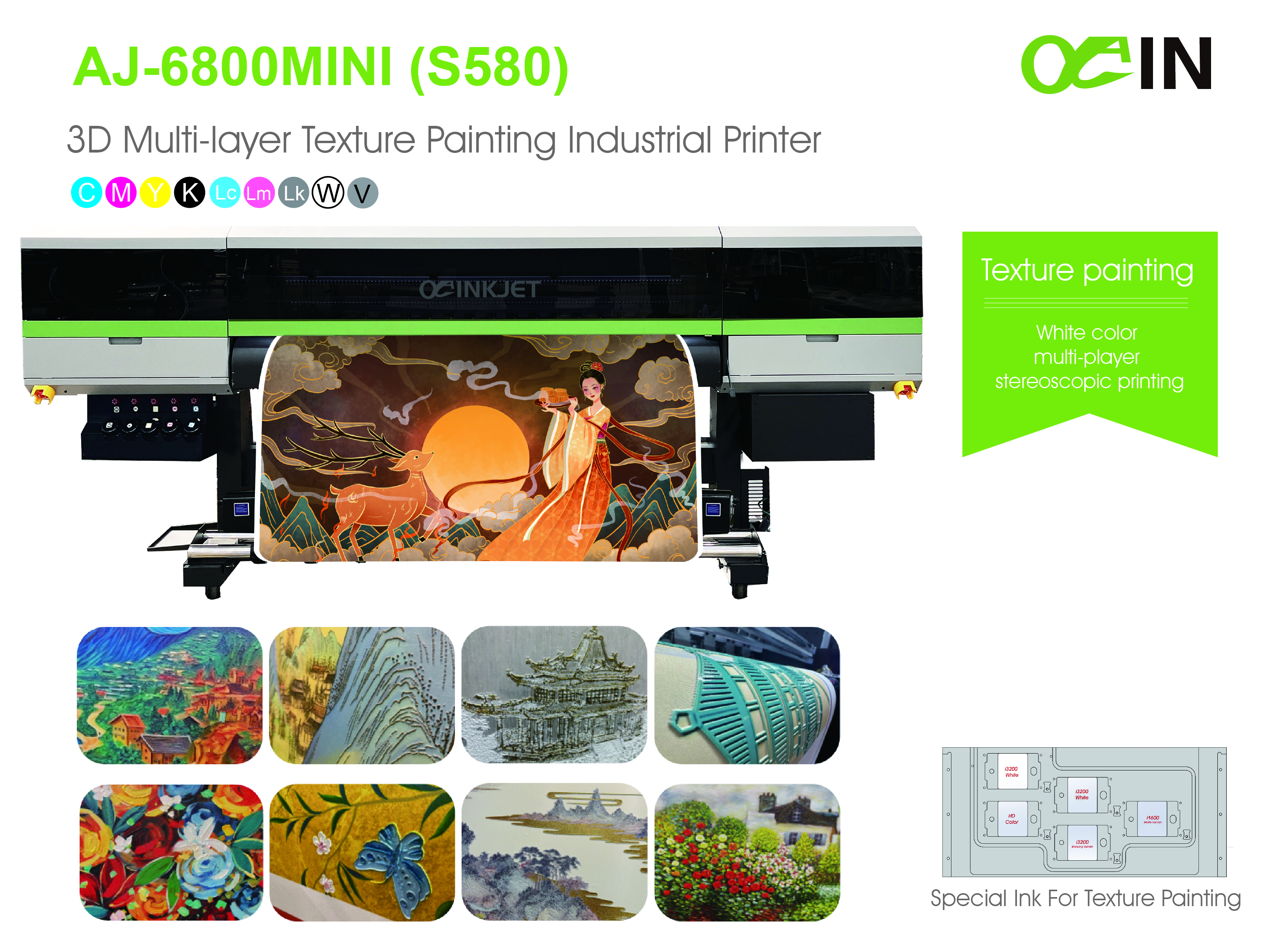

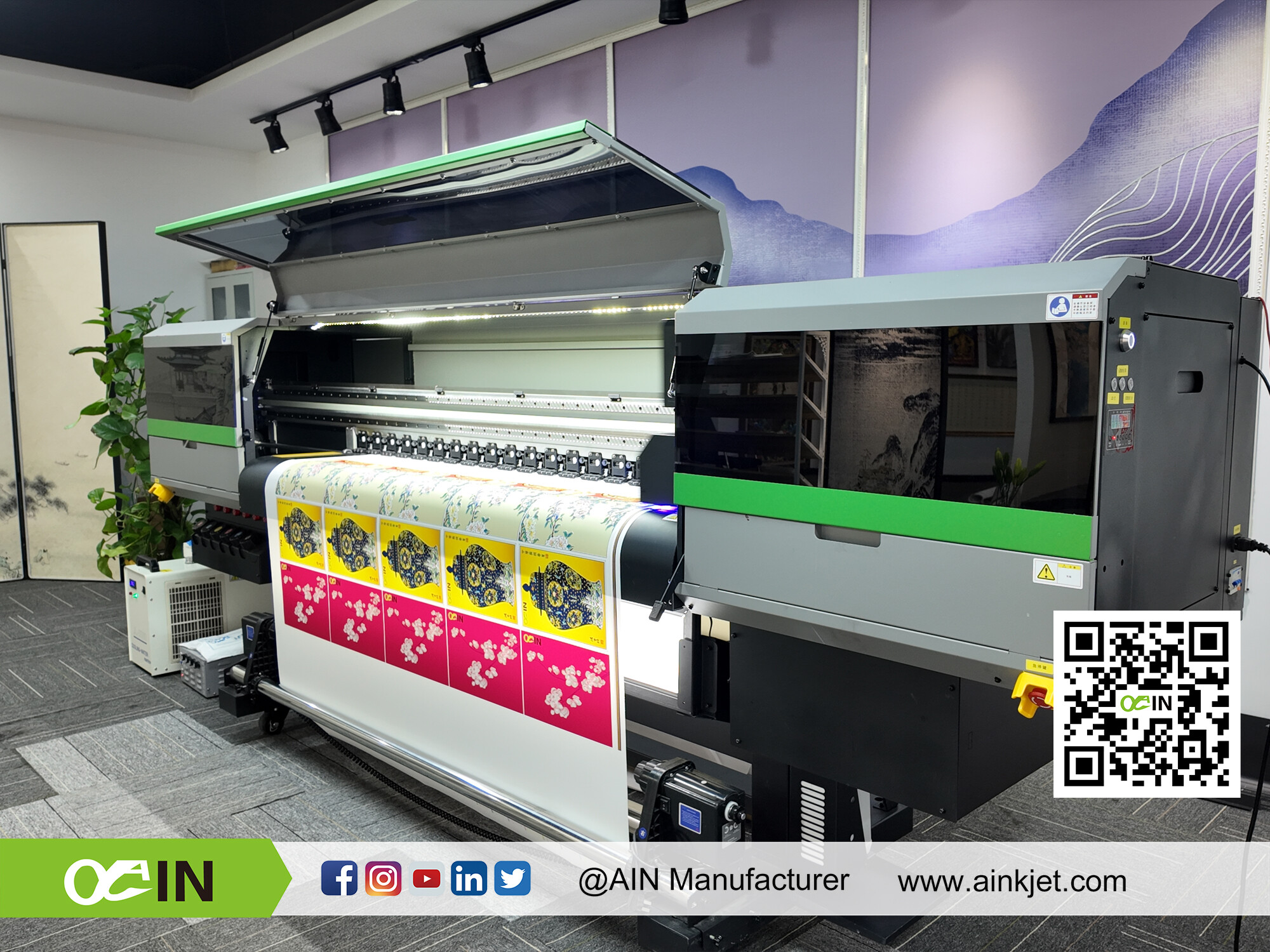

| AJ-6800MINI (S580) 3D Multi-layer Texture Painting Industrial Printer | ||
| MODEL | AJ-6800MIN (S580) | |
| PRINTHEAD TYPE | 5pcs Epson Heads (3xi3200-U1+1xi1600-U1+1xi3200(8)-A1HD) | |
| PRINTING TECHNOLOGY | Grayscale piezoelectric inkjet printing | |
| INK SPOT SIZE | Variable ink drops | |
| PRINTING WIDTH | 1820mm | |
| MEDIA SIZE | WIDTH | 1800mm |
| THICKNESS | ≤1.5mm | |
| WEIGHT | 60KG | |
| DIAMETER | 76.2mm(3in)or 50.8(2in) | |

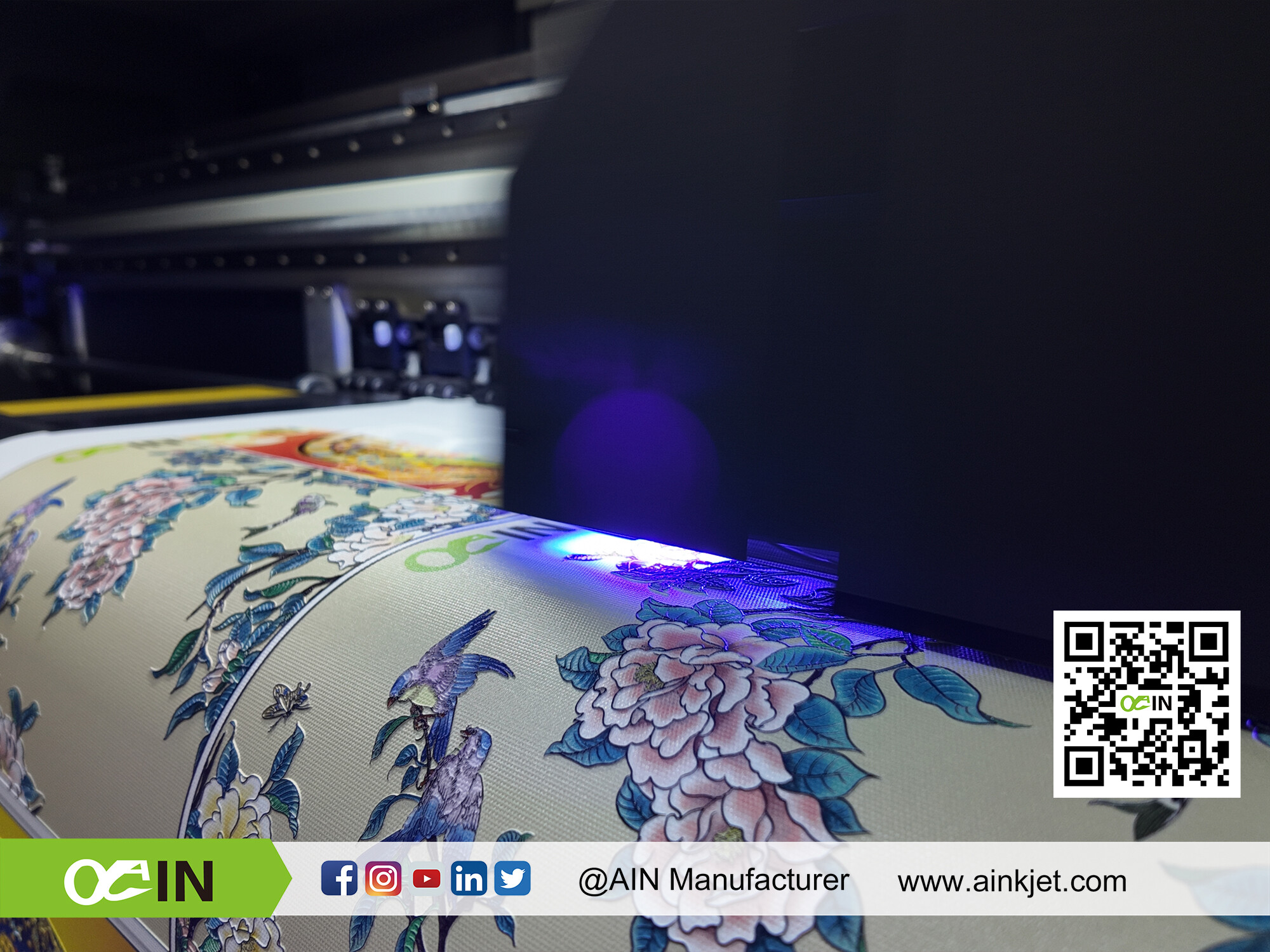

| INK DRYING METHOD | Light cured water cooled UVLED lamp (double) | |
| INK | TYPES | Special Ink For Texture Painting |
| CAPACITY | Continuous ink supply(1.5 liter ink bucket) | |
| COLOR | 9 colors:CMYK/Lc/Lm/Lk+W+V | |
| PRINT RESOLUTION | 360/720/1200/1800/2400 dpi | |
| INTERFACE | USB 3.0 Cable port | |
| VOLTAG | AC 220V±5%,50Hz±1,16A | |
| POWER CONSUMPTI0NE | Working status:5000W Sleeping status:600W | |
| SOFTWARE | PhotoPrint(optional Caldera) | |
| WEIGHT | 800KG | |
| ENVIR0NMENT | BOOT MODE | Tempreture:18℃--29℃/Humidity:50--80%(no condensation) |
| OFF MODE | Tempreture:5℃--40℃/Humidity:20--80%(no condensation) | |
| ACCESSORIES | Data cable,press paper,useless ink box,ueser manual,etc | |
Application
Applications of 3D Multi-layer Texture Painting
Industrial Printer

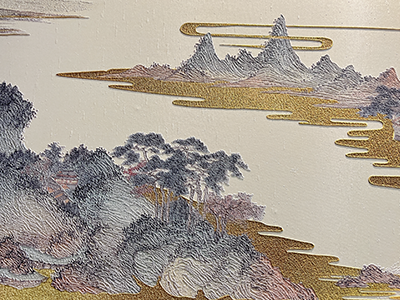

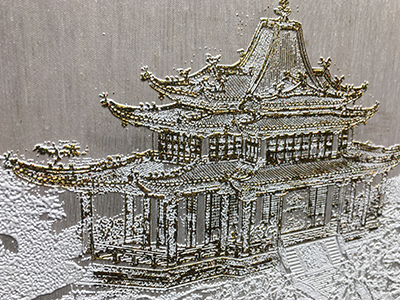

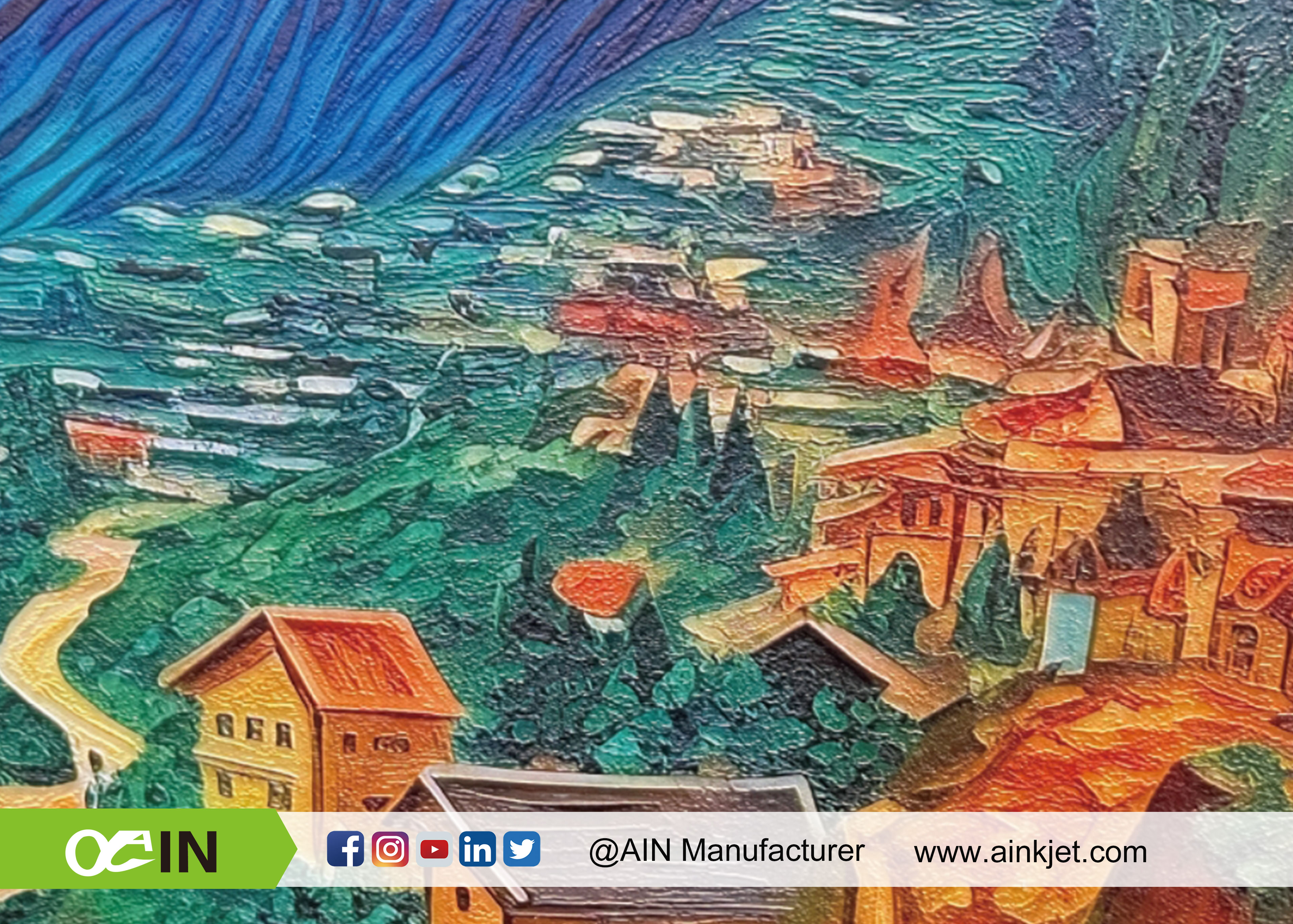

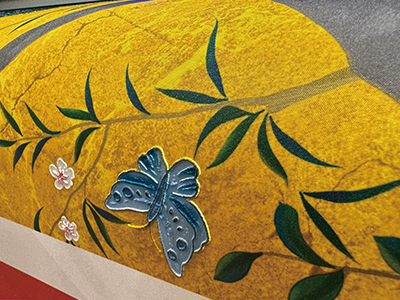

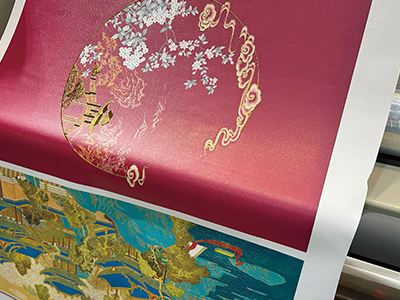

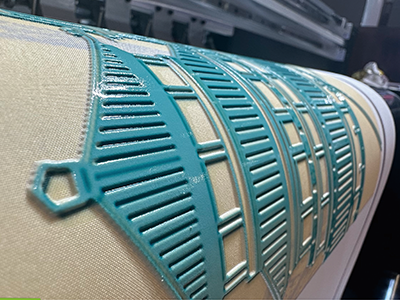

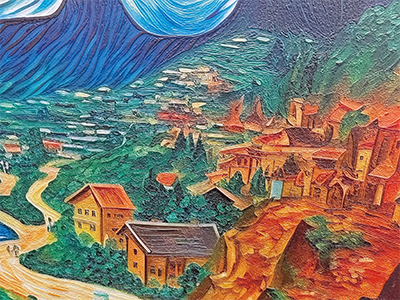

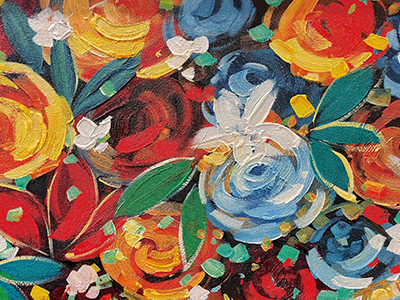

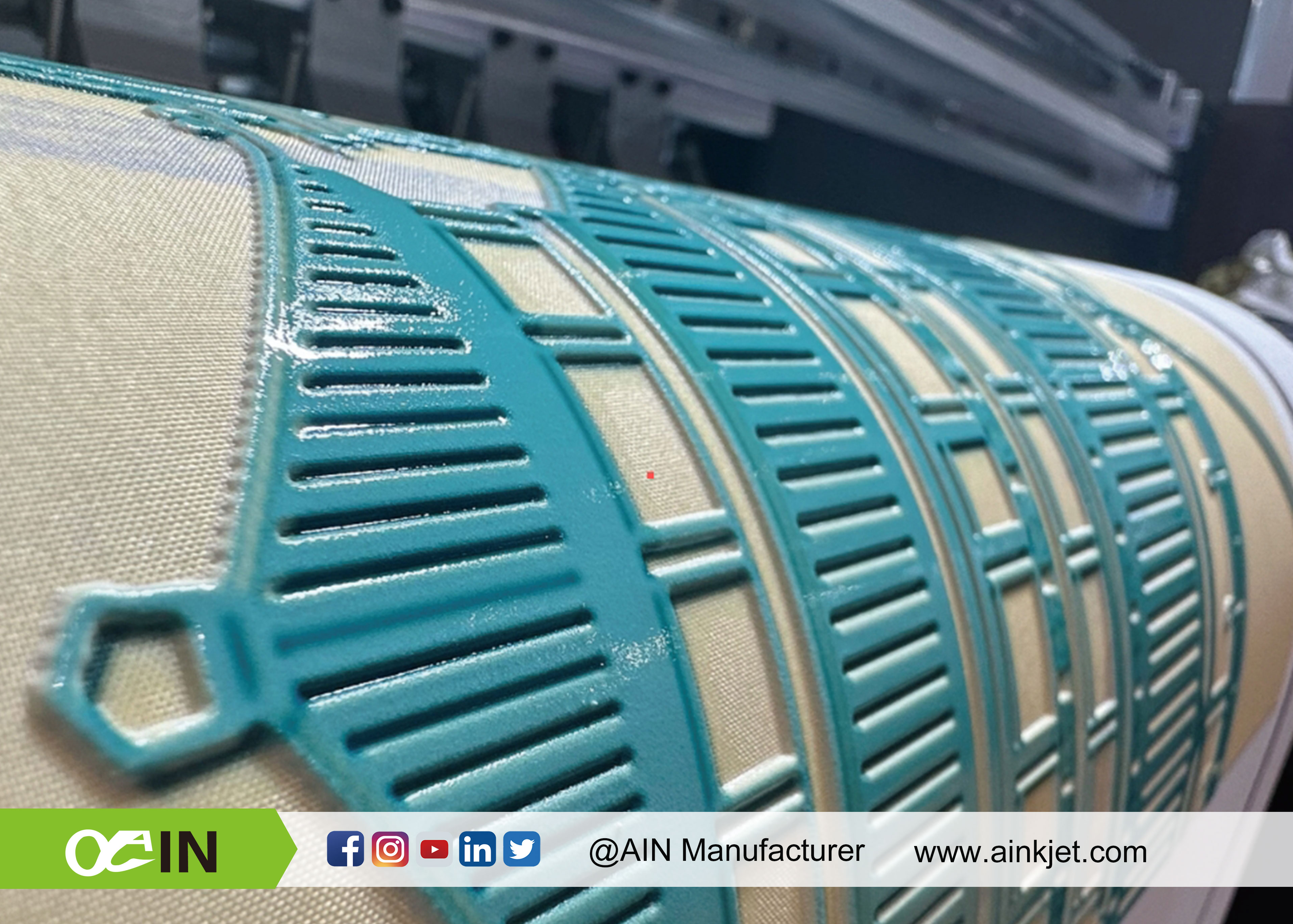

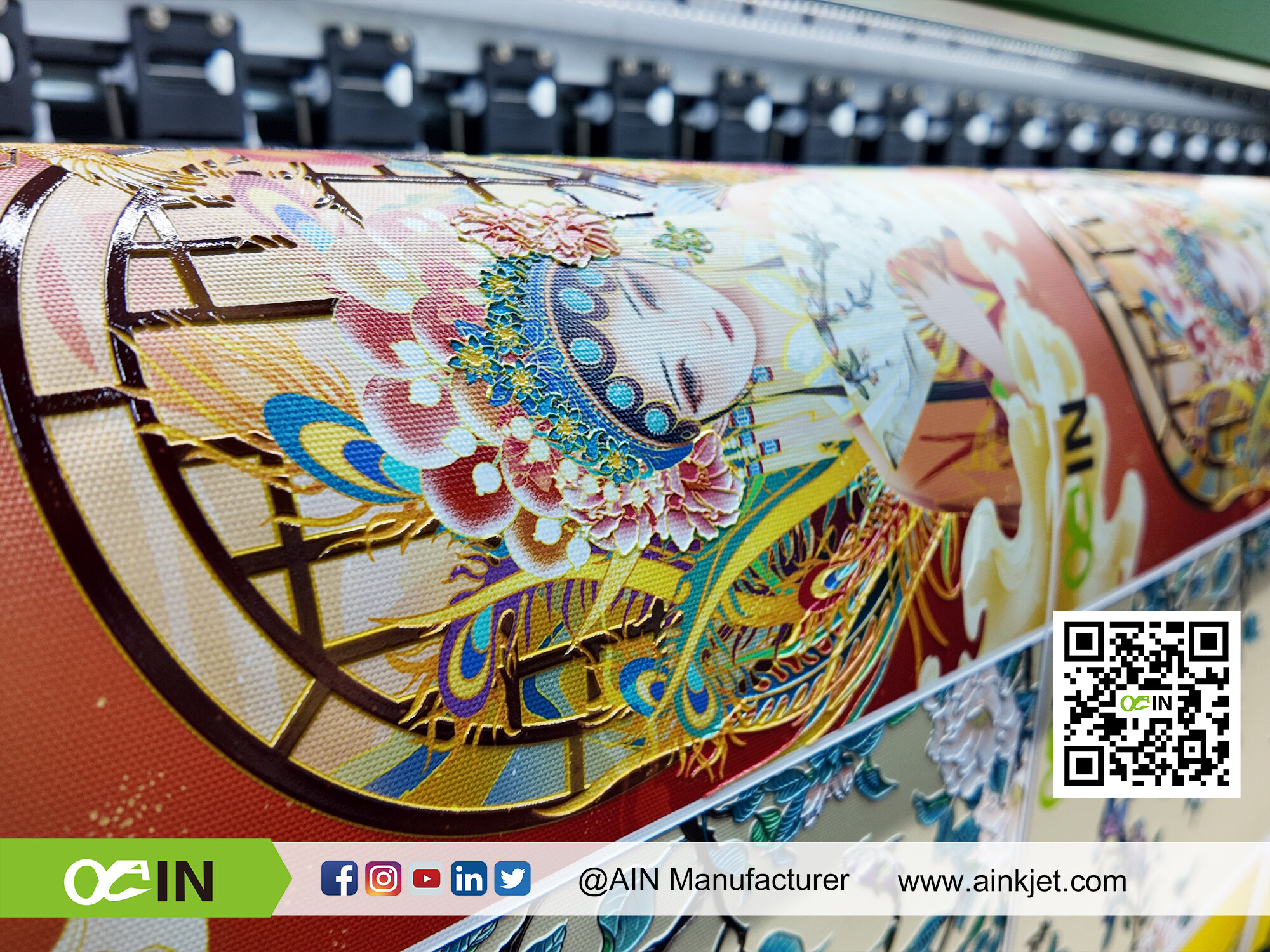

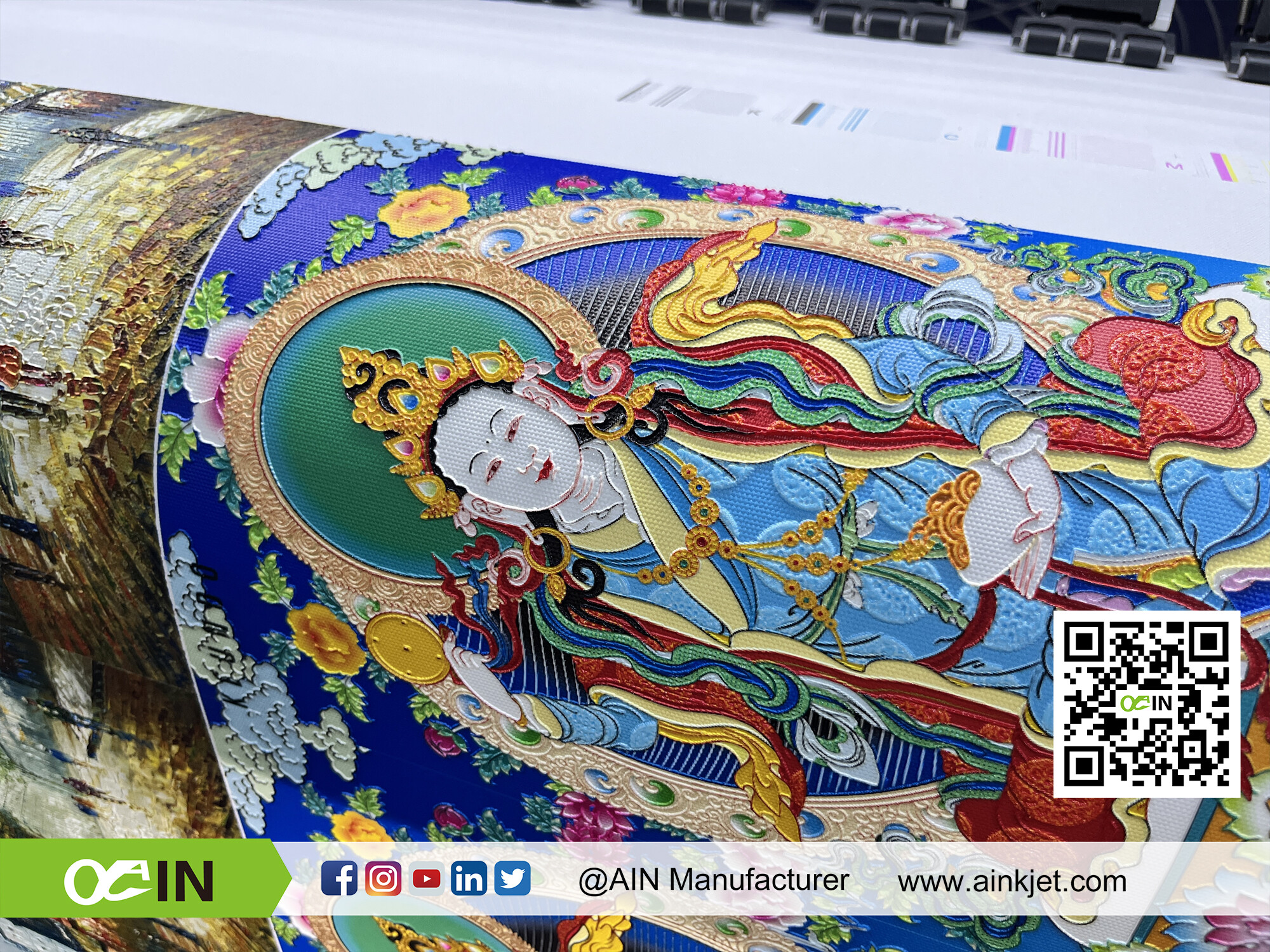

The unique "white + color" printing mode realizes the multi-layer three-dimensional texture painting printing effect, and the visual effect is more prominent,which is suitable for the surface texture three-dimensional printing of various oil paintings.
 |  |  |  |
 |  |  |  |
Unique "glossy oil + white + color" printing mode, achieve multi-layer three-dimensional texture painting printing effect visual effect is more prominent, suitable for all kinds of oil painting surface texture three dimensional printing.
 |  |  |  |
