Product Description
Technical Characteristics
The biggest highlight of the AINKJET series UV neon printing solution is its rich colorselection. The fully equipped versionincludes fluorescent yellow,fuorescentmagenta,fluorescent green and fluorescent orange, pluswhite, varnish and normalCMYK, atotalof 10 colors. These fuorescent colors are bright and eye-catching underdaylight, and they emit dazzing f luorescence under ultraviolet light, making people feel their strong visual impact at a glance.
 |  |
| In addition to a single fluorescent color, the AlNKJET series can also mix fluorescent and colored colors to create more color variants. This mixture not only enriches the expressive power of colors, but also makes the printed picture content more eye-catching No matter what kind of screen content, as long as the fluorescent colors of the K10 series are used, it can stand out among the numerous information and become the focus. |

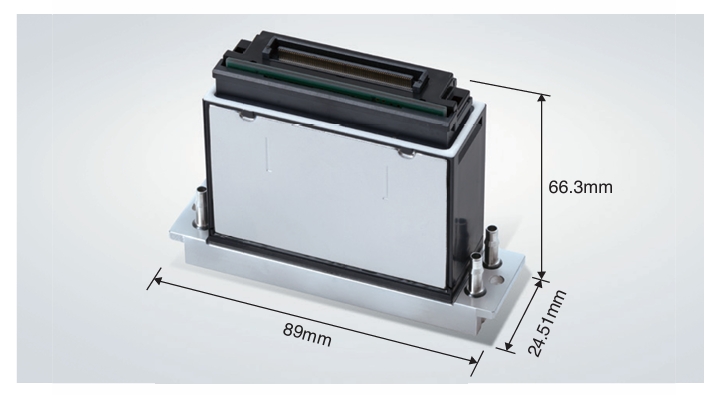

Printer Heads
| MH5320 | MH5340 | MH5320 Type A | |
| Method | Piston pusher with metallic diaphragm plate | ||
| Print Width | 54.1 mm (2.1") | ||
| Number of nozzles | 1,280 (4 × 320 channels), staggered | ||
| Nozzle spacing (4 color printing) | 1/150"(0.1693 mm) | ||
| Nozzle spacing (Row to row distance) | A : 1.101mm B : 11.811mm | ||
| Compatible ink | UV, Solvent, Aqueous, Others. | ||

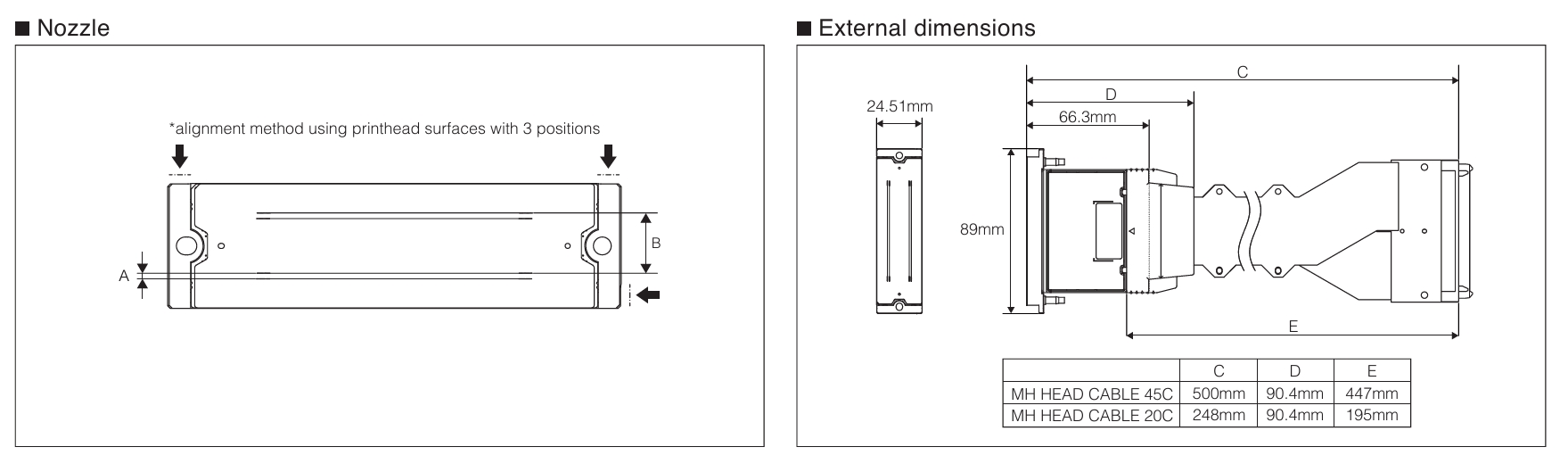

| Total printhead dimensions | 89(W) × 66.3(D) × 24.51(H) mm (3.5" × 2.6" × 1.0") | ||
| Weight | 228g (including 45C cable) | ||
| Max.number of color inks | 2 colors | 4 colors | 4 colors |
| Operating temperature range | 60℃ | ||
| Temperature control | Integrated heater and thermistor | ||
| Jetting frequency | 50kHz (3 levels) 40kHz (4 levels) | ||
| Grey-scale | 4 levels | ||
| Drop volume | Binary mode : 5pl / Grey-scale mode : 5-15pl | ||
| Viscosity range | 10～12mPa・s | ||
| Surface tension | 10～12mPa・s 28～35mN/m | ||
| Ink port | Yes | Yes | No |
| Separately sold parts | MH5320 / MH5340 / MH5320 Type A dedicated cable | ||
 |  |

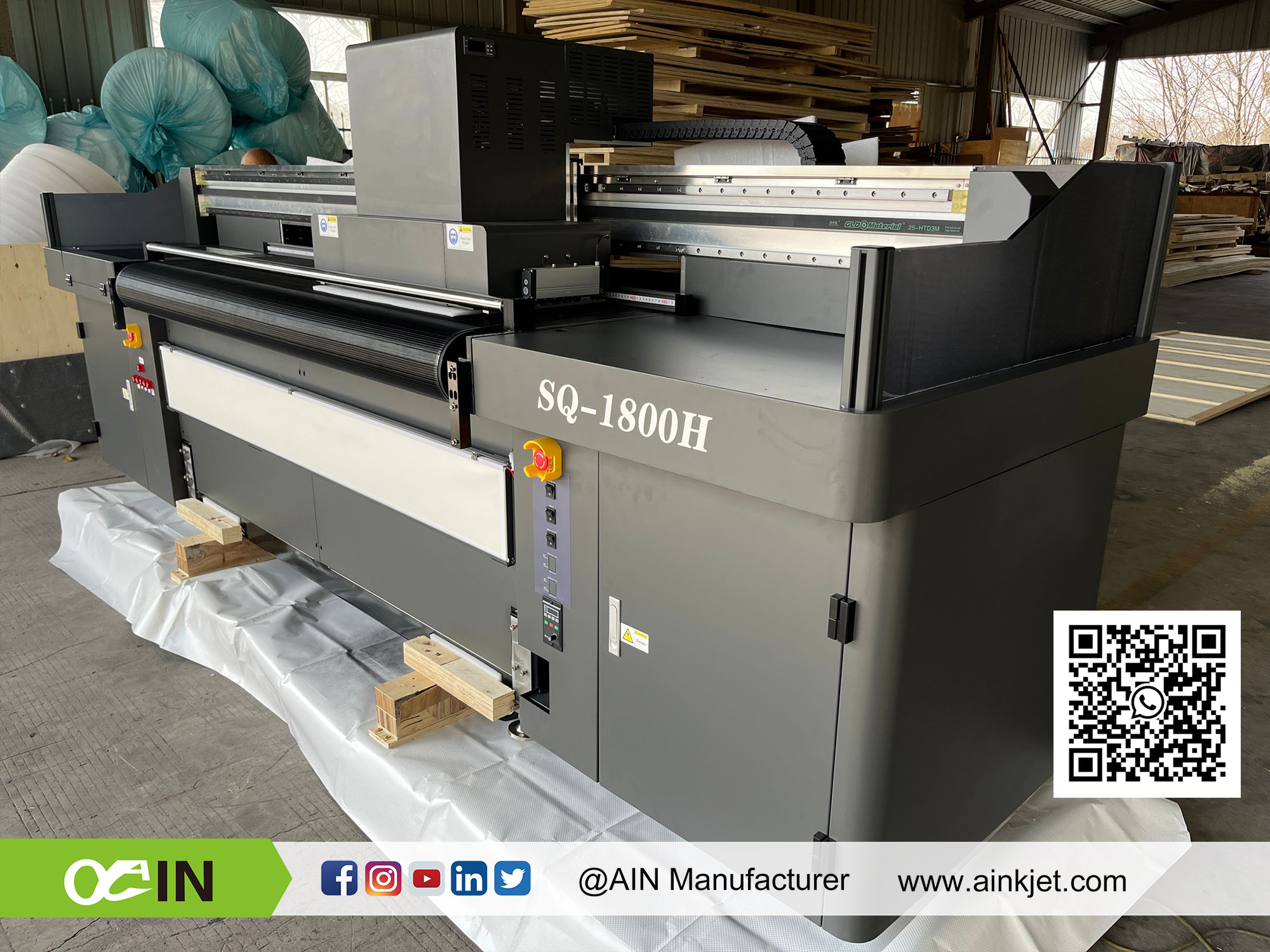

Technical Specifications

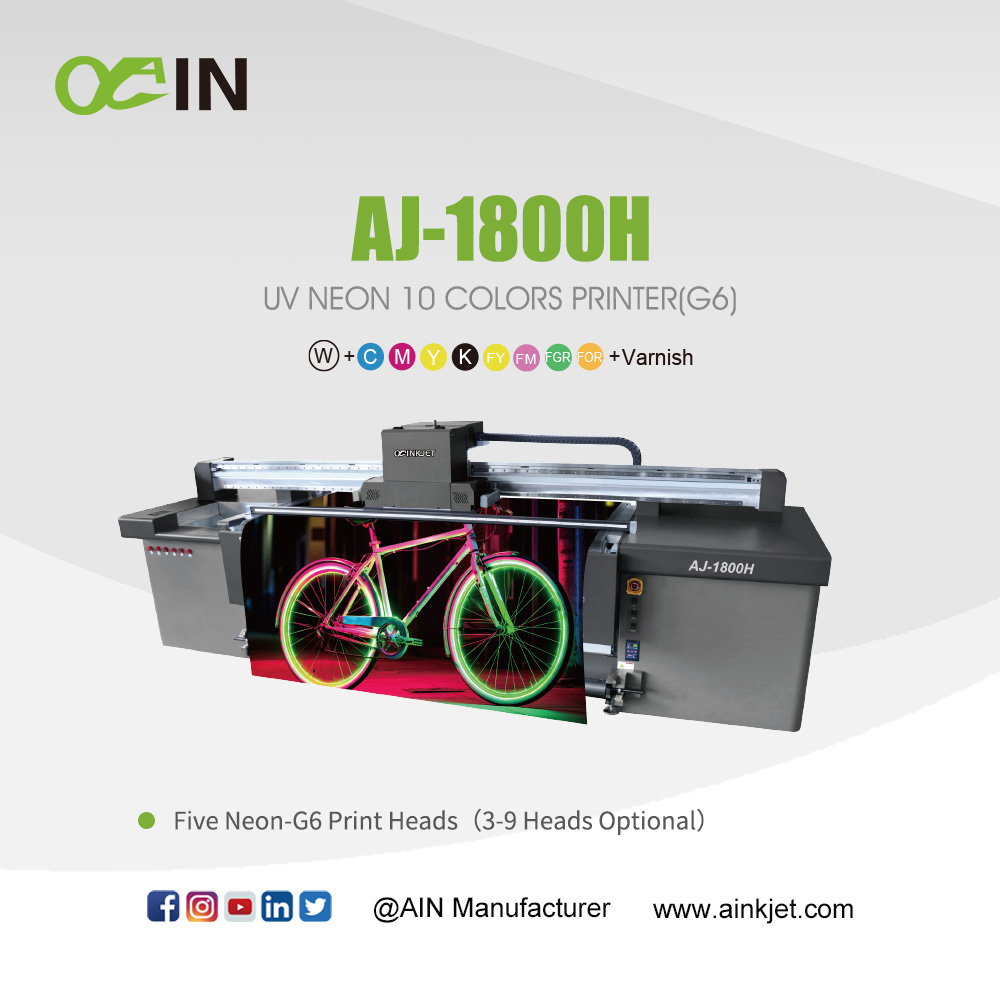

| Model | AJ-1800H Neon | |
| Print Head | Five Neon-G6 Print Heads(3-9 Heads Optional) | |
| Printing Technology | Piezoelectric Inkjet | |
| Width | 71.6 in. (1820 mm) | |
| Acceptable Media | Thickness | Maximum 35 mm |
| Neight | 132 Ib. (60 kg) | |
| Printing Width | 70.8 in. (1800 mm) | |
| Type | UV Ink | |
| Ink Cartridges | Capacity | Continual Ink Supply System(1.5L*10 ink tank) |
| Color | W+CMYK/FY/FM/FGR/FOR+Varnish | |
| Printing Resolution | Maximum 2400 dpi | |
| Print Media | 200kg paper take-up tube,standard front and rear air expansion shafts | |
| Interface | USB 3.0 | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| RIP | Onyx /Photoprint | |
| Dimensions(No stand) | 145(W)x65(D)x51(H)in. 3700(W)x1670(D)x1310(H)mm | |
| Neight(with stand) | 2204 Ib. (1000 kg) | |
| Power | Power on：5000W | |
| Power off：600W | ||
| Environment | Power on | Temperature:64 F to 84T [18℃ to 29℃]/Humidity:50 to 80%(No Condensation) |
| Accessories | USB cable,medja damp,nanual,drain bottle,ink cartridges,RIP software,eto |
Features
 |  |  |  |
| Material Height Measurement System | Automatic take-up | High qualtyimported THK high precision guide rail | drag chain |
 |  |  |  |
| High strength conveyor belt device | Ink supply system | Ink botle alarm system | LED backight |
 |  |  |  |
| Bilateral lungfunction | Frontand rearextension support frame | Vacuum suction platform control system | Nozzle anti-collision device |
Application
APPLICATIONS: The AlNKJET series excels in indoor applicalions. lt can be seen in posters, shopping malls with black cloth hangings, POP display boards, prohibited or safety information, guidance systems, special decorations in exhibition halls, event souvenirs, etc. The use of fluorescent colors not only enhances the visual effect, but also makes these applications more creative and personalized
