| Water-based Special UV Flatbed Printer Water-based Eco-friendly Ink Low‑VOC water‑based pigment ink, non‑toxic, odorless and residue‑free. Compliant with international export environmental standards, ideal for food paper packaging, baby product boxes and high‑end eco‑friendly paper packaging industries. 8‑Color Wide Gamut Printing Adopts dual CMYK plus four light tone matching systems (Lc/Lm/Lk/Llk). Delivers full color gamut coverage, rich gray gradients, accurate color restoration and ultra‑sharp printing effects for paper packaging. High‑Precision I3200‑A1 Industrial Printhead Equipped with Epson I3200‑A1 piezoelectric industrial printhead (configurable 4‑16 heads), delivering ultra‑high resolution, seamless color gradients, vibrant colors and long service life. Large Format & High‑Speed 1‑Pass Production 2500×1300mm full printing width, supports 1‑pass high‑speed printing up to 70 sqm/h with full 8‑color output. Balances high definition and mass packaging production. Built with high‑precision gantry and segmented vacuum adsorption platform for stable long‑time continuous paper printing without deformation. Paper‑Based Substrate Compatibility Perfect ink penetration & adhesion on all absorbent paper without primer. Suitable for coated paper, white cardboard, silver cardboard, white kraft paper, yellow kraft paper and all kinds of packaging paper sheets. Packaging Industry Wide Application Widely used for short‑run carton printing, gift box digital printing, folding packaging boxes, paper creative crafts and custom paper packaging accessories, supporting diversified small‑batch customized packaging orders. |
New Feature of UV Flatbed Printer We have an excellent technical team, which can be designed according to customers requirements. |
 | |  |  |
Technical Characteristics - The eight-color scheme offers high-quality printing solutions. - Linear motor + metal grating, ensuring higher output accuracy and working stability; - Environmentally friendly, odorless, and with low energy consumption. - High-speed printing boosts production capacity; - Compliant with the international ICC standard, featuring curve and density adjustment functions; - Leading servo motor module, ultra-high precision printing platform; |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications
| AINKJET AJ-2513W Water-based Special UV DTF Flatbed Printer | ||
|---|---|---|
| Type | AJ-2513W | |
| Print Head | Epson I3200-A1 | |
| Spray Head Control | 3.5pl | |
| Printing Width | 2500×1300mm | |
| Dpi | 300×1200 dpi,720×1200 dpi etc | |
| Print Number | 4-16 Print Heads Optional | |
| Software | NeoStampa | |
| Ink | Type | Water Ink |
| Color | CMYK / Lc / Lm / Lk / Llk | |
| Print Thickness | 1-100mm | |
| Power Supply | AC220V(±10%),50/60Hz | |
| Interface | USB 3.0 | |
| Printing speed (CMYKLcLmLkLlk) | Speed mode | 2pass 53 sqm/h |
| Production mode | 4pass 25 sqm/h | |
| X axis | High-precision linear motor, metal grating positioning | |
| Height Measurement | Automatic height measurement | |

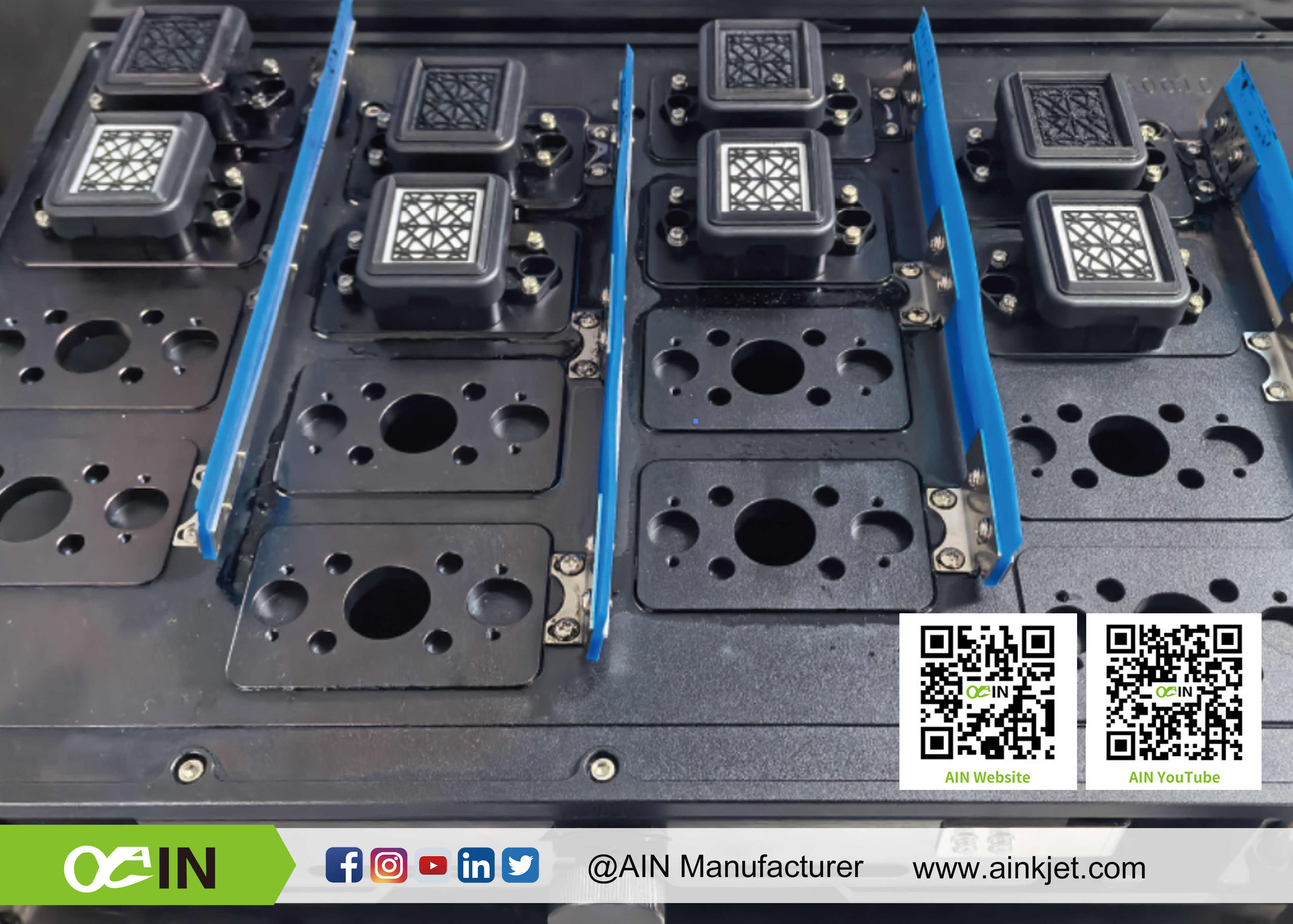

| Spray head maintenance | Automatic cleaning and maintenance, independent ink pad moisturization | |
| Environment | Temperature: 15℃-32℃, Humidity: 40%-70% (RH) | |
| Power Consumption | Printing mode:4000W Sleep mode:600W | |
| Printer Dimension | 4860mm × 2220mm × 1420mmPacking: 5000mm × 2300mm × 1928mm | |
| Power Supply | AC220V(±10%),50/60Hz | |
| Weight | 1600kg | |
Features

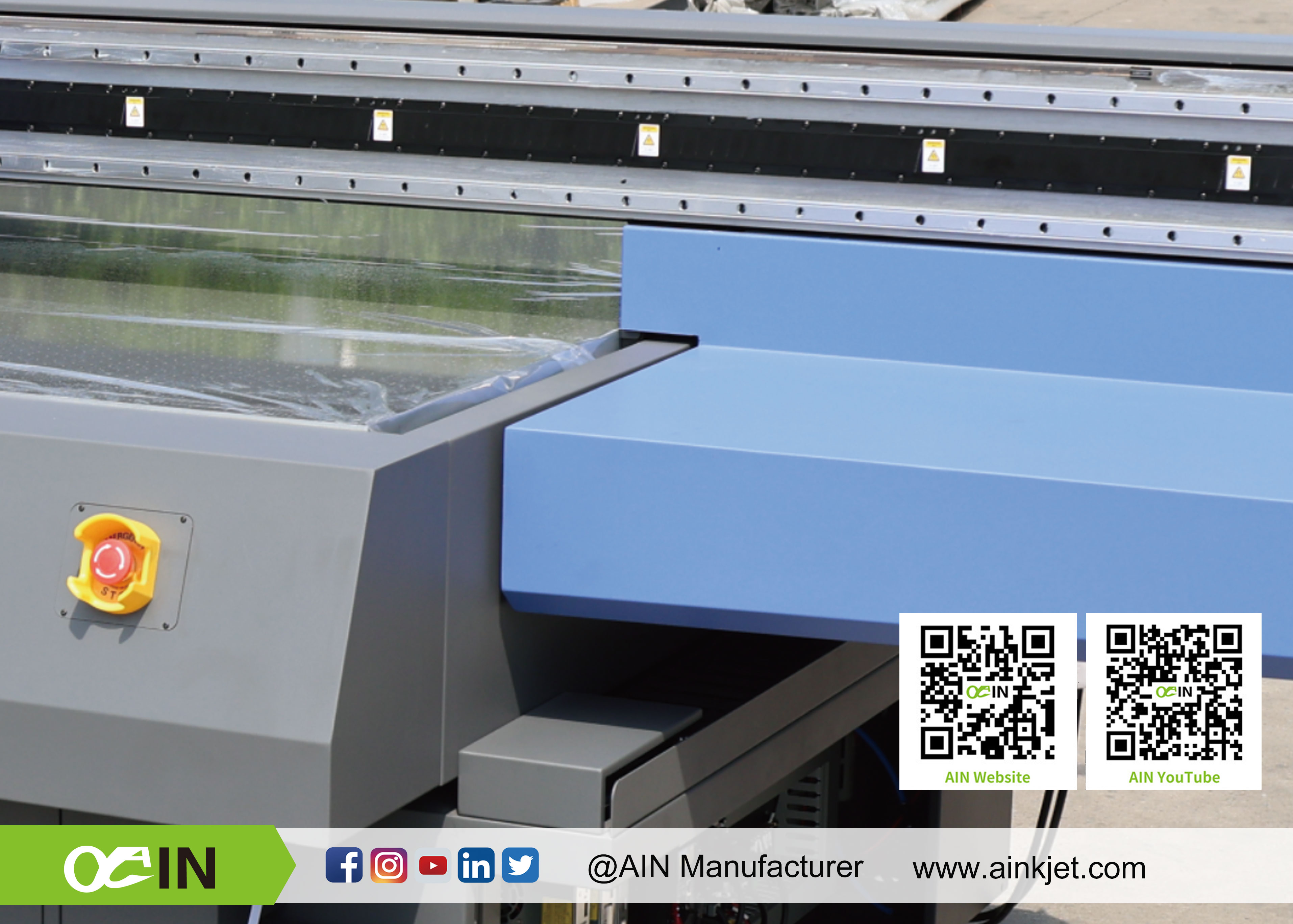

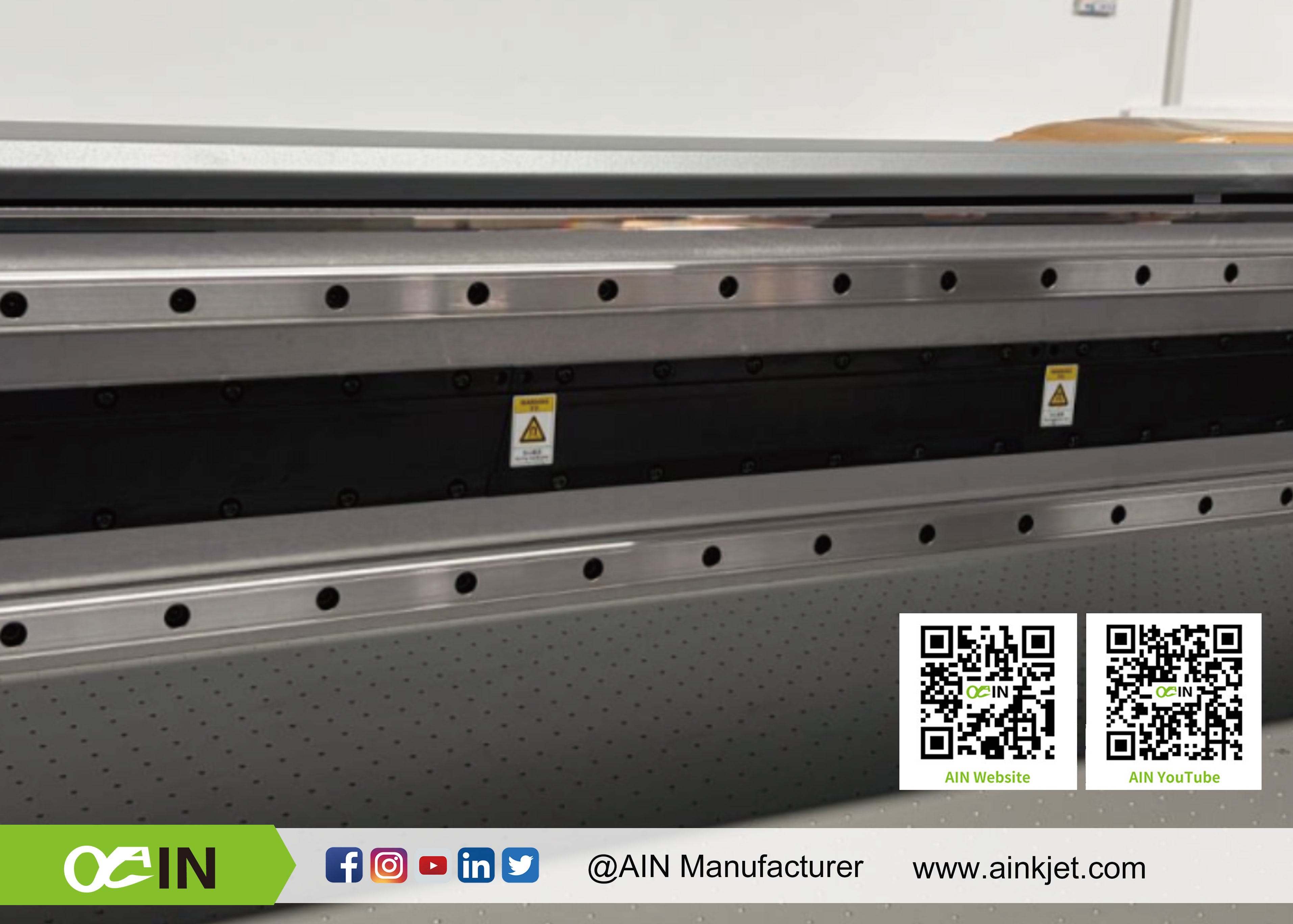

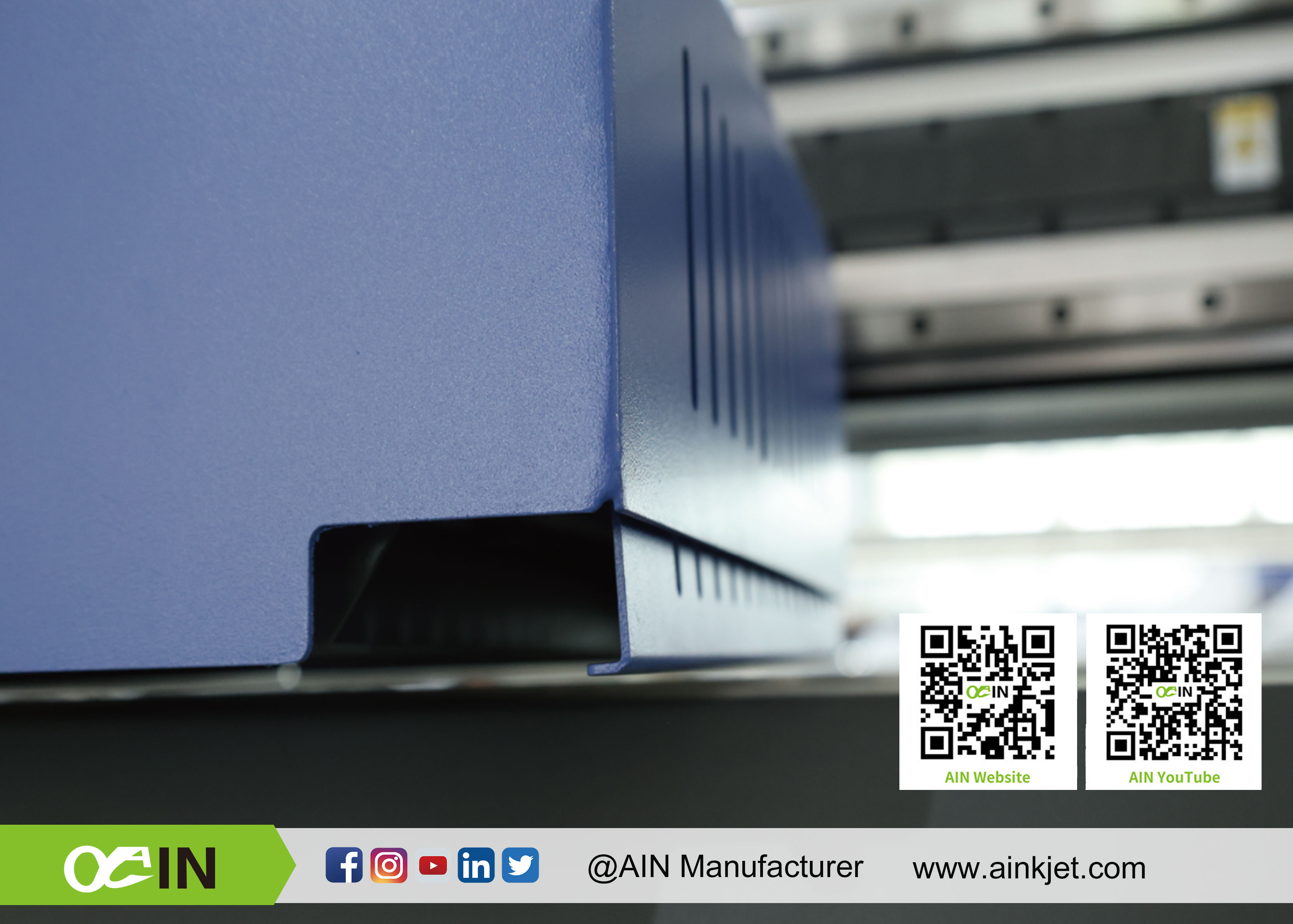

 |  | The latest V-shaped structure makes loading and unloading much more convenient. It is brand new. The high-stability imported metal grating and magnetic levitation linear motor are more durable and significantly enhance the stability of printing, ensuring continuous high-quality output. |

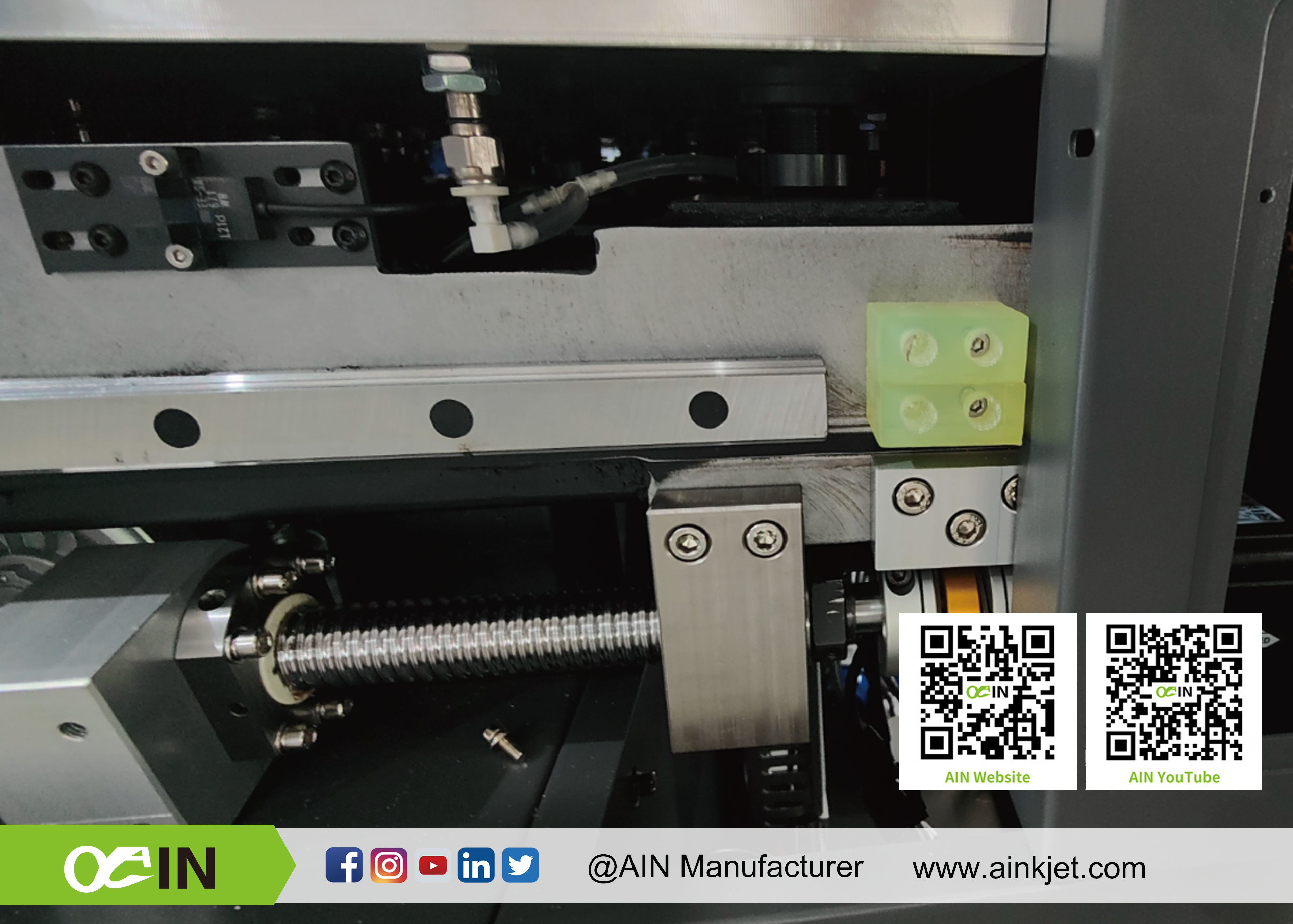

 |  | The Y-axis is equipped with advanced Panasonic dual servo motors, ensuring stable output under high precision and high speed conditions; the extended trolley buffer platform is designed to truly accommodate full width. 2500*1300mm |

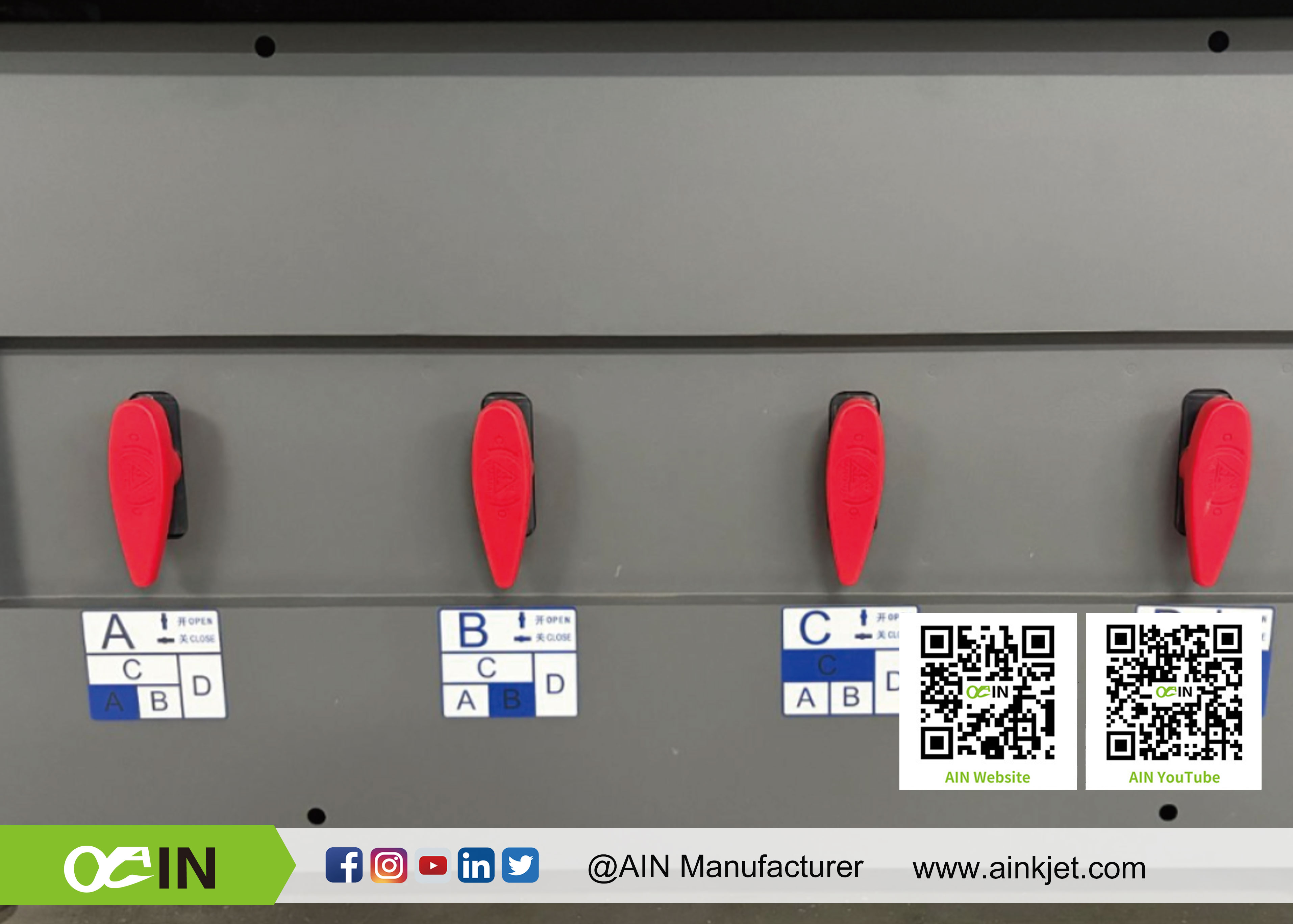

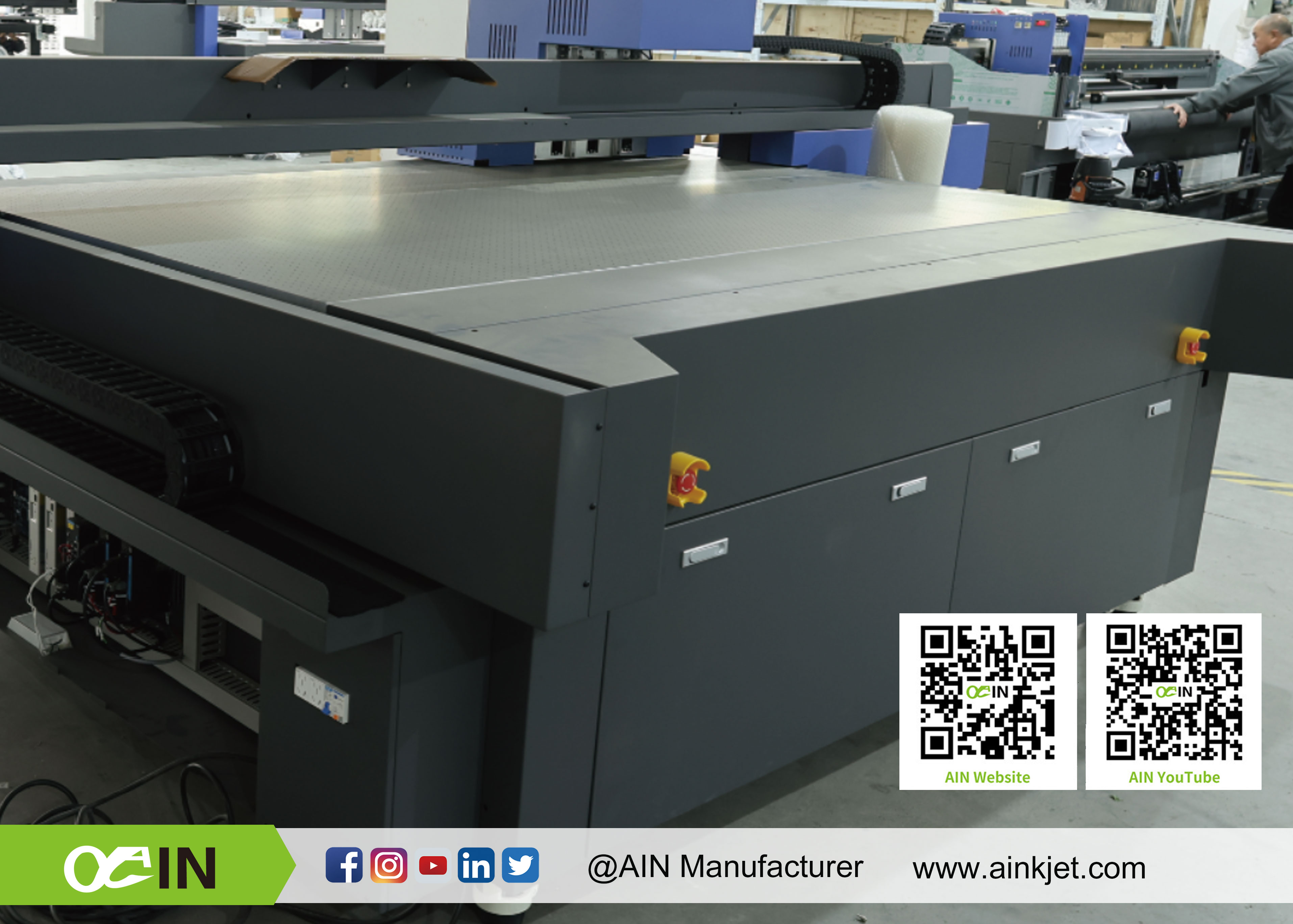

 |  | The all-round spray head is equipped with anti-collision features, effectively preventing the spray head from being damaged in all directions. The independent control platform uses suction to draw air, with six suction zones set up. Each zone is controlled independently by a suction knob, providing greater flexibility in zone selection. |
 |  | The all-round spray head is equipped with anti-collision features, effectively preventing the spray head from being damaged in all directions. The independent control platform uses suction to draw air, with six suction zones set up. Each zone is controlled independently by a suction knob, providing greater flexibility in zone selection. |
Application
Applications of AJ-2513W Water-based Special UV DTF Flatbed Printer
It can meet thedigital printing of coated paper, white cardboard, silver cardboard. white kraft paper,yellow kraft paper and other packaging paper products.
