Printer Informations
| High-speed Magnetic Levitation Hybrid UV Printer Printhead & Color Solution Options Optional printheads: Ricoh G6, Konica 1024, Epson T3200 (3–16 heads). Supports multi-resolution & multi-pass printing. Compatible with fluorescent ink, primer, white ink and varnish for processes: solid color, color-white-color, white-color-varnish, primer+white+color+varnish. Linear Motor & Metal Grating Adopts magnetic levitation linear motor and high-precision metal grating for fast speed and high carriage positioning accuracy. It supports continuous board printing (min. 40cm×60cm). One-click automatic operation boosts productivity. Hybrid Roll & Flatbed Printing Dual-purpose machine for both roll media and rigid boards. Standard equipped with automatic printhead height measurement and LED cold light curing. Dual-feeding structure can load two rolls simultaneously for roll change without machine stop, suitable for mass production. Vacuum Platform & Fully Enclosed Frame Equipped with a 2.2KW suction motor and independently controlled vacuum zones. The fan auto-shuts down after 30s–1min. Fully enclosed frame blocks dust; top dual outlets vent odor to meet EU standards. Interlock safety switch protects operators. Substrate Compatibility Roll materials: flexible sheet, film, car sticker, PET, PVC, wallpaper, leather, non-woven fabric, gold/silver paper, label sticker. Rigid boards: PVC, KT board, acrylic, packaging box, glass, tile, foam board, operation panel and other decorative boards. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |
 |  |  |  |
|  |  |  |
Technical Characteristics
|
| AJ-3200H | 8 x G6 (44) | 9 x G6 (414) | 10 x G6 (442) | |||
|---|---|---|---|---|---|---|
| Printing Mode | / | CMYK | / | CMYK | CMYK+W+CMYK | CMYK+W |
| Speed Mode | 2pass | 65 m²/h | 3pass | 80 m²/h | 60 m²/h | 80 m²/h |
| Quality Mode | 3pass | 45 m²/h | 4pass | 55 m²/h | 40 m²/h | 55 m²/h |
| High Precision Mode | 6pass | 32 m²/h | 6pass | 42 m²/h | 30 m²/h | 42 m²/h |
Technical Specifications

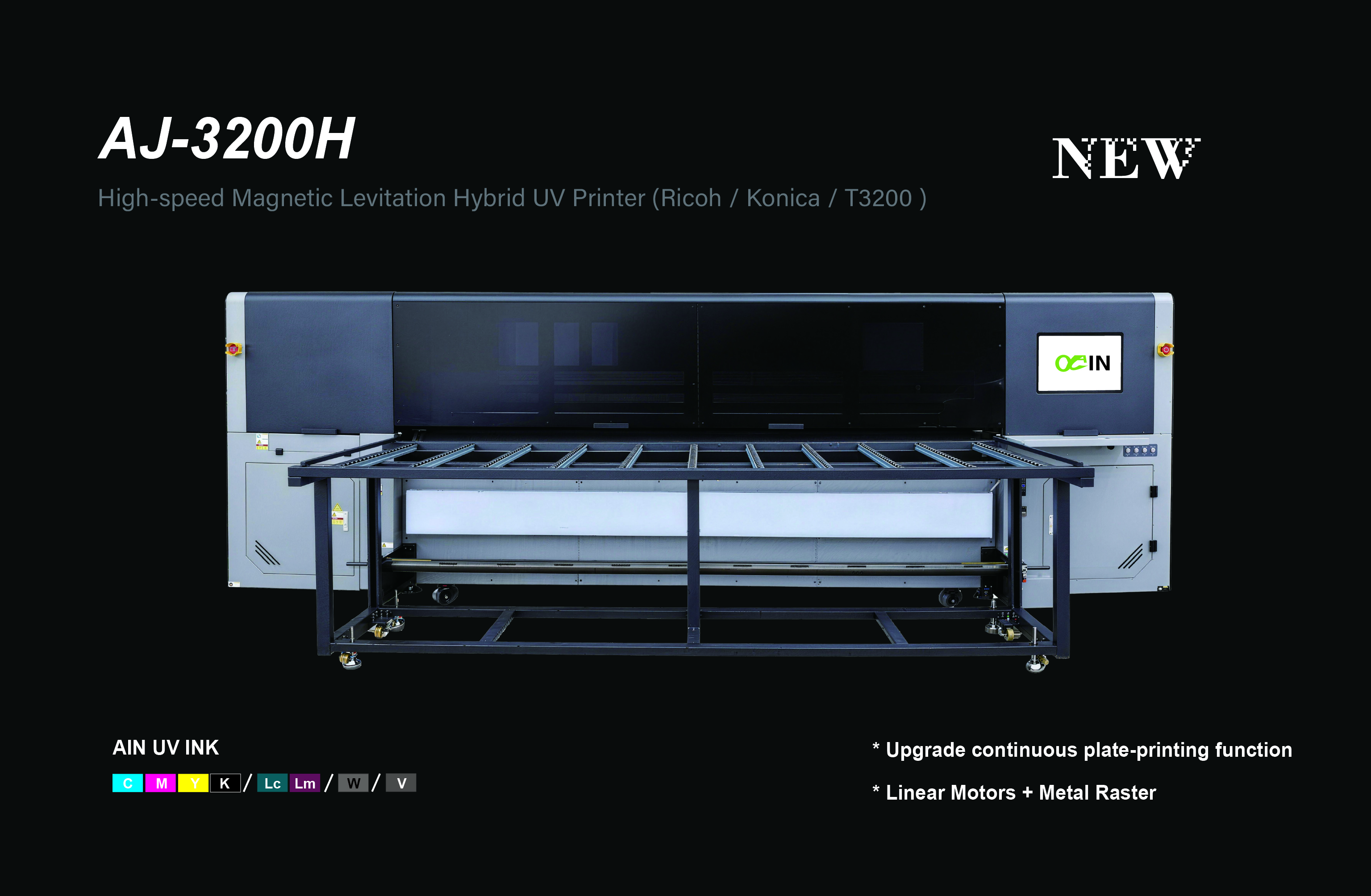

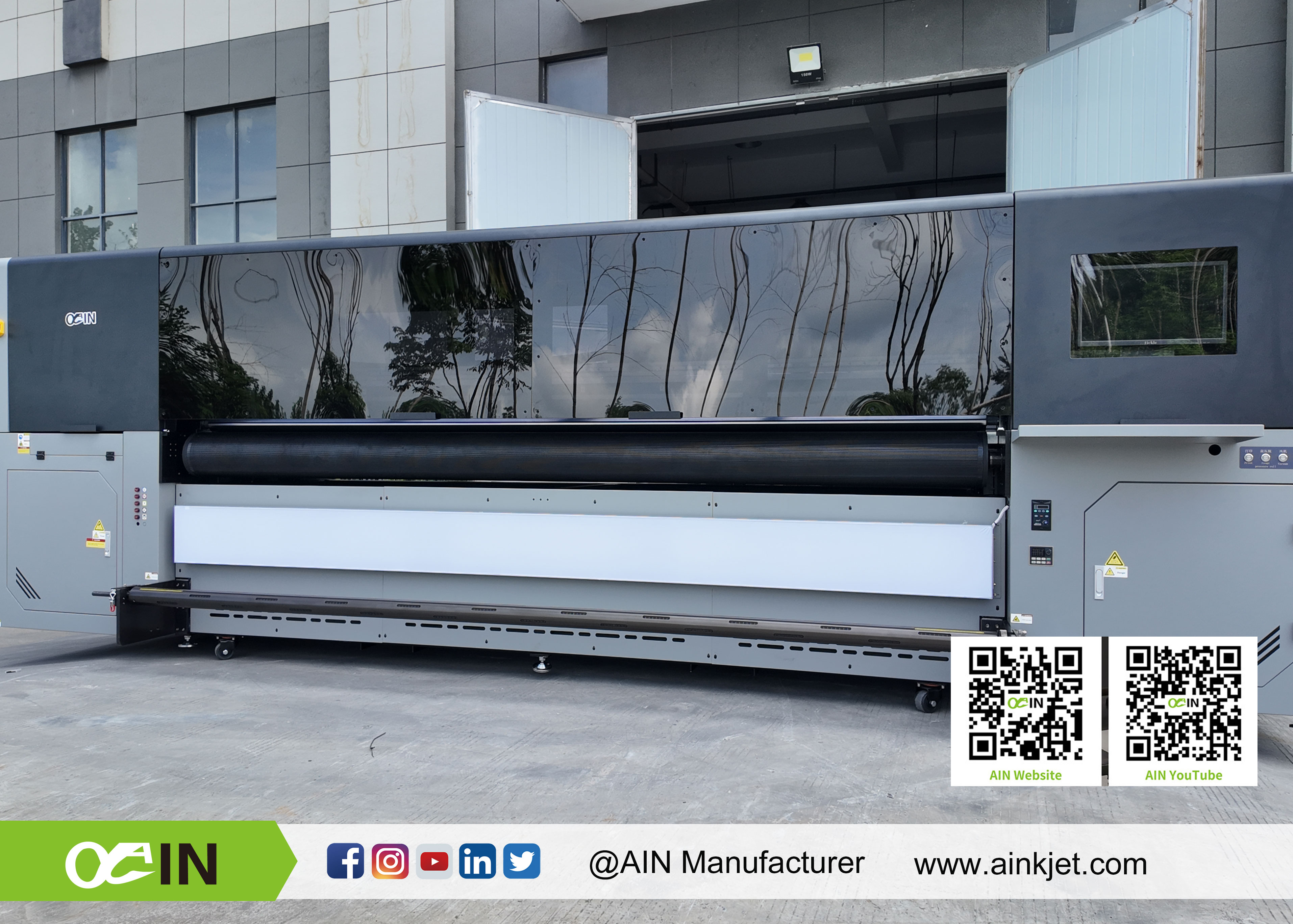

| AINJKET AJ-3200H High-speed Magnetic Levitation Hybrid UV Printer | |
|---|---|
| MODEL | AJ-3200H |
| PRINTER HEAD | Ricoh G6 (Gray scale piezoelectric inkjet technology, Ricoh 5PL)(G5 optional) |
| NUMBER OF PRINTER HEADS | 5 heads (3-16 heads optional) |
| PRINTING THICKNESS | 1-50 mm |
| RESOLUTION | 600dpi 900dpi 1200dpi 1800dpi 2400dpi |
| SOFTWARE | ONYX (Caldera Optional) |
| MEDIA WEIGHT | 300kg paper receiving drum with front and rear air expansion shaft as standard |
| COLOR CONTROLTypeColor | UV INKCMYK / Lc / Lm / W / V |
| PRINT WIDE FORMAT | ≤ 3200mm |
| COLOR CONTROL | ICC compliant with curve and density adjustment |
| INTERFACE | USB 3.0 |
| VOLTAGE | AC220V(±10%), 50/60Hz |
| WORKING ENVIRONMENT | Temperature 18℃-29℃Humidity 50%-80% |
| POWER CONSUMPTION | Working state: 5000W Sleep state: 600W |
| MACHINE SIZE (L×W×H) | Bare metal: Body 5403×1813×1750mmDimensions with extension platform 5403×3260×1750mm |
| MACHINE WEIGHT | 3300kg |
Features
 |  |  |

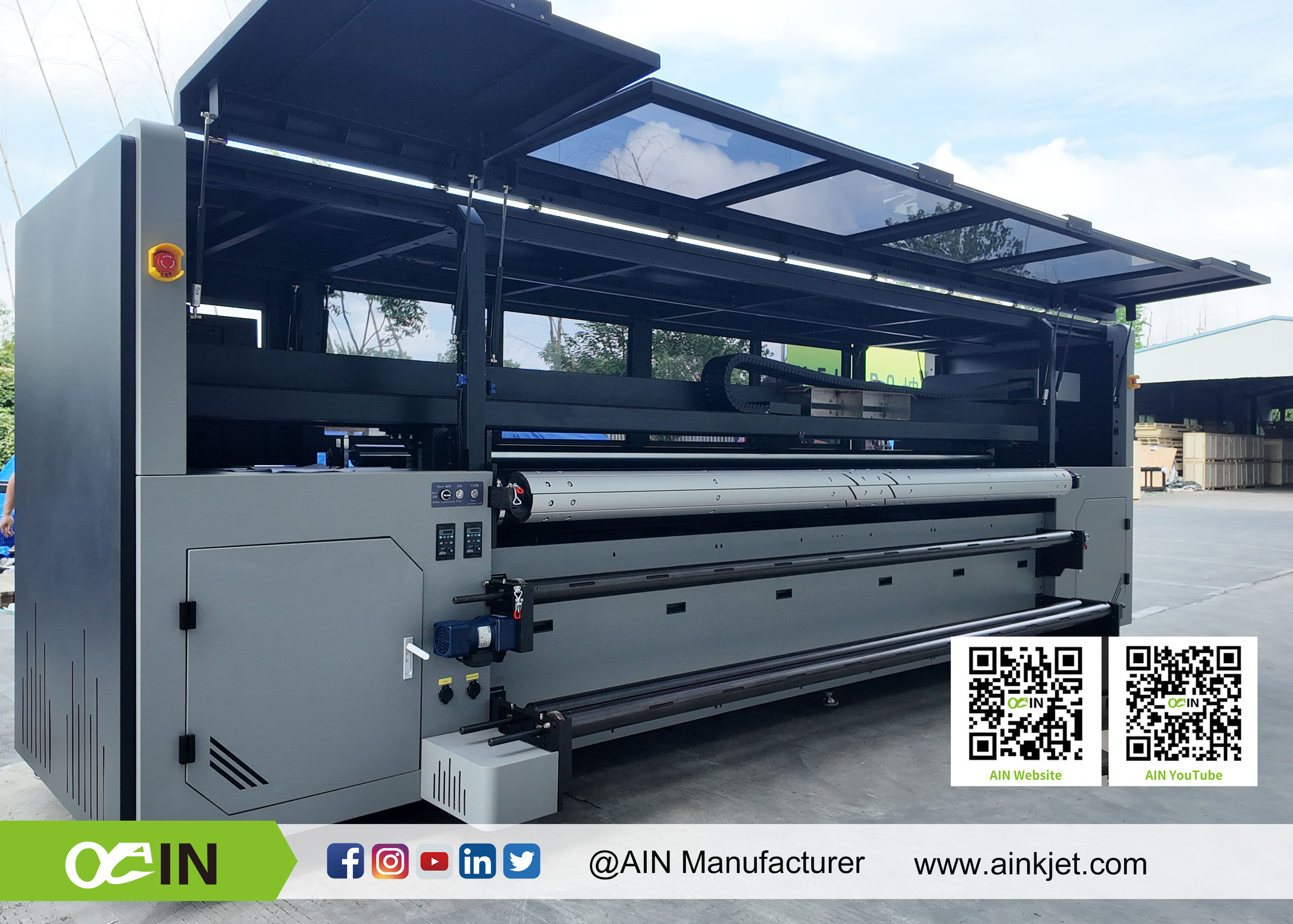

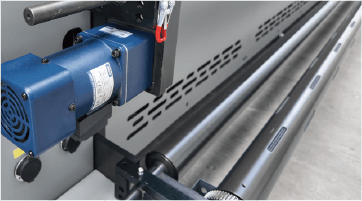

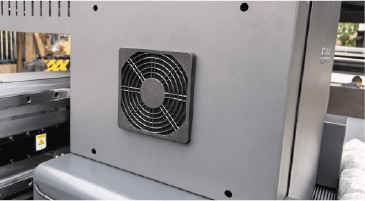

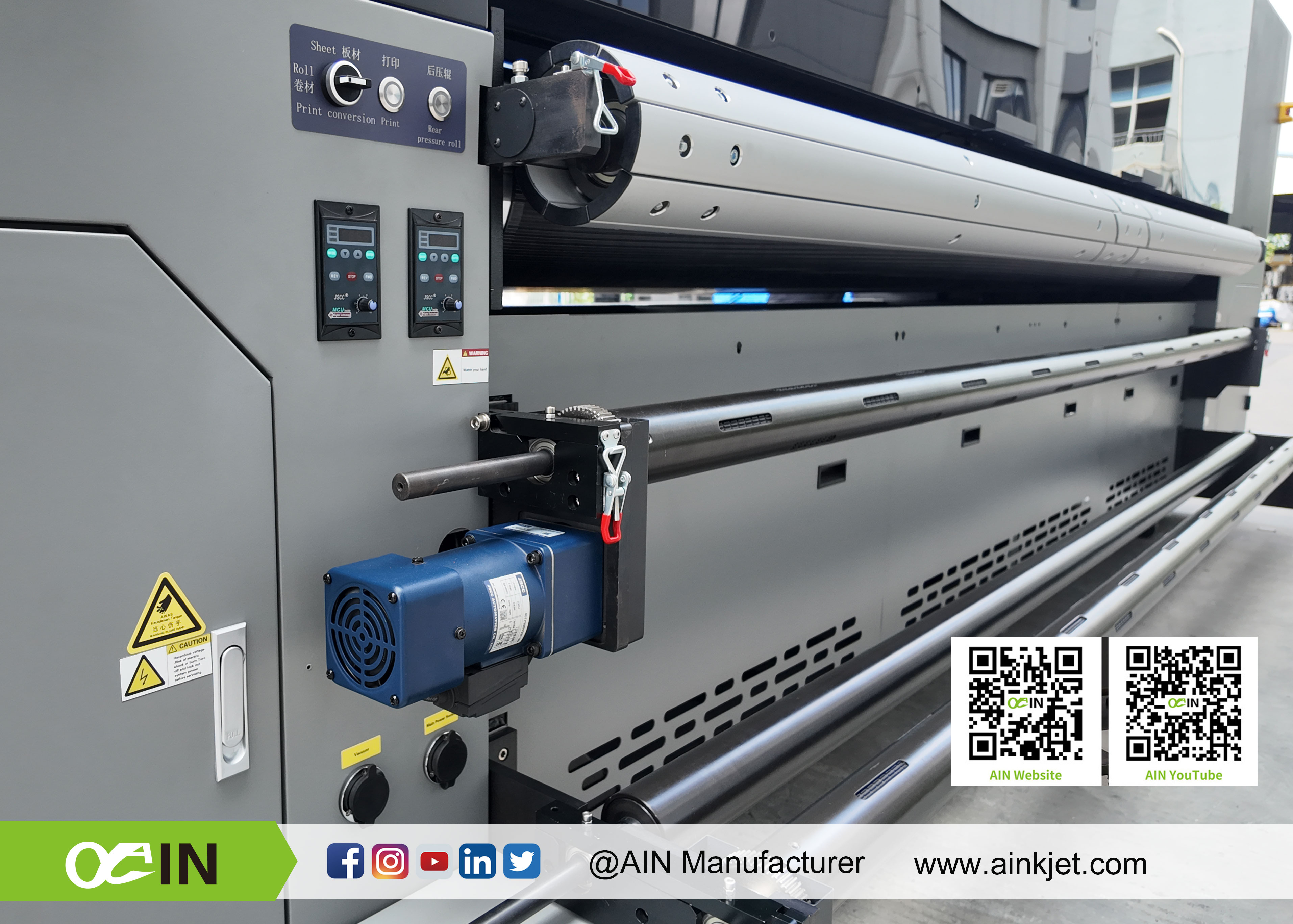

Feimo Exhaust SystemThe new front fan design, combined with the ink splatter exhaust system, effectively reduces pollution caused by ink splashes. | Front & Rear Pneumatic ShaftThe air shaft allows for easier material unwinding and winding, and the structure is compatible with materials of various thicknesses and specifications. | Linear MotorSignificantly improves printing speed, reduces production noise, and enhances the working environment. |
 |  |  |

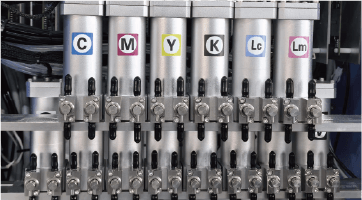

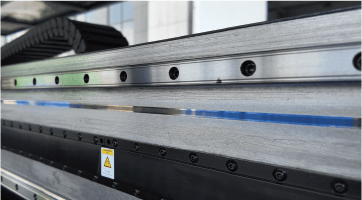

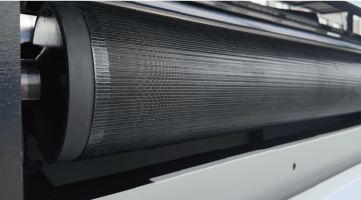

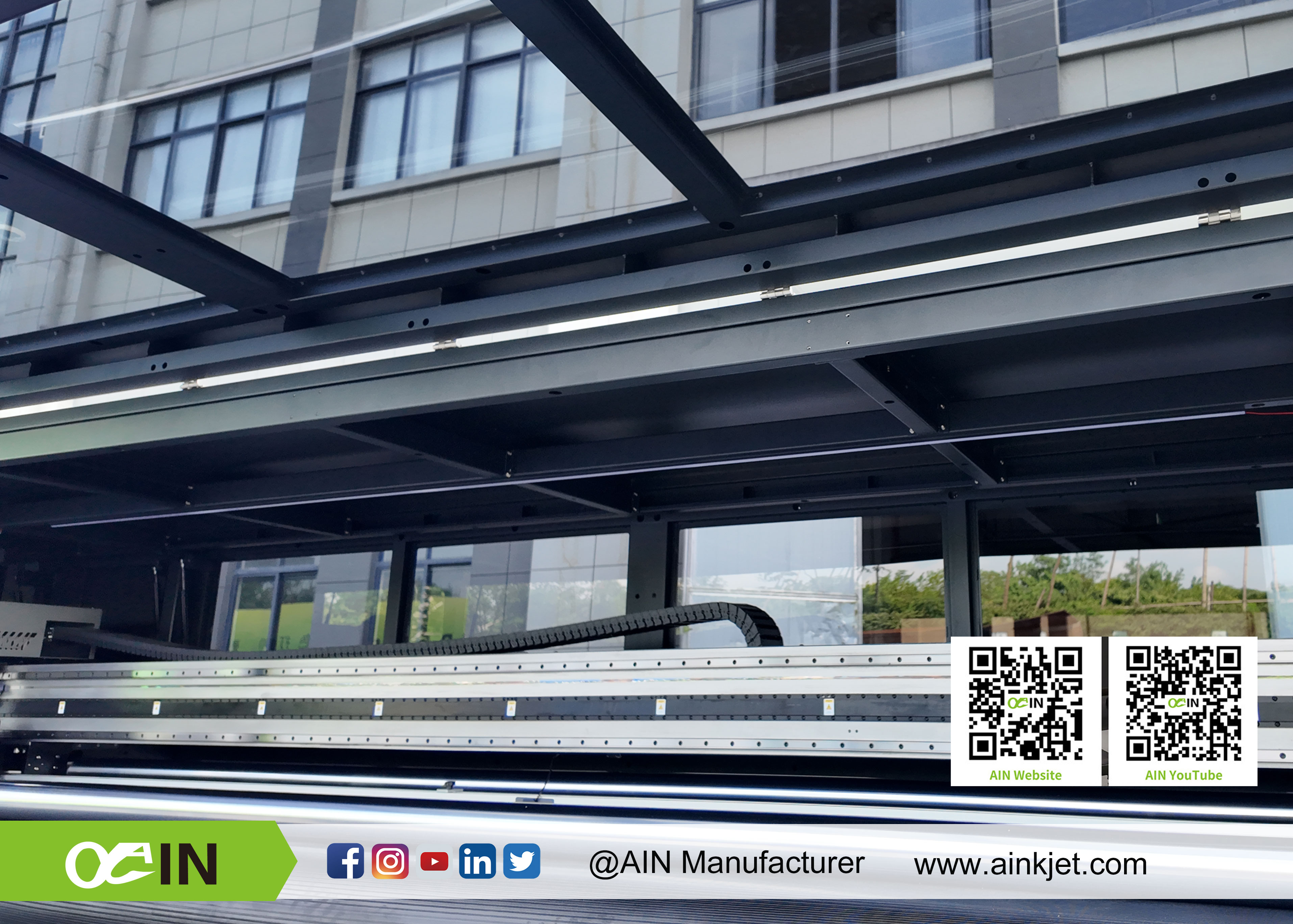

Front Roller of Rubber RollerThe addition of a front roller prevents the rubber roller from deforming during prolonged operation and increases printing stability. | Independent White Ink PumpAll white ink pumps are independently designed to ensure a stable ink supply, avoid mutual interference, and improve print detail and quality. | Metal GratingHigh-precision metal gratings are used to precisely control the positioning accuracy of the printing carriage. |
 |  |  |

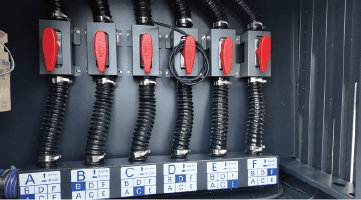

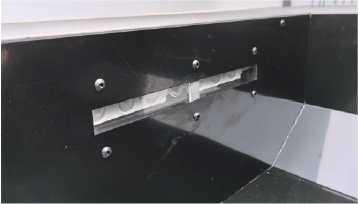

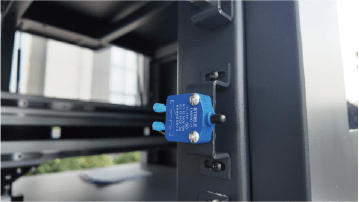

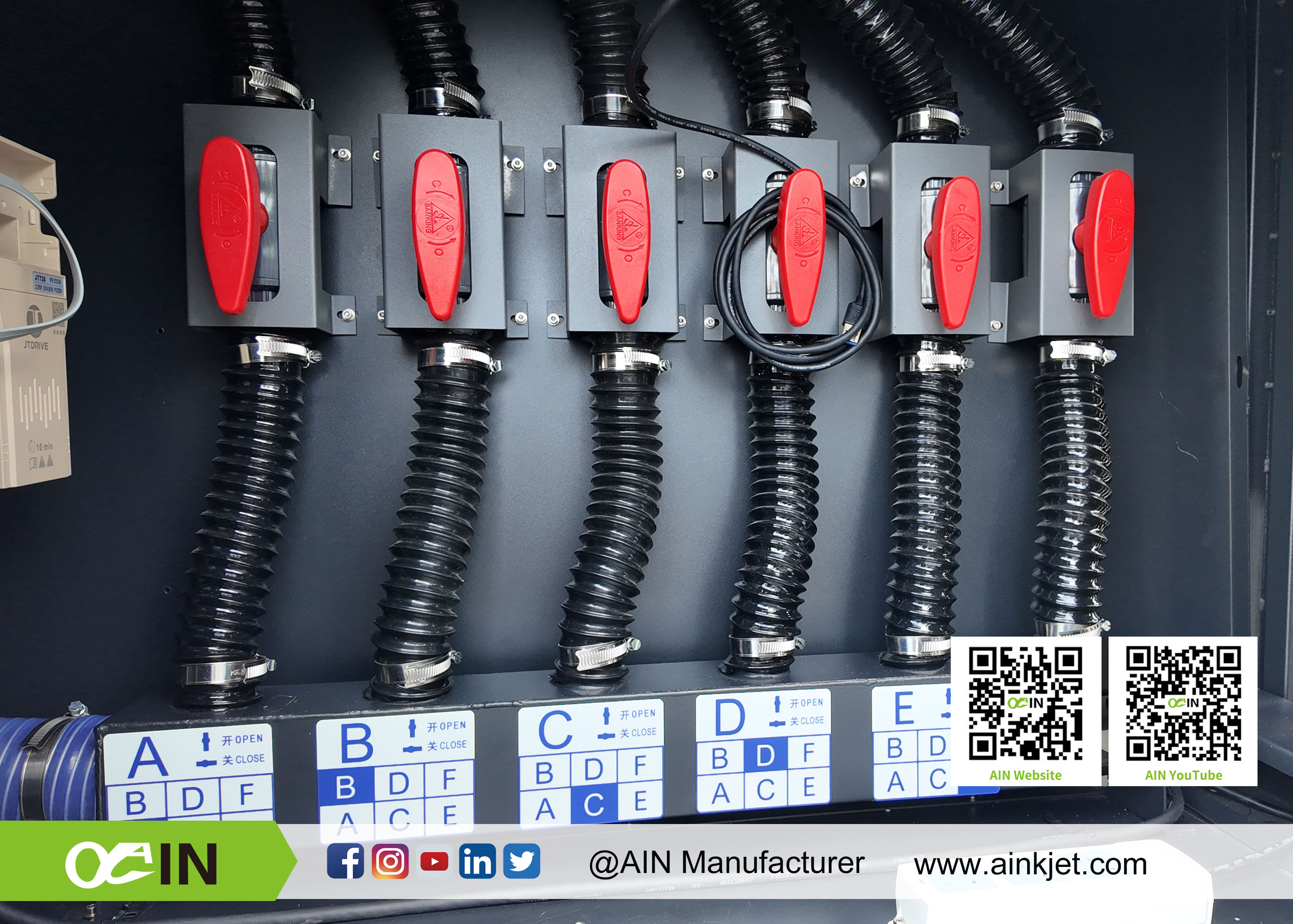

Upgraded Suction ZonesSix suction zones, offering a wider range of material options. The upgraded automatic feeding function allows for continuous, uninterrupted plate printing. | LED Lights for Ink Waste TraysThe newly designed waste ink tank, equipped with LED lights, helps operators monitor waste ink levels more easily. | Stop when you open the lidThe user-friendly design automatically stops the device when the lid is opened, enhancing the safety of both equipment and personnel. |
Application
Applications of AJ-3200H High-speed Magnetic Levitation Hybrid UV Printer
Roll to Roll: light sheet, Transparent film, Car sticker, Single transparent, Label sticker, PET&PVC, all kinds of cardstock, gold and silver paper, leather, non-woven fabric, wallpaper, wall cloth, etc.; Flatbed: operation panel, polyethylene packaging box, PVC board, KT board, snow board, glass, tile and other advertising decorative materials.
