Product Description
Achieving amazing colors
Quick dry and no need laminating,highlyimproves the color performance. Sharpen the qualty of any substrate with the vibrant color gamut ofLatex Inks and a thin ink layer preserving media feel.
Outdoor thick scratch resistance
The latex composition in the ink is heated and dried to lock the pigment on the surface of the material,avoiding the oxidation of the pigment, thus preserving the colorfor a longer time and effectvely preventing scratching.
Designed with the environment in mind
in addltion to delivering outstanding image qualty, consistency, and durabilty, water based LatexInks provide an attractive environmental protection for both printing service providers and customers.
| AJ-1800HE(3Heads) | OP+W+C | OP+2C |
| 4pass:720x1200dpi | 14sqm/h | 24sqm/h |
| 6pass:720x1800dpl | 10sqm/h | 18sqm/h |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications

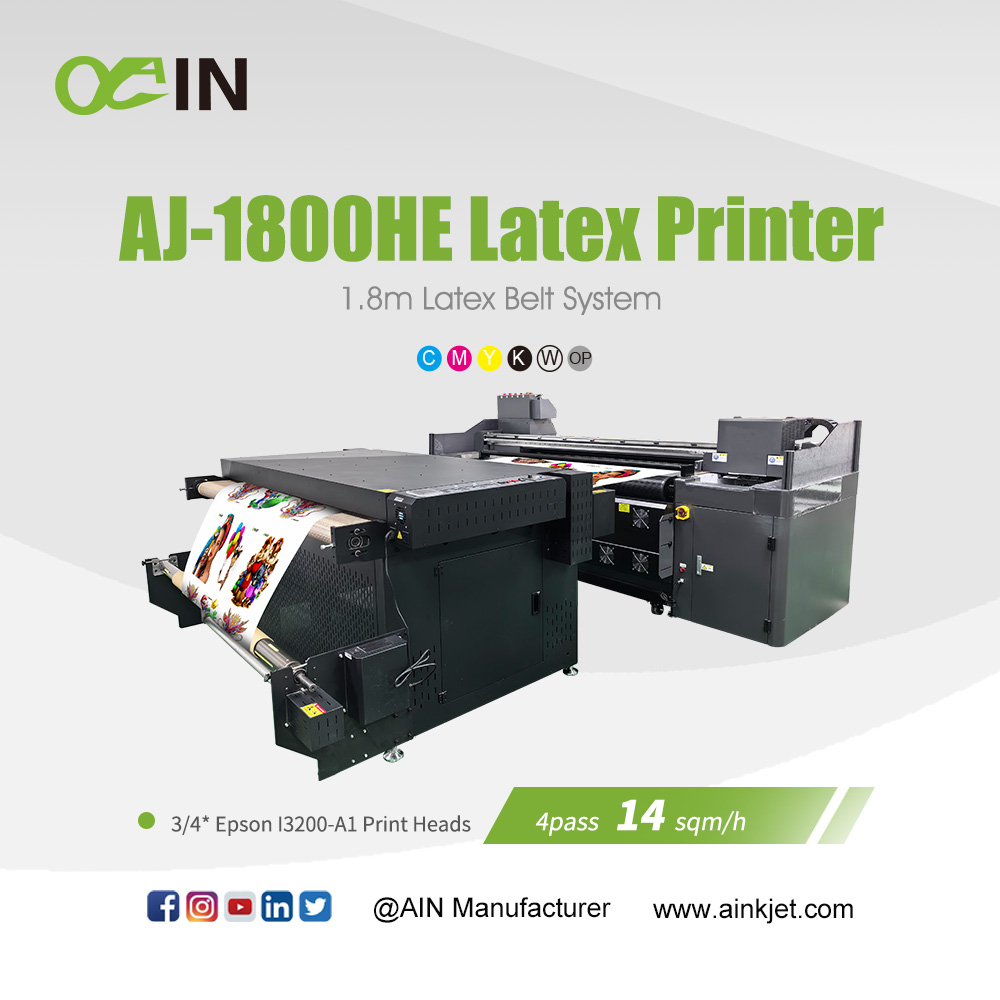

| Model | AJ-1800HE | |
| Print Head | 3/4* Epson I3200-A1 Print Heads | |
| Printing Technology | Roll to roll | |
Acceptable Media | Width Thickness | 1800mm Maximum 1mm |
Printing Width | 1800 mm | |
| Resolution | 600dpi/900dpi/1200dpi/1800dpi/2400dpi | |
| Ink | Water based latex ink | |
| Printing Speed | 3Heads-(OP+2C)；720*1200dpi 4pass:24 sqm/h 3Heads-(OP+2C)；720*1800dpi 6pass:18 sqmh | |
| Colors | CMYK | |
| RIP | ONYX/Caldera | |
| Power | Operating mode:20KW Sleep mode:600W | |
| Dimensions Size | 3290(W)*1350(D)*1530(H)mm | |
| Drying size | 2260(W)*1750(D)*1110(H)mm | |
| Weight | 1550kg | |
| Power Supply | 380V±5%,50/60 HZ,40A | |
| Connector | USB 3.0 | |
| Environment | Temperature:18℃-26℃, Humidity: 30%-75%(RH) | |
| Accessories | Support, receiving and discharging machine,cold air drying system, large ink supply system,ete |
Features

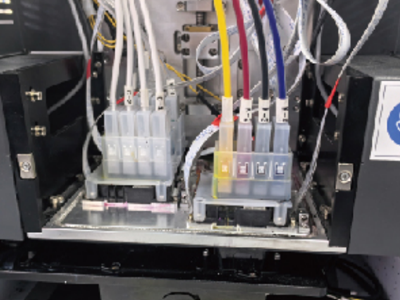

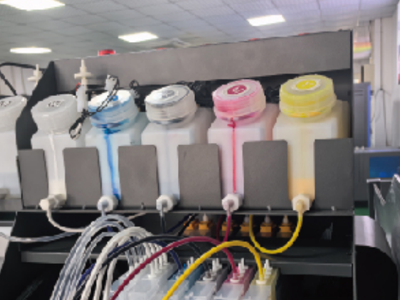

 | Automatic moisturizing ink holder Prevent inkclogging the nozzle, and regularty moistunize the nozzle to keep it clean and moist to keep he equipment in optimal working condition. |  | Secondary cartridge he use df kwostige inkcatidse ystem ensures stable ink output of inkjetsystemand increases printing peformance |

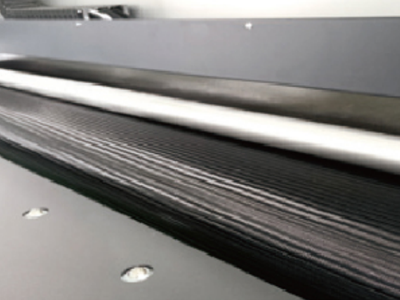

 | High strengthtransfertape guide device Specialhigh strengthlow tensile belt,no deviation, no deformaton, long service lie |  | Rear drying device Multi-stage adjustabledrying, synchronous drying, that is, dry,no post-processing |

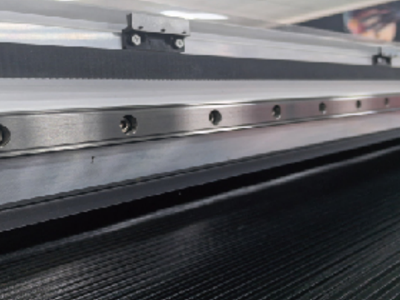

 | THK Sllent guide rall Effectively reduce the noise of the working environment improve the pinting accuracy and stabiltyofthe car, and more accurate posttioning |  | Eront and rearinflatable shaf retracting and discharging system More convenient retracting structurs can meet a variety of differentthickness specifications of materials |
Application
Added optimizer output ,can be printed on uncoated materials, making the output more delicate,
the colors more firm, and the picture saved longer.Can be directly printed on wallpaper,
wallcovering, uncoated PVC & PET materials
