Product Description
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications

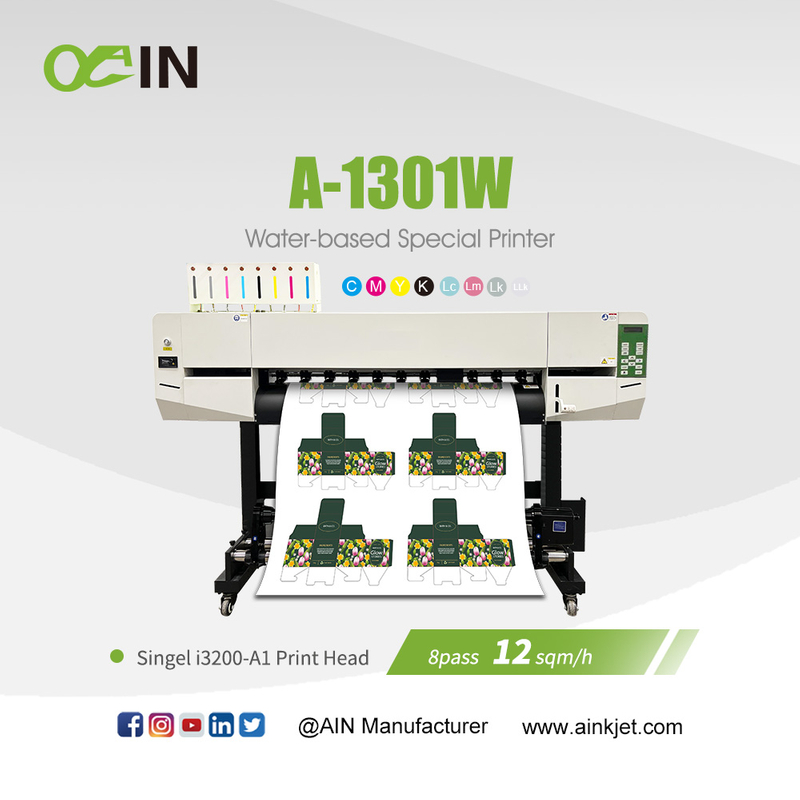

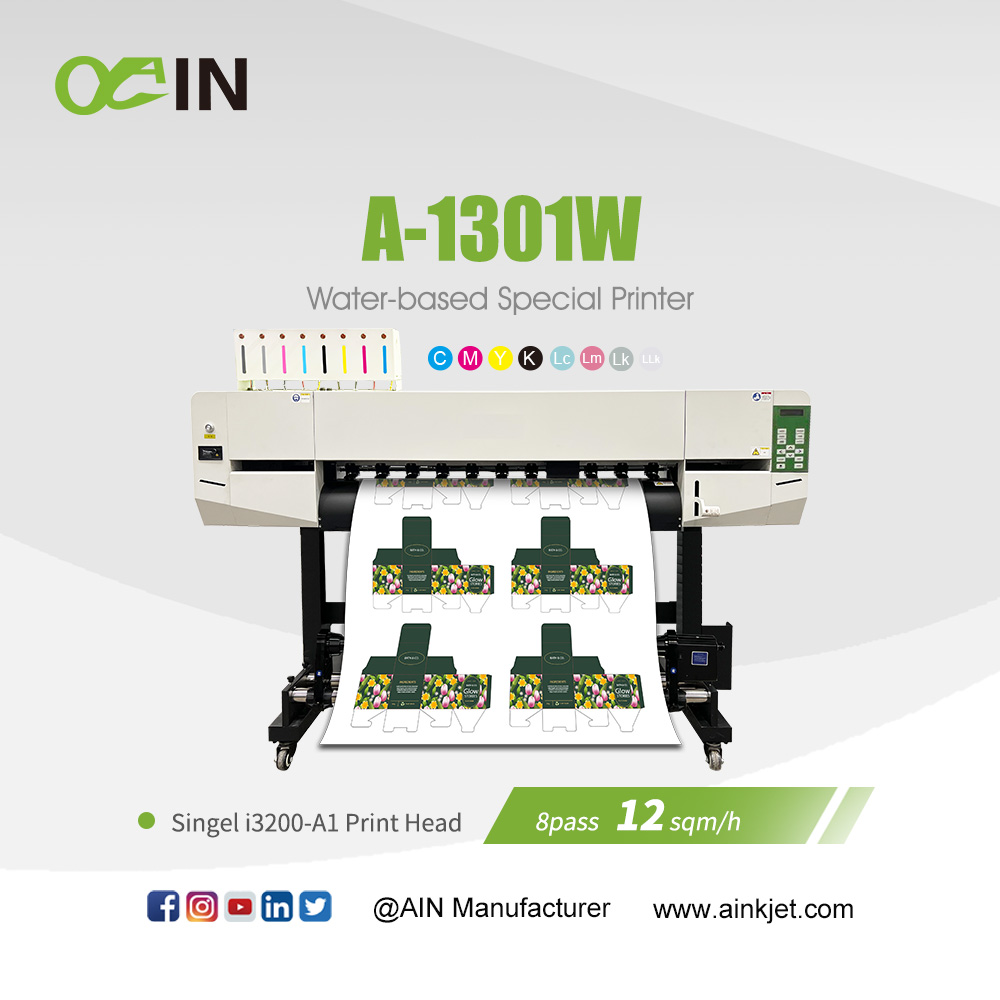

| Model | AJ-1301W | |
| Print Head | Single I3200-A1HD Print Head | |
| Printing Technology | Piezoelectric Inkjet | |
| Printing Width | 210-1300mm | |
| Acceptable Media | Width Thickness Weight | 210-1300mm 1mm 50kg |
| Ink Cartridges | Type Capacity Color | Water-based Ink Color Siphon(Secondary cartridge + large ink barrel) CMYKLcLmLkLLk |
| Power consumption | 2500W | |
| Printing Resolution | Maximum 2400 dpi | |
| Speed | 8pass(720x1200dpi)-12sqm/h 12pass(720x1800dpi)-8sqm/h | |
| Interface | Gigabit Ethernet | |
| Power Supply | AC 220V±5%,16A, 50/60 HZ | |
| Dielectric heating system | Three-stage heating system | |
| Package Weight | 250kg | |
| Dimensions(with stand) | 2255(W)x933(D)x1539(H)mm | |
| Environment | Power on Power off | Temperature:59T to 90T[15C to 32C]/Humidity: 35 to 80% (no condensation) Temperature:41T to 104T[5C to 40C]/Humidity: 20 to 80% (no cwndensation) |
| Accessories | support,take-up and discharge device and USB Cable, ink supply system, Manual,Pressed paper sheets,Etc | |
Features

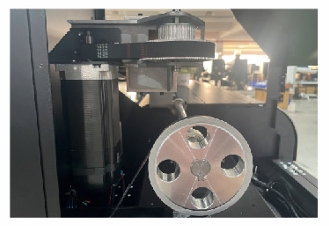

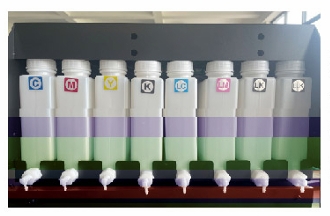

 | 220ml secondary inkcartridge+ 0.8L ink systemensures incredibleprinting speed |  | High quality DC servomotor with good stabilityand long life |

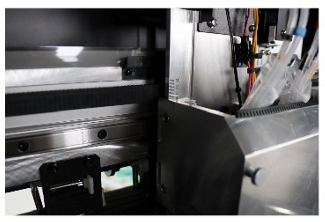

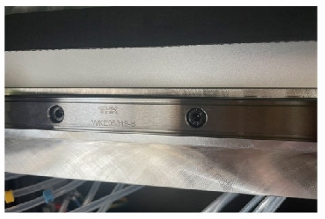

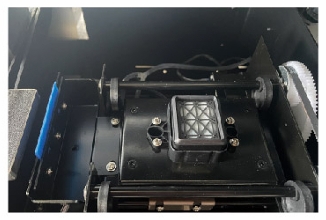

 | THK high-precisionmute rail |  | Automatic moisturizingcleaning assemblyensures the stabilityof head cleaning andimproves working stability |

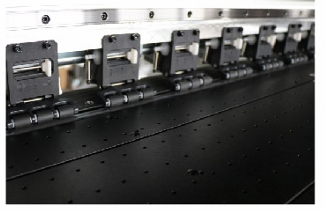

 | Can be adjustedaccording to differentprinting materials Manualadjustment of trolley height |  | Three adjustable three-stagepressure wheel |
Application
It can meet indoor photo PP, indoor photo paper, printing and packaging, oil paintingcloth, non-woven cloth, silk cloth, white canvas and other coil printing.
