AINKJET AJ-330E MULTIFUNCTIONAL DIGITAL LABEL PRINTING MACHINE

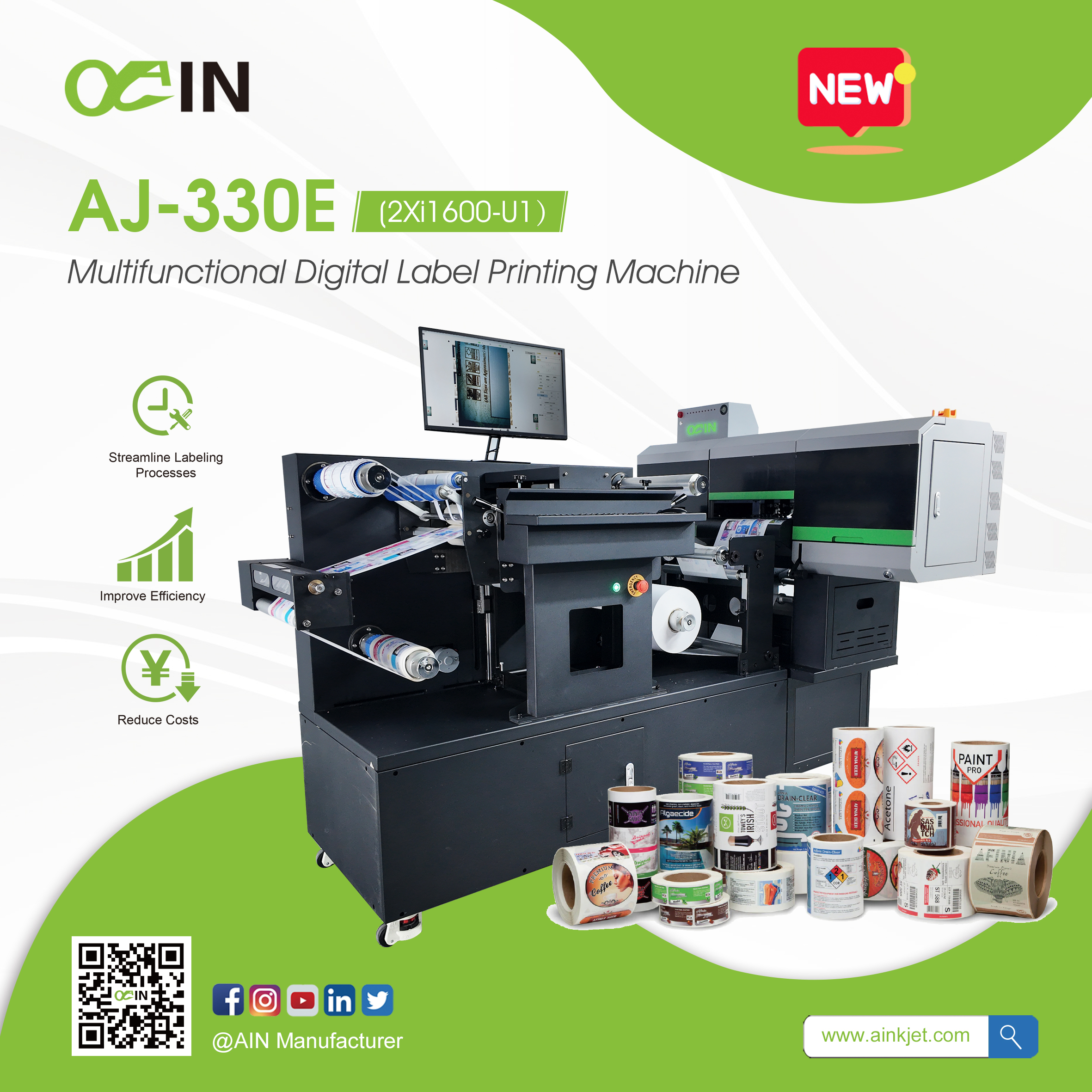

AJ-330E Multifunctional Digital Label Printing Machine

AJ-330E Multifunctional Digital Label Printing Machine

AJ-330E
Multifunctional Digital Label Printing Machine

Parameter
Print Head：2Xi1600-U1 industrial head
Print Width : 110-330mm
Print ink : UV INK
Printing Color : CMYK+W/CMYK

Feature
The UV digital label printing machine adopts UV digital inkjet technology, which does not require plate making and has high-quality CMYK or CMYK+W printing modes. The material does not require coating and lamination, which can save costs. It is also compact and convenient, and multiple processes can be completed by one machine.

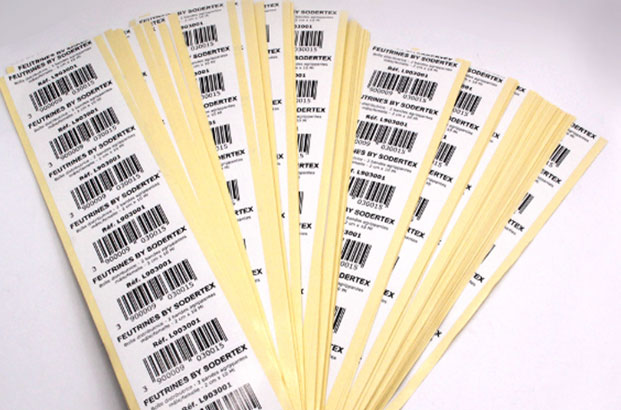

The AJ-330E digital label printing machine is a multifunctional device that integrates multiple functions into a single compact unit. It can print high-quality labels, barcodes, and other graphics on various materials and is widely used in industries such as logistics, retail, healthcare, and manufacturing for labeling, tracking, and identification.


Availability:



Inquire PDF Export

Printer Informations

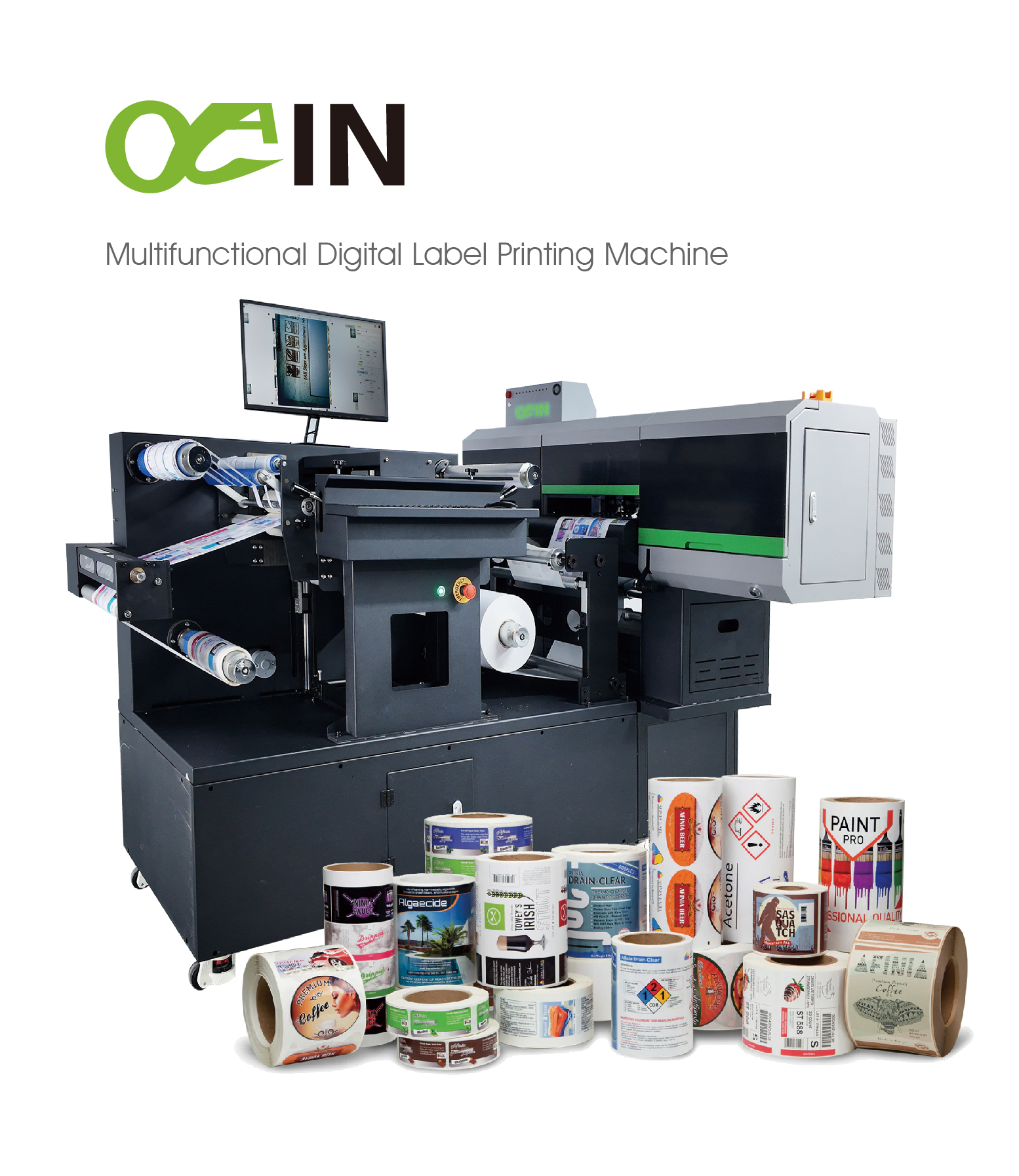

AJ-330-14x-100

Multifunctional

Digital Label Printer

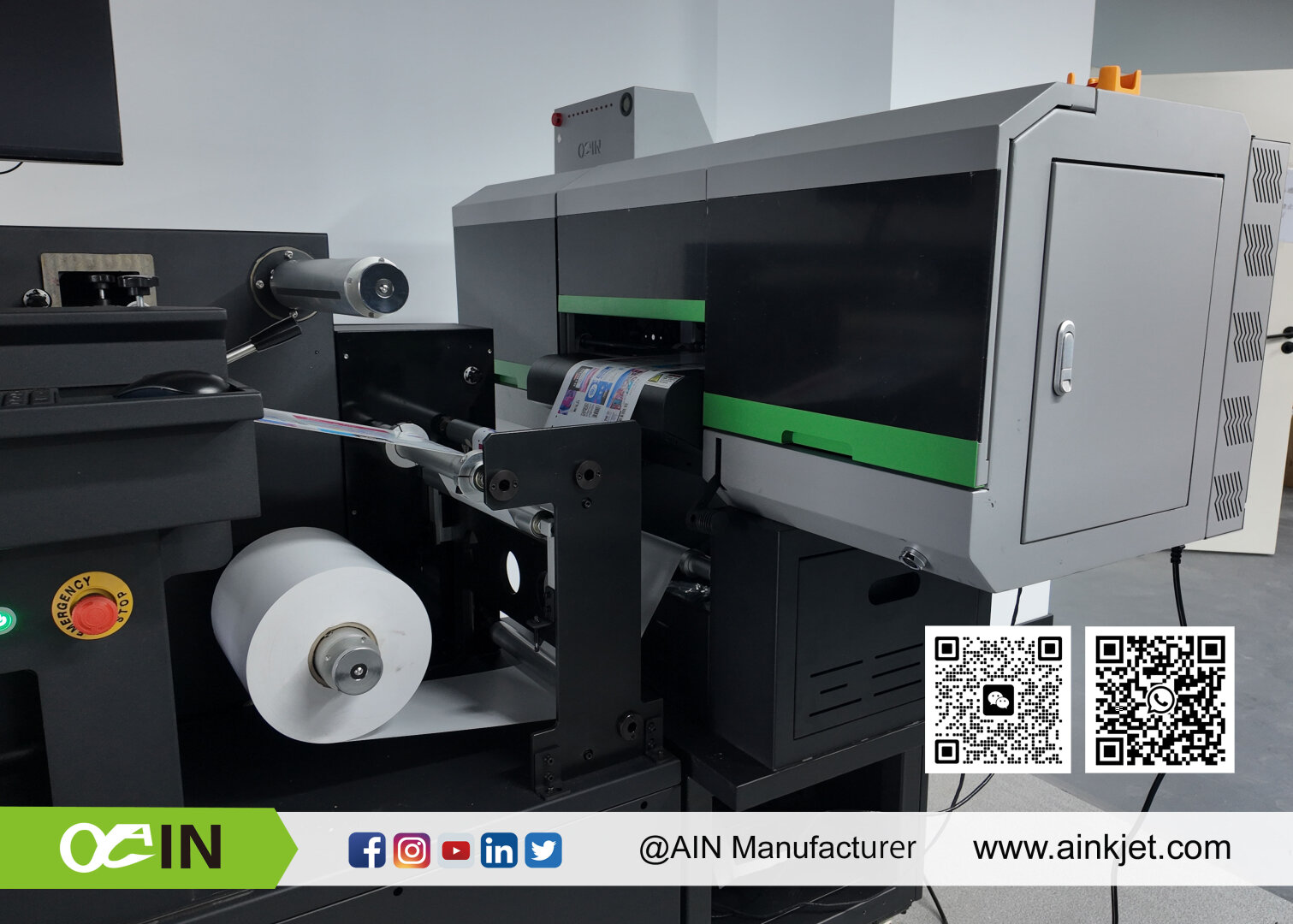

UV Digital Label Printing Machine

- Adopting UV digital inkjet technology, no plate required, efficient and fast;

- UV high-quality CMYK or CMYK + W printing modes, wider applications ;

- No coating is required for materials, and most materials do not need lamination, saving material costs;

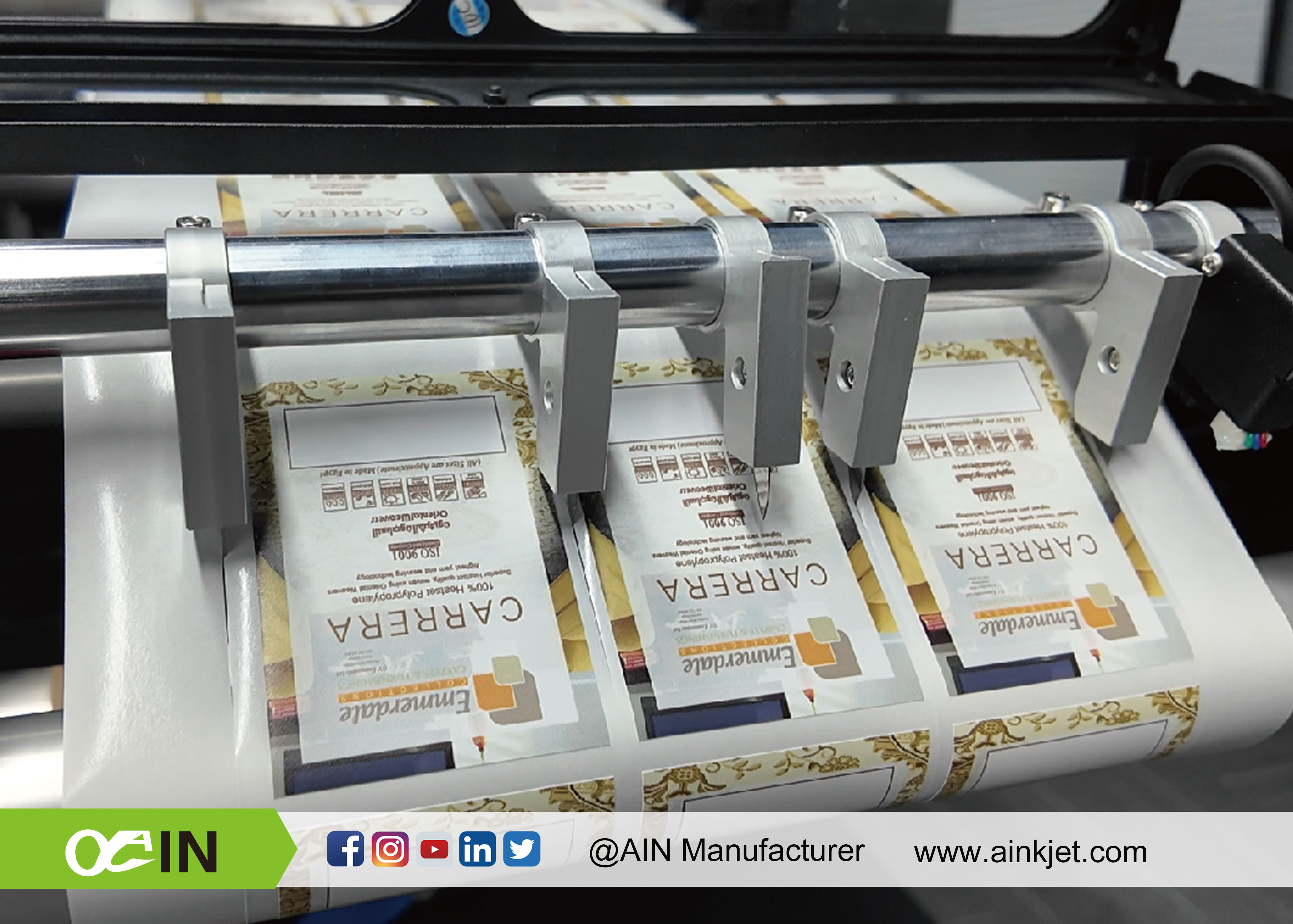

- Prin ting/laminating/die-cutting/waste discharge/striping/winding are completed by one machine, small and convenient; arnish printing application presents more personalized solution requirements .

High-Resolution UV Printing

Multifunction digital label printers offer high-resolution UV printing capabilities, ensuring that labels are clear, sharp, and easy to read. This is particularly important for barcodes and QR codes, which must be accurately scanned by various devices.

Support Variable Data Printing

Multifunction digital label printers are equipped with variable data plug-ins, which allow users to easily create custom labels, as well as automatic variable data numbering for automatic identification of each label, making it quick and efficient to design professional labels.

New Feature of Digital Label Printing

We have an excellent technical team, which can be designed according to customers requirements.

AINKJET UV DTF INKS

All our UV DTF inks are specially developed and test to ensure vivid colors and maximum fastness

- Scratch resistant

- Vivid colors

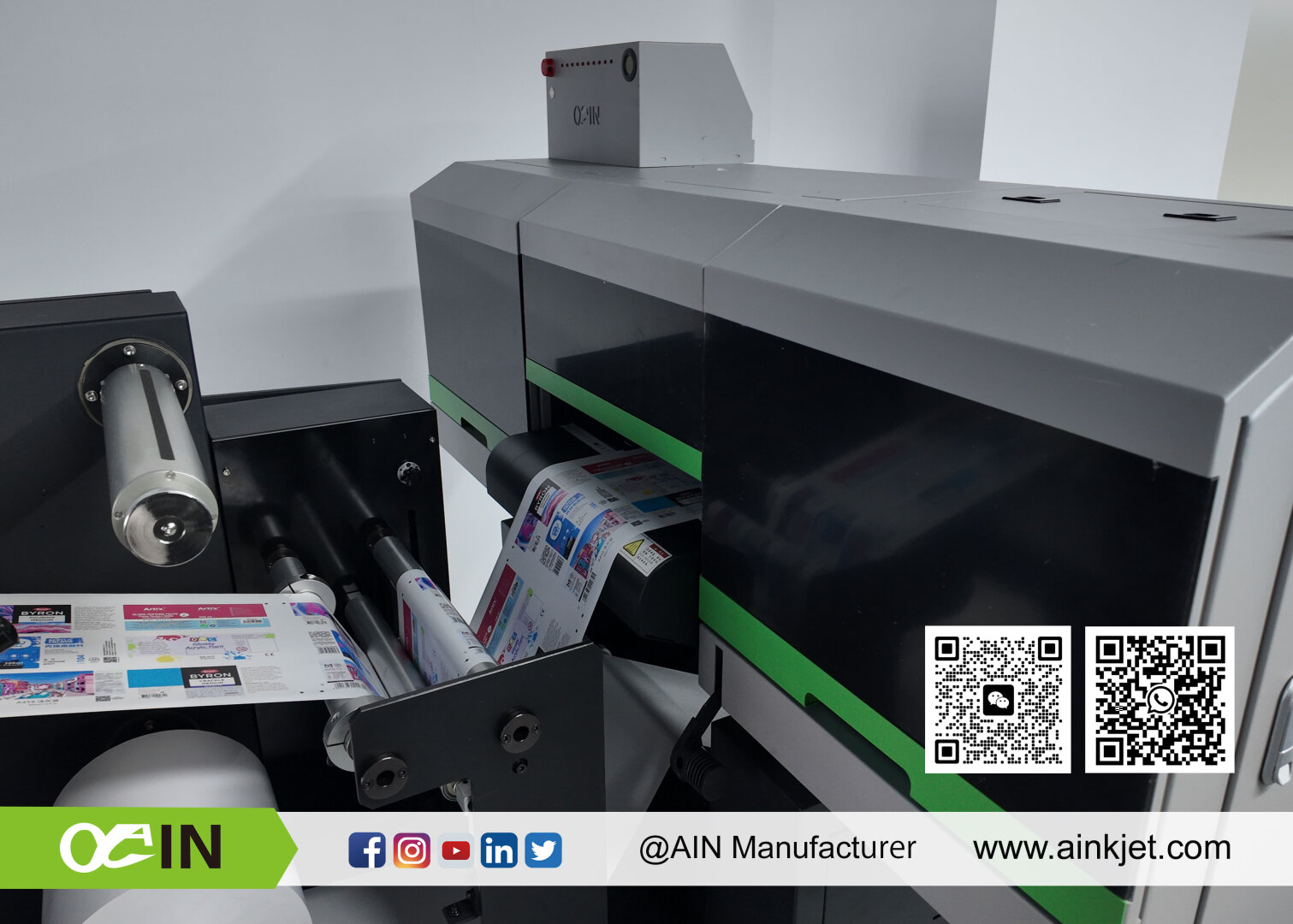

AJ-330-24x-100

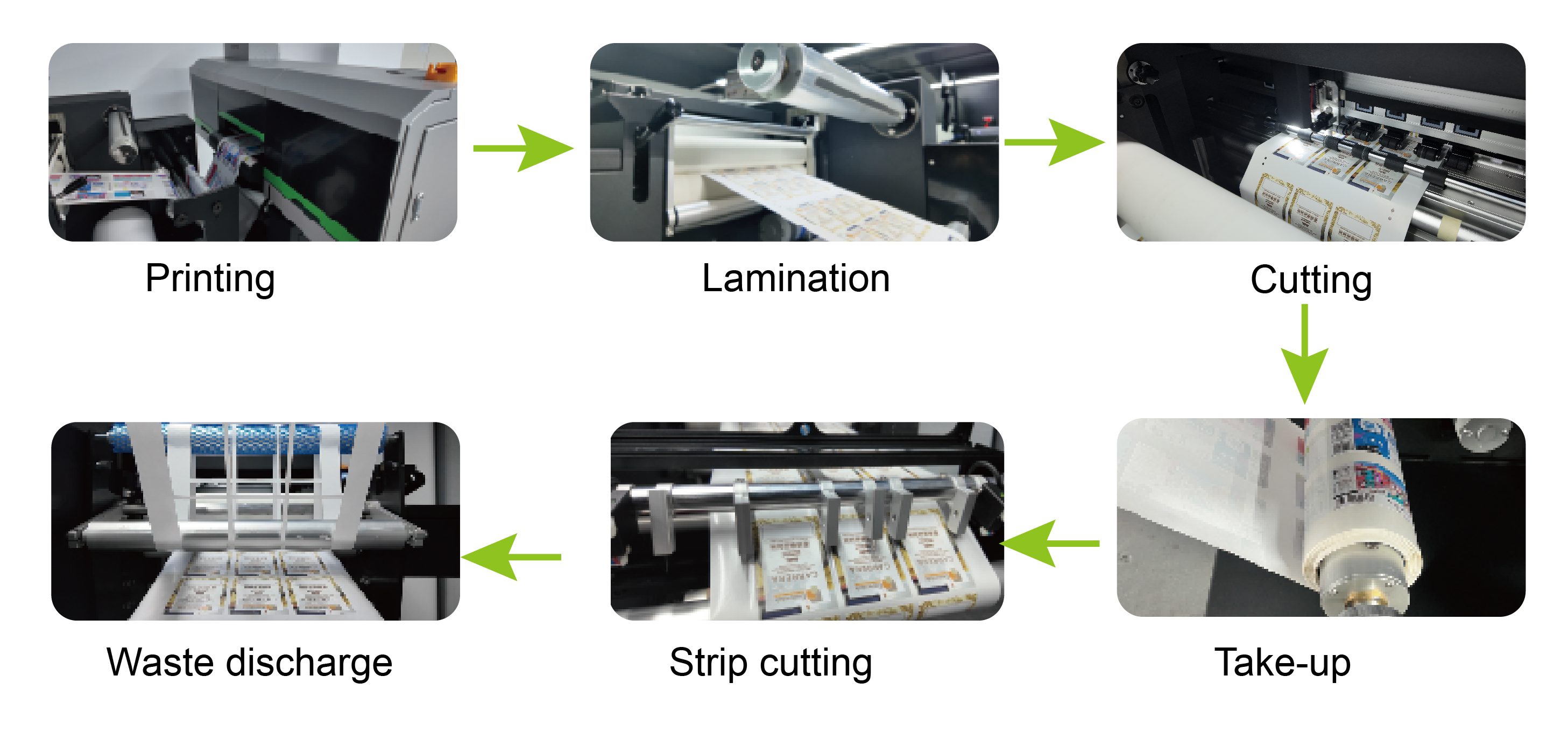

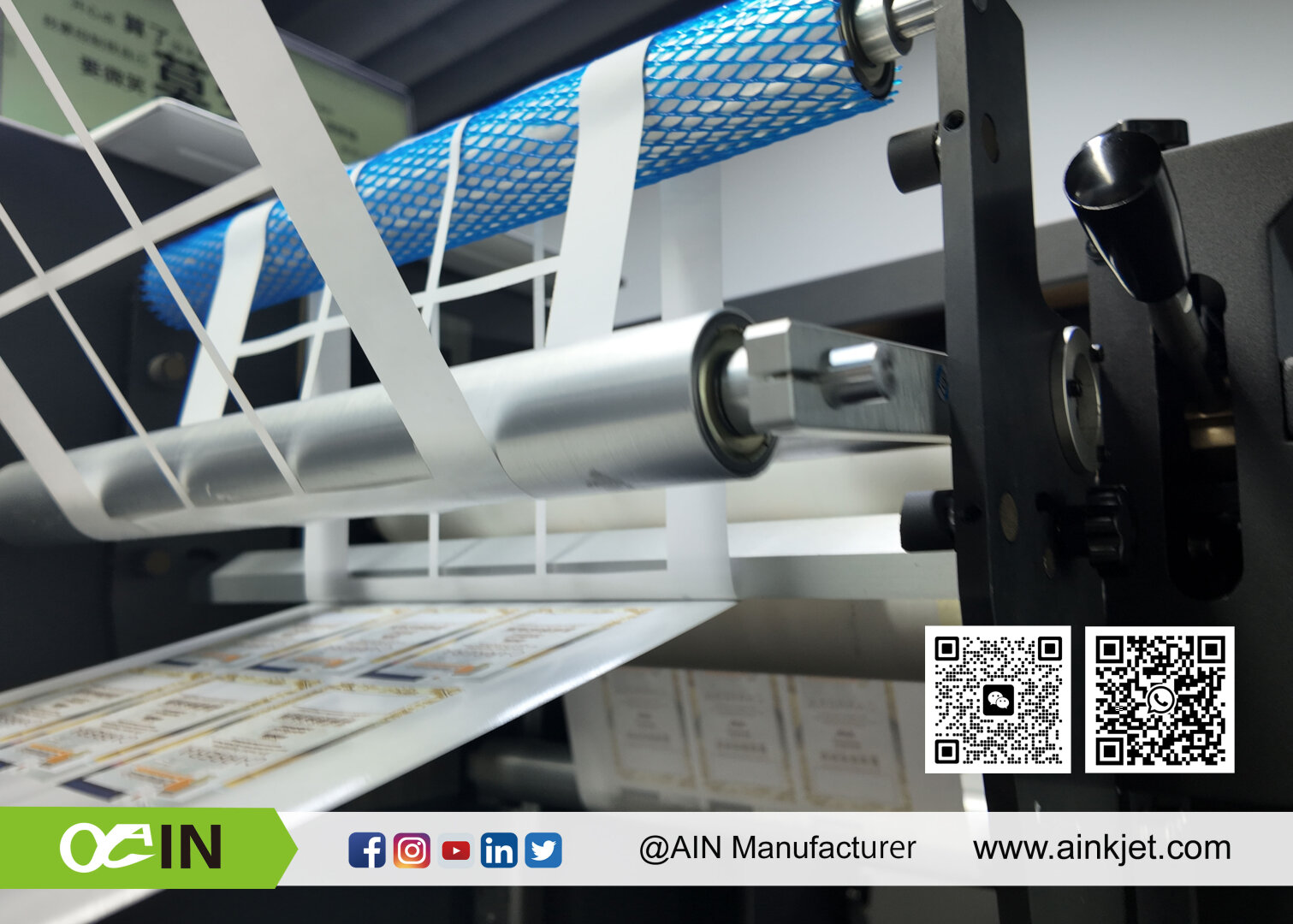

UV Digital Label Printing Working Process

AJ-330E Multi functional Personalized UV Digital Label Printing

AJ-330-34x-100

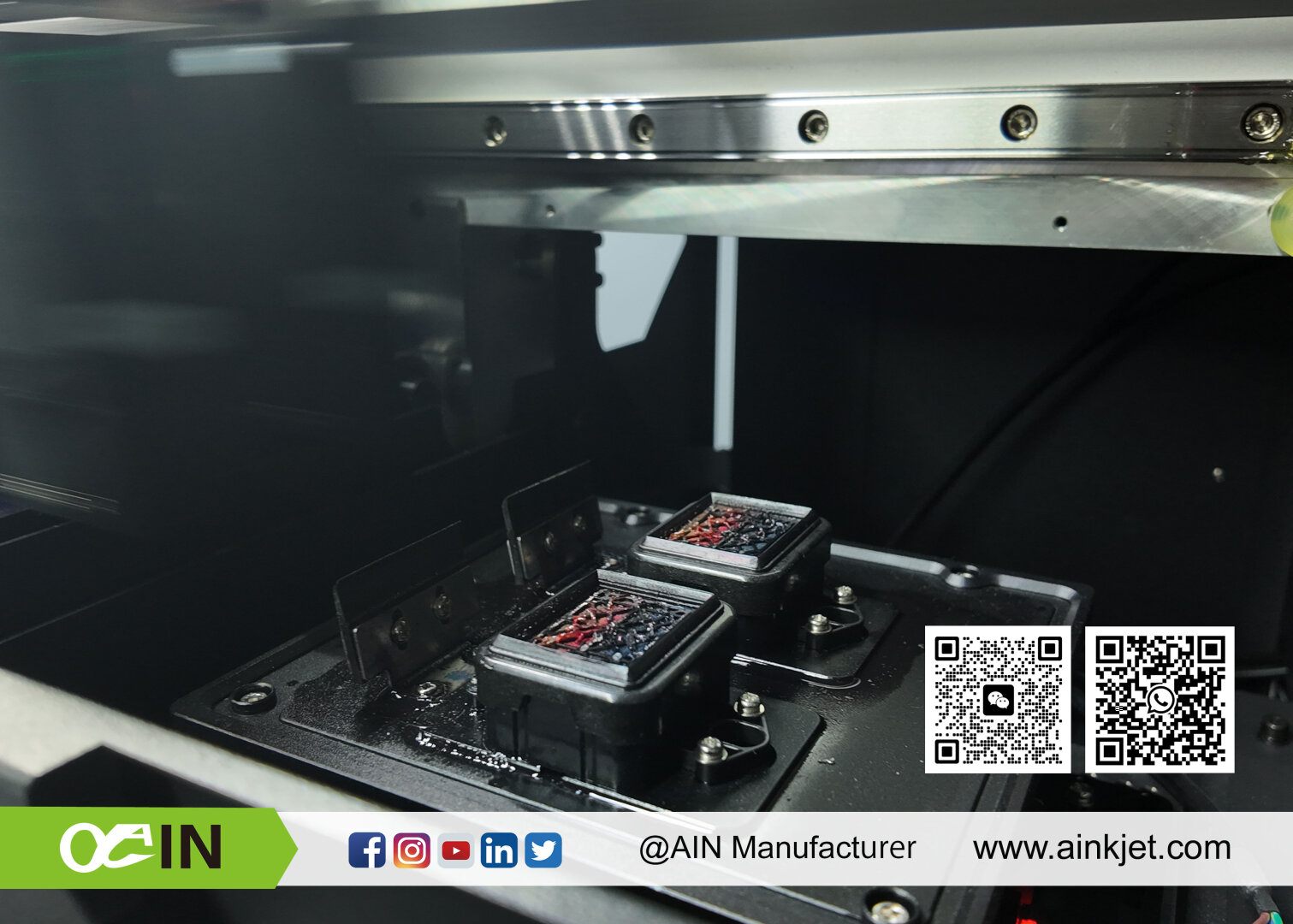

Printer Heads

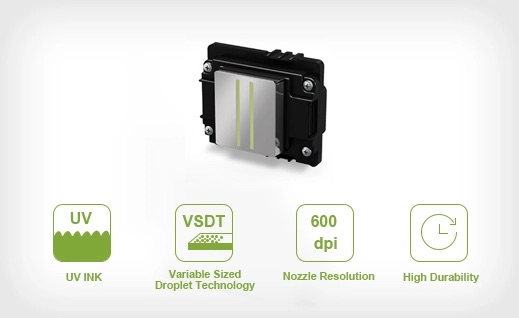

Epson i1600-U1 Print Head

PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

dtgpentou2

Model		I1600-U1 / I3200 optional
Compatible ink		UV Ink
Dimensions(WidthxDepthx Height)		69.1mm x 59.4mm x 35.6mm
Weight(g)		60
Nozzle Numbers		1600
Length Between Nozzles(inch)		1/300
Nozzle Row		4 rows
Max color/head		4 colors
Resolution		300dpi/row, 600dpi/2row
Effective Printing Width(mm)		33.8
Droplet ejection performance(kHz)	Binary	5 pl（43.2kHz）
	3 levels grey scale	6,12.5 pl（21.6kHz）
	4 levels grey scale	3.8,6.2,9.3 pl（21.6kHz）
Viscosity range(mPa.s)		5-7 mPa･s

Technical Specifications

AJ-330E MULTIFUNCTIONAL DIGITAL LABEL PRINTING
Model	AJ-330E
Print Type	Micro Piezoelectric On-Demand Inkjet Technology
Ink	UV Ink (CMYK+W/CMYK)
Feedstock Width	120-350mm
Print Width	110-330mm
Maximum Winding Diameter	500mm
Feed capacity	≤1000m
Printing speed	0.5-1m/min
Pattern Cutting Speed	50-200mm/s
Connectivity	Gigabit Network Port
Minimum Cut Character	5mm（For different characters graphics cutting is different）
Power Supply	220V±5%,16A,50Hz±1
Rated power	Printer:1100W Cutting Machine：350W
Environment Temperature	20℃-27℃, humidity 40%-70%RH
Dimensions	2480mm（L）1450mm（W）1480m m(H)

Application

Applications of Digital Label Printing

Multifunction digital label printers are versatile devices that combine multiple functionalities into a single compact unit. These printers are capable of printing high-quality labels, barcodes, and other graphics directly onto various materials. They are widely used in industries such as logistics, retail,healthcare, and manufacturing for labeling, tracking, and identification purposes.

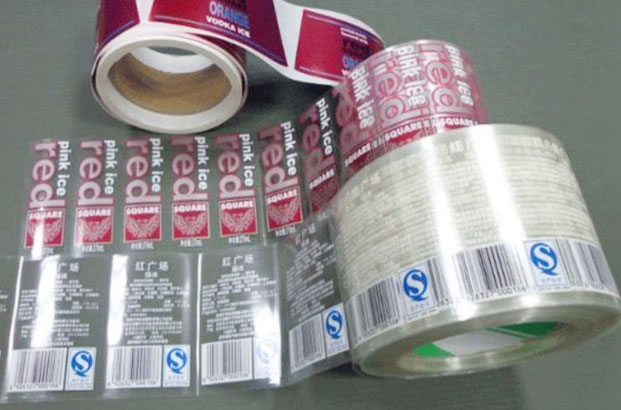

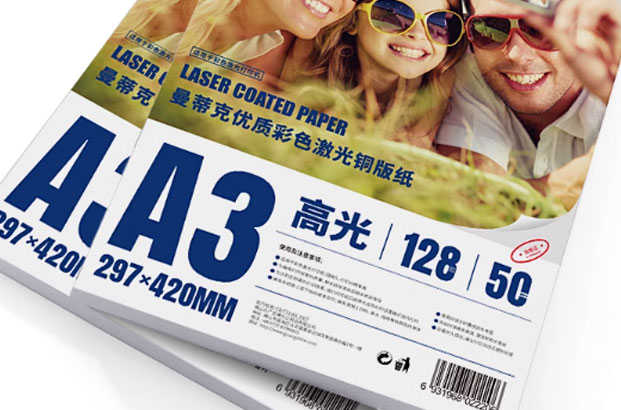

● Paper

● Plastic

● Metal

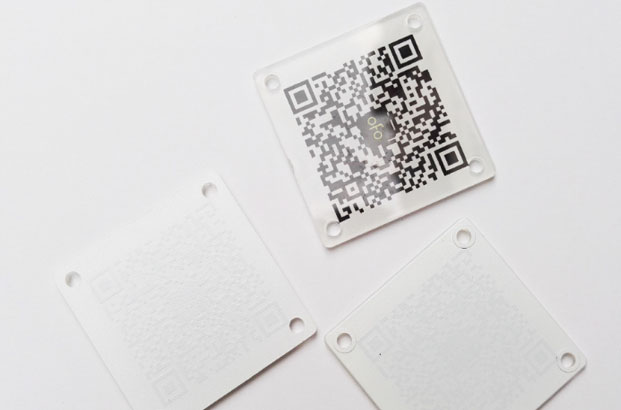

● Acrylic

● Fabric

● Packibg boxand

● Leather

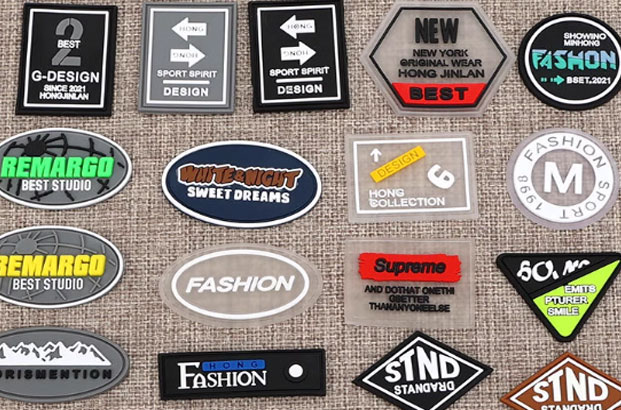

● Soft silicone

● Film

● other soft or hard materials.......
