Printer Informations

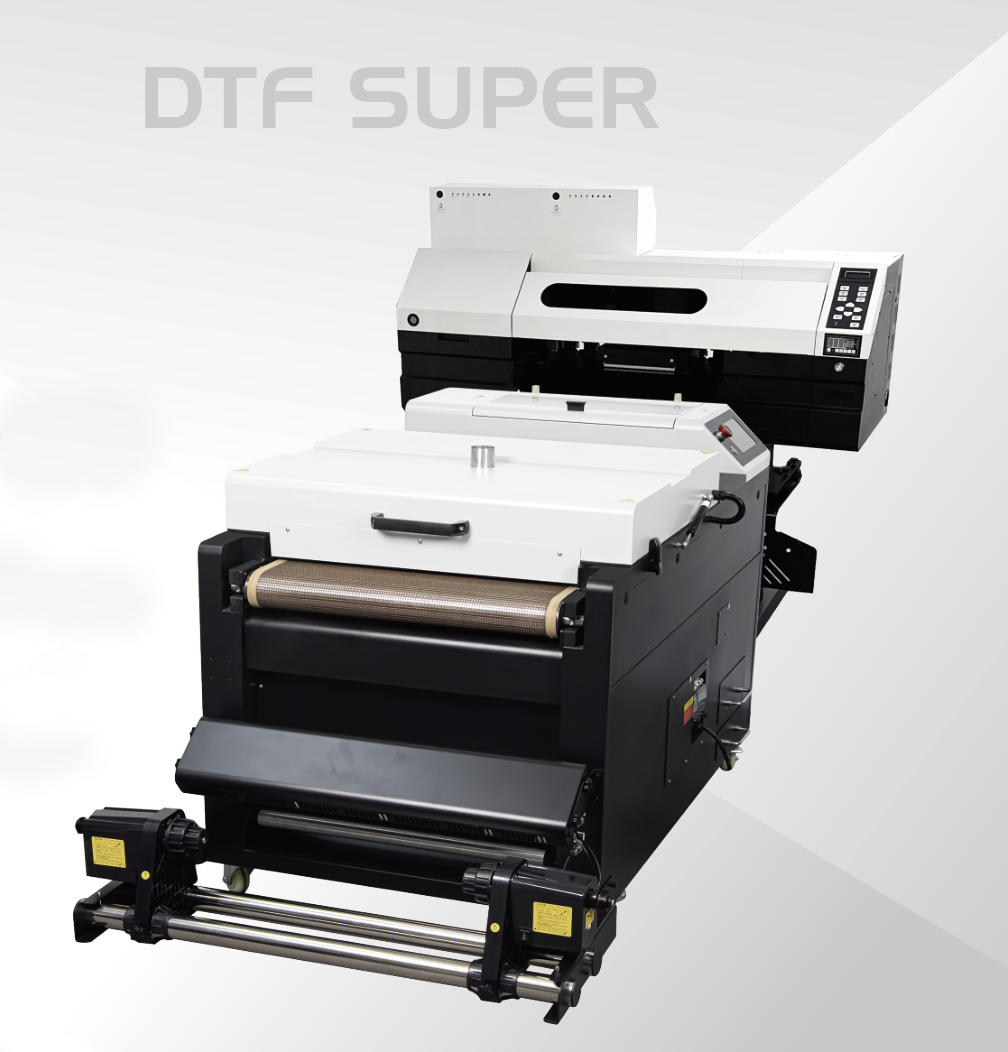

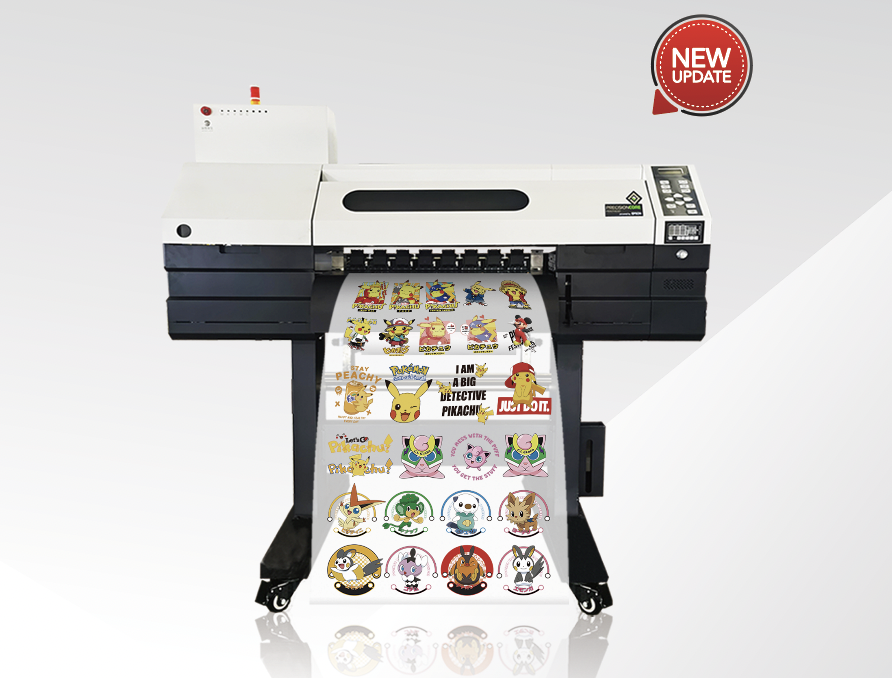

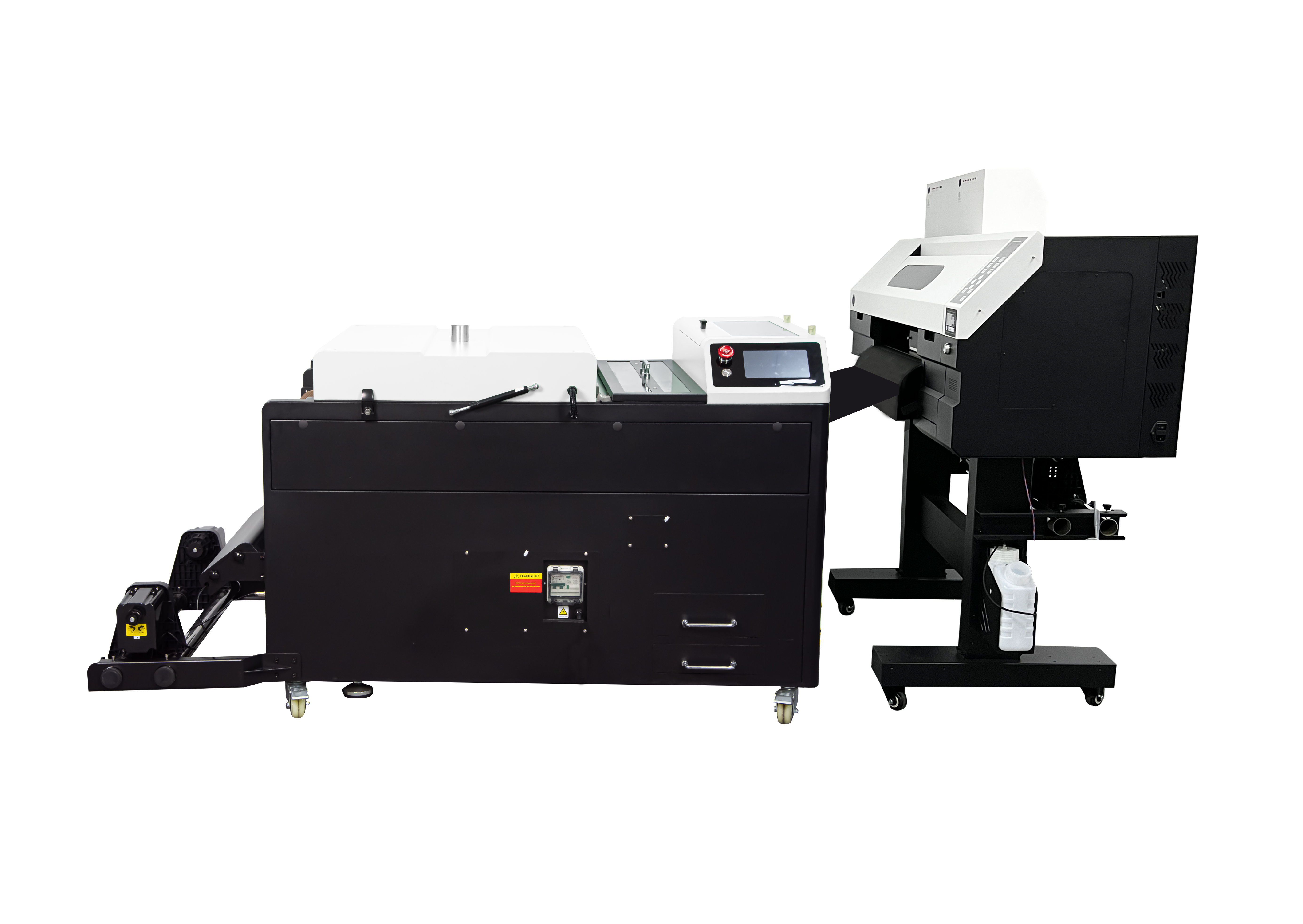

  | HIGH VOLUME DTF PRINTING AIN DTF SUPER Designed to accommod ate the needs of ever growing market DTF one-stop solution printing solution. Fluorescent color / transition color / special application PET films. Everything is done in a single production line printing, powdering and curing. THE NEW UPGRADE We continuously improve and upgrade according to customer feedback, AIN series is our best rebate for customer feedback. HUMANIZED DESIGN AIN series is created for anyone within the printing industry Be it beginner or expert AINKJET series will accommodate any needs required by its owner. From super easy startup to the state of the art RIP software, with AIN DTF anyone can create outstanding print jobs with minimal effort. HIGH OUALITY AND FLUORESCENT INK AIN DTF inks are specially developed to ensure vivid colors and maximum fastness on wide range of fabrics and other materials. Neon series provides additional fluorescent inks. RELIABLEDTF PRINTING SOLUTION Every component in AIN DTF is designed to last -High precision timing components On demand Piezzo print head Durable ink components -Sturdy exterior. |

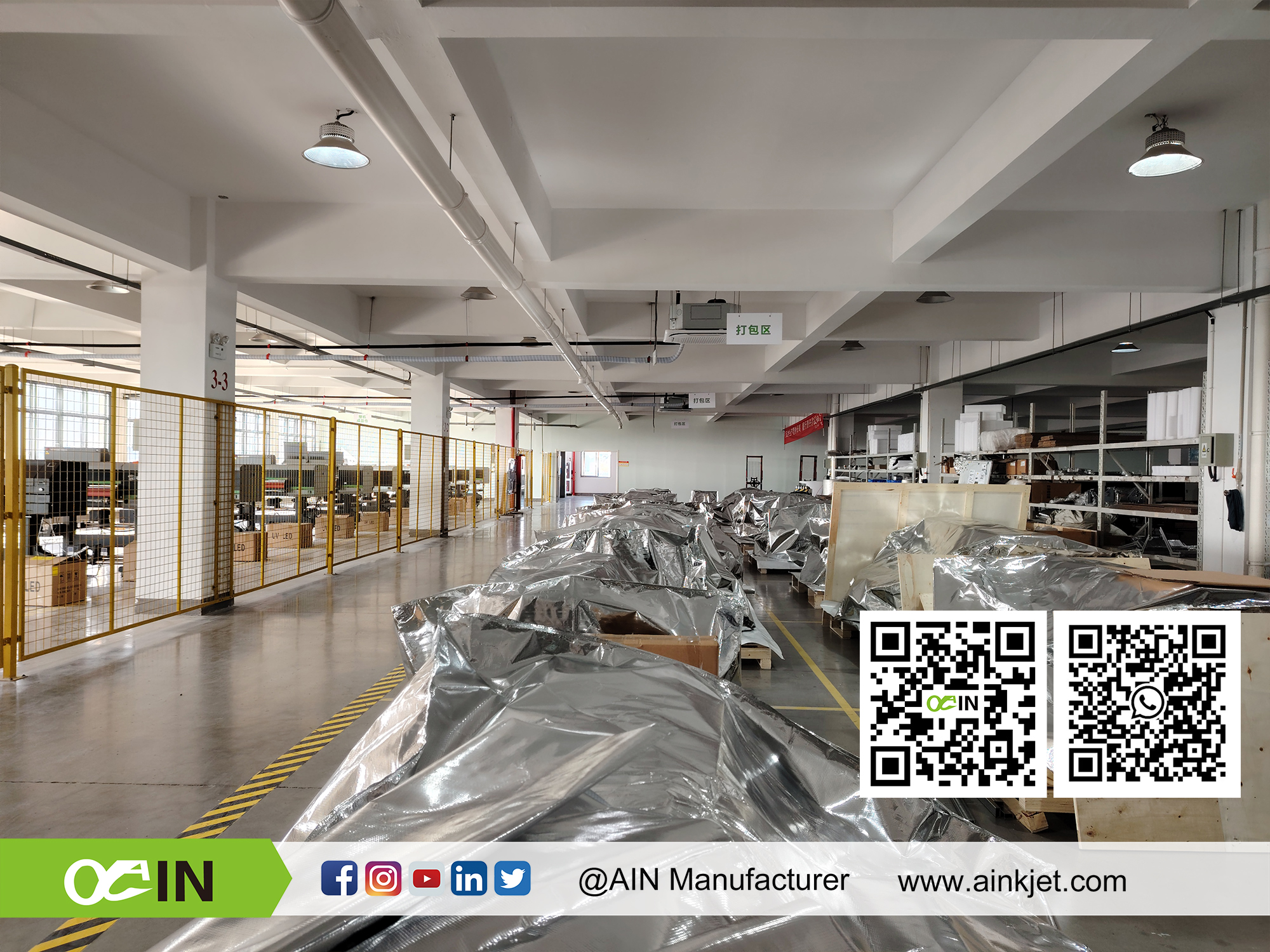

 | Upg rade the appearance Compared with the old one have carried out comprehensive upgrade packaging and transportation, 40 feet cabinet can hold 28 sets, 20 feet cabinet can hold 12 sets. he new packaging design also solves the problems of two overlapping difficulties encountered in the past, such as the deformation of the caster top of the forklift |

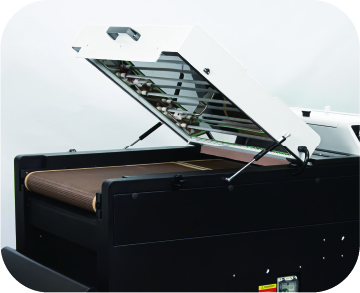

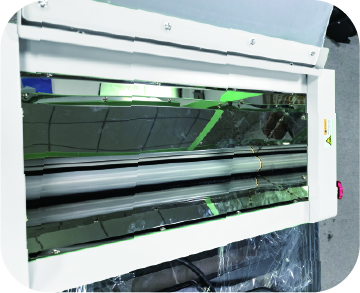

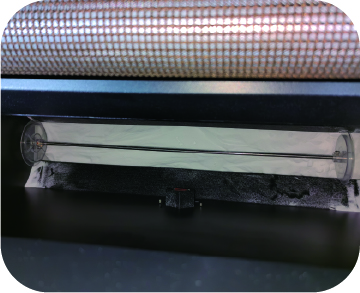

 | Upgrade the drying tunnel The new machine increases the baking stroke, increases the tunnel length to 700mm(old one is 650MM) and increases the number of lamps to 5 (old one is 4). The new design allows the material to be more fully heated, so that the release film is not deformed, and the oil return phenomenon is prevented, so that the pattern is presented in the most perfect state. |
 | Dust to upgrade The new design solves the previous coarse powder powder slow powder fine powder powder too fast, damp powder hole blocking and other problems. |

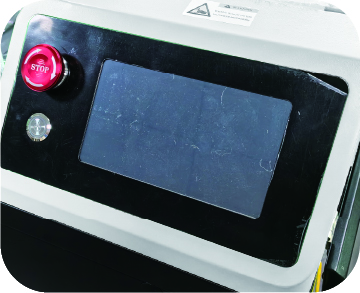

 | Upgrade the operation interface Upgrade to smart color screen with new screen design Simplify the tedious operation in the past.Add screen startup animation (can be customized according to customer requirements) Support control interface customization.Remote software upgrade is supported. |

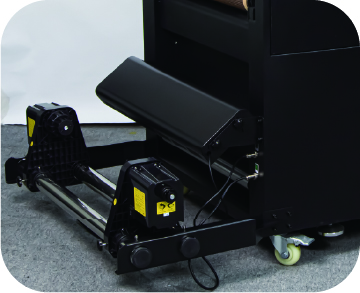

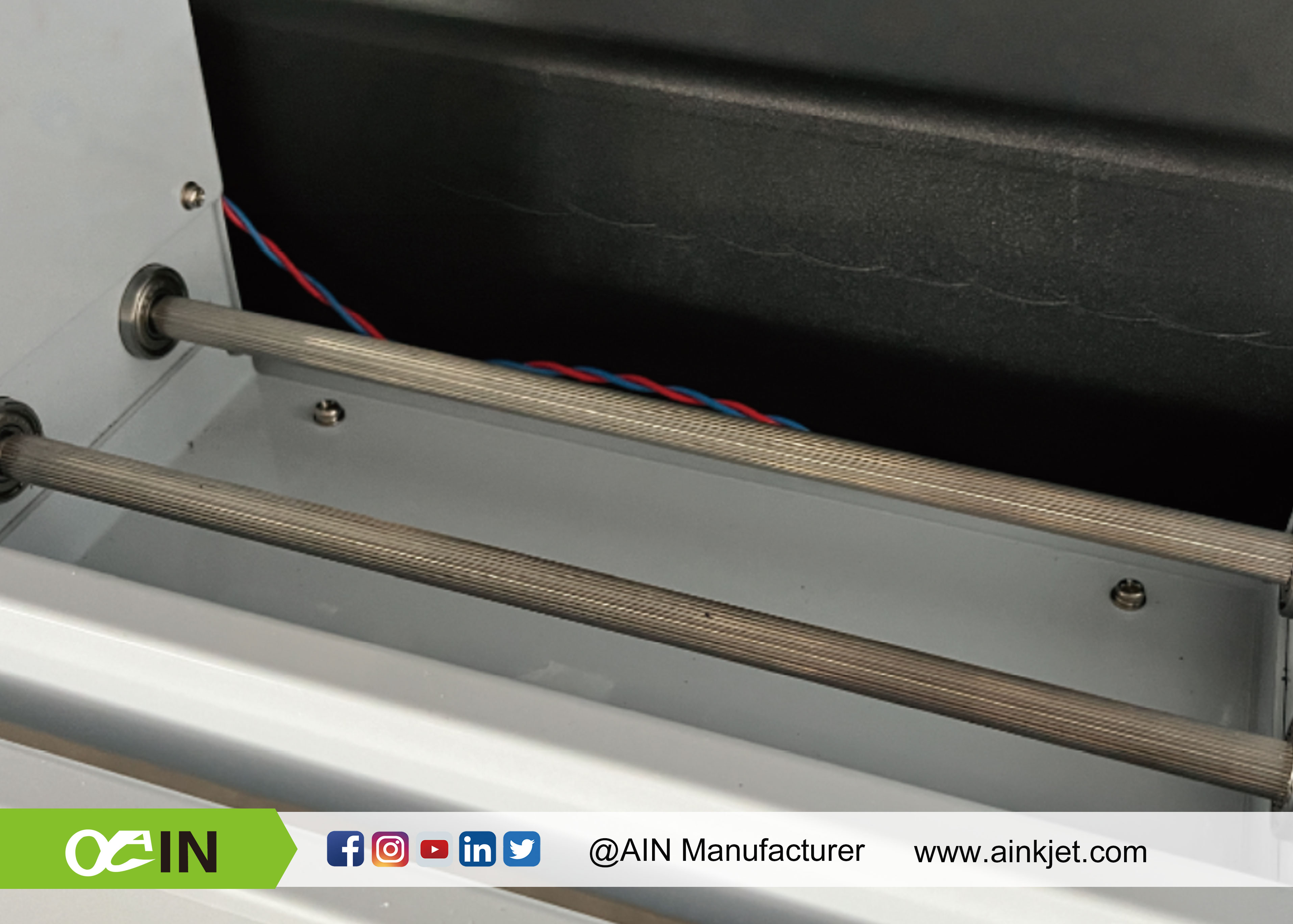

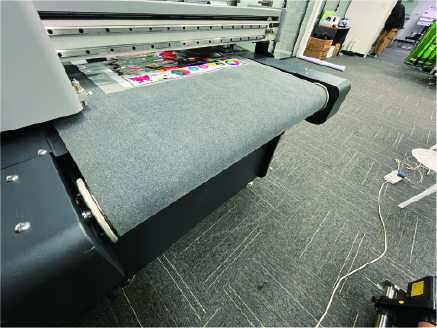

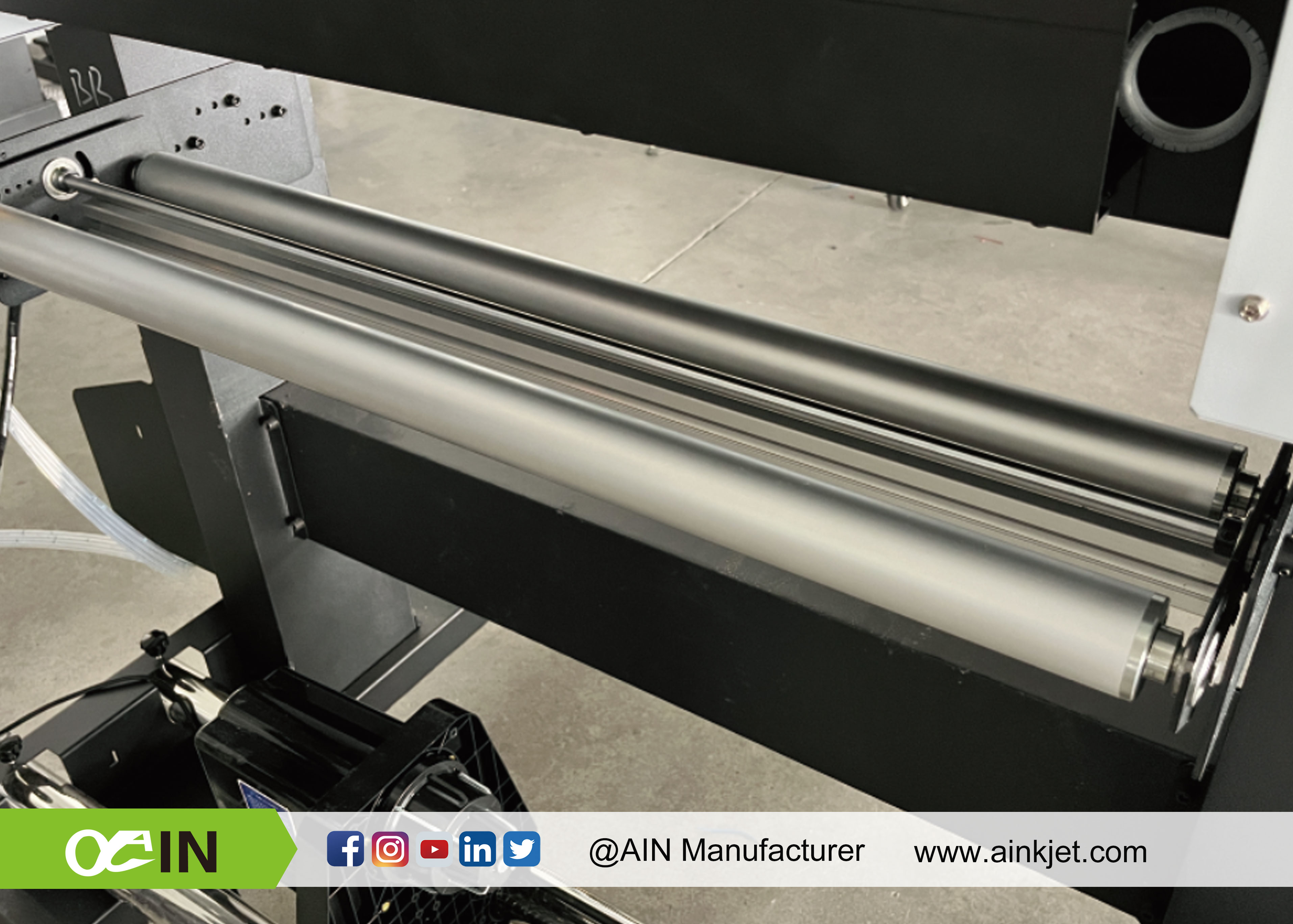

 | Upgrade the volume On the new machine we have added a winding system to make the material tighter and neater. |

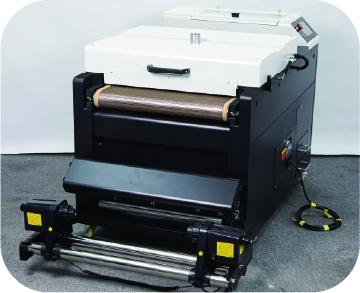

 | Powder control structure Using a new powder control structure design, instead of the previous floating structure,the use of two sides of the baffle structure, intelligent powder mode within a unit time interval of powder can effectively extend the life of the powder motor, so that the amount of powder can be better controlled the new structure can effectively block the powder loss on both sides of the material can maximize the utilization of powder,At the same time, it also reduces the number of times that workers recycle the powder, and in our test, the machine can continue to work for 8 hours with a full box of powder,during which the residual powder is only cleaned once. Greatly reduced labor,greatly reduced powder waste. |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications

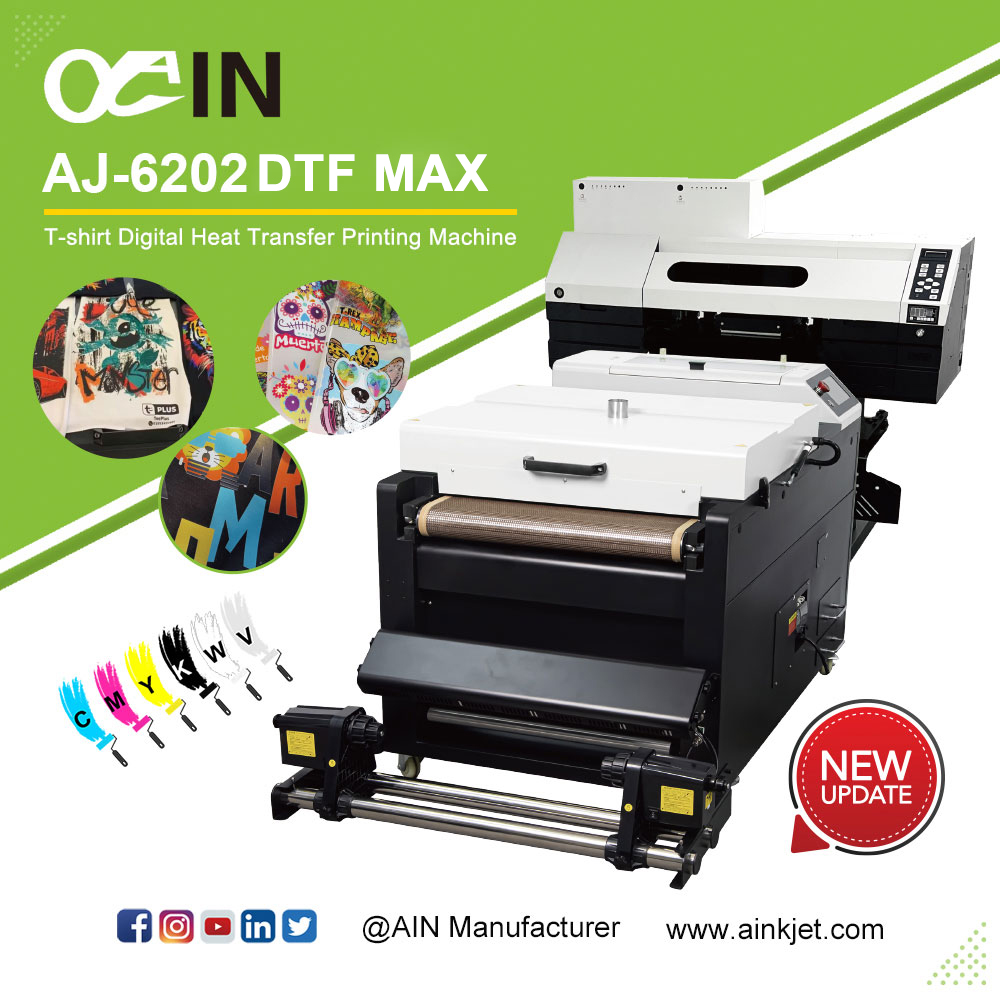

| T-shirt Digital Heat Transfer Printing Machine | |||
|---|---|---|---|
| Model | AJ-6202 DTF MAX | ||
| Print Head | 2 Print Heads Optional (i3200-A1) | ||
| Printing Technology | Piezoelectric Inkjet | ||
| Acceptable Media | Width | 620(mm) | |
| Thickness | Maximum 39 mil(1 mm) | ||
| Printing Width | 600 mm | ||
| Ink Cartridges | Type | Transfer Pigment Ink | |

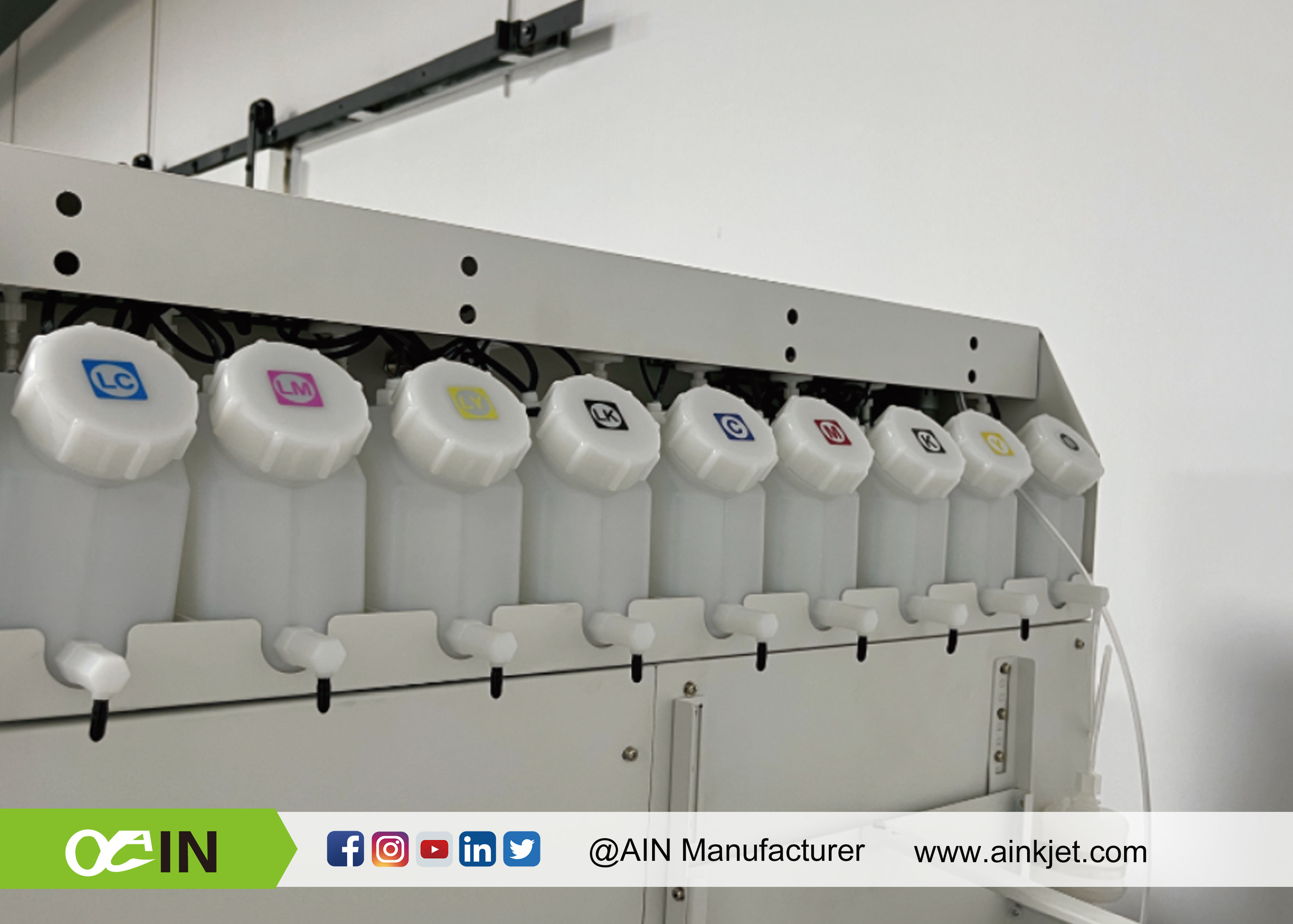

| Capacity | Continual Ink Supply System ( 220ML ) | ||

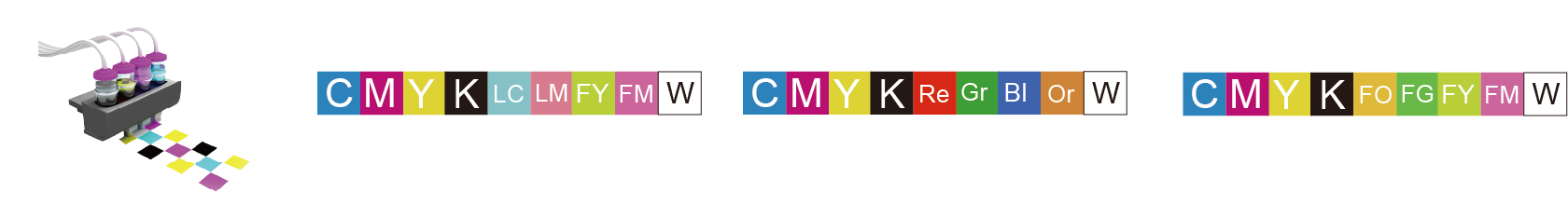

| Color | CMYK+W / CMYKFyFm + W(3H) | ||
| Applicable Medium | Transfer film | ||
| Color Manage | ICC or density curve | ||
| Media Heating System | Powder & color fixing machine | ||
| Interface | RJ-45/LAN | ||
| RIP Software | Main top | ||
| Power supply | 50HZ/60HZ,220V/110V/10A | ||
| Environment | Temperature | 10℃ to 38℃ | |
| Humidity | 40% to 70% | ||
| Printer Dimensions(With Stand) | L1620mm*W620mm*H1590mm | ||
| Packing Dimensions | L1700mm*W750MM*H760mm | ||
| Weight | G.W:230kg N.W:180kg | ||
| Media Width | 0-600mm | |
| Applicable Medium | Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc. | |
| Powder Control | Powder shake control, powder control, powder direction and volume control | |
| Heating & Drying Function | The front guide plate is heated, the upper drying and curing, and the single row cold air cooling functio | |
| Material Transfer Mode | Mesh belt conveyor, belt guide type | |
| Reel Function | Automatic induction winding | |
| Electrical Parameters | Rated Voltage: 220V | Rated power supply:21A |
| Rated power:4.7KW | Power Consumption: 3~4.7KW | |

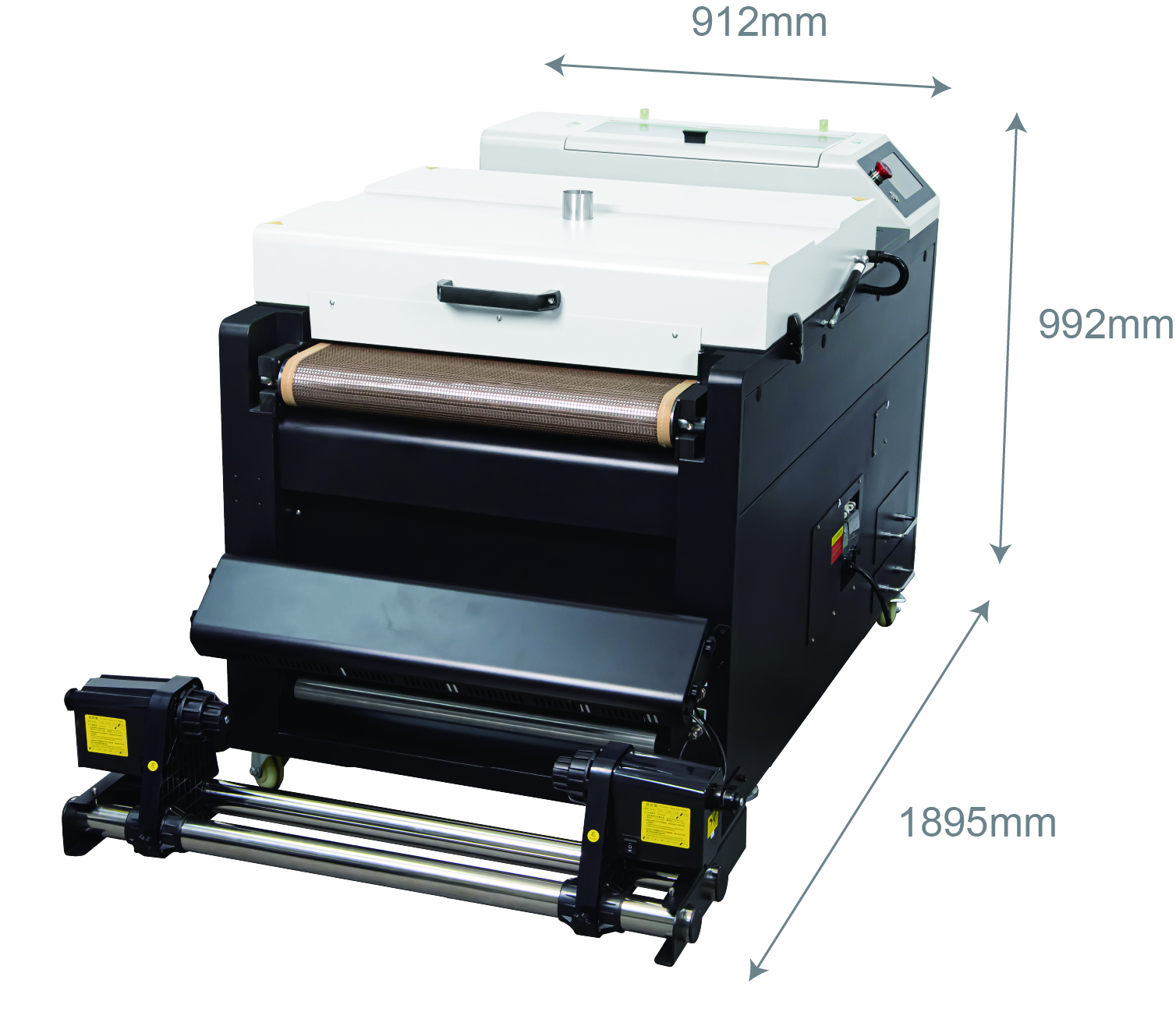

| Machine Size/Weight | 1895*912*992mm / 200KG | |
Packing Size/Weight | 1600*1130*1113mm / 250KG | |
Application
Applications of DTF Printer
Commonly used products such as T-shirts , hats , backpacks , lanyards , shoes and more to create unique fashion pieces.It can also be used in denim clothes , non-woven bags , gift bags , pearl clothing , baseball caps , fabric gift boxes , etc. Make your travel outfit unique.
| ● T-shirt ● Canvas ● Backpacks ● Shoes ● Baseball Caps | ● Denim/Jean ● Hoodies ● Gift Bags ● Fabric Gift Boxe ● Sweaters and more...... |
Applications Of DTF Printer | |
T-shirt
Canvas
Backpacks
Shoes

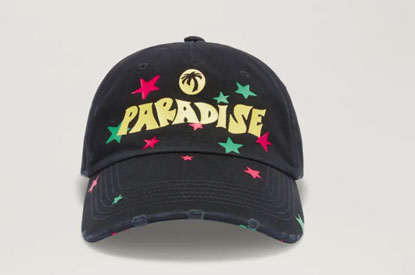

Baseball Caps
Denim/Jean
Hoodies
Gift Bags
 |  |
|
| DTF Ink Supply | DTF PET Films | DTF Hot Melt Powder |

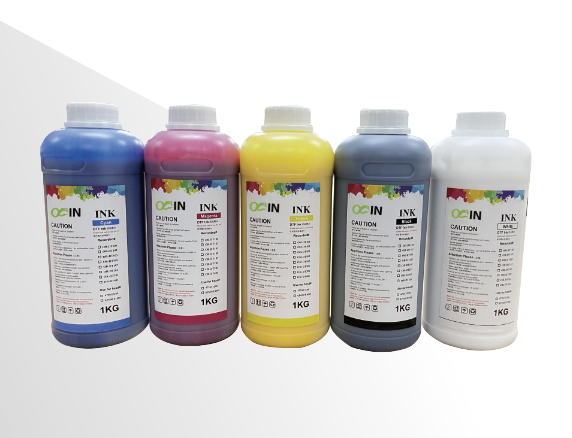

DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology. AINKJET offers different colors of DTF inks such as white, yellow, black, magenta, cyan, orange, green, and also fluorescence pink & fluorescence yellow. | DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints. | Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. The powder comes with 1kg/pack. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results. |
Auxiliary Materials

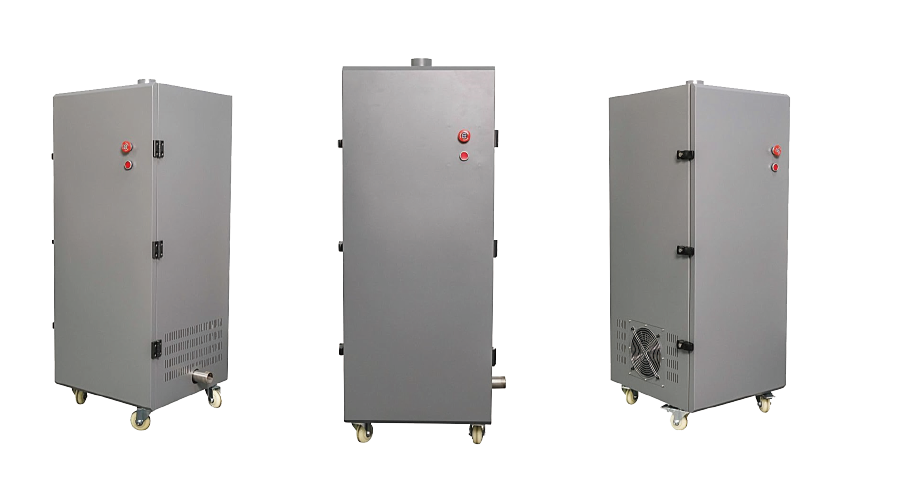

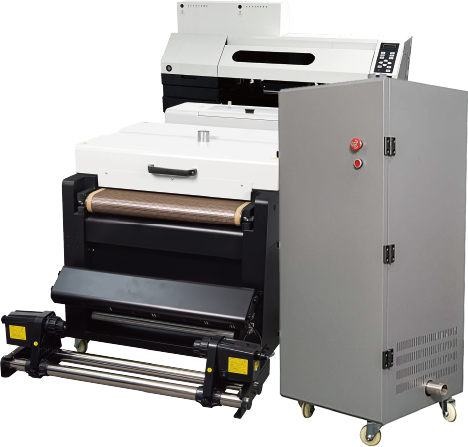

Oil Fume Filter AS100 Independent · General · Medium
AS100 basic oil fume filter, specially designed for equipment exhaust gas exhaust,to cope with the task of environmental protection
smoke exhaust. Independent external universal design, no need to consider It is very convenient to install and connect the hose immediately.
Exquisite design, internal oil and smoke filter bin,large space, good effect. It is suitable for coping with the smoke exhaust requirements
of the equipment such as powder shaking machine and color fixing machine,effectively eliminating and filtering the soot during the drying process,
improving the smoking effect of the equipment such as powder shaking and color fixing machine, improving the quality of processed products,
and creating a clean and smoke-free working environment.
| Model | Air Volume | Voltage | Power |
| AS100 | 660m³/h | 220V | 0.44KW |
| Size/Weight | 530*571*1366mm/95kg | ||
| Packing Size/Weight | 690*630*1540mm/118.5kg | ||
· Can be freely matched with a variety of shake powder machine, color fixing machine, complete the extraction and filtration of oil smoke

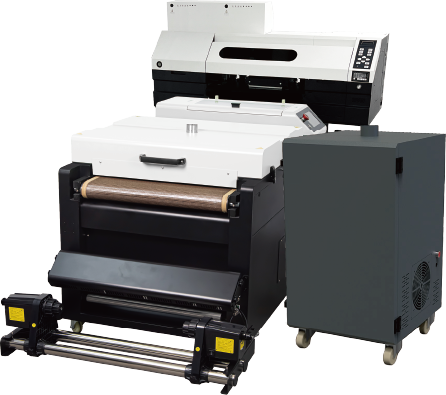

Oil Fume Filter AS50 Dedicated· General · Cost performance
The newly listed JS50 smoking filter is specially designed for oil smoke filtration. It adopts a new compact structure design and makes good use of the
| Model | Air Volume | Voltage | Power |
| AS50 | 240m³/h | 220V | 0.13KW |
| Size/Weight | 500*596*953mm/68kg | ||
| Packing Size/Weight | 680*630*1060mm/85.5kg | ||
· Application: Various small and medium-sized powder shaking machines

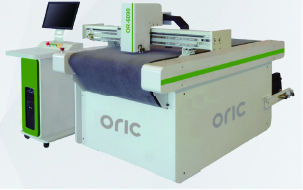

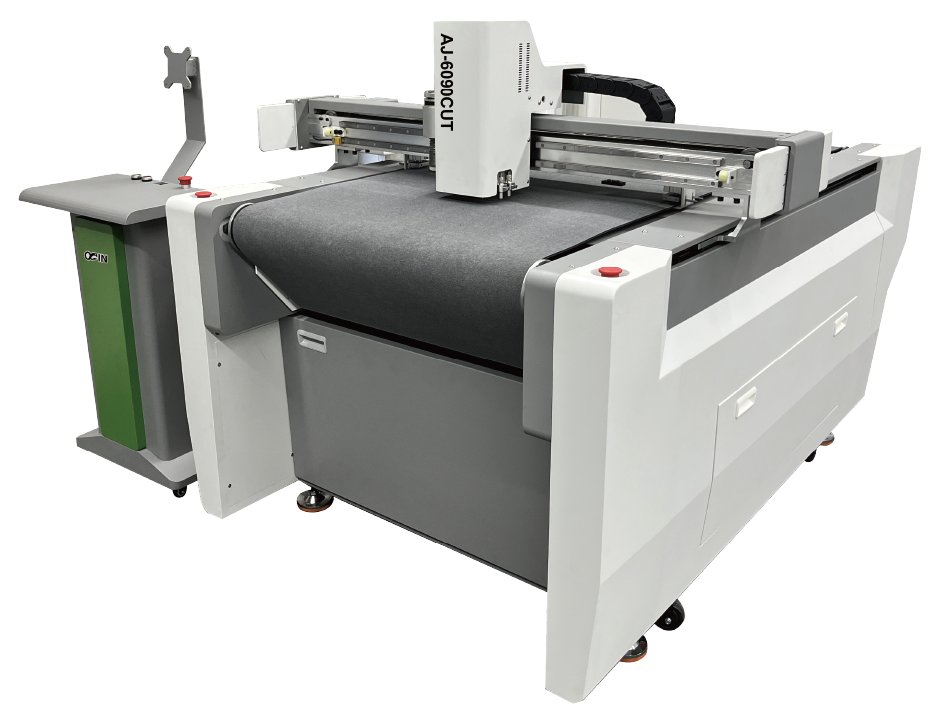

 | 6090CT Didital Cutting Machine Suitable for cutting various flexilble materials less than 5mm, such as cardboard, thin plastic,pp backing, rubber cloth, gaskets, imitation leatheradhesive stickers, car stickers, reflective stickers,magnetic stickers, etc. |

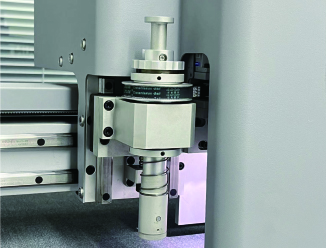

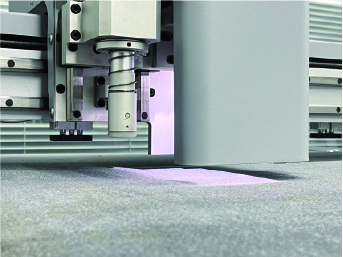

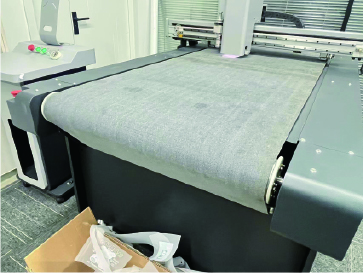

 | Machine head: Adopts an independent Z-axismodular design, can combinemany functional tool heads to meetdiverse tasks |  | Working table: Double layer adsorption vacuumtable + gas storage deviceachieve better adsorption capacity. |

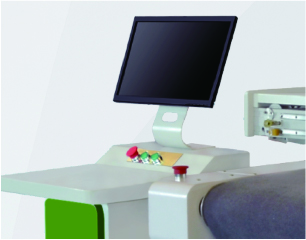

 | Feeding: Rolling feeding table, automatic feeding and rolling cutting,more efficient operation. |  | Control software: Multi axis control system with independent intellectu aproperty,easy to upgrade and maintain with guarantee. Network interface supports remote upgrades, making transmission more efficient and secure |

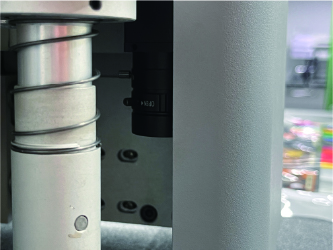

 | Camera: 5 million pixels industrial camera,with high scanning and positioningaccuracy |  |
Software format: The software can extract images automatically, and supportmultiple formats such as JPG, DXF, PDF, etc |
 | Appearance: Designed by professional team,with advanced structure andelegant appearance. |  |
Tools: Machine can combine with various cutting tools such as: oscillating knifedrag knife,half cutting knife, plotter knife,creasing wheel, pen, etc. it is versatileand effective,process and multi materia operations. |
| Model | 6090CT Cutting Machine |
| Working size | 600X900X5mm |
| Feed height | 10mm |
| Tool | Drag kinfe,Plotter kinfe, Creasing wheel |
| Driver | AC Servo |
| Control system | SIGNKEY |
| Camera | 5 million pixels industrial camera |
| Machine structure | Industrial steel pipe box structure |
| Transmission | Z ball screw, XY belt |
| XYZ rail | linear rail |
| Repetitive accuracy | <0.05mm/300mm |
| Maximum no-load speed | 150m/min |
| Max.processing speed | 10~100m/min |
| Repetitive accuracy | <0.05mm/300mm |
| Maximum no-load speed | 150m/min |
| Max. processing speed | 10~100m/min |
| Working table | Double layer adsorption vacuum table+rolling feeding |
| Roll material feed device | Yes |
| Roll material automatic deviation device | Optional |
| Vacuum pump | 1.5KW air cooling |
| Data transmission | Ethernet |
| Instruction format | HPGL or standard G-code |
| Power supply | 220V/50-60HZ |
| Machine size(include material feed device) | 2100*1450*1350mm |
| N/G weight | 500/800KG |
| Optional table size | 1600*2500mm |
