Product Description
|

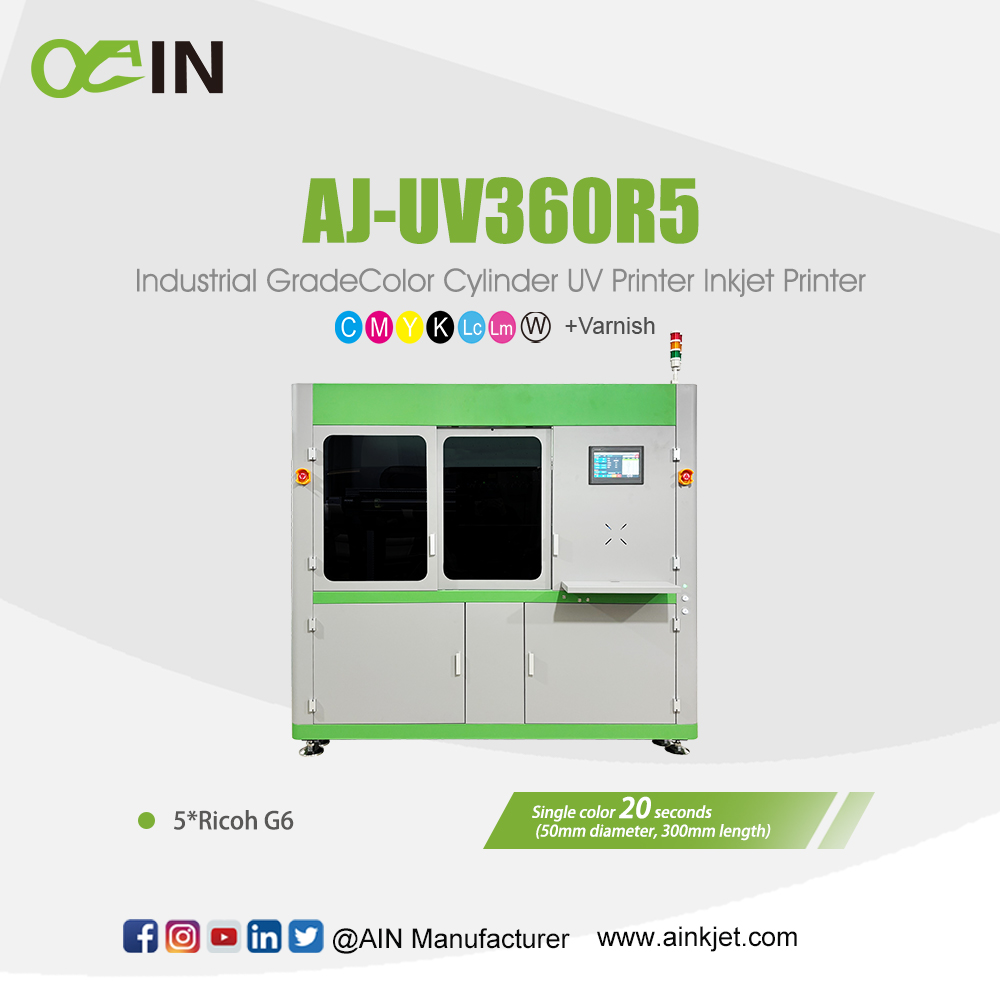

Industrial GradeColor Cylinder UV Printer Inkjet Printer 360° Spiral Printing Technology -Equipped with the latest 360° spiral printing algorithm, delivering 300% higher efficiency than traditional algorithms under the same printing conditions. -In single-color mode, it takes only 20 seconds to print a cylindrical product (50mm diameter, 300mm length). -The spiral printing principle achieves 100% seamless full-wrap printing, greatly improving print quality. One-Step White + Varnish Printing-Adopts a proprietary printing control algorithm to support one-time simultaneous printing of white ink, color ink, and varnish. -Instant curing and drying after printing, eliminating the steps and time of secondary curing and reprocessing, significantly boosting production efficiency. Industrial-Grade High-Speed Printing Configuration-Equipped with 5 Ricoh G6 industrial printheads, featuring high precision, long service life, and stable performance. -Supports full-color configuration of CMYK + LcLm + White + Varnish, with high color reproduction to meet high-end customized printing needs. Multi-Axis Servo/Stepper Drive System-Features up to 7-axis motion control (servo/stepper optional). -Completes the entire process of loading, printing, unloading, cleaning, and setup in one stop. -Greatly simplifies equipment operation, improving automation and production stability. Wide Application Compatibility-Ideal for various cylindrical and conical products, such as tumblers, insulated cups, cosmetic bottles, wine bottles, aluminum cans, etc. -Perfect for personalized customization, small-batch production, promotional gifts, and high-end packaging printing. -Widely used in the drinkware, cosmetics, wine & beverage, and gift packaging industries. |
|  |  |
 |  |  |
◉Proprietary image quality control technology the pursuit of a more outstanding aesthetic
It use 5pcs Ricoh G6, which with an accuracy of up to MAX 3600dpi, and fine print quality,
which can reproduce gorgeous colors and bright human skin with top-notch colors.
The brighter colorpart will be more brighter, the darker color will be more darker.
lt can effectively attract the attention ofthe audience and enhance the added value of the product.
◉Strong jetting force to achieve printing on uneven material surface
The nozzle jet height and printable drop are up to 13mm and could print on the uneven
surface products.which solves the problem of product printing with concave-convex
groove drop and height drop.

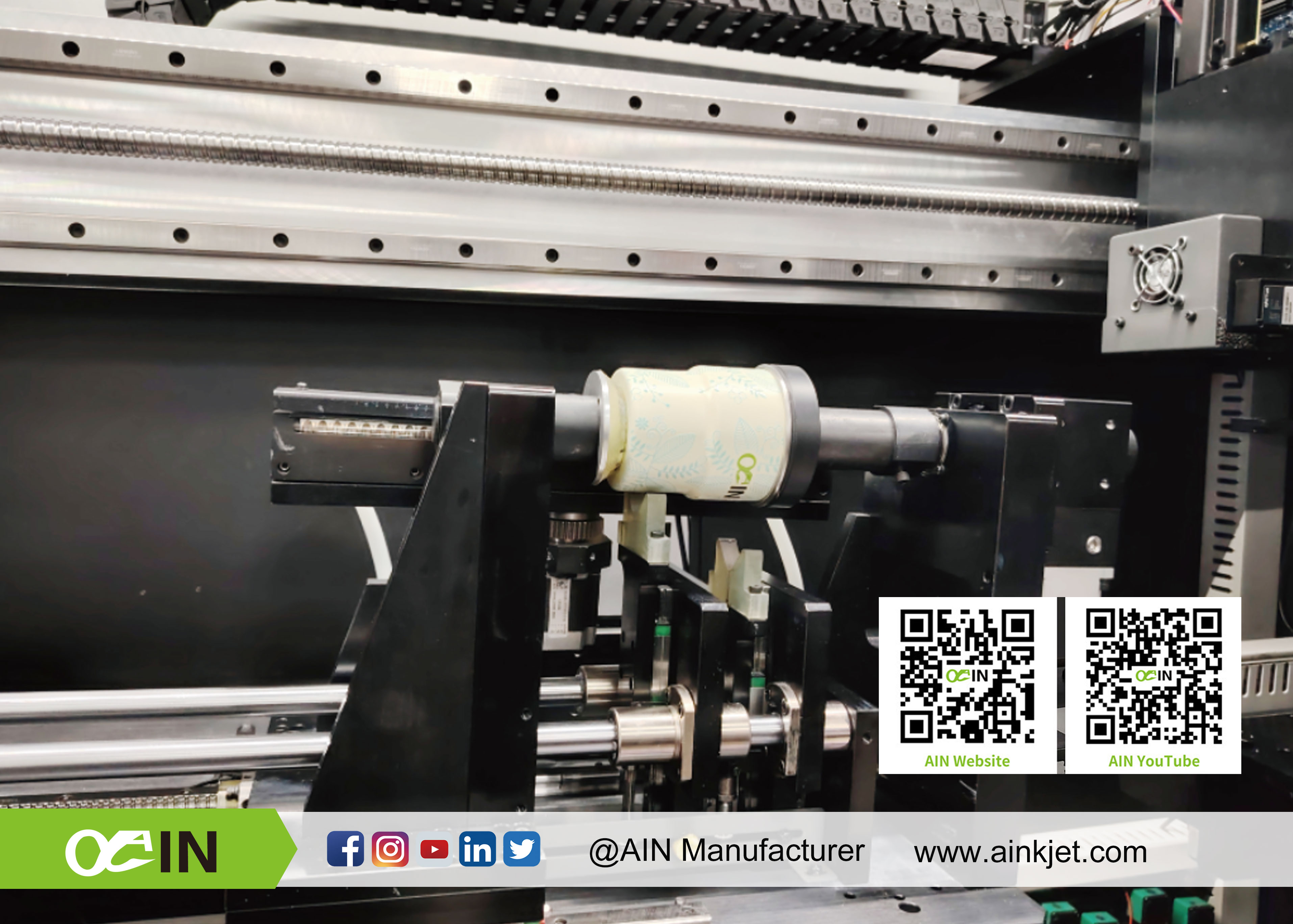

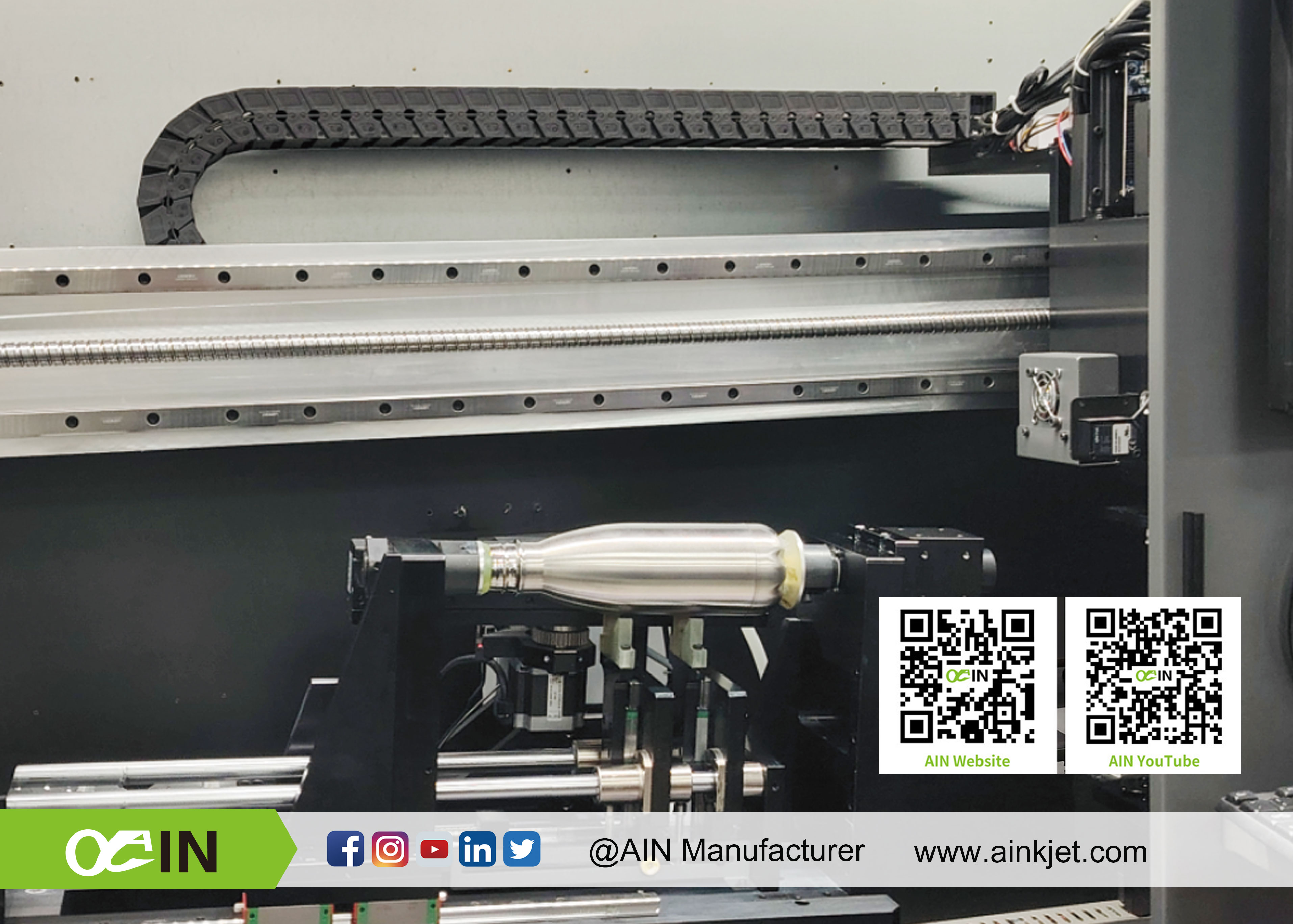

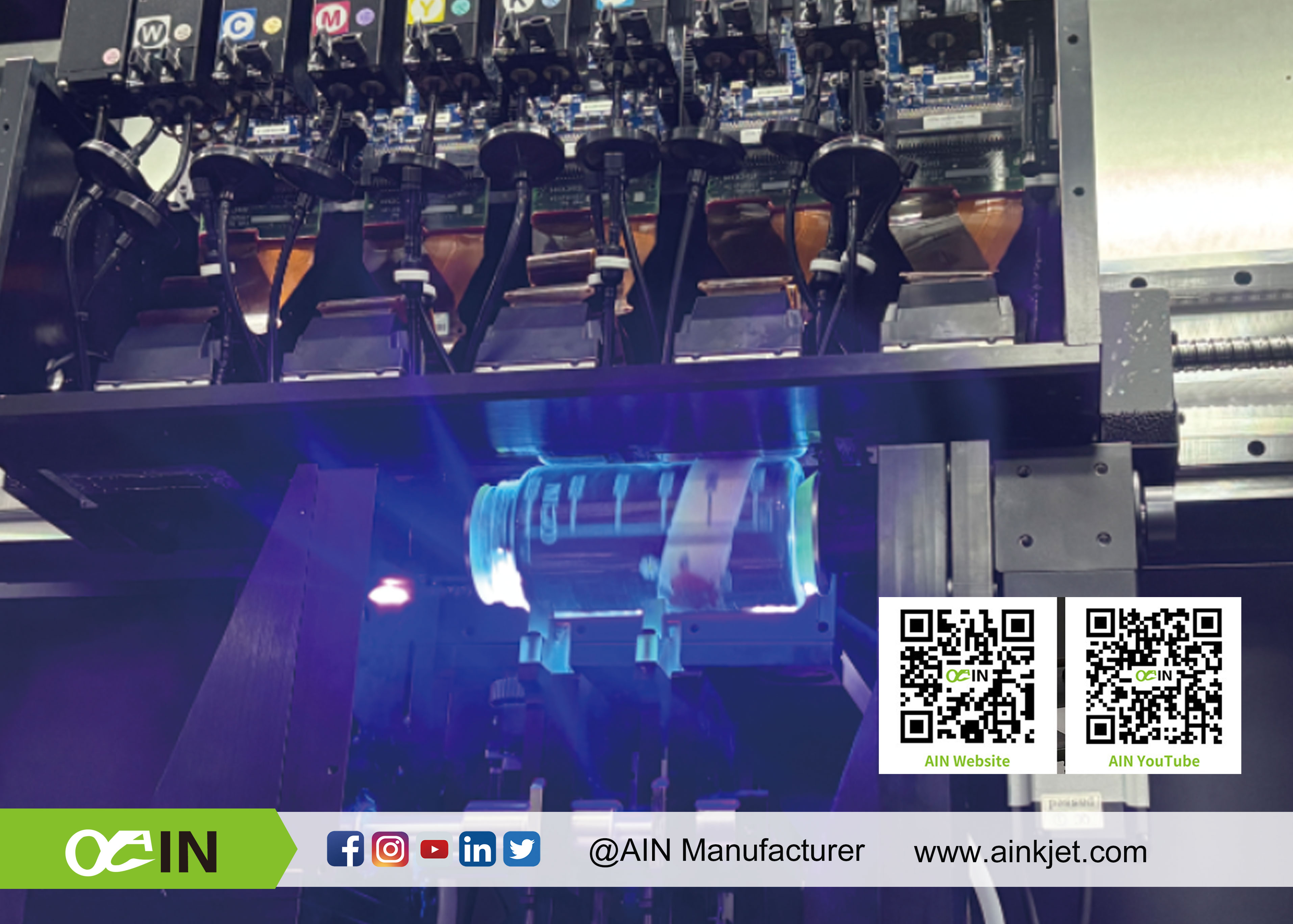

◉360° high-speed rotation printing, seamless connection
360° high-speed rotation printing with color, white & varnish at once. lt is suitable for small
batchproduction of cylindrical and conical insulation cups, and the speed is as high as 30s/piece.
◉Use high-performance ink to create colorful applications
It is an enyironmentally friendly UV ink with excellent color development and color reprehensibility.
After being cured by ultraviolet radiation, it produces gorgeous colors and has strong adhesion.
Technical Specifications
| AJ-UV360R5 Industrial GradeColor Cylinder UV Printer Inkjet Printer | ||
| Model | AJ-UV360R5 | |
| Print Head | 5pcs Ricoh G6 | |
| Media | About 1kg | |
| Application | Various opaque cylinder materials | |
| Printing width and length | 30-300mm(L) | |
| Print diameter | 50-140mm | |
| Color | 6 color(Cyan,Magenta,Yellow,Black,White,Varnish) | |
| Printer mode | CMYKLcLm+W+V | |
| Print resolution(dpi) | 960x900dpi (MAX 3600dpi) | |
| Printing speed | Color | 15s D:60mm L:200mm |
| Color+W | 30s D:60mm L:200mm | |
| Color+W+V | 45s D:60mm L:200mm | |
| File format | JPG,TIF,PDF etc. | |
| RIP | RlIN UV, Maintop 6.0, Photoprint, ONYX, NeoStampa,PrintFactory. | |
| Operating System | Win7 64-bit / Win10 64-bit | |
| Moisturizing Structure | Fully automatic cleaning and moisturizing integrated unit | |
Connectivity | USB 3.0 | |
Power requirments | 220V+5 %, 10A，50Hz+1 | |
| Printer Dimensions | 1910x960x1750mm (LxWxH) | |
| Environment | Temperature: 15°C to 32°C, Humidity: 40% to 70% relative humidity (non-condensing), Dust standard: Standard office grade | |
| Included itmes | Air knife assembly, Automatic moisturizing and cleaning system,Positive and negative pressure ink path system etc. | |
Printhead
Ricoh GEN6 Printhead (Cable: 447mm) - MH5320This Ricoh GEN6 head (MH5320 series) is compatible with UV based inks. The service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it. This is the 2 colour head. The 4 colour head is MH5340. A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity. This prinhead is available with a cable (including connector) of either 145mm or 447mm. This printhead has a cable of 447mm and a total length including the printhead of 500mm. |
|
| MH5320 | MH5340 | MH5320 Type A | |
|---|---|---|---|
| Method | Piston pusher with metallic diaphragm plate | ||
| Print Width | 54.1 mm (2.1") | ||
| Number of nozzles | 1,280 (4 × 320 channels), staggered | ||
| Nozzle spacing (4 color printing) | 1/150"(0.1693 mm) | ||
| Nozzle spacing (Row to row distance) | A : 1.101mm B : 11.811mm | ||
| Compatible ink | UV, Solvent, Aqueous, Others. | ||
| Total printhead dimensions | 89(W) × 66.3(D) × 24.51(H) mm (3.5" × 2.6" × 1.0") | ||
| Weight | 228g (including 45C cable) | ||
| Max.number of color inks | 2 colors | 4 colors | 2 colors |
| Operating temperature range | 60℃ | ||
| Temperature control | Integrated heater and thermistor | ||
| Jetting frequency | 50kHz (3 levels) 40kHz (4 levels) | ||
| Grey-scale | 4 levels | ||
| Drop volume | Binary mode : 5pl / Grey-scale mode : 5-15pl | ||
| Viscosity range | 10～12mPa・s | ||
| Surface tension | 28～35mN/m | ||
| Ink port | Yes | Yes | No |
| Separately sold parts | MH5320 / MH5340 / MH5320 Type A dedicated cable | ||
Application

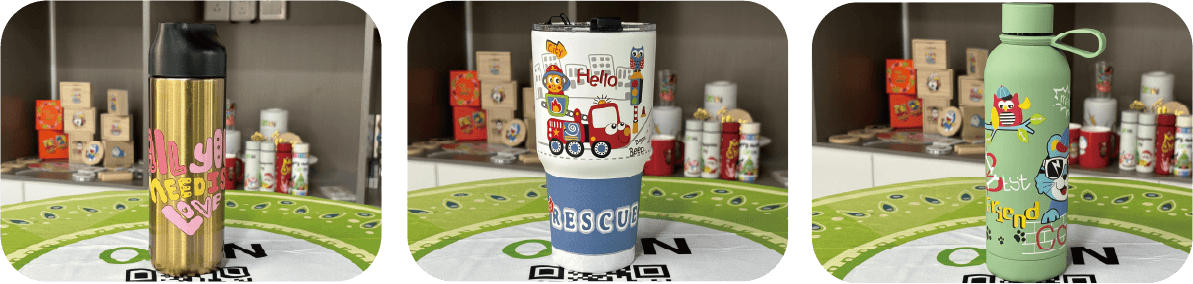

Applications of Industrial GradeColor Cylinder UV Printer
AINKJET AJ-UV360R5 is a specially designed and developed industrial-grade color UV inkjet printer for cylinders/cones, which is widely used in vacuum flasks, cups, cosmetic packaging bottles, wine bottles, aluminum cans, and other industrial and daily cylindrical/conical packaging.
 |  |  |  |
 |  |  |  |
