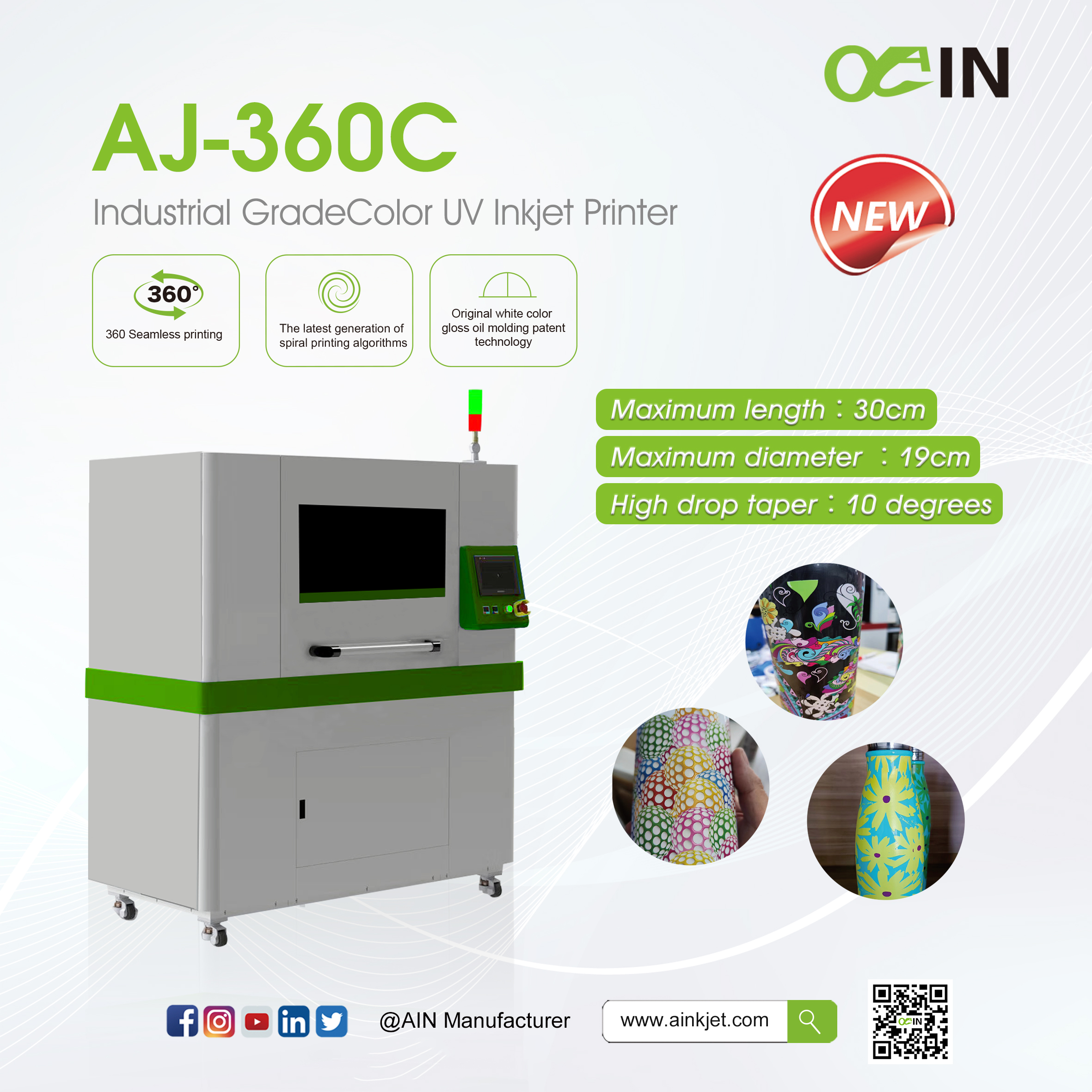

Product Description
Industrial GradeColor
UV Inkjet Printer
the printing quality is also greatly improved, and can achieve 100% seamless printing.
◉Proprietary image quality control technology the pursuit of a more outstanding aesthetic
It use Ricoh G6 print heads, which with an accuracy of up to 2400dpi, and fine print quality,
which can reproduce gorgeous colors and bright human skin with top-notch colors.
The brighter colorpart will be more brighter, the darker color will be more darker.
lt can effectively attract the attention ofthe audience and enhance the added value of the product.
◉Strong jetting force to achieve printing on uneven material surface
The nozzle jet height and printable drop are up to 13mm and could print on the uneven
surface products.which solves the problem of product printing with concave-convex
groove drop and height drop.

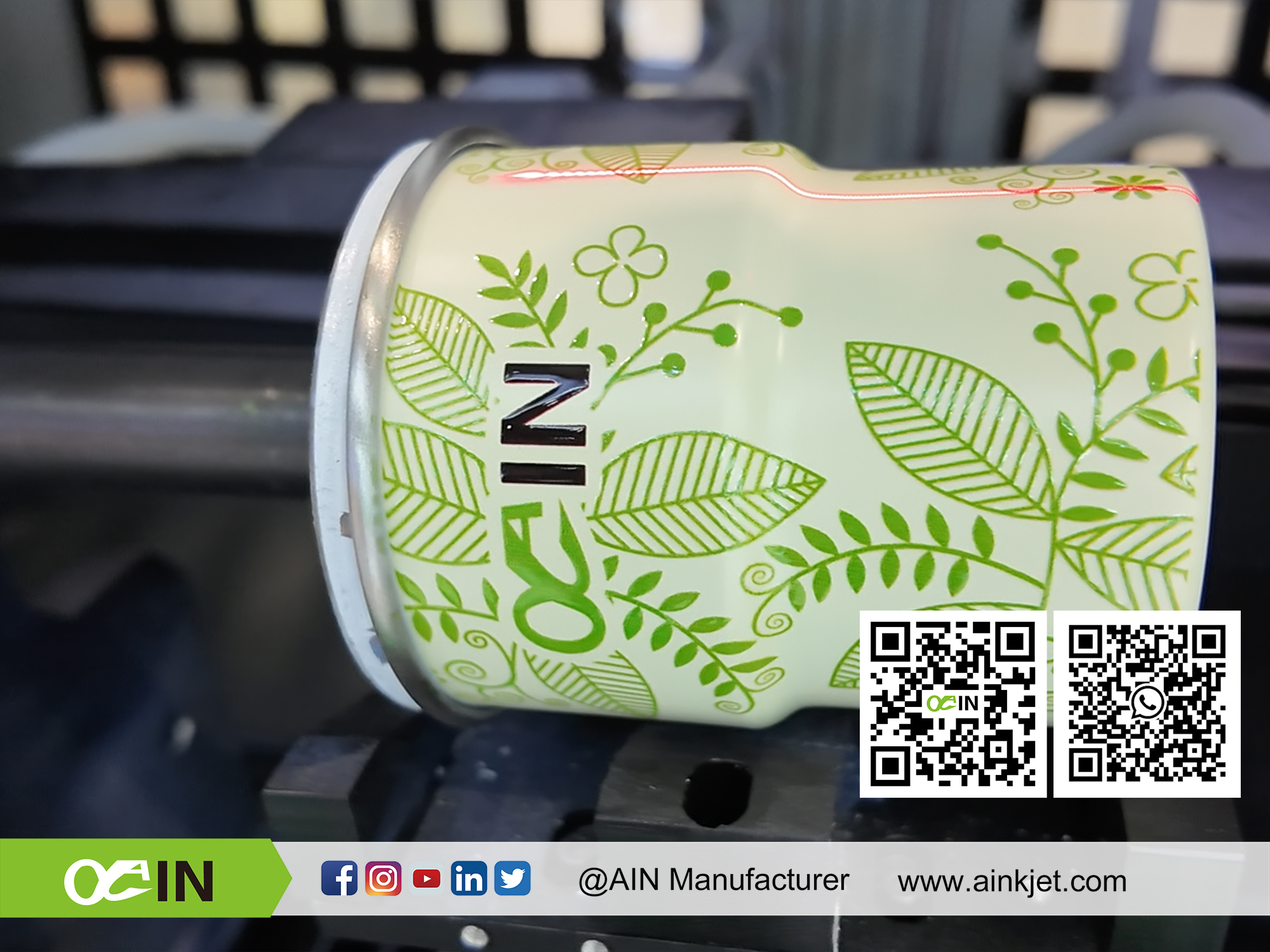

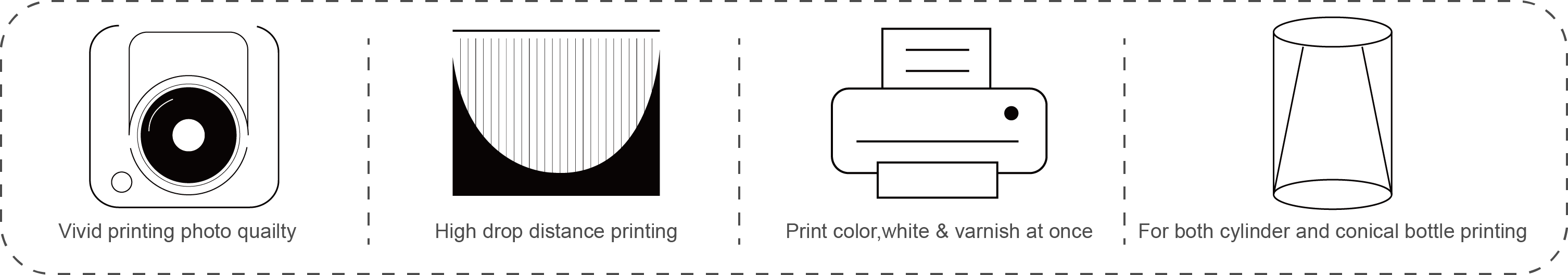

◉360° high-speed rotation printing, seamless connection
360° high-speed rotation printing with color, white & varnish at once. lt is suitable for small

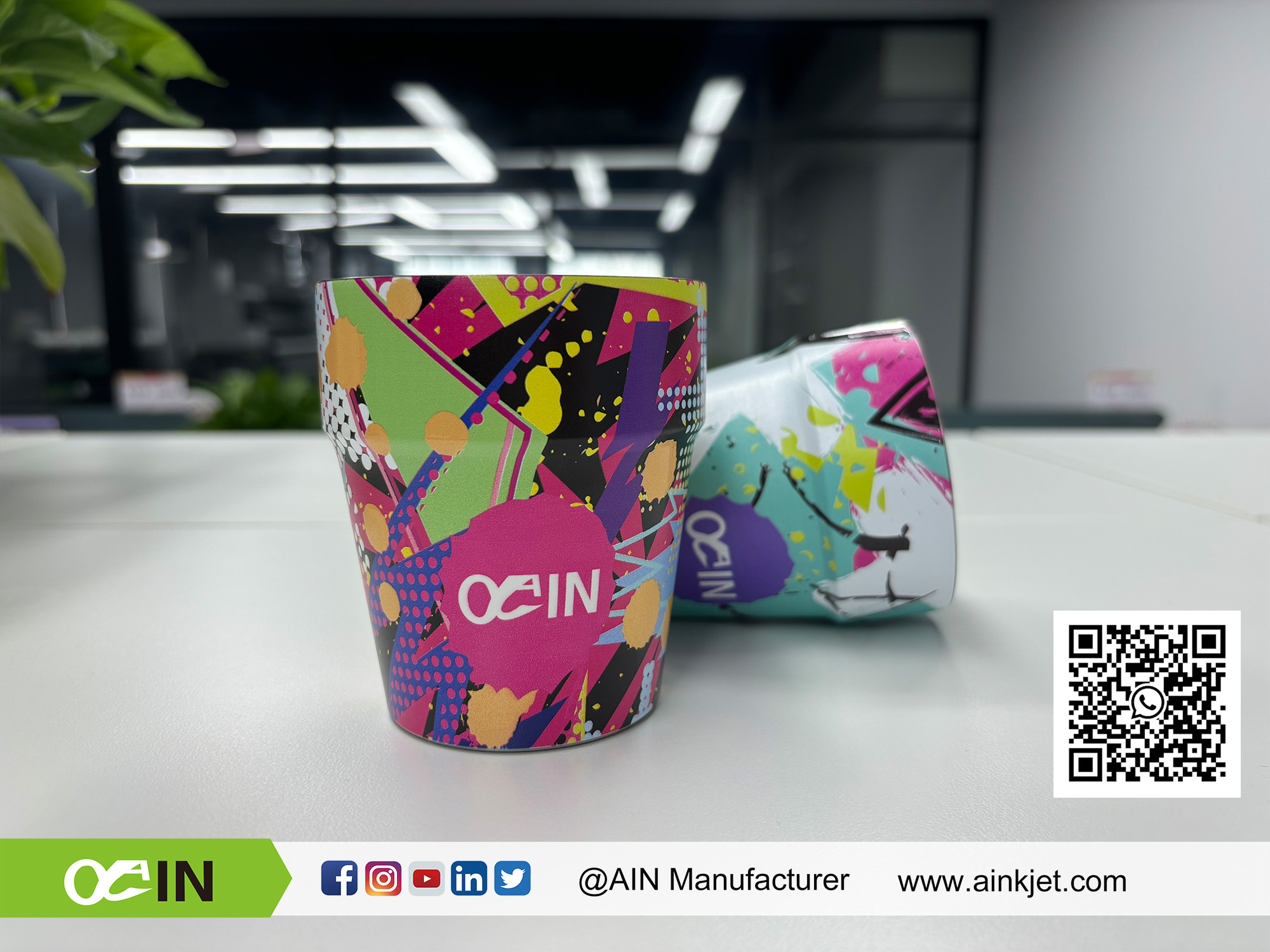

batchproduction of cylindrical and conical insulation cups, and the speed is as high as 30s/piece.
◉Use high-performance ink to create colorful applications
It is an enyironmentally friendly UV ink with excellent color development and color reprehensibility.
After being cured by ultraviolet radiation, it produces gorgeous colors and has strong adhesion.
Technical Specifications

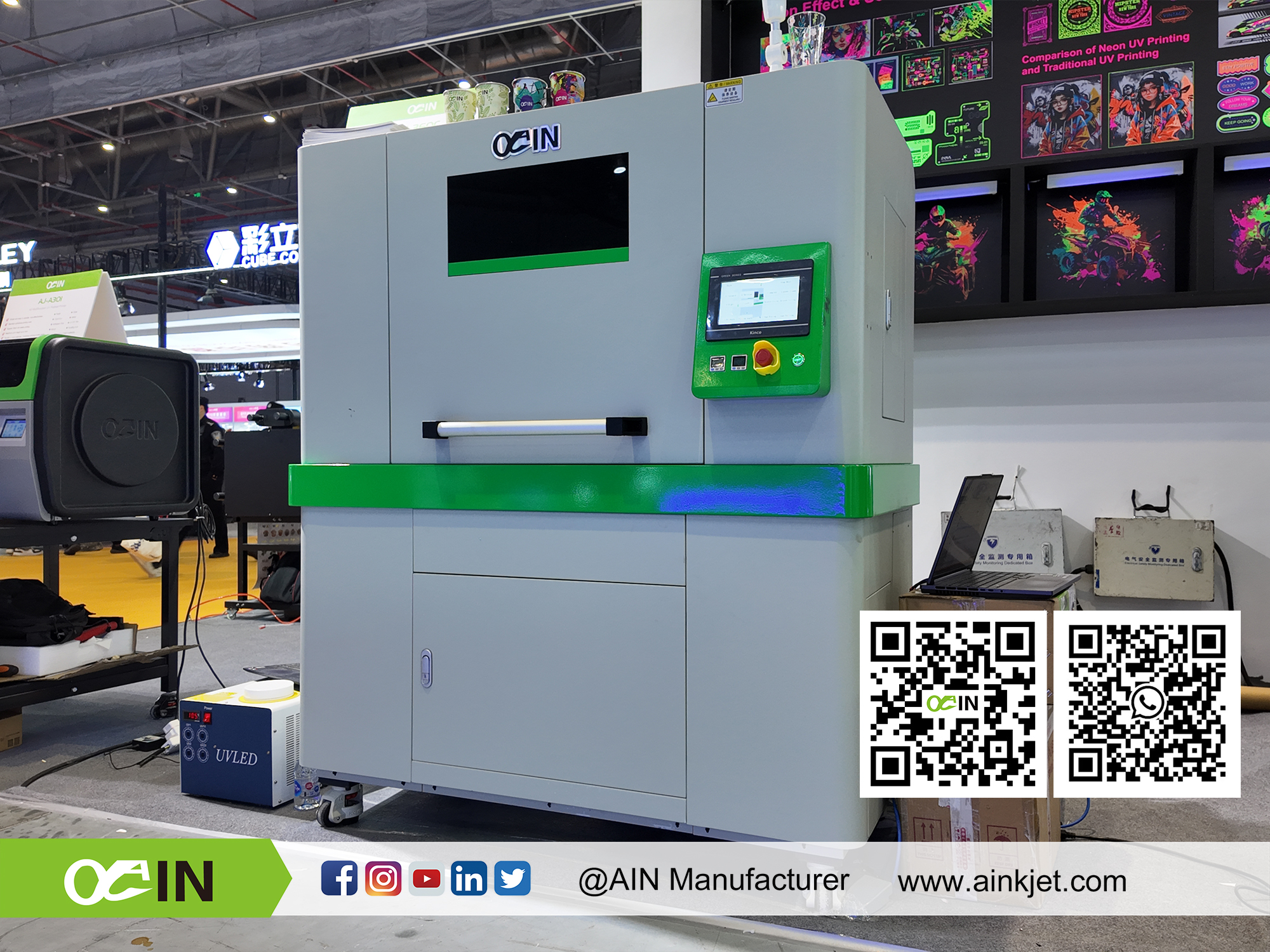

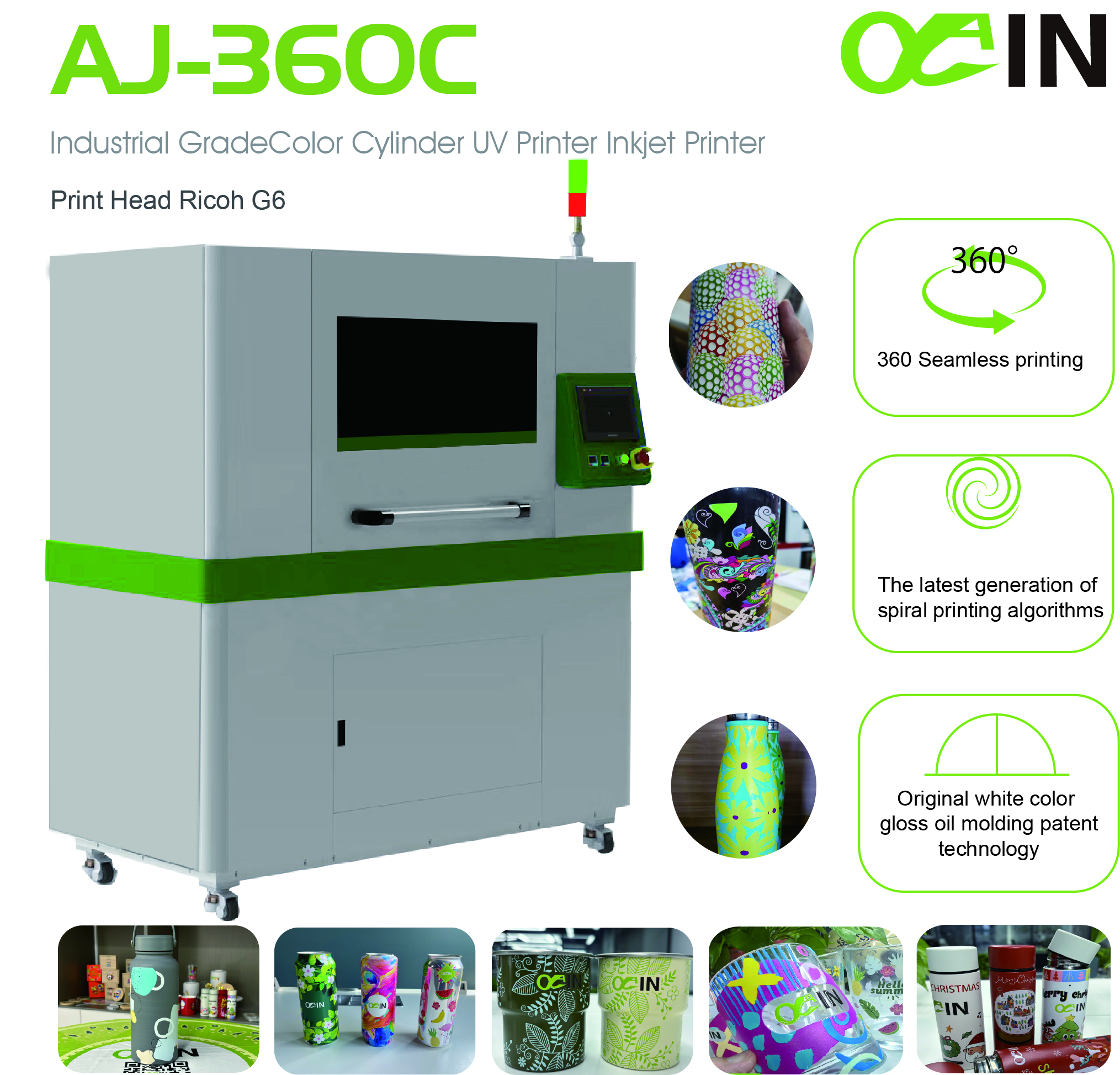

| AJ-360C Industrial GradeColor Cylinder UV Printer Inkjet Printer | ||
| Model | AJ-360C | |
| Print Head | 4pcs Ricoh G6 | |
| Media | About 1kg | |
| Application | Various opaque cylinder materials | |
| Printing width and length | Max.300mm(L) | |
| Print diameter | 40-180mm | |
| Color | 6 color(Cyan,Magenta,Yellow,Black,White,Varnish) | |
| Printer mode | CMYK+W+V | |
| Print resolution(dpi) | MAX.2400dpi | |
| Printing speed | Color | 15s D:60mm L:200mm |
| Color+W | 30s D:60mm L:200mm | |
| Color+W+V | 45s D:60mm L:200mm | |
| File format | AI,PS,TIF,JPG,EPS,PDF | |
| Distance accuracy | Less than 0.3mm | |
| Connectivity | USB 3.0 | |
| Power requirments | AC220+10,50HZ-60HZ | |
| Dimensions | 1409mm(L)*819mm(W)*1894mm(H) | |
| Weight | 420kg | |
| Environment | Power on | Temperature 20℃-28 ℃, humidity35%-65%RH |
| Power off | Temperature 20 C-28 ℃, humidity35%-65%RH | |
| Included itmes | Power cable,USB 3.0,Use manual etc | |
| Optional | |
| Ink Type | UV Ink |
| Color | Cyan,Magenta,Yellow,Black,White,Varnish |
| Capacity | 500ml、1000ml |
| UV Cleaning Liquid | 1000ml CL |

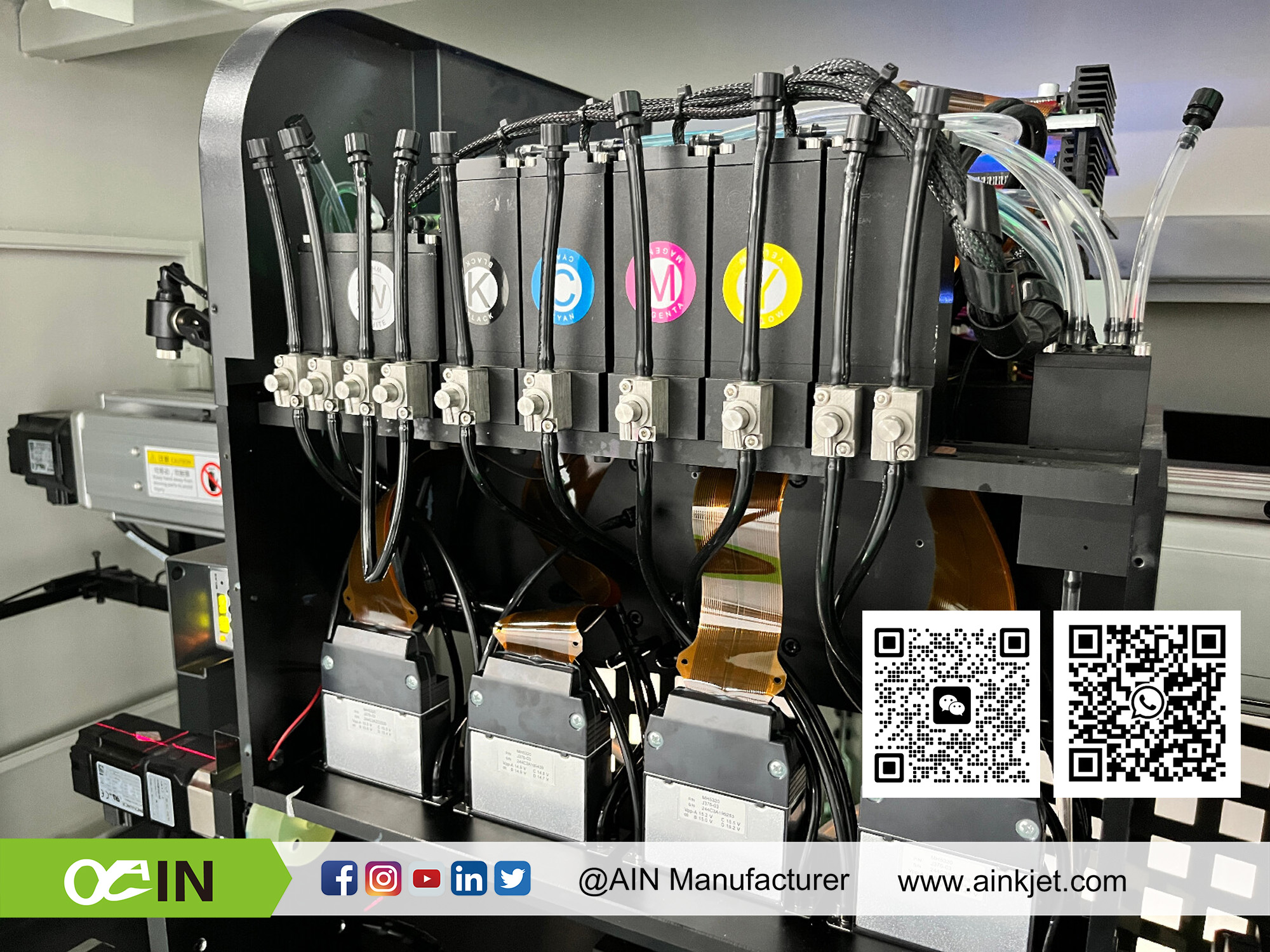

Printhead
Ricoh GEN6 Printhead (Cable: 447mm) - MH5320This Ricoh GEN6 head (MH5320 series) is compatible with UV based inks. The service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it. This is the 2 colour head. The 4 colour head is MH5340. A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity. This prinhead is available with a cable (including connector) of either 145mm or 447mm. This printhead has a cable of 447mm and a total length including the printhead of 500mm. |
|
| MH5320 | MH5340 | MH5320 Type A | |
|---|---|---|---|
| Method | Piston pusher with metallic diaphragm plate | ||
| Print Width | 54.1 mm (2.1") | ||
| Number of nozzles | 1,280 (4 × 320 channels), staggered | ||
| Nozzle spacing (4 color printing) | 1/150"(0.1693 mm) | ||
| Nozzle spacing (Row to row distance) | A : 1.101mm B : 11.811mm | ||
| Compatible ink | UV, Solvent, Aqueous, Others. | ||
| Total printhead dimensions | 89(W) × 66.3(D) × 24.51(H) mm (3.5" × 2.6" × 1.0") | ||
| Weight | 228g (including 45C cable) | ||
| Max.number of color inks | 2 colors | 4 colors | 2 colors |
| Operating temperature range | 60℃ | ||
| Temperature control | Integrated heater and thermistor | ||
| Jetting frequency | 50kHz (3 levels) 40kHz (4 levels) | ||
| Grey-scale | 4 levels | ||
| Drop volume | Binary mode : 5pl / Grey-scale mode : 5-15pl | ||
| Viscosity range | 10～12mPa・s | ||
| Surface tension | 28～35mN/m | ||
| Ink port | Yes | Yes | No |
| Separately sold parts | MH5320 / MH5340 / MH5320 Type A dedicated cable | ||
Application
Applications of Industrial GradeColor
UV Inkjet Printer

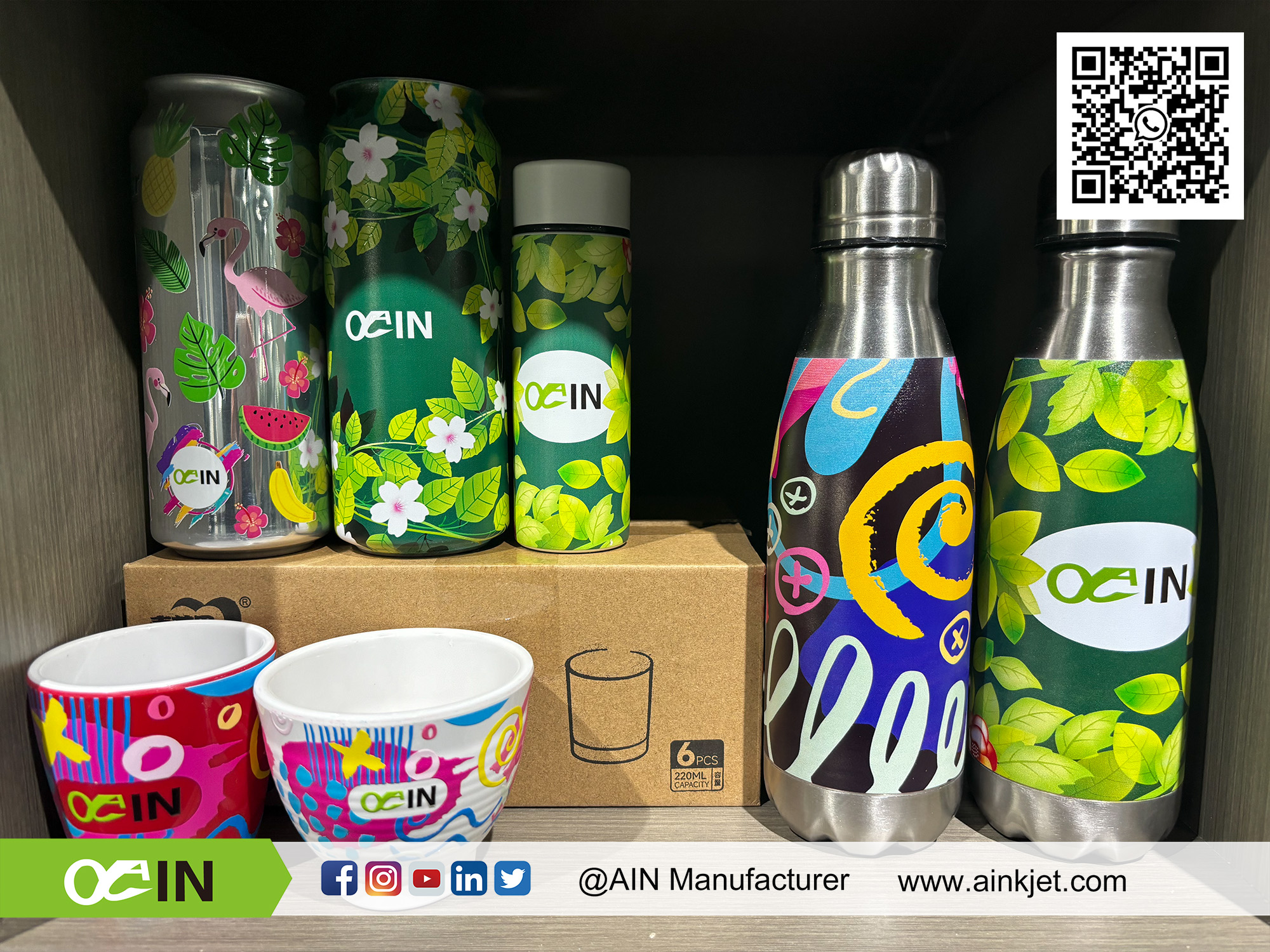

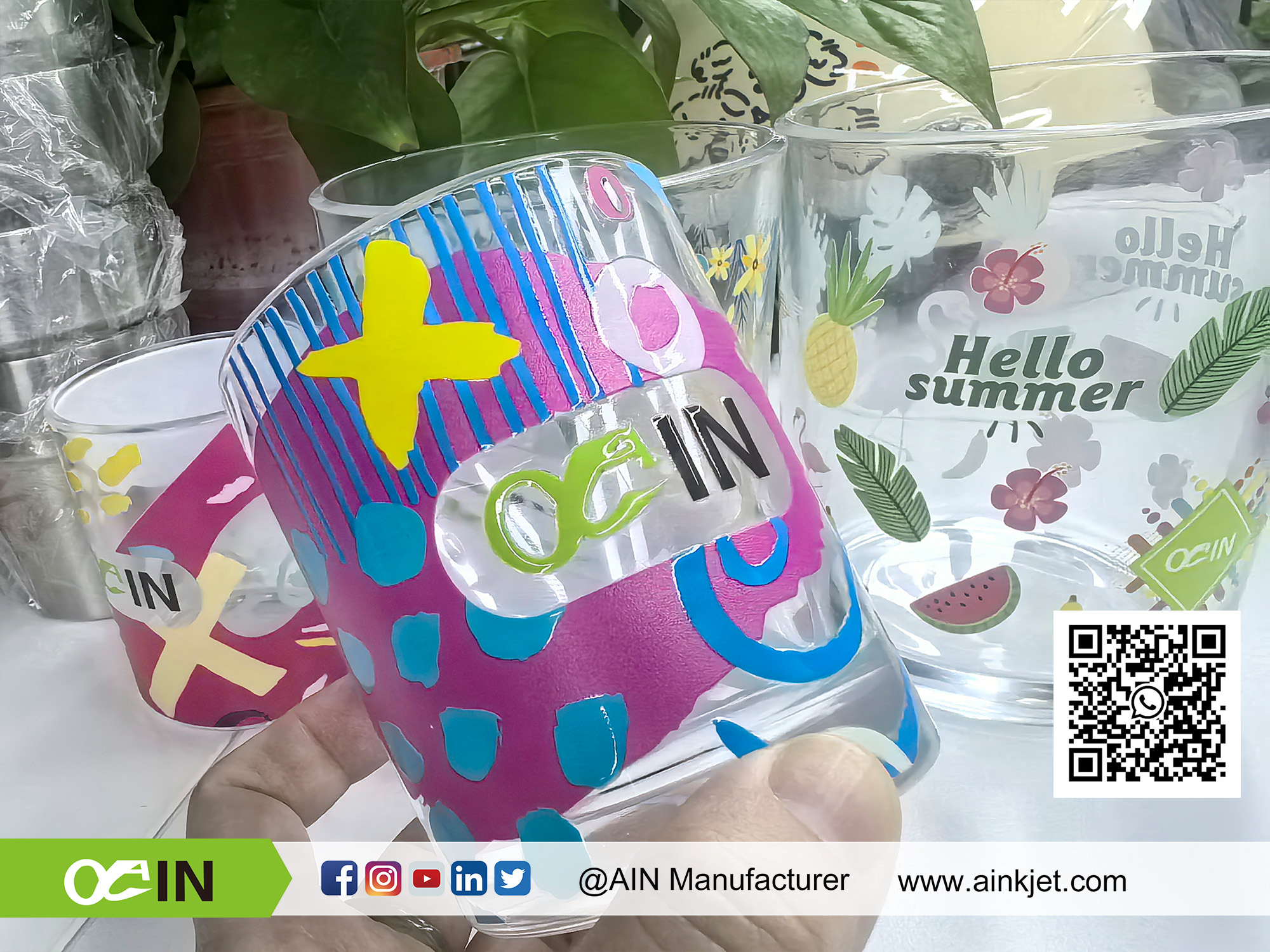

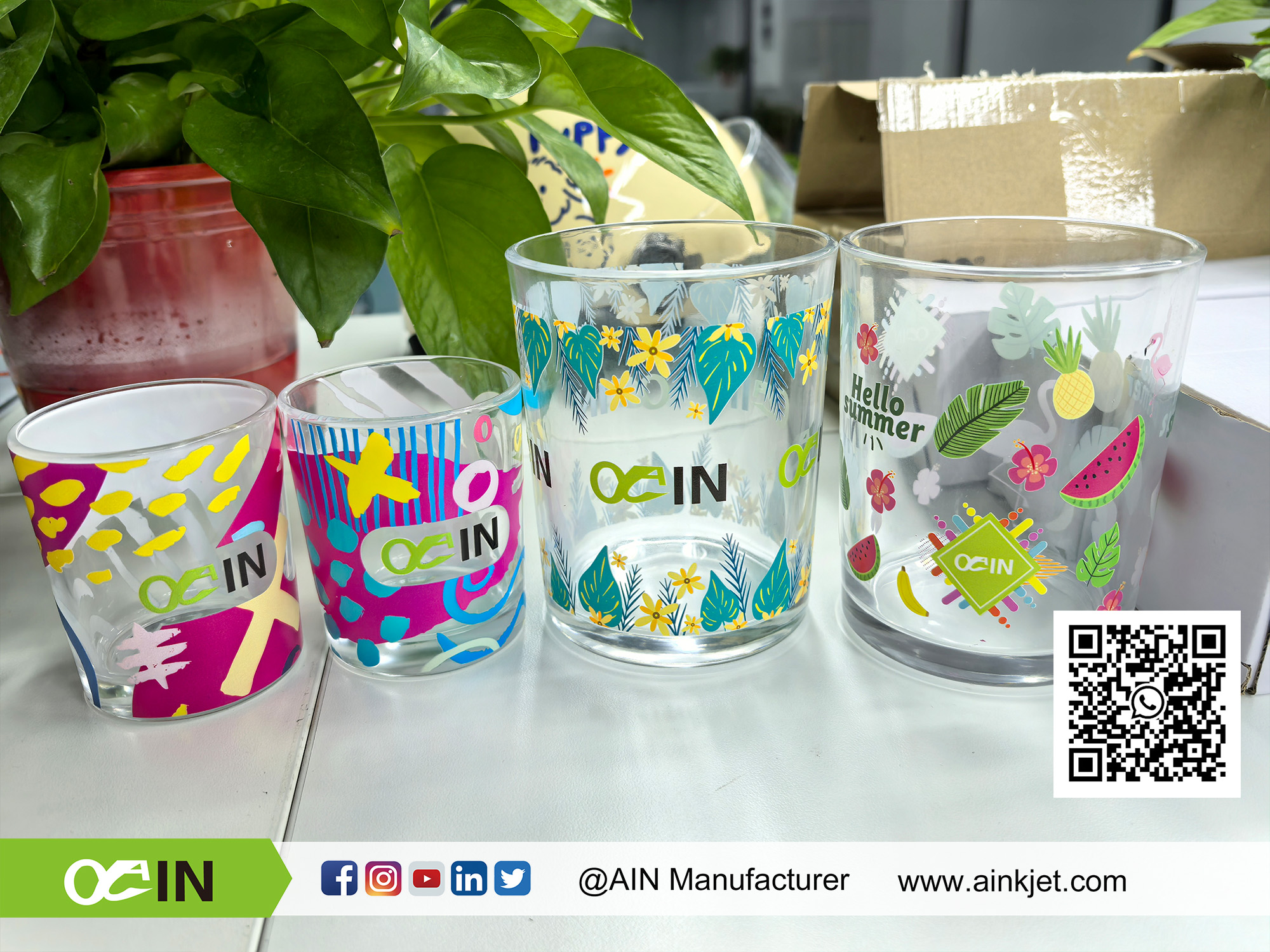

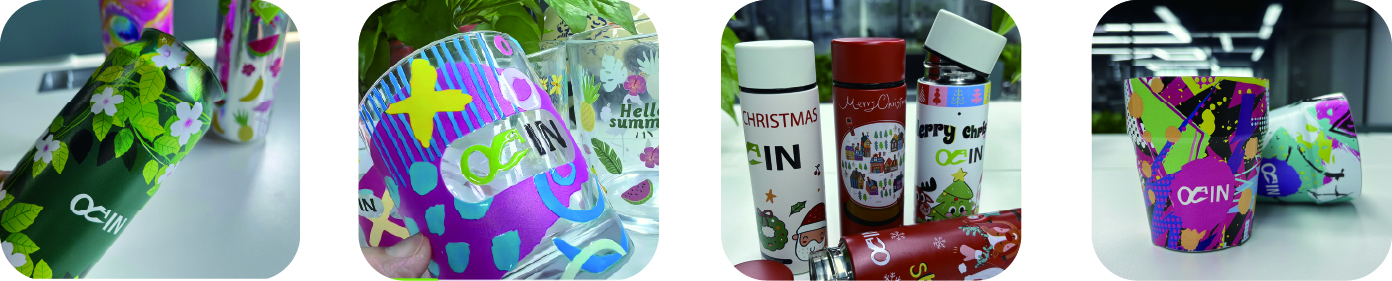

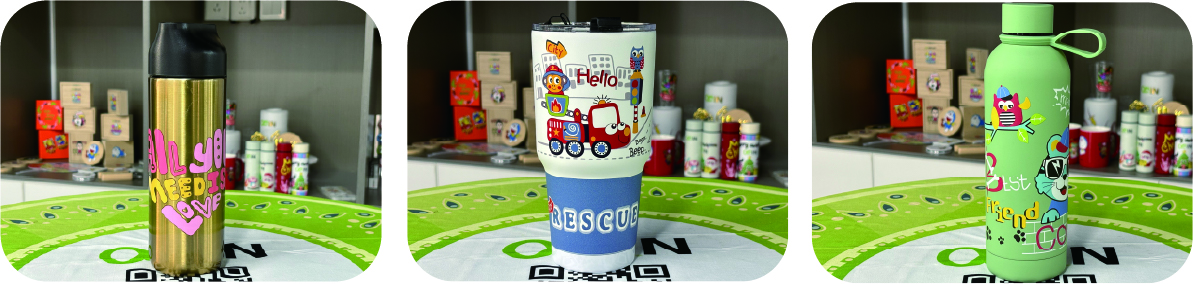

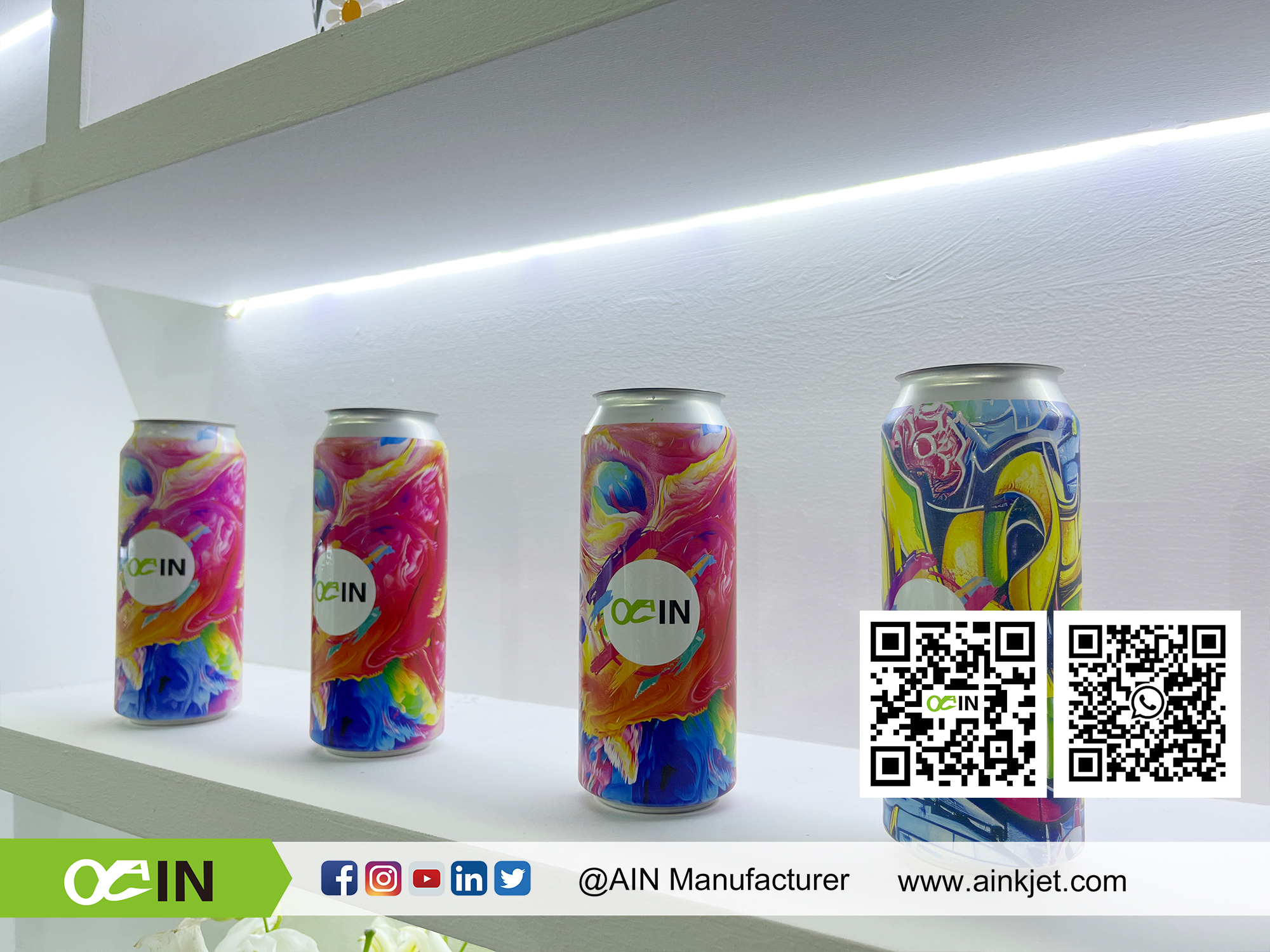

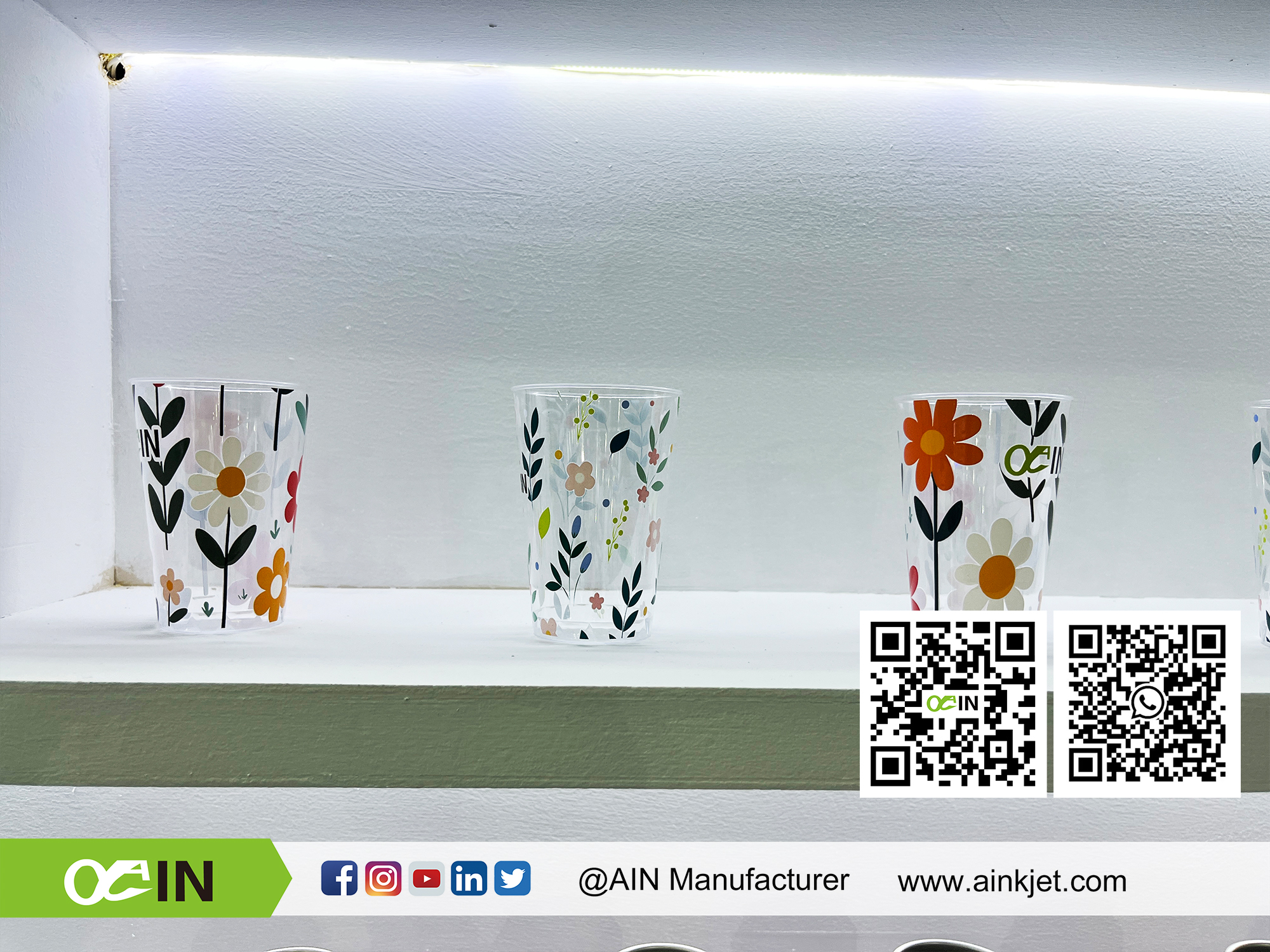

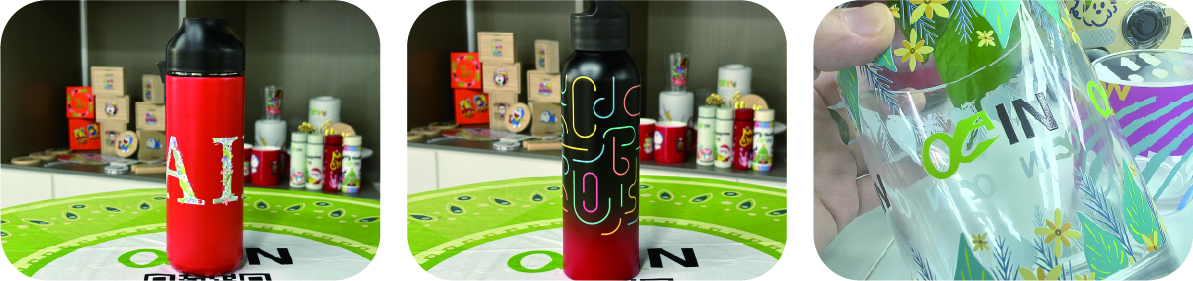

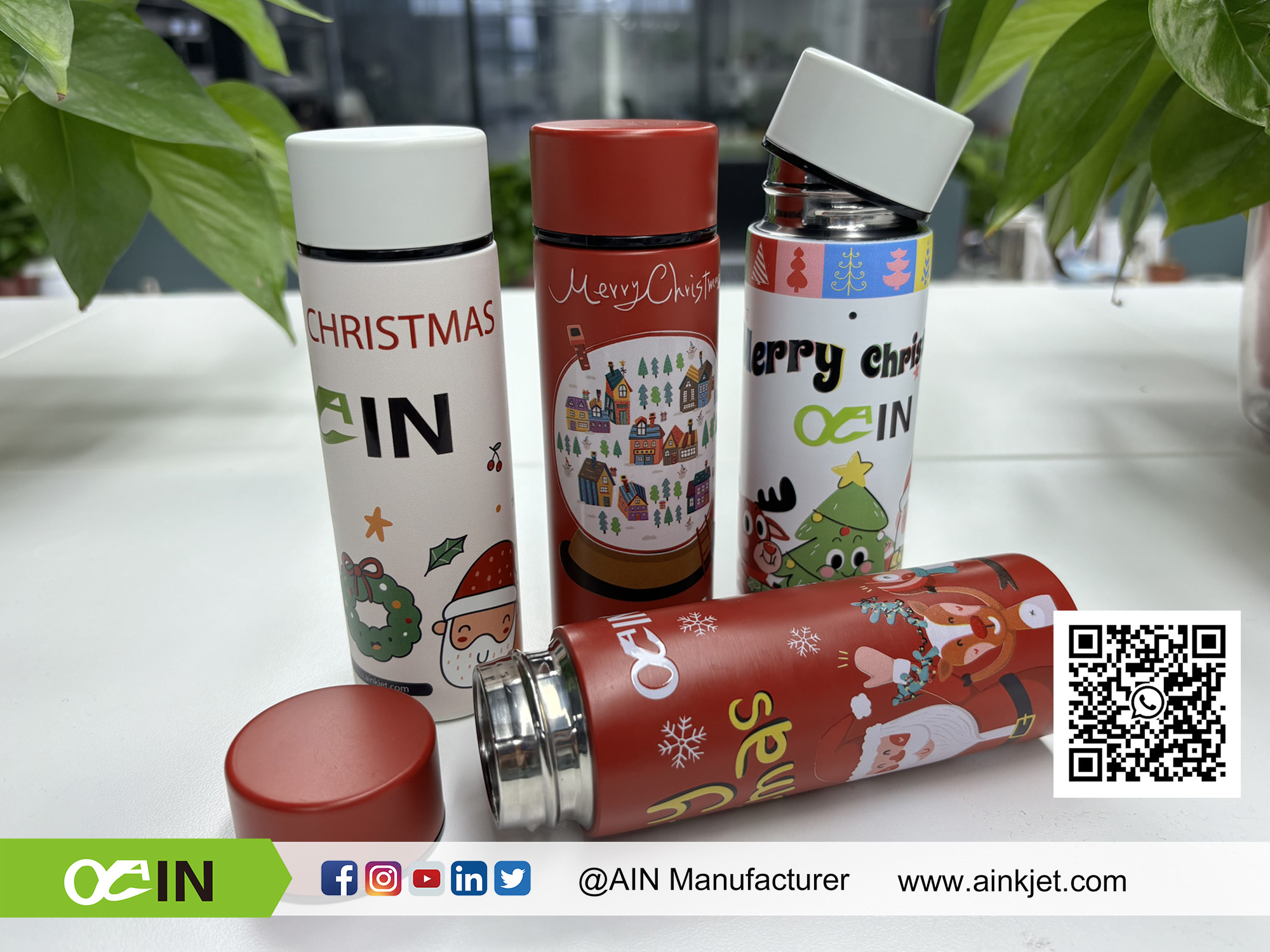

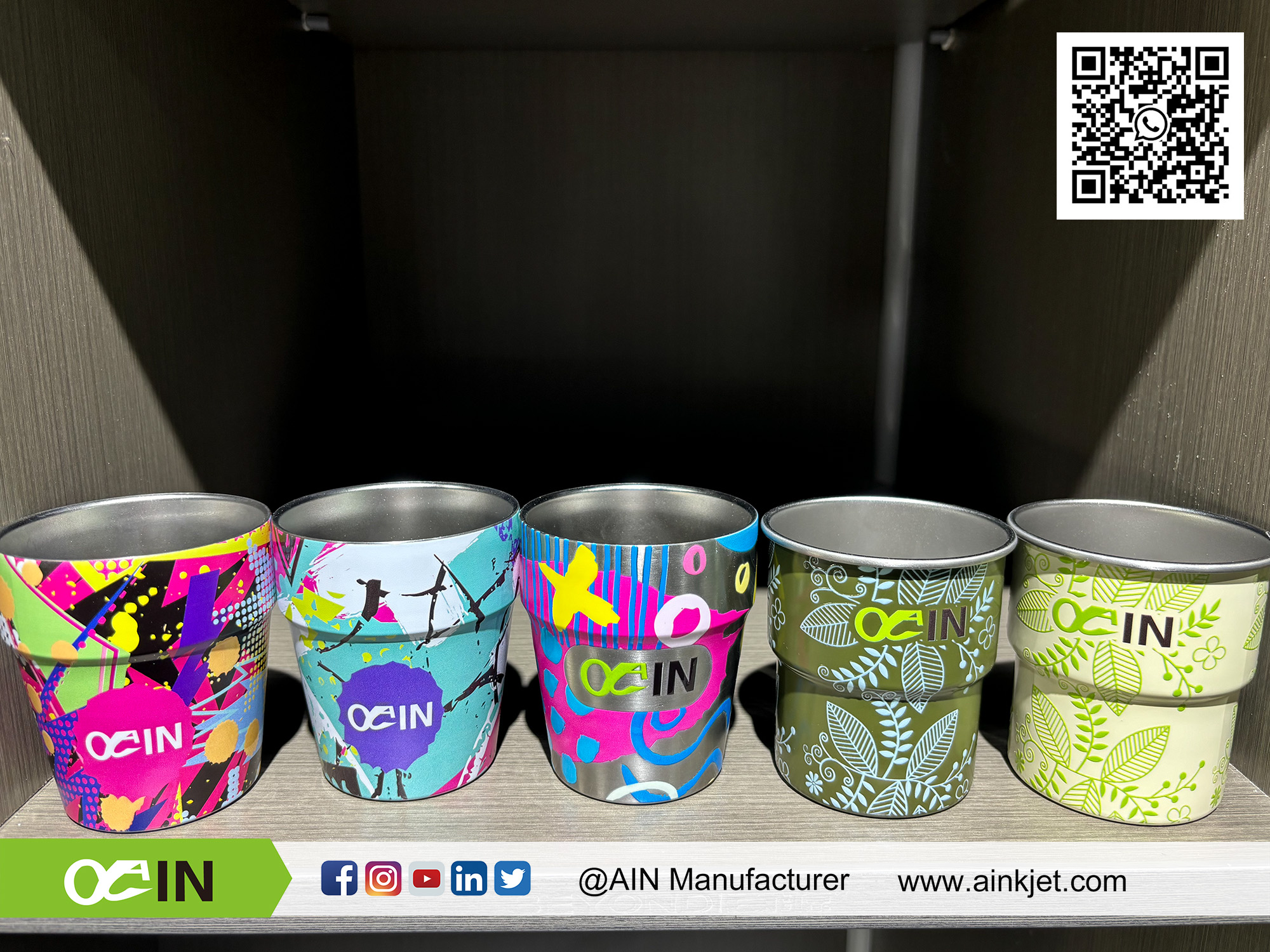

AJ-360C is a specially designed and developed industrial-grade color UV inkjet printer for cylinders/cones, which is widely used in vacuum flasks, cups, cosmetic packaging bottles, wine bottles, aluminum cans, and other industrial and daily cylindrical/conical packaging.
 |  |  |  |
 |  |  |  |
