AINKJET CCD Visual Laser Cutting Label Printer for Heat Transfer Vinyl Roll Material

AINKJET CCD Visual Positioning Laser Cutting Machine for Heat Transfer Vinyl Roll Material

Laser Cutting Machine

Parameter
Function:Laser cutting
Optional Configuration：CCD Visual

Laser power：45W

Suitable cutting thickness：≤2.2mm

Feature

Featuring CCD auto visual positioning, AINKJET Laser Cutting Machine supports continuous roll processing to achieve one-click precision cutting of irregular heat transfer labels, compatible with silicone, TPU, PVC and other flexible garment roll materials.

It comes with high-precision cutting, synchronous smoke extraction, intelligent path optimization and kiss cut function, delivering smooth cut edges free of burns and burrs, with optional processing widths available.

Widely applied to apparel logos, cultural badges and advertising decals, it enables automated roll production for small and medium factories to save mold costs and replace manual die-cutting.


Availability:



Inquiry PDF Export

Printer Informations

激光切割机主图

CCD Visual Positioning Laser Cutting Machine

Heat Transfer Vinyl，TPU, Silicone, PVC Roll Label Materials

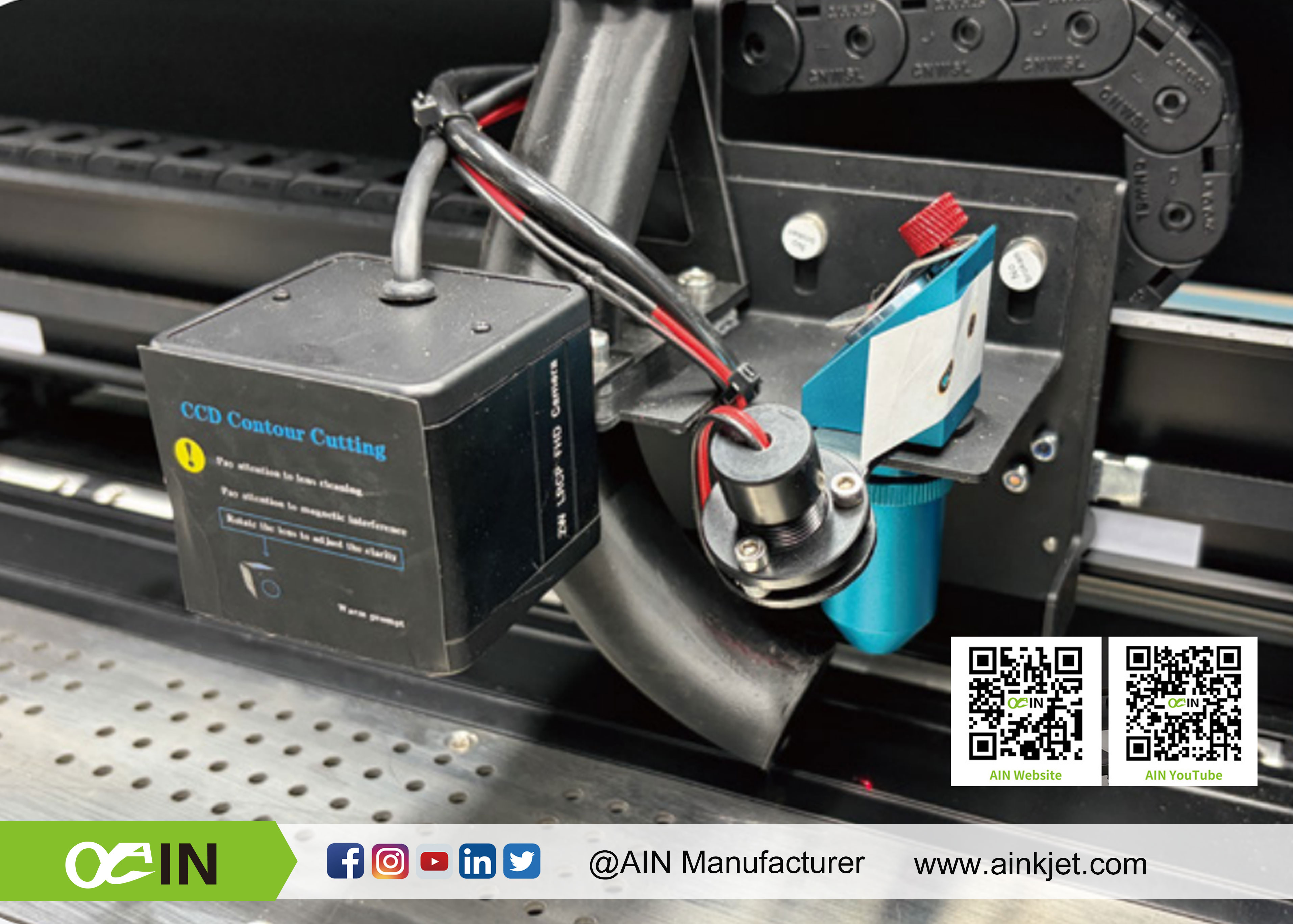

CCD Auto Visual Positioning

Built-in CCD vision captures pattern contours, Mark points and print edges. No positioning molds needed one-click cutting for irregular labels with high precision to avoid mis-cuts.

Continuous Roll Processing

Special roll feeding structure supports uninterrupted cutting of silicone, TPU and PVC film rolls,

perfect for mass production of heat transfer labels.

Optional Processing Width

Standard roll widths: 600/900/1200mm, customizable to fit regular garment heat transfer film rolls.

Compatible Materials

Silicone film, TPU/PU/PVC heat transfer film, adhesive printed film and other flexible apparel roll materials.

High-Precision Cutting

High-precision cutting head delivers fine lines; tiny and complex emblems come out smooth without burns or burrs.

Synchronous Smoke Extraction

Real-time fume extraction prevents PVC & TPU discoloration from hot melt smoke.

Intelligent Path Optimization

Software optimizes paths to reduce idle travel, speed up processing and save energy.

Kiss Cut Function

Adjustable laser power cuts only the top film layer while retaining backing paper for easy peeling.

Industry Applications

Suitable for apparel heat transfer logos, mass production of transfer labels, cultural badges and advertising PVC decals.

It enables automated roll processing for small & medium factories to cut mold costs and replace manual die-cutting.

Advantages of CCD Visual Positioning System

Hardware: Industrial HD CCD camera with dedicated fill light for clear recognition of pale prints.

Recognition Logic: Real-time scanning auto-generates cutting paths and compensates for roll stretch and shift errors.

Application Scenarios: Uninterrupted mass production of heat transfer labels, woven marks and adhesive stickers with no manual alignment.

Precision: Minimal positioning error for error-free cutting of tiny logos and mini badges.

Supported File Formats

Supports common design files AI, DXF, PLT, BMP, DST, directly imported from design software without conversion.

Laser Type

Water-cooled CO₂ glass laser tube for non-metallic rolls such as TPU, PVC, silicone and fabric films,with CW5200 chiller to keep stable laser power output.

New Feature of Laser Cutting Machine

We have an excellent technical team, which can be designed according to customers requirements.

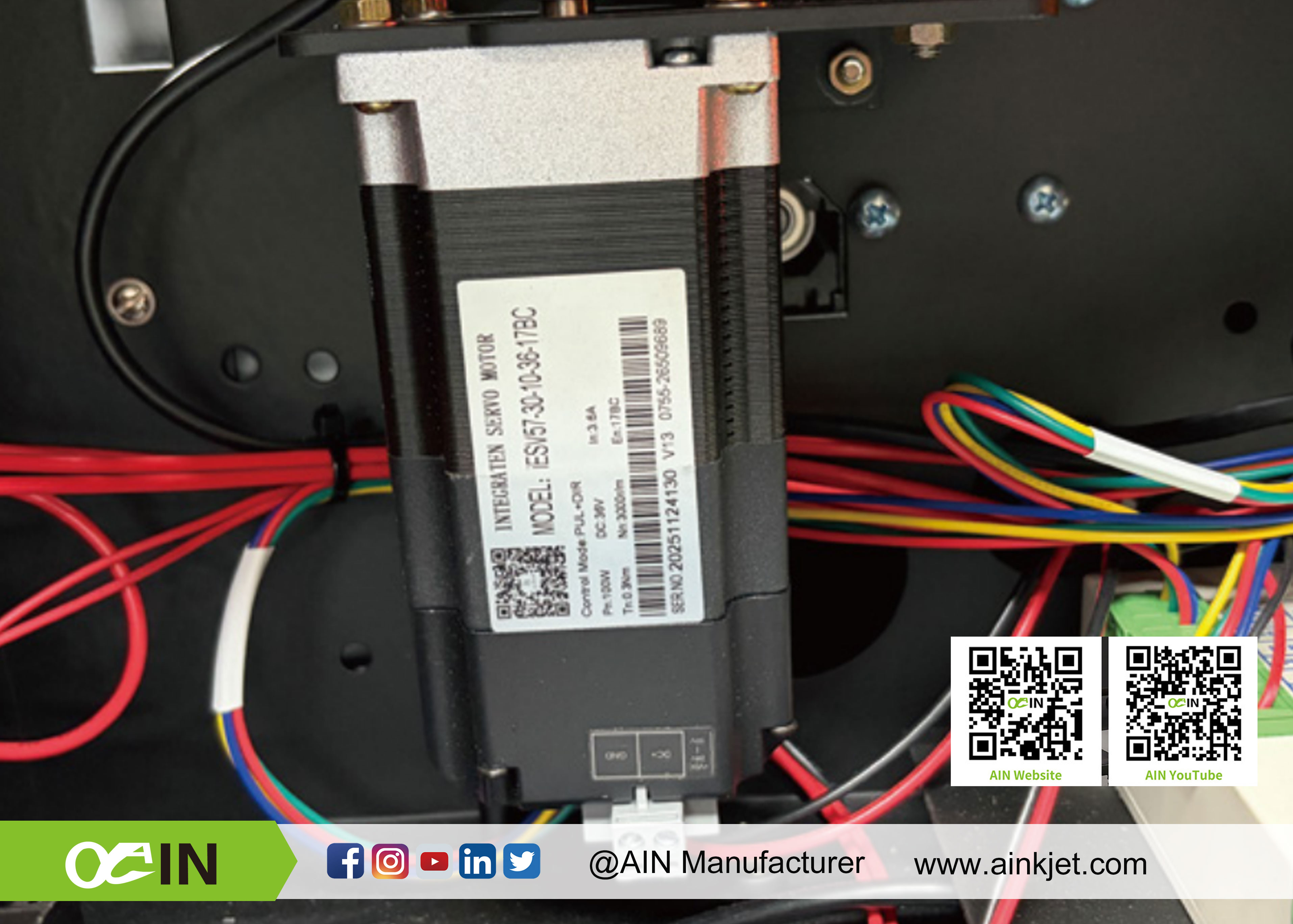

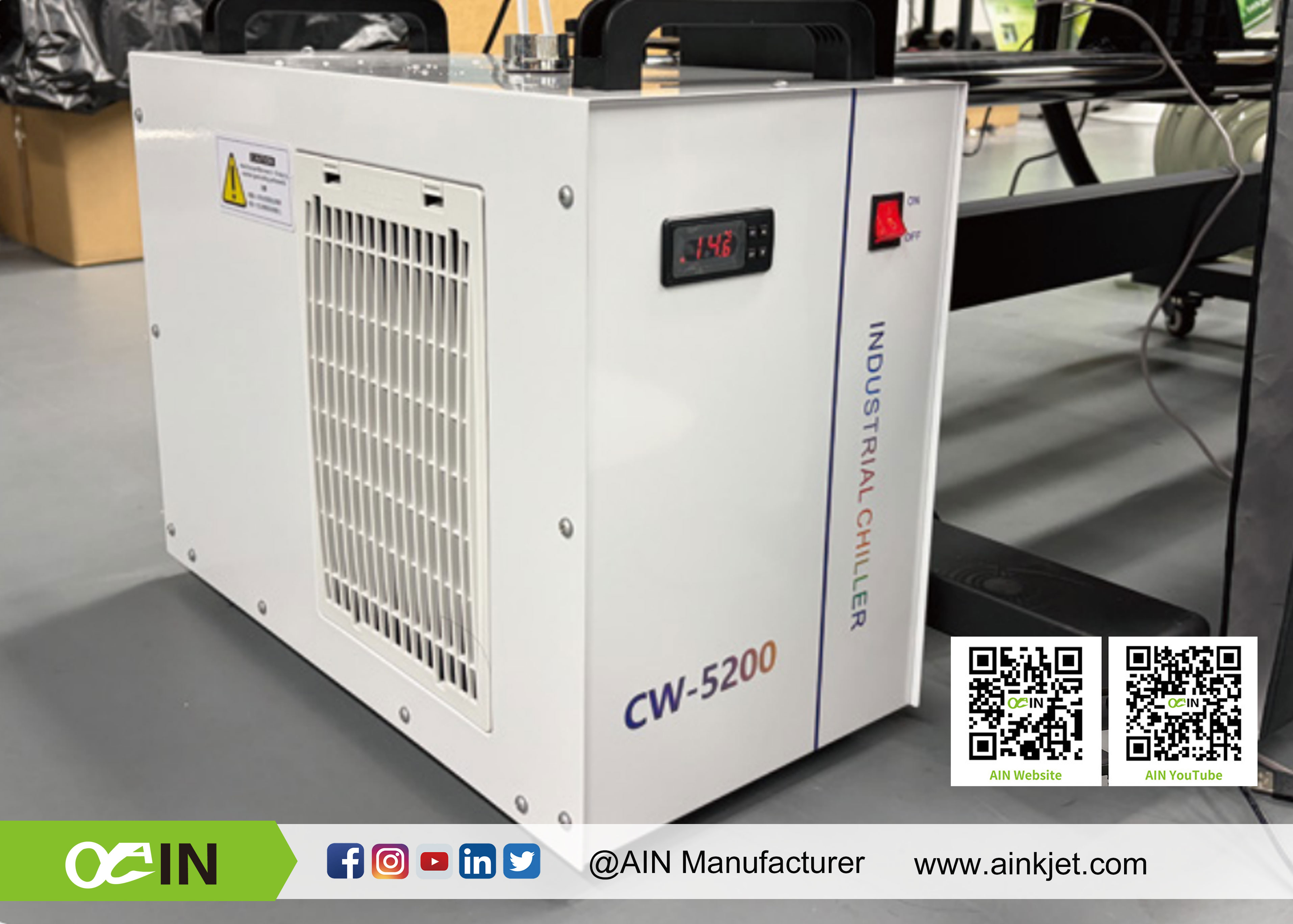

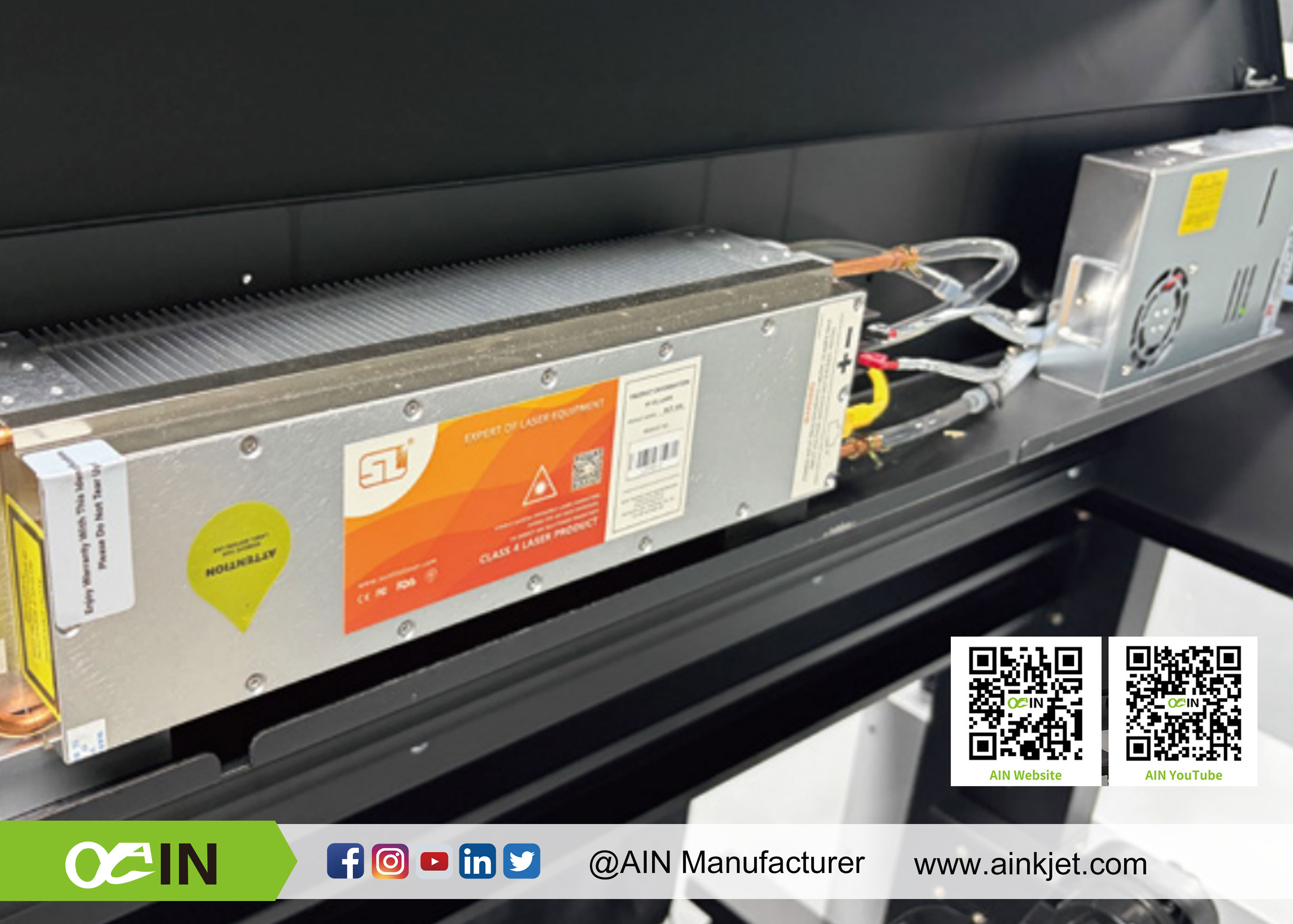

Laser tube	Servo motor	CW-5200 Chiller

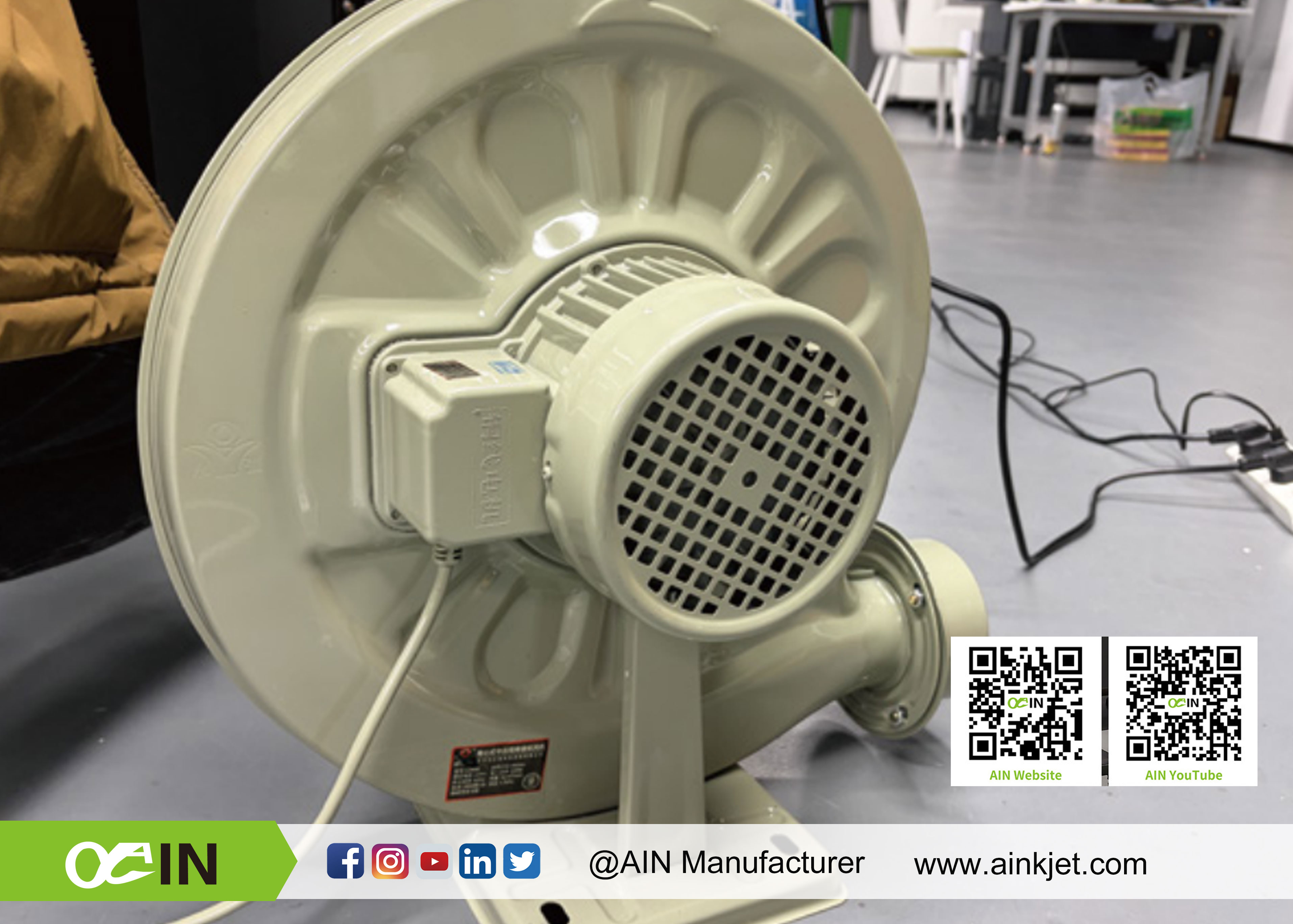

High precision laser cutting head, equipped with smoke system.	Stainless steel adsorption platform ensures smooth material operation.	550w Fan Effectively excludes cutting smoke.

Technical Specifications

AINKJET CCD Visual Positioning Laser Cutting Machine for Heat Transfer Vinyl Roll Material
Function	Laser cutting
CCD	Select Configuration
File format	PDF/SVG/AI/PLT/DXF/DST/DSB/BM/JPG/PNG/GIF/ISO/CUT/DAT
Laser type	RF laser 45w
Laser power	45w
Wavelength	10.6nm
Maximum compatible size	980mm
Maximum cutting fit size	800mm
Cutting precision	±0.05
Motor type	servo motor
Machine power	≤1000w
Support language display simplified	Chinese/English/Traditional Chinese/Korean/RussianItalian/Spanish/Portuguese/Vietnamese
Suitable cutting thickness	≤2.2mm

Application

Applications of AINKJET CCD Visual Positioning Laser Cutting Machine for Heat Transfer Vinyl Roll Material

、

Suitable for apparel industry to make heat transfer logos and badges on sportswear, hats, bags and jeans, mass cuts roll vinyl and heat transfer films for garment accessories factories, produces event emblems, club logos and cartoon stickers for cultural gifts, and cuts special-shaped PVC adhesive labels and flexible advertising films; it supports automatic roll processing for small and medium printing factories to replace manual die-cutting and save mold costs.
