Printer Informations
|
LED UV Inkjet Printer
High - Quality Visual Output High resolution, vivid colors, and wide color gamut. The pattern is waterproof, corrosion-resistant, and not easily faded. Support 1-3 layer printing, "color+white+color" technology, white layer brightening, backlight with light and shadow effects, full of three-dimensional sense. High - efficiency Printing UV - LED technology enables instant ink curing, eliminating drying time and boosting production speed while cutting turnover.
Eco - friendly Mercury - free UV source, near zero solvent volatilization, odorless. Lowers health risks, consumes only 1/3 energy of traditional ones, has long lifespan and is ready to use.
widely applicable Suitable for advertising lightbox posters, car stickers, gift boxes, food packaging, KT boards, acrylic, metal, etc |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |
3 lavers printing the output is more delicate
- High efficient uv-led technology; - International environmental standard UV inks; - Odorless, LESS environmental impact； - 1.6m wide, small size, high production speed - Unique Color + white + Color printing mode

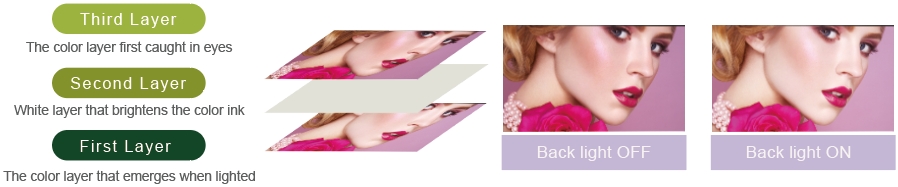

With the interior light on, this three layers printing technology‘Color + White + Color’， can achive the magically changing effect of the patterns from backlight. | |
The ability of switching the patterns through day and night, external and interior fully reflecting the performance techniques used in new advertising era, thus increasing the added value of your advertising. One machine for multiple printing solutions under different color modes,can meet requirements from different customers .It can also replace some high-end eco solvent printers which can be efficient and environmental friendly.
| |

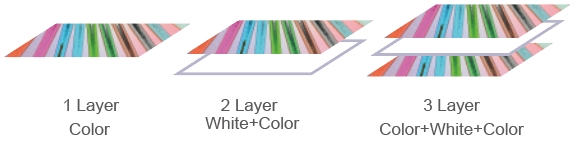

1-3 Layers printing mode optional

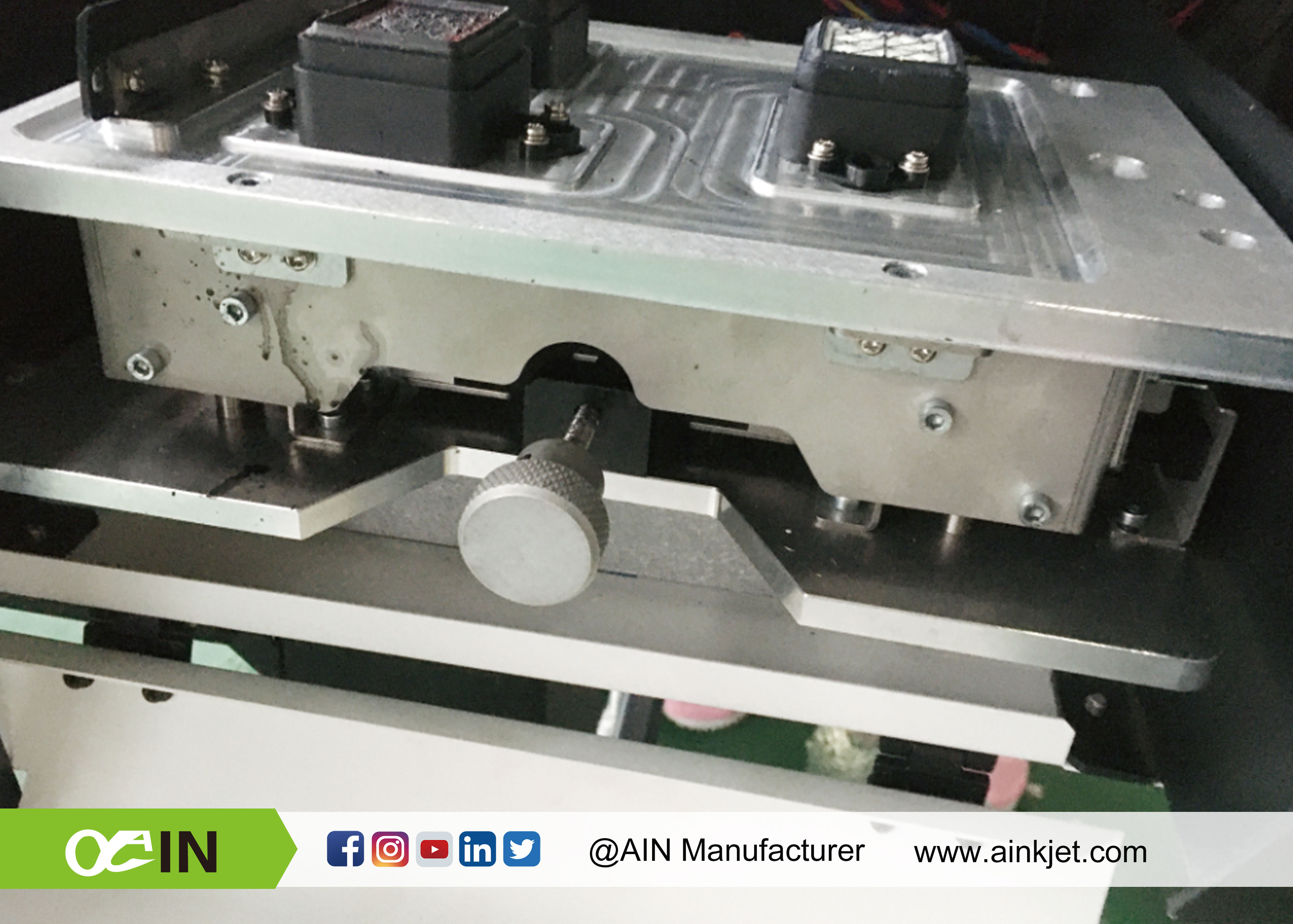

|  3pcs I3200 Print heads |
Printer Heads
Technical Specifications

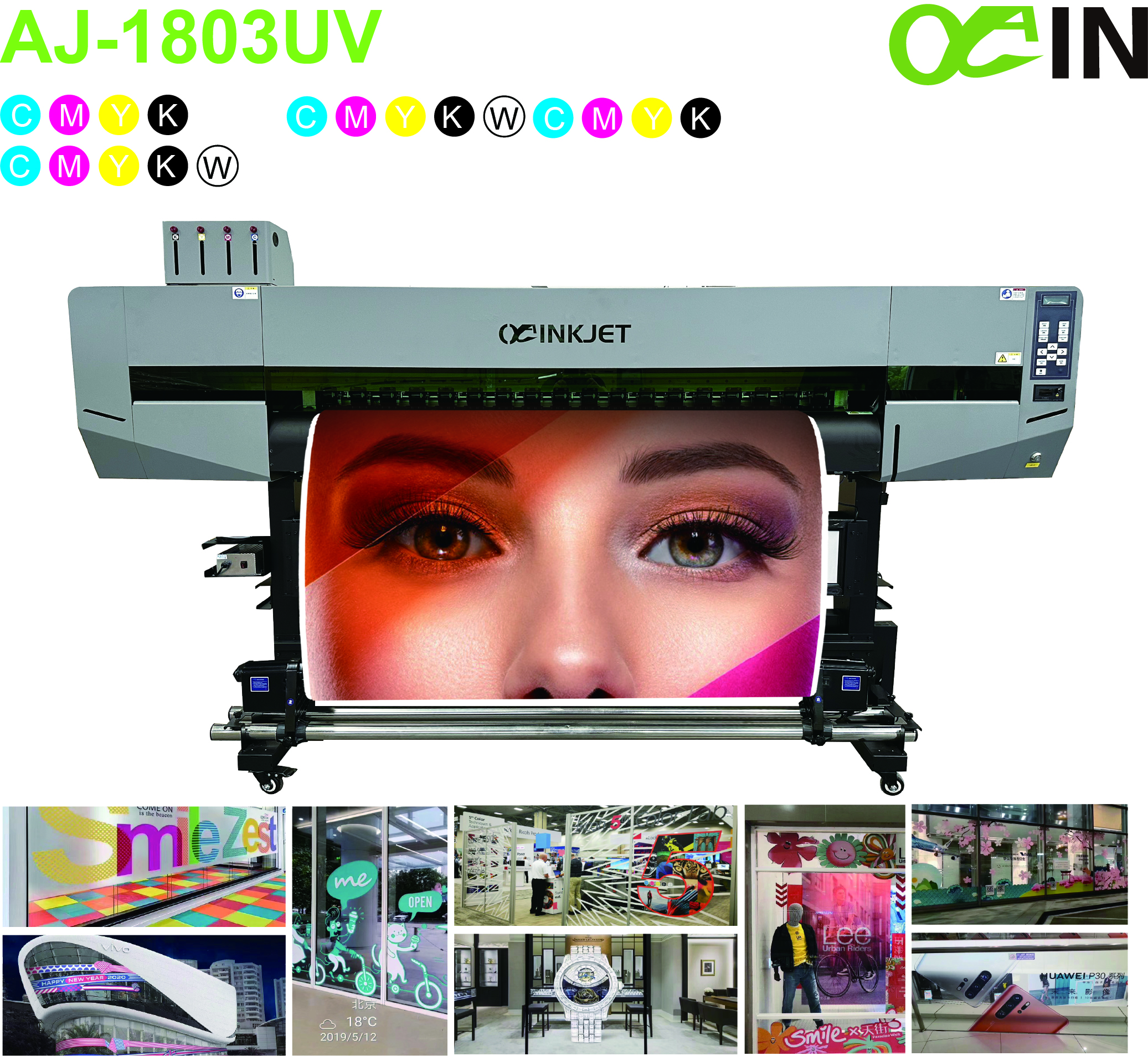

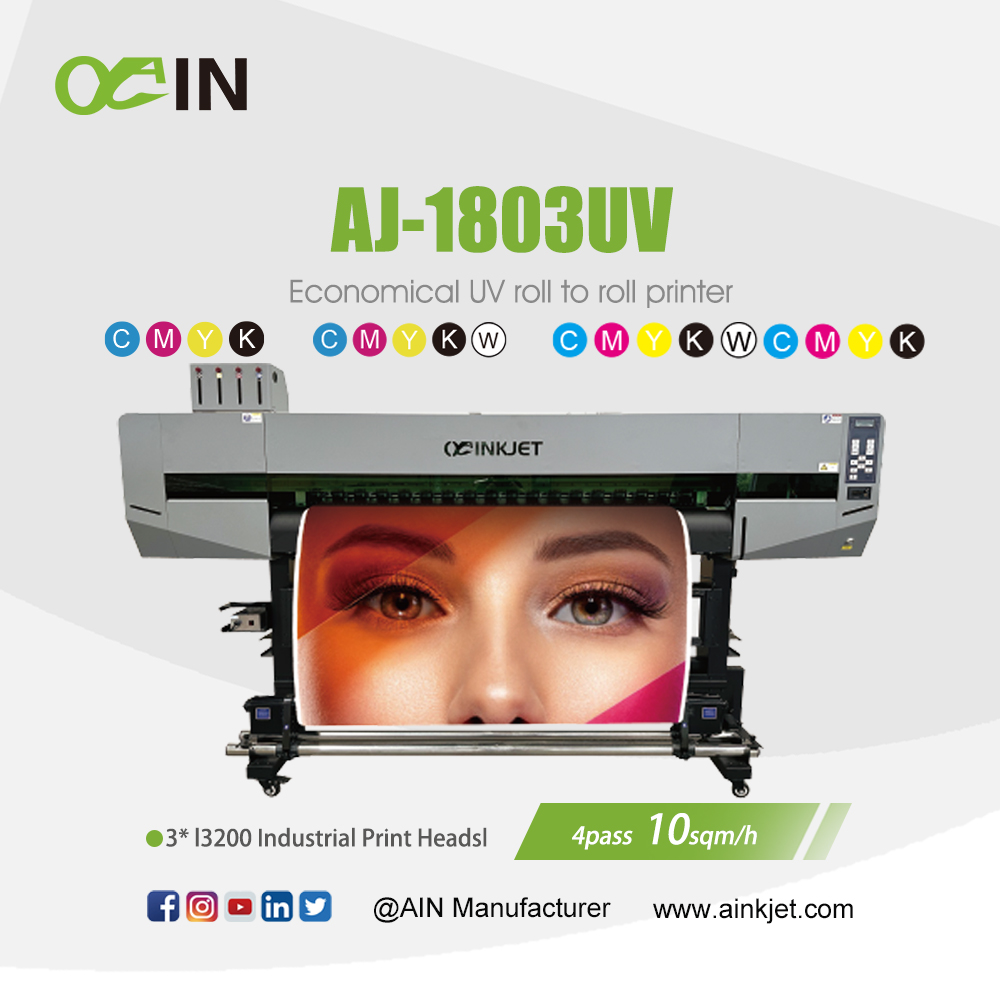

| AJ-1803UV LED UV Inkjet Printer | ||
| Model | AJ-1803UV | |
| Print Head | 3*l3200 Industrial Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 71.6 in.(1820 mm) |
| Thickness | Maximum 59 mil(1.5 mm) | |
| Weight | 176 lb.(80 kg) | |
| Printing Width | 70.8 in.(1800 mm) | |
| Ink Cartridges | Type | UV Ink |
| Capacity | Continual Ink Supply System ( 1.5L ink tank ) | |
| Color | CMYK / CMYK + W CMYK + W + CMYK | |
| Ink Curing Unit | Dual UV LED Lamps (Water Cooling) | |
| Printing Resolution | Maximum 2400 dpi | |
| Interface | USB 2.0 | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| RIP | Onyx / Photoprint | |
| Dimensions(with stand) | 110(W)x30(D)x62(H) in. (2800(W)x750(D)x1580(H)mm) | |
| Weight(with stand) | 705 lb.(320 kg) | |
| Package Dimensions | 114(W)x30(D)x40(H) in. (2900(W)x760(D)x1020(H)mm) | |
Package Weigh | 750 lb.(340 kg) | |
| Environment | Power on | Temperature:59°F to 90 °F [15℃ to 32℃](68 °F[20 ℃]/ Humidity: 35 to 80% (no condensation) |
| Power off | Temperature:41°F to 104°F [5℃ to 40℃]/Humidity: 20 to 80% (no condensation) | |
| Accessories | USB cable, media clamp, manual, drain bottle, ink cartridges, RlP software, etc. | |
Features

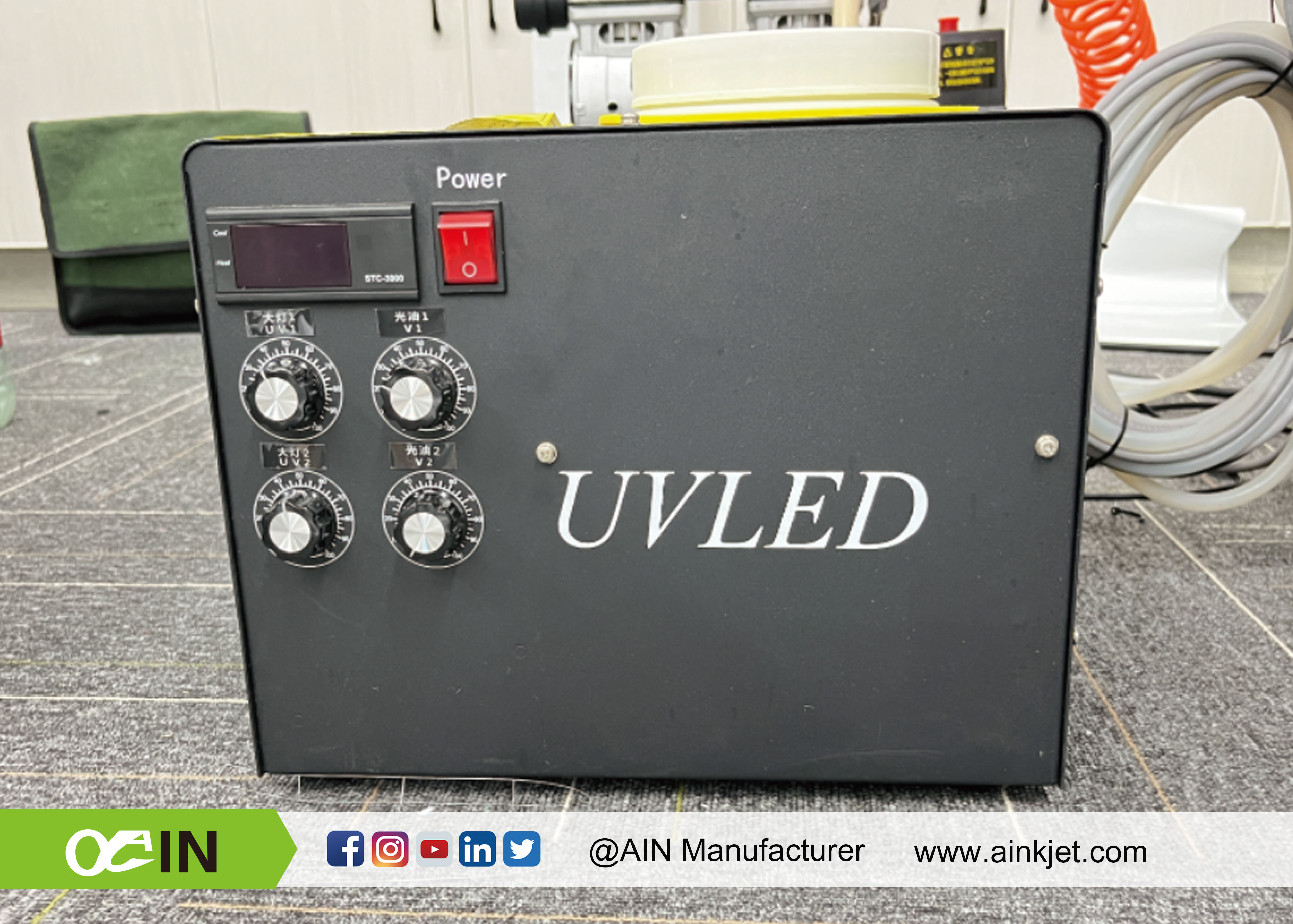

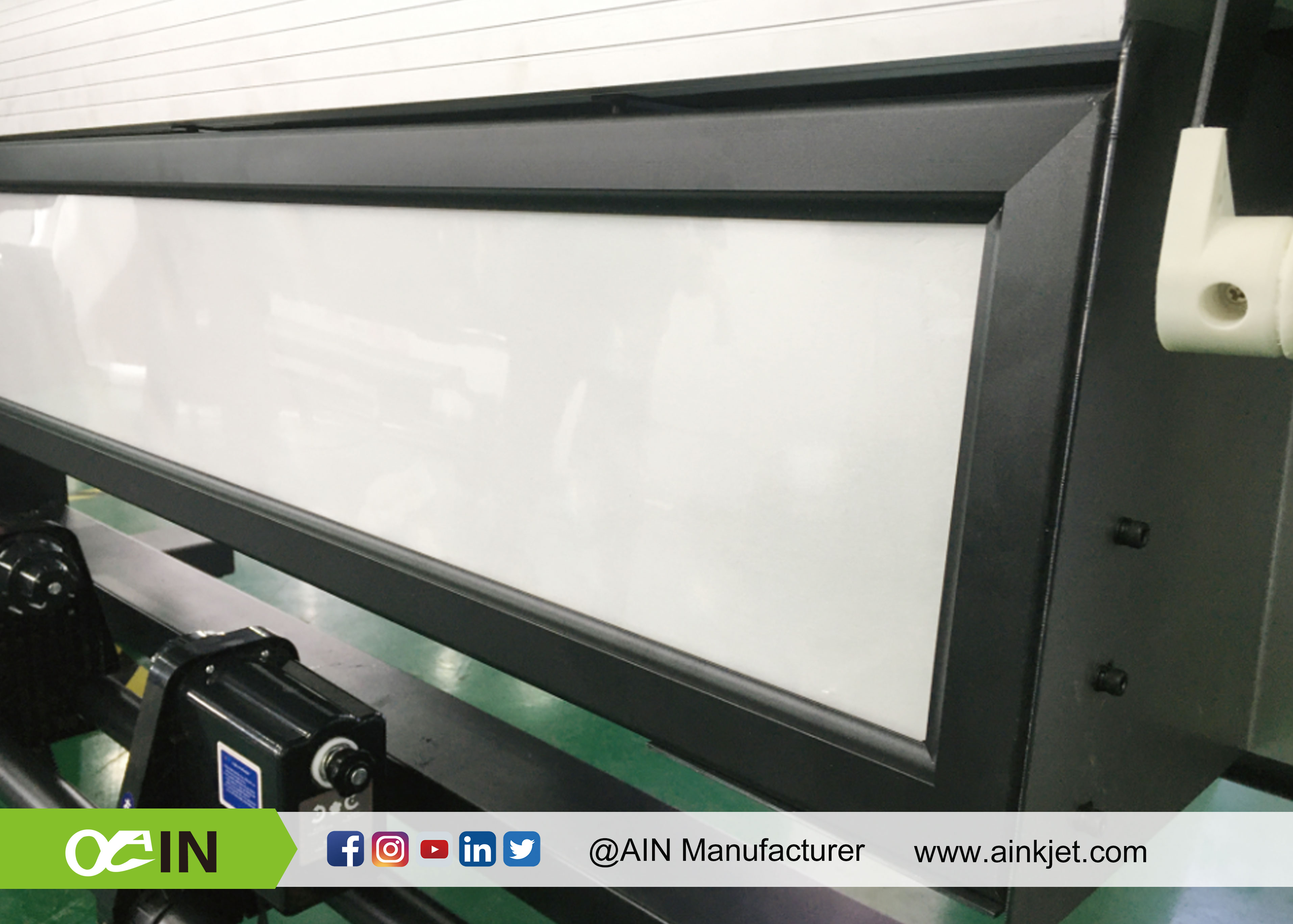

 | Installs a LED light panel.it helps our customer to checkthe front-lit or back-lit printquality before the order finish. | | Water Cooling drying technology. |

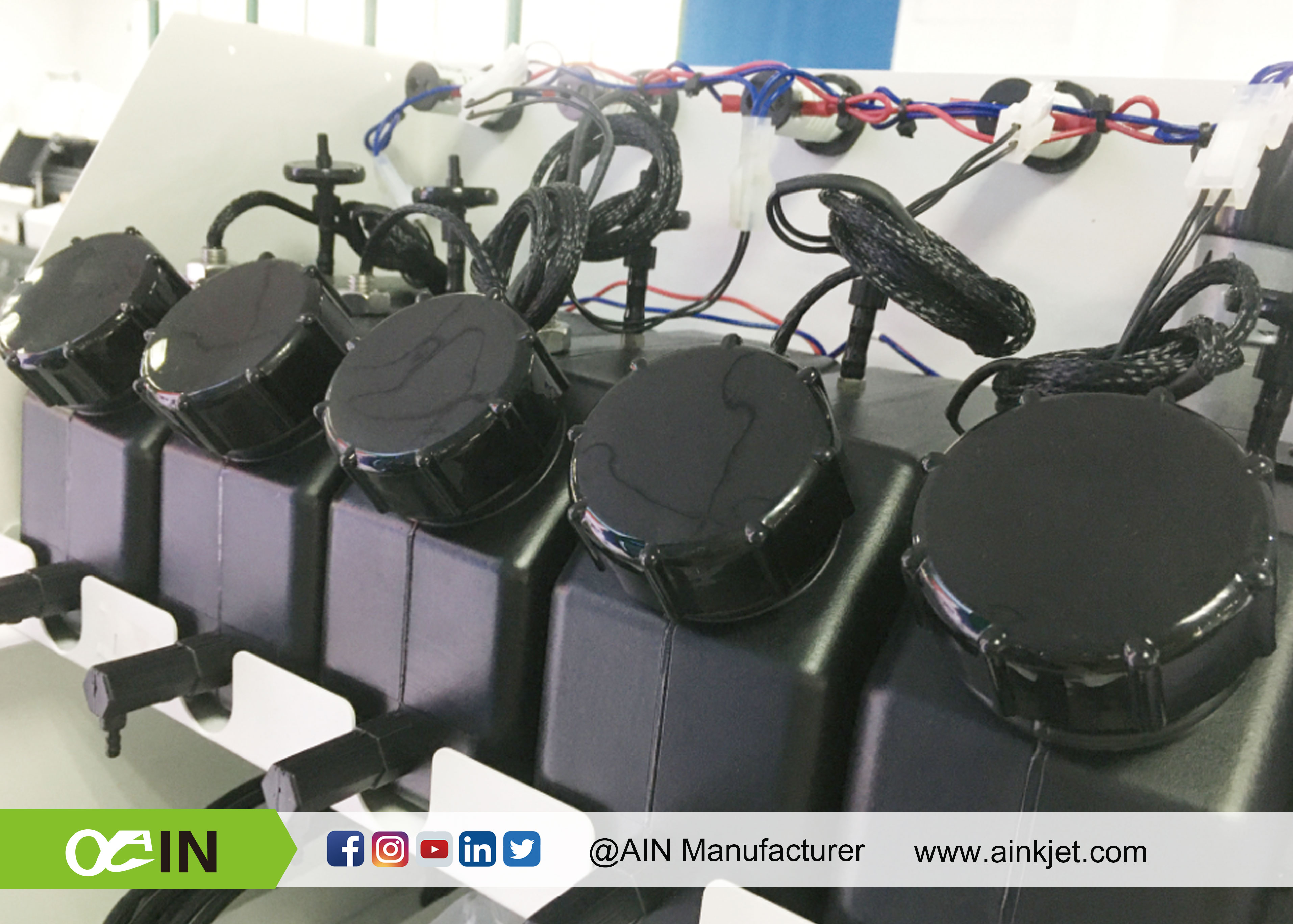

 | The automatic moisturizing and cleaning system notonly protects the print head.but also ensures the smoothness of the ink-flow. | | 1.5L bulky ink bottle with lackof ink alarm system represents the advanced concept of industrial application. |

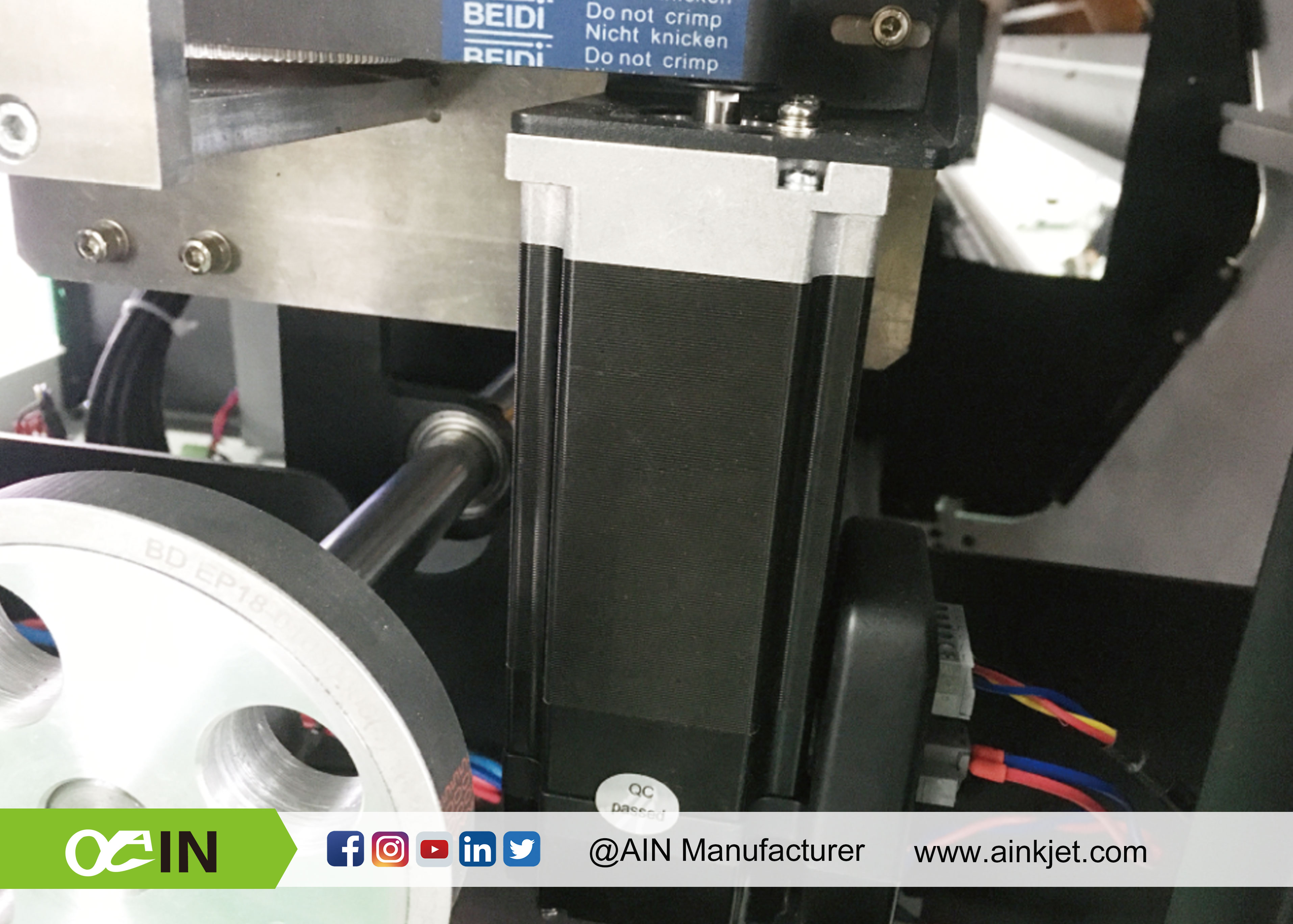

| High quality servo motor with good stability and long life. | | Dual THK high-precision mute rail. |

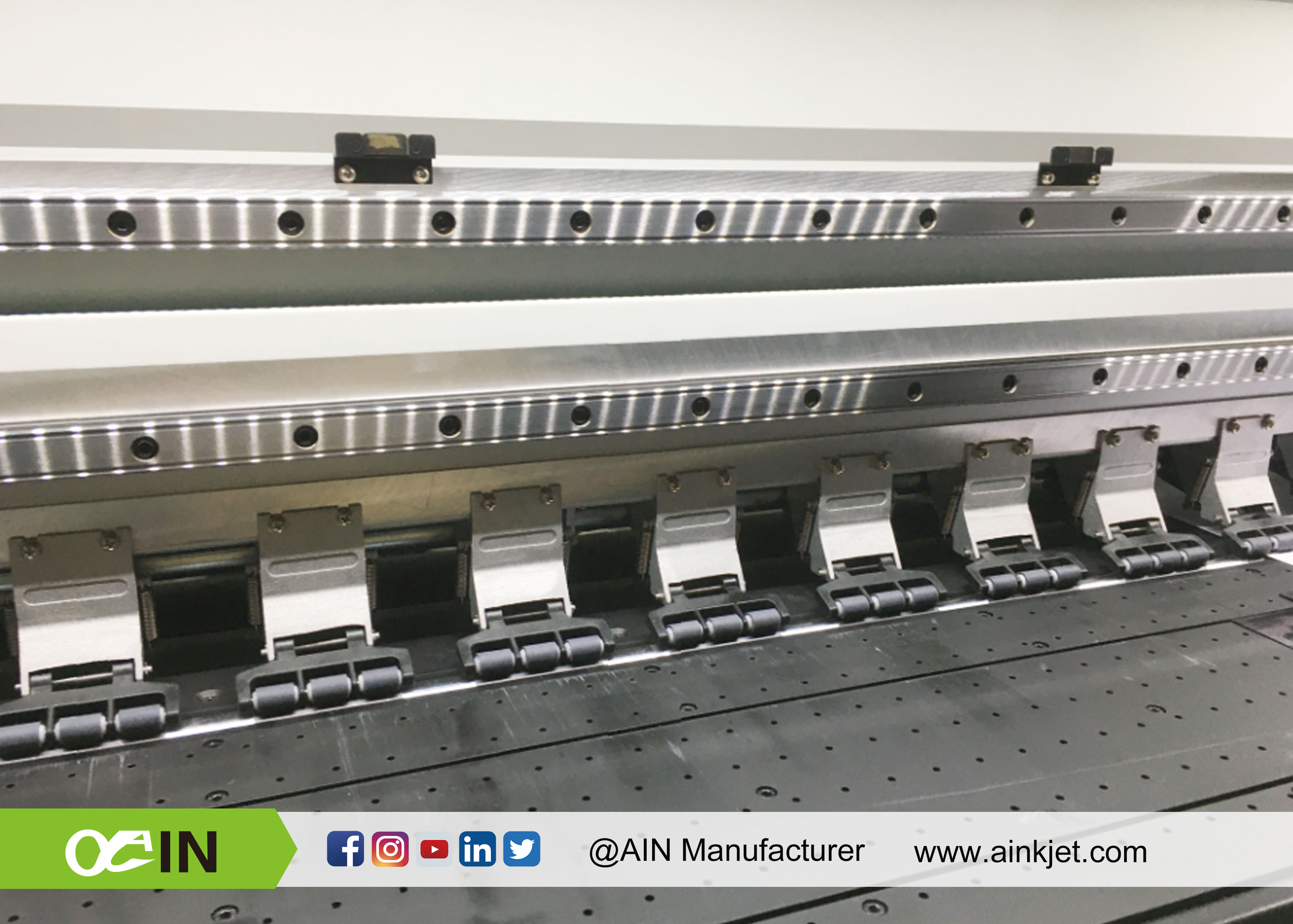

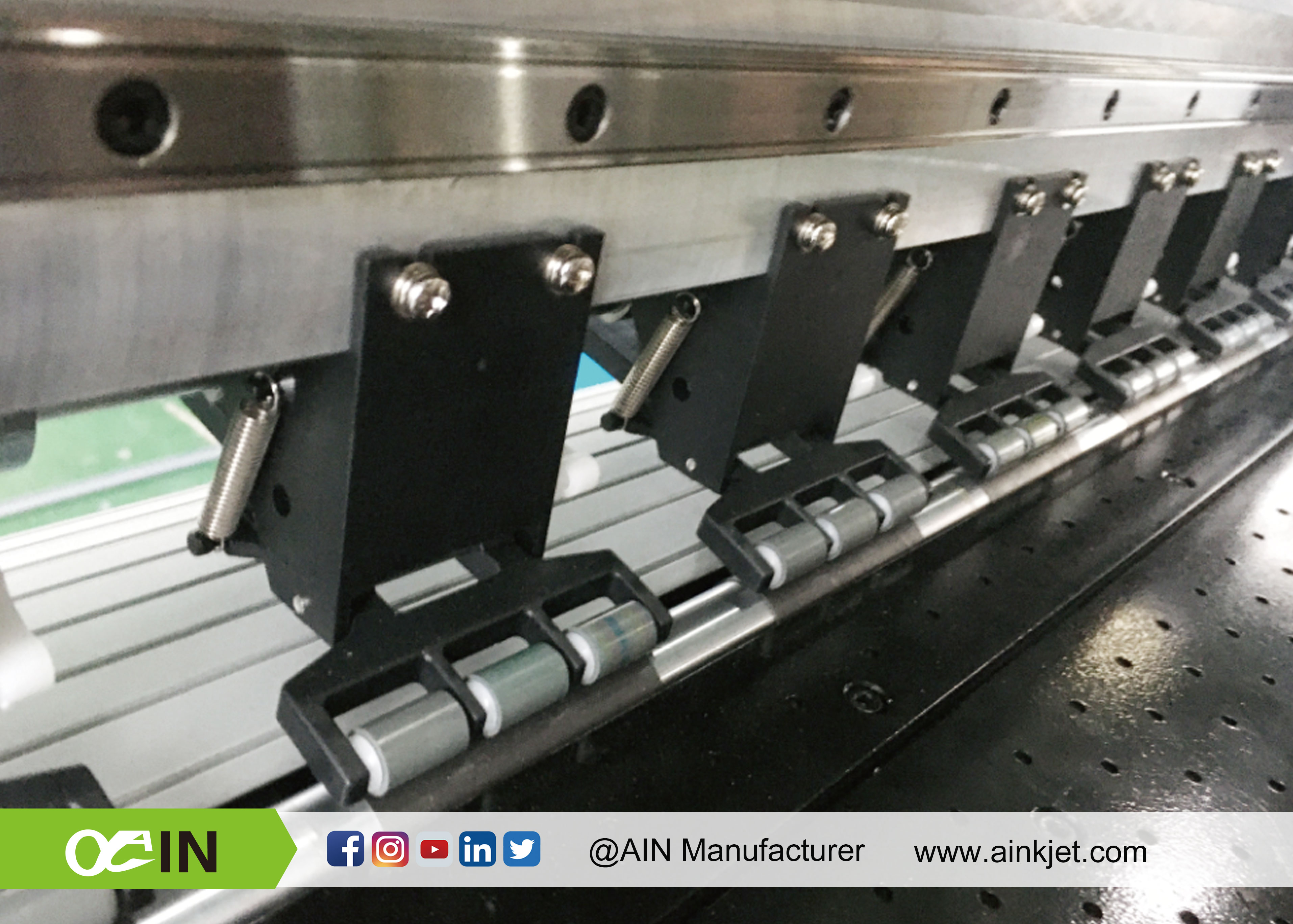

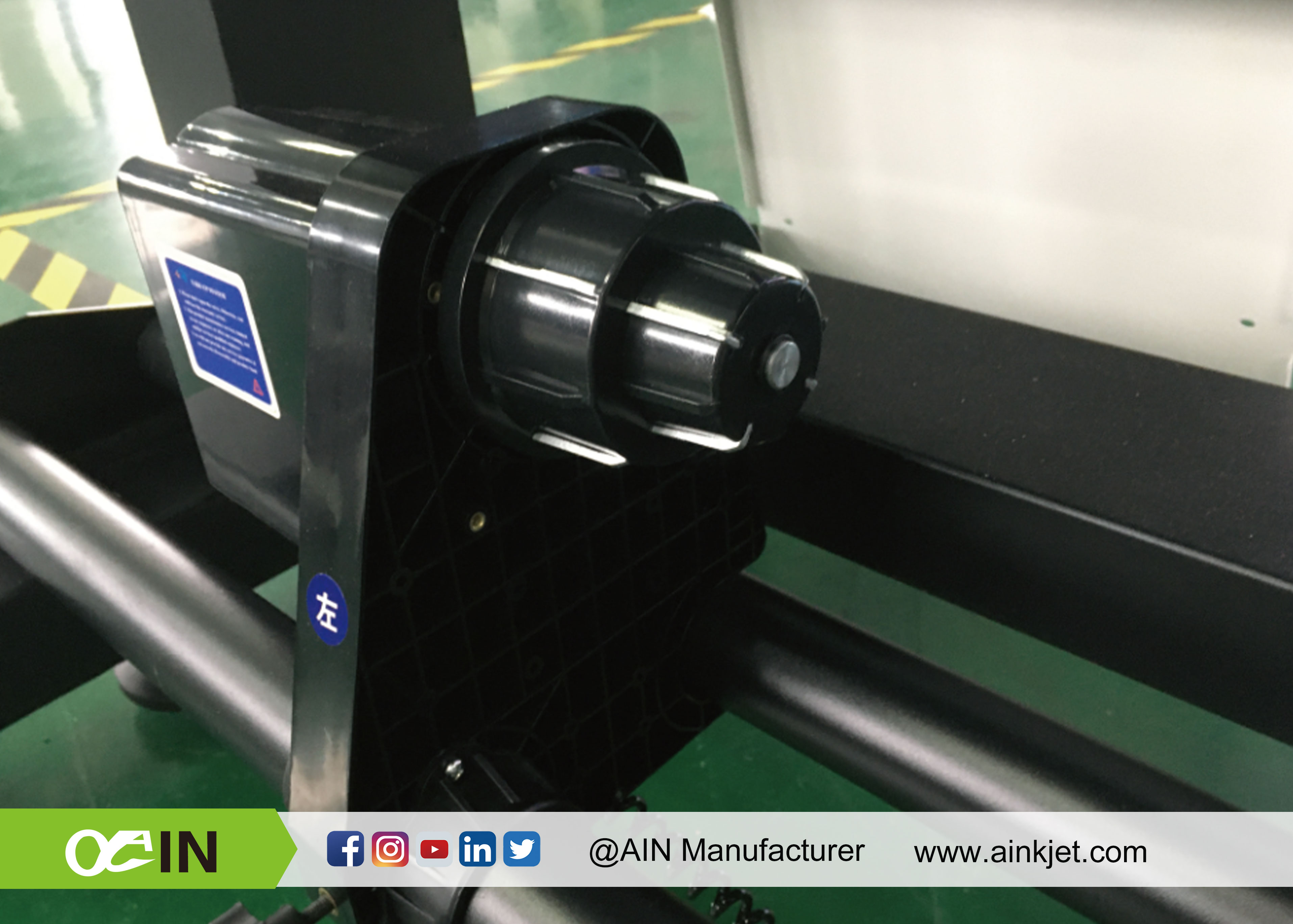

| External power supply,intelligent rolling system. |  | The pinch roller uses 3 in one type and each pinch roller keeps in a tight and closer distance, it helps the media feeding more smoothly and reduces wrinkle issues. |
Application
Applications of LED UV Inkjet Printer

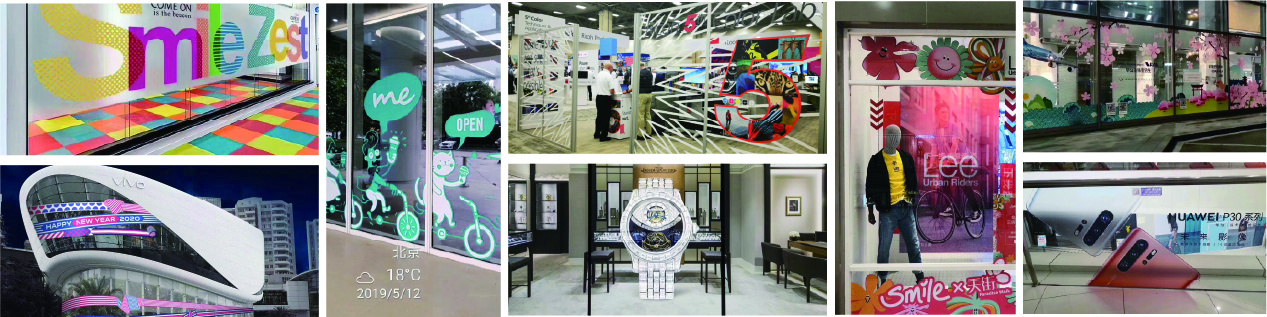

Wide applications in light box posters, customized car stickers, background wall cloth, gold paper and silver paper printing, leather printing, high-end gift box printing, food packaging printing,Label printing, operation panel & switch printing etc.
