Printer Informations
| HIGH VOLUME DTF PRINTING One-Stop AIN DTF MAX Printing Solution Offers one-stop DTF printing, supporting fluorescent/gradient colors & special PET film printing. Integrates printing, powdering and curing in one production line for integrated operation. Stable & Reliable Operation Equipped with installation-free print heads, a tension bar media feeding system, automatic online moisturizing, double-row heating lamps, THK silent guides, an 8-color and white ink circulation system, and a powder control system, it can achieve efficient and stable operation. High Printing Precision Equipped with 2*F1080 / i1600 - A1 / i3200 - / i3200(8) - A1HD + i1600 - A1 print heads (which can adapt to different needs and output), it supports multiple precision modes, meets diverse requirements, and efficiently completes large - batch T - shirt printing. Rich Ink Colors Uses AIN DTF ink (including colors such as CMYK, Fy, Fm, Fo, Fg, Lc, and Lm), which can accurately present rich pattern colors and meet the personalized and high-color requirements of T-shirt printing designs. Wide Application Range Suitable for making fashion items (T-shirts, hats, backpacks, lanyards, shoes) and applicable to denim, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. to enhance outfit personalization. |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Technical Specifications
| T-shirt Digital Heat Transfer Printing Machine | |||
|---|---|---|---|
| Model | AJ-A2 DTF MAX Powder Shaker | ||
| Print Head | 2*i1600&i3200&F1080 Optional | ||
| Printing Technology | Micro Piezo Inkjet Printing | ||
| Acceptable Media | Width | 450mm | |
| Media | PET Film | ||
| Printing Width | ≤ 430 mm | ||
| Ink Cartridges | Type | Transfer Pigment Ink | |
| Color | 2*F1080: 6 Colors 2*i1600/i3200:4 Colors i3200(8)-A1HD+i1600-A1:8 Colors | ||
| Printing Accuracy | F1080 Print Head:1440dpi i1600 Print Head:1200dpi i3200 Print Head:1200dpi | ||
| Color Manage | ICC or density curve | ||
| Media Heating System | Powder & color fixing machine | ||
| Interface | RJ-45/LAN | ||
| RIP Software | Main top & PhotoPrint | ||
| Power supply | 220V/5A | ||
| Environment | Temperature | 15℃ to 32℃ | |
| Humidity | 5% to 40% | ||
| Printer Dimensions(With Stand) | L 1280mm* W 630mm* H 790mm | ||
| Packing Dimensions | L 1370mm* W 720mm* H 830mm | ||
| Packing Weight | 135kg | ||
Packing Weight | 155kg | ||
| Folding Table | L 2000mm*W 608mm*H 600mm | ||
| Packing Folding Table | L 1085mm* W 700mm* H 600mm | ||
| Model | A2 Powder Shaker | |
| Media Width | 0-450mm | |
| Applicable Medium | Nylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc. | |
| Powder Control | Powder shake control, powder control, powder direction and volume control | |
| Heating & Drying Function | The upper and lower double rows of high - efficiency heating lamps , drying, cold air fan function | |
| Rewind Function | Automatic induction winding | |
| Electrical Parameters | Rated Voltage: 220V | Rated power supply: 30A |
| Rated power: 6.6KW | Power Consumption: 2.2 KWh~5KWh | |
| Machine Size/Weight | L1440* W880* H850mm 164kg | |
Packing Size/Weight | L1345*W795*H680mm | |
Features
 | Sprinkler free installation After you receive the printer , there is no necessary to install the print heads . After installing the ink and simple debugging , it can be printed directly |  | Tension bar media feeding system The intelligent tension bar film feeding system makes feeding more accurate and stable . |
 | Automatically moisturize online Special board control configuration，To prevent the ink from clogging the heads, moisturizer at regular intervals to keep the heads clean and moist . Online humidification system , which can keep the best working condition of the . | | Double rows heating lamps The upper and lower double rows of high - efficiency heating lamps , combined with a unique intelligent heating solution , can save 30% of power consumption. |
 | Upgraded Damper Heating Independentcontrol switch, heating on all sidestomaintain nozzle status, improve ink fluency.stable output. |  | THK mute guide Imported high quality THK guide . Highly stable printing with low noise and with longer life ，the first choice for high-end inkjet printers . |

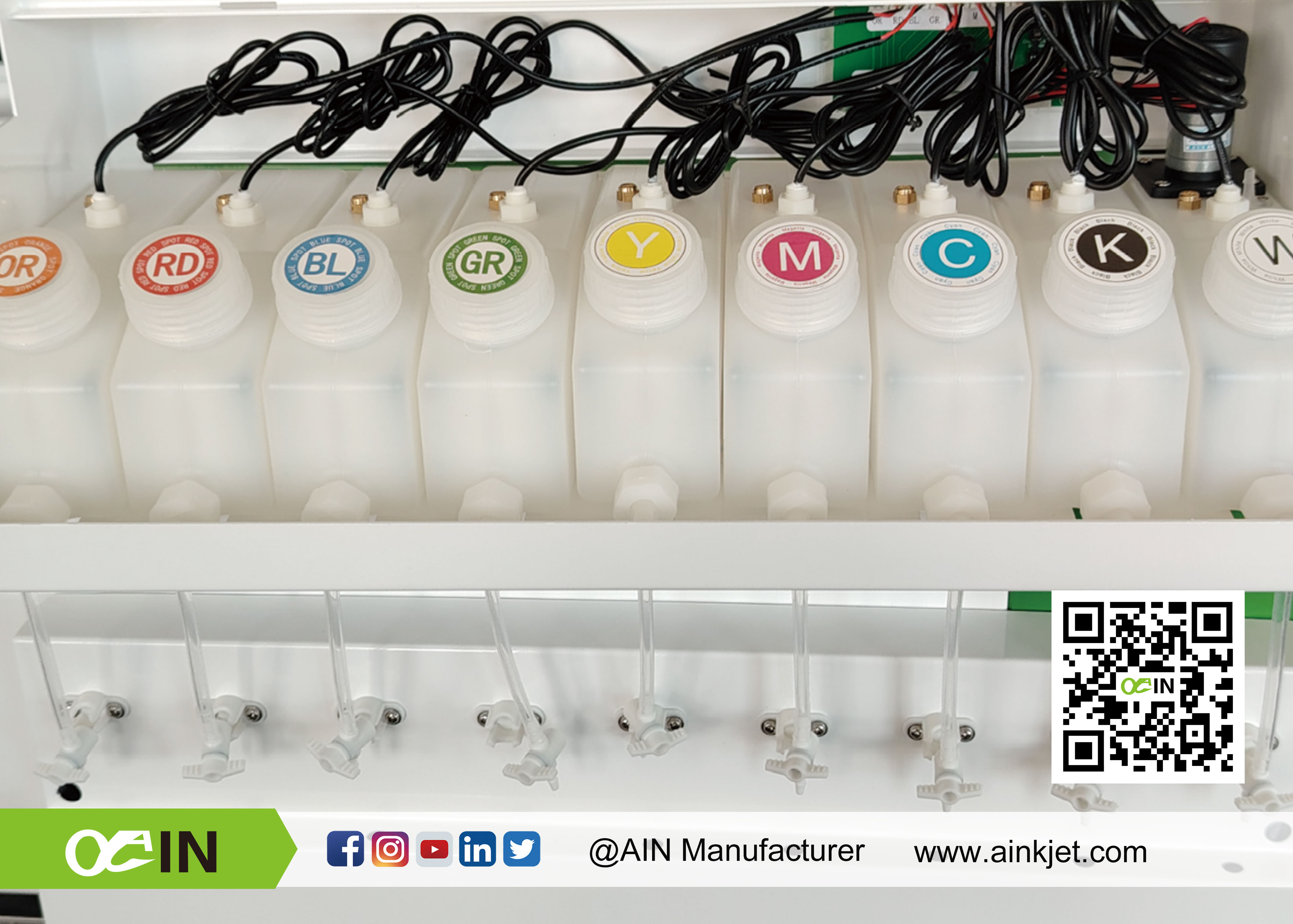

| 8colors & White ink circulation Comes with white ink circulation and stirring system to ensure the stability of the output. |  | Powder Control System Better control the precise amount of powder,avoid unnecessary waste, reduce the number of powder return & powder pouring, reduce manual operation costs . |
Application
Applications of DTF Printer
Commonly used products such as T-shirts, hats, backpacks, lanyards,shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing,baseball caps, fabric gift boxes, etc. Make your travel outfit unique .
| ● T-shirt ● Canvas ● Backpacks ● Shoes ● Baseball Caps | ● Denim/Jean ● Hoodies ● Gift Bags ● Fabric Gift Boxe ● Sweaters and more...... |
 |  |
|
| DTF Ink Supply | DTF PET Films | DTF Hot Melt Powder |
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology. AINKJET offers different colors of DTF inks such as white, yellow, black, magenta, cyan, orange, green, and also fluorescence pink & fluorescence yellow. | DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints. | Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. The powder comes with 1kg/pack. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results. |
