Printer Informations

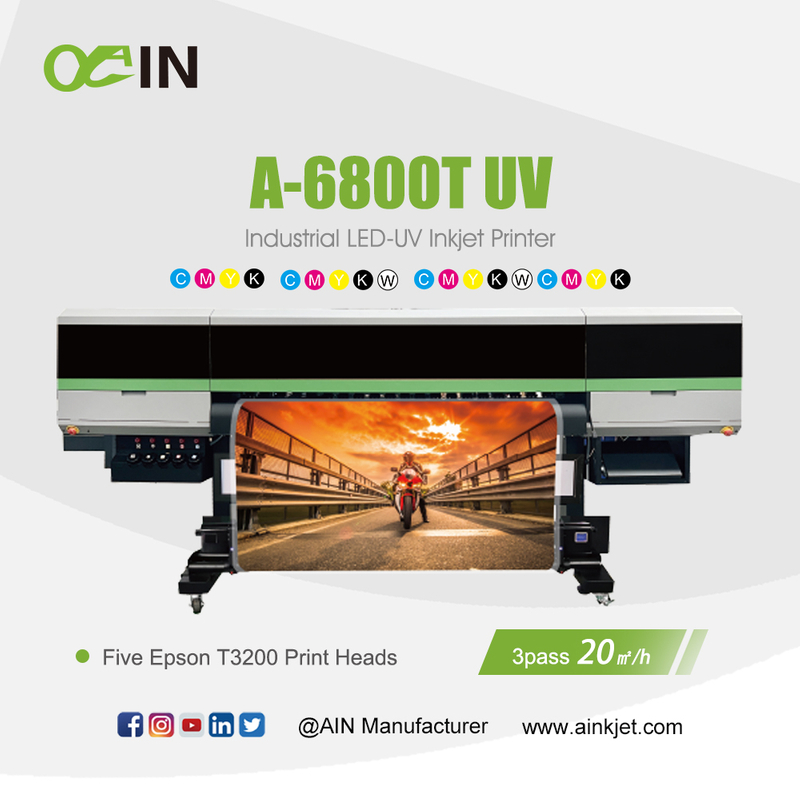

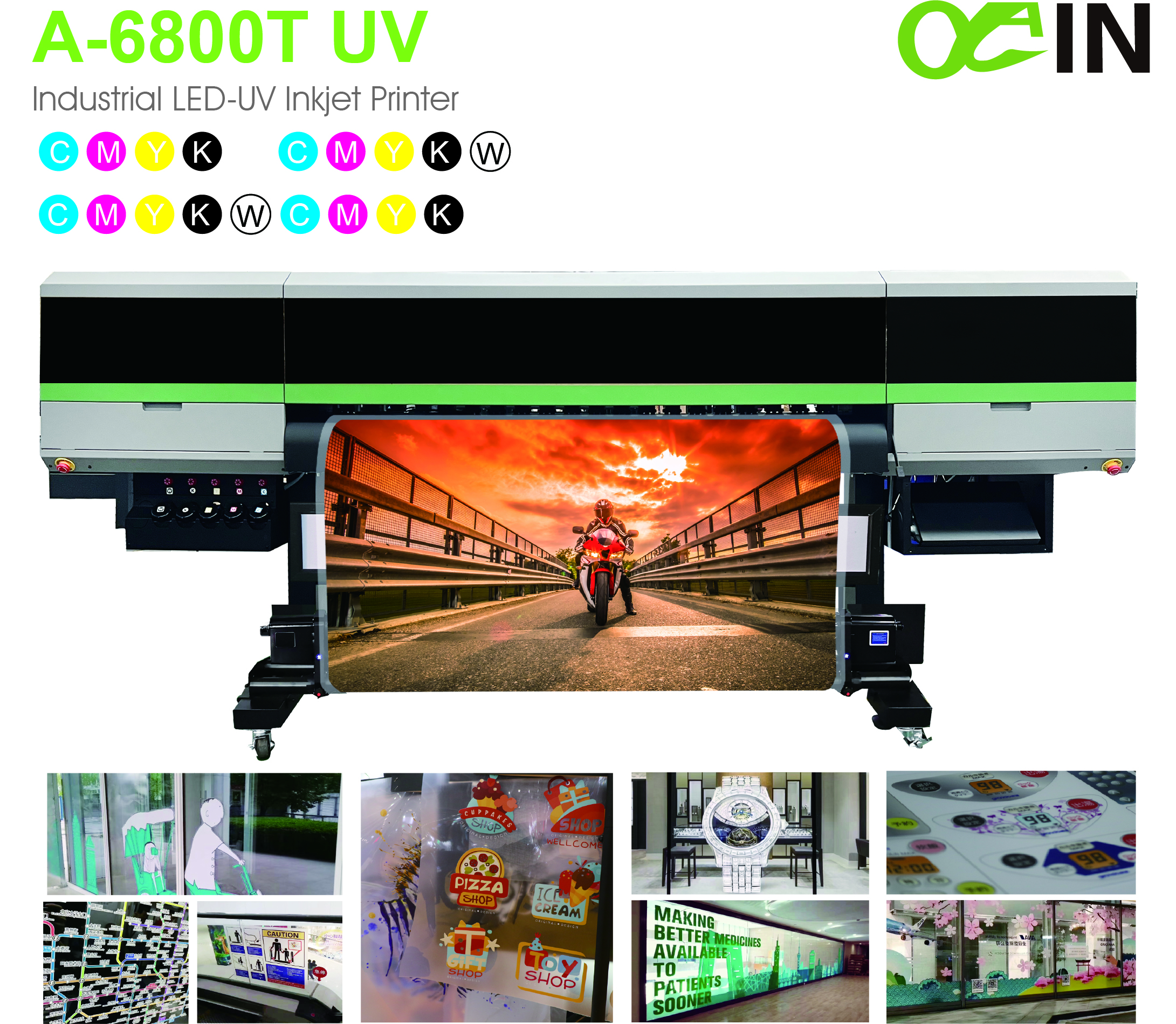

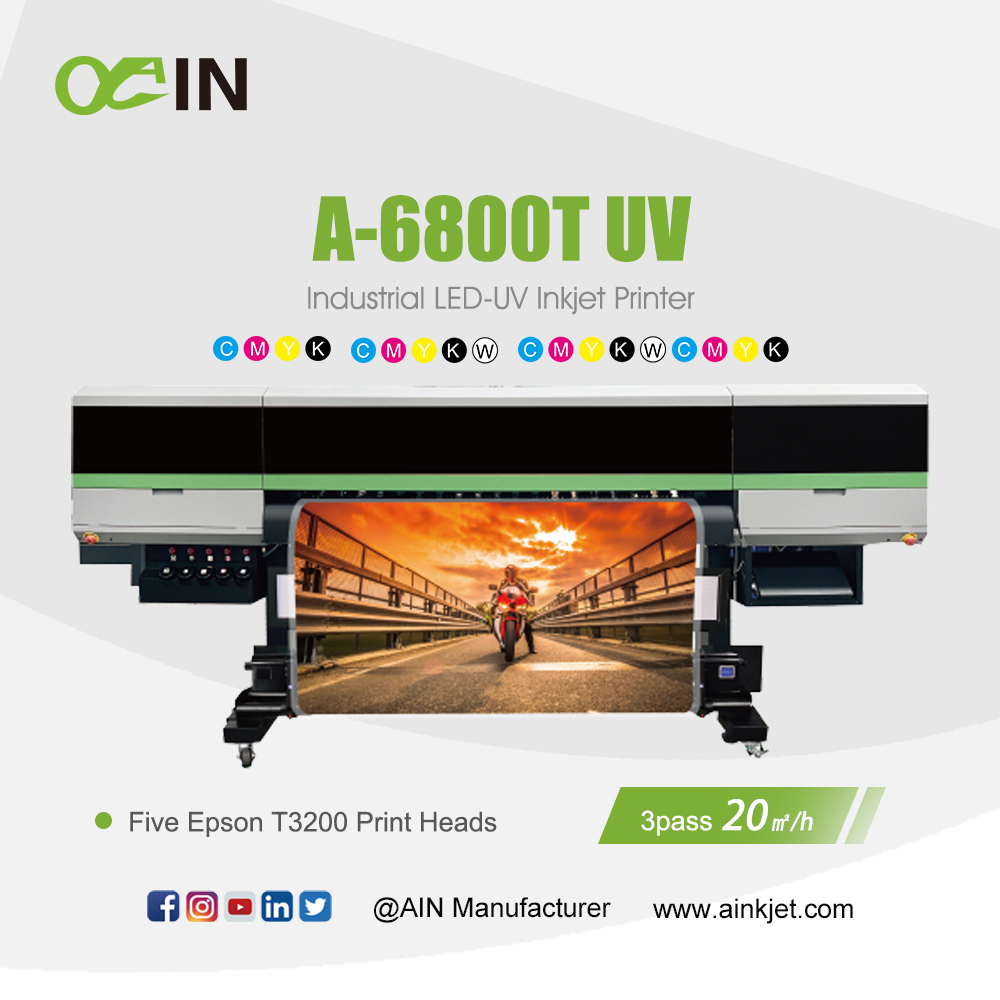

| A-6800T UV Industrial LED-UV Inkjet Printer
Innovative Layered Printing Adopting the "COLOR+W+COLOR" multi-layer printing mode, it features rich colors. With the three-layer printing function, it is suitable for backlight scenarios, enabling layered color-changing effects, and enhancing the visual impact through the combination of layers. UV DTFIndustrial LED-UV Inkjet Printer - New Epson T3200 head , faster speed, higher precision; -International environmental standard UV inks; -Industrial grade frame design, simple operation, stable output; -Small size, massive production capacity for bulk orders; -Available high-end RIP softw are, the best partner of large format equipment； -Odorless, LESS environmental impact； -Superior image quality on a wide range of medias with uv ink. Wide range of application fields It covers multiple fields such as lightbox posters, customized car stickers, leather products and packaging, etc., and meets the printing needs of products in various industries. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |

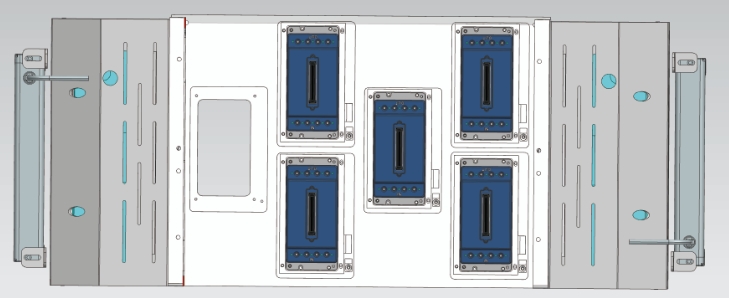

Industrial Heads Massive Production Capacity for Bulk Order Equipped with three staggered lined industrial print heads, making it be your best weapon to improve profitmargins with its high speed output.

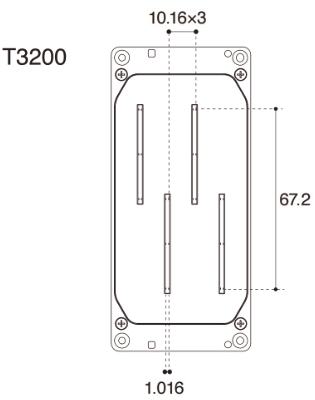

New EPSON T3200 has a higher production capacity and faster speed. With new variable ink drop technology, a built-in heater for greater UV inkcompatibility.
|

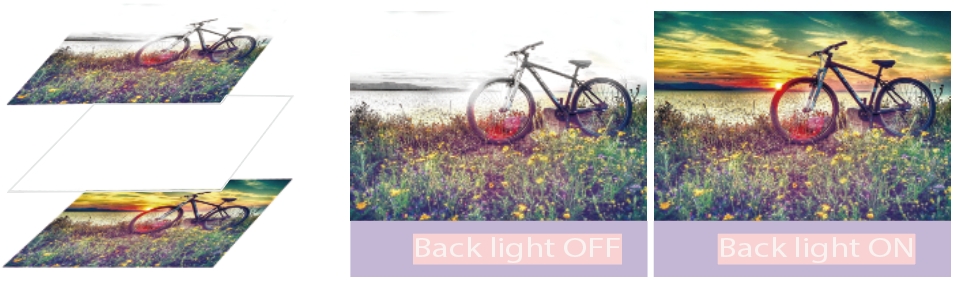

3 layers printing to build layered transformative graphics for backlit application One machine for multiple printing solutions under different color modes,can meet requirements from different customers .It can also replace some high-end eco solvent printers which can be efficient and environmental friendly.
|
Printer Heads
| Epson i1600-U1 Print Head PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 dpi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.
| Model | I1600-U1 | |
| Compatible ink | UV Ink | ||
| Dimensions(WidthxDepthx Height) | 69.1mm x 59.4mm x 35.6mm | ||
| Weight(g) | 60 | ||
| Nozzle Numbers | 1600 | ||
| Length Between Nozzles(inch) | 1/300 | ||
| Nozzle Row | 4 rows | ||
| Max color/head | 4 colors | ||
| Resolution | 300dpi/row, 600dpi/2row | ||
| Effective Printing Width(mm) | 33.8 | ||
| Droplet ejection performance(kHz) | Binary | 5 pl（43.2kHz） | |
| 3 levels grey scale | 6,12.5 pl（21.6kHz） | ||
| 4 levels grey scale | 3.8,6.2,9.3 pl（21.6kHz） | ||
| Viscosity range(mPa.s) | 5-7 mPa･s | ||
Technical Specifications
| A-6800T UV Industrial LED-UV Inkjet Printer | ||
| MODEL | A-6800T UV | |
| Print Head | Five Epson T3200 Print Heads | |
| Application industry | Advertising packaging industry | |
| Printing Width | 210-1850mm | |
| Acceptable Media | width | 1800mm |
| Thickness | Maximum 39mil(1mm) | |
| Weight | 120kg | |
| Drum outside diameter | 76.2mm(3in)or 50.8mm(2in) | |
| INK | Type | Special Ink For Texture Painting |
| Color | CMYK+W | |
| Ink supply mode | Negative pressure ink circuit, white ink regular stirring | |
| Print resolution | 600dpi900dpi1200dpi2400dpi | |
| Printing speed | 3 pass:CMYK+W+CMYK:20 m²/h pass:CMYK:38 m²/h | |
| Curing unit | Water cooled LED UV control system | |
| Interface | USB3.0 | |
| Power supply | Max.3500W | |
Dimensions (with stand) | 3533(W)x800(D)x1380(H)mm | |
Packing Dimensions (with stand) | 3680(W)x950(D)x1400(H)mm | |
Weight (with stand) | 700kg | |
Environment | Power on | Temperature: 15°c to 32"c (59° F to 90° F) (recommended 20°C[68"F] Or higher), humidity: 35% to 80% relative humidity (no condensation) |
| Power off | Temperature: 5°c to 40°c(41°F to 104°c),Humidity: 20% to 80% relative humidity (no condensation) | |
| Accessories | Support, lighting box, large ink supply system, waste ink bucket, power cord, paper press, USB cable, RIP software, random U disk, etc | |
Application
Applications of Industrial LED-UV Inkjet Printer
Suitable for lightbox posters, customized car stickers, background wallpaper, gold and silver paper printing, leather printing, high-end gift box printing, food packaging printing, label printing, operation panel and switch printing, etc.
