Printer Informations

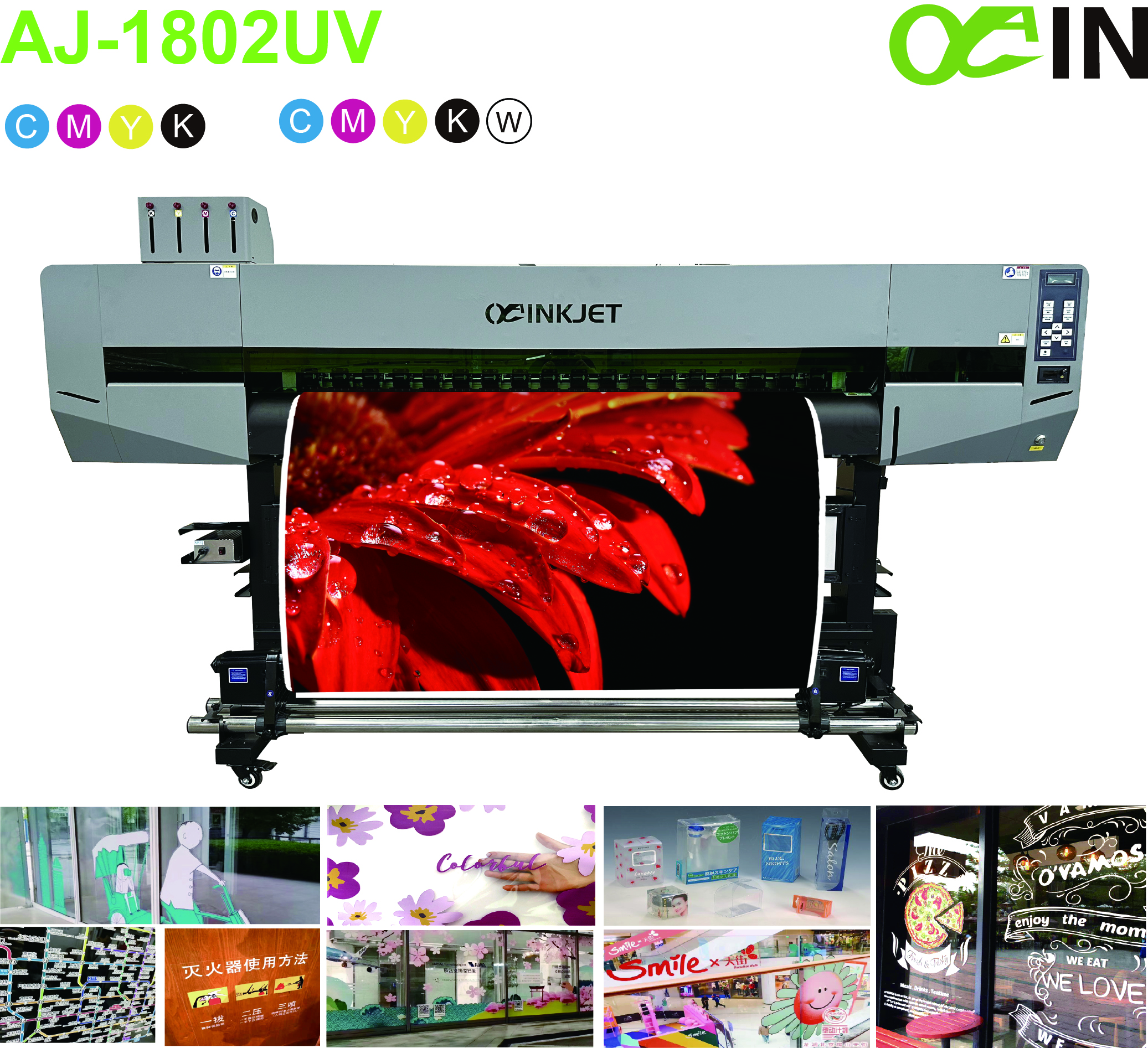

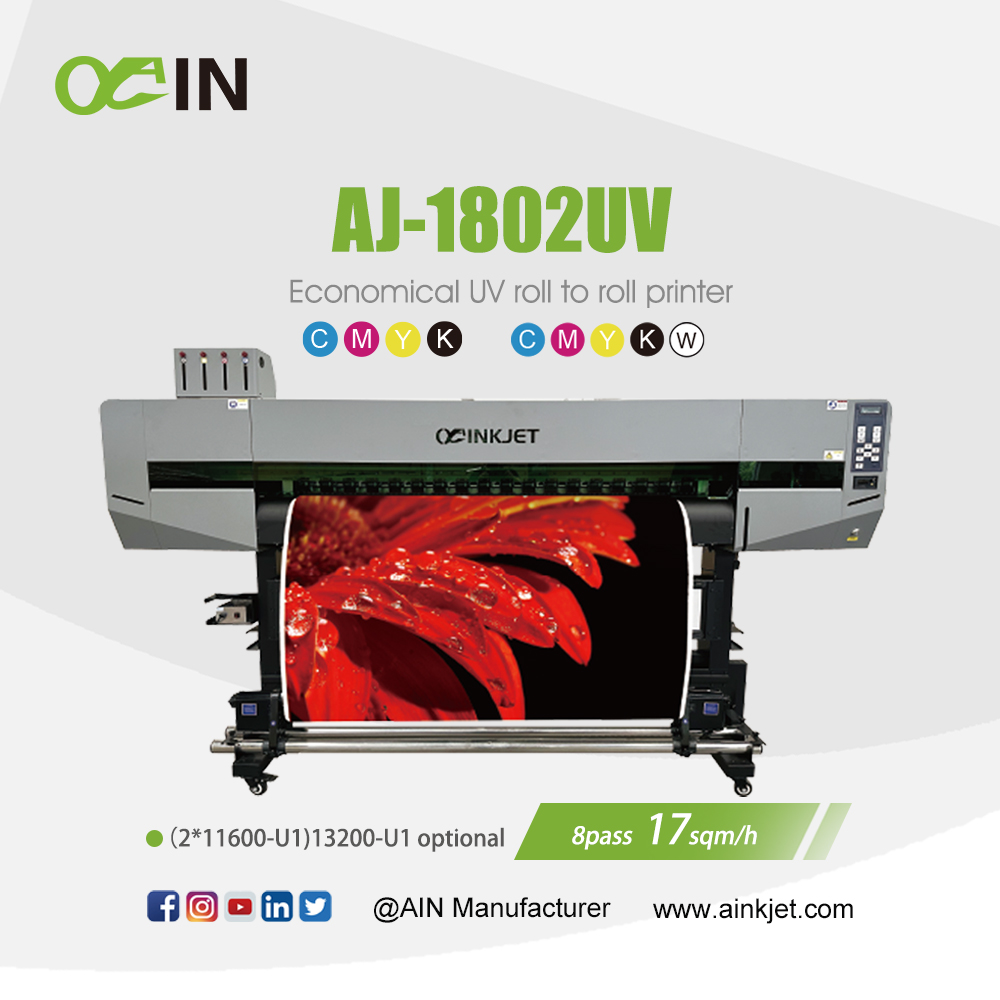

| Economical UV roll to roll printer Featured printing technology dual color layer printing, white ink base followed by color printing to enhance the color expression of special materials. Wide adaptability Supports continuous printing of leather, lightbox fabric and other rolls, covering industries such as advertising, decoration, packaging, etc., and is compatible with various printing methods such as gold and silver paper and labels. Outstanding economic advantages low procurement costs, reasonable use of ink and fast printing, significant cost reduction in large-scale production.
Both automation and stability With comprehensive automation functions, precise material feeding, and 24-hour unmanned printing, efficiency and continuity are improved. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |
Two-layer printing technology for color conversion d
| |
Two Epson I1600-U1 head array (I3200 heads Optional)
-Equipped with two I1600 print heads, 3.5pl ultra-small ink droplets -1.6m/1.8m UV roll to roll printer dedicated for white + color printing -Scientific head array, high-precision bottom plate, craftsmanship of quality -Light weight and compact design, saves workshop space |
Printer Heads
Technical Specifications
| AJ-1802UV Economical UV roll to roll printer | ||
| Model | AJ-1802UV | |
| Print Head | 2*I1600-U1 Print Heads (i3200-U1 Optional) | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 71.6 in.(1820 mm) |
| Thickness | Maximum 59 mil(1.5 mm) | |
| Weight | 176 lb.(80 kg) | |
| Printing Width | 70.8 in.(1800 mm) | |
| Ink Cartridges | Type | UV Ink |
| Capacity | Bulk ink supply system with 500ml ink tank | |
| Color | CMYK / W+CMYK | |
| Printing Resolution | Maximum 2400 dpi | |
Speed | CMYK | 6pass(720*900dpi)21 m/h |
| W+CMYK | 6pass(720*900dpi)11 m/h | |
| Curing Unit | Water-cooling UV lamp | |
| Interface | Ethernet | |
| Power Supply | AC 220V±10%,50/60 HZ | |
| Dimensions(with stand) | 110(W)x30(D)x62(H) in. | |
(2800(W)x750(D)x1580(H)mm ) | ||
| Weight(with stand) | 661 lb.(300 kg) | |
| Packing Size | 114(W)x30(D)x30(H) in. (2900(W)x760(D)x760(H) mm | |
| Packing Weight | 661 lb.(300 kg) | 705 lb.(320 kg) |
| Environment | Power on | 59°F to 90 °F [15℃ to 32℃](68 °F[20 ℃]/ Humidity: 35 to 80% (no condensation) |
| Power off | 41°F to 104°F [5℃ to 40℃]/Humidity: 20 to 80% (no condensation) | |
Features
 | Installs a LED light panel.it helps our customer to checkthe front-lit or back-lit printquality before the order finish. | | Water Cooling drying technology. |
| The automatic moisturizing and cleaning system notonly protects the print head.but also ensures the smoothness of the ink-flow. | | 1.5L bulky ink bottle with lackof ink alarm system represents the advanced concept of industrial application. |
| High quality servo motor with good stability and long life. | | Dual THK high-precision mute rail. |
Application
Applications of Economical UV roll to roll printer
Wide applications in light box posters, car stickers, advertising hoardings, golden and silver paper, leather printing, high-end gift boxes, food packaging, labels, operation panel and switch printing, etc.
