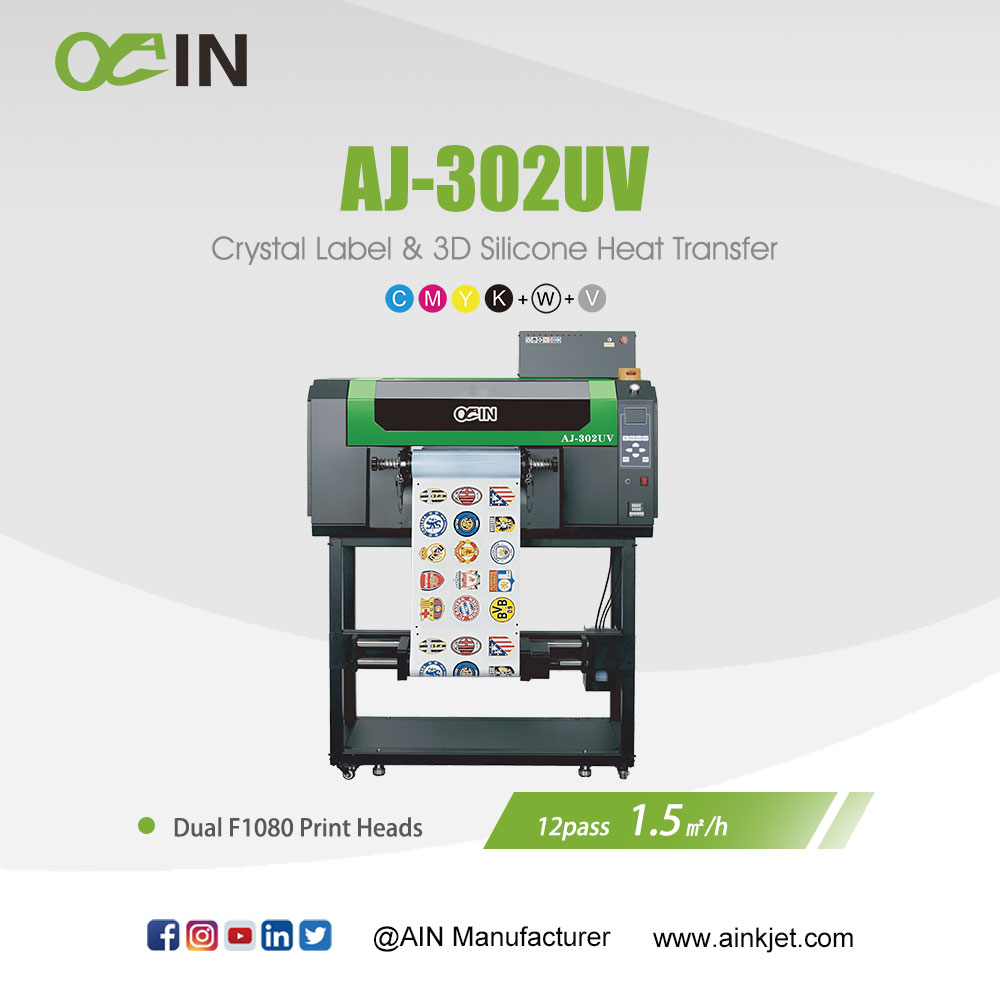

AINKJET AJ‑302UV A3 UV DTF Printer Crystal Label & 3D Silicone Heat Transfer Solution

AINKJET AJ‑302UV A3 UV DTF TPU Printer Crystal Label & 3D Silicone Heat Transfer Solution

AJ‑302UV

UV Direct Print Effect No Heating Peocess Required No Drying Process Required Good Adhesion on Curved, or Rugged Surface

Parameter
Print Head: 2* F1080 Print Heads
Crystal Label: 12 Pass: 1.5 m²/h
3D Silicone Label: 0.8 m²/h (single white mode), 0.4 m²/h (double white mode)
Print colors：CMYK + W + Varnish

Feature

This A3 UV DTF printer supports TPU crystal label and 3D silicone heat transfer printing, with vivid color, instant drying and roll-to-roll mass production capability.

It is fitted with dual F1080 printheads and CMYK+White+Varnish color configuration, delivering stable precision, fast output and exquisite 3D embossed texture.

The printed labels feature strong adhesion, waterproof and wear resistance, widely applicable to glass, metal, leather and other materials for curved and special-shaped product decoration.


Availability:



Inquiry PDF Export

Printer Informations

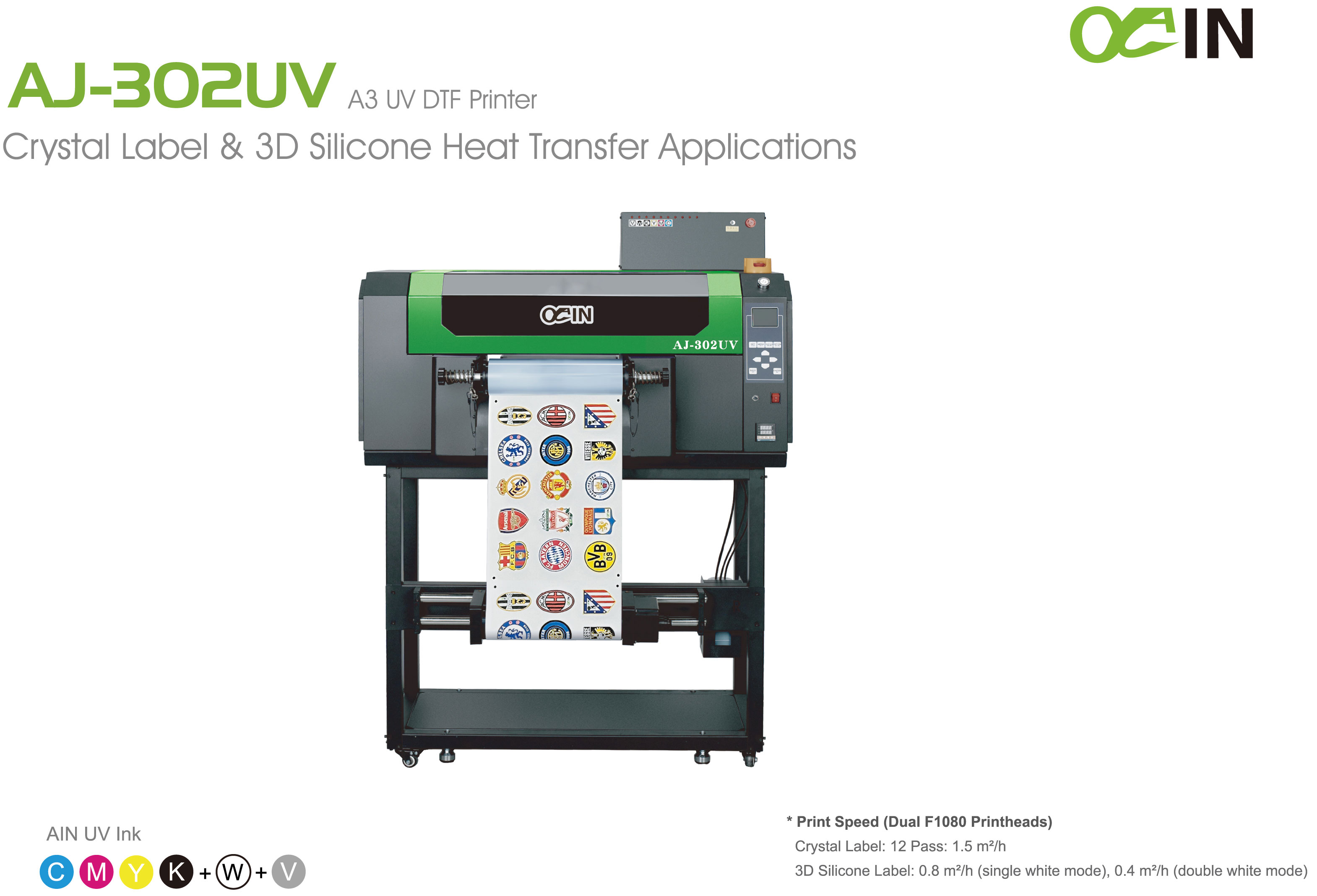

AJ-302UV-3D-Silicon详情

A3 UV DTF TPU Printer

Crystal Label & 3D Silicone Heat Transfer Solution

Process Advantages

UV direct jet printing creates vivid 3D transparent colors and premium texture, no heating or drying required for instant use.

Roll-to-roll AB film printing supports mass production of crystal labels.

It enables professional TPU UV DTF and 3D silicone heat transfer. Layered white ink and varnish form soft embossed silicone

labels, stretchable, crack-resistant and skin-friendly for garments, bags and hats.

Adaptability Performance

Features strong adhesion to curved, uneven and rough surfaces. Finished labels are waterproof, wear‑resistant and

with stable long‑term decorative effects.

Hardware Configuration

Equipped with dual F1080 piezoelectric inkjet printheads for stable precision, features A3‑size format with a maximum

printing width of 300 mm for continuous roll‑material printing, with a print speed of 1.5 m²/h at 12 Pass

Color Scheme

CMYK + White + Varnish setup, supporting white ink base and varnish embossing for 3D‑textured logos.

Application Scenarios

Works with glass, metal, plastic, leather, ceramics, wood, etc. Produces 3D labels, crystal transfer labels, logo decorative

stickers, home appliance and cultural‑creative identifiers for curved & special‑shaped products.

New Feature of UV DTF Flatbed Printer

We have an excellent technical team, which can be designed according to customers requirements.

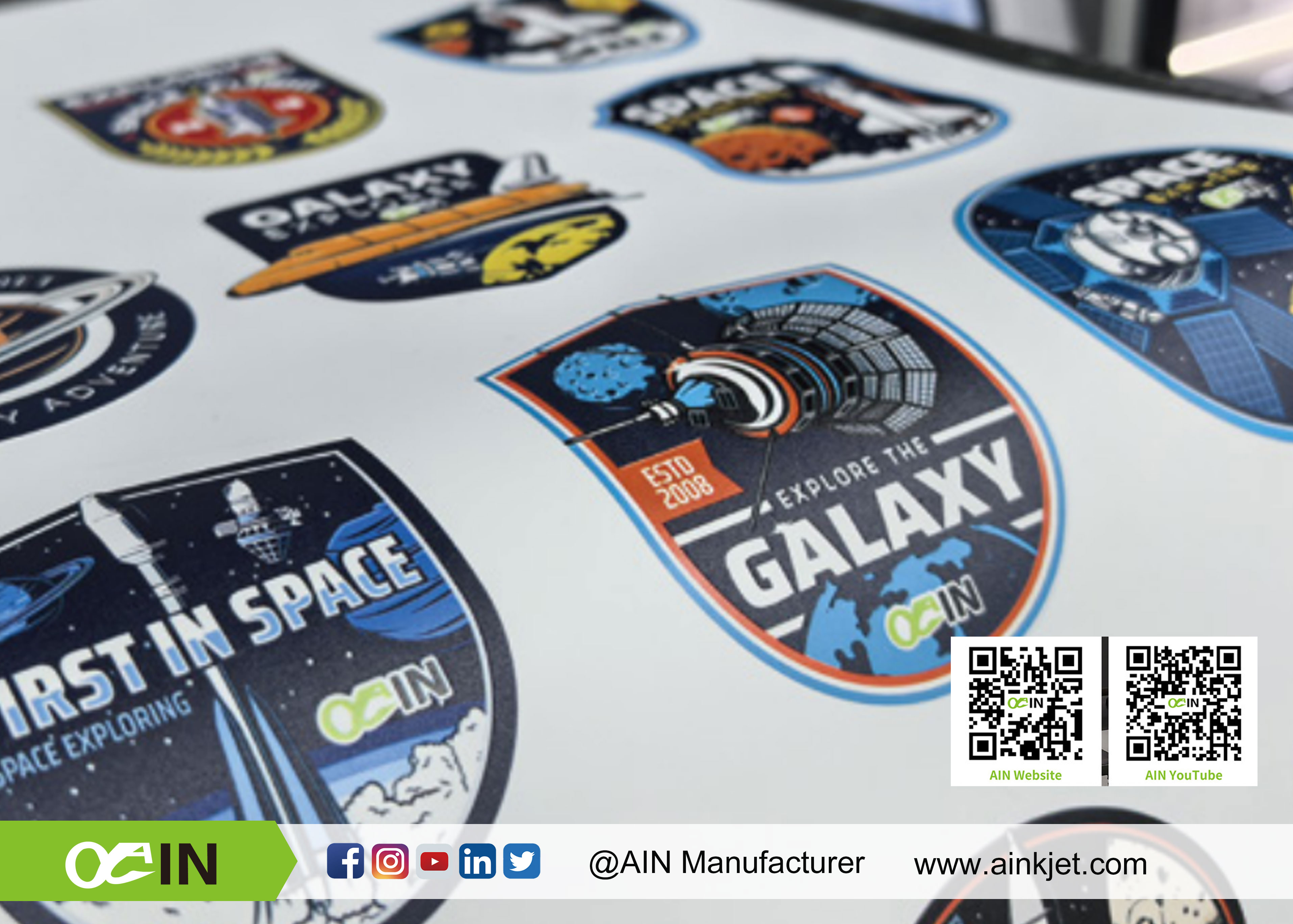

UV DTF Transfer Solutions Crystal Label

The digital revolutional technology can produce crystal and metallic signages by directly pasting to the material surface after printing conveniently without pretreatment.

• Scratch-resistant and durable

• Strong adhesion on various surfaces

• Bright color and high-definition printing

• Waterproof, lightfast and dirt-resistant

• Suitable for flat, curved and irregular objects

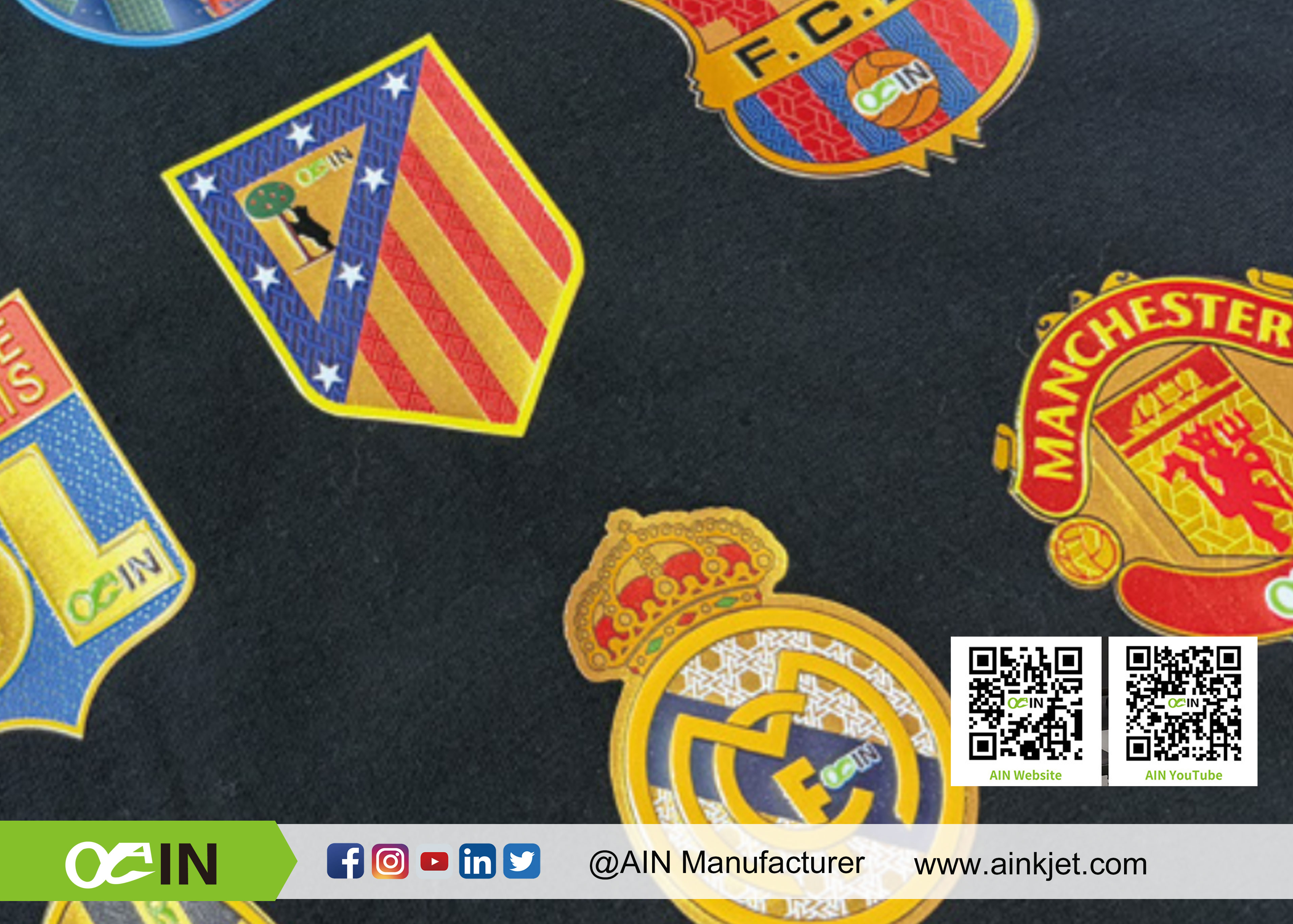

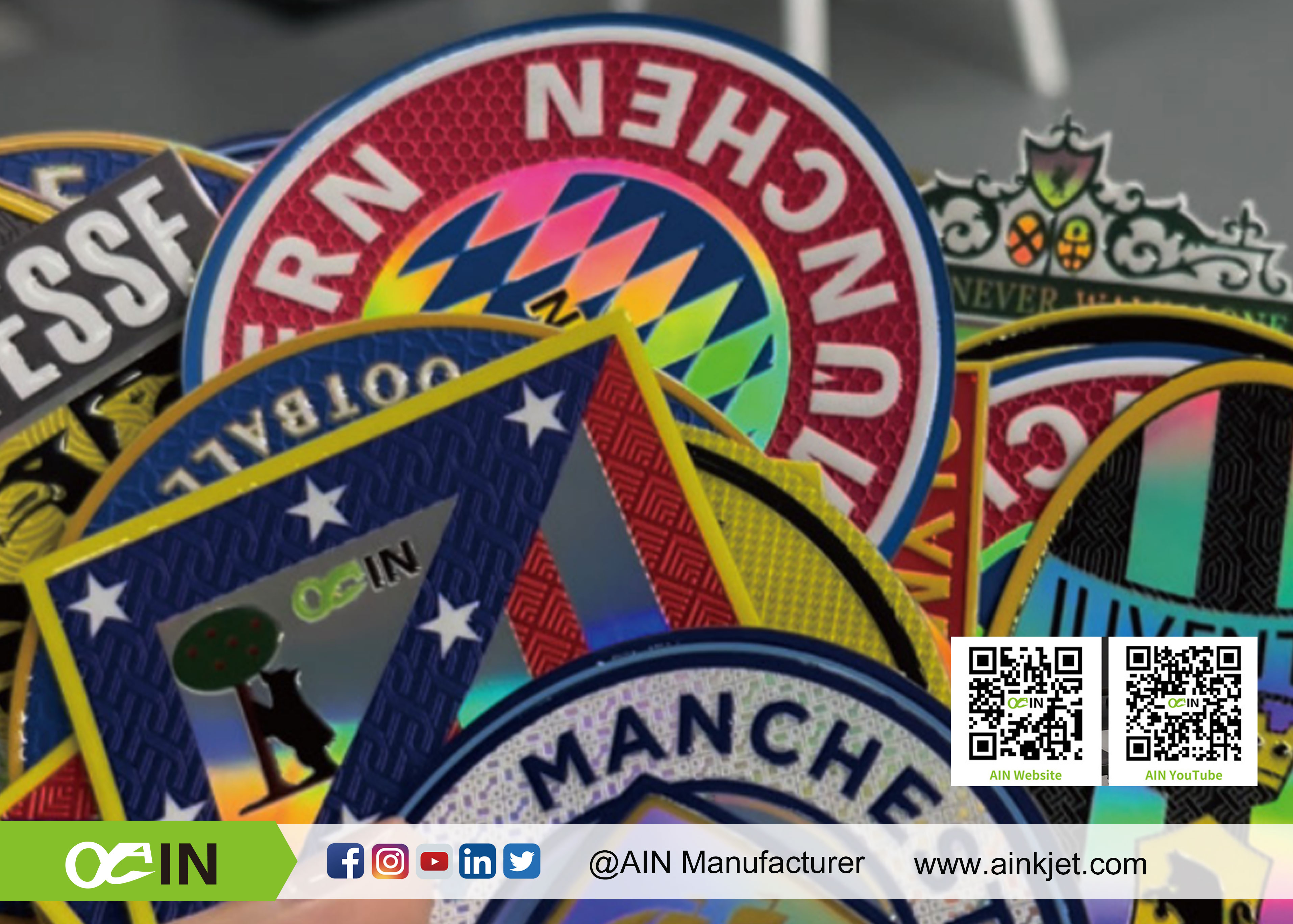

3D Silicone Heat Transfer Labels

Creates embossed and textured labels by stacking white ink and varnish layers, then transferred onto textiles through heat press, delivering a soft, silicone-like touch for garment applications.

• Soft-touch silicone texture

• Flexible and comfortable on fabrics

• Crack-resistant and long-lasting

• High-density 3D embossed effect

• Ideal for garments, bags and hats

Technical Specifications

AINKJET AJ‑302UV A3 UV DTF TPU Printer Crystal Label & 3D Silicone Heat Transfer Solution
Model	AJ-302UV
Printing Technology	Epson F1080*2
Print Head	Piezoelectric Inkjet
Acceptable Media	Width	≤300(mm)
Acceptable Media	Thickness	≤1(mm)
Ink Cartridges	Capacity	Color Siphon + White Ink Auto Stirring
Ink Cartridges	Color	CMYK + W + Varnish
Printing Resolution	Maximum 2400 dpi
Speed	Crystal Label: 12 Pass: 1.5 m²/h3D Silicone Label: 0.8 m²/h (single white mode), 0.4 m²/h (double white mode)
Ink Curing Method	Dual UV LED Lights
Power	3500W
Interface	Gigabit Ethernet
Power Supply	AC 220V ± 10%, 50HZ
Dimensions(with stand)	45.66(W)x36.2(D)x34.6(H) in.1160(W)x920(D)x880(H) mm
Weight(with stand)	441 lb. (200 kg)
Environment	Power on	Temperature: 59℉ to 90℉ [15℃ to 32℃] / Humidity: 35 to 80% (No Condensation)
Environment	Power off	Temperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (No Condensation)

Application

Applications of A3 UV DTF TPU Printer Crystal Label & 3D Silicone Heat Transfer Solution

AINKJET AJ‑302UV A3 UV DTF Printer supports two distinct label production solutions, catering to different material and texture requirements:

UV DTF Transfer Solutions Crystal Label: Can be directly applied to flat, curved, and irregular hard/semi-hard surfaces such as packaging boxes, glass, metal, and plastic parts, creating crystal or metallic-finish labels.

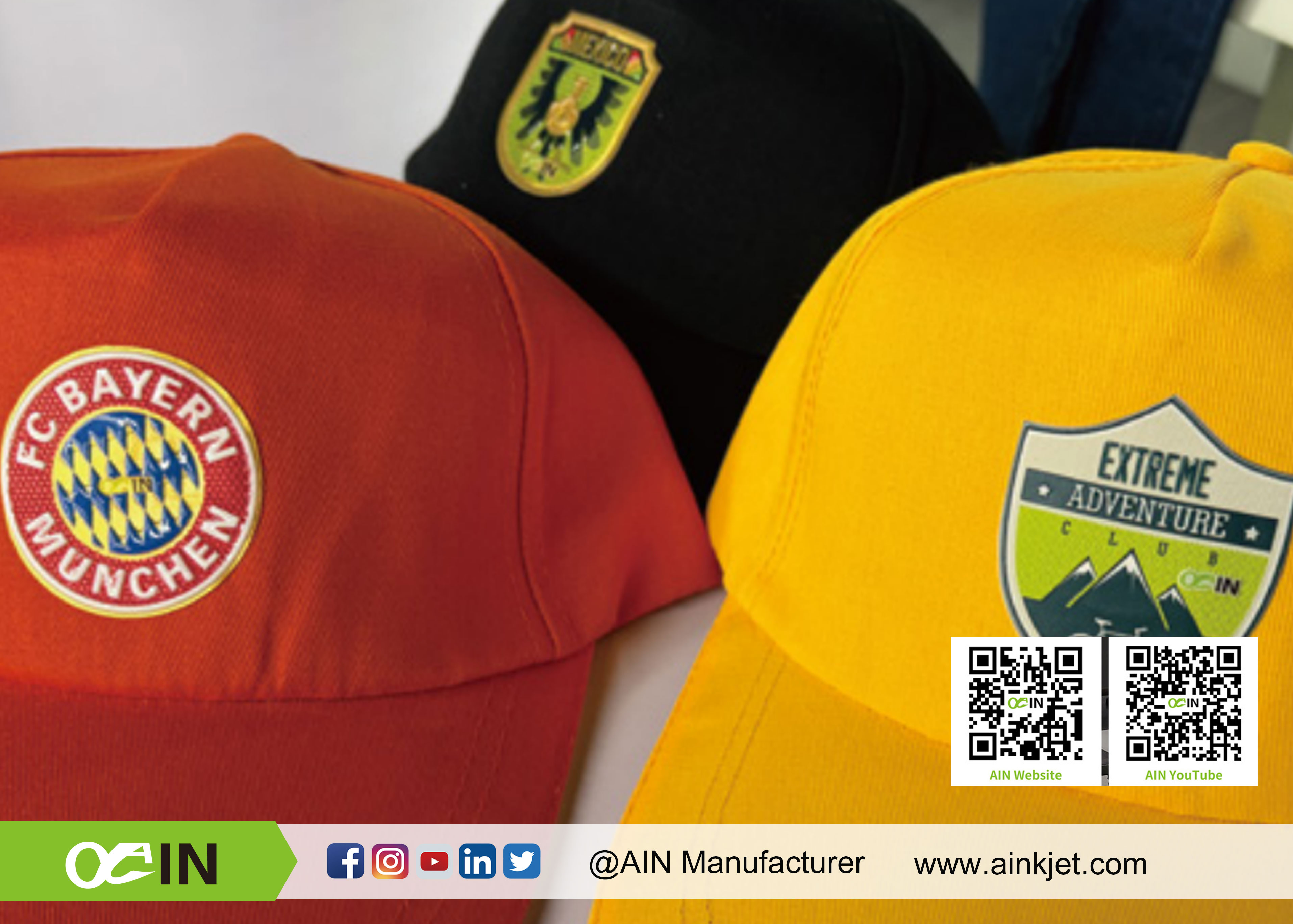

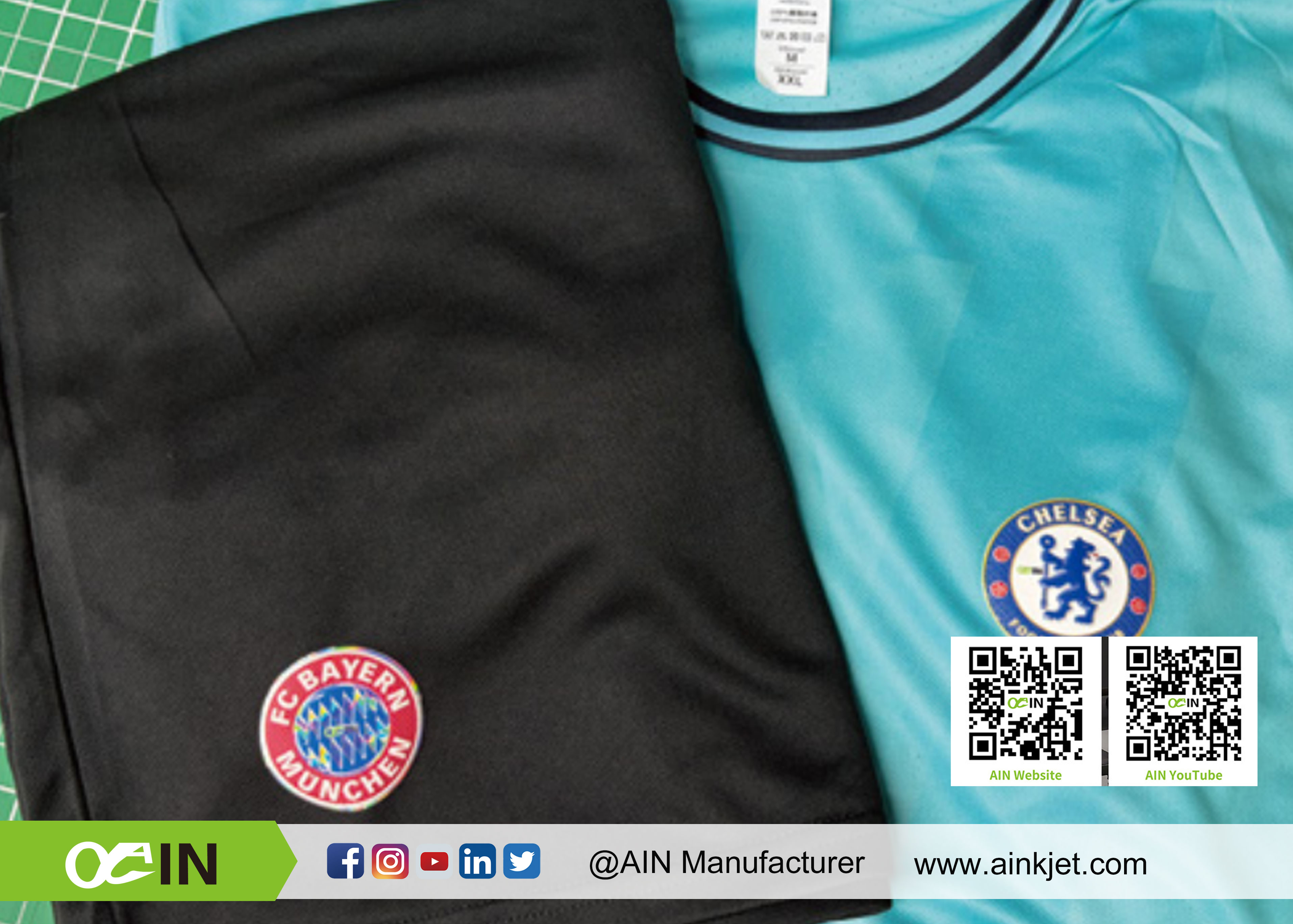

3D Silicone Heat Transfer Labels: Specially designed for textiles, suitable for garments, bags, hats, etc., to produce brand logos and decorative labels that enhance the texture of apparel
