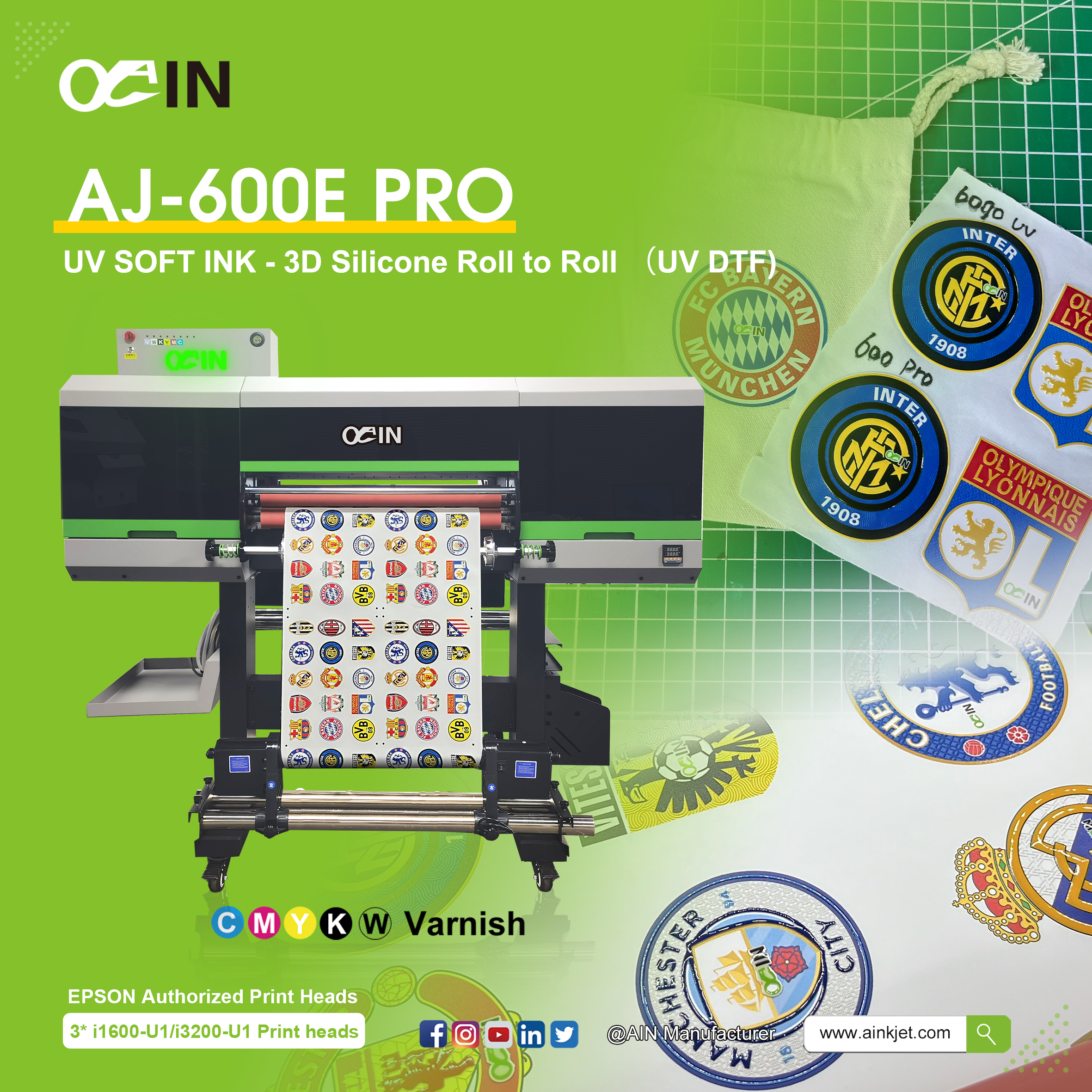

AJ-600E PRO 3D silicone UV DTF Roll to Roll Silicone Heat Transfer Printer


AJ-600E PRO
UV Soft Ink -3D silicone UV DTF uv roll to roll Silicone Heat Transfer Printing

Parameter
Print Head: 2/3 i1600-U1 / i3200-U1 Print Heads
Max Print Size: 600mm*900mm
Media Thickness : ≤180mm
Ink Color: W+CMYK+Varnish

Feature
AJ-600E Pro, combined with the AIN 3D silicone UV DTF roll-to-roll solution using soft UV inks, enables efficient production of wear-resistant 3D stereo labels compatible with multiple fabrics through an integrated process of printing, cutting, and heat transfer.

Efficient customization of personalized labels with multi-material compatibility and 3D wear resistance, suitable for clothing, luggage, shoes and hats labeling, including 3D silicone patches.
Availability:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Printer Informations






3D Silicone UV DTF

uv roll to roll Silicone Heat Transfer Printer


Efficient process

Continuous roll to roll production, integrated printing, cutting, and heat transfer printing, simplifying the process.

3D texture

Silicone heat transfer printing presents a three-dimensional effect, wear-resistant and soft to the touch.

Material compatibility

Suitable for various types of fabrics such as cotton, linen, leather, Oxford cloth, etc.

Widely applicable

Customized clothing/luggage/shoe and hat labels, supporting personalized three-dimensional identification.

Technological upgrade

Soft UV ink+UVDTF technology, breaking through the limitations of flat printing

UV SOFT INK - Silicone heat transfer UV DTF.


New Feature of UV DTF Printer

We have an excellent technical team, which can be designed according to customers requirements.

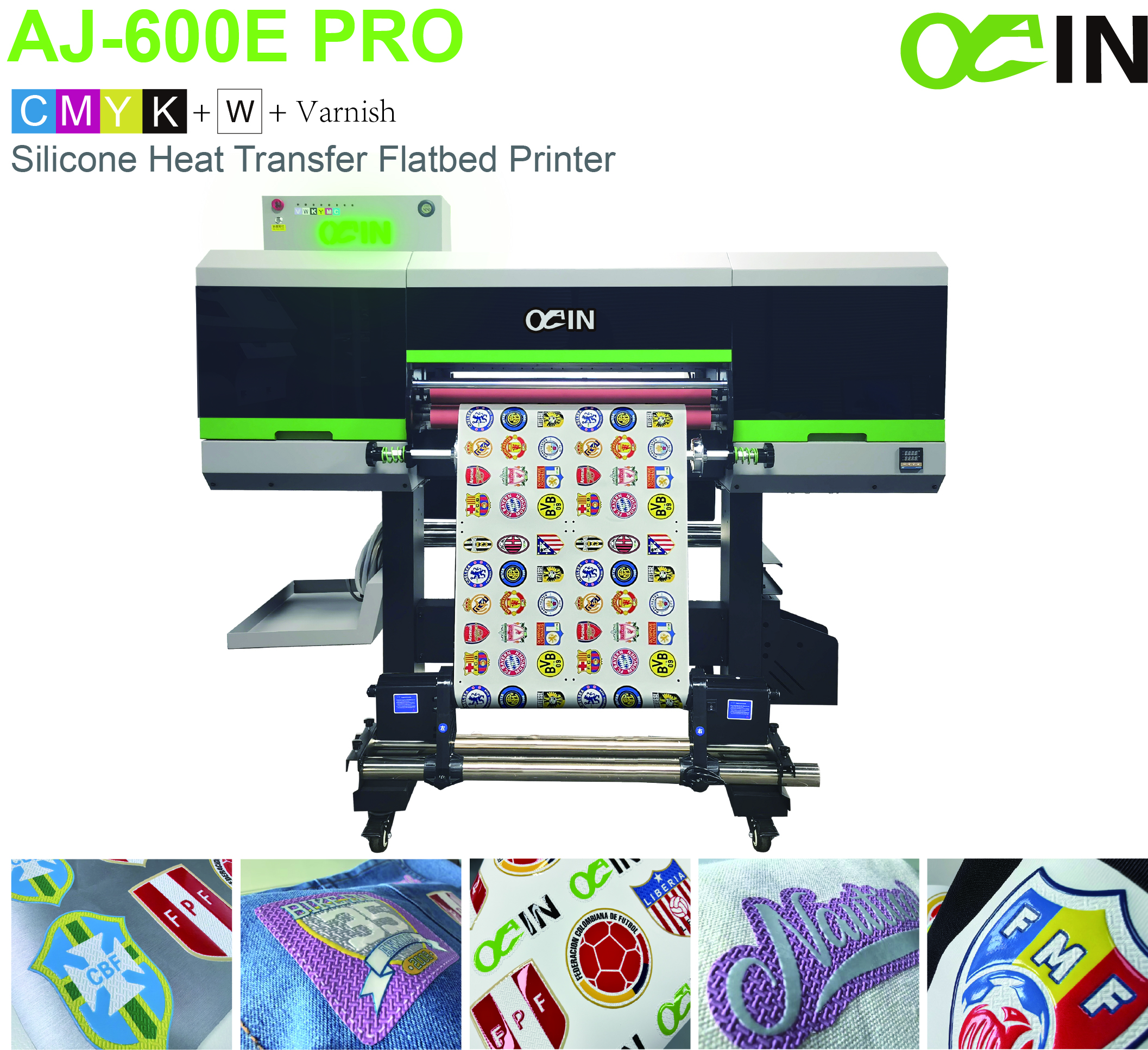

AJ-600E PRO卷材硅胶4x-100

4 Colors + White & Varnish Are More Expressive

Equipped with 6 ink tanks, 4 colors of ink can be installed. It can finish exquisite shading with high precision. In addition, using white ink and clear varnish, it has rich expressive power and fulfills various needs.

Print Varnish And 3D Relief Effects

The heads of white color varnish ink jet at the same time, which can produce D relief and multi-layer transparent bump effect, including amazing varnish glossy effect and matte finish.

High-Performance Inks For A Variety Of Applications
It is an eco-friendly UV ink with excellent color development and color reproducibility. It is cured by ultraviolet radiation. In addition to bright colors and style, it also has strong adhesion.
UV DTF PRINTING SOLUTION

UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.UV DTF Make you more easy to entry label market

- UV Direct Print Effect
- No Heating Process Required
- No Drying Process Required

- Good Adhesion on Curved, or Rugged Surface

AIN UV DTF INKS

All our UV DTF inks are specially developed and test to ensure
vivid colors and maximum fastness
- Scratch resistant

- Vivid colors


EB105784-0E32-4874-8B99-CEE532659E9C

Print Varnish and 3D Relief Effects

White varnish ink jets simultaneously to create 3D relief and multi - layer transparent bump effects. This includes stunning glossy and matte varnish finishes.

AIN UV DTF supports wide range of printing supplies

Direct to film comprehensive solution is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.

素材14x-100


Technical Specifications


AJ-600E PRO UV DTF uv roll to roll Silicone Heat Transfer Printer
Print Head3/4*i1600 Print Heads (4*i3200 Heads Optional)
Printing TechnologyPiezoelectric Inkjet
Acceptable MediaWidth≤600(mm)
Thickness≤1.5(mm)
Ink CartridgesCapacityColor Siphon + Regular Mixing of White Ink
ColorW+CMYK+Varnish
Printing ResolutionMaximum 2400 dpi
Speed8pass (720x1200dpi) 7m²/h
Ink Curing MethodDual UV LED Lights
Power3500W
InterfaceGigabit Ethernet
Power SupplyAC 220V ± 10%, 50/60 HZ
Dimensions(with stand)1650(W)x960(D)x1570(H)mm
2360(W)x880(D)x760(H)mm
Weight(with stand)441 lb. (200 kg)
EnvironmentPower onTemperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation)
Power offTemperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation)



Printer Heads



Epson i1600-U1 Print Head

PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. b. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

dtgpentou2


Model I1600-U1 / I3200 optional
Compatible ink UV Ink
Dimensions(WidthxDepthx Height) 69.1mm x 59.4mm x 35.6mm
Weight(g) 60
Nozzle Numbers 1600
Length Between Nozzles(inch) 1/300
Nozzle Row 4 rows
Max color/head 4 colors
Resolution 300dpi/row, 600dpi/2row
Effective Printing Width(mm) 33.8
Droplet
ejection
performance(kHz)
Binary 5 pl(43.2kHz)
3 levels
grey scale
6,12.5 pl(21.6kHz)
4 levels
grey scale
3.8,6.2,9.3 pl(21.6kHz)
Viscosity range(mPa.s) 5-7 mPa・s


Features


A-600-Pro-UV-DTF副图1

Safety structure design


The overall printer cover can improve the operation safety, reduce the adhesion of dust in the printing process and ensure the printing quality.

A-600-Pro-UV-DTF副图2

Laminating device


Comes with a laminating system, realizes the function of

laminating while printing, easily reduces manual operations, and can print a whole roll of A film with glue .


A-600-Pro-UV-DTF副图3

Smart operation


High quality output, simple and efficient operation A-600 Pro contains many advanced functions to complete high-quality printing jobs with simple operations.


A-600-Pro-UV-DTF副图4

Ink supply system


Using white ink and clear varnish, it has rich expressive power and fulfills various needs.

An additional spray print head can be added to realize the application of bronzing varnish and direct glue.



2025-4-10 发货1 2025-4-10 发货7 600pro 车间机器1

600pro 车间机器2




Application


Applications of UV DTF uv roll to roll Silicone Heat Transfer Printer

Print magic UV ink on magic film. Get ready to design and make your “image” without the traditional molding process, and no more minimum order quantity for your customer. Magic film can be applied easily on non-flat surface for printing image transfer, and works well on various materials, such as plastic, glass, metal, ceramics, leather, wood, and other soft or hard materials.

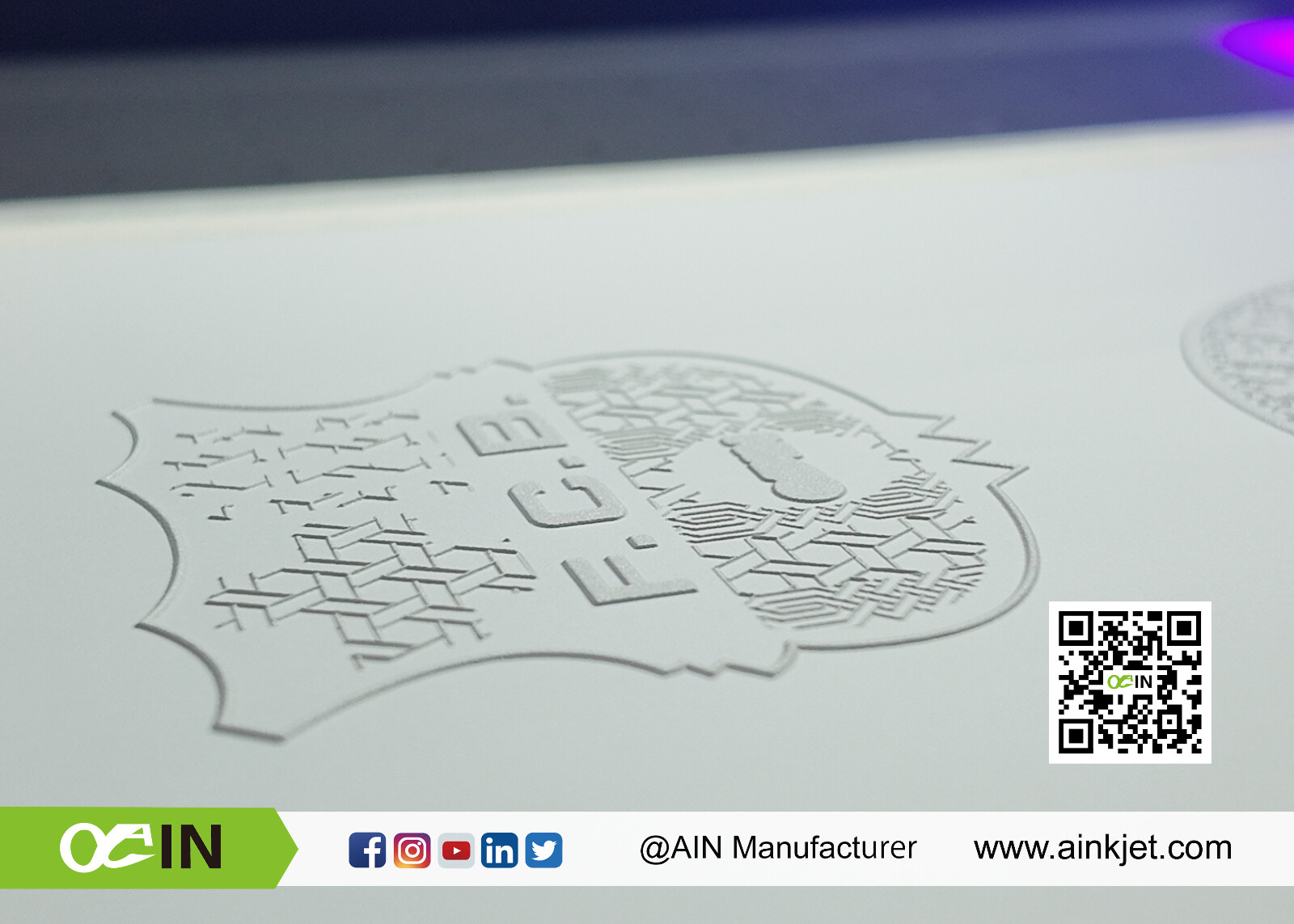

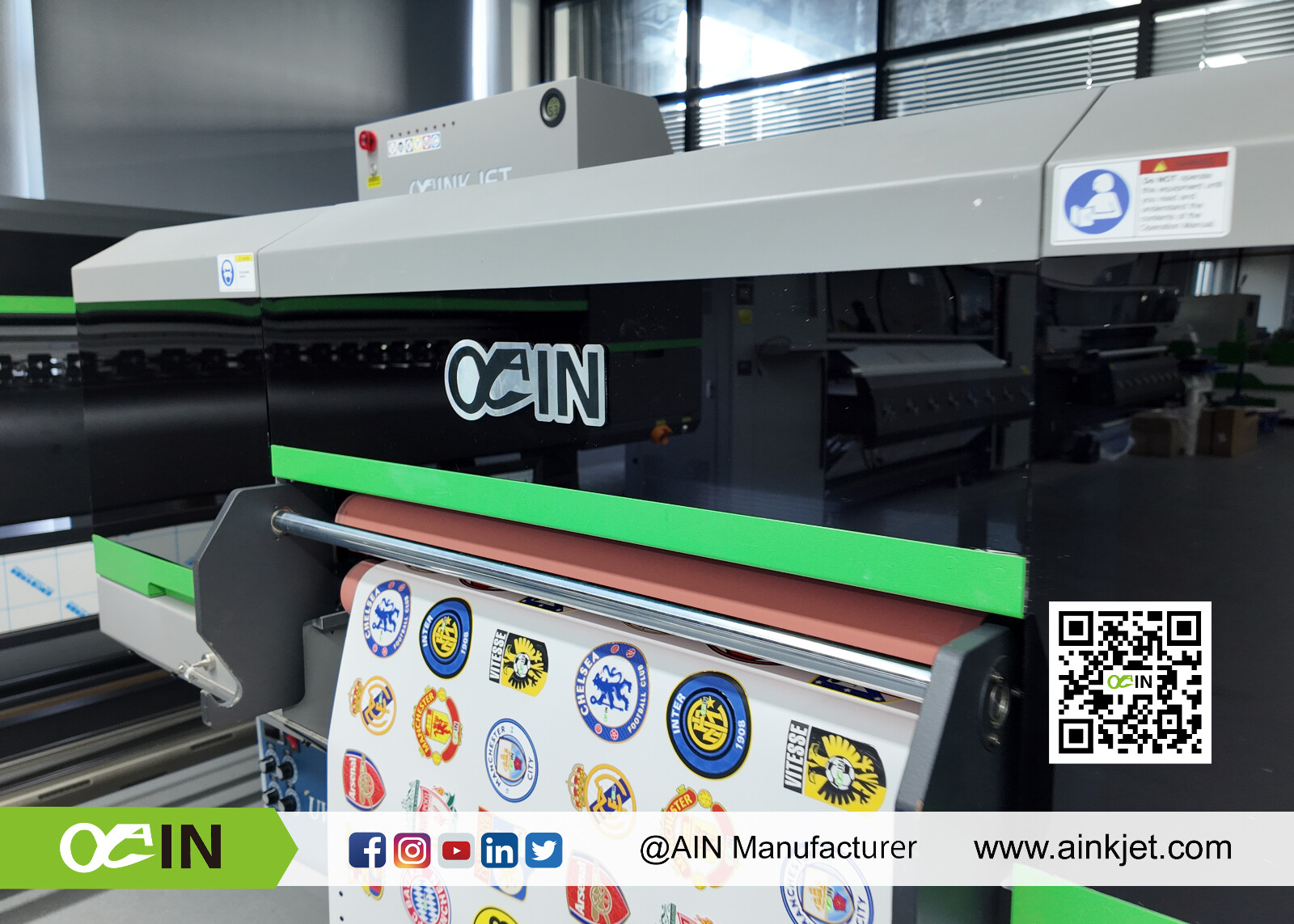

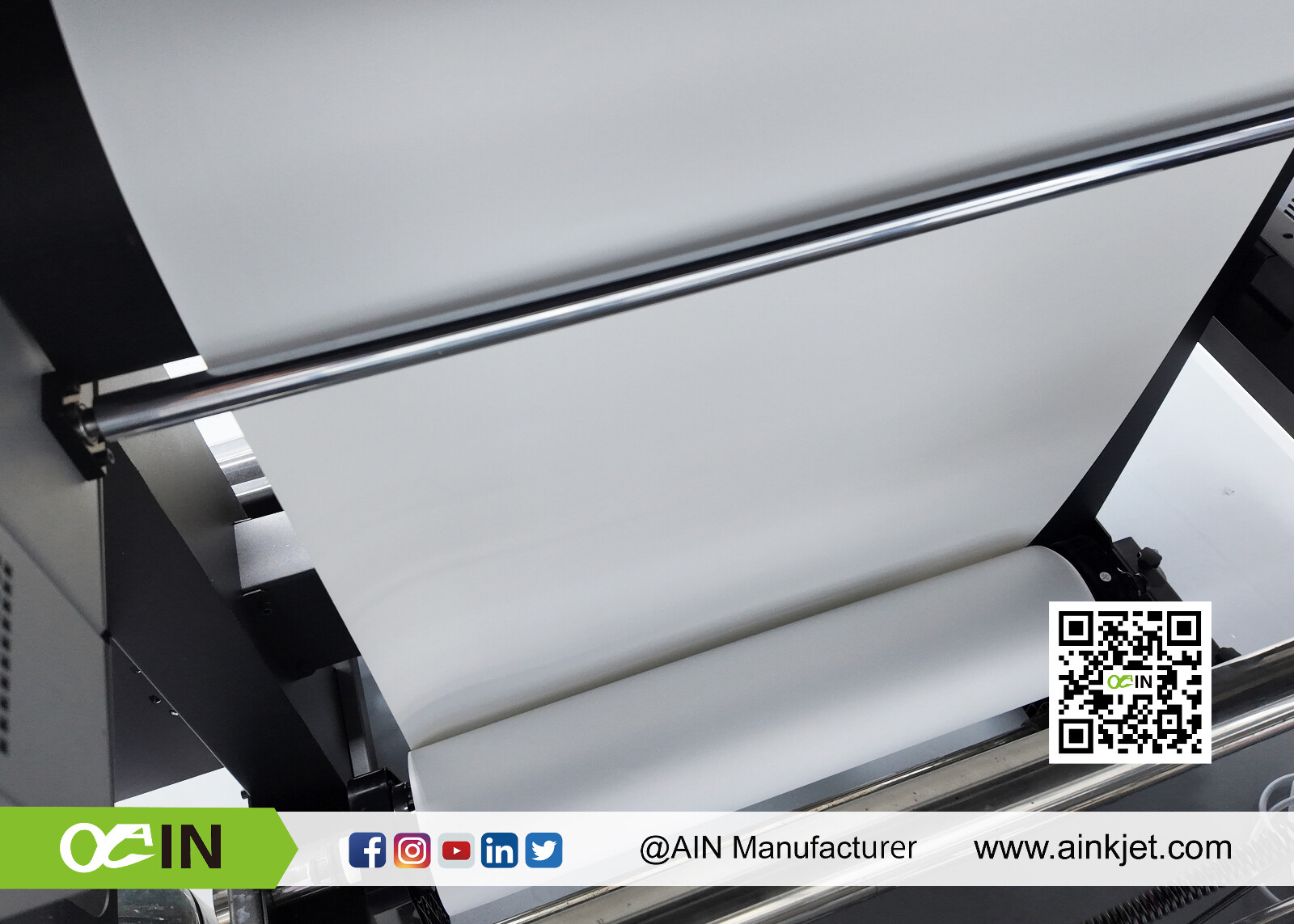

6090柔性方案 (5) 600E 硅胶模- 副图1 600E 硅胶模- 副图3 da376237a20610690b65e75962676adf
6090柔性方案 (6)

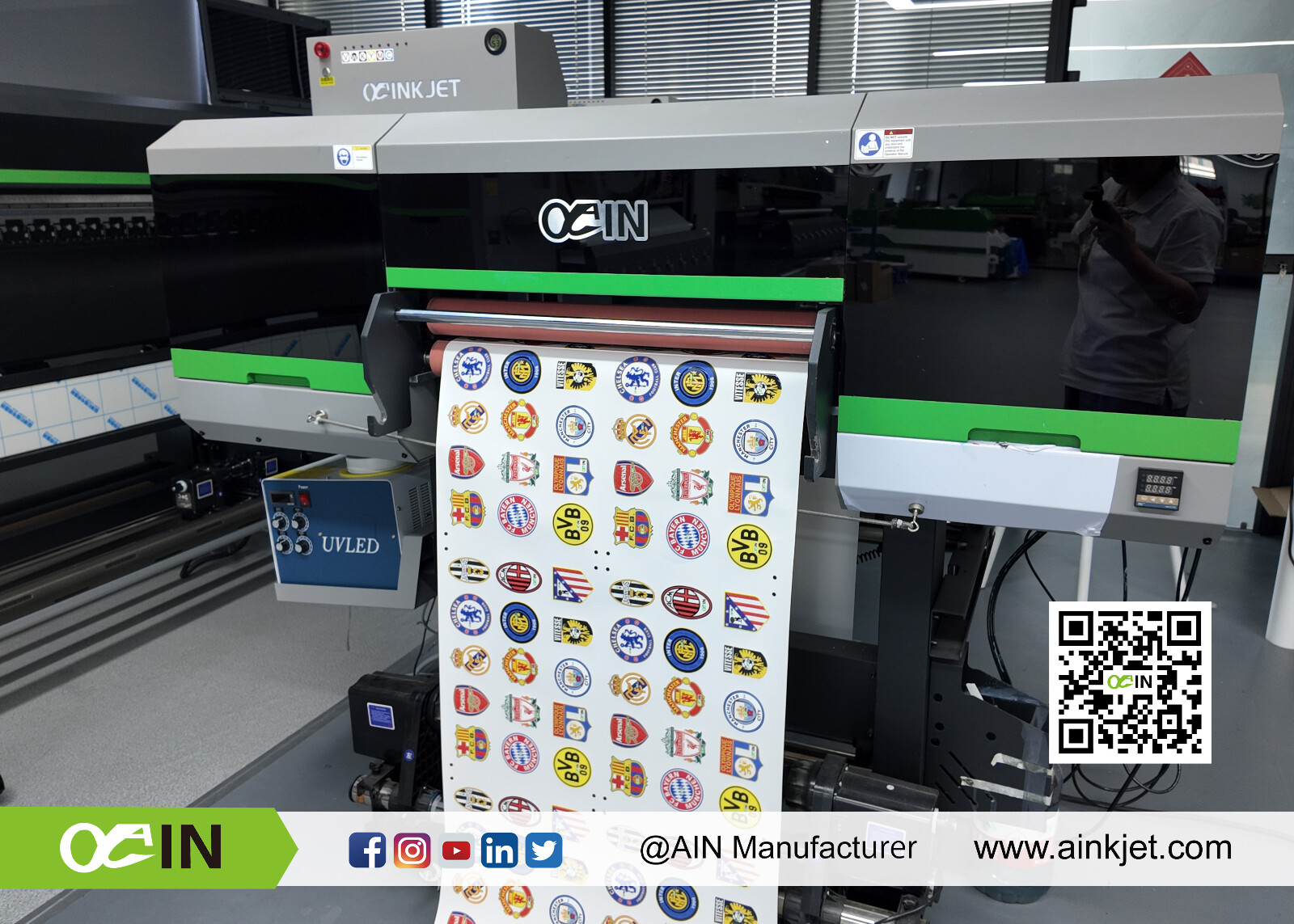

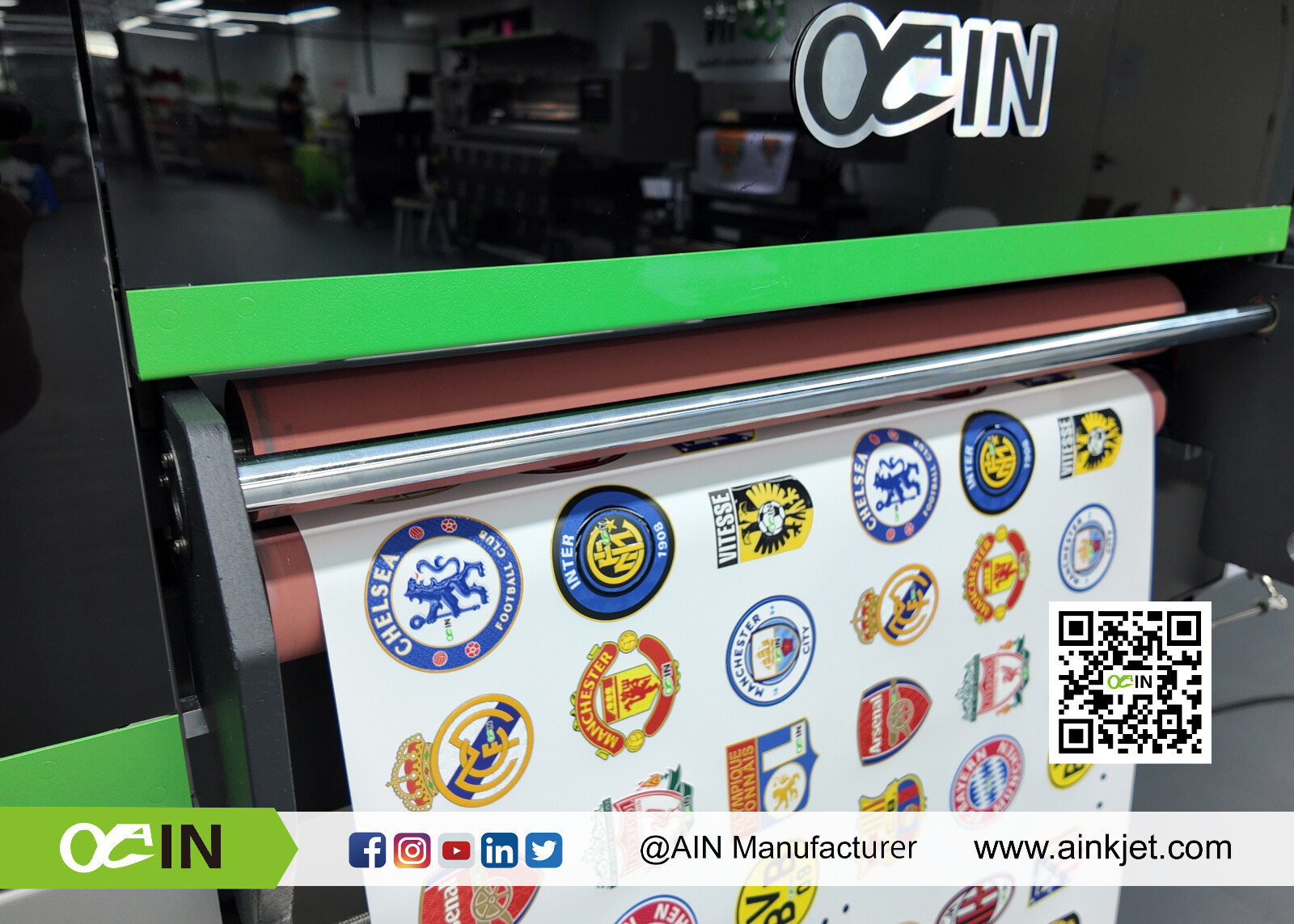

600E 硅胶模- 副图2 d139873cff554c9dd145935d7fcc2c2a 0e6468451046ce71ebd39a2595fcdc5c 600E 硅胶模- 副图4 a6c641445c2d3a953018e6ff37f26c9b
