Printer Informations

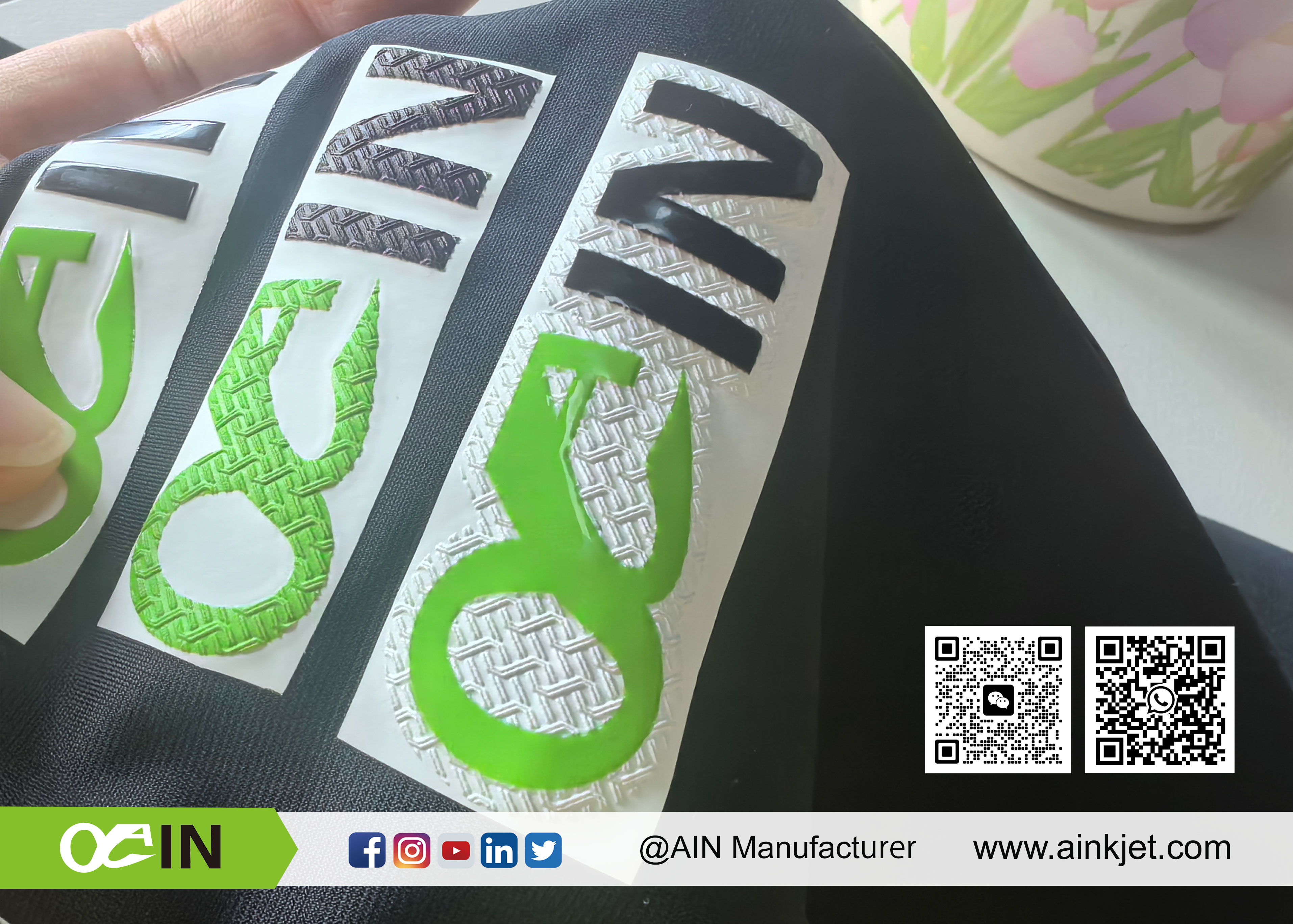

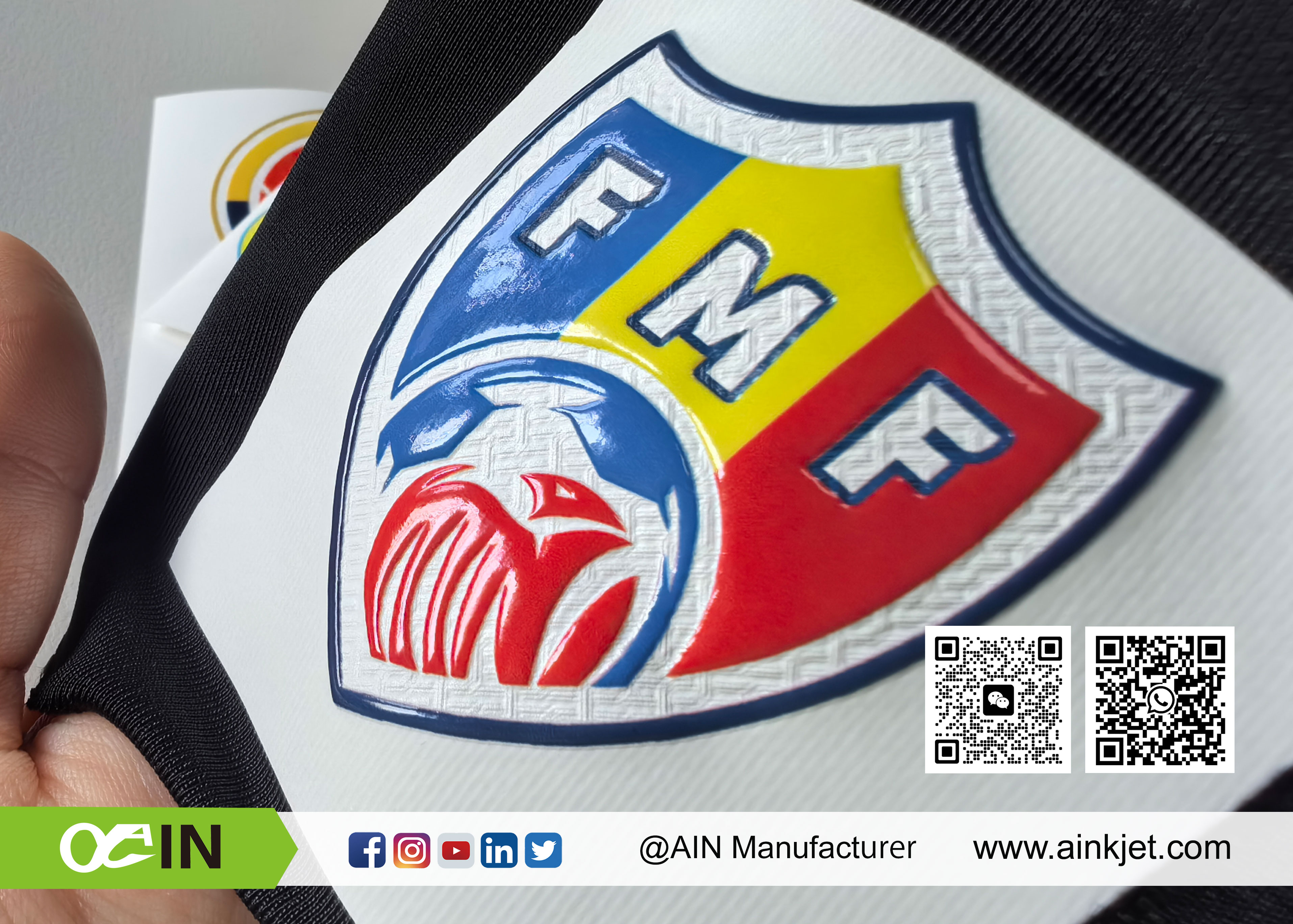

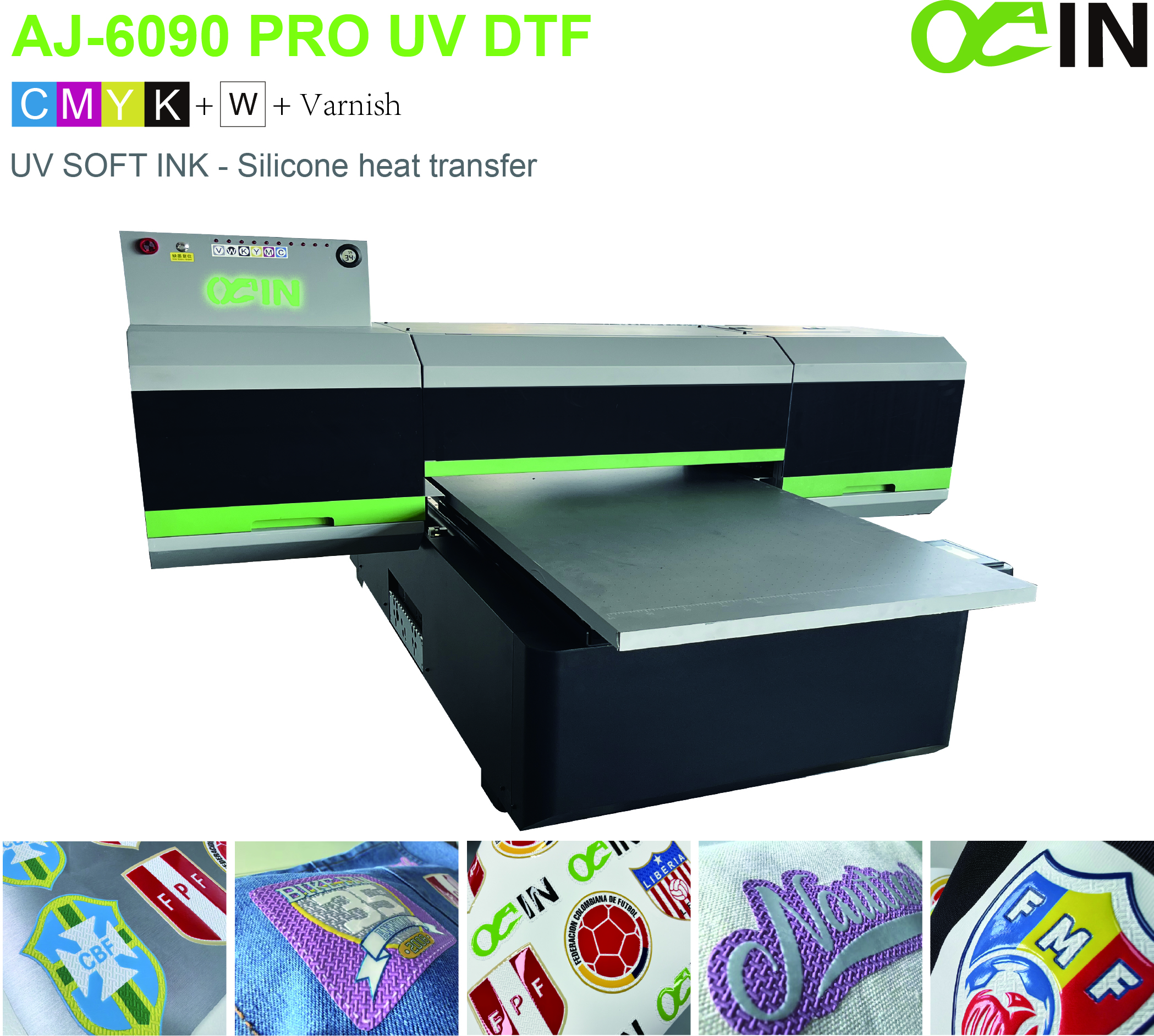

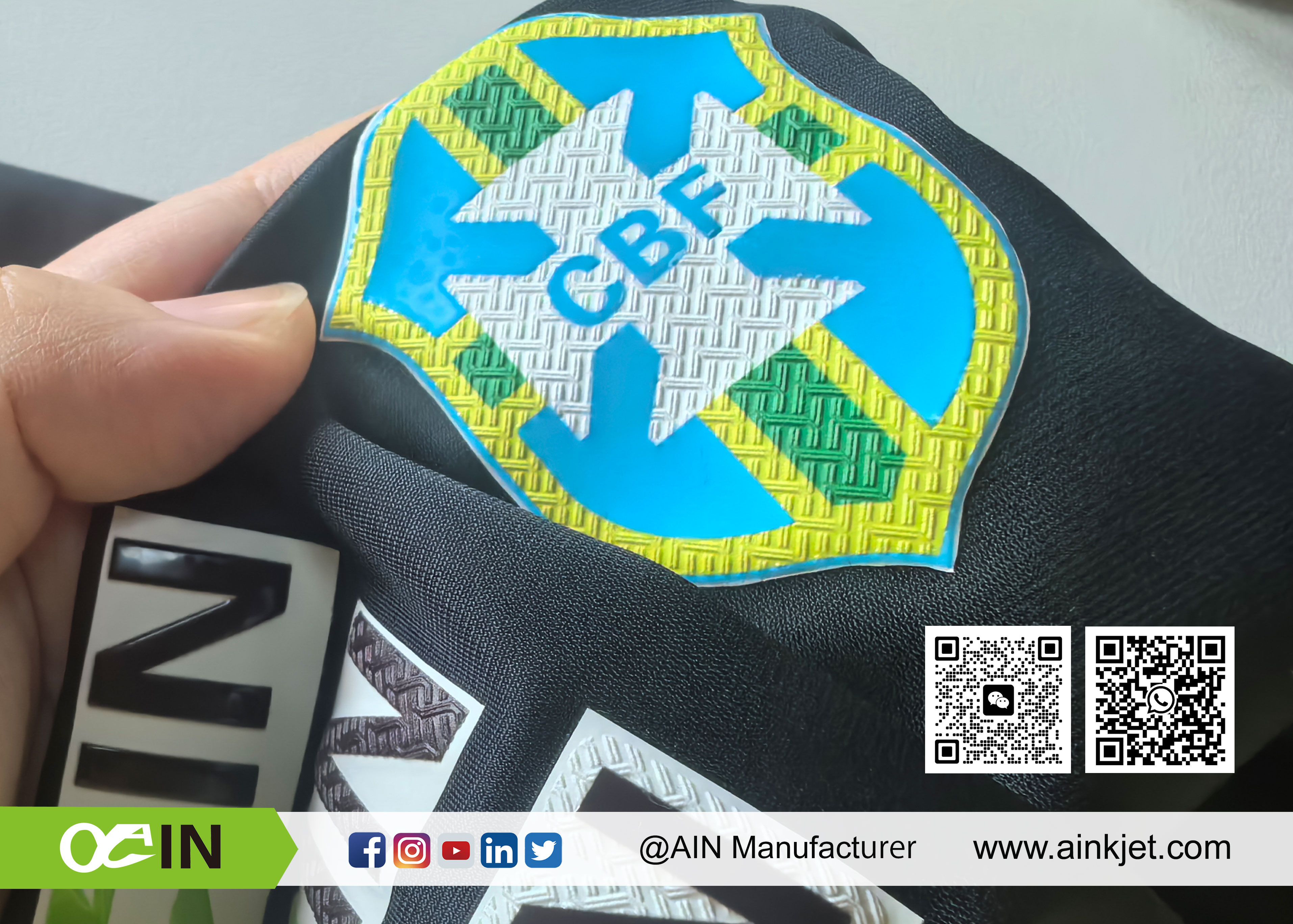

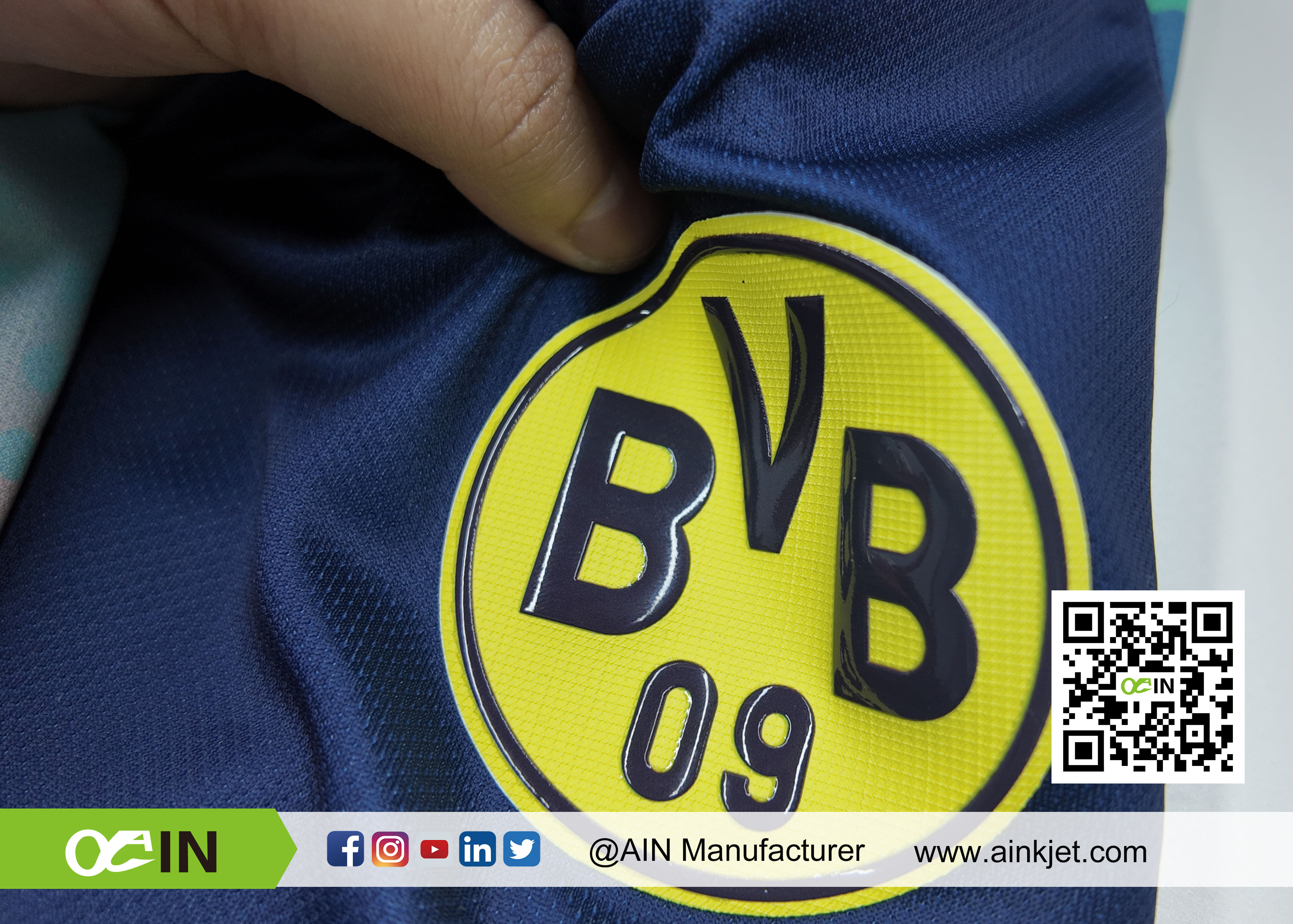

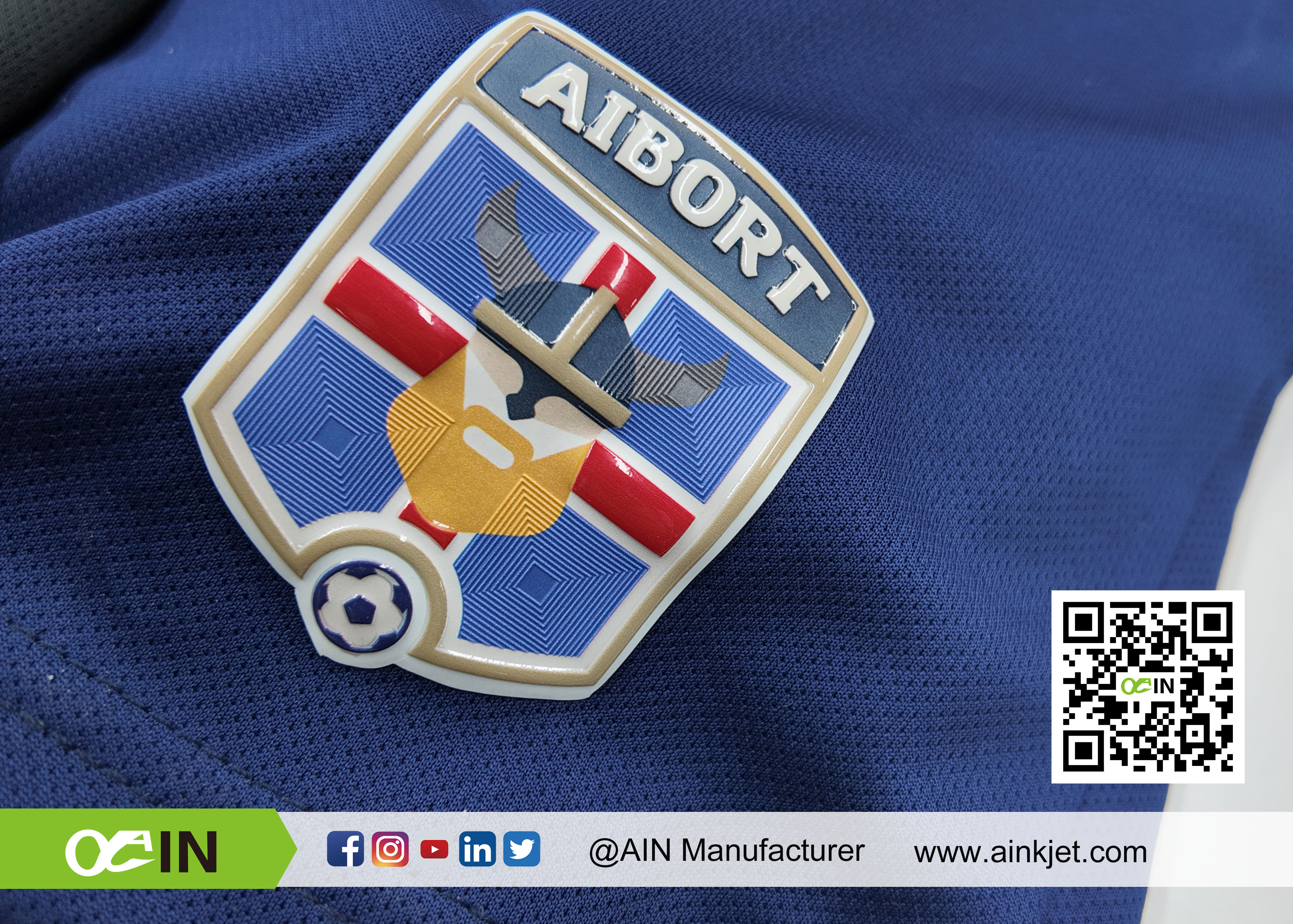

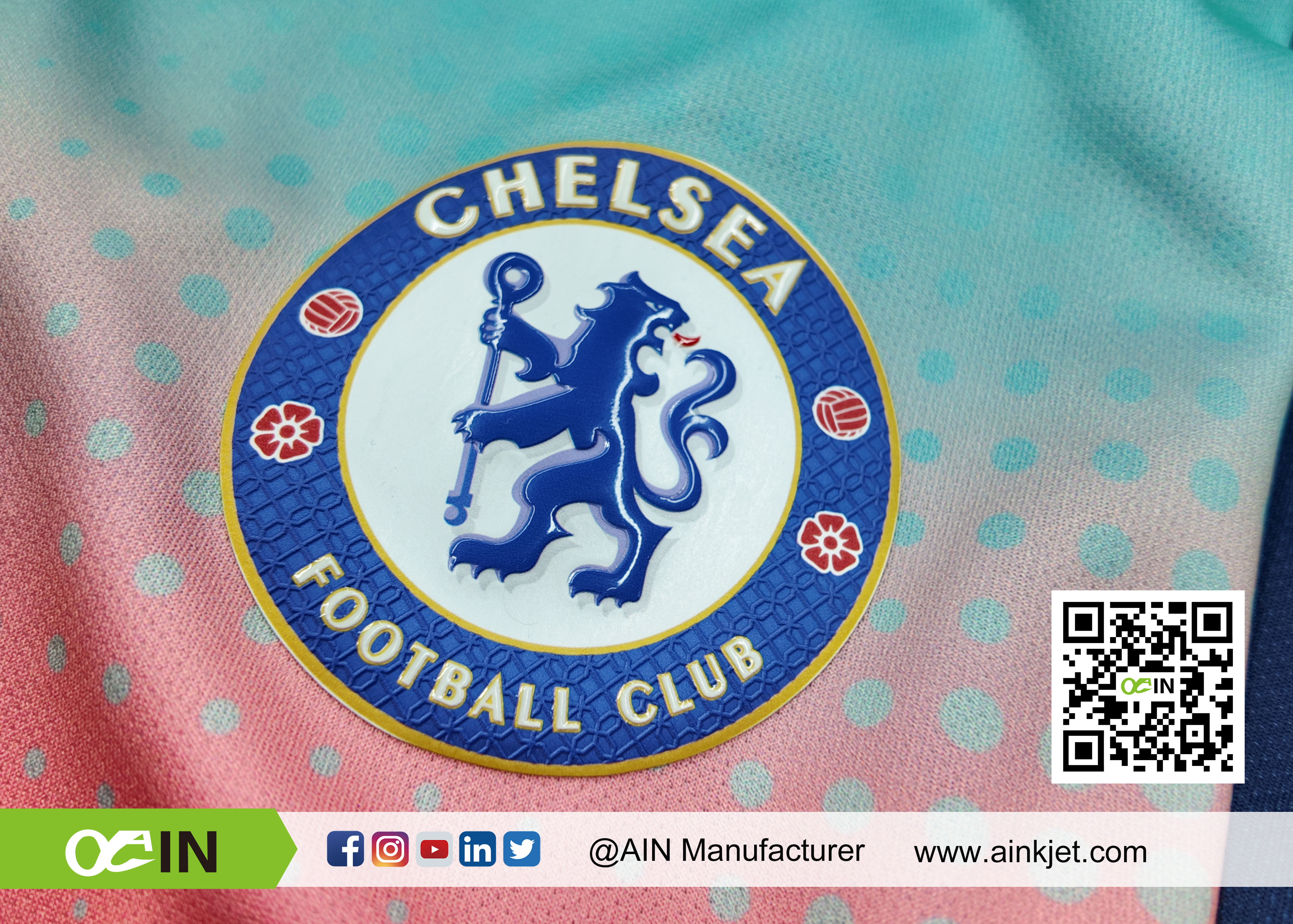

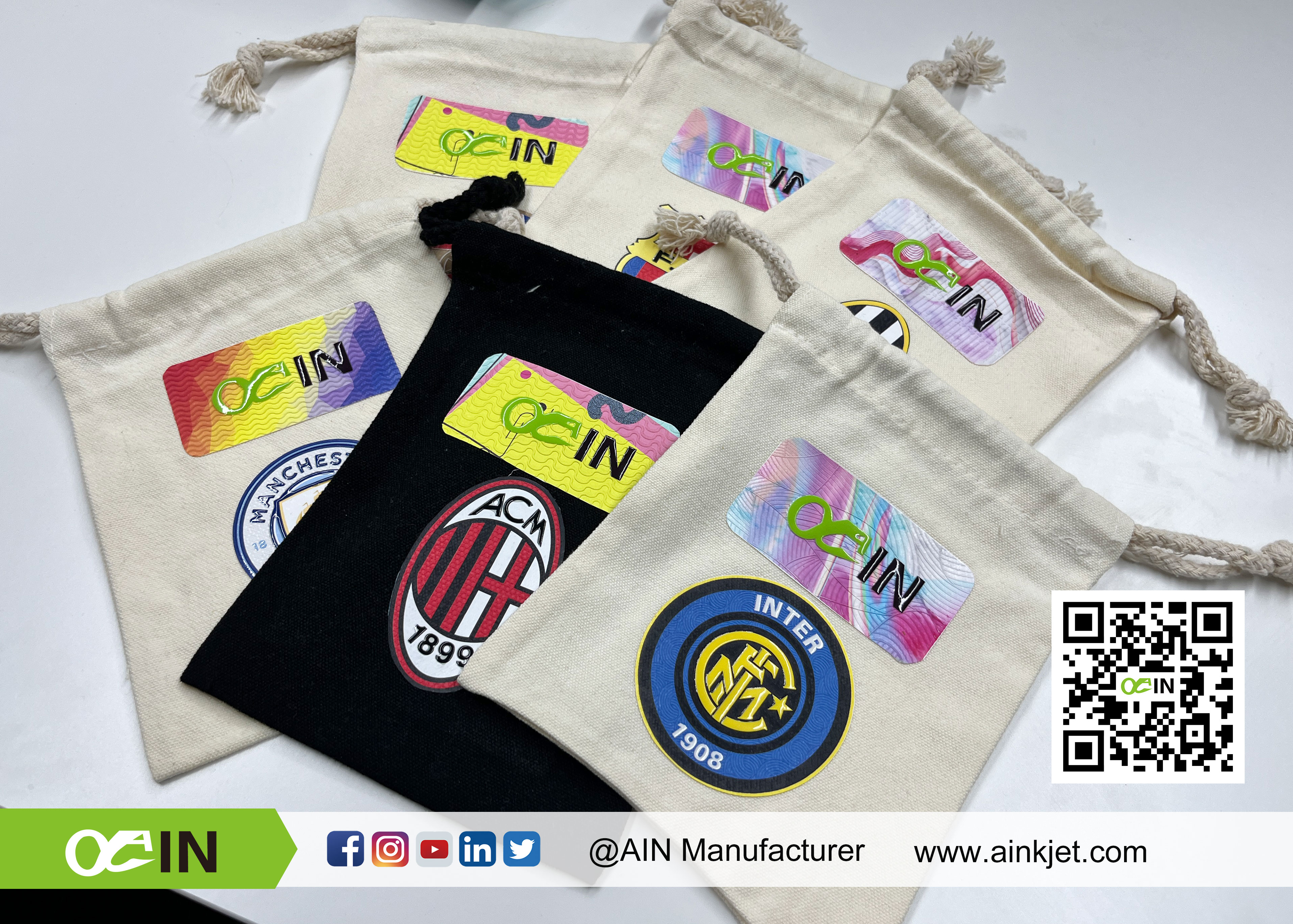

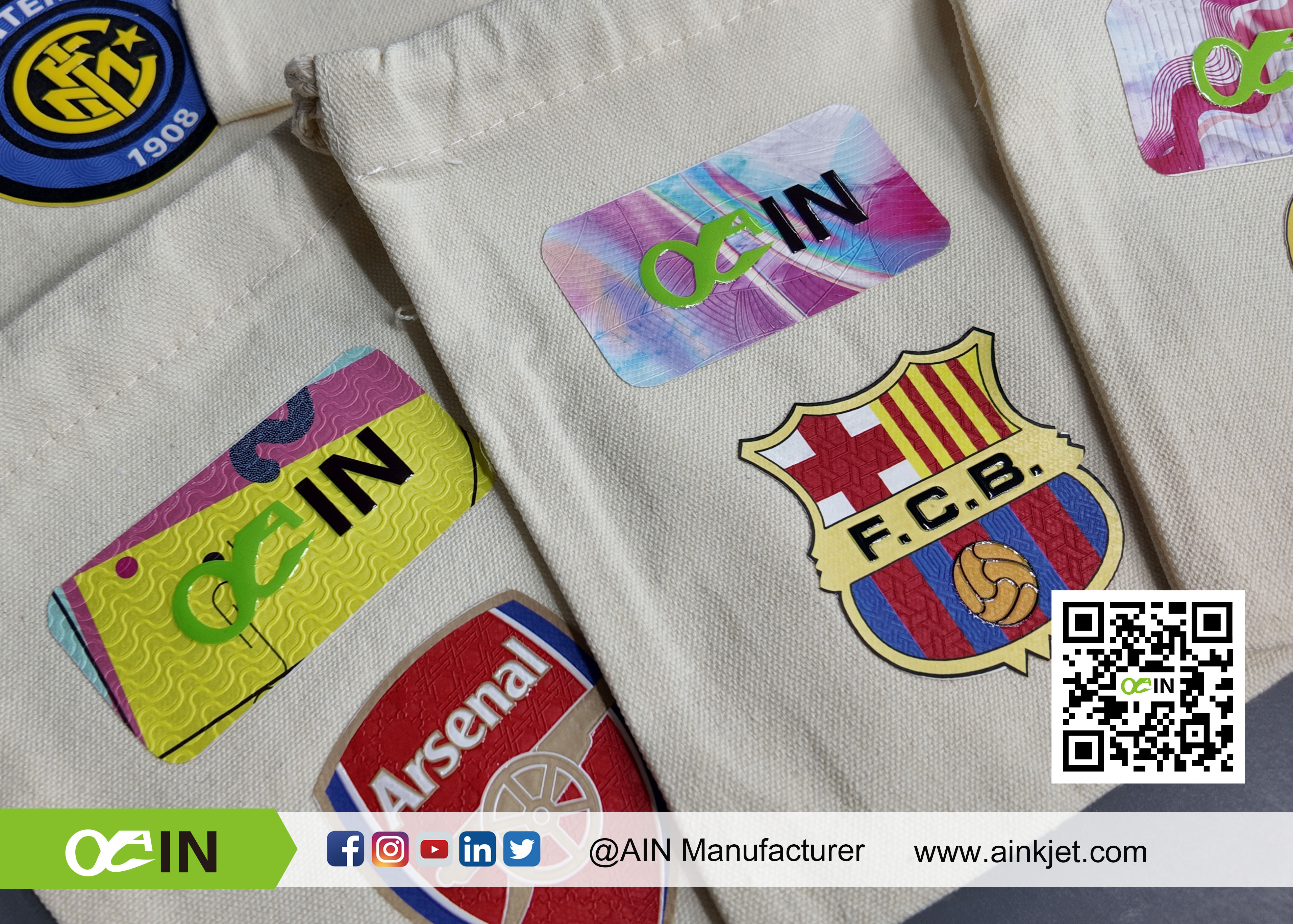

Silicone Heat Transfer UV Flatbed Printer UV SOFT INK - Silicone heat transfer UV DTF AIN 6090 ultra-soft UV ink combined with silicone heat transfer film ensures soft transferred patterns without affecting fabric comfort, ideal for sportswear labels Printing three-dimensional Effects UV DTF + silicone heat transfer, with simultaneous printing of white ink and varnish, enabling 3D embossing, matte/glossy effects through printing, cutting and heat transfer, a 3D effect can be easily achieved, enhancing the visual appeal. Core Configuration Optional 2/3 Epson i1600-U1/i3200-U1 printheads, max 2400dpi resolution, dual UV LED curing, and vacuum adsorption platform for stable printing Wide applicability Suitable for 3D silicone label production on clothing (especially sportswear), bags, shoes and hats; also applicable for pattern transfer on soft/hard materials like plastic, glass and metal, meeting customized label and decoration needs. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |
| UV DTF PRINTING SOLUTION UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.UV DTF Make you more easy to entry label market. - UV Direct Print Effect - No Heating Process Required - No Drying Process Required - Good Adhesion on Curved, or Rugged Surface

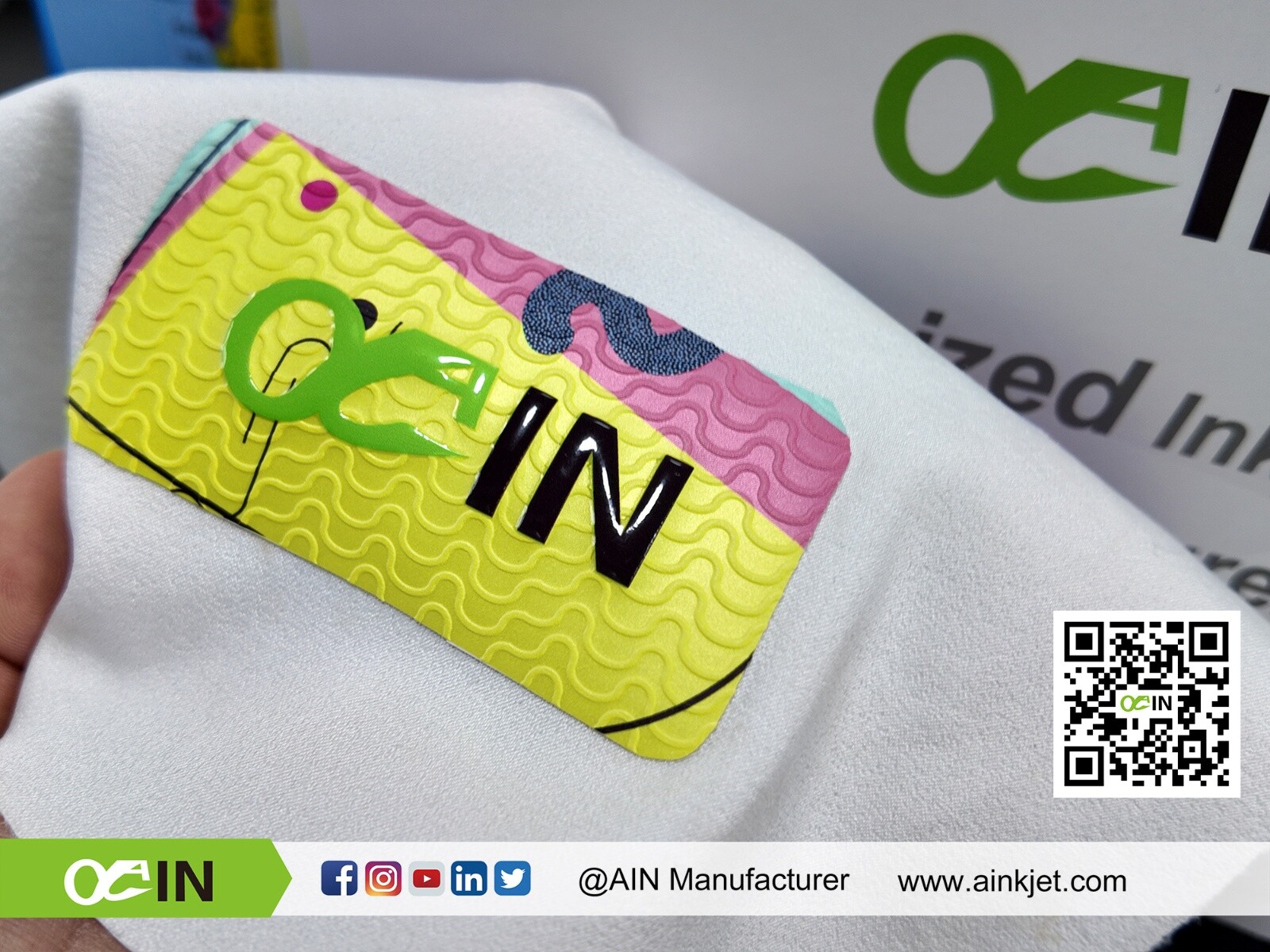

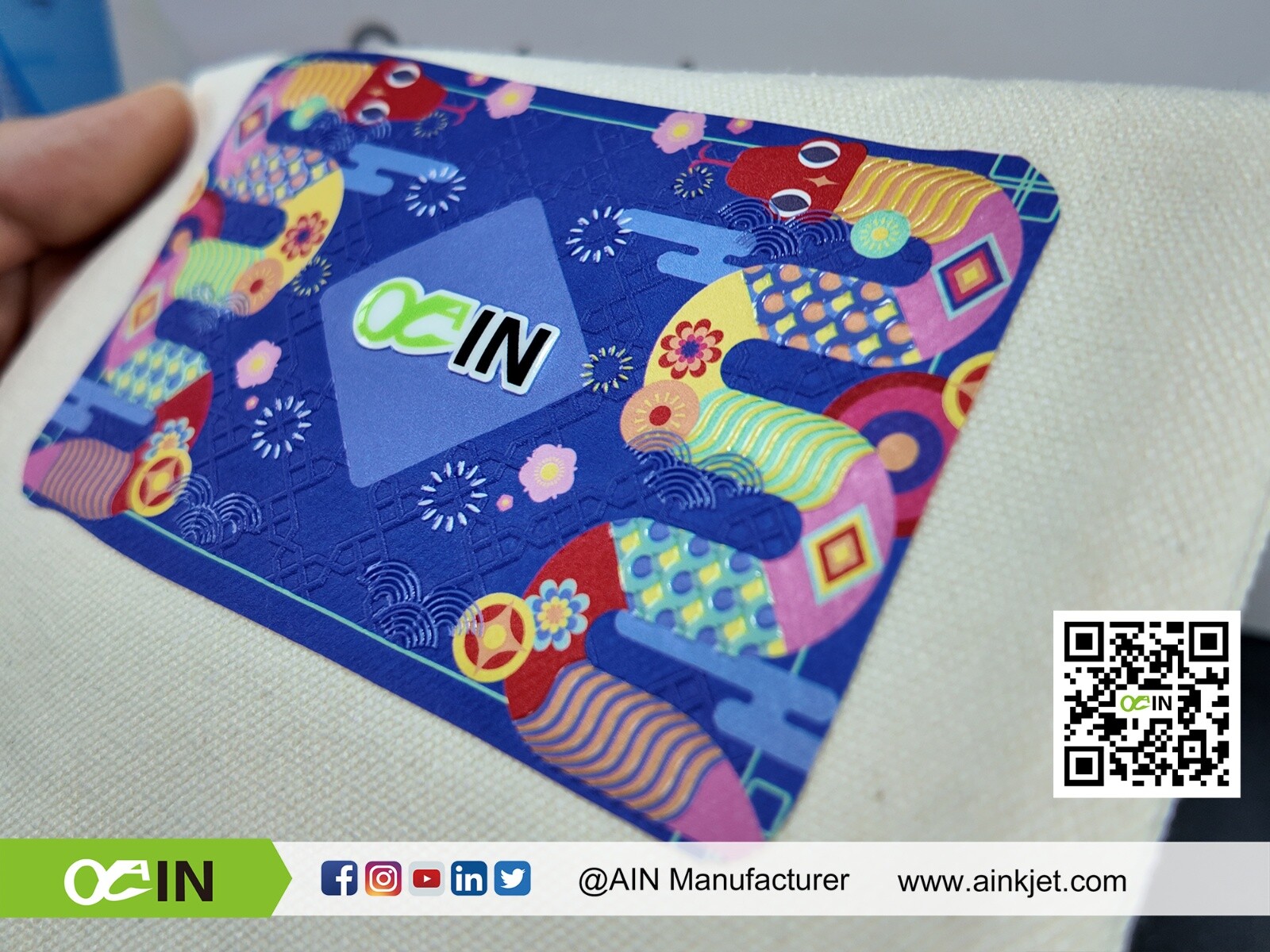

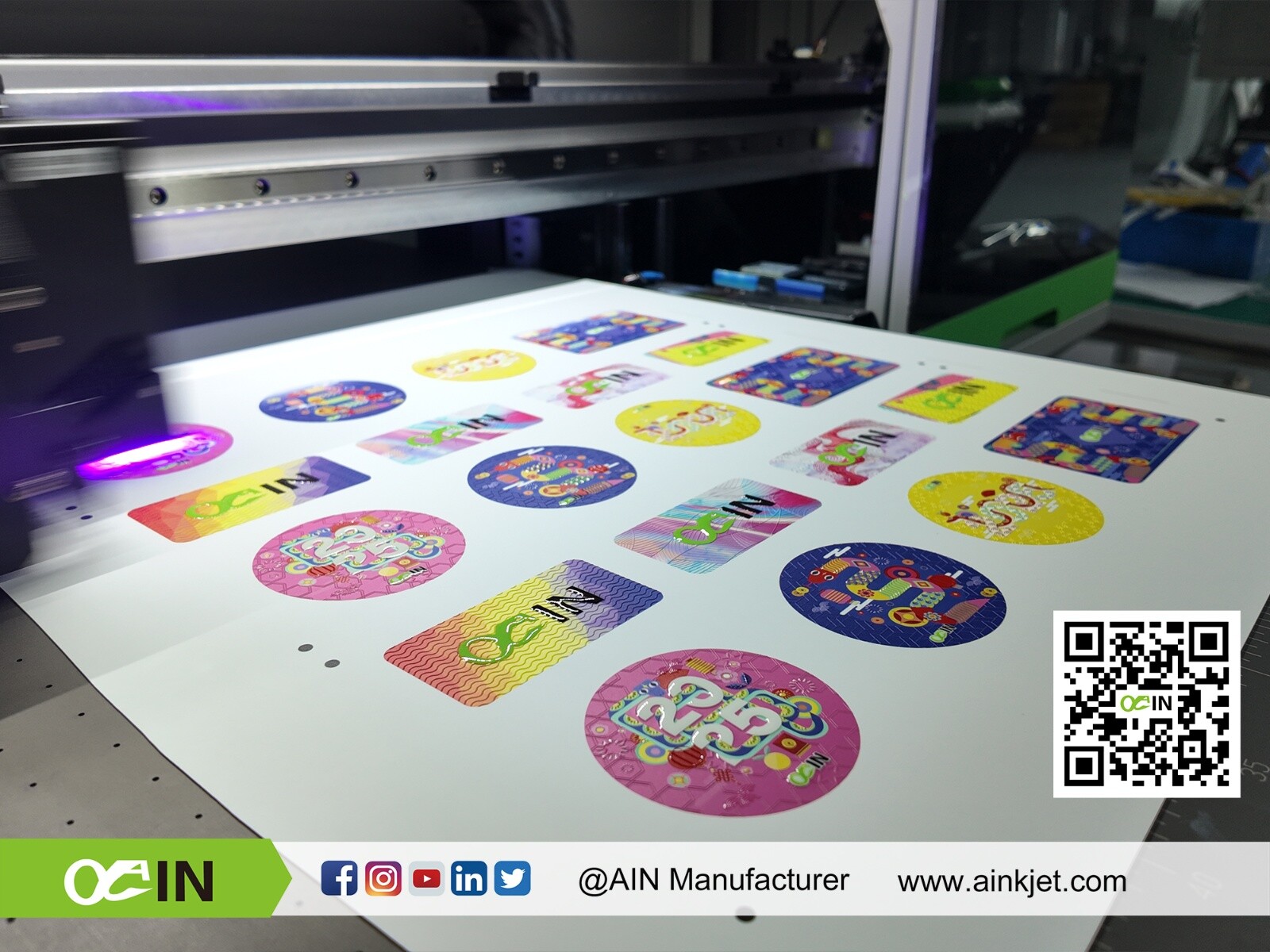

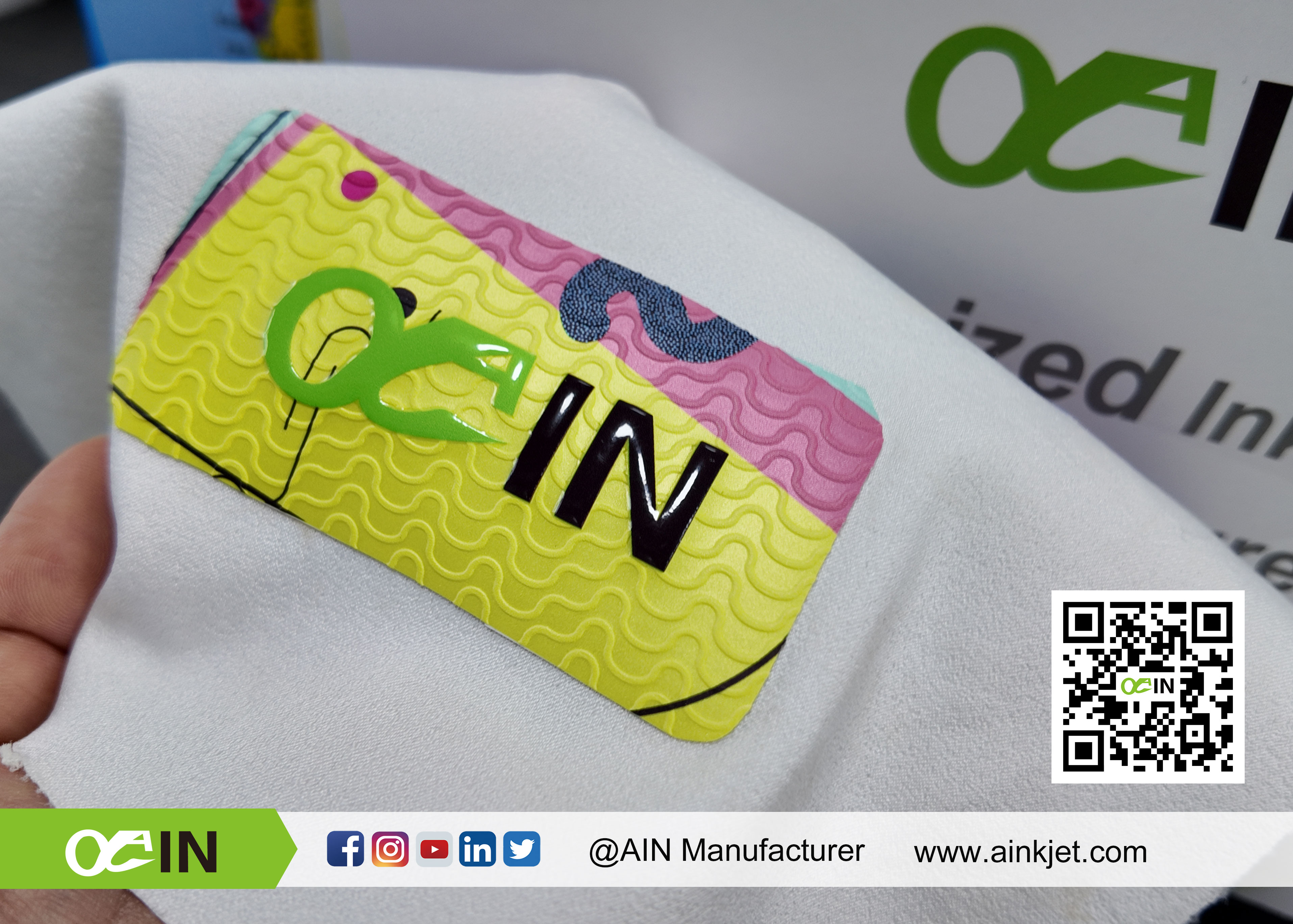

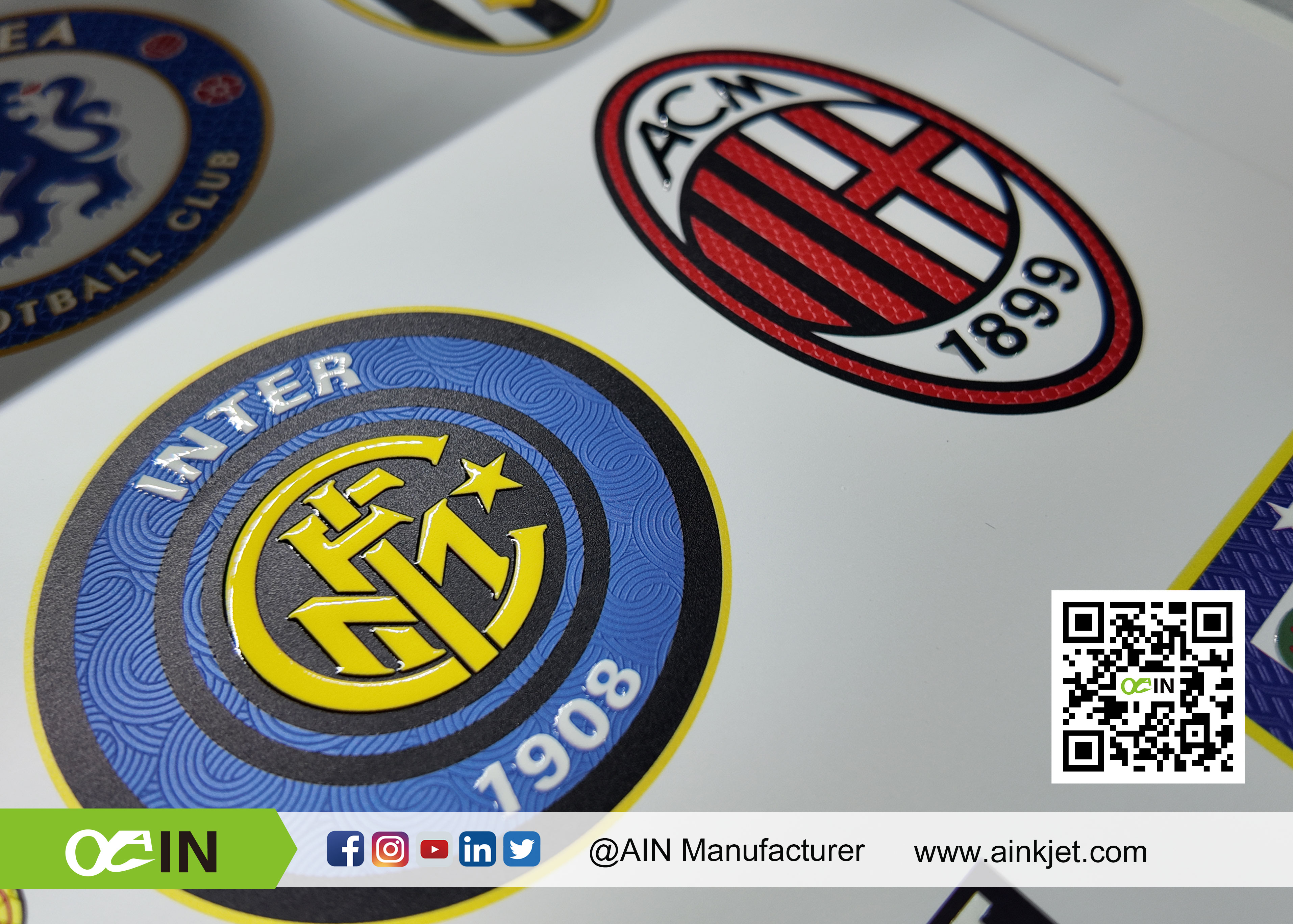

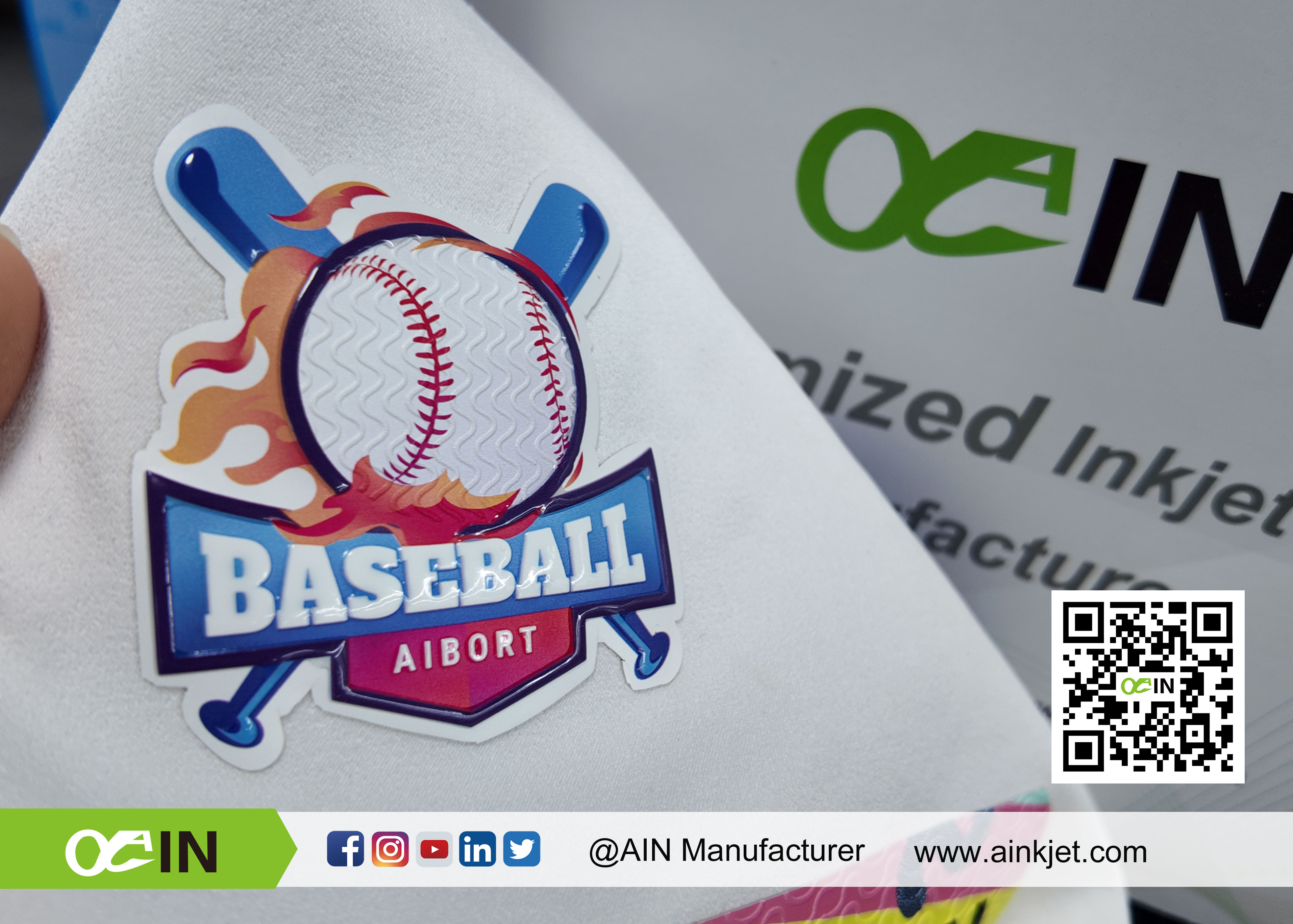

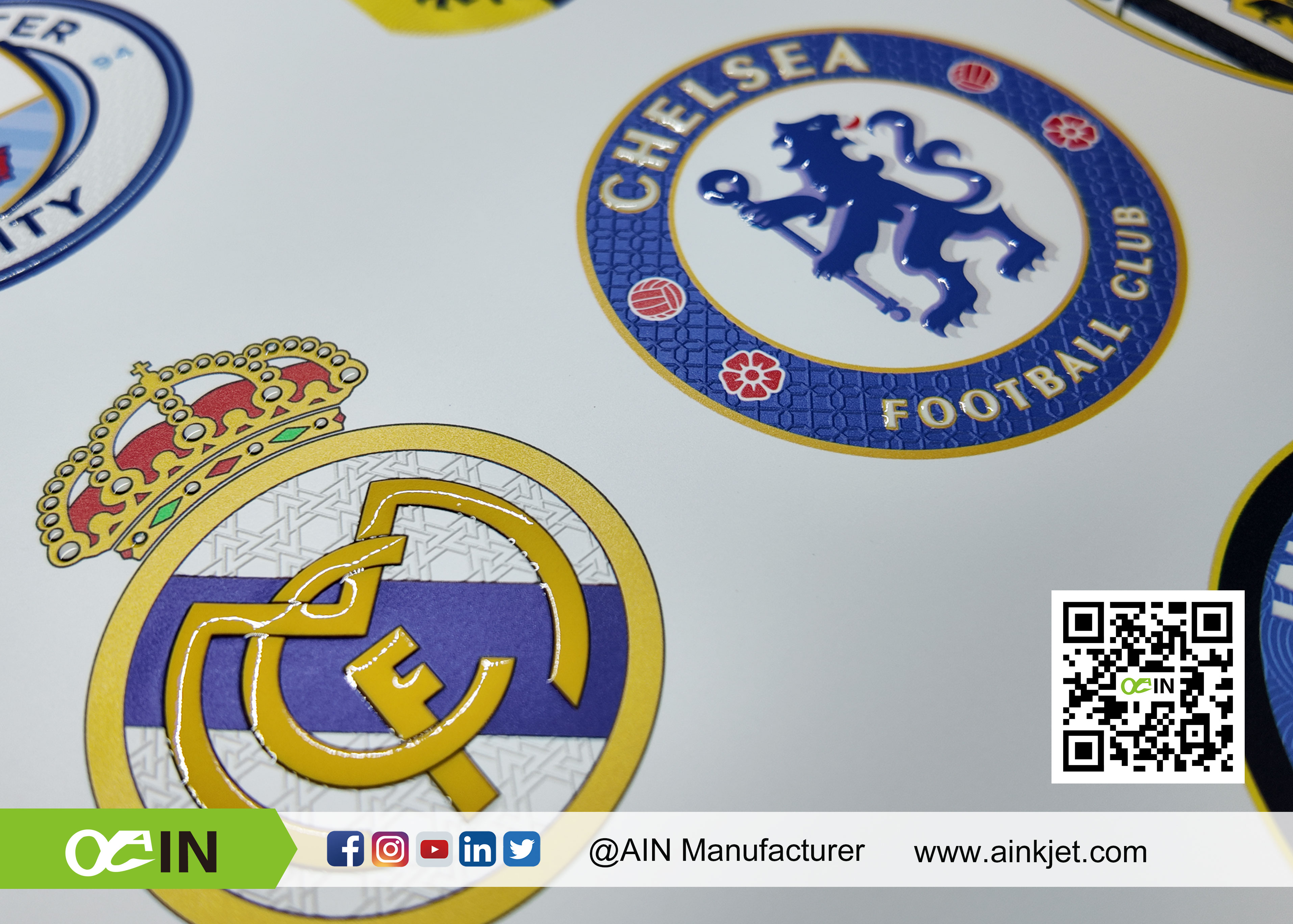

Print Varnish and 3D Relief Effects White varnish ink jets simultaneously to create 3D relief and multi - layer transparent bump effects. This includes stunning glossy and matte varnish finishes. |
| AIN UV DTF INKS All our UV DTF inks are specially developed and test to ensure vivid colors and maximum fastness - Scratch resistant - Vivid colors 4 Colors + White & Varnish With 6 ink tanks for 4 - color inks, it achieves precise, exquisite shading. White ink and clear varnish add rich expressiveness, meeting diverse needs. |
|

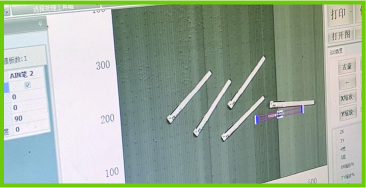

| Optional Solution AIN 6090 UV flatbed printer with CCD camera enables real time object detection and image positioning.setting up print area with one click.No manual alignment isneeded for overprint,which saves a lot of time andincreases output consistency.

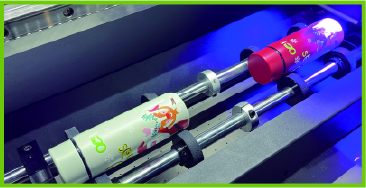

| Printer designed for customizations The electric cylinder fixture supports 360 ° rotation printing.With cylinder fixture installed on the flatbed, 6090UV can print media up to 180mm height.
|
| AIN DTF supports wide range of printing supplies Direct to film comprehensive solution is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing.
| |
Printer Heads
Features

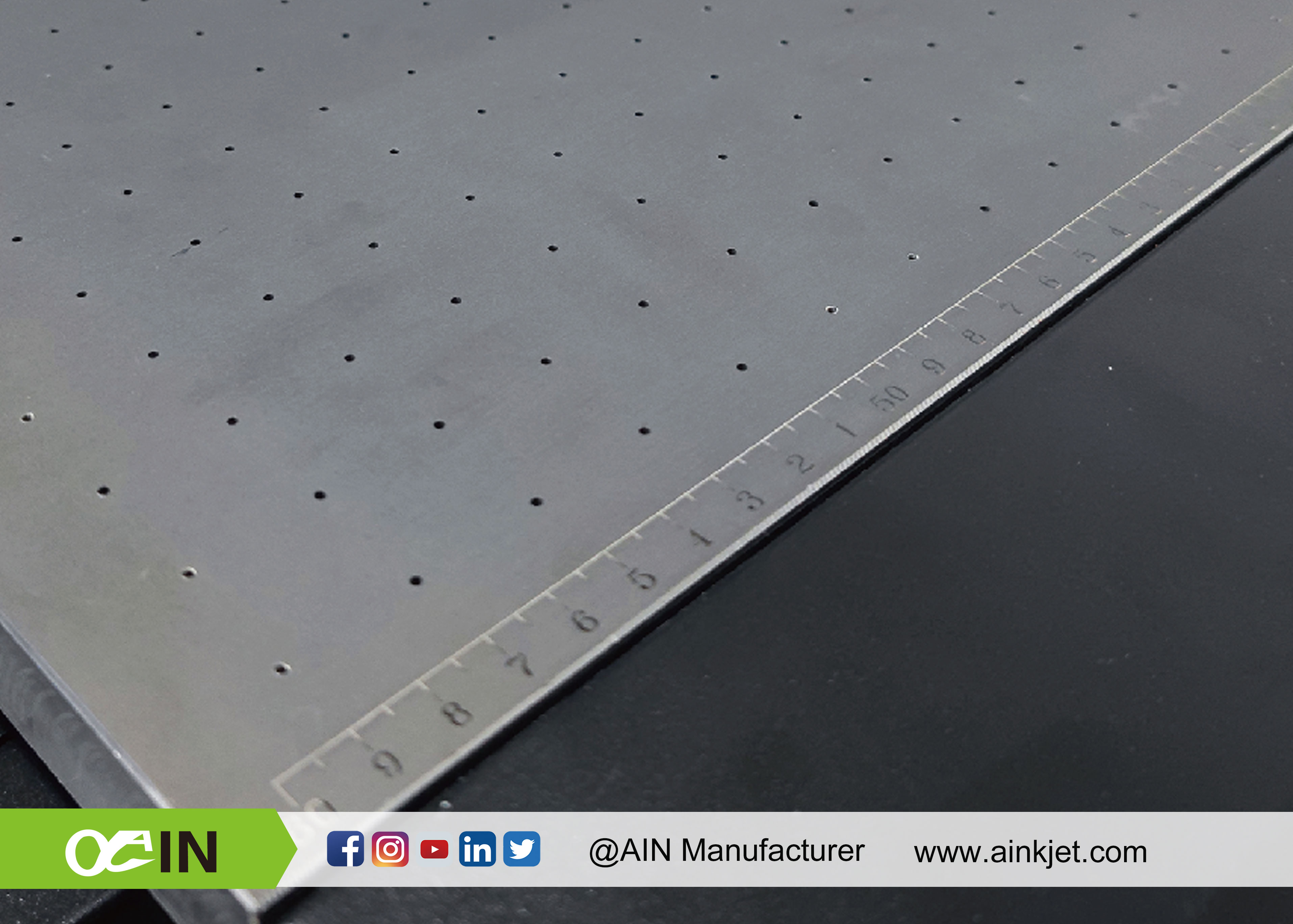

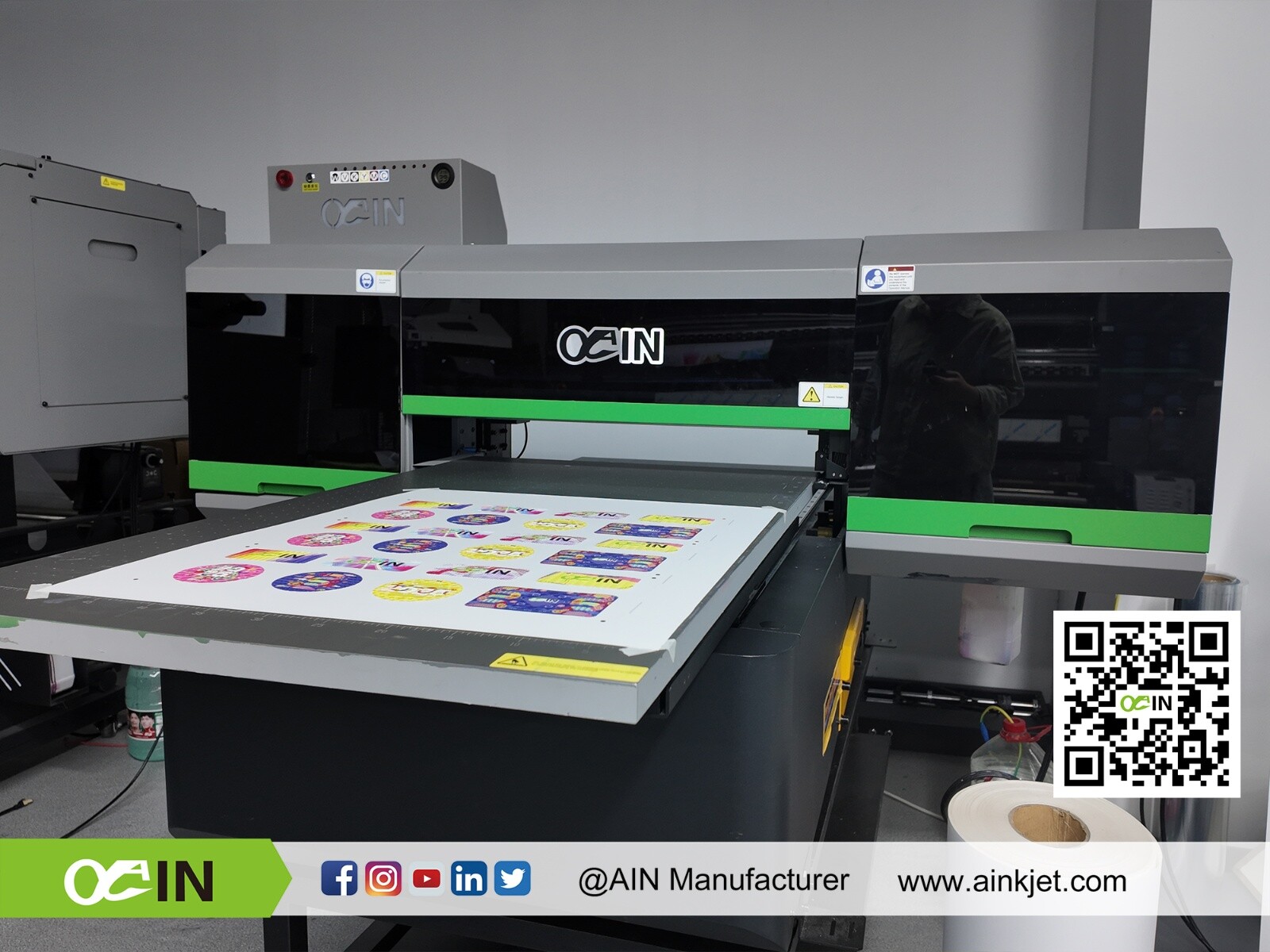

 | High quality output, simple and efficient operation AJ-6090UV multifunctional flatbed contains many advanced functions to complete high-quality printing jobs with simple operations. |  | High precision vacuum flatbed made of aluminum alloy with a turbofan installed below can fix the media firmly. |

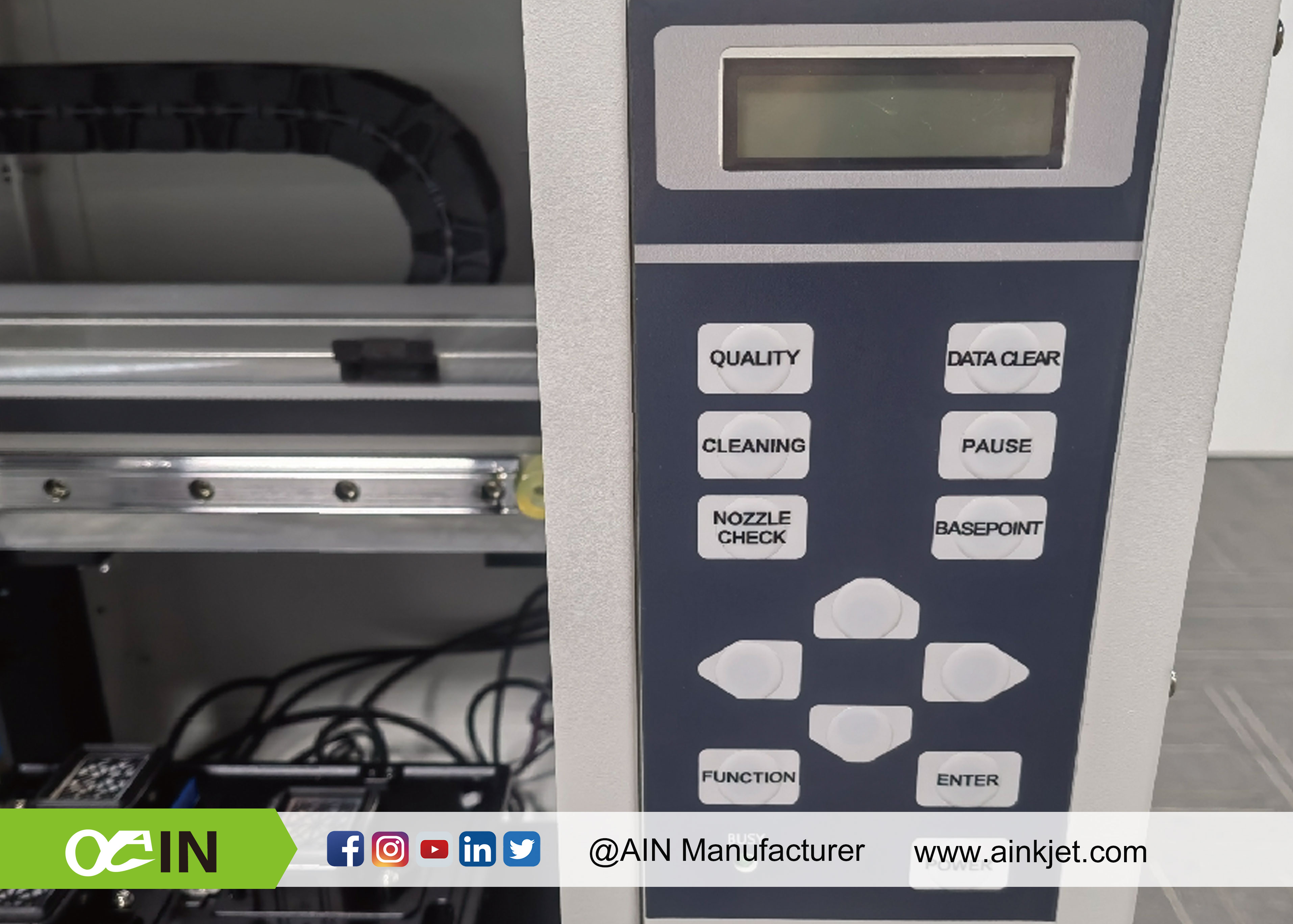

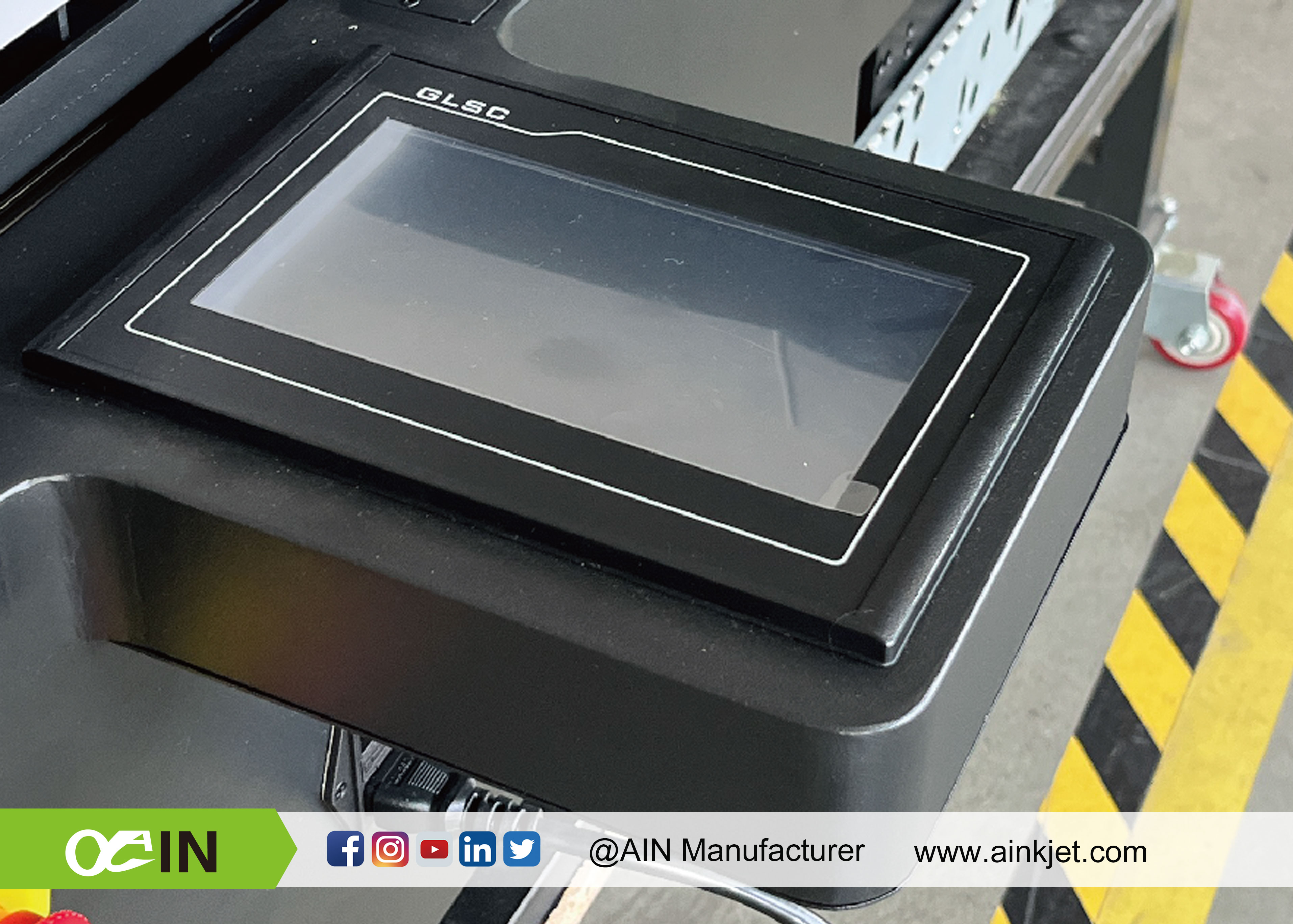

 | LCD Integrated Operation,Upgraded LCD operation panel,more convenient operation experience, and intelligent printing |  | Up to 180mm media thickness. The beam can rise to 180mm to print customized products. |
 |  |  |
 |  |  |
Application
Applications of UV DTF Flatbed Printer

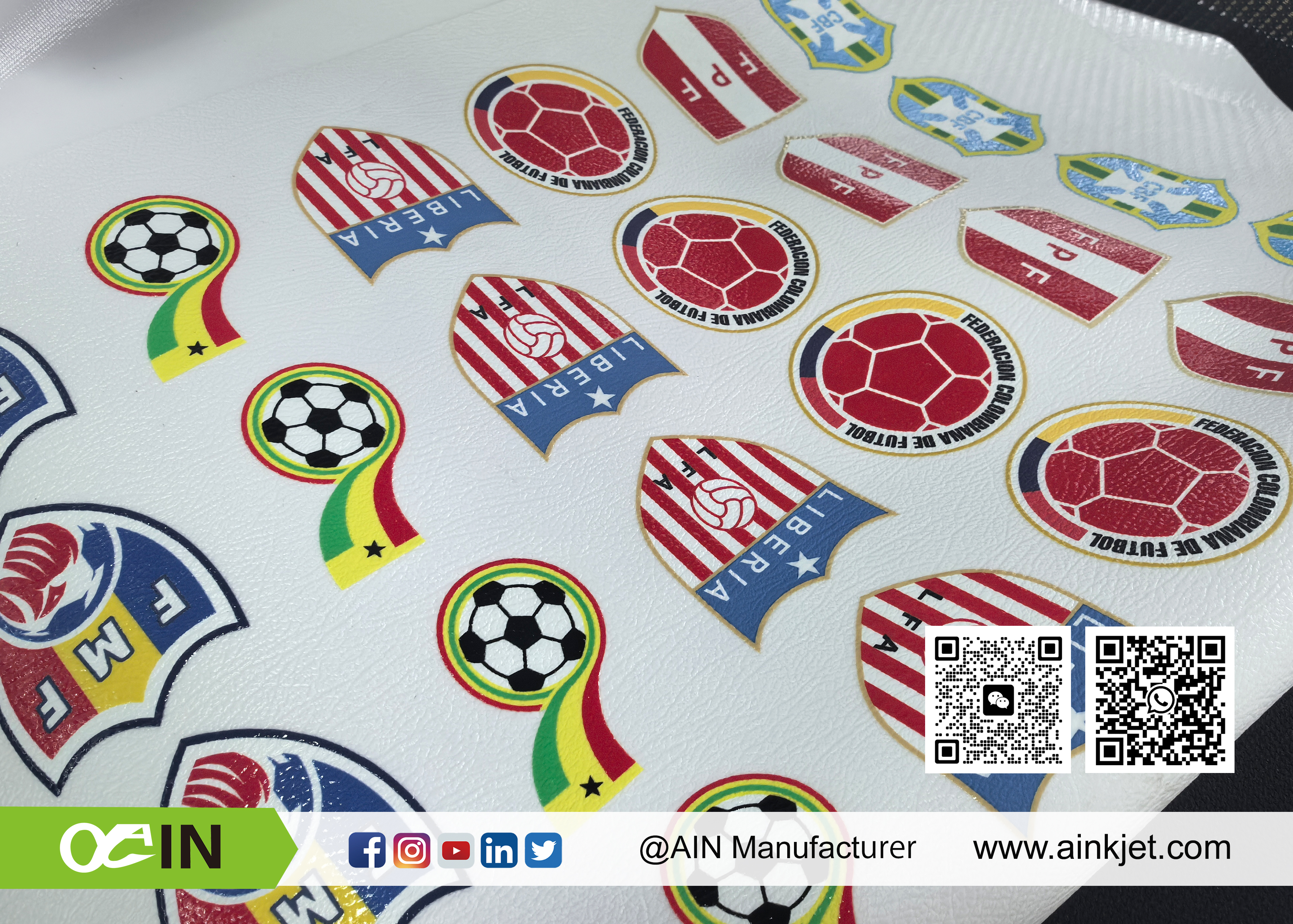

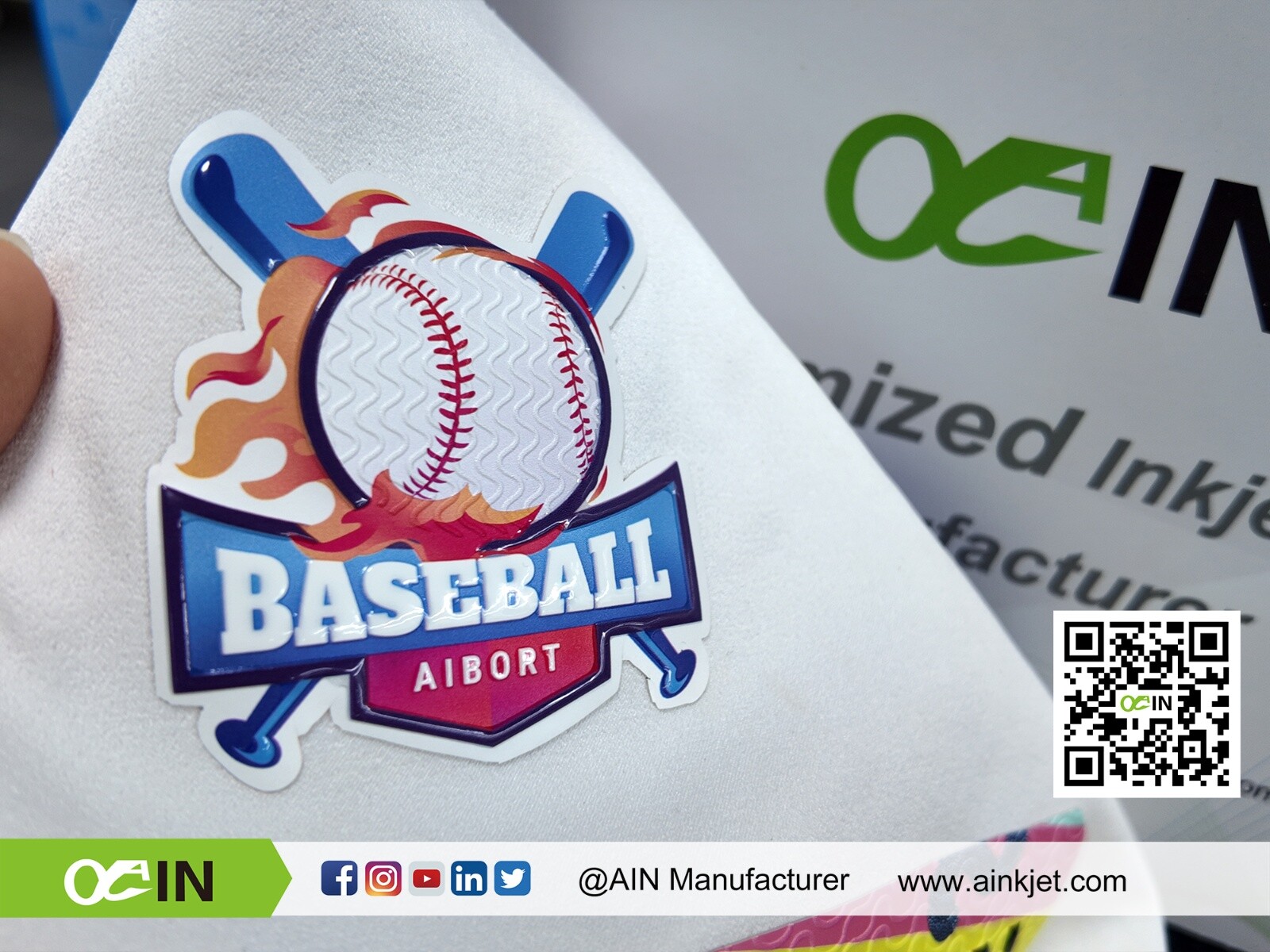

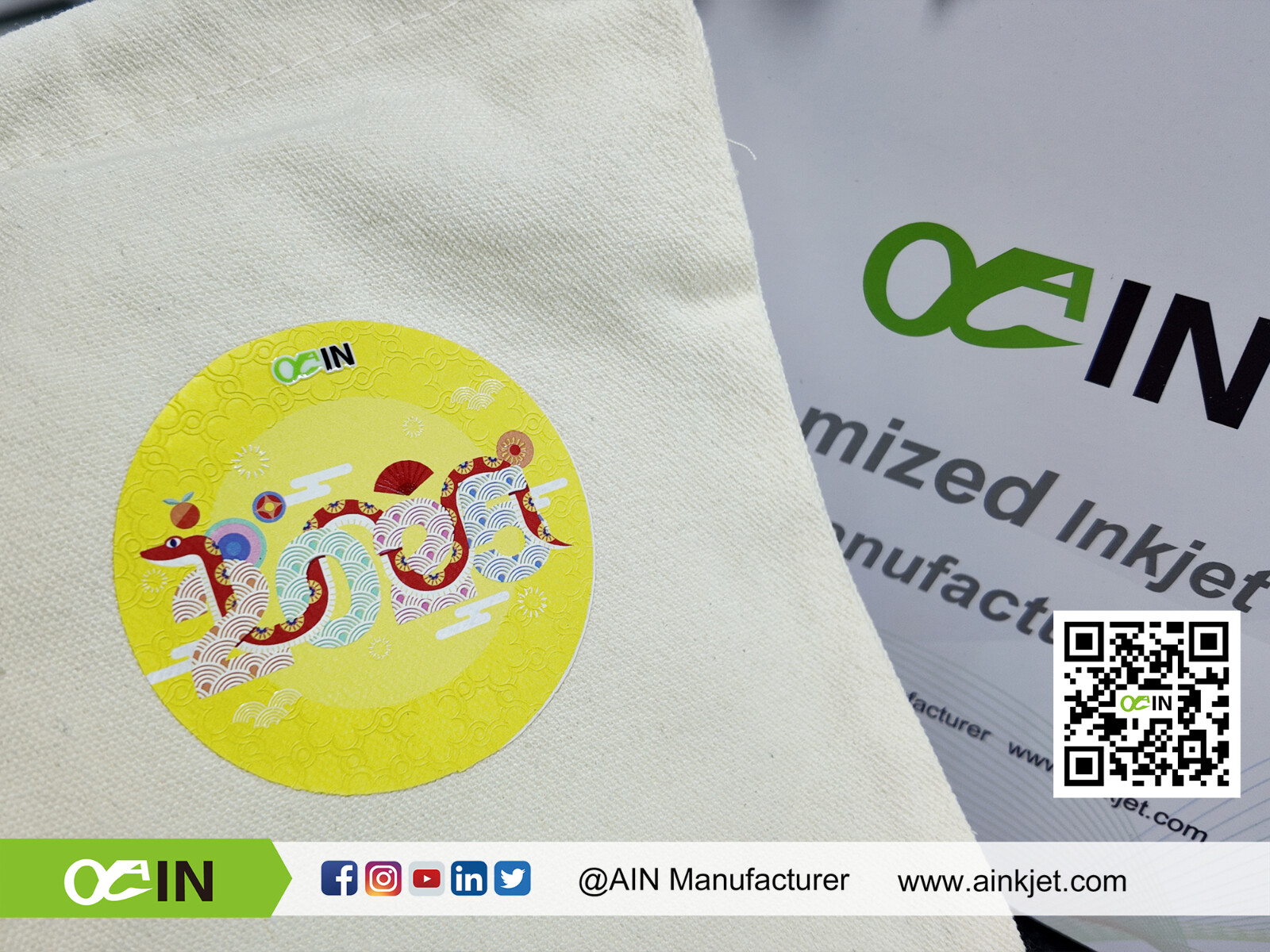

Print magic UV ink on magic film. Get ready to design and make your “image” without the traditional molding process, and no more minimum order quantity for your customer. Magic film can be applied easily on non-flat surface for printing image transfer, and works well on various materials, such as plastic, glass, metal, ceramics, leather, wood, and other soft or hard materials.
 |  |  |  |  |
 |  |  |  |  |
Technical Specifications

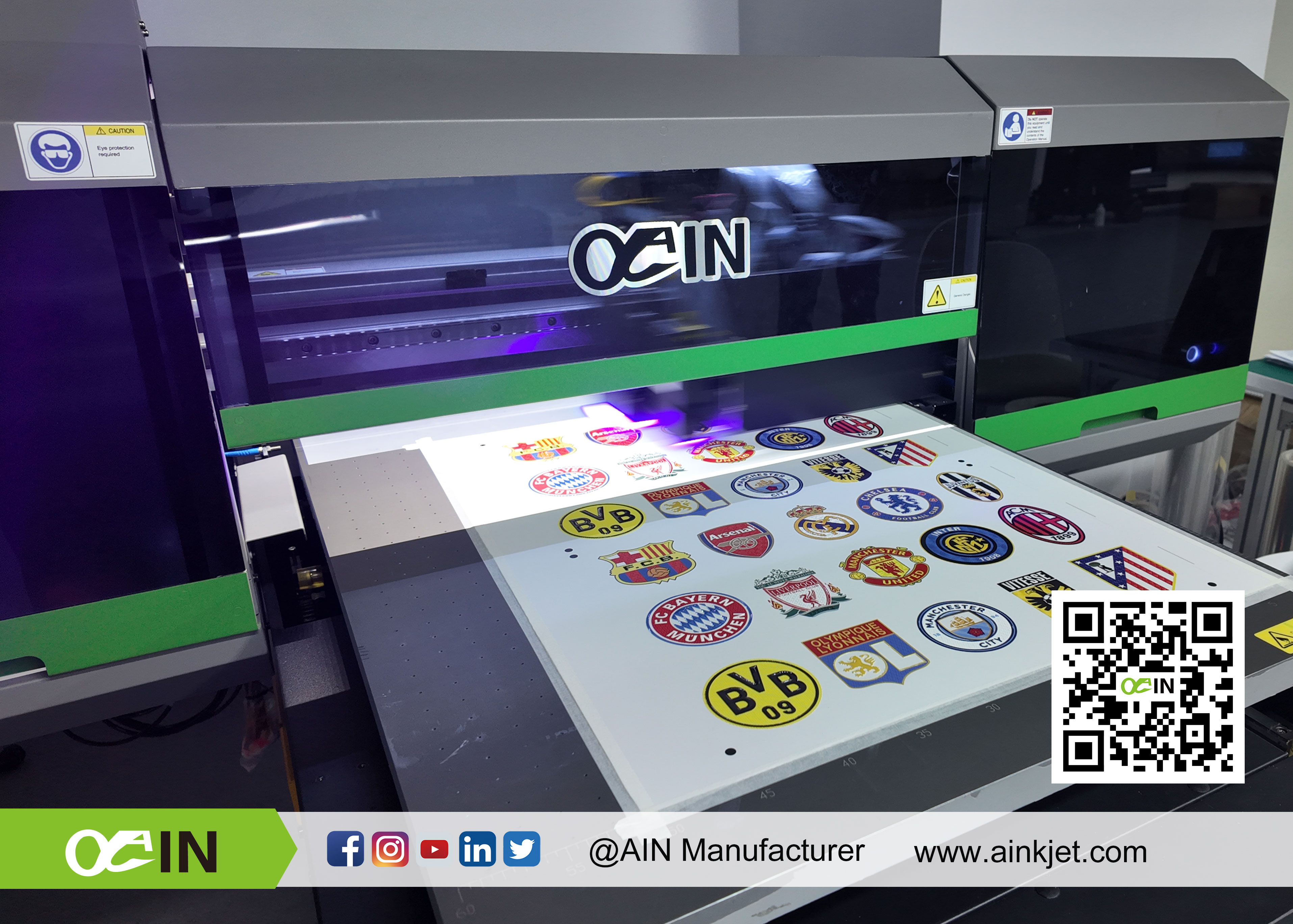

| AJ-6090 PRO UV DTF Silicone Heat Transfer Flatbed Printer | ||
|---|---|---|
| Mode | AJ-6090 PRO UV DTF | |
| Print Head | 2/3 i1600-U1/i3200-U1 Print Heads | |
| Printing Technology | Piezoelectric Inkjet | |
| Printing Width | 600*900(mm) | |
| Acceptable Media | Width | ≤600(mm) |
| Thickness | ≤180(mm) | |
| Ink Cartridges | Capacity | Color Siphon + Regular Mixing of White Ink |
| Color | W+CMYK+Varnish | |
| Printing Resolution | Maximum 2400 dpi | |
| Speed | 720x900dpi （Finish Printing an A2 sheet in 10 mins） 720x900dpi （Finish Printing an A2 sheet in 5 mins） | |
| Ink Curing Method | Dual UV LED Lights | |
| Power | 1300W | |
| Interface | Gigabit Ethernet | |
| Power Supply | AC 220V ± 5%, 16A 50HZ ±1 | |
| Dimensions(with stand) | 1580mm(W)*1380(D)mm*960mm(H) | |
| Packing Dimensions | 1770mm(W)*1900(D)mm*1090mm(H) | |
| Weight(with stand) | 300kg | |
| Environment | Power on | Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation) | |
