Printer Informations
| 3D Silicone UV DTF Heat Transfer Printer+3D TPU Printing Solutions Roll to Roll Printer Core Technology & Material Advantages *Uses roll-to-roll UV DTF silicone heat transfer + 3D TPU combined printing tech, with AINJKET ultra-soft UV ink & silicone heat transfer film. Transferred patterns are soft, skin-friendly, no impact on fabric comfort. 3D TPU delivers 3D texture & soft touch, balancing aesthetics & practicality—ideal for sportswear labels, apparel & bags. *Roll-to-roll continuous production design, integrated with print-cut-heat transfer process, significantly boosts mass production efficiency. 3D Printing Effects *Powered by roll-to-roll UV DTF + silicone heat transfer, supports simultaneous printing of CMYK + white ink + varnish (CMYK W Varnish). 3D dimensional effect is easily achieved via integrated process, paired with matte/glossy finishes to enhance product visual appeal. Core Configuration *Equipped with 3 Epson i1600-U1/i3200-U1 printheads, max 2400dpi resolution. *Features dual UV LED curing system, vacuum adsorption platform, and roll-to-roll conveying structure for stable, efficient continuous printing. Wide Applicability *Suitable for 3D silicone label production on sportswear, bags, shoes, and hats, as well as apparel labels and promotional materials. *Compatible with fabrics (cotton, denim, leather) and soft/hard materials (plastic, glass, metal). Durable finished products fully meet custom label and decoration needs. |
New Feature of UV DTF Printer We have an excellent technical team, which can be designed according to customers requirements. |
| 4 Colors + White & Varnish Are More Expressive Equipped with 6 ink tanks, 4 colors of ink can be installed. It can finish exquisite shading with high precision. In addition, using white ink and clear varnish, it has rich expressive power and fulfills various needs. Print Varnish And 3D Relief Effects The heads of white color varnish ink jet at the same time, which can produce D relief and multi-layer transparent bump effect, including amazing varnish glossy effect and matte finish. High-Performance Inks For A Variety Of Applications It is an eco-friendly UV ink with excellent color development and color reproducibility. It is cured by ultraviolet radiation. In addition to bright colors and style, it also has strong adhesion. Epson i1600-U1 / i3200-U1 Print Head PrecisionCore Technology a. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi/2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently. AIN UV DTF INKS All our UV DTF inks are specially developed and test to ensure vivid colors and maximum fastness - Scratch resistant -Vivid colors |
| UV DTF PRINTING SOLUTION UV DTF printing is especially suitable for transferring UV ink to special shapes and materials that are not suitable for direct printing by UV ink.UV DTF Make you more easy to entry label market
| AIN DTF supports wide range of printing supplies Direct to film comprehensive solution is a new technology of the digital revolution, The biggest advantage of this new technology is that after printing, it can be directly attached to the substrate to be transferred without other processing |
AINJKET 3D Silicone UV DTF Roll to Roll Printer 3D TPU： TPU printing delivers 3D texture + soft touch—ideal for crystal stickers or direct printing/transfer on fabrics (cotton, denim, leather) with embroidery-like durable texture. Application & Brand Value Suitable for apparel/footwear labels, promotional materials, sportswear. Meets brands’ standardized, personalized mass customization needs, enhancing product uniqueness & premium appeal.
| |
Technical Specifications
| AJ-600E PRO UV DTF uv roll to roll Silicone Heat Transfer Printer | ||
|---|---|---|
| Print Head | 3/4*i1600 Print Heads (4*i3200 Heads Optional) | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | ≤600(mm) |
| Thickness | ≤1.5(mm) | |
| Ink Cartridges | Capacity | Color Siphon + Regular Mixing of White Ink |
| Color | CMYK + W + Varnish/CMYK+W+FO FG FY FM+Varnish | |
| Printing Resolution | Maximum 2400 dpi | |
| Speed | 8pass (720x1200dpi) 7m²/h | |
| Ink Curing Method | Dual UV LED Lights | |
| Power | 3500W | |
| Interface | Gigabit Ethernet | |
| Power Supply | AC 220V ± 10%, 50/60 HZ | |
| Dimensions(with stand) | 1650(W)x960(D)x1570(H)mm | |
| 2360(W)x880(D)x760(H)mm | ||
| Weight(with stand) | 441 lb. (200 kg) | |
| Environment | Power on | Temperature: 59℉to 90℉[15℃to 32℃] / Humidity: 35 to 80% (no condensation) |
| Power off | Temperature: 41℉to 104℉[5℃to 40℃] / Humidity: 20 to 80% (no condensation) | |
Printer Heads
Features
 | Safety structure design The overall printer cover can improve the operation safety, reduce the adhesion of dust in the printing process and ensure the printing quality. |  | Laminating device Comes with a laminating system, realizes the function of laminating while printing, easily reduces manual operations, and can print a whole roll of A film with glue . |
 | Smart operation High quality output, simple and efficient operation A-600 Pro contains many advanced functions to complete high-quality printing jobs with simple operations. |  | Ink supply system Using white ink and clear varnish, it has rich expressive power and fulfills various needs. An additional spray print head can be added to realize the application of bronzing varnish and direct glue. |
 |  |  |
|
Application

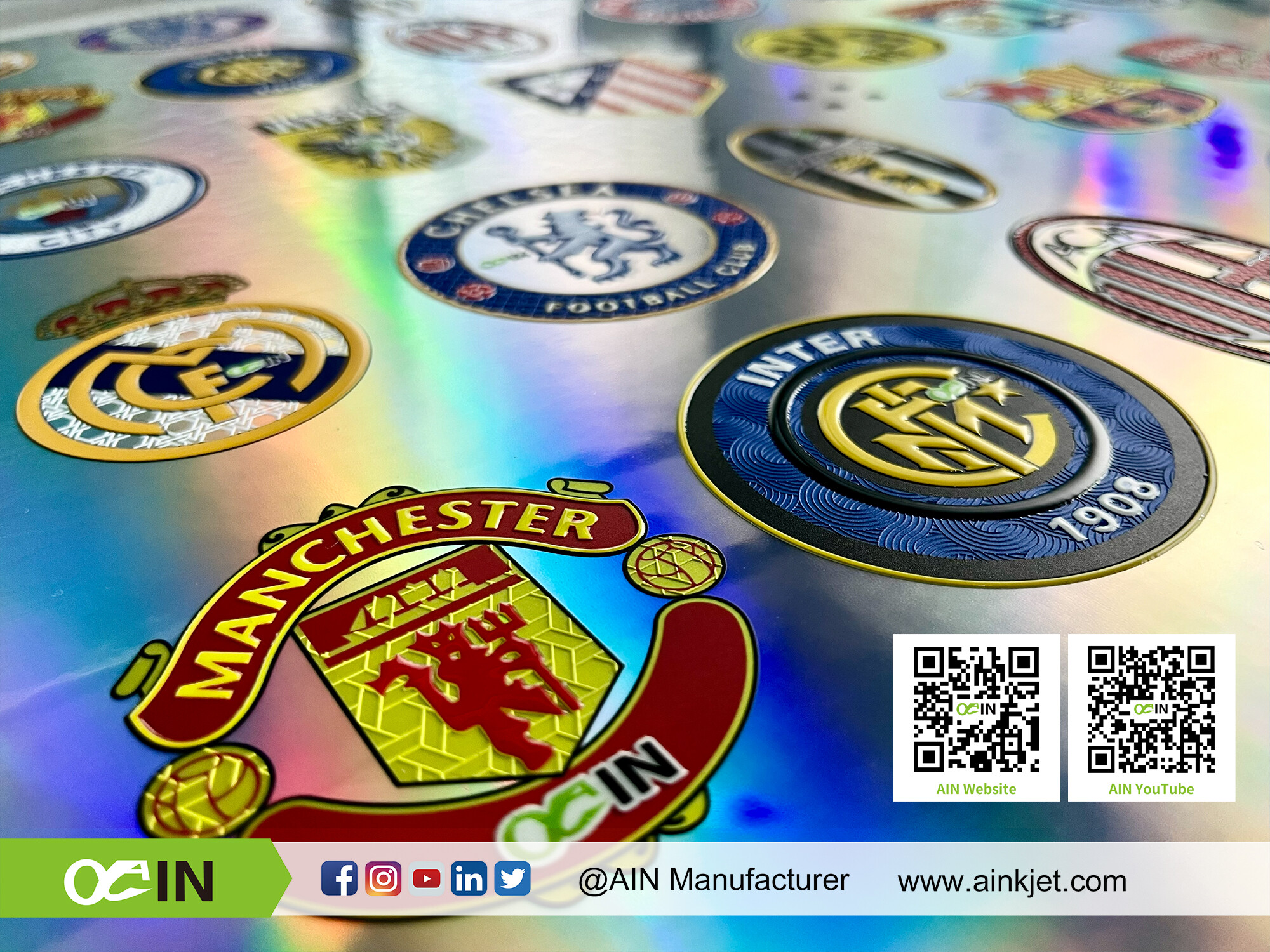

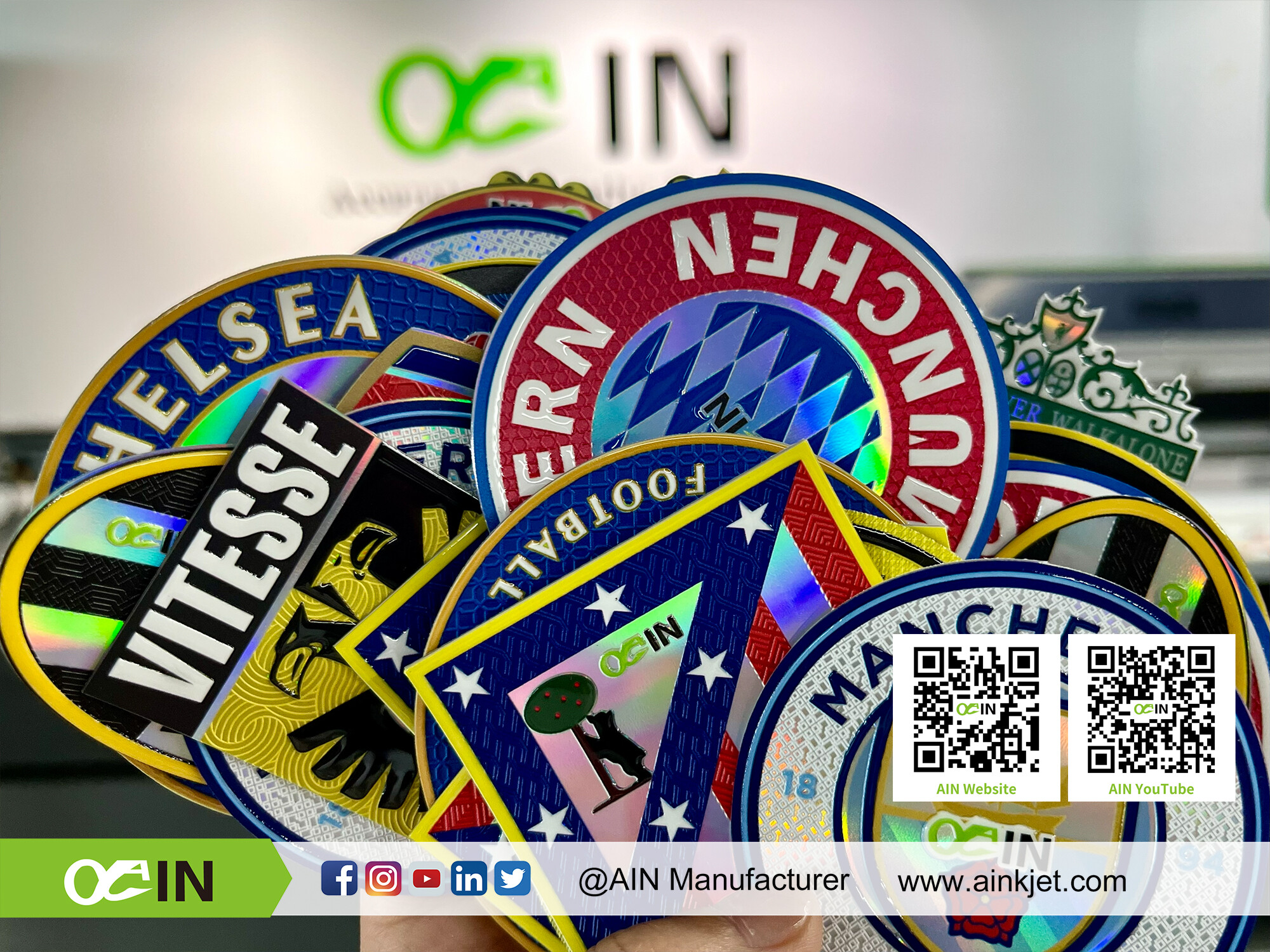

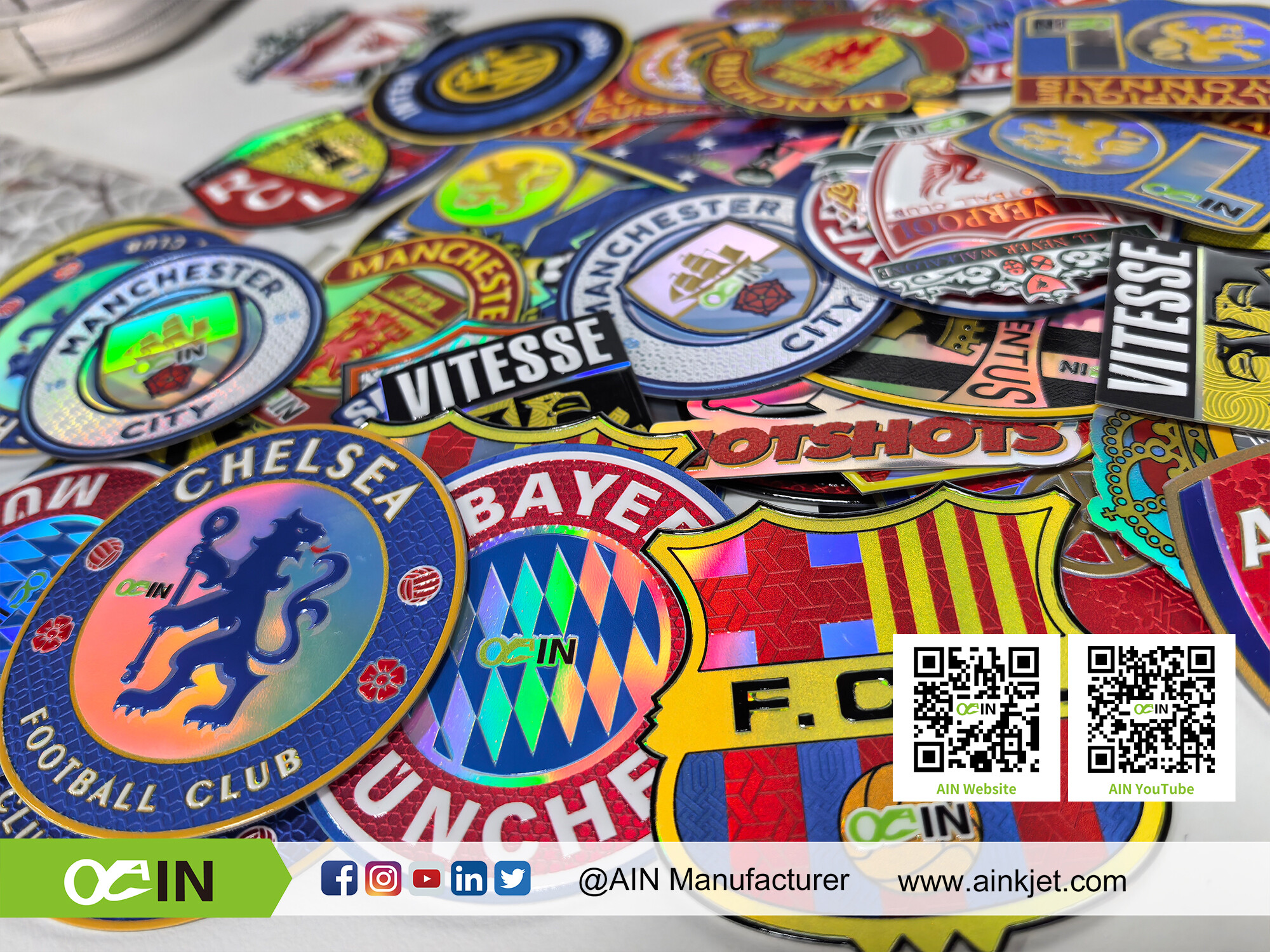

Applications of 3D Silicone UV DTF Roll To Roll Heat
Transfer Printer+3D TPU Printing Solutions
Print magic UV ink on magic film. Get ready to design and make your “image” without the traditional molding process, and no more minimum order quantity for your customer. Magic film can be applied easily on non-flat surface for printing image transfer,and works well on various materials,such as plastic,glass,metal, ceramics,leather,wood,and other soft or hard materials.
3D TPU adheres firmly to a wide range of substrates, including textiles, pure cotton, cotton-linen blends, denim, non-woven fabrics, leather, sublimation fabrics, and blended materials. It finds applications across branded apparel, outdoor sportswear, luggage, footwear, and headwear, demonstrating strong cross-industry potential.
 | |  |  | |
|  |  |  |  |
