Product Description
Ultra Dye Sublimation Printer Brand New Print headsPrint Heads I3200-A1-2 Upgraded Printhead & Speed Boost Newly upgraded with 8 I3200-A1-2 printheads, printing speed increased by 20%–25%, significantly improving production efficiency. Professional Color & Wide Format Standard CMYK colors, optional CMYKS1S2S3S4 spot color extension; uses sublimation ink. Maximum printing width: 2000mm (2m). Large‑Capacity Media Handling Supports standard 1000m jumbo media loading; prints 35g ultra‑thin paper with 3000m ultra‑long media feeding. Automatic air shaft take‑up & feeding for easier loading and unloading. Stable & Efficient Printing System Mute linear motor system, micro‑negative pressure ink supply with auto ink refill, servo motor media feeding, vertical groove air flotation platform for smoother media surface. Compatible with mainstream RIP software; external auto‑control wind‑heat integrated dryer for instant drying, ideal for mass production. Wide Textile Applications Suitable for soft signage and textile sublimation including clothing, home decoration fabrics, sampling, T‑shirts, canvas bags, pillows, flags, scooter decoration, textile accessories, etc. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |
|  |  |  |
Technical Specifications

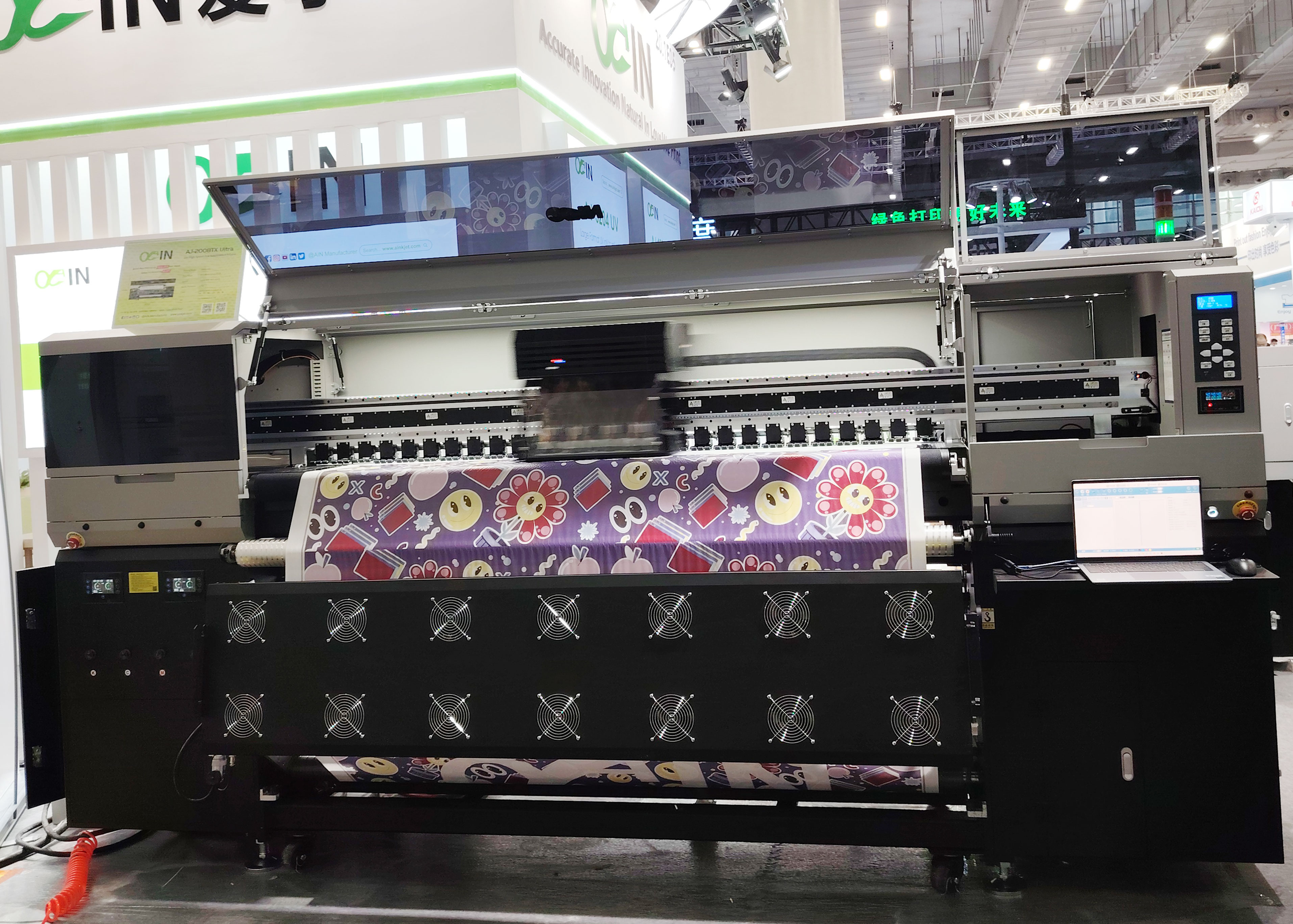

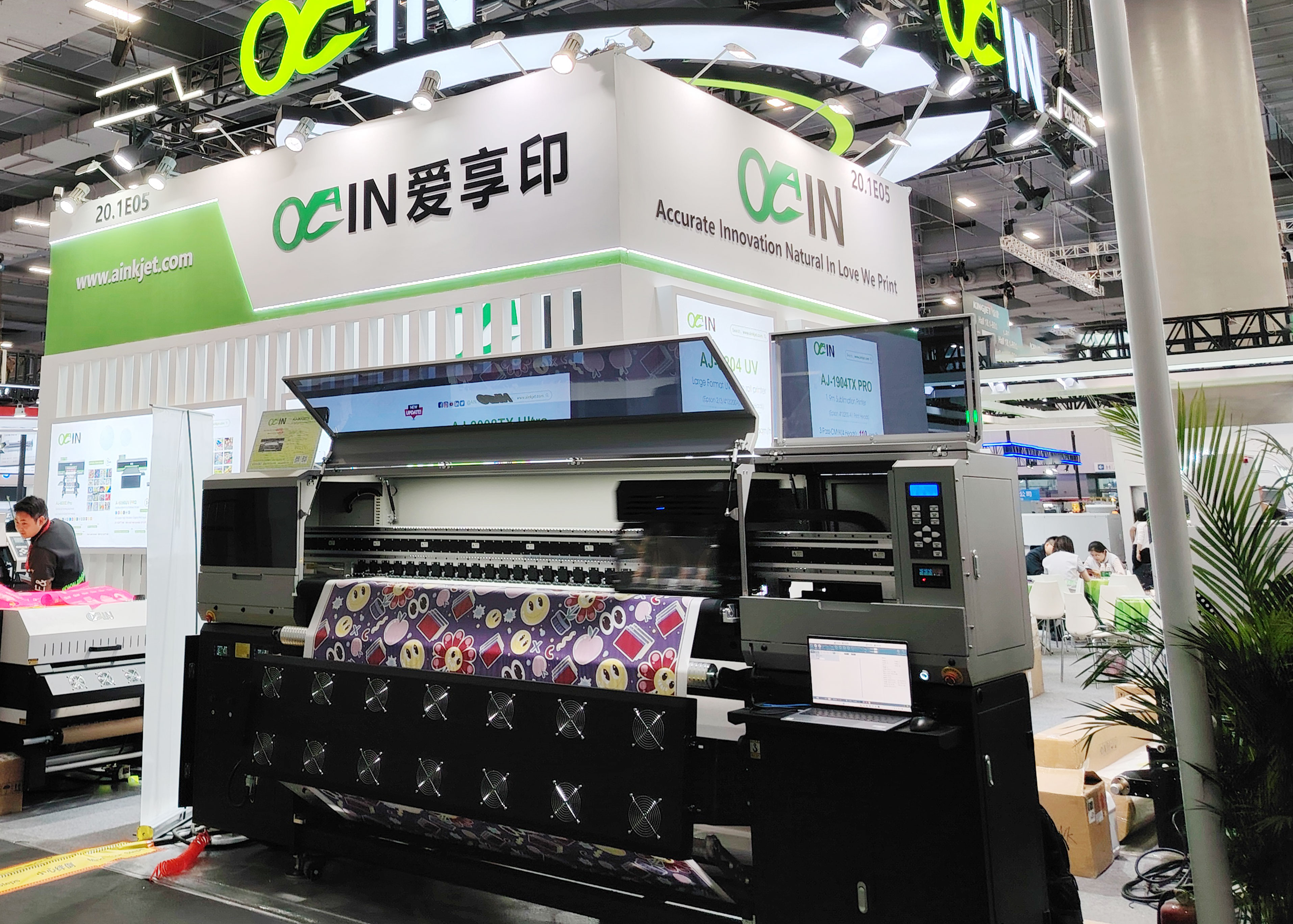

| AINKJET AJ-2008TX UItra 2m High Speed Dye Sublimation Printer | ||
| Mode | AJ-2008TX Ultra | |
| Print Head | Eight I3200-A1-2 Print Heads | |
| Droplet Size | 3.5pl | |
| Production Capacity | 430-470 sqm/h | |
| Ink | Type | Sublimation Ink |
| Color | CMYK/CMYKS1S2S3S4 | |
| Ink supply method | Siphon ink supply | |
| Printing Medium | Heat transfer paper | |
| Print Wide Format | 2000mm | |
| Loading and Unloading Structure | Automatic inflation shaft material feeding and discharging system | |
| Drying Structure | External automatic control wind and heat integrated drying device | |
| Moisturizing Structure | Fully automatic cleaning and moisturizing integrated component | |
| RIP Software | Supports software such as Maintop 6.0, photoprint, ONYX, NeoStampa, and PrintFactory, etc. | |
| Support Image Format | JPG, TIFF, PDF, etc. | |
Computer Configuration | Operating System | Win7 64-bit / Win10 64-bit |
Hardware Requirements | CPU: i7 processor (9th generation or above); Hard drive: 500G or more (solid state drive); RAM: 16G; Graphics card: ATI discrete graphics card with 4G memory; Brand motherboard (ASUS, Gigabyte) | |
| Transmission interface | USB 3.0 | |
Power Requirements | Input voltage | Voltage: 220V ±5%, Current: 16A, Frequency: 50Hz ±1 |
| Printing system | 2000W | |
| Drying system | Maximum power: 8000W | |
Standard Components | External automatic control air and heat integrated drying device, liquid level alarm system, dual air expansion shaft automatic material collection and discharge system, automatic moisture retention cleaning system | |
Environment | Power on | Temperature: 59℉ to 90℉ [15℃ to 32℃] (68℉[20℃] / Humidity: 35 to 80% (No Condensation) |
| Power off | Temperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (No Condensation) | |
| Machine Size | 3531mmx1548mmx1713mm | |

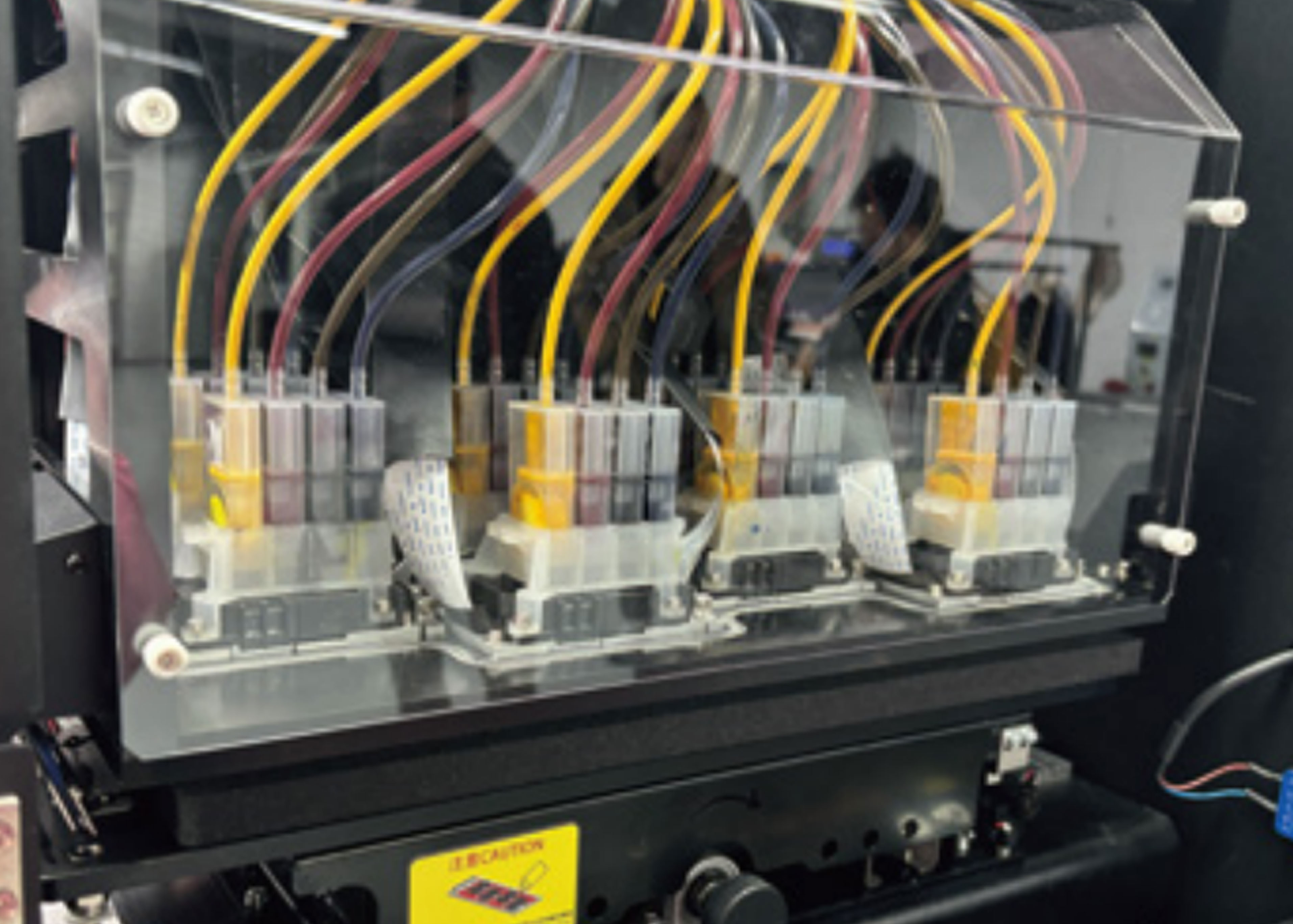

Printer Heads
| Epson Inkjet Head - i3200-A1
The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features

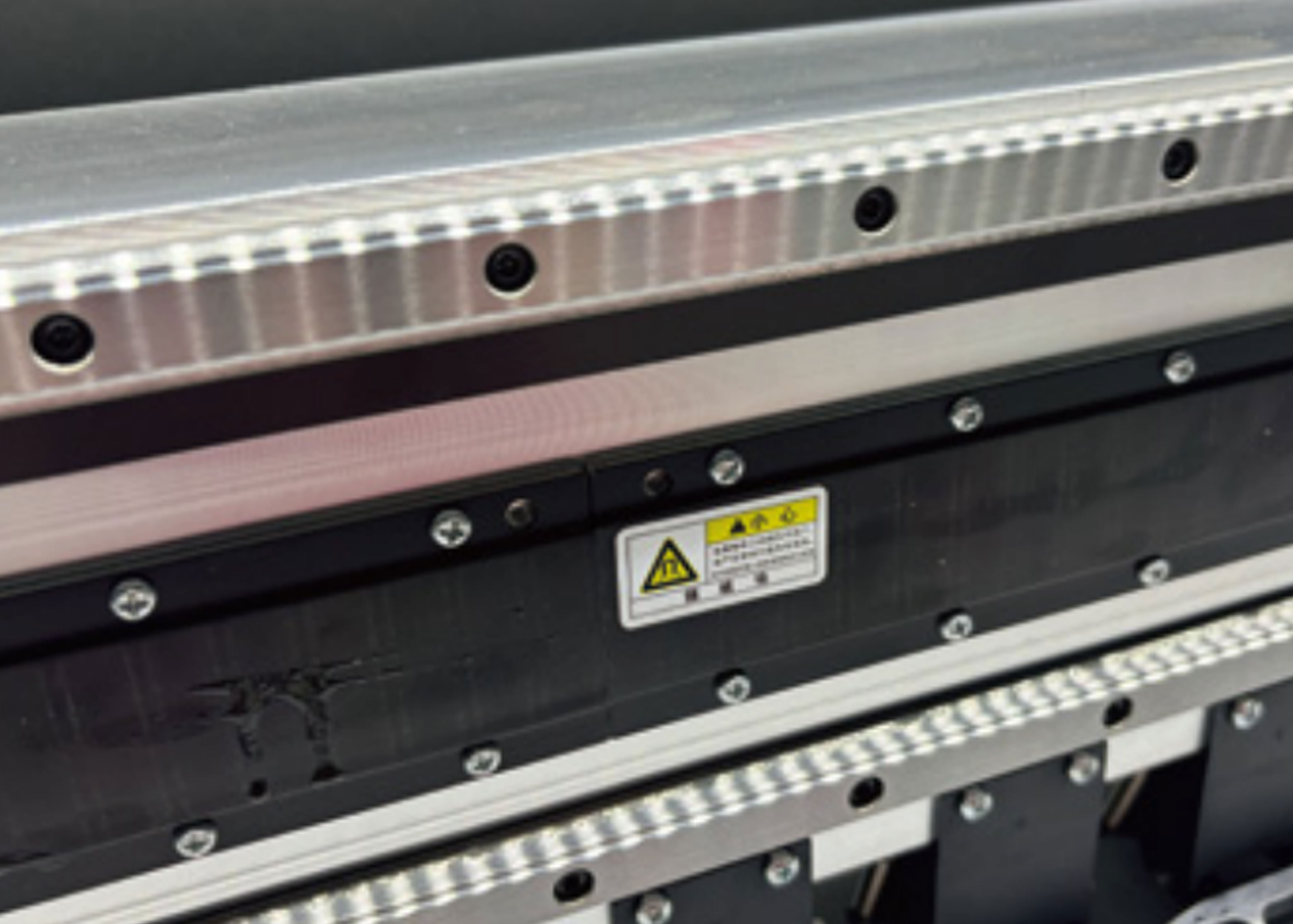

| Mute Linear Motor System,no belt,no pvc encoder strip;Incresse the Carriage moving precision and Span life; |  | Mirror baffle, easy toobserve the nozzle condition and maintenance |

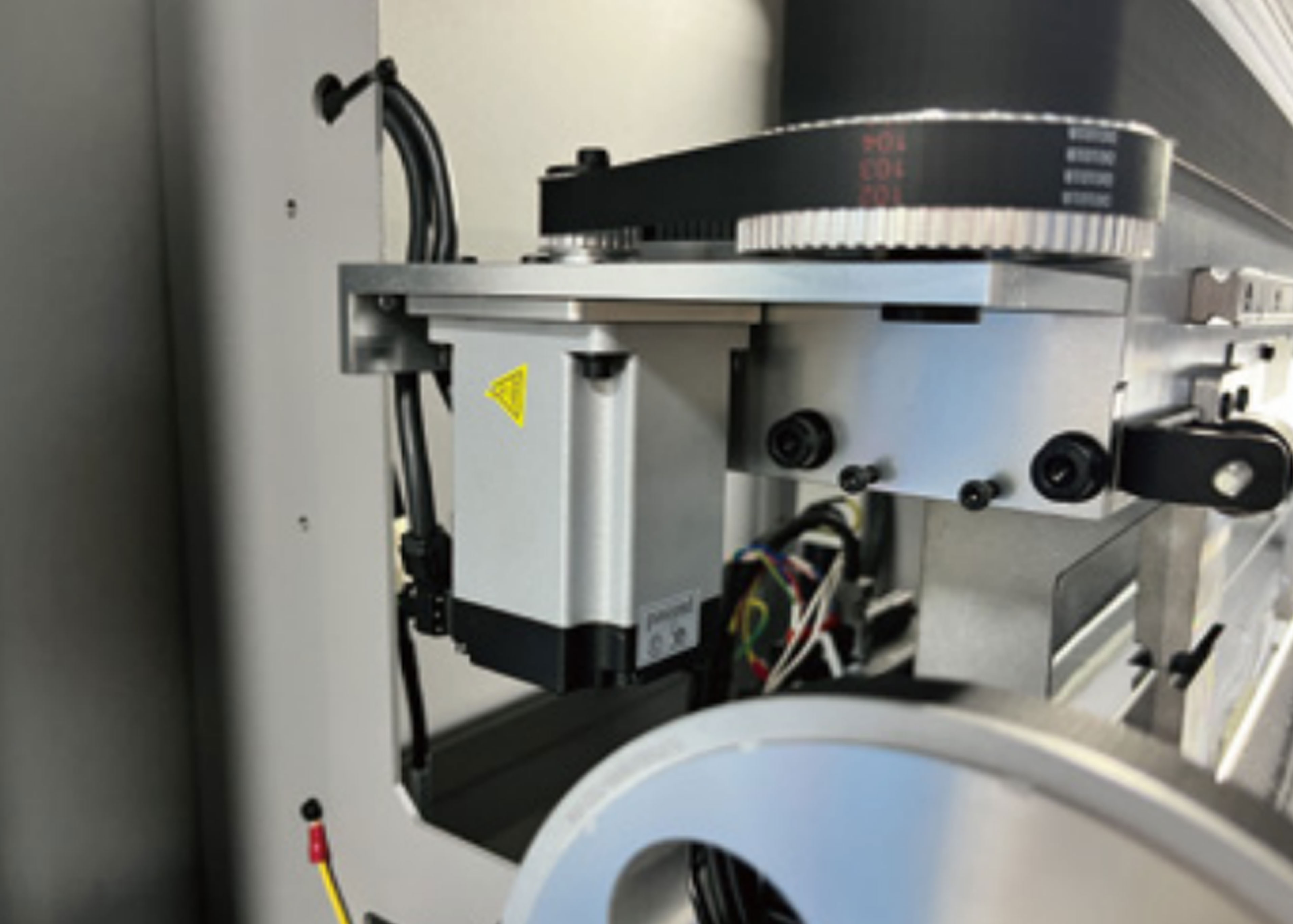

| Feeding adopt servo motor, make the paper more stable andmore accurate |  | Micro-negative pressure ink supply system, continuous ink supply, automatic ink replenishment reset device,etc., increase the stability of ink supply. |

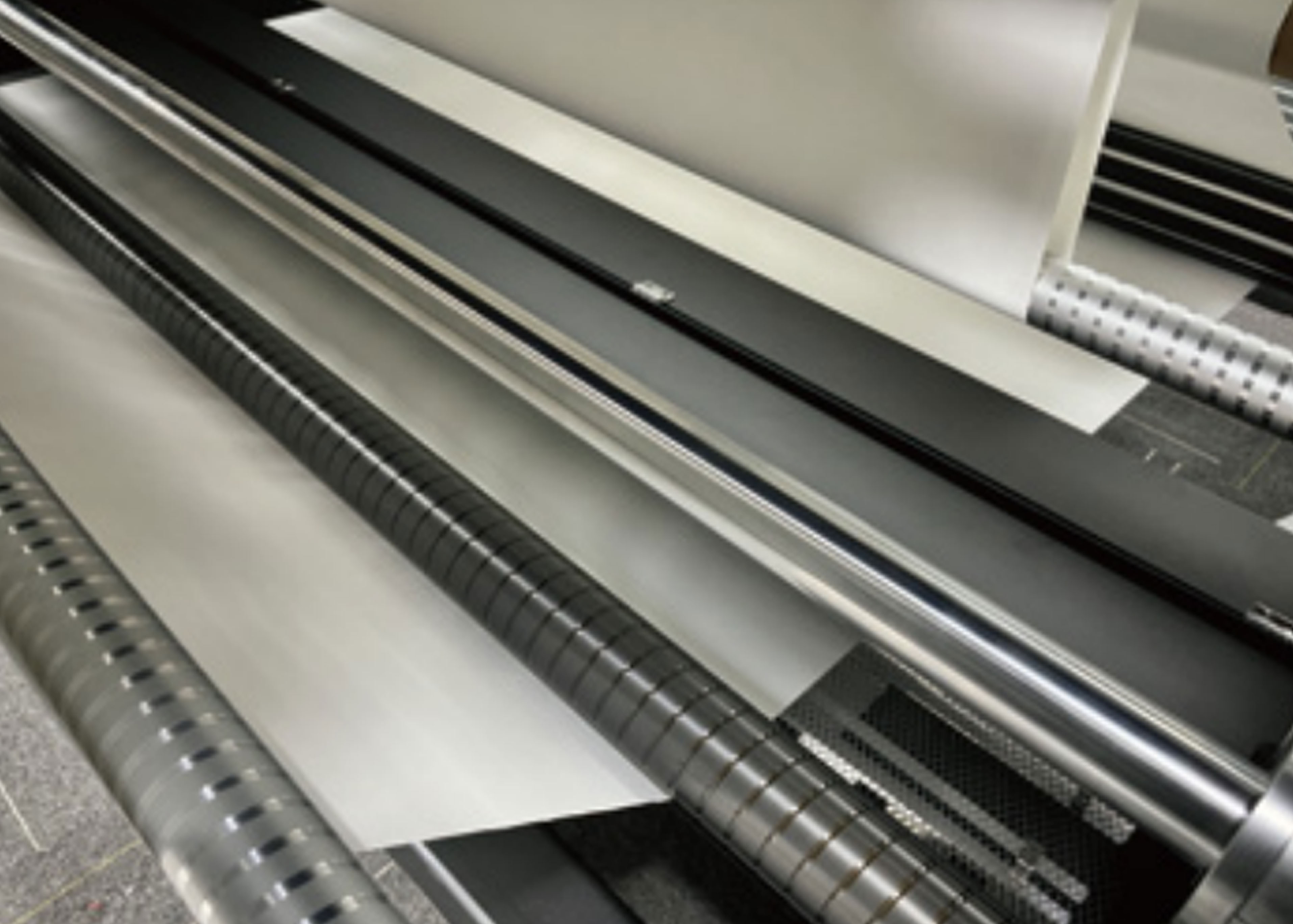

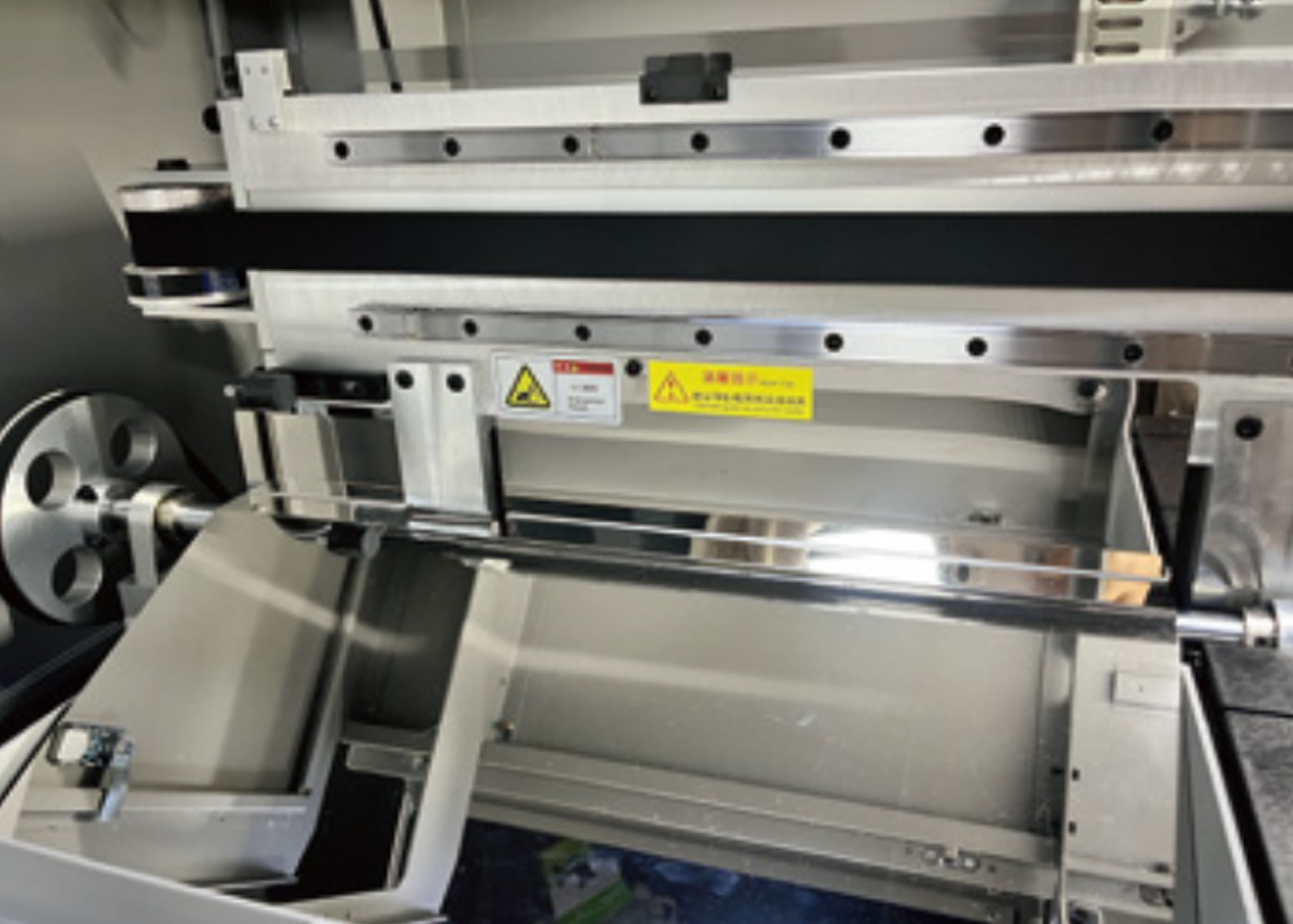

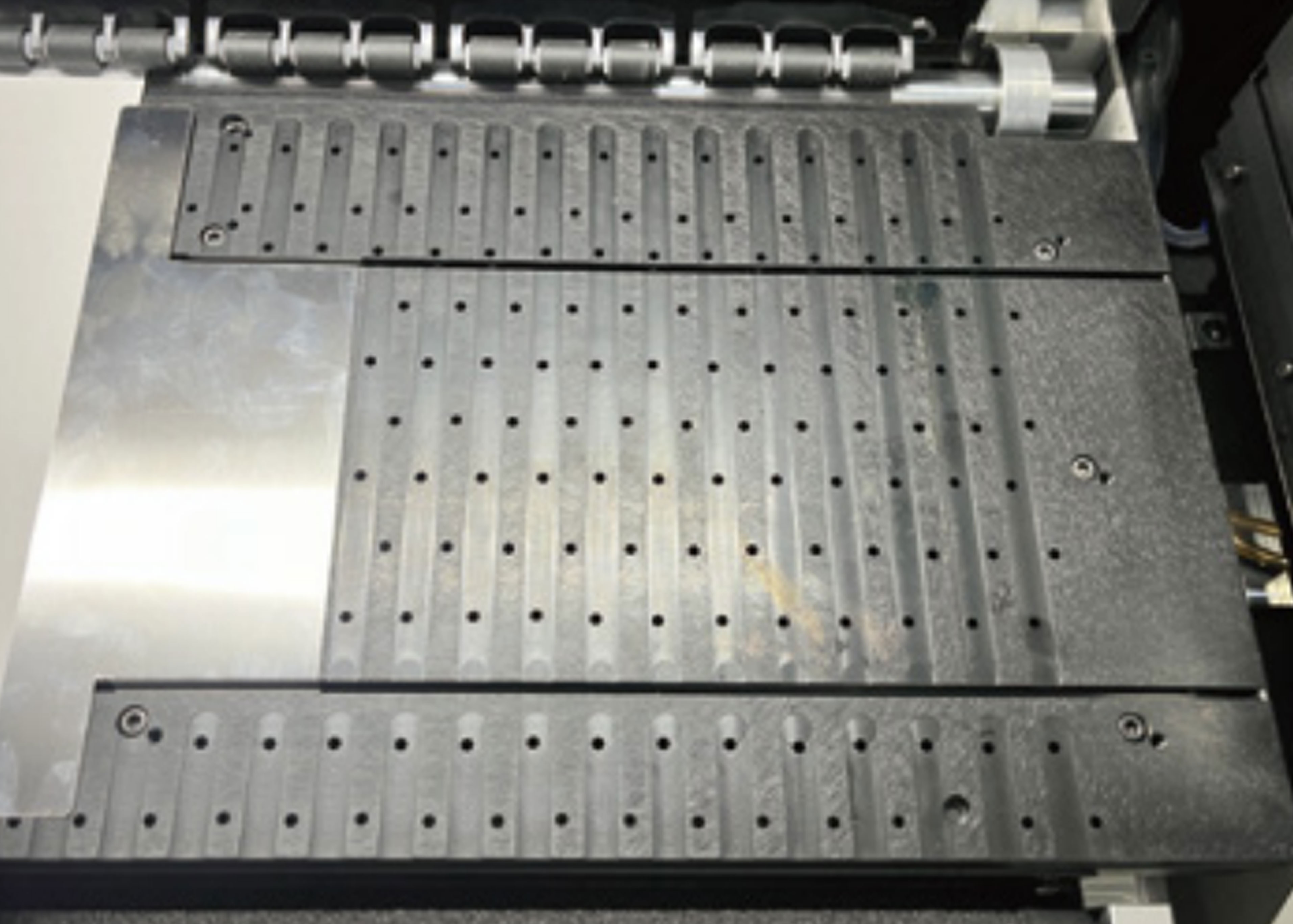

 | Vertical groove guidegas platform,make paper surfacemore smooth | | Swing rod upgrade optimization for increased strength and stability |

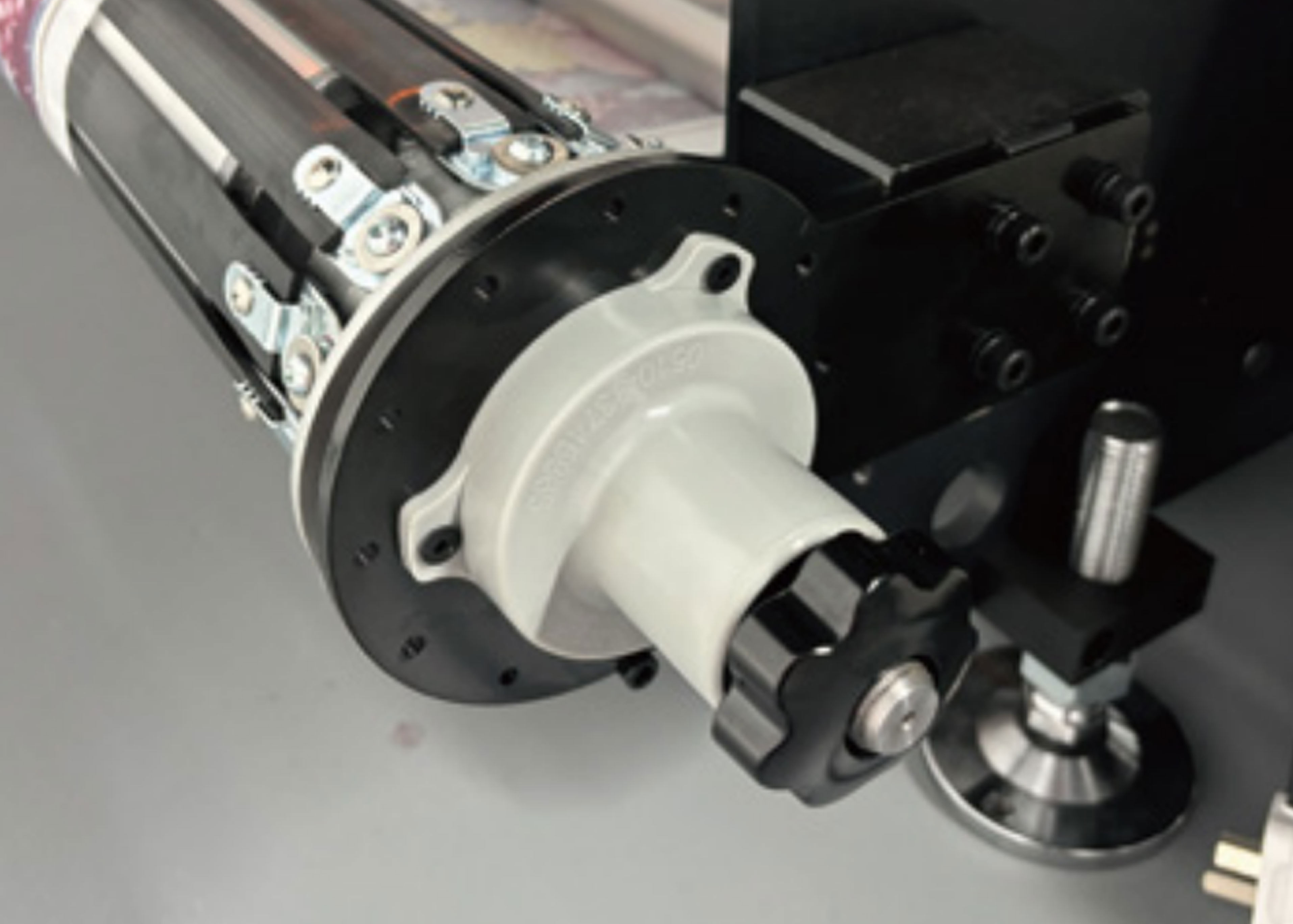

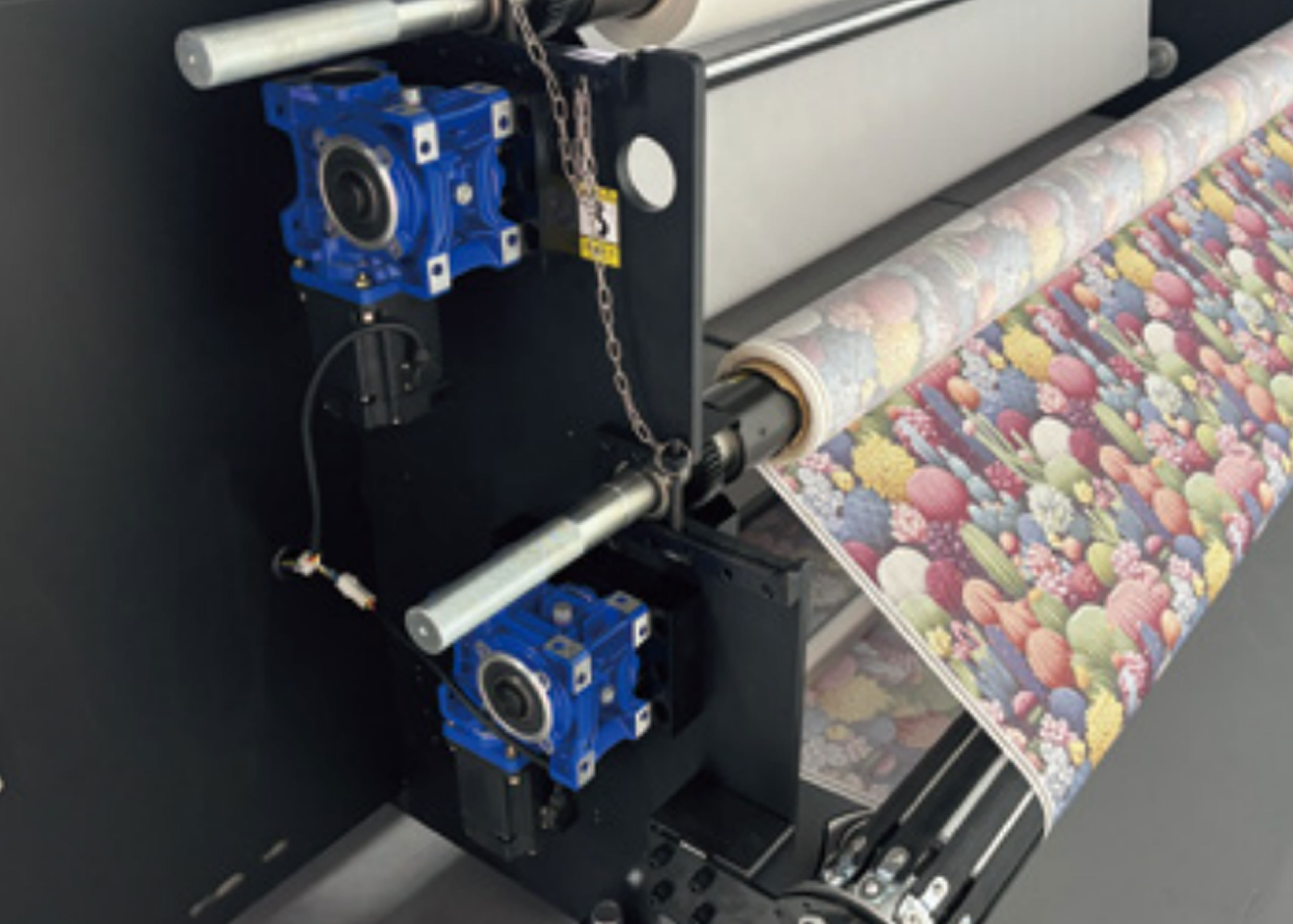

 | Motor uses AC servo motor to make the trolley movement smootherand the printing point more accurate |  | Inflatable shaft upgradeis sliding type, convenient materials up and down |
Application
Applications of AJ-2008TX UItra 2m High Speed Dye Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With Ainkjet series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
