Product Description
| Ultra Dye Sublimation Printer Brand New Print headsPrint Heads I3200-A1-2 High Speed & High Yield with Premium Quality Equipped with 16 brand-new I3200-A1-2 industrial printheads, printing speed increased by 20%-25%. It reaches 800㎡/h in 1 Pass-CMYK mode, supports up to 1200dpi resolution and 3.5pl ink droplet control, balancing high-speed production and high-definition printing. 2m Wide Format & Flexible Color System Adopts 2000mm industrial wide-format design for large-size materials. Dual CMYK configuration with 4 optional spot color channels. Sublimation ink delivers vibrant colors and high color fastness after transfer printing. Stable Ink Supply & Continuous Production Siphon ink path with automatic ink refilling enables non-stop ink replacement. Supports up to 3000m long rolls and 210mm outer diameter, compatible with ≥30g sublimation paper for long-run orders. Stable Feeding & Efficient Drying High-precision feeding system and air-guided vacuum platform keep media flat. Triple infrared + hot air integrated drying ensures instant drying. Automatic cleaning and moisturizing system protect printheads from clogging. Wide Applications Ideal for apparel & home textiles (sportswear, swimwear, curtains, bedding), advertising (flags, banners, light box cloth), and industrial customization (custom fabrics, transfer printing) for polyester and chemical fiber materials. |
New Feature of UV Printer We have an excellent technical team, which can be designed according to customers requirements. |
 | | | |
Technical Specifications

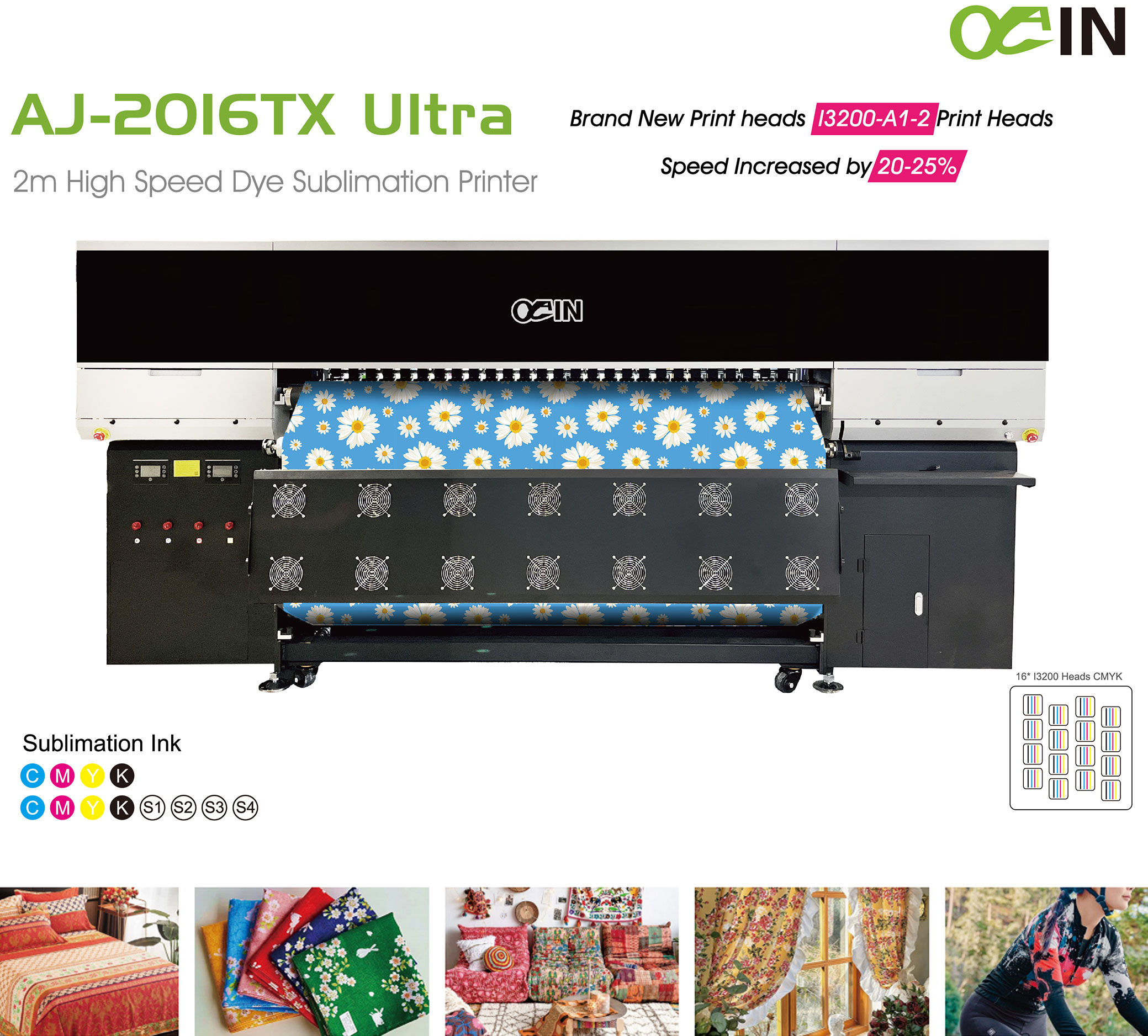

| AINKJET AJ-2016TX UItra 2m High Speed Dye Sublimation Printer | ||
| Mode | AJ-2016TX Ultra | |
| Print Head | 16 I3200-A1-2 Print Heads | |
| Droplet Size | 3.5pl | |
| Printing Technology | Piezoelectric Inkjet | |
Acceptable Media | Width | 2000(mm) |
Thickness | ≥30g | |
Outer Diameter | 210 mm(8.3in) | |
Bearing Meter | 3000m | |
Ink Cartridges | Type | 220ml secondary ink tank + 5L ink bottle |
Color | CMYK/CMYK+S1S2S3S4 | |
| Supply | Siphon ink path system + automatic refill ink system | |
| Printing Medium | Heat transfer paper | |
| Printing Resolution | Maximum 1200 dpi | |
| Printing Speed | 1pass(720x600dpi): 800sqm/h | |

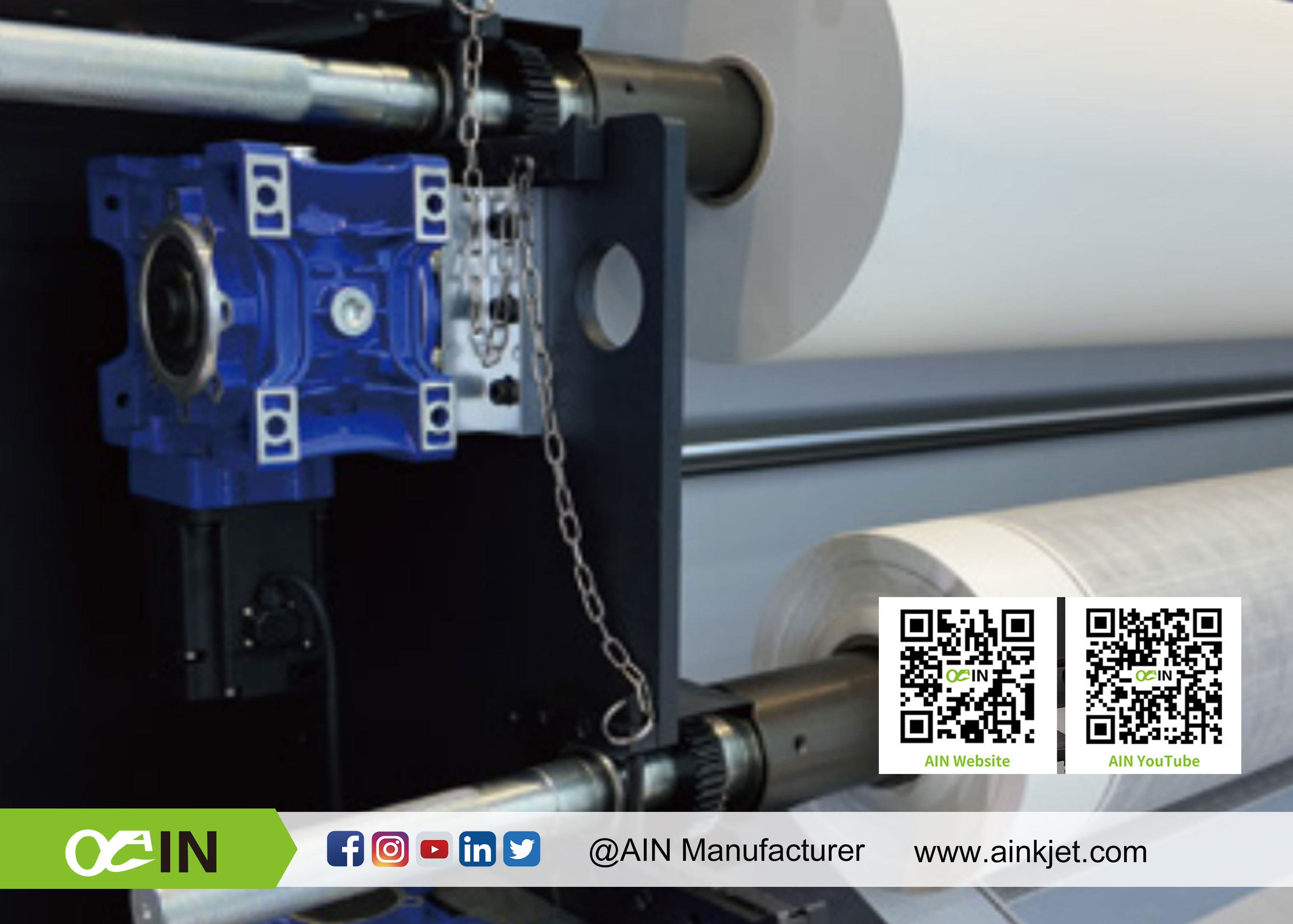

Print Media Control | Air Expansion Shaft Take-up System | |
Dryer | External Automatic Air/ Heat Integrated Dryer | |
| Moisturizing | Automatic Cleaning and Moisturizing Integrated Unit | |
| RIP Software | Maintop6.0、 Photoprint、Onyx,NeoStampa, PrintFactory (Ultraprint as standard and other softwares optional) | |
| File Format SupportedJ | JPG, TIFF, PDF, etc. | |
| Interface | USB 3.0 | |
| Drying | System : Maximum 12000W PowerPrinting System : 3200W | |
Power Supply | AC 220V + 5%,16A, 50HZ+1 | |
| Drying system | 3670(W)x1650(D)x1800(H) mm | |
| Weight(with stand) | 2645 Ib.(1200 kg) | |
Environment | Power on | Temperature: 59℉ to 90℉ [15℃ to 32℃] (68℉[20℃] / Humidity: 35 to 80% (No Condensation) |
| Power off | Temperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (No Condensation) | |
| Accessories | External Automatic Control Air And Heat Integrated Dryer, Low-ink Alarm System, Double air-shaftMedia Loading And ta-up System, Automatic Moisturizing Cleaning System | |
Printer Heads
| Epson Inkjet Head - i3200-A1
The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features

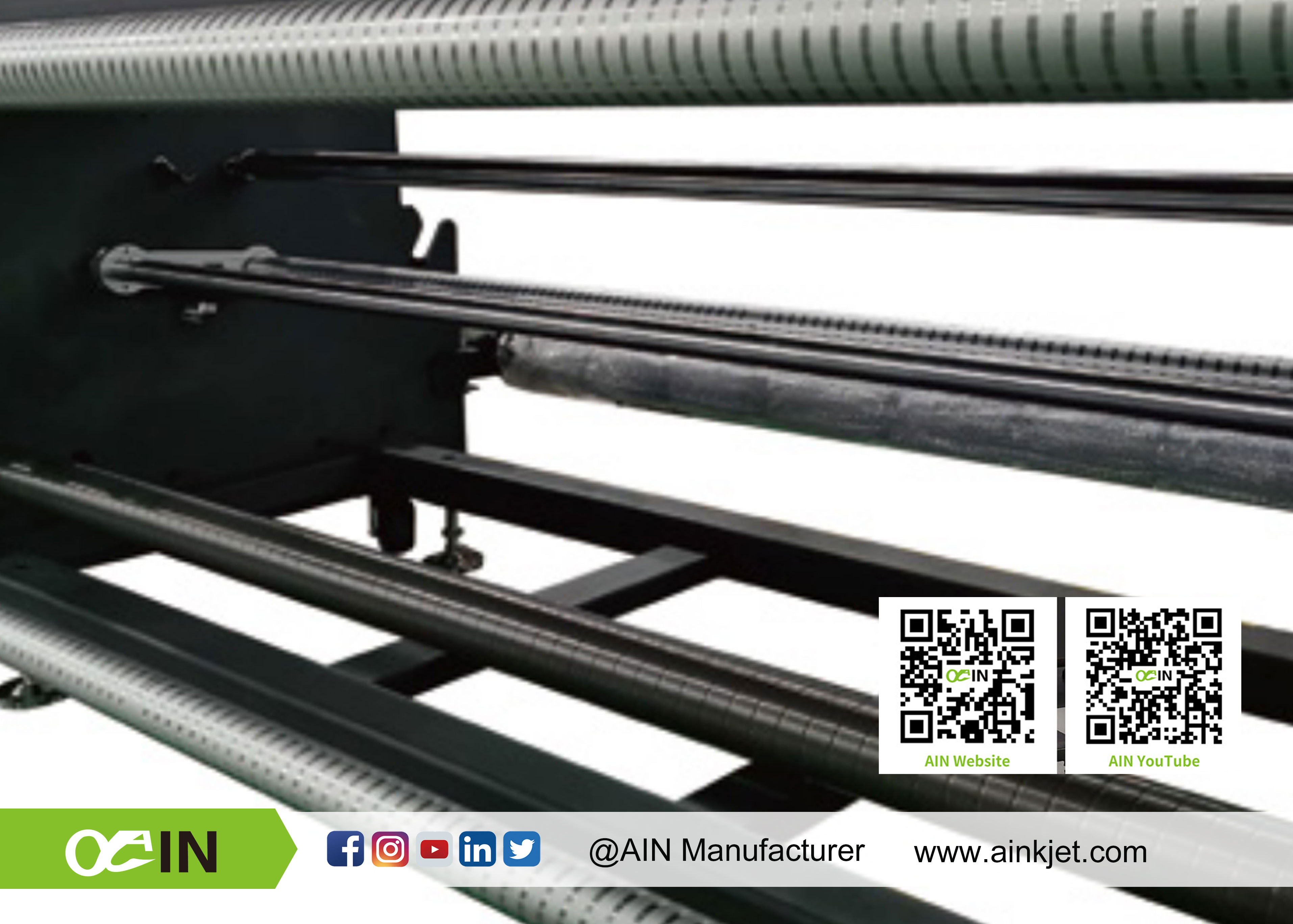

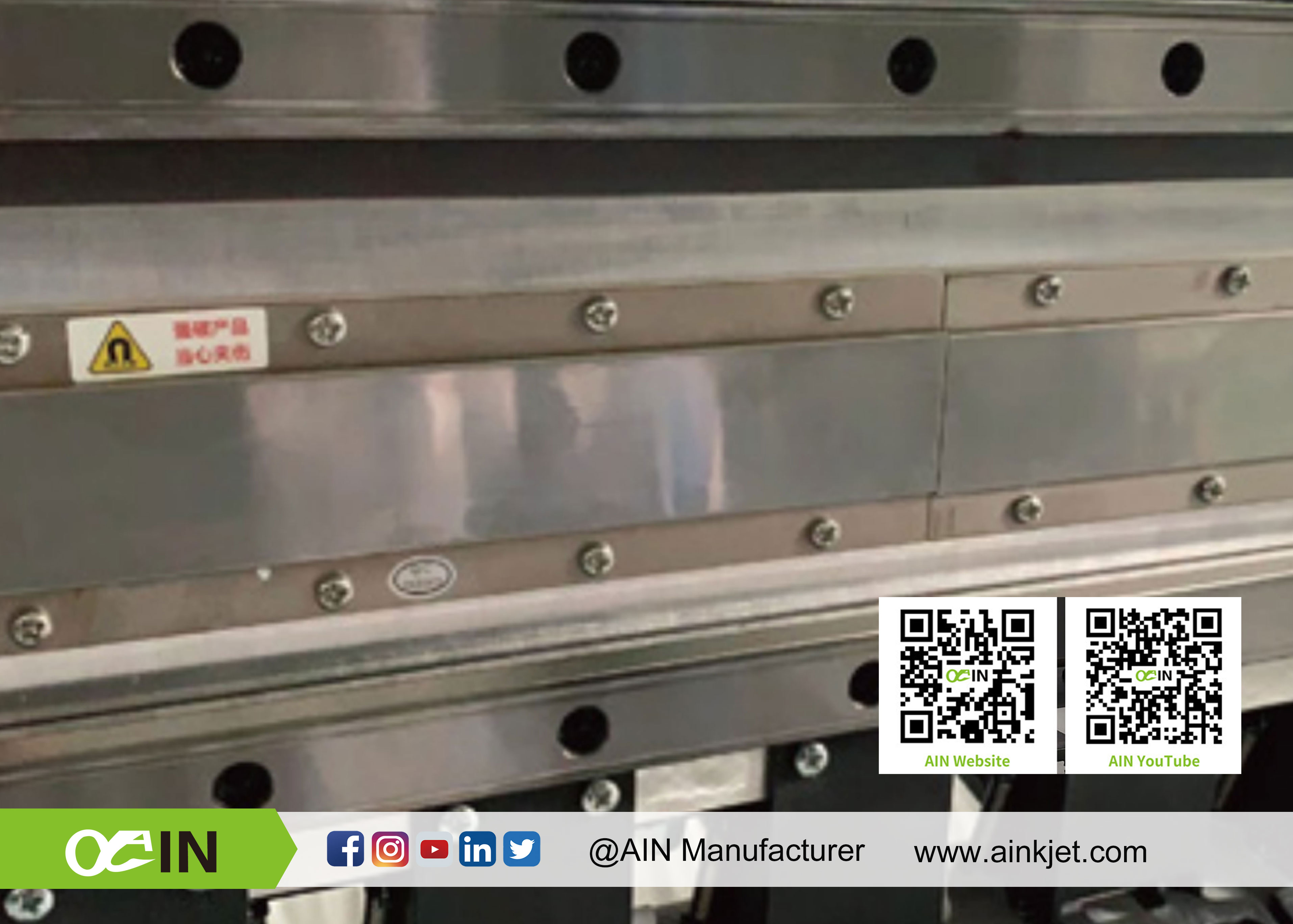

| Long-Length Media Feeding System Automatic Ink Supply Systemfor Easy Ink Refilling |  | Ensures higher printin gaccuracy, stable carriage movement and quieter operation |

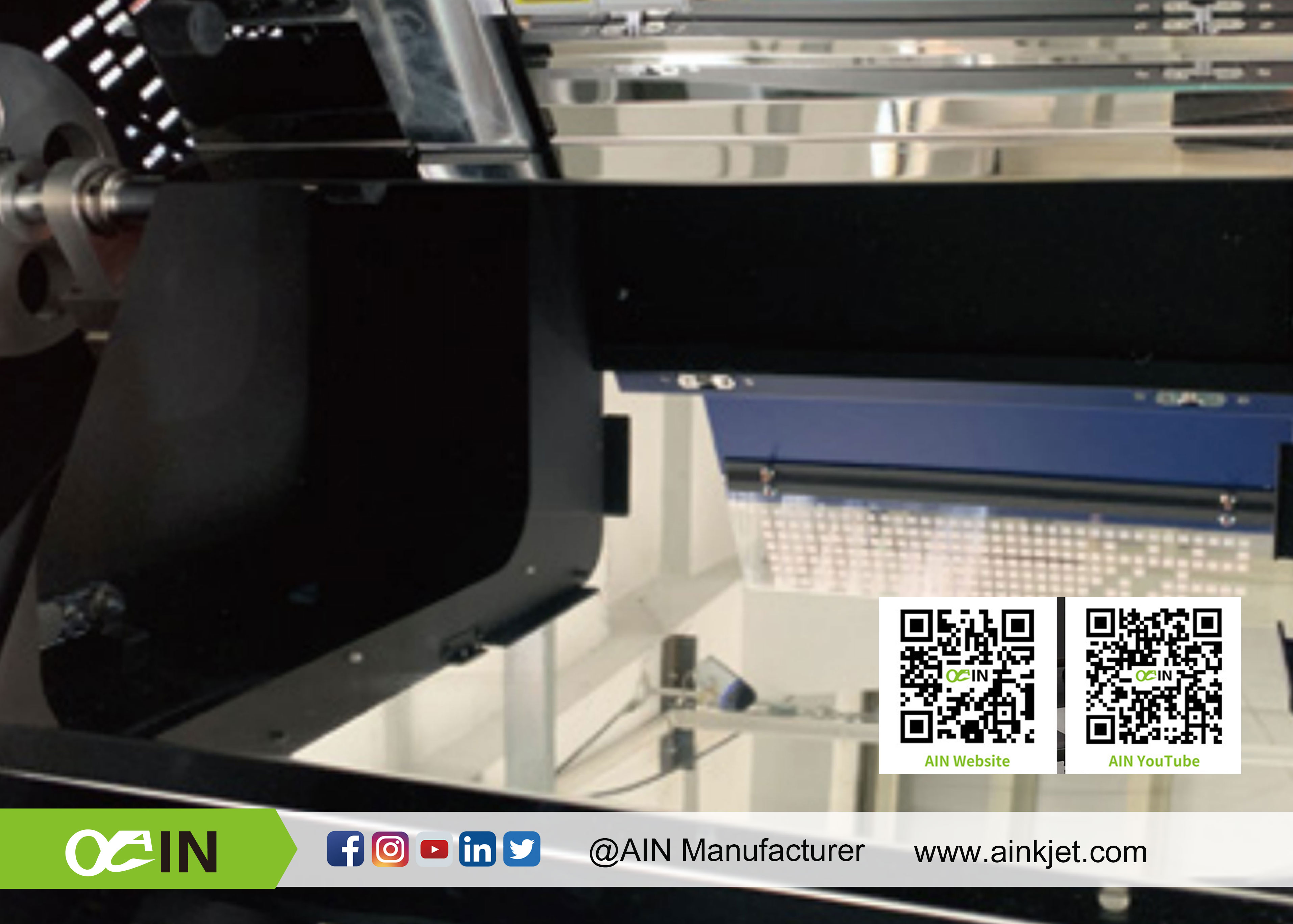

| Mirror Baffle Design Allows easy observation of the printhead condition for convenient maintenance. |  | Insulated Bottom Dryer Thermal insulation design reduces energy consumption while improving drying efficiency. |

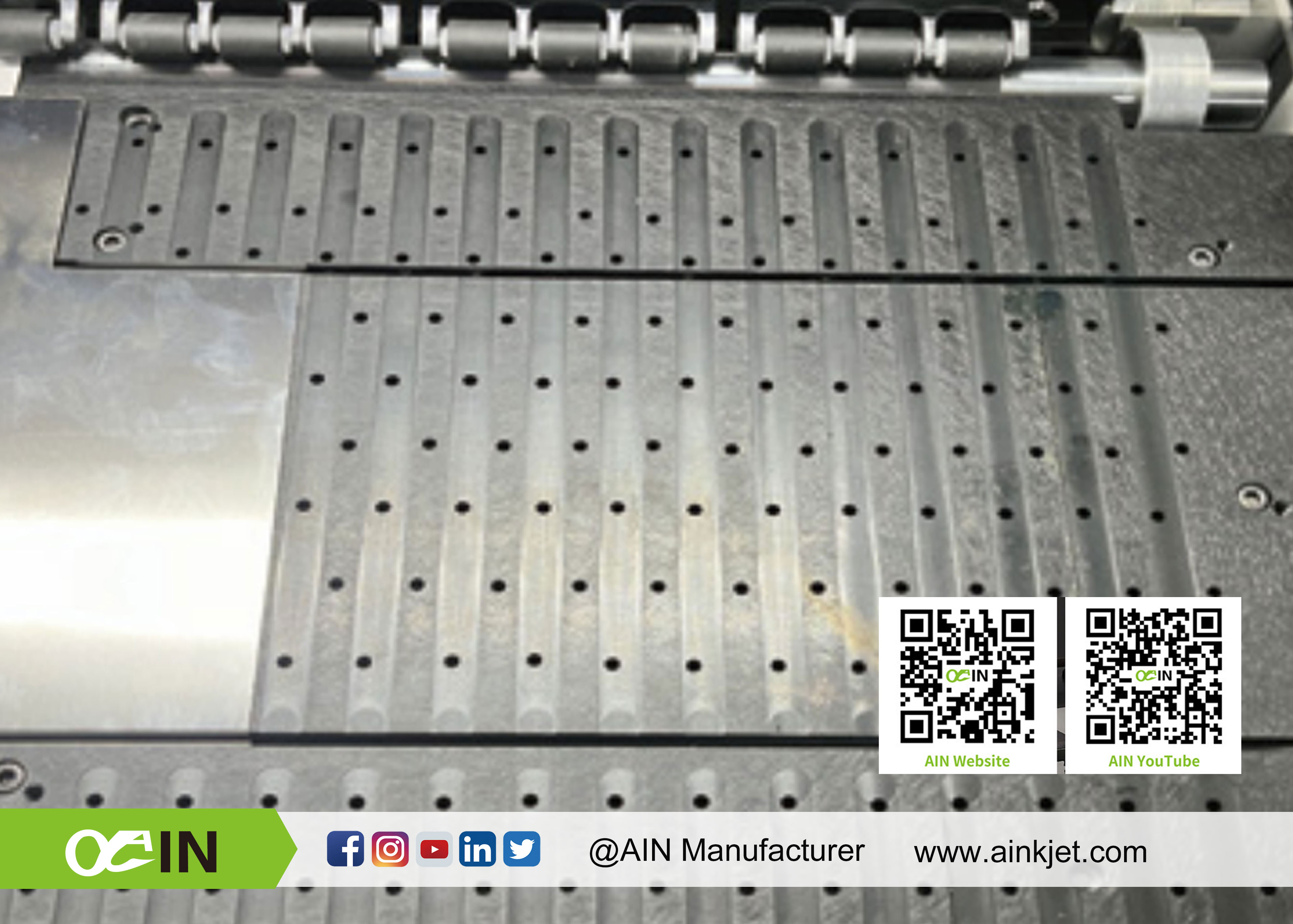

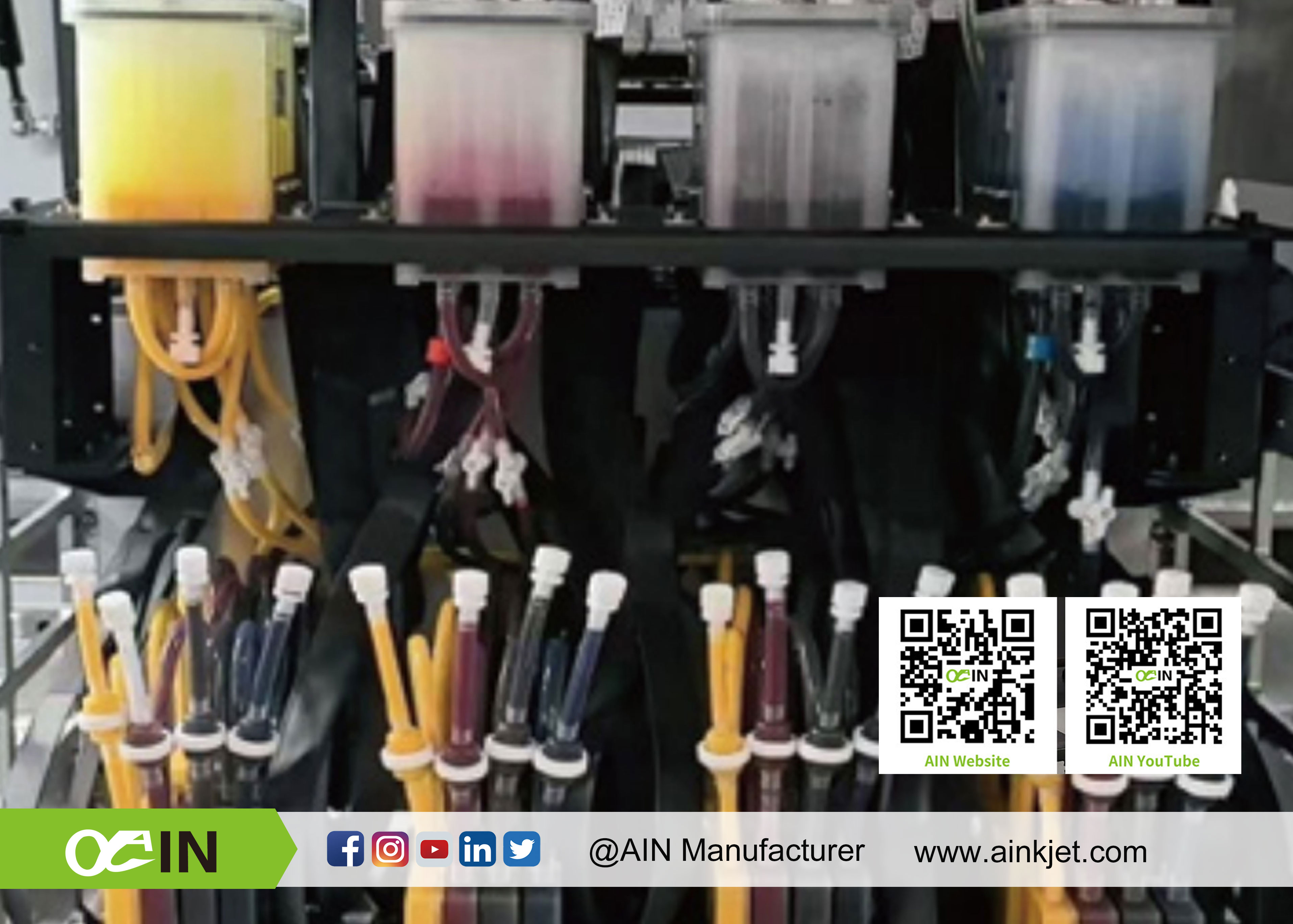

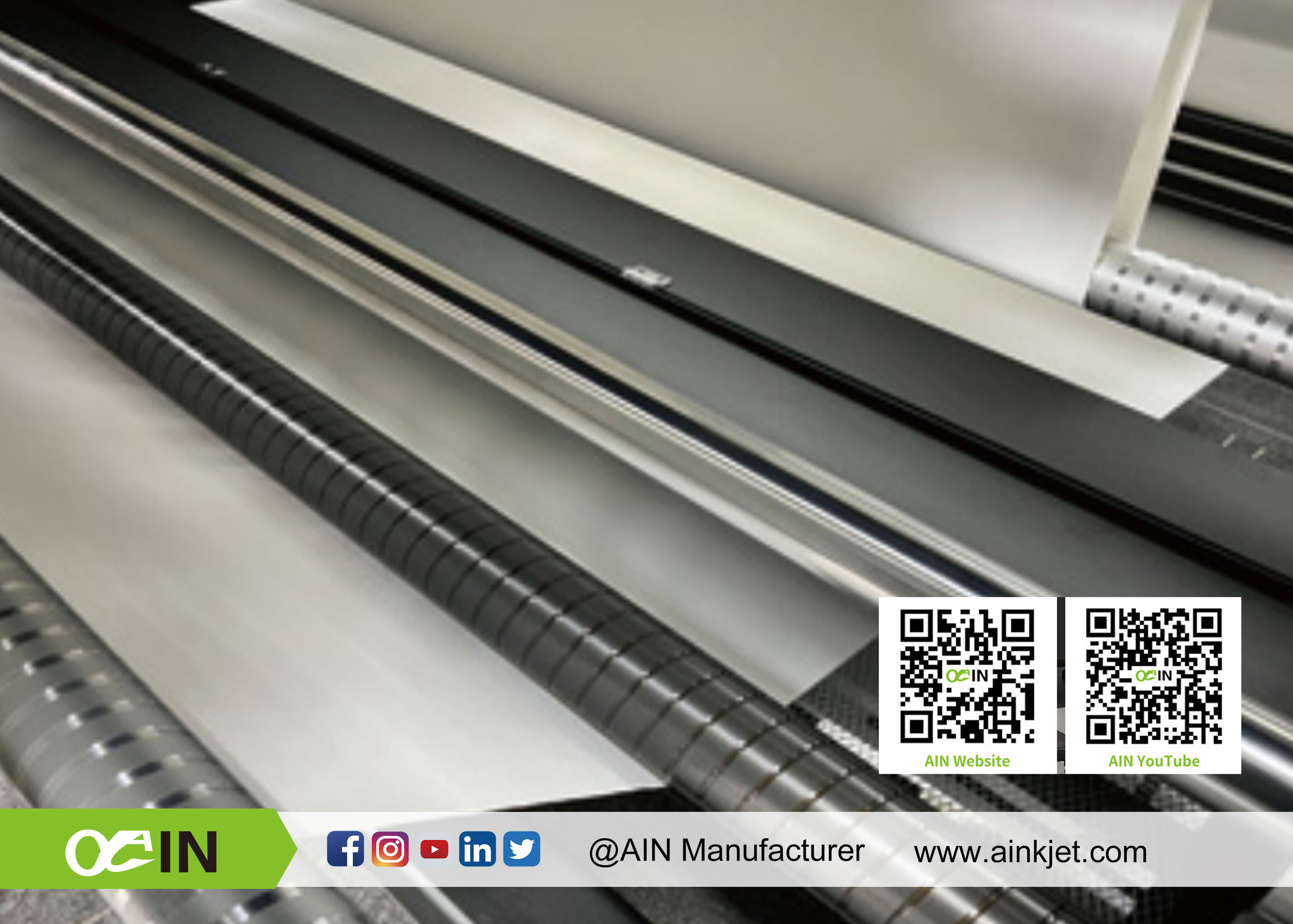

| Large Ink Bottle Supply System Large external ink bottles withsub tanks provide stable inksupply and more carriage space. |  | Air-Guiding Vacuum Platform Vertical air-guiding structure keeps media flatter during printing. |
 | Swing-Rod Tension System Improves media feeding stability and ensures smoother and quieter operation. |  | Triple Infrared DryingSystem External triple infrared dryers provide precise temperature control and efficient drying. |
Application

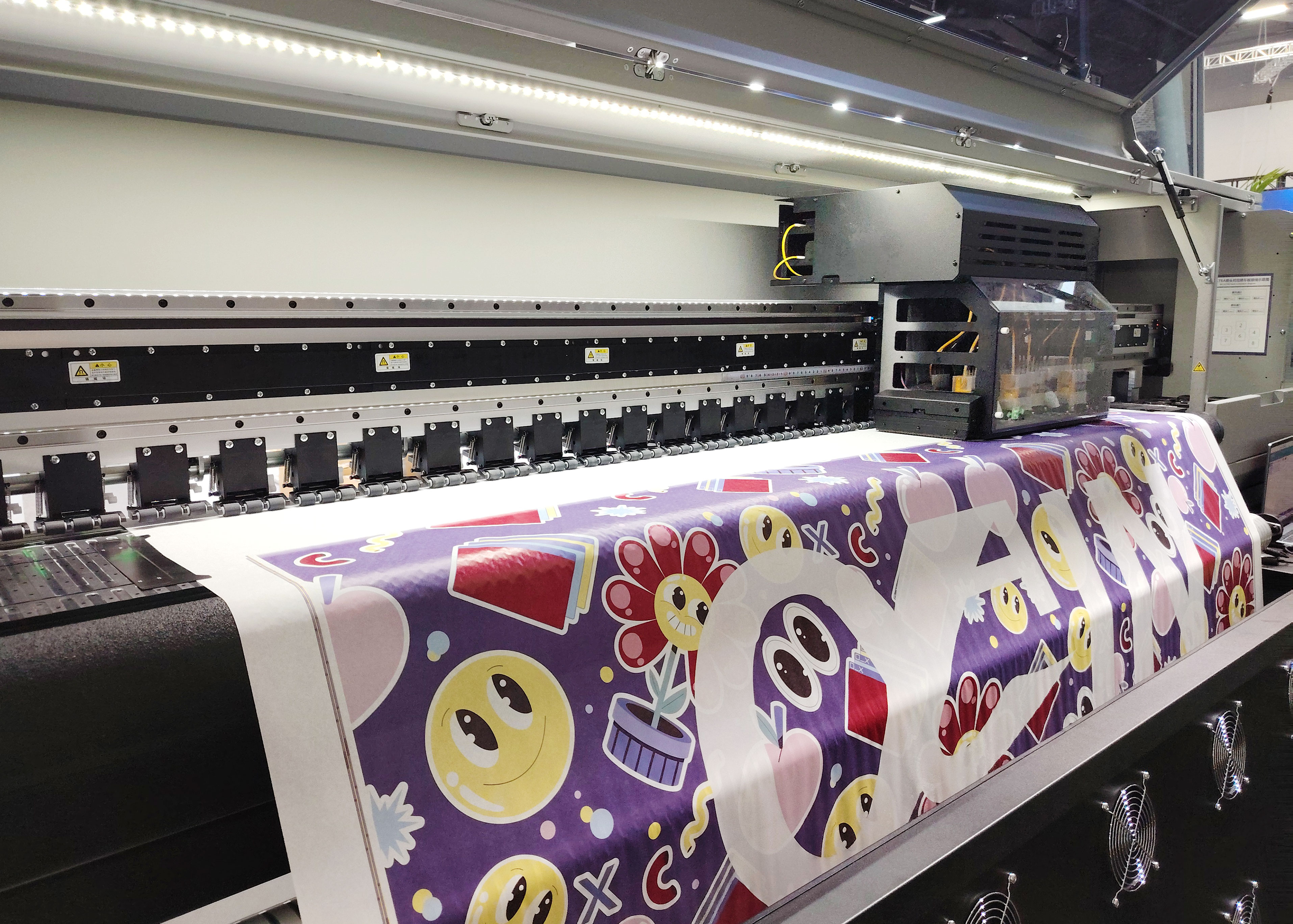

Applications of AJ-2008TX UItra 2m High Speed Dye Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant，reliable and precise. With Ainkjet series printer , you can maximize production while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition . Wide applications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.
