Product Description
| 1.9m High Speed Dye Sublimation Printer Compact Size Delivers Exceptionally High Output Superior Printing Configuration Compact footprint with industrial-grade 1.9m printing width, equipped with 8 EPSON i3200-A1 piezoelectric printheads to deliver both high-speed mass production and delicate high-definition patterns. High performance sublimation dye ink Standard CMYK four-color sublimation dye ink and large-capacity continuous ink supply system with low ink alarm function. Multi-color expansion is optional to satisfy rich color requirements of high-end printing. Stable Long-Roll Media Handling It accepts standard 1000m jumbo rolls and up to 3000m transfer paper per roll. Automatic air expansion shafts, dual air-chain platform and reinforced swing rods deliver auto tension control for wrinkle-free, offset-free long-roll feeding with vibration-free high-speed operation. High Speed & Efficient Drying The maximum printing speed reaches 380㎡/h, greatly improving delivery efficiency for bulk apparel and home textile orders. The external integrated hot air dryer instantly dries printed paper to prevent transfer adhesion and color bleeding. Wide-Range Industrial Application Compatible with all sublimation fabrics such as polyester, elastic fabric and microfiber. It is widely used in digital heat transfer production for sportswear, home textiles, advertising flags, cultural gifts and industrial chemical fiber fabrics. |
 |  |  |  |
 |  |  |  |
Technical Specifications
| AINKJET AJ-1908TX 1.9m High Speed Dye Sublimation Printer | ||
|---|---|---|
| Model | AJ-1908TX | |
| Print Head | Eight I3200 Print Heads | |
| Droplet Size | 3.5pl | |
| Printing Technology | Piezoelectric Inkjet | |
| Acceptable Media | Width | 1900(mm) |
| Ink Cartridges | Thickness | ≥30g |
| Outer Diameter | 210 mm(8.3in) | |
| Bearing Meter | 3000m | |
| Type | 220ml secondary ink tank + 5L ink bottle | |
| Color | CMYK/CMYK+LC/LM/KLLK/FM、FY、RE、GR、OR、BL | |
| Supply | Siphon ink path system + automatic refill ink system | |
| Print Media | Heat Transfer Paper | |
| Printing Resolution | Maximum 1200 dpi | |
| Printing Speed | 1pass(720x600dpi): 4090sqft(380sqm/h)2pass(720x600dpi): 2421sqft(225 sqm/h) | |
| Media Loading and Take-up | Automatic Air Expansion Shaft System | |
| Dryer | External Automatic Air/ Heat Integrated Dryer | |
| Moisturizing | Automatic Cleaning and Moisturizing Integrated Unit | |
| RIP Software | Maintop6.0、Photoprint、Onyx、NeoStampa、PrintFactory (Ultraprint as standard and other softwares optional) | |
| File Format Supported | JPG / TIFF / PDF, etc | |
| Interface | USB 3.0 | |
| Power | Printing system : 2000W Drying system : Maximum 8000W | |
| Power Supply | AC 220V ± 5%,16A, 50HZ±1 | |
| Dimensions(with stand) | 3700(W)x1250(D)x1850(H) mm | |
| Weight(with stand) | 2645 lb. (1200 kg) | |
| Environment | Power on | Temperature: 59 ℉ to 90 ℉ [15℃ to 32℃] (68 ℉ [20℃]) / Humidity: 35 to 80% (No Condensation) |
| Power off | Temperature: 41 ℉ to 104 ℉ [5℃ to 40℃] / Humidity: 20 to 80% (No Condensation) | |
| Accessories | External Automatic Control Air And Heat Integrated Dryer, Low-ink Alarm System, Double air-shaft Media Loading And take-up System, Automatic Moisturizing Cleaning System | |
Printer Heads
| Epson Inkjet Head - i3200-A1 The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers
| Product name | EPSON i3200-A1 |
| Ink Type | Aqueous | |
| Type | PrecisionCore MicroTFP printhead | |
| WidthxDepthxHeight | 69.1x 59.4 x 35.6 mm | |
| Number of Nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle rows | 8 rows | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Droplet volumes | 6 pl (Single mode) | |
| 6.3,1 2.3 pl (Multi mode) |
Features
 |

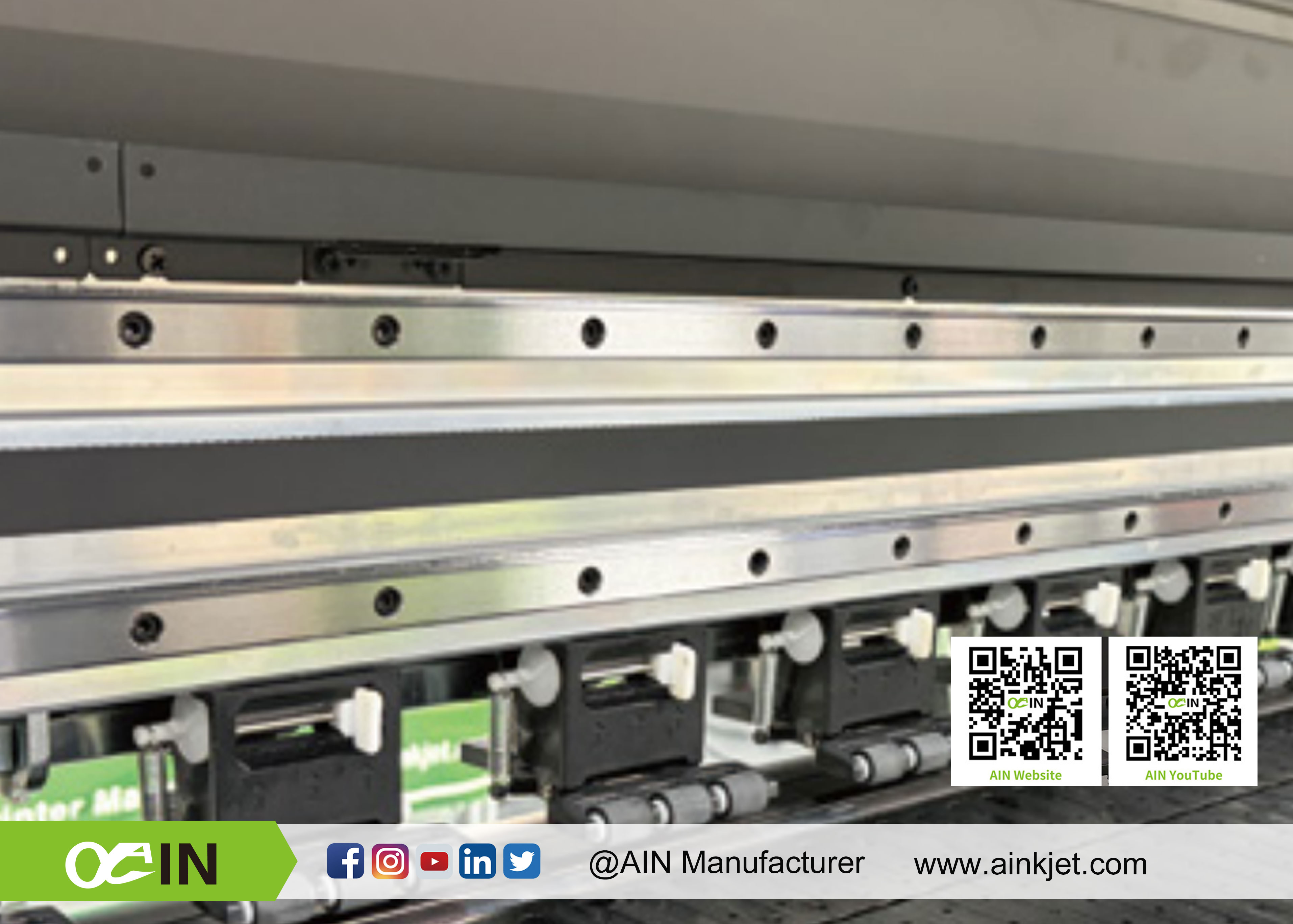

Wider and thicker girder with THK silent double guide rails |  |

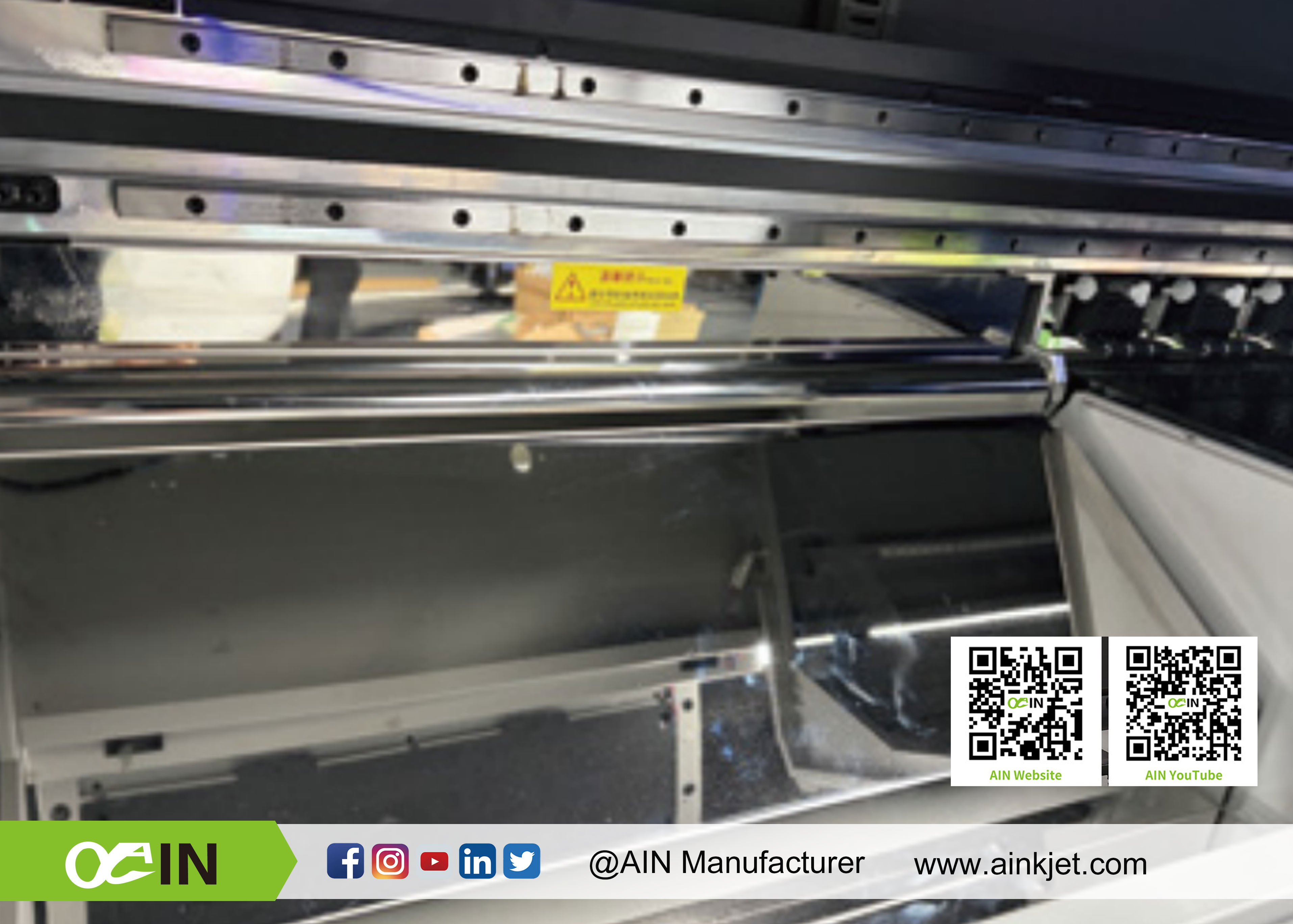

Mirror baffle, easy to observe the nozzle condition and maintenance |
 |
Feeding adopt servo motor, make the paper more stable and more accurate |  |

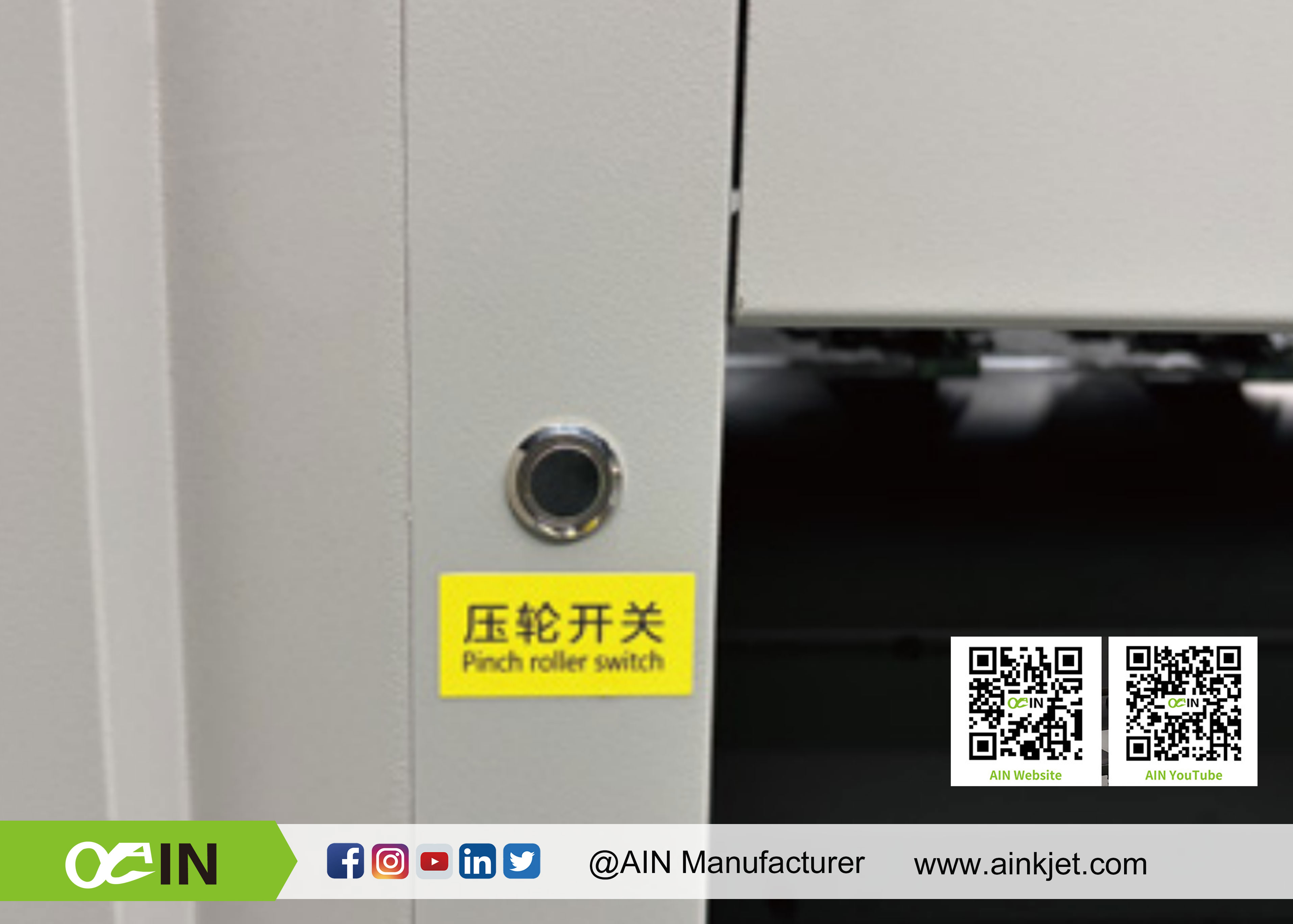

Adjustable pinch rollers |

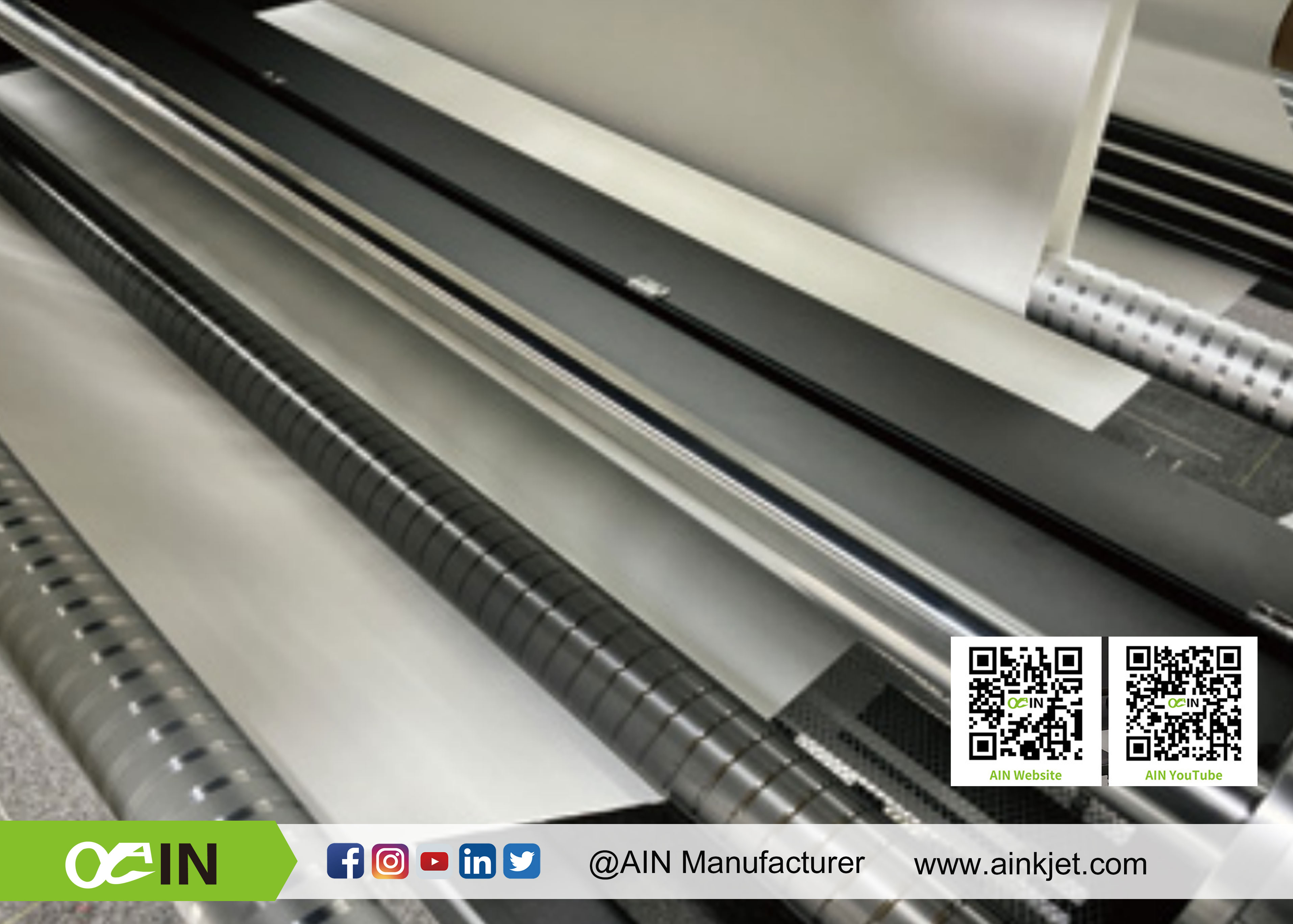

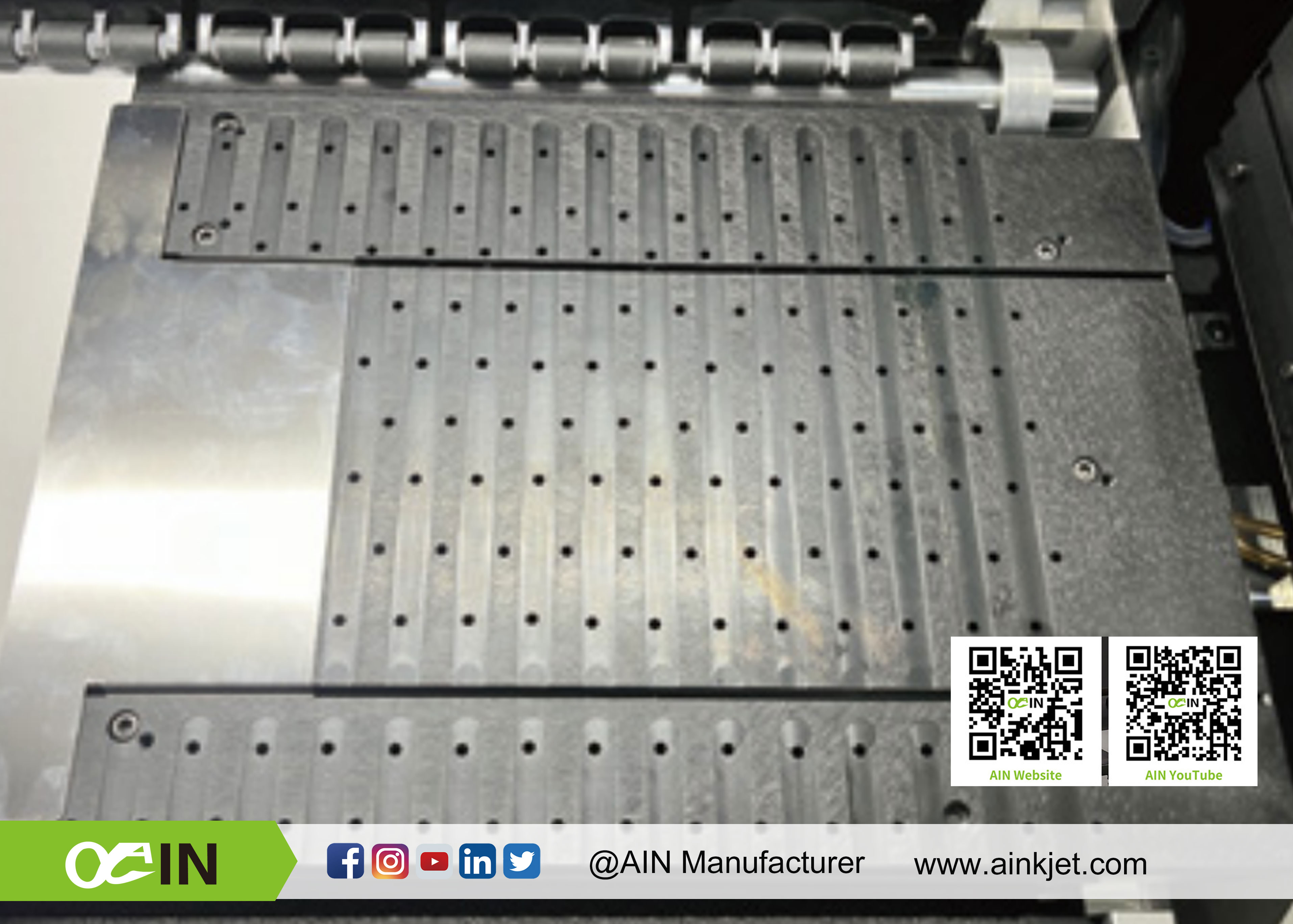

 | Vertical groove guide gas platform, make paper surface more smooth |  | Swing rod upgrade optimization for increased strength and stability |

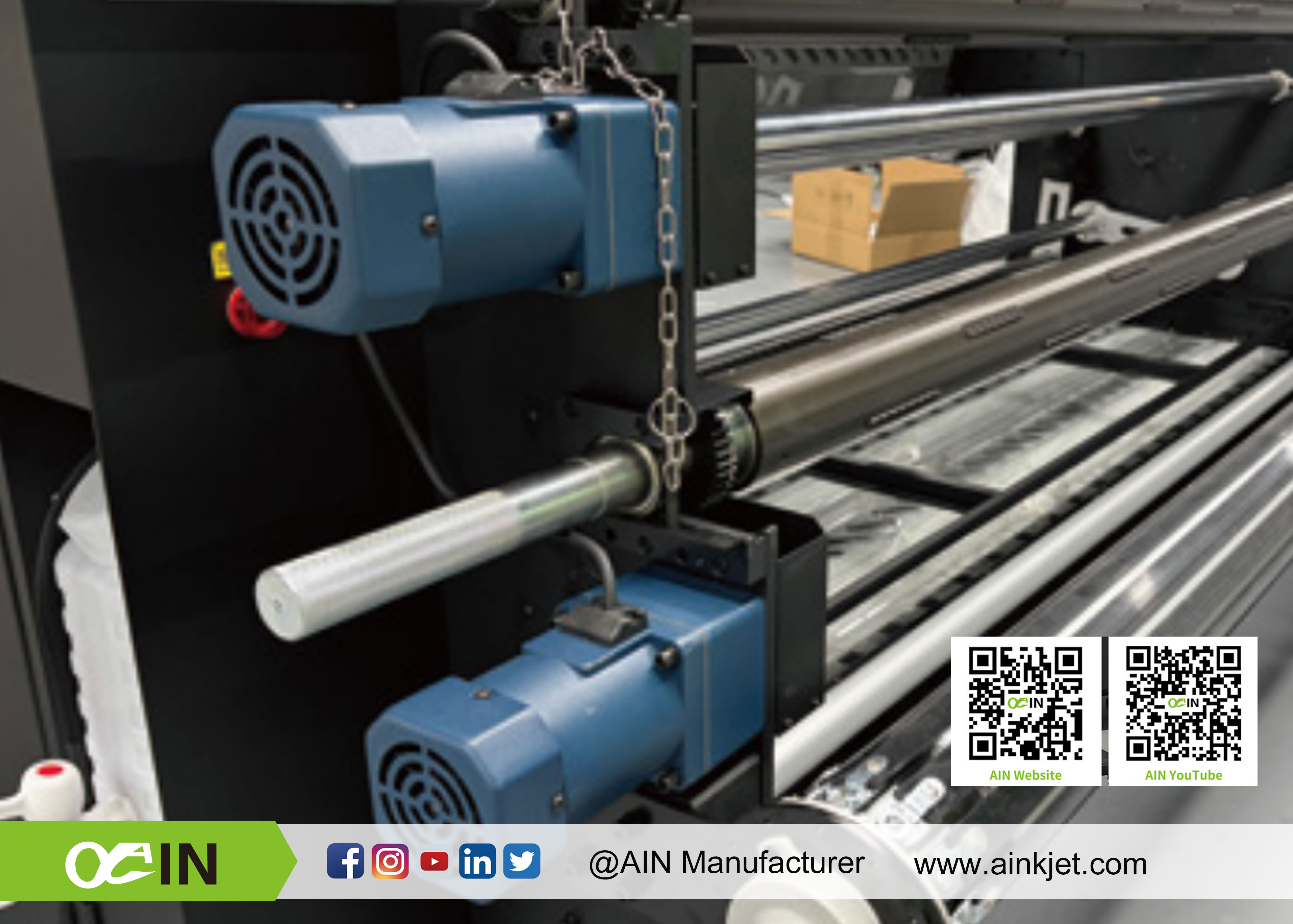

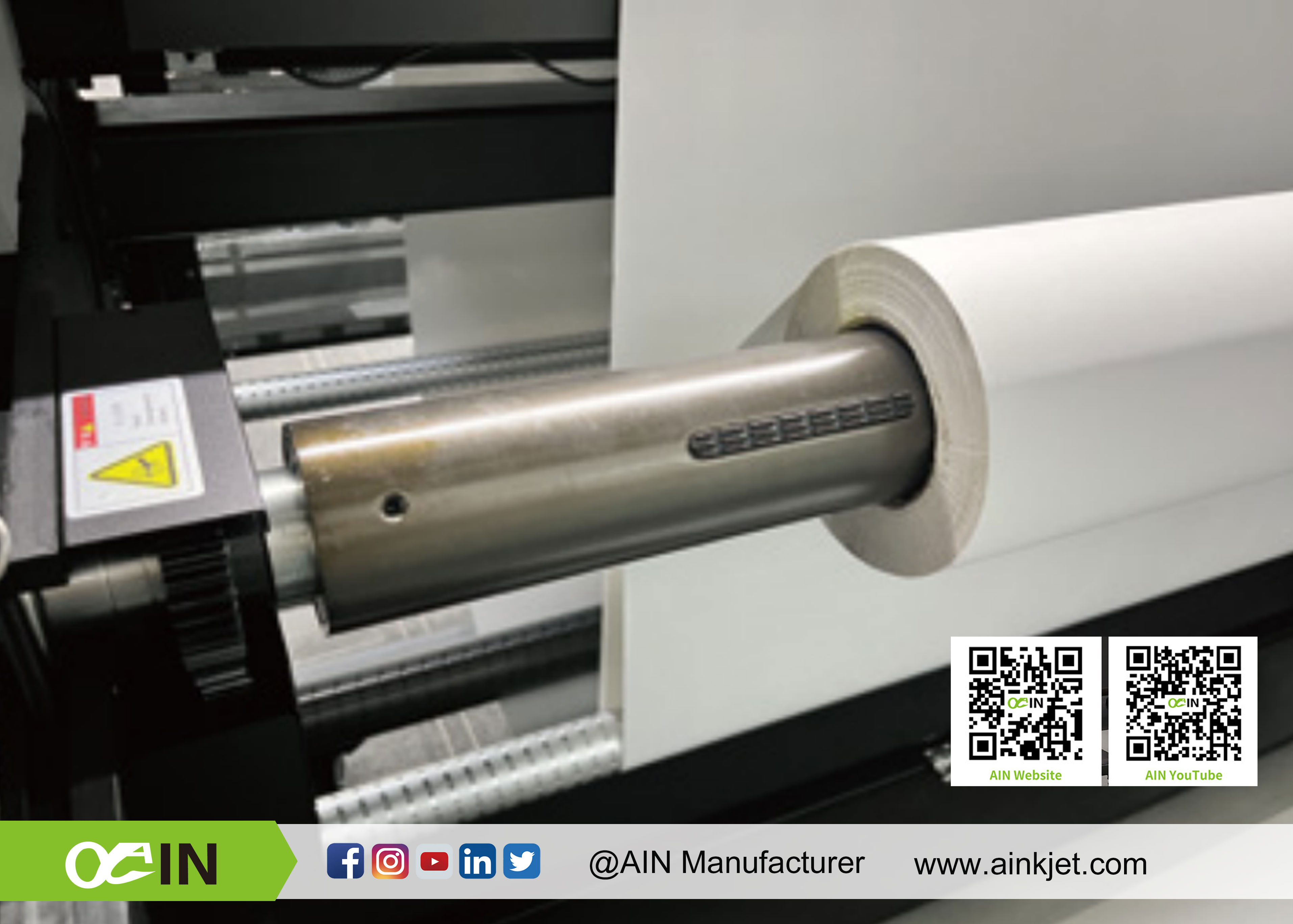

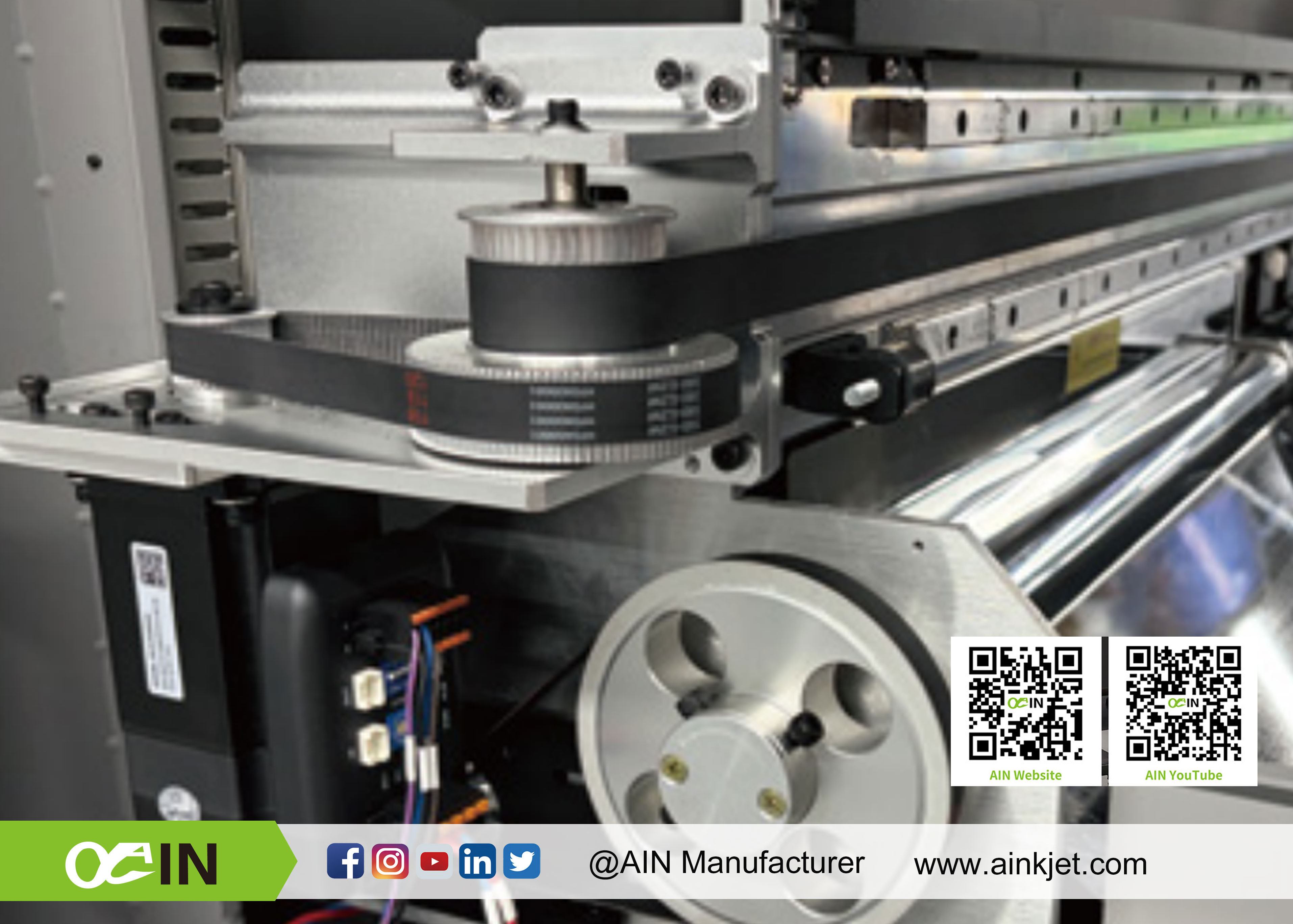

| Motor uses AC servo motor to make the trolley movement smoother and the printing point more accurate |  | Inflatable shaft upgrade is sliding type, convenient materials up and down |
Application
Applications of 1.9m High Speed Dye Sublimation Printer
Both the sublimation and direct-to-textile printers are examples of our expertise and engineering: top performant, reliable and precise. With Aink series printer, you can maximize textile output while controlling quality and minimizing costs for beautiful soft signage, apparel and interior decor items that will set your business apart from the competition.
